Biocompatible “click” wafer bonding for microfluidic devices

Author affiliations


We introduce a novel dry wafer bonding concept designed for permanent attachment of micromolded polymer structures to surface functionalized silicon substrates. The method, designed for simultaneous fabrication of many lab-on-chip devices, utilizes a chemically reactive polymer microfluidic structure, which rapidly bonds to a functionalized substrate via “click” chemistry reactions. The microfluidic structure consists of an off-stoichiometry thiol-ene (OSTE) polymer with a very high density of surface bound thiol groups and the substrate is a silicon wafer that has been functionalized with common bio-linker molecules. We demonstrate here void free, and low temperature (< 37 °C) bonding of a batch of OSTE microfluidic layers to a silane functionalized silicon wafer.

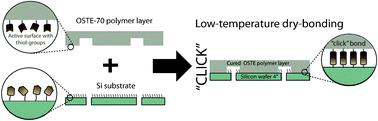

Graphical abstract: Biocompatible “click” wafer bonding for microfluidic devices

Back to tab navigation

Publication details

The article was received on 11 Nov 2011, accepted on 14 May 2012 and first published on 15 May 2012

Article type: Technical Innovation
DOI: 10.1039/C2LC21098C
Citation: Lab Chip, 2012,12, 3032-3035

  •   Request permissions

    Biocompatible “click” wafer bonding for microfluidic devices

    F. Saharil, C. F. Carlborg, T. Haraldsson and W. van der Wijngaart, Lab Chip, 2012, 12, 3032
    DOI: 10.1039/C2LC21098C
