Issue 10, 2011
Previous Article Next Article

Sulfur-containing amide-based [2]rotaxanes and molecular shuttles

Author affiliations


We report on the synthesis, structure and properties of [2]rotaxanes prepared by the assembly of benzylic amide macrocycles around a series of amide and sulfide-/sulfoxide-/sulfone-containing threads. The efficacy of rotaxane formation is related to the hydrogen bond accepting properties of the various sulfur-containing functional groups in the thread, with the highest yields (up to 63% with a rigid vinyl spacer in the template site) obtained for sulfoxide rotaxanes. X-Ray crystallography of a sulfoxide rotaxane, 5, shows that the macrocycle adopts a highly symmetrical chair-like conformation in the solid state, with short hydrogen bonds between the macrocycle isophthalamide NH-protons and the amide carbonyl and sulfoxide S–O of the thread. In contrast, in the X-ray crystal structures of the analogous sulfide (4) and sulfone (6) rotaxanes, the macrocycle adopts boat-like conformations with long intercomponent NH⋯O[double bond, length as m-dash]SO and NH⋯S hydrogen bonds (in addition to several intercomponent amideamide hydrogen bonds). Taking advantage of the different hydrogen bonding modes of the sulfur-based functional groups, a switchable molecular shuttle was prepared in which the oxidation level of sulfur determines the position of the macrocycle on the thread.

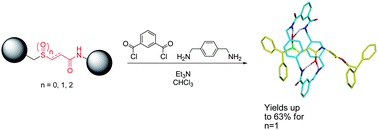

Graphical abstract: Sulfur-containing amide-based [2]rotaxanes and molecular shuttles

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 May 2011, accepted on 21 Jun 2011 and first published on 14 Jul 2011

Article type: Edge Article
DOI: 10.1039/C1SC00335F
Chem. Sci., 2011,2, 1922-1928

  •   Request permissions

    Sulfur-containing amide-based [2]rotaxanes and molecular shuttles

    A. Altieri, V. Aucagne, R. Carrillo, G. J. Clarkson, D. M. D'Souza, J. A. Dunnett, D. A. Leigh and K. M. Mullen, Chem. Sci., 2011, 2, 1922
    DOI: 10.1039/C1SC00335F
