Issue 14, 2010

Manufacturing and application of a fully polymeric electrophoresis chip with integrated polyaniline electrodes

Author affiliations

Abstract

This work describes the development of a fully polymeric microchip with integrated polymeric electrodes suitable for performing microchip electrophoresis. The polymer electrodes were fabricated in a thin film of the conducting polymer, polyaniline (PANI), by flash lithography using a studio camera flash and a transparency mask. During flash welding, exposed regions welded into non-conducting regions forming a conducting polymer circuit in the non-exposed regions. Using a structured layer of dry film photoresist for sealing, a polydimethylsiloxane (PDMS) substrate containing channels and reservoirs was bound to the PANI film to form an integrated microfluidic device. The conducting regions of the PANI film were shown to be capable of carrying the high voltages of up to 2000 V required for chip electrophoresis, and were stable for up to 30 minutes under these conditions. The PANI electrodes were used for the electrophoretic separation of three sugars labelled with 8-amino-1,3,6-pyrenetrisulfonic acid (APTS) in the dry film resist—PDMS hybrid device. Highly efficient separations comparable to those achieved in similar microchips using platinum electrodes confirm the potential of polyaniline as a new material suitable for high voltage electrodes in Lab-on-a-chip devices.

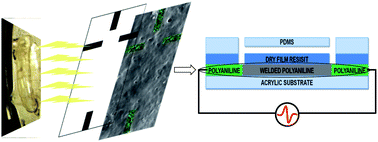

Graphical abstract: Manufacturing and application of a fully polymeric electrophoresis chip with integrated polyaniline electrodes

Supplementary files

Article information


Submitted
17 Feb 2010
Accepted
12 Apr 2010
First published
06 May 2010

Lab Chip, 2010,10, 1869-1872
Article type
Technical Note

Manufacturing and application of a fully polymeric electrophoresis chip with integrated polyaniline electrodes

R. D. Henderson, R. M. Guijt, P. R. Haddad, E. F. Hilder, T. W. Lewis and M. C. Breadmore, Lab Chip, 2010, 10, 1869 DOI: 10.1039/C003333B
