Jump to main content
Jump to site search

Issue 28, 2009
Previous Article Next Article

High capacity double-layer surface modified Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode with improved rate capability

Author affiliations

Abstract

Layered Li[Li0.2Mn0.54Ni0.13Co0.13]O2, which is a solid solution between layered Li[Li1/3Mn2/3]O2 and Li[Ni1/3Mn1/3Co1/3]O2, has been surface modified by single-layer coating with 2–5 wt.% AlPO4, CoPO4, and Al2O3 and double-layer coating with 2 wt.% AlPO4 or 2 wt.% CoPO4 inner layer and 2–3.5 wt.% Al2O3 outer layer. The samples have been characterized by X-ray diffraction (XRD), transmission electron microscopy (TEM), electrochemical impedance spectroscopy (EIS), X-ray photoelectron spectroscopy (XPS), and electrochemical measurements in lithium cells. The double-layer coated samples are found to exhibit lower irreversible capacity loss (Cirr) and higher discharge capacity values than both the pristine and the single-layer coated samples, which are due to the retention of a higher number of oxide ion vacancies in the layered lattice after the first charge. The double-layer coated composite cathodes exhibit Cirr values as low as 26 mAh g−1 with a high discharge capacity of ∼300 mAh g−1, which is two times higher than that achieved with layered LiCoO2. Moreover, the double-layer coated samples exhibit higher rate capabilities than the pristine and single-layer coated samples, which are attributed to the suppression of undesired SEI layers and the fast charge transfer reaction kinetics as indicated by the EIS data.

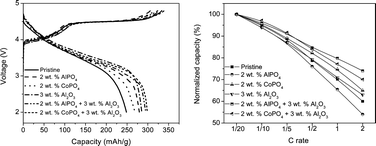

Graphical abstract: High capacity double-layer surface modified Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode with improved rate capability

Back to tab navigation

Publication details

The article was received on 06 Jan 2009, accepted on 16 Apr 2009 and first published on 05 Jun 2009


Article type: Paper
DOI: 10.1039/B823506F
J. Mater. Chem., 2009,19, 4965-4972

  •   Request permissions

    High capacity double-layer surface modified Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode with improved rate capability

    Q. Y. Wang, J. Liu, A. V. Murugan and A. Manthiram, J. Mater. Chem., 2009, 19, 4965
    DOI: 10.1039/B823506F

Search articles by author

Spotlight

Advertisements
