Mechanically tunable dry adhesive from wrinkled elastomers

Author affiliations


We report a new dry adhesive structure using a rippled poly(dimethylsiloxane) (PDMS) elastomer bilayer film, whose surface roughness and adhesion can be reversibly regulated by applying mechanical strain. It has a set of advantages not offered by other techniques for regulation of adhesion, including real-time tunability, no requirement of specific surface chemistry, operability under ambient conditions, and relative ease of control. To understand the mechanism for adhesion regulation quantitatively, we have modeled the mechanics of adhesion in the limits of small- and large-amplitude ripples, and show good agreement with indentation experiments. We demonstrate the real-time tunability of the new adhesive structure by repeatedly picking and releasing a glass ball simply by modulating the mechanical stretch of the rippled PDMS film.

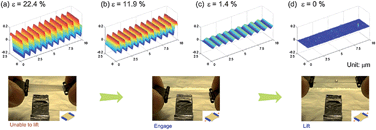

Graphical abstract: Mechanically tunable dry adhesive from wrinkled elastomers

Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Feb 2008, accepted on 10 May 2008 and first published on 18 Jun 2008

Article type: Paper
DOI: 10.1039/B802848F
Soft Matter, 2008,4, 1830-1835

  •   Request permissions

    Mechanically tunable dry adhesive from wrinkled elastomers

    P. Lin, S. Vajpayee, A. Jagota, C. Hui and S. Yang, Soft Matter, 2008, 4, 1830
    DOI: 10.1039/B802848F
