Automated sample preparation and analysis using a sequential-injection–capillary electrophoresis (SI–CE) interface

Abstract

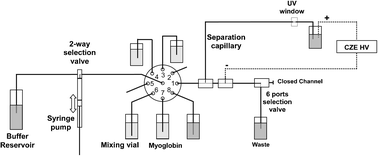

A fully automated sequential-injection–capillary electrophoresis (SI–CE) system was developed using commercially available components as the syringe pump, the selection and injection valves and the high voltage power supply. The interface connecting the SI with the CE unit consisted of two T-pieces, where the capillary was inserted in one T-piece and a Pt electrode in the other (grounded) T-piece. By pressurising the whole system using a syringe pump, hydrodynamic injection was feasible. For characterisation, the system was applied to a mixture of adenosine and adenosine monophosphate at different concentrations. The calibration curve obtained gave a detection limit of 0.5 µg g⁻¹ (correlation coefficient of 0.997). The reproducibility of the injection was also assessed, resulting in a RSD value (5 injections) of 5.4%. The total time of analysis, from injection, conditioning and separation to cleaning the capillary again was 15 minutes. In another application, employing the full power of the automated SIA–CE system, myoglobin was mixed directly using the flow system with different concentrations of sodium dodecyl sulfate (SDS), a known denaturing agent. The different conformations obtained in this way were analysed with the CE system and a distinct shift in migration time and decreasing of the native peak of myoglobin (Mb) could be observed. The protein samples prepared were also analysed with off-line infrared spectroscopy (IR), confirming these results.
