Jump to main content
Jump to site search
Access to RSC content Close the message box

Continue to access RSC content when you are not at your institution. Follow our step-by-step guide.


Issue 5, 2001
Previous Article Next Article

Author affiliations

Abstract

Alkane (petroleum ether) vapor plasma technique was used for surface modification of chitosan membranes to control their permeation rate of water-soluble drugs and metabolites. Water contact angles of the chitosan surface increase from 13° to 23° after plasma treatment at 93 W for 60 min, and from 13° to 26° after plasma treatment at 119 W for 30 min, indicating reduced hydrophilicity of the membrane surface. Mechanical properties such as tensile strength and elongation-at-break of the chitosan membranes were also improved. In particular, there was a 6–7 fold increase in tensile strength in the wet state for the chitosan membrane treated at 93 W for 30 min. Permeation coefficients through the chitosan membrane plasma treated at 93 W for 30 min for urea, creatinine, uric acid, and cis-DDP decreased by 54.0%, 83.3%, 64.7% and 47.6%, respectively.

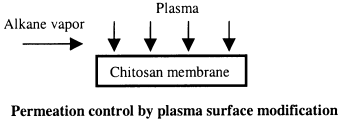

Graphical abstract: Surface modification of chitosan membranes by alkane vapor plasma

Back to tab navigation

Article information


Submitted
04 Dec 2000
Accepted
01 Mar 2001
First published
26 Mar 2001

J. Mater. Chem., 2001,11, 1374-1377
Article type
Paper

Surface modification of chitosan membranes by alkane vapor plasma

H. Wang, Y. Fang and Y. Yan, J. Mater. Chem., 2001, 11, 1374
DOI: 10.1039/B009688L

Search articles by author

Spotlight

Advertisements
