Process intensification by resonant vibratory mixing for samarium–cobalt magnet leaching with deep eutectic solvents

Abstract

Due to limited primary resources and to fulfil the demand for renewable energy in the automobile industry, defence applications, and other high-tech applications, recycling rare earth elements (REEs) and other critical elements from their secondary resources is imperative. Rigorous research and development for viable extraction and separation of REEs and other critical elements has resulted from this need. Previously, Sm–Co recycling has been done using pyrometallurgy, physical separation, and hydrometallurgy, all of which have energy, cost, time, and environmental limitations. Chemical leaching has successfully recovered and separated Sm–Co but has limitations associated with slow mass transfer and leaching kinetics, especially using viscous lixiviants, and there is a need to intensify the process for efficiency. Additionally, environmental impact is high due to extensive use of toxic, corrosive, non-selective, and expensive reagents. In this research, chemical leaching of Sm–Co was performed using Deep Eutectic Solvents (DESs), a new class of solvents under solvometallurgy. Four different DESs were studied, which are green, non-toxic, biodegradable, cheap, and selective. To enhance the mass transfer and reduce leaching time, resonant vibratory mixing (RVM) was tested. RVM intensifies mixing by establishing low energy conditions through vessel resonance, improving kinetics. Four DES combinations were prepared: choline chloride and tetrabutylammonium chloride, with oxalic acid, urea, and ethylene glycol at 80 °C. Chemical leaching of Sm–Co was performed using factors of time (hours), temperature (°C), and combination of DESs. Post-leaching, the samples were process intensified using RVM (time, intensity, and four DESs). Filtered aliquots were analysed with ICP-OES. Oxaline was the most selective DES, achieving 82% Co conversion after 2 hours of leaching and 30 minutes of RVM at 80 °C. A preliminary kinetic study determined the activation energy barrier and showed an increase in conversion (%) for both Co and Sm. 93.4% Co and 5.3% Sm conversions were achieved with only 5 hours of leaching at 90 °C, and after process intensification with RVM, conversions of 97% Co and 9.3% Sm were achieved.

---

Environmental significance

The recovery of samarium (Sm) and cobalt (Co) is essential to support clean energy technologies and reduce dependence on the primary resources of these critical REEs. Traditional Sm–Co magnet recycling methods are energy-intensive, time-consuming, and not environmentally benign. This study presents a green and efficient leaching process using DESs, which are biodegradable, non-toxic, and selective. This process, when combined with resonant vibratory mixing (RVM) technology, can enhance slow mass transfer and kinetics. In this research project, intensifying leaching under low-energy conditions resulted in selective recovery of Co in shorter times using green DES reagents. This process provides a greener, safer, and more efficient alternative to conventional methods, advancing the sustainable solvometallurgical recycling of Sm–Co magnets in line with circular economy principles.

1 Introduction

Together with yttrium (Y), scandium (Sc), and lanthanides, rare earth elements (REEs) are a collection of 17 chemically related elements.¹ Due to their distinctive physical and chemical characteristics, rare earth elements (REEs) are valuable resources that are necessary for a wide range of modern technological applications, including metallurgy, machine building, radio electronics, instrument engineering, nuclear engineering, and manufacturing.^1–3 Many nations' economic growth and national security depend on the reliable supply and durability of these vital resources.⁴ Rare earth element availability is currently less than demand,^5,6 with imports from China frequently accounting for a large portion of the supply, so most industrialized nations require imports from China⁷,⁸. The United States is seeking to expand domestic production and recover rare earth elements (REs) from various sources to reduce supply chain vulnerability, given the significance of these minerals in technological and economic advancement.^4,9

It is challenging to mine REEs since they are frequently found in dilute concentrations.⁵ The extraction and separation of REEs from their complex ores are complicated due to their unique physical and chemical properties, making them scarce in the market.¹ The recovery of REEs involves traditional pyro- or hydrometallurgical processes, such as solvent extraction.¹⁰ The pyrometallurgical method suffers from environmental concerns such as gaseous emissions, while the traditional hydrometallurgical process involves using dilute and strong acids to dissolve REEs, which results in the evolution of hydrogen gas.^11,12 The recovery and separation of individual elements from complex REE systems suffer from high energy demands as they require complex energy-consuming solutions using many hazardous chemicals that negatively impact the environment.⁵ In response to REE scarcity and potential supply risk, recent research has focused on improving recovery and separation techniques and developing recycling approaches for secondary resources like mine tailings and electronic waste as alternative sources to natural ores.^13,14 The evolution of recycling processes as a secondary source for REEs has seen the majority of rare-earth magnet recycling research concentrated on NdFeB magnet recycling,^15–17 with little attention to Sm–Co magnet recycling.⁷ However, the recycling of Sm–Co magnets will not only be a secondary source for samarium but also cobalt, a critical metal that is economically very important for the steel industry^14,18 due to its unique resistance to oxidation and its usage in cathode materials for lithium-ion batteries, which is very crucial to the transition to electric vehicles.¹⁴

Neodymium and samarium, two of the least abundant of the REEs, are the foundational elements for making powerful permanent magnets.¹⁹ The most prevalent REE magnets are Nd–Fe–B magnets.²⁰ Since neodymium–iron–boron (NdFeB) magnets primarily replaced Sm–Co magnets after 1985,¹³ the Sm–Co magnet market share is currently less than 2% in the permanent magnet segment.^13,14 Nonetheless, new applications in consumer electronics, automotive and medical technology, aerospace, and military equipment are driving growth in the global market for Sm–Co magnets. Due to their greater optimal operating temperature (250–350 °C) than that of Nd–Fe–B magnets (60–220 °C), Sm–Co magnets are still valued for their capacity to operate at elevated temperatures. They are frequently utilized in the aviation industry.^14,21 Samarium is utilized in the filter glass of Nd:YAG (neodymium:yttrium–aluminium–garnet) solid-state lasers to encircle the laser rod and increase efficiency by collecting stray emissions due to its narrow spectral absorption band.¹¹ Samarium can be used in coatings and capacitors at microwave frequencies because it forms stable titanate compounds with beneficial dielectric characteristics.¹¹ Cobalt and samarium can be obtained from end-of-life Sm–Co magnets as valuable secondary sources.¹⁴

With the growing trend toward a circular economy that aims to balance sustainability, efficiency, and environmental impacts, this research is focused on recycling Sm–Co magnets using green (ionometallurgy), innovative, and novel extraction pathways. Specifically, it involves the use of Deep Eutectic Solvents (DESs) for leaching and novel Resonance Vibratory Mixing (RVM) to intensify the leaching process.

DESs are systems formed from eutectic mixtures of Lewis or Brønsted acids and bases, which can contain a variety of anionic and cationic species.²² The eutectic combinations have melting points lower than their components, giving a room-temperature ionic liquid,²³ meaning they are liquid at temperatures lower than 150 °C, but most are between 25 and 70 °C.²⁴ The advantages of DESs over conventional hydrometallurgical reagents are that they are environmentally benign or have minimal risk and environmental impacts, are readily available in larger quantities, are cost-efficient and chemically stable to allow prolonged reuse, and do selective leaching.^10,25 A DES is typically created by combining a quaternary ammonium salt with metal salts or a hydrogen bond donor (HBD) that can form a complex with the quaternary ammonium salt's halide anion. DESs are defined using the general formula Cat⁺X⁻zY where Cat⁺ is an ammonium, phosphonium, or sulfonium cation, X is a Lewis base, generally a halide anion with choline chloride [ChCl, HOC₂H₄N⁺(CH₃)₃Cl)] widely used as a halide salt, and Y is a Brønsted acid while z refers to the number of Y molecules that interact with the anion.²² Although DESs differ slightly from traditional ionic liquids in that they are mixtures rather than isolated salt compounds, their anhydrous nature and shared characteristics make them suitable for metal recovery. There are four types of DES systems. Table 1 shows the classification of DESs formed based on the nature of the complexing agent used.

Table 1 The general formula for the classification of deep eutectic solvents. These are classified based on the nature of the complexing agent used. Type I is an analogous combination between the metal chloride and quaternary ammonium salts, type II is based on the combination of hydrated metal chloride and salt, type III is based on the combination of transition metal and salt, and type IV is based on a wide range of transition metals combined with inorganic cations to form a eutectic²⁶

Type	General formula	Terms
Type I	Cat^+Xz^−MClx	M = Zn, Sn, Fe, Al, Ga
Type II	Cat^+Xz^−MClxyH2O	M = Cr, Co, Cu, Ni, Fe
Type III	Cat^+Xz^−RZ	Z = CONH2, COOH, OH
Type IV		M = Al, Zn and Z = CONH2, OH

---

The type III DESs namely Reline (choline chloride 1 : 2 urea), ethaline (choline chloride 1 : 2 ethylene glycol), oxaline (choline chloride 1 : 1 oxalic acid) and EG : TBAC (ethylene glycol 2 : 1 tetrabutylammonium chloride) were used for this research due to advantages over the other types of DESs that make them useful for large-scale industrial processes. Some of their advantages include the ability to solvate a wide range of transition metal species, including chlorides,²⁶ oxides,²⁷ and rare earth elements, ease of preparation, relative unreactivity with water, relatively low cost, and their biodegradable nature.^28–30

Typically, one of the significant drawbacks of leaching is slow kinetics.³¹ DESs have higher viscosity than aqueous solvents,^10,32 and since chemical reactions have slow kinetics in viscous liquids,³² the leaching kinetics may be significantly affected. Water can be added to DESs to reduce their viscosity, but adding water, or too much water, can change their physicochemical properties.^32,33 Increasing the temperature is another way to reduce the viscosity,^18,32 but this may increase the cost of operation on an industrial scale. For this reason, RVM can be utilized to intensify the leaching process. RVM uses resonant vibration to increase the rate of homogeneity through motion and improve contact time and thus mass transfer.³⁴ RVM mixers create and regulate vertical motion by consuming minimal power by operating the driving force and reactor at resonance, which moves and vibrates the resonator plate, affecting the mixing vessel's contents. RVM systems are particularly effective because they balance frequency and displacement, unlike other mixing technologies like ultrasonics, which function at very high frequencies but only generate displacement within a small area immediately surrounding the frequency-generating probe.³⁵ The intensification due to RVM will shorten leaching time by increasing leaching kinetics and overall leaching efficiency or recovery, thereby cutting operational costs. The intensification process accelerates the diffusion process by causing a change in the hydrodynamic situation in the interfacial layer and the adjacent layers of liquids due to the supply of additional energy and the updating of the phase contact surface.³⁶

2 Materials and methods

2.1 Materials

The chemicals used in the present work were of analytical grade. The specifications of the chemicals are as follows: choline chloride (C₅H₁₄NOCl), tetrabutylammonium chloride (C₁₆H₃₆C₁N), oxalic acid (C₂H₂O₄), ethylene glycol ((CH₂OH)₂), and urea (CO(NH₂)₂). These were sourced from Thermo Scientific with a purity of <98.99% and were used as received for research purposes. Sm–Co magnets were provided by Integrated Magnets Inc., Culver City, California, USA. A ball mill (TITAN Model) and a mortar and pestle were utilized to reduce the size of the Sm–Co magnets. To obtain a representative sample from the bulk of Sm–Co magnets, ASTM standard D6323-98 was followed. Coning, quartering, and a Jones riffle were employed for homogenization and sampling. Sieves (W.S. Tyler) of 40, 60, and 200 mesh numbers were used for sieving. A magnetic stirrer hot plate (IKA RET control VISC S000) and resonant vibratory mixer (Resodyn LabRAM II) were utilized for the leaching and mixing experiments.

2.2 Characterization

The surface morphology of the feed sample and the solid residue of Sm–Co was determined using SEM (TESCAN TIMA). The weight composition (%) of the feed sample was determined using EDX (EDAX Z4-i7+ Analyzer), as shown in Table 2.

Table 2 Metal content weight composition (%) in the Sm–Co magnet material determined using energy dispersive X-ray spectroscopy (EDS)

Element	Sm	Co	Fe	Cu
wt%	20.4 ± 5.9	52.6 ± 3.2	14.8 ± 3.8	3.45 ± 13.2

---

2.3 Experimental procedure

The research methodology is shown in Fig. 1. After feed characterization, four DES combinations were prepared, and Sm–Co chemical leaching was performed. Afterward, the chemical leaching solution was divided into two aliquots: the first aliquot was analysed by ICP-OES, and the second was mixed using RVM technology to assess the enhancement of leaching kinetics.

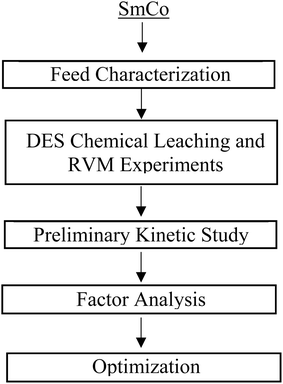

Fig. 1 A flowchart for methodology was incorporated for Sm–Co chemical leaching and process intensification with resonant vibratory mixing.

2.3.1 Preparation of DESs and their properties. The DESs were prepared by mixing a molar ratio of hydrogen bond donor (HBD) and hydrogen bond acceptor (HBA). The molar ratio of HBA and HBD was 1 : 1 for ChCl : oxalic acid, 1 : 2 for ChCl : urea and ChCl : ethylene glycol, and 1 : 2 for TBAC : ethylene glycol, respectively. The eutectic mixture was heated using a hot plate to a temperature of 80 °C and stirred at 400 rpm for 1 to 4 hours until a homogeneous and transparent solution was formed. The DESs were stored in glass bottles in an oven at 50 °C for leaching experiments. The combinations of DESs in Table 3 were used as a lixiviant for the chemical leaching of Sm–Co magnets.

Table 3 Four different combinations of deep eutectic solvents (DESs) based on two hydrogen bond donors (HBDs): choline chloride and tetra-butyl ammonium chloride. Three organic compounds were used, which function as hydrogen bond acceptors (HBAs): urea, ethylene glycol, and oxalic acid. Based on varied mixing ratios of 1 : 1 and 1 : 2 of HBD : HBA, four unique combinations of DESs were obtained

Organic acid (HBD)	Salt (HBA)	Combination name
Oxalic acid	Choline chloride	Oxaline
Ethylene glycol	Choline chloride	Ethaline
Urea	Choline chloride	Reline
Ethylene glycol	Tetra butyl ammonium chloride	EG–TBAC

---

2.3.2 Chemical leaching of Sm–Co. For the chemical leaching experiments, an experimental design (DOE) was used, which had 52 runs based on the factors of leaching time (hours), temperature (°C), and a combination of DESs using response surface methodology and a face-centred central composite design found in Table S1. Stat-Ease Design Expert 13 was used to generate and analyse the DOE. The low and high levels for the leaching factors were 0.59–2 hours for leaching time, 60–90 °C for temperature, and four DES combinations. Leaching experiments were performed as a batch process in a glass reactor using the prepared DES combinations and were mechanically stirred at 400 rpm and at a leaching time defined by Design Expert in Table 4.

Table 4 The factors and range of values selected for chemical leaching of Sm–Co magnets with four different combinations of deep eutectic solvents

Factors	Range and combinations
A: time/hours	0.59–2
B: temperature/°C	60–90
C: DES combinations	Oxaline, Ethaline, Reline, EG–TBAC

---

Leaching experiments were performed as a batch process in a glass reactor using the prepared DES combinations and were mechanically stirred at 400 rpm and at a leaching time range defined by Design Xpert. The tests were carried out with a solid-to-liquid ratio of 1 : 5 (0.2 g of sample with a size fraction of +250 µm/−425 µm was taken, and 10 mL of prepared DESs was added). The temperatures at which the test was carried out were 60 °C, 70 °C, 80 °C, 90 °C. After leaching, 2 mL of the pregnant solution was withdrawn, filtered, diluted with nitric acid (5%), and analysed by ICP-OES. 2 mL of the lixiviant was added to the leaching solution to compensate for the 2 mL of the pregnant solution that was periodically taken for ICP-OES analysis and then used in subsequent RVM experiments.

Table 4 shows the leaching parameters for the leaching experiment. The conversion of Sm–Co concentrations in the sample was calculated according to eqn (1):

where X is the conversion, DF is the dilution factor, C is the concentration of REEs in the leachate (mg L⁻¹), and C₀ is the maximum amount of REEs that can be leached out (mg L⁻¹).

2.3.3 Resonant vibratory mixing experiments. For the RVM experiments, an experimental design (DOE) was used, which had 52 runs based on the factors of time (minutes), intensity (%), and a combination of DESs using response surface methodology and a face-centred central composite design found in Table S2. Stat-Ease Design Expert 13 was used to generate and analyse the DOE. The low and high levels for the time factor were 1–30 minutes, intensity (%), 10–70%, and DES combinations in Table 5 were used.

Table 5 The factors and range of values selected for process intensification using resonant vibratory mixing technology for Sm–Co magnets after chemical leaching

Factors	Range and combinations
Time/minutes	1–30
Intensity/%	1–70
DES combinations	Reline, Oxaline, Ethaline, EG–TBAC

---

For each run of RVM experiments, 11 mL of an aliquot was taken. The filtered 3 mL aliquot was pipetted and stored in an oven at 50 °C for quantitative analysis using ICP-OES.

2.3.4 Preliminary kinetic study experiments. A preliminary kinetic study using the Arrhenius equation (k = Ae^−E_a/RT) was conducted to evaluate the effect of temperature on leaching conversion (%) of Co and Sm and to determine the RVM's role in enhancing the leaching kinetics by calculating the change in activation energy barriers for Sm and Co with oxaline DES for both chemical leaching and RVM. To determine the activation energy of the leaching reactions, the data of the leaching experiments were fitted to a polynomial curve to determine the initial rate. Then, the Arrhenius equations were applied according to eqn (2) and (3):³⁷

Accordingly, a plot of ln k against 1/T gives a slope = −E_a/R, where A is the pre-exponential factor, R is the universal gas constant (8.314 J mol⁻¹ K⁻¹), T is the temperature expressed in kelvin, and E_a is the apparent activation energy of the reaction. The study was completed using the varying conditions for chemical leaching, as shown in Table S3.

To determine the activation energy by incorporating RVM, the study was completed under the same leaching conditions as shown in Table S3, and the conditions of RVM were varied, as shown in Table S4.

3 Results and discussion

A discussion of the results of all the experiments undertaken for this research is presented in this section. These will include the Sm–Co leaching in different DESs (ethaline, Reline, oxaline, and EG–TBAC), the effect of time, and RVM intensification. It will include the ANOVA, Fit Statistics, the leaching and RVM activation energy barrier study, and solid residue analysis using SEM and EDS analysis.

3.1 Chemical leaching using four deep eutectic solvent combinations

The results for Sm and Co conversion (%) in different DES media, which are found in detail in Table S1, are presented in Fig. 2. The highest conversion for Co was obtained in oxaline leaching. Oxaline leaching achieved 82% conversion; ethaline, Reline, and EG–TBAC showed lower conversion. The Co conversion order in the leaching media is oxaline > Reline > EG–TBAC > ethaline. For the Sm conversion, the order is ethaline > Reline > EG–TBAC > oxaline. The pH of the studied DES is in the following order: oxaline (2.037)³⁸ > ethaline (4–4.4)³⁸ > EG–TBAC (7.5–9.10)³⁹ > Reline (10.8).²⁹ This reason supports why the conversion of Sm is higher in ethaline, because ethaline is a weak acid, and REE reacts slowly in strong bases. For oxaline and ethaline, despite oxaline's higher acidity, oxaline promotes the formation of insoluble samarium-oxalate complexes that passivate the surface and inhibit leaching, whereas cobalt forms more soluble oxalate species, enabling higher dissolution efficiency.^40,41

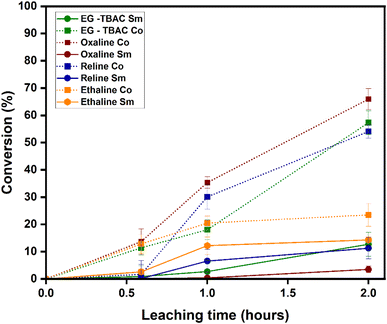

Fig. 2 Comparison of Sm and Co conversion in four DES media: EG–TBAC, Ethaline, Oxaline, and Reline at 0.59, 1, and 2 hours. For each experiment, these conditions were kept constant: 80 °C, 400 rpm stirring speed, and 55 : 1 liquid to solid ratio.

Oxaline DES leaching has the highest selectivity to Co(II) over Sm(III) ions. The Sm dissolution is relatively low, with less than 10% conversion, compared to the high Co conversion of approximately 65% after 2 hours. It can also be seen that time significantly affects the Sm and Co dissolution process. It is observed that, as the time continued to increase, the leaching efficiency did not plateau. This indicates that a further increase in time for the leaching process will increase the Co conversion rate. Oxaline is an acidic DES,³⁸ and the low conversion of Sm in oxaline leaching can be attributed to the slower reaction rates of REEs with organic acids.¹¹ The low conversion of Sm could be due to the presence of a protective layer on the surface, which prevented the contact of oxaline with the metal, as previously reported.⁴²

Reline DES leaching conversion is not proportional to the Co conversion. As can be seen, the conversion of Sm is very low at about 10%, and the Co conversion is higher at about 55%, indicating a high selectivity of Reline to Co over Sm. Also, the conversion for both Sm and Co increases with increasing time. Rare earth metals react slowly with strong bases¹¹ because they form a passive, insoluble hydroxide layer on their surfaces,⁴³ and since Reline is a mildly strong alkaline DES,²⁹ the low conversion of Sm in Reline can be attributed to it. The high conversion of Co in Reline results from its alkaline nature, which forms a soluble anionic or complex species instead of insoluble hydroxide,⁴⁴ which passivates the surface layer and reduces leaching efficiency.

Ethaline DES leaching conversion for Sm dissolution is relatively low, at about 14%, compared to the Co conversion of about 24% after 2 hours. The low recovery of Sm and Co in ethaline can be attributed to the formation of a passivating layer around the metal's surfaces.^45,46 Although ethaline is a moderate acid, it is not a strong complexation agent for Sm and has a low proton activity to break down the passivating layer. It can be seen from the result that ethaline does not show high selectivity for either Co or Sm over the other, even though the conversion is not proportional for both Co and Sm. It can also be seen that time significantly affects the Sm and Co dissolution process. The difference between the Co and Sm conversion is low compared to the results obtained for oxaline and Reline. Ethaline is a weak acid.³⁸ Since Co dissolves slowly in a weak acid, this could be why the conversion of Co is lower in ethaline than in oxaline, which is a strong acid. In weak acids, Co typically develops a protective oxide or hydroxide layer that passivates it and prevents further reaction with the acid. Since the hydrogen ion concentration in the weak acid is too low to effectively break this passivation layer, the dissolution proceeds slowly.^47,48

EG–TBAC DES leaching shows that the Sm conversion is not proportional to the Co conversion. As can be seen, the conversion of Sm is low at about 12%, and the Co conversion is higher at about 60%, indicating a high selectivity of EG–TBAC to Co over Sm. Also, the conversion for both Sm and Co increases with increasing time. Rare earth metals react, but slowly, with strong bases,¹¹ and since EG–TBAC is a strong alkaline,⁴⁹ the low conversion of Sm can be attributed to it.

3.2 Chemical leaching with RVM using two DESs

The results for Sm and Co conversions (%) after RVM intensification can be found in Table S2. This section focuses only on oxaline and Reline DESs due to the highest achieved selectivity for Co over Sm over the other DES combinations used for this research. Sm and Co conversions in oxaline and Reline DES leaching are compared to the conversions of Sm and Co after intensifying the leaching process with RVM.

3.2.1 Oxaline. From Fig. 3, Sm and Co conversions increased with the RVM intensification after 30 minutes using oxaline DES. Sm and Co's dissolution rate did not plateau, indicating that higher conversions can be attained by increasing the intensification time. The increase in conversion after the intensification can be attributed to the RVM, which speeds up the liquid's motion and intensifies interfacial mass transfer.⁵⁰ This liquid motion increases the area around the interface,^51,52 thereby enhancing the diffusion process.³⁶

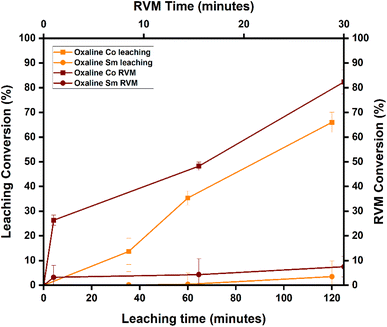

Fig. 3 Samarium (Sm) and cobalt (Co) dissolution at 80 °C from the Sm–Co magnet in Oxaline leaching for 0.59, 1, and 2 hours and RVM intensification at 70 g intensity (%) for 1, 15, and 30 minutes. For each experiment, these conditions were kept constant: 400 rpm stirring speed and 55 : 1 liquid to solid ratio.

3.2.2 Reline. From Fig. 4, Sm and Co conversions increased after RVM intensification. Sm and Co's dissolution rate did not decrease after 30 minutes, indicating that the intensification time can be increased further to achieve higher conversions using Reline. The increase in conversion after the intensification can be attributed to the change in the interfacial hydrodynamic layer caused by the resonant vibration of the RVM,³⁶ thereby accelerating the mass transfer process.³⁶

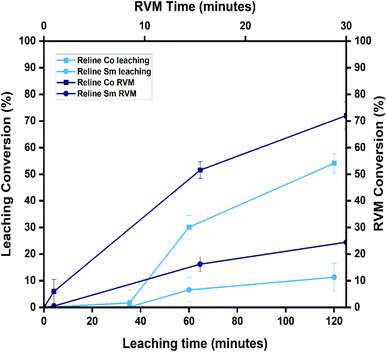

Fig. 4 Samarium (Sm) and cobalt (Co) dissolution at 80 °C from Sm–Co magnet in Reline leaching for 0.59, 1, and 2 hours and RVM intensification at 70 g intensity (%) for 1, 15, and 30 minutes. For each experiment, these conditions were kept constant: 400 rpm stirring speed and 55 : 1 liquid to solid ratio.

3.3 Analysis of variance and fit statistics

The results for face-centered central composite experimental design comprising 52 runs for Co and Sm leaching and RVM are found in Tables S1 and S2, respectively. Tables S5 and S6 present the ANOVA and fit statistics for co-leaching and RVM. Similarly, Tables S7 and S8 present the results for Sm leaching and RVM.

3.3.1 Cobalt. Table S5 for Co leaching demonstrates the significance of the models. The adjusted R² of 0.99 and the predicted R² of 0.96 are still close, differing only by approximately 0.01. The model with the individual main effects of temperature, leaching time, and DES combinations presented significantly low p-values (<0.0001), indicating a significant impact on Co conversion (%). For the adeq. precision, which evaluates the signal-to-noise, the value obtained was 43.89 (a value greater than 4 is desirable), indicating a strong signal. The higher number of experiments could have caused the lack of fit. The models' ability to predict future values in the design space is also supported by statistical parameters, such as predicted R² and CV%.

Table S6 for Co RVM demonstrates the significance of the developed models. With a small difference well below 0.01 and a predicted R² of 0.97, which closely matches the adjusted R² of 0.99. The model's primary effects (temperature, leaching time, resonant vibratory mixing intensity, and DES combinations) present low p-values (<0.0001), indicating their significant influence on Co conversion (%). A robust signal of 60.60 is indicated by the adeq. precision. The high number of 52 experimental runs, which can more sensitively reveal systematic deviations, may be the cause of the model's notable lack of fit. Furthermore, the model's predictive ability and dependability in examining the design space for future Co leaching experiments are further supported by the satisfactory CV% and predicted R² values.

3.3.2 Samarium. Table S7 for Sm leaching demonstrated the models' significance. With a difference of less than 0.04, the adjusted R² of 0.95 and the predicted R² of 0.91 are nearly identical. Both the model and its individual main effects (temperature, leaching time, and DES combinations) demonstrated low p-values (<0.0001), indicating that they had a significant impact on Sm conversion (%). The quadratic term (A²) and interaction terms (AB, AC, and BC) also exhibit significant p-values (<0.0001 to 0.0008), confirming their inclusion in the model. A sufficient signal is indicated by the adeq. precision of 43.89. The larger number of runs (52 experiments), which reveals systematic deviations, may be the cause of the model's notable lack of fit. The model's capacity to predict future values and navigate the design space is confirmed by the statistical parameters, such as predicted R² and CV%, which likewise fall within a satisfactory range.

Table S8 for Sm RVM demonstrates the significance of the developed model, as reflected by the predicted R² of 0.95, closely matching the adjusted R² of 0.97, with a difference well below 0.02. The model and its main effects (temperature, leaching time, RVM intensity, and DES combinations) present low p-values (<0.0001), indicating that they have a significant influence on Sm conversion (%) after incorporating RVM. Notably, RVM intensity (%) has the strongest impact on the leaching process, as evidenced by its highest F-value of 353.00. The roles of the interaction terms AE, BD, and BE in the model are further validated by their significant contributions (p < 0.05). The robust signal is demonstrated by the adeq. precision of 50.30. The high number of experimental runs (52 experiments) may be the cause of the model's notable lack of fit. The model's predictive ability and dependability in examining the design space for Sm leaching experiments employing RVM technology are further supported by the high R² of 0.98 and the satisfactory CV%.

3.4 Effect of temperature on Co and Sm leaching in oxaline and RVM

The effect of leaching under varying time and temperature (°C) conditions on Co conversion (%) is shown in Fig. 5(a). Co conversion increases proportionally with time (1–5 h) and temperature (60–90 °C), reaching a maximum of 93.35% after 5 hours at 90 °C. This matches previous findings, where Co dissolves quickly in DES-enriched acidic media due to weak Sm–Co bonding.^46–48 As a transition metal with variable oxidation states (+2, +3), Co forms stable complexes and preferentially leaches into solution.^46–48

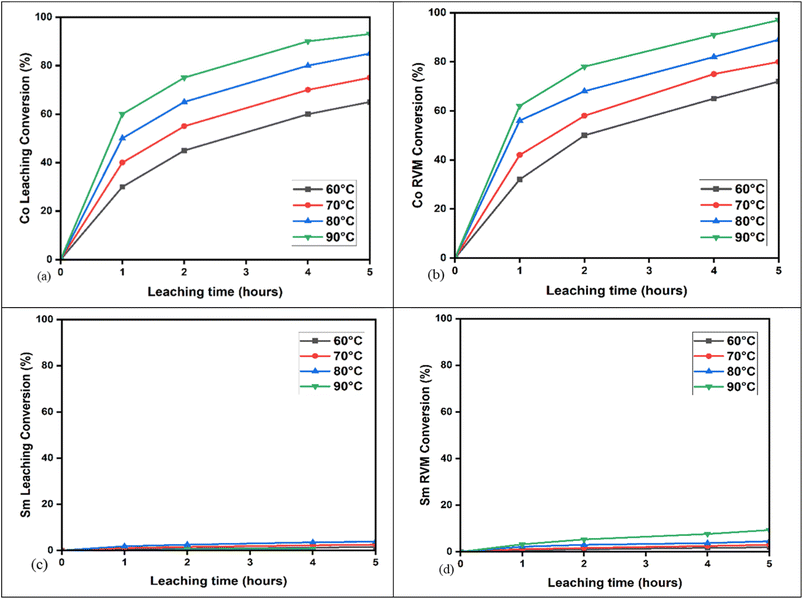

Fig. 5 Effect of varying temperatures of 60, 70, 80, and 90 °C and times of 1, 2, 4, and 5 hours on (a) Co leaching conversion (%). (b) Co RVM conversion (%). (c) Sm leaching conversion (%). (d) Sm RVM conversion (%). For each experiment, these conditions were kept constant: 400 rpm stirring speed, and 55 : 1 liquid to solid ratio. For process intensification experiments, RVM intensity (%) was varied from 10, 30, 50, and 70 g, and RVM time (minutes) was varied from 1, 12, 20, and 30 minutes.

Fig. 5(b) shows Co conversion (%) with time and temperature after RVM introduction. Similar to previous results, Co conversion rises with increased time and temperature, peaking at 97% after 5 hours at 90 °C with 30 minutes of RVM. Co's higher conversion reflects its ability to form stable oxaline DES complexes [Co(DES)ⁿ⁺].⁵³ RVM improves DES access to Co by reducing diffusion barriers like pore blocking or stagnant layers,^51,52 enhancing Co leaching efficiency from 93% to 97%. RVM proves effective in mass transfer and near-complete Co leaching.

Under the same conditions, Sm conversion (%) is shown in Fig. 5(c). It also increases with time and temperature, but at a slower rate, reaching a maximum of 5.3% after 5 hours at 90 °C. This aligns with past studies: Sm forms stable oxides (Sm₂O₃) and resists leaching unless pretreated.⁵⁴ Compared to Co, which forms Co₃O₄ and leaches more readily, Sm dissolves slowly in DESs due to poor complex stability and weak ligand field stabilization energy (LFSE) from its shielded 4f orbital.^46,48

Fig. 5(d) shows Sm conversion (%) after RVM use. Even with RVM, Sm reaches only 9% conversion under the same time and temperature conditions. This reflects Sm's inherent limitations as a REE with a 3+ oxidation state and large ionic radius, hindering ligand coordination and resulting in a slower leaching rate compared to Co.

3.5 Activation energy barrier

The activation energy from the dissolution of Sm and Co was determined using Arrhenius law for Co and Sm in oxaline leaching and RVM.

3.5.1 Co leaching vs. RVM. In Fig. 6(a), the Arrhenius relationship between 1000K/T and ln K was plotted, and the activation energy for Co was determined to be 27.10 kJ mol⁻¹ with chemical leaching, which reveals that Co extraction is controlled by a diffusion-limited mixed-controlled reaction. The low activation energy calculated indicates that minimum energy is required for the chemical reaction to take place, which can be attributed to the high Co conversion (%). The mixed-controlled reactions also may have contributed to the high Co separation and extraction and suggest that it is less thermally dependent. This is consistent with the past studies on Co leaching.^47,48

Fig. 6 Arrhenius plots comparison for (a) Co leaching conversion (%) and (b) Co RVM conversion (%).

In Fig. 6(b), the activation energy was determined to be unchanged from the 27.10 kJ mol⁻¹ of chemical leaching, which reveals that RVM Co extraction is a mixed control reaction. Its low and unchanged E_a value is an indication that RVM only plays an enhancement role in reducing the boundary layer resistance and optimizing the existing kinetics rather than altering the rate-limiting steps.

3.5.2 Sm leaching vs. RVM. The activation energy of Sm was calculated to be 65.74 kJ mol⁻¹ (Fig. 7(a)), which reveals that a chemical-controlled reaction controls Sm extraction. Sm's lower conversion (%) can be attributed to the high activation energy calculated as compared to the activation energy calculated for Co, indicating that more energy is required for the chemical reaction to take place. This suggests it is more thermally dependent. This minimal conversion (%) of Sm in the acidic enriched medium is consistent with the past studies on Sm leaching, where specialized chelating agents or pretreatments are used for higher conversion (%).^47,48

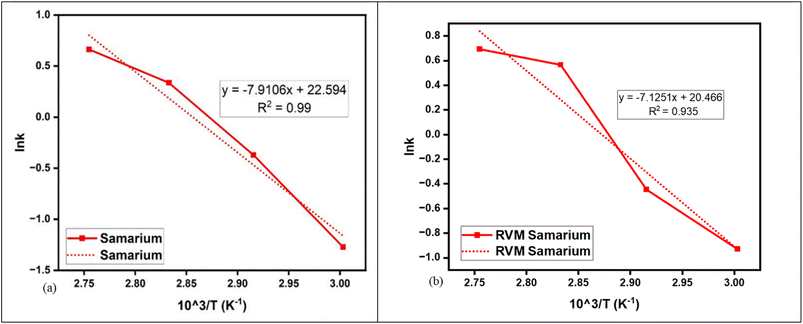

Fig. 7 Comparison of Arrhenius plots for (a) Sm leaching conversion (%) and (b) Sm RVM conversion (%).

In comparison to Co³⁺ (3500–4000 kJ mol⁻¹), Sm³⁺ also has a higher lattice energy (12 878 kJ mol⁻¹), contributing to Sm's rigid lattice structure and its ability to form highly stable metal oxide bonds.^49,50 The evident decrease in E_a from 65.7 to 59.2 kJ mol⁻¹ after RVM introduction in Fig. 7(b) suggests that RVM partially alleviated diffusional limitations, and RVM vibrations likely enhanced the solvent penetration of oxaline DES for Sm. Despite RVM, Sm leaching resulted in a low conversion (%) of Sm, which reveals that Sm conversion (%) was limited by the intrinsic stability of Sm–O bonds, which need further harsh pretreatment, and RVM alone cannot overcome this thermodynamic behaviour.⁵¹

3.6 Solid residue analysis in oxaline

Since oxaline gave the best results for this research study, solid residue analysis was focused on the solid residue from the leaching in oxaline DES. For this analysis, SEM and EDX were used after the chemical leaching of Sm–Co with oxaline for conditions 1, 2, and 5 hours at 90 °C.

In Fig. 8, as treatment time increases from 1 to 5 hours (1, 2, and 5 h), the SEM pictures clearly show growing surface corrosion and morphological changes, with the initially smooth particle surfaces (image a) becoming rougher and more porous (images b–d). Fe and Co dissolve more readily than Sm, according to EDS spectrum data, which supports the selective character of the oxaline DES leaching process. This selective behaviour is consistent with our conversion measurements, which showed that Sm only converted 5% of the total, whereas Co converted 93.3%. Following 5 hours of leaching, as shown in Table 6, the residual material shows a notable enrichment in Sm content (∼11.6%), whilst the concentrations of Co and Fe significantly decrease to 9.6% and 5.5%, respectively. These results show that oxaline DES works as an efficient and selective leaching agent for the preferential recovery of Co from Sm–Co magnetic materials. This could offer an environmentally friendly method for recycling and separating these vital elements from end-of-life magnets.

Fig. 8 SEM-EDS images (a–c) of the oxaline leach residue obtained at different leaching times: (a) feed sample, (b) 1 hour, (c) 2 hours, and (d) 5 hours. SEM images corresponding to before leaching (e) and after leaching (f) at 90 °C for 5 hours.

Table 6 The weight (%) determined through EDS analysis for samarium (Sm), cobalt (Co), and iron (Fe) after chemical leaching at 90 °C at 1, 2, 4, and 5 hours using oxaline DES

Time (hours)	Element
	Sm wt (%)	Co wt (%)	Fe wt (%)
1	17.1	40.1	12.2
2	16.9	35.5	10.7
4	12.1	12.2	9.6
5	11.6	9.6	5.5

---

4 Conclusion

This study investigated the effectiveness of DESs as a leaching reagent for extracting Sm and Co from a waste Sm–Co magnet and using RVM for intensifying leaching. Sm and Co's dissolution in DESs was successful and increased over time. RVM increased leaching efficiency by enhancing time-dependent dissolution. Reline, oxaline, and EG–TBAC DESs were selective to Co over Sm. Oxaline with RVM achieved 82% Co recovery under leaching conditions at 80 °C for 2 hours; ethaline showed the lowest Co and highest Sm recovery (14%), indicating DES-specific leaching behaviour.

The preliminary studies showed that oxaline selectively dissolves Co due to a lower activation energy barrier, while Sm requires more energy to break the higher energy barrier. By incorporating higher temperatures for leaching and intensifying conditions, RVM improved Co leaching in oxaline DES to 97% at 90 °C by enhancing mass transfer and reducing boundary resistance without altering reaction kinetics. Sm leaching remained low (maximum 9%) due to strong Sm–O bonds, suggesting a need for pretreatment.

Author contributions

Zainab Nasrullah: conceptualization, data curation, formal analysis, investigation, methodology, software, validation, visualization, writing – original draft, and writing – review & editing. Frank Agyemang: methodology, data curation, writing – original draft, and writing – review & editing. Mehran Saddat: formal analysis, methodology, and data curation. Richard LaDouceur : supervision, formal analysis, writing – review & editing, funding acquisition, project administration, and resources.

Conflicts of interest

There are no conflicts of interest to declare.

Data availability

The data to support the findings of this study are provided in the supplementary information (SI). Supplementary information: additional tables of experimental data from ICP-OES analysis, fit statistics and analysis of variance. See DOI: https://doi.org/10.1039/d5va00283d.

Acknowledgements

This research was sponsored by the Combat Capabilities Development Command Army Research Laboratory and was accomplished under Cooperative Agreement Number W911NF-22-2-0015. The views and conclusions contained in this document are those of the authors and should not be interpreted as representing the official policies, either expressed or implied, of the Combat Capabilities Development Command Army Research Laboratory or the U.S. government. We would also like to acknowledge Gary Wyss, and Cristina Stefanescu from the Center of Advanced Materials Processing (CAMP) at Montana Technological University for their valuable assistance and support throughout the course of this research.
