Designing adaptive materials for 3D-printing via dynamic covalent imine bonds

Abstract

A powerful platform for smart materials with adaptive surfaces enabling the post-processing tuning of the physical and mechanical properties is reported. More specifically, 3D-printed materials featuring dynamic covalent bonds at their surfaces are developed and tested with respect to their potential for dynamic property tuning. The integration of acrylates bearing amine groups into tailor-made resins enables post-printing modification of the surface by employing imine condensation or imine exchange reactions. This approach allowed the dynamic tuning of the surface polarity and fluorescence behavior of the 3D-printed objects. Furthermore, the application potential of this concept with respect to self-healable materials was demonstrated by employing the imine condensation reaction for dynamic-covalent welding.

---

1. Introduction

Additive manufacturing (AM), also known as 3D-printing, has developed into a transformative technology allowing facile and rapid processing of objects with complex shapes.¹ This advantage is particularly important in the biomedical,^2–4 construction,⁵ energy⁶ and aerospace⁷ sectors for efficient production complex shapes. In the production of objects with complex architectures, the stereolithography techniques (SLA) such as digital light processing (DLP) have become established, as they have a resolution in the sub-micrometer range.⁸ In the past, the focus was on optimizing the printing speed and improving the resolution. More recently, the synthesis of novel molecular building blocks in order to move from a conventionally 3D-printed material to 4D printing, providing additional features such as responsiveness or sensing capability, has gained more and more interest.^9–12 With respect to sustainable processing aspects such as self-healing capability or recyclability will play a crucial role.^13,14 The development of these materials requires the integration of responsive and adaptive components into the 3D-printed polymer matrix.¹⁵

The development of polymers that simultaneously exhibit self-healing and adhesive properties is highly desirable; however, it remains challenging, as these functionalities require inherently opposing bonding characteristics—dynamic, reversible interactions for self-healing and robust, stable interactions for effective adhesion. Although several self-healing elastomeric adhesives have been reported, the 3D-printability has only been established to a limited extent.^16–18 Adhering elastomer polymers often requires the use of adhesive additives. However, conventional adhesives often fail to establish a strong bond between materials and makes damages after removing or disassembly of the object. Here, dynamic covalent bonds (DCBs) represent a promising alternative to incorporate self-healing capability and adaptivity into a polymer. These bonds combine the ability of reversible network formation with the robustness of covalent bonds. The binders thus represent an added value regarding recyclability and adaptivity in the 3D printing sector.^19,20

Recently, the work of Sowan et al. explored the use of dynamic covalent chemistry (DCC) at the resin silica-nanoparticle interface to enhance composite performance. Reversible covalent bonds at the interface enable efficient stress relaxation, which mitigates crack initiation and propagation. As a result, the composites exhibit significantly improved toughness under mechanical loading. The dynamic nature of the interfacial bonds, allowing damaged networks to recover structural integrity.²¹ Moreover the work of Khairkkar et al. showed a method for adhesive-free bonding of incompatible polymer networks by dynamic covalent bond exchange at the interface. This creates a stable transition zone with high adhesive strength – even between stiff and soft or hydrophobic and hydrophilic materials. The method enables laminated hybrid structures without delamination and is suitable for applications in electronics, lightweight construction and coatings.¹⁶ Wanasinghe et al. reported about the development of 3D-printable, self-healing elastomers that are incorporated into the polymer network using thiol–Michael dynamics. In addition, acrylate monomers ensure strong adhesion to metallic and polymer surfaces. The resulting materials exhibit high elasticity (up to 2000%), self-healing performance of over 95%, and strong adhesion. They can process using a standard DLP 3D-printer and enable the printing of complex functional parts.²²

In 2020 our group started to employed the dynamic nature of imine bonds to tune the properties of liquid crystalline (LC) materials.²³ By imine condensation, exchange or metathesis the nature of the mesophase, transition temperatures or emission behavior of the LC materials were post-synthetically adapted.²⁴

Herein, we transfer our expertise in DCBs to develop dynamic-covalent materials for digital light processing (DLP) technologies. Our approach offers a versatile platform for dynamic surface design and material customization through controlled chemical exchange and thermal activation using dynamic covalent chemistry.

2. Results and discussion

2.1. Synthesis of adaptive material

A modular toolbox to develop new materials for DLP 3D-printing (see Fig. 1) containing (meth-) acrylate-based amines (see Fig. 1A) or aldehydes (see Fig. 1C) is presented to introduce reactive groups on the surface of the 3D-printed objects (research goal 1). These acrylates were added as dopants into established acrylate-based host resins. After processing via digital light processing (DLP) 3D-printing, the reactive amine groups on the surface were subsequently treated with a selection of aldehydes (see Fig. 1B) to form imines, allowing systematic tuning of the surface polarity and emission behavior of the materials (research goal 2). In addition, the introduction of the imine bonds provides the option for further post-synthetic manipulation of the material properties by imine exchange reactions (research goal 3). Finally, the potential of molecular welding of the materials via imine bond formation was investigated (research goal 4). Therefore, a second resin composition was designed featuring reactive aldehyde groups on the surface of the 3D-printed objects (see Fig. 1C).

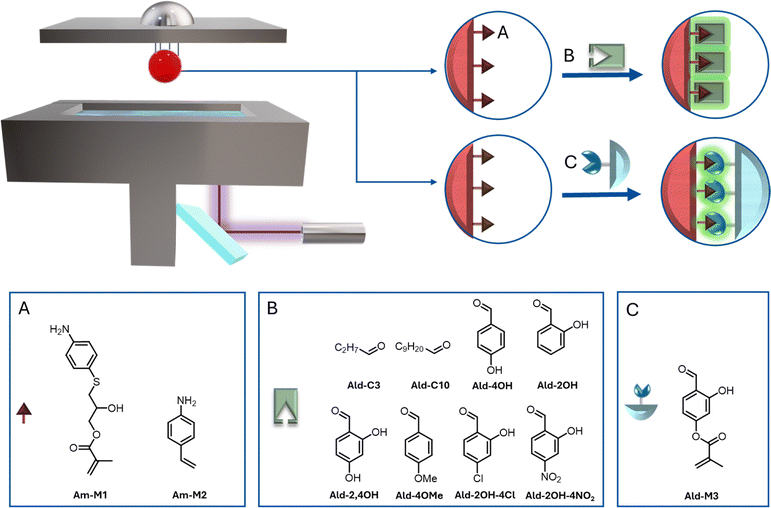

Fig. 1 Schematic representation of the DLP 3D printing process (upper left) and the manipulation of the materials properties by imine condensation and exchange reactions on the materials’ surface (upper right). (A) represents the self-synthesised amine monomer Am-M1 and commercially available Am-M2, (B) used aldehyde derivatives for modification of contact angle and photoluminescence emission. C) representation of self-synthesised aldehyde monomer Ald-M3 and corresponding polymer P3 for welding experiments.

2.1.1. Resin host system. In order to systematically address the scientific goals of the present study we initially focused on the identification of a suitable host resin ensuring compatibility of all component (host resin system as well as the functional monomers) in-turn with an efficient performance during 3D-printing process. It should be noted that most commercially available resin systems contain photo-stabilizers with strong auto-emission, which make them unsuitable in the present study due to interference with the emission behavior of the salicyl-imines and the concept of emission tuning via dynamic condensation and exchange reactions. Therefore, a custom-made resin system had to be developed. Systematic variations of the formulation of the host resin yielded the custom-made photopolymer P0, containing 2-[[(butylamino)-carbonyl]oxy]ethyl acrylate (2BAEA, 94 wt%) as main component, poly-(ethylene glycol)-dimethacrylate (PEGDMA, Mn ∼750 g mol⁻¹, 5 wt%) to introduce flexibility and diphenyl-(2,4,6-trimethylbenzoyl)-phosphine oxide (TPO, 1 wt%) as photo-initiator. This host system combines mechanically robustness with elasticity (see Table S1) as reliable platform for chemical modifications.

2.1.2. Acrylates with reactive groups. The host system P0 was doped with 2 wt% of self-synthesized Am-M1 or commercially available Am-M2 (see Fig. 1A and Fig. S2 and S3) to introduce amine-groups into the polymer systems for subsequent modification of the materials surface via dynamic-covalent condensation and exchange reactions (yielding polymer compositions P1 and P2, all details on the development of the resin system as well on the characterisation of the printing behavior can be found in the supporting material Fig. S7–S13). It should be noted that resin formulations with higher amounts of Am-M1 and Am-M2 yielded precipitation, thus in the following only the formulations with 2 wt% of the amine-bearing monomers have been used. The successful printing test yielded 3-dimensional objects with uniform distribution of amine groups on the surface as determined by FT-IR, SEM-EDX, fluorescence emission and contact angle measurements.

The successful printing of the developed resins yielded 3-dimensional objects (see Fig. 2) bearing either aldehyde or amine groups on their surface, which were used in the following for modification of the material properties by imine condensation reactions.

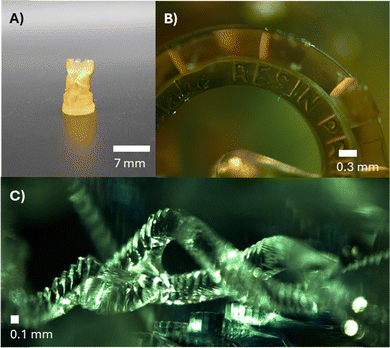

Fig. 2 3D-printed structure of P1 (A), including macroscopic images of the letters on the surface (B) and the internal helical structures (C).

For the investigation of the welding potential Ald-M3, based on 2,4-dihydroxybenzaldehyde, was synthesized as an additional functional monomer. The ortho-phenolic hydroxyl group serves as functional group for the formation of highly emissive salicyl imines, while the para-hydroxy group offers a reactive site for the derivatization, such as the conversion into the corresponding methacrylate Ald-M3 (see Fig. S5 and S6 for NMR characterization). The functional monomer Ald-M3 was added to P0 (2 wt%), processed via DLP 3D-printing and the resulting specimen was combined with amine-functionalized 3D-printed structures to investigate the welding performance.

2.2. Analysis of surface functionalization

The surface topology and chemical functionalization of the polymers were investigated by SEM–EDX measurements. The image of the lateral view of the fabricated material shows the characteristic layers of the 3D-printed structure with a layer thickness of ∼100 µm, as expected (see Fig. 3A). In addition, SEM images of the surface of the 3D-printed samples were obtained before (P2) and after functionalization (P2-Cl) with imines, which clearly show no impact on the topology by the functionalization (see Fig. 3B and C). Similar results were found for the surfaces of P1 and P1-Cl (see Fig. S30 and S31).

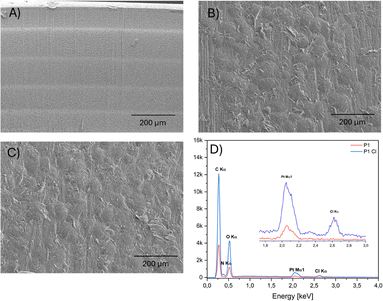

Fig. 3 SEM images of the lateral view of the 3D-printed layer by layer structure of P0 (A), surface topology of unfunctionalized (B) and functionalized (C) samples of P2 and P2-Cl coated with 4-chloro-2-hydroxynbenzaldehyde (Ald-2OH-4Cl). EDX analysis of P1 and P1-Cl with signal comparison and newly formed detectable chlorine signal at 2.6 keV.

In order to proof the surface functionalization of the materials EDX analysis before and after imine condensation was performed (see Fig. 3D). As an indicator for successful functionalization the chlorine content at the surface was used, which was introduced by imine condensation between the amine functionalized surface and 4-chloro-2-hydroxybenzaldehyde (Ald-2OH-4Cl). The EDX analysis of the custom-made host resin P0 reveals carbon, oxygen, and nitrogen contents of 55%, 40%, and %, respectively (see Table 1). Comparable elemental compositions were obtained for P1 (which contains 2 wt% of the amine monomers Am-M1). As shown in Table 1, P2, which contains 2 wt% of the monomer Am-M2, shows an increased nitrogen content, which can be attributed to the lower molecular weight of Am-M2 and thus a higher molar ratio given that the addition of the functional monomers is provided in weight percent. Consequently, the overall nitrogen contribution is increased. Upon functionalization of the 3D-printed objects with Ald-2OH-4Cl the chlorine content at the surface of the materials was studied by SEM–EDX analysis. As expected P1 and P2 showed no detectable amount of chlorine at the surface (see Table 1). In contrast, after functionalization with Ald-2OH-4Cl a signal for chlorine was observed. In detail, a chlorine content of 1.4 wt% for P1-Cl and 1.2 wt% for P2-Cl were detected, providing evidence for successful surface functionalization with chlorine-containing imines.

Table 1 Quantitative EDX elemental composition data for polymers P0, P1, P1-Cl, P2 and P2-Cl. Polymers P1 contain 2 wt% of Am-M1 and P2 contain 2 wt% of Am-M2

Elements	Weight % P0	Weight % P1	Weight % P1-Cl	Weight % P2	Weight % P2-Cl
C	55.3	54.7	52.0	50.7	53.0
O	39.9	40.0	38.9	37.9	35.4
N	4.7	5.3	7.7	11.5	9.4
Cl	—	—	1.4	—	1.2

---

2.3. Tuning the surface polarity

Numerous strategies have been reported for tailoring the polarity of surfaces via chemical post-functionalization, including thiol-Michael addition, Staudinger–Vilarrasa reaction or Huisgen cycloaddition.^25–28 While these approaches are highly efficient, they typically result in lack of the formation of reversible bonds. In contrast, the use of dynamic covalent chemistry (DCC) offers the advantage for the design of adaptive or “smart” surfaces and materials.^29–31 Due to the reversibility of imine bond formation, surfaces with adjustable properties—such as controlled and reversible adjustments to surface polarity, emission behavior, and weldability—can integrated. Furthermore, we investigated the ability of the 3D-printed materials to tune the polarity of the surface by imine condensation. Therefore, the 3D-printed objects were placed in 0.01 M solution of the corresponding aldehyde in methanol (∼2 mL) for 5 min. After color change, the samples were removed from the solution and dried for 15 min at ambient conditions. Surface functionalization was confirmed by FT-IR spectroscopy (Fig. S14 and S15). For the nomenclature of the samples the following system is employed. For example, the 3D-printed sample from P1 treated with 4-hydroxybenzaldehyde (Ald-4OH) turns into the corresponding imine labeled as Im4OH@P1. For materials covered with propionaldehyde the imine labeled as ImC3@P1, decanal ImC10@P1, 4-methoxybenzaldehyde Im4OMe@P1, 2,4-dihydroxybenzaldehyde Im2,4OH@P1, 2-hydroxybenzaldehyde Im2OH@P1, 4-chloro-2-hydroxybenzaldehyde Im4ClSalAld@P1, 4-nitro-2-hydroxy-benzaldehyde Im4NO₂SalAld@P1. For polymer P2 the same nomenclature was selected as imine Im4OH@P2 was functionalized with 4-hydroxybenzaldehyde and ImC3@P2, ImC10@P2, Im4OMe@P2, Im2,4OH@P2, Im2OH@P2, Im4ClSalAld@P2, Im4NO₂SalAld@P2.

After preparing the imine functionalized materials, contact-angle measurements were conducted to investigate the wetting behavior with respect to water droplets. In general, contact angles can be classified into two categories: surfaces with contact angles below 90° are considered hydrophilic, whereas those above 90° are regarded as hydrophobic. Samples printed with the unmodified host resin P0 showed a contact angle of 87°, while P1 exhibited a contact angle of ∼85° and P2 an angle of 91°, respectively. These values indicate slight changes in the polarity after introduction of the amine monomer. Upon imine condensation at the surface of P1 contact angles between 80° and 100° were obtained (see Fig. S16 and S18), while the reaction of propionaldehyde yielded the highest value of ∼100° and 4-nitro-2-hydroxybenzaldehyde the lowest with 80°. Notably, the contact angle obtained for the imine by decanal did not exceed that of the C3 analogue. This effect may arise from steric and packing effects at the interface, where excessive molecular crowding can induce lateral repulsion, thereby hinder uniform surface coverage and limiting further increases in hydrophobicity.³²

The imine condensation at the surface of P2 led to similar result with contact angles between 66° and 95° (see Fig. S17 and S19), indicating predominantly hydrophobic characteristics of the surface. Interestingly, the presence of polar terminal groups does not appear to significantly affect the contact angle. For instance, the imine derived from 2,4-dihydroxybenzaldehyde exhibits a contact angle of 93°, comparable to that of the imine containing 4-methoxybenzaldehyde, despite the substantially higher polarity expected for the dihydroxy substituents. It was found that the system does not exhibit any significant change in surface polarity even when polar aldehyde systems are applied.

To harness the potential of dynamic covalent chemistry for surface functionalization, an exchange reaction at the surface of an imine-functionalized polymer was performed to tune the polarity of the surface. As a representative example P1 decorated with Im4OH (Im4OH@P1) was treated with 4-nitro-2-hydroxybenzaldehyde (Ald-2OH-4NO₂), since for this exchange reaction the strongest shift in the surface polarity is expected. Initially the surface of Im4OH@P1 was found to be slightly hydrophobic with a contact angle of 99° (see Fig. 4). However, after treating the surface with a solution of Ald-2OH-4NO₂ in methanol for 2 hours the contact angle significantly decreased to 79°, indicating an increase in the polarity of the surface induced by the successful exchange of Im4OH.

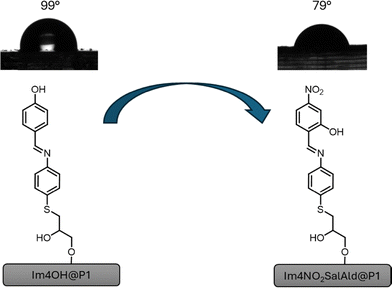

Fig. 4 General concept for switching surface wettability with dynamic covalent chemistry. Left contact angle of Im4OH@P1 with 99° and right after exchange Im4NO₂SalAld@P1 and contact angle of 79°.

These initial results show that imine condensation on the surface of P1 and P2 enables the manipulation of the surface polarity. However, the differences in the contact angles and thus in the surface polarity are less pronounces as expected, which might be attributed to the low density of functional groups on the surfaces of the 3D-printed materials. In this context the tuning of the emission behavior of the materials is a promising target, since already the presence of a small amount of a luminophore will have a significant impact on the fluorescence properties.

2.4. Tuning the emission properties

The second property of the materials which was tuned via imine condensation and exchange reaction was the emission behavior. Dynamic covalent chemistry is now employed in diverse chemical disciplines, spanning the creation of molecular and bulk self-assembled materials as well as the design of fluorescent sensors and artificial molecular machines. Therefore, the surface-functionalized 3D-printed objects with amine-groups (P1 and P2) were treated with 0.01 M solutions of aldehydes (see listed aldehydes above) in methanol and subsequently investigated with respect to their emission behavior. The untreated samples showed emission maxima at 517 and 518 nm for P1 and P2, respectively, with a low relative intensity caused by the fluorescence of the amine components (S20, S21, S22, S23, S24 and S25).^33–35 Upon treatment with aldehydes, the emission wavelengths show a hypsochromic shift from 517 nm to ∼470 nm for aliphatic imines (C3 and C10), while the aromatic imines yield a bathochromic shift of the emission wavelength to 533–576 nm, depending on the electronic nature of the aromatic imine. The most pronounced bathochromic shift was found for ImNO₂SalAld@P1 with an emission wavelength maximum at 576 nm. The significant bathochromic shift can be explained by the electron-deficient character of the nitro-arene enhancing the push–pull character of the emissive imine.^36–38 This is in-line with the general trend of the bathochromic within the series of investigated imines. In contrast, the imines with an alkyl rest show a hypsochromic shift which is caused by the reduction of the push–pull character due to the electronic nature of the alkyl chains.^39–41 The treatment of P2 with aldehydes to form imines on the surface of the 3D-printed samples produced results comparable to those obtained for the P1 surface modification (see Fig. S23). These findings suggest that the fluorescence properties of the materials can readily be modulated through simple treatment of the surface after 3D-processing. In order to harvest the full potential of the dynamic-covalent imine bond, the emission properties of the surface-functionalized materials were tuned by imine exchange reaction.

2.5. Tune emission properties via DCC exchange reaction

Imines are well known to undergo exchange reactions with aldehydes to form a new imine and release of an aldehyde.^42,43 In order to tune the fluorescence behavior of the 3D-printed objects a sample of ImC3@P1 was prepared, showing an emission maximum at 471 nm. Upon treatment of this sample with Ald-2OH-4NO₂ a hypsochromic shift occurs by shifting the emission maximum from 471 nm to 576 nm, while a color change from blue to orange is recognizable by eye. This color change is in-line with the expected emission behavior when transforming from ImC3@P1 to ImNO₂SalAld@P1, indicating successful exchange of the imine bond (see Fig. 5) at the surface of the 3D-printed sample.

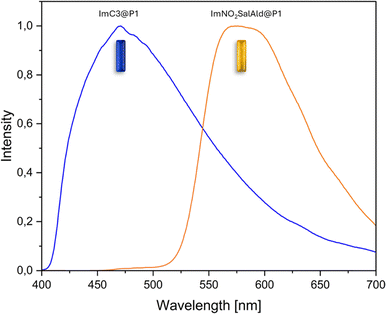

Fig. 5 Emission spectra and photograph of the samples upon exchange reaction at surface ImC3@P1 (blue curve) with 4-nitro-2-hydroxybenzimine (orange curve). Excitation with 395 nm.

In order to tune the fluorescence properties of material P2 we explored a cascade reaction of the imine modified polymer with Ald-2OH-4Cl to achieve a greenish fluorescence and further modification with Ald-2OH-4NO₂ yield to an emission in the yellowish area at around 580 nm (see Fig. 6).

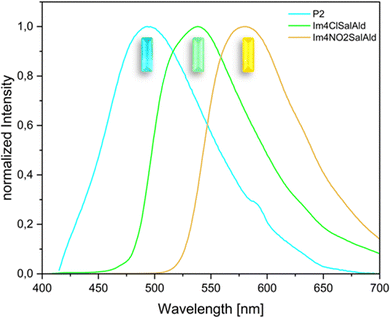

Fig. 6 Emission spectra and photograph of the cascade reaction of P2 (blue line) starting from 4-Chloro-2-hydroxybenzimine (green line) towards the functionalization of the surface with 4-Nitro-2-hydroxybenzimine (orange line) via exchange reaction.

2.6. Material welding by DCC

The previous results clearly demonstrate the potential of the dynamic-covalent bonds for tuning the properties of the materials surface, namely the wettability and the fluorescence behavior. In a next step we were curious if the amine groups on the surface can be employed for dynamic-covalent “welding”. Therefore, the library of 3D-printable resin systems was extended by P3, which contains Ald-M3 as aldehyde counterpart to the amine-acrylate containing resins P1 and P2. The 3D-printed samples with amine groups on the surface P1 or P2 were combined with an object surface-functionalized with aldehyde moieties (P3, details see Fig. S27) and tested with respect to their mechanical properties. As reference the mechanical properties of P0 (resin system without dopant), P1, P2 (amine-doped resins) and P3 (aldehyde doped resin) were investigated by tensile tests. For the mechanical properties of the 3D-printed parts, rectangular tensile bars with a length of 75 mm, a width of 5 mm, and a thickness of 2 mm were printed. After printing, samples were washed in isopropanol (IPA) for 5 minutes, air-dried for 10 minutes and post-cured for 4 minutes at room temperature.

The stress–strain diagrams of the reference measurements (pristine polymer samples without weld seam) show that the ultimate tensile stress decreases with addition of Am-M1 and Am-M-2 from 0.65 MPa (P0), 0.39 MPa (P1) and 0.32 MPa (P2), respectively (see Fig. 7a). The reduction in mechanical strength might be attributed to differences in the reaction kinetics of the monomers Am-M1 and Am-M2 compared to 2-[[(butylamino)-carbonyl]oxy]ethyl acrylate (2BAEA), which yields an increase of the internal stress and in turn reduction of the mechanical strength.^44,45 This assumption is supported by the elongation results: P0 shows an elongation of 98%, P1 of 72%, and P2 of 65%. In contrast, the tensile strength of polymer samples with Ald-M3 (P3) was comparable to 0.6 MPa the initial tensile strength of P0, however, the elongation is reduced to 33% (see Fig. 7).^46,47

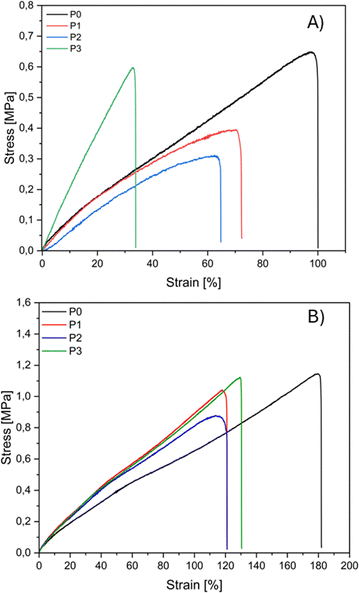

Fig. 7 Tensile tests of polymers P0, P1, P2, and P3 at room temperature (A), and after annealing at 80 °C for 24 h in an oven (B). Tests were performed at room temperature at a crosshead speed of 25 mm min⁻¹.

For the welding experiments the sample design was optimized with complementary shapes (see Fig. S27). Subsequently, the amine (P1 or P2, Fig. S27 top part) component and the aldehyde bottom counterpart (P3) were precisely overlapped and kept together under a constant compressive load of 1 N for 10 minutes. Since the imine bond formation yields a change in the emission behavior of the materials, the bond formation can be followed by fluorescence spectroscopy. While P1, P2 and P3 shows fluorescence signals at 517 nm, 518 nm and 455 nm, respectively, the newly formed imine between the interface of the samples exhibit a signal at 537 nm for P1–P3 and 545 nm for P2–P3 (see Fig. 8 and Fig. S29). This shift in the fluorescence behavior can be followed by the naked eye (see Fig. 8B), which provides a simple method to follow the welding process.

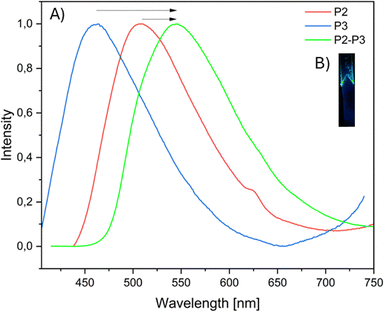

Fig. 8 (A) Emission spectra of polymers P2 (red curve) and P3 (blue curve), as well as of the interracially welded sample P2–P3 (green curve). (B) Photograph showing the emission at the P2–P3 interface under UV irradiation of 395 nm.

The welding process was finalized by thermal curing of the samples at 80 °C for 24 h. Heating facilitates the formation of dynamic covalent bonds by promoting the removal of water produced during the condensation between aldehyde and amine groups. This approach has been previously demonstrated to be effective in bulk imine formation for the synthesis of imine-based liquid crystals.^23,24 It should be noted that after heating polymer P2 at 80 °C for 48 h, the material exhibited slight surface defects but no evidence of structural degradation. As shown in Fig. S28, FT-IR data confirms the presence of residual polymerization. The stress–strain measurements of the welding samples of P1–P3 and P2–P3 exhibited comparable ultimate tensile stress of ∼0.2 MPa after one day in oven at 80 °C (Fig. 9). However, since the welding process is based on the formation of dynamic-covalent imine bonds formation, we examined the influence of surface functionalization density by increasing the aldehyde functionality in the P3 formulation to twofold (4 wt% Ald-M3) and tenfold (10 wt% Ald-M3) the initial aldehyde monomer concentration.

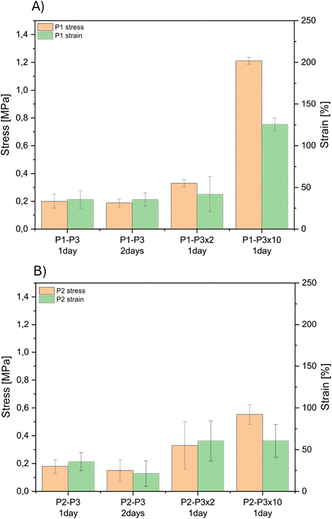

Fig. 9 Tensile properties of welded samples P1–P3 (A) and P2–P3 (B). The bar charts present the ultimate tensile strength (orange bars, left y-axis) and the corresponding elongation at break (green bars, right y-axis) for samples treated at 80 °C for different durations (1–2 days) and with varying Ald-M3 contents (P3 (2 wt% Ald-M3), P3 × 2 (4 wt% Ald-M3), P3 × 10 (20 wt% Ald-M3)).

For the sample series P2–P3 the mechanical properties are affected with an increase in the stress strength from 0.18 ± 0.05 MPa (P2–P3), to 0.33 ± 0.17 MPa (P2–P3x2) to 0.55 ± 0.07 MPa MPa (P2–P3x10). The elongation remained nearly unchanged in this series at around 60%. The most pronounced improvement in mechanical strength was observed for the P1–P3x10 system treated at 80 °C for 24 h. The tensile strength increased by approx six-fold compared to the initial condition (P1–P3) from 0.2 MPa to 1.2 MPa.

The stress–strain measurements of the welded samples demonstrate that the thermal curing time (24 vs. 48 h) and temperature (80 vs. 100 °C) only has a small effect on the mechanical behavior of the samples. In contrast, the increase of the density of functional groups on the surface of the leads to a significant improvement of the mechanical robustness of the samples.

3. Conclusion

In conclusion, we report a modular approach towards 3D-printable materials featuring dynamic covalent bonds on the surface, allowing the tuning of the surface properties by making use of imine condensation and exchange reactions. Therefore, a series of acrylates bearing peripheral amine groups was synthesized and embedded in custom-made resins for digital light processing 3D-printing. Subsequently to the 3D-printing process the amine groups were used in imine condensation to tune the surface polarity. Due to the relatively low amount (2 wt%) of acrylates with amine groups the impact of the surface polarity was small, reflected by a change of the contact angle from 85° for P1 to 91° for P2.

However, the emission behavior of the materials could be significantly and dynamically be tuned from 517 to 540 and 581 nm. Beside the changes in the polarity and the photo-physical properties the surface modification via dynamic covalent chemistry was followed by FT-IR and SEM-EDX measurements. As a proof-of-concept the imine condensation was used in a dynamic-covalent welding approach. Therefore, an additional acrylate was synthesized and added to the custom-made resin composition. These materials act with its aldehyde groups as dynamic-covalent counterpart to the amine-functionalized samples and by imine condensation between the two different surfaces the imine formation yielded dynamic-covalently welded specimens, which showed an increased tensile strength by ∼six-fold from 0.2 MPa to 1.2 MPa compared to the initial condition.

This work presents a robust strategy for dynamically tuning both mechanical and optical properties of polymeric materials. The results demonstrate a versatile approach to creating reprogrammable, responsive surfaces and modular polymeric devices. This study sets the foundation for future developments in smart materials, adaptive interfaces, and multifunctional systems, where control over surface chemistry, mechanics, and fluorescence is required by dynamic covalent chemistry.
