Transport characteristics of 2DHG in p-GaN/AlGaN/GaN heterojunctions: the impact of Mg dopant activation

Abstract

This work investigates the correlation between the two-dimensional hole gas (2DHG) formed at the p-GaN/AlGaN interface and the activation of dopants in the p-GaN layer grown on top of the AlGaN/GaN heterojunction. The effect of annealing environment and temperature on the activation of Mg impurities within the p-GaN layer is investigated through rapid thermal processing treatments at temperatures ranging from 700 to 900 °C in N₂ and N₂ + O₂ environments. The samples annealed in an N₂ atmosphere exhibited a higher sheet resistance (R_s) of 50 × 10³ Ω □⁻¹ and a lower carrier concentration (p) of 1.13 × 10¹⁸ cm⁻³ compared to those annealed in an N₂ + O₂ atmosphere, which had values of R_s = 40 × 10³ Ω □⁻¹ and p = 1.41 × 10¹⁸ cm⁻³ at room temperature (RT). The sheet resistance and Hall measurement as a function of temperature were determined for a selected set of samples annealed in N₂ + O₂ at 780, 860, and 900 °C to assess effective dopant activation and determine the R_s and p values in the p-GaN layer. A pristine sample was used as a reference to monitor possible variation in the R_s and p values upon dopant activation procedures. Analysis of the R_s and p data at T < 100 K allowed distinguishing between holes generated from acceptor ionization in the p-GaN layer with an average activation energy of 129 ± 4 meV and holes in the 2DHG at the p-GaN/AlGaN interface with a hole density of ∼6 × 10¹² cm⁻². The formation and electrical properties of the 2DHG were determined to be completely independent of the activation of Mg impurities in the p-GaN layer.

---

Introduction

Devices based on AlGaN/GaN heterojunctions are used for high-frequency and high-voltage applications in the microelectronics industry, due to the interesting electrical properties of the two-dimensional electron gas (2DEG) which is naturally formed at the AlGaN/GaN interface^1,2 without any applied voltage. The creation of this 2DEG results from spontaneous and piezoelectric polarization of the AlGaN layer. A negative voltage supply is necessary to turn off the 2DEG. Normally-on transistors typically require more complex circuit designs. Consequently, significant effort has been concentrated on developing normally-off GaN-based transistors.^3,4

Several methods were recently proposed for fabricating this kind of device. One of the most promising techniques is the formation of a deep gate recess by the local removal of the AlGaN layer, resulting in localized depletion at the AlGaN/GaN interface.^4–7 Another widely investigated approach is based on the epitaxial growth of a p-type gate material, such as p-GaN, on top of the AlGaN film to shift the conduction band upwards, thus depleting the channel even at zero applied gate voltage.^8,9

Both these approaches have advantages and limitations. Using a gate recess with a gate insulator leads to a very low gate leakage current and fine control of the threshold voltage but can favor trapping at the interfaces and/or in the insulator. Moreover, fine-tuning of the etching process is necessary to prevent mobility degradation at the AlGaN/GaN interface. Conversely, using a p-type gate material requires fine control of the doping process and activation of the Mg impurities that are used as p-type dopants. The introduction of an additional growth step increases the complexity of the fabrication process, but this approach guarantees lower on-resistance and high mobility.¹⁰ In this respect, p-GaN integration represents a cost-effective solution for the fabrication of enhancement mode FET devices.

Interestingly, several studies^11–13 demonstrated the formation of a two-dimensional hole gas (2DHG) at the p-GaN/AlGaN interface, stimulating intense research activity aiming at the fabrication of p-FET devices for the development of GaN based CMOS logic circuits. Ng et al.¹³ claimed that the 2DHG originates from the ionization of Mg acceptors in the AlGaN barrier. However, a weak temperature-dependent concentration of holes in the 2DHG is observed via variable temperature Hall effect measurements, suggesting that the mechanism inducing the formation of the 2DHG is somehow independent of the ionization of Mg impurities. In a recent paper, Kumar et al.¹⁴ indicated that precise control over doping, material thickness, and composition is essential for optimizing pFET performance and reliability for next-generation electronic applications on GaN. Nevertheless, the effective correlation between doping of p-GaN and the formation of the 2DHG has not been completely clarified.

This work focuses on optimizing the activation of Mg dopants in a p-GaN film epitaxially grown on top of an AlGaN/GaN heterojunction and correlating it with the electrical properties of the 2DHG that is formed at the p-GAN/AlGaN interface. The objective is to gain a deeper understanding of the intricate relationship between the processing conditions necessary for Mg activation and the formation of the 2DHG. A comprehensive understanding of how processing conditions influence the characteristics of both the 2DHG and the 2DEG is paramount for the effective utilization of the 2DHG as a fundamental building block in the fabrication of p-channel devices on GaN substrates, taking advantage of a technologically relevant platform that could facilitate future exploitation. Mg dopants were introduced into the p-GaN during the growth process. The activation of Mg impurities was achieved through high-temperature thermal treatment (T > 600 °C) using a rapid thermal processing (RTP) system in N₂ and N₂ + O₂ environments.^15–19 Transport measurements as a function of temperature were performed on selected samples to discriminate between the holes in the 2DHG and those in the p-GaN layer, providing information about hole density and mobility in the 2DHG as a function of Mg impurity activation in the p-GaN layer. Upon selective removal of the p-GaN, low temperature characterization of the 2DEG at the AlGaN/GaN buried interface was performed, enabling a direct comparison between the properties of the 2DHG and 2DEG that are formed at the different interfaces of the p-GaN/AlGaN/GaN stack.

Experimental methods

A commercial 200 mm GaN-on-Si wafer was used for this study. It comprises a ∼100 nm thick p-GaN layer with a nominal Mg doping concentration of 2 × 10¹⁹ cm⁻³. The p-GaN layer was grown by metal–organic chemical vapor deposition (MOCVD) on top of a stack consisting of a thick ∼18 nm Al_xGa_1−xN barrier layer with 20% of Al content and a GaN buffer layer. A scheme of interface atomic composition, sample structure and band structure of the heterojunction is reported in Fig. 1–c, respectively. Samples measuring 1 × 1 cm² were cut out from the wafer. These samples underwent thermal treatments in an RTP machine (AS-One150 RTP system) at temperatures ranging from 700 to 900 °C in N₂ and N₂ + O₂ (5%) atmospheres. A non-annealed 1 × 1 cm² sample was used as a reference to assess the effective activation of Mg dopant impurities upon annealing. In the following, this sample is referred to as the pristine sample.

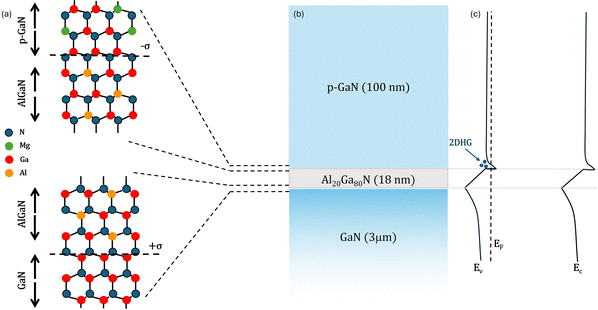

Fig. 1 Atomic structure (a), cross-section (b) and band diagram (c) of the p-GaN/AlGaN/GaN heterojunction.

Chemical information about the dopant and impurity distributions in the samples was obtained using time-of-flight secondary ion mass spectrometry (ToF-SIMS) with an ION-TOF M6 system. The base pressure in the main chamber was kept at 1 × 10⁻¹⁰ mbar to prevent moisture physisorption on the sample surface and minimize the H background signal. All the measurements were performed in interlaced mode, operating in positive or negative mode for Mg and H detection, respectively.

For the electrical characterization of the p-GaN/AlGaN interface, p-type Ohmic contacts were fabricated by depositing Pd/Au (80/20 nm) metal stacks at the corners of each 1 × 1 cm² sample, whereas for the electrical characterization of the AlGaN/GaN interface, upon selective removal of p-GaN layer, Ti/Al/Ni/Au (15/80/20/80 nm) metal stacks were deposited at the corners of each 1 × 1 cm² sample and annealed with rapid thermal treatment at 800 °C for 300 s forming n-type Ohmic contacts on the AlGaN/GaN heterostructure.²⁰ Sheet resistance (R_s) and Hall effect measurements in Van der Pauw configurations were performed at temperatures ranging from 5 to 300 K with a magnetic field varying from −0.8 to 0.8 T by means of a Bruker BE15 magnet and a He-based cryogenic system. In addition, a homemade system with a Eurotherm heater controller was used for R_s measurements in the range of temperatures between 300 and 600 K. The Hall factor is unity, and the calculated field effect mobility can be compared directly with the Hall-effect mobility.

Results and discussion

Fig. 2a reports R_s values at room temperature (RT) as a function of annealing temperature for the two different annealing environments: N₂ (orange squares) and N₂ + O₂ (green circles). The dashed blue line indicates the sheet resistance (R_s = 52 kΩ □⁻¹) of the pristine sample which serves as a reference. Accordingly, resistivity in the pristine sample is determined to be ρ = 0.52 Ω cm, significantly lower than the values (ρ > 10 Ω cm) reported for undoped GaN films.^21,22 Although the resistivity in undoped GaN films depends on the growth and processing conditions,²¹ the measured resistivity value suggests that, even without thermal treatment, a fraction of Mg impurities in the pristine sample has already been activated during growth. The annealed samples exhibit lower R_s values compared to the pristine sample. For the samples annealed in the N₂ atmosphere, R_s decreases as the annealing temperature increases, from 48 ± 2 kΩ □⁻¹ at 700 °C to 34 ± 1 kΩ □⁻¹ at 900 °C. Conversely, samples annealed in the N₂ + O₂ atmosphere exhibit a less pronounced decrease in R_s as the annealing temperature rises. R_s is at its lowest value at 860 °C (33 ± 1 kΩ □⁻¹). Further increasing the annealing temperature causes a slight rise of R_s up to 36 ± 1 kΩ □⁻¹ at 900 °C. Comparing the results for the two annealing atmospheres, it is quite evident that, at temperatures below 860 °C, samples annealed in N₂ exhibit higher R_s values than those annealed in N₂ + O₂. This result is perfectly consistent with data reported by Kumar et al.,¹⁷ which indicates that oxygen promotes the dissociation of Mg–H complexes. Fig. 2b shows the hole concentration (p) values as a function of annealing temperature, obtained through Hall effect measurements at RT. The pristine sample exhibits a p of 9.6 ± 0.6 × 10¹⁷ cm⁻³, which is comparable to that of the samples annealed in a N₂ atmosphere (orange squares). Samples annealed in the N₂ + O₂ atmosphere (green circles) exhibit a higher p than those annealed in N₂. Moreover, data in Fig. 2b indicate that for the samples annealed in N₂, p does not vary significantly over the range of annealing temperatures considered, within the experimental error. On the other hand, in the samples annealed in N₂ + O₂, p progressively increases with an increasing annealing temperature from 760 to 860 °C, reaching a maximum value of 1.41 ± 0.02 × 10¹⁸ cm⁻³ at 860 °C before decreasing at higher temperatures. Carrier mobility (μ) is computed by combining R_s and Hall measurements according to the equation μ = (1/qpR_s). μ values of the different samples are reported in Fig. 2c. Interestingly, μ does not show significant variation from sample to sample, irrespective of the different annealing atmospheres. The pristine sample shows a slightly lower μ (blue dashed line) value than the annealed ones. Moreover, for samples annealed in a N₂ + O₂ atmosphere μ appears to be temperature independent. On the other hand, for samples annealed in N₂, μ shows a small trend as a function of temperature – μ increases as the temperature increases.

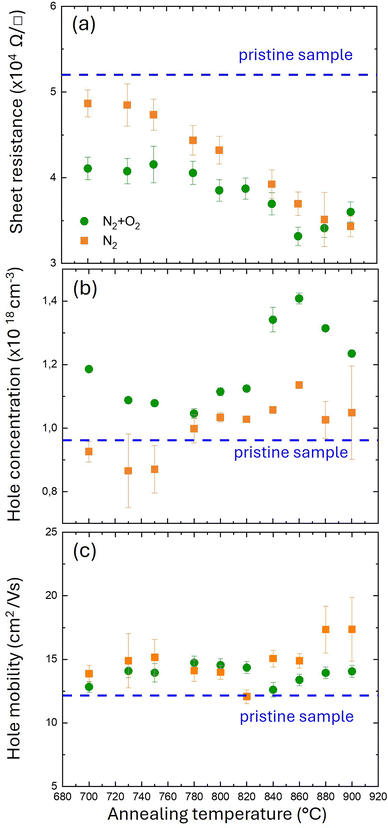

Fig. 2 Sheet resistance (a), carrier concentration (b), and mobility (c) at room temperature as a function of annealing temperature for two different annealing atmospheres: N₂ (orange squares) and N₂ + O₂ (green circles). The dashed blue lines represent the sheet resistance (a), carrier concentration (b) and mobility (c) values for the pristine sample.

Fig. 3 reports representative ToF-SIMS depth profiles of the pristine sample (a) and of the samples annealed at 780 °C in N₂ (b) and N₂ + O₂ (c). The different secondary ion signals were normalized to the average GaN⁻ signal value in the p-GaN layer to account for primary ion current variation during the measurements. The Al⁻ signal (purple line) is reported to visualize the AlGaN layer. In correspondence with the AlGaN layer, a decrease in GaN⁻ signal intensity (red line) is observed. The Mg⁺ signal (blue line) is uniform in the p-GaN layer and decreases quite sharply in the AlGaN layer. It is interesting to note that the Mg⁺ signal does not change across the different samples, indicating that the Mg distribution was not affected by the thermal treatment resulting in no significant diffusion of Mg impurities in the AlGaN layer. The orange line corresponds to the C⁻ signal and represents the carbon depth distribution. The intense C⁻ signal at the surface of the sample is essentially related to carbon contamination due to air exposure. The tails of the C⁻ signals in the pristine sample and in the samples annealed in a N₂ atmosphere are quite similar, suggesting a similar level of carbon contamination in the p-GaN layer. Conversely, carbon contamination is reduced in samples annealed in the N₂ + O₂ atmosphere. It is worth noting that C impurities are reported to increase GaN resistivity.^23–25 An intense O⁻ background signal is present in all samples, due to the contamination during depth profiling by the residual oxygen and moisture in the analysis chamber. However, in the sample annealed in the N₂ + O₂ atmosphere, the intensity of the O⁻ signal in the p-GaN layer is higher than that in the pristine sample and in the one annealed in a N₂ atmosphere; this could be caused by the diffusion of oxygen into the p-GaN during the annealing process. The green line represents the calibrated H depth profile (right axis scale). The data indicate only a slight difference between the pristine sample and the samples annealed in N₂. Conversely, the H profile in the sample annealed in a N₂ + O₂ atmosphere is considerably lower than in the other samples, consistent with previous results reported by Kumar et al.¹⁷

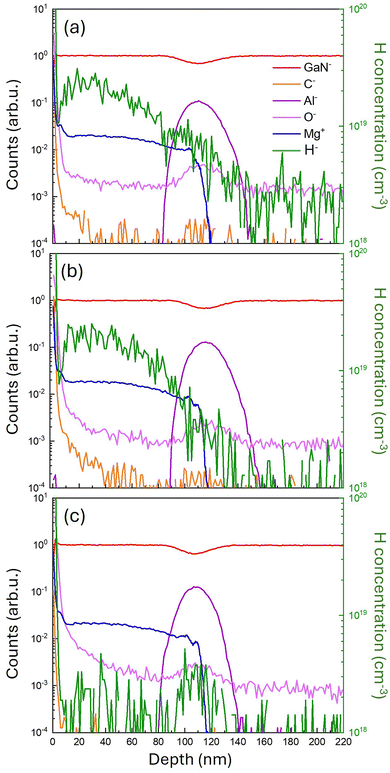

Fig. 3 ToF-SIMS depth profiles showing Mg (blue line) and calibrated H depth profile (green line, right axis scale) for the pristine sample (a), samples annealed at 780 °C in N₂ (b) and in N₂ + O₂ (c). GaN⁻ and Al⁻ secondary ion signals are reported without any calibration to simply indicate the position of the different interfaces in the p-GaN/AlGaN/GaN heterojunction.

By integrating the H concentration profile in the p-GaN region, the total H dose in the p-GaN layer for each sample was determined. Fig. 4a shows the total H dose as a function of annealing temperature for the two different annealing atmospheres. For annealing temperatures T < 780 °C, the H dose in the samples annealed in N₂ is quite close to that of the pristine sample (dashed blue line). The H dose then decreases slightly as the annealing temperature rises to 820 °C. The reduction in the H dose becomes more pronounced at temperatures T > 820 °C. Samples annealed in N₂ + O₂ exhibit almost temperature-independent behavior with a significant reduction in H dose upon annealing, even at low temperatures. Interestingly, irrespective of the annealing atmosphere, a small increase in the H dose is observed in the samples annealed at 900 °C. These data clearly highlight that, for each annealing temperature, the samples annealed in N₂ have a higher H dose than those annealed in N₂ + O₂. As reported in the literature,²⁶ O₂ promotes the dissociation of Mg–H complexes during thermal treatment, increasing Mg activation, and reducing the R_s value of the p-GaN layer.

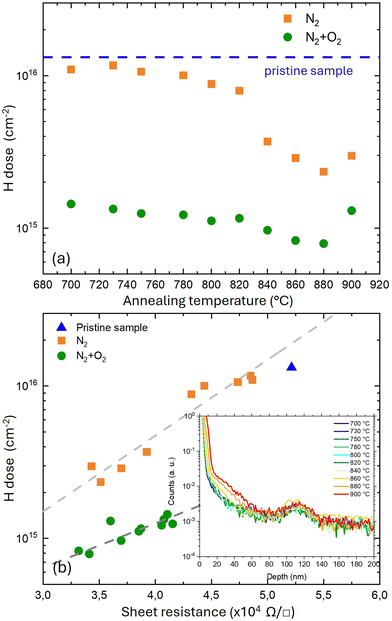

Fig. 4 (a) H dose of the p-GaN layer as a function of annealing temperature for two different atmosphere conditions, N₂ (orange squares) and N₂ + O₂ (green circles). The dashed blue line represents the H dose of the pristine sample. (b) H dose as a function of sheet resistance for two different annealing atmospheres, N₂ (orange squares) and N₂ + O₂ (green circles). In blue, the value for the pristine sample. In the inset, the oxygen ToF-SIMS depth profile for each annealing temperature in an N₂ + O₂ atmosphere.

Fig. 4b shows the H dose as a function of R_s for the samples annealed in N₂ and in N₂ + O₂. The blue triangle corresponds to the pristine sample. In the annealed samples, the reduction in R_s is systematically associated with a decrease in the H dose, irrespective of the annealing atmosphere. Despite the similar trend, it is noteworthy that samples with the same resistivity are characterized by different H content depending on the annealing atmosphere. This difference suggests that the varying activation levels of Mg impurities in the two sets of samples cannot be fully explained only by differences in H concentration. An additional contribution should be considered, that is oxygen diffusion into the p-GaN layer during the annealing process. This is particularly evident in samples annealed under a N₂ + O₂ atmosphere. Oxygen depth profiles for the samples annealed in N₂ + O₂ are reported in the inset of Fig. 4b. The tails of the O⁻ signal indicate that, at the highest annealing temperatures, the oxygen diffusion into the p-GaN layer near the surface is significant. Oxygen is an n-type dopant impurity for GaN, and the increased oxygen content could lead to charge compensation, reducing the availability of holes in the GaN layer. Carbon residues may play an additional role. Carbon impurity may preferentially form deep level traps, acting as effective compensation centers and leading to an increase in resistivity.²⁴ This behavior of R_s as a function of the annealing conditions is not yet fully understood, and further experiments are necessary to fully elucidate this point.

At RT, R_s values exhibit a relatively small variation from sample to sample. To gain a deeper understanding of the differences in terms of activation, R_s measurements were performed at temperatures ranging from 5 to 600 K for four different samples: one pristine sample (blue symbols) and three samples annealed in N₂ + O₂ at 780 (dark green symbols), 860 (light green symbols) and 900 °C (magenta symbols), respectively. R_s values as a function of the temperature for these samples are reported in Fig. 5a. All the samples behave in a quite similar manner at temperatures below RT (T < 300 K): R_s decreases as the temperature decreases, likely due to the progressive reduction of acoustic phonon scattering. Interestingly, this behavior differs from what we would expect for a semiconductor, where a progressive increase of R_s is typically observed due to thermal deionization of Mg impurities. Conversely, above RT (T > 300 K), the pristine and annealed samples exhibit notably different R_s evolutions. For the annealed samples, R_s decreases with increasing temperature, while for the pristine samples, R_s increases with increasing temperature. This differing evolution of R_s as a function of temperature can be explained by assuming that, in the pristine sample, only a small fraction of the impurities is electrically activated.

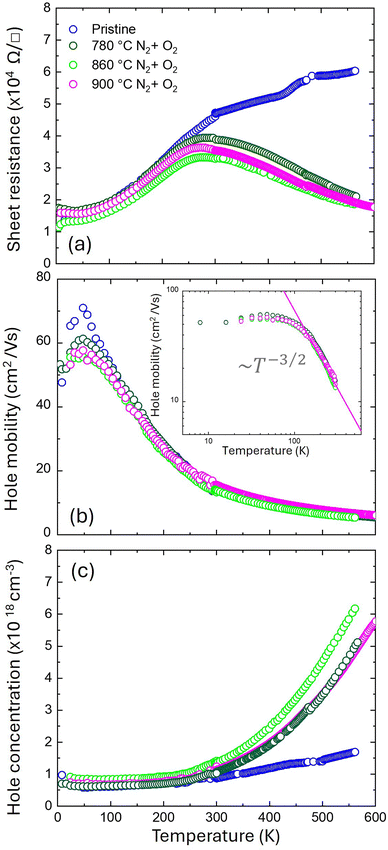

Fig. 5 (a) Measured sheet resistance values as a function of the temperature for the pristine sample (blue circles) and the sample annealed in N₂ + O₂ at 780 (dark green circles), 860 (light green circles) and 900 °C (magenta circles). Carrier mobility (b) and carrier concentration (c) as a function of the temperature for the pristine sample (blue circles) and the samples annealed in N₂ + O₂ at 780 °C (dark green circles) and 860 °C (light green circles). Mobility and carrier concentration are measured in the range of temperature between 5 and 300 K by Hall effect measurement. The carrier mobility values for temperature in the range of 300–600 K are obtained by fitting the mobility as a T^−3/2 function, as shown in the inset of panel (b). Hole concentration values were calculated using sheet resistance data and mobility values.

Consequently, the resistivity increases because the carrier mobility is reduced by increasing phonon scattering. Conversely, for the annealed samples, as the temperature increases, the fraction of ionized impurities progressively grows, resulting in a decrease in R_s. Hall measurements were performed over the temperature range of 5 to 300 K. Experimental values of carrier mobility and concentration are reported in Fig. 5b and c, respectively. Within this temperature range, μ progressively increases as the temperature decreases to approximately 80 K. However, at higher temperatures, a clear reduction in μ is observed (Fig. 5b). This temperature-dependent evolution is consistent for both pristine and annealed samples. μ for T > 300 K were extrapolated by fitting the μ in the temperature range from 200 to 300 K with a T^−3/2 function, as shown in the inset of Fig. 5b. This extrapolation assumes that, in this specific temperature range, carrier mobility evolution is primarily determined by acoustic phonon scattering, consistent with data reported in the literature.¹³ The extrapolated μ for T > 300 K, along with the measured μ for T ≤ 300 K, are reported in Fig. 5b.

Fig. 5c reports measured p values as a function of temperature for T < 300 K. At temperatures above RT, p values were calculated by combining R_s data and extrapolated μ values. In this range of temperatures (T > 300 K), the estimated p values are found to increase with temperature for all samples. This supports the idea that increasing the temperature causes the ionization of Mg impurities that are not fully ionized at RT. Interestingly, the p values of annealed samples increase with the temperature at steeper slopes compared to the pristine samples. However, for temperatures below RT, all the samples exhibit the same behavior: p progressively decreases and then levels off, reaching a plateau at T > 200 K. The persistence of a significant number of carriers at very low temperatures indicates a metallic-like behavior which is associated with the formation of a 2DHG at the p-GaN/AlGaN/interface.¹³

Since at T < 100 K all the Mg impurities are thermally frozen, we estimated the 2DHG contribution to the hole density as the average value of the total hole density in the temperature range between 20 and 100 K. This contribution was subtracted from the total hole density to highlight the contribution of the holes generated by thermal ionization of Mg impurities. Fig. 6 shows the total hole density (light green symbols) and the calculated bulk hole density (light blue symbols). The calculated bulk hole density decreases with decreasing temperature, which is consistent with the thermal deactivation of Mg impurities. Analyzing the different contributions as a function of temperature, we can observe that at low temperatures the only contribution present is from the 2DHG. At RT, both contributions are equally relevant, whereas at temperatures above RT, ionization of Mg impurities progressively increases, increasing the relevance of this bulk contribution to conduction. In addition, by fitting the extrapolated bulk hole density by an exponential function the activation energy (E_A) of Mg impurities (≃E_A/kT) was estimated to be 125 ± 11 meV.

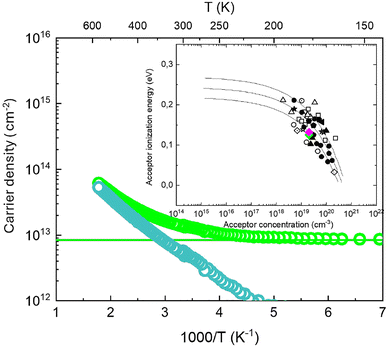

Fig. 6 Hole density (light green symbol) as a function of temperature for the sample annealed at 860 °C in N₂ + O₂. The values at low temperature were fitted (light green line) to determine the 2DHG contribution. This contribution was removed to leave just Mg impurities after subtracting the 2DHG hole density (dark green line). In the inset, a comparison between our results (dark green 780 °C, light green 860 °C and magenta 900 °C) and literature data from • Brochen et al.,²⁷ □ Namkoong et al.,²⁸ ★ Leroux et al.,²⁹ ▽ Konczewicz et al.,³⁰ ◁ Nakayama et al.,³¹ ◀ Tanaka et al.,³² ■ Nguyen et al.,³³ [pentagon filled] Kim et al.,³⁴ [diamond dotted] Huang et al.,³⁵ ☆ Nikishin et al.,³⁶ ⊙ Nakano et al.,³⁷ □ Kozodoy et al.,^16,38 ○ Ke et al.,³⁹ and △ Gotz et al.⁴⁰ is provided. The solid lines represent simulations for different ionization energy values according to the equation E_a = E_a0 − αN_A^1/3 where α = Γ(2/3)·(4π/3)^1/3(q²/4πε).⁴⁰

This procedure was repeated for the pristine sample and the other two samples annealed in N₂ + O₂ at 780 and 900 °C, respectively. The results of this analysis are summarized in Table 1 that reports the total hole concentration and the hole concentration in the 2DHG, as well as the activation energy and hole mobility at RT and at low temperature (T = 80 K). Interestingly the activation energy of the Mg impurities in the p-GaN layer was found to be roughly the same for all the samples. The calculated values are reported in the inset of Fig. 6 together with data collected from the literature at different Mg concentrations.²⁷ The calculated E_a values are in excellent agreement with those reported in the literature for a Mg concentration around 1 × 10¹⁹ cm⁻³.²⁷ This result further supports the idea that, at T = 80 K, no holes generated by thermal ionization of Mg impurities are present in the p-GaN and that the conduction is essentially dominated by the holes in the 2DHG at the p-GAN/AlGaN interface. Interestingly, the carrier concentration and mobility values measured at this low temperature do not significantly change upon Mg activation. In particular, hole mobility and hole concentration at T = 80 K are quite similar to those obtained in the annealed samples at low temperatures, suggesting that the characteristics of 2DHG are essentially independent of the activation process.

Table 1 Calculated and measured values for the samples considered pristine and annealed at 780, 860, and 900 °C in N₂ + O₂

Annealing temperature [°C]	p (300 K) [cm^−2]	p2DHG [cm^−2]	Ea [meV]	Mobility (300 K) [cm^2 V^−1 s^−1]	Mobility (80 K) [cm^2 V^−1 s^−1]
0	1.0 × 10^13	0.6 × 10^13	70	15	60
780	1.0 × 10^13	0.6 × 10^13	126 ± 8	17	56
860	1.4 × 10^13	0.8 × 10^13	125 ± 11	14	53
900	1.2 × 10^13	0.7 × 10^13	132 ± 6	15	54

---

In Fig. 7 the hole concentration and hole mobility at T = 80 K are compared with those reported in the literature for 2DHG formed at p-GAN/AlGaN heterojunctions with Al content ranging from 15 to 50%.^{11–13,27,40–42} Fig. 7a shows that the mobility is almost independent from the Al content in the AlGaN layer with values that are always below 100 cm² V⁻¹ s⁻¹. Conversely, as shown in Fig. 7b, hole density exhibits a weak correlation with Al composition, with the p value slightly increasing as the Al content in the AlGaN layer increases. Finally, the mobility of the 2DHG as a function of hole density is shown in Fig. 7c. Gray dashed lines indicate sheet resistance isolines, highlighting an upper limit for the sheet resistance in this system, because of a progressive reduction of mobility when increasing the carrier density in the 2DHG layer. In view of a possible exploitation of 2DHG formed at the p-GAN/AlGaN interface in the p-FET device, it is worth comparing the carrier density and mobility of the 2DHG with those of the 2DEG that is formed at the buried AlGaN/GaN interface. To achieve this goal, the R_s, carrier density, and mobility of the 2DEG as a function of temperature were measured on the same substrate after the removal of the p-GaN layer by chemical etching. Fig. 8 presents a direct comparison of the electrical characteristics of the 2DEG and 2DHG at the AlGaN/GaN and p-GaN/AlGaN interfaces for the sample annealed at 860 °C in N₂ + O₂. Fig. 8a clearly demonstrates that the 2DHG exhibits a considerably higher R_s compared to 2DEG. In addition, the 2DEG shows the typical increase in R_s with increasing temperature, determined by the mobility reduction due to phonon scattering. The mobility evolution as a function of temperature for the 2DHG at the p-GaN/AlGaN interface is very different because of the progressive ionization of Mg impurities leading to a R_s plateau value at RT. Mobility values as a function of temperature are reported in Fig. 8b emphasizing a significant difference in the absolute values between the 2DHG and 2DEG, respectively. This difference is due not only to the higher effective mass of the holes, but also to the distinct effects of polar optical and acoustic phonons, which result in higher mobility.⁴³ Poncé et al. investigated the atomic-scale mechanisms responsible for the low hole mobility in GaN. They showed that the origin of the low hole mobility lies in carrier scattering within the light–hole (LH) and heavy–hole (HH) bands. The high density of states associated with the LH and HH bands plays a central role in reducing hole lifetimes and, consequently, suppressing their mobility. Additional factors further contributing to the reduced hole mobility are the presence of multiple scattering channels and the strong non-parabolicity of the HH band. However, their study was limited to bulk GaN and did not directly investigate hole mobility in heterojunctions.⁴⁴ Conversely, in their work, Bader et al.⁴³ proposed a specific model to explain the limited hole mobility of the 2DHG at the GaN/AlN interface. More precisely, they determined the spectra of both acoustic and optical phonons in the heterostructure and proposed that the mobility limitations are associated with phonon scattering at the GaN/AlN interface. Nevertheless, this mechanism remains an active area of investigation. Interestingly, according to our experimental data, hole and electron mobilities exhibit the same temperature dependence suggesting that the same mechanisms govern the evolution of mobility as a function of temperature for both systems: namely, defects and interface roughness at low temperatures, and phonon scattering at high temperatures. Fig. 8c shows that the carrier density is significantly higher in the case of 2DHG. As RT approaches, hole density exhibits a different temperature dependence due to the progressive ionization of Mg impurities. These results demonstrate that the significantly higher sheet resistance of the 2DHG is essentially ascribed to the limited hole mobility. The limited hole mobility in the 2DHG represents a fundamental limitation for the implementation of complementary FET technology on this specific technological platform exploiting p-FET devices taking advantage of a 2DHG as a transistor channel. A comparison with Si CMOS technology is instructive, as it remains highly successful despite the difference in mobility between electrons and holes. In silicon, at room temperature, electrons move approximately three times faster than holes due to their lower effective mass compared with holes. However, this difference can be compensated through appropriate device design. In contrast, in GaN-based heterostructures the mobility of electrons in the 2DEG is typically two orders of magnitude higher than that of holes in the 2DHG. This kind of large disparity cannot be easily compensated by simply adjusting the device design at the circuit level.¹⁴ Accordingly, several studies investigated alternative strategies to circumvent this specific problem, considering different materials such as AlN to reach higher mobilities and higher carrier densities at the GaN/AlN interface. Zhang et al.⁴⁵ reported a mobility value of 280 cm² V⁻¹ s⁻¹ at 10 K, in GaN/AlN heterostructures. As previously discussed, Bader et al.⁴³ presented an intriguing approach to enhance hole mobility in GaN/AlN heterostructures grown on sapphire substrates. While their findings are noteworthy, the integration of GaN/AlN heterostructures onto a GaN platform presents significant challenges, hindering the direct application of their scientific outcomes. Very recently an alternative approach was proposed to address this problem by adjusting structural parameters of the p-GaN/AlGaN/GaN double heterojunction to fabricate p-FET with performance and reliability characteristics that could be suitable for next-generation electronic applications.¹⁴

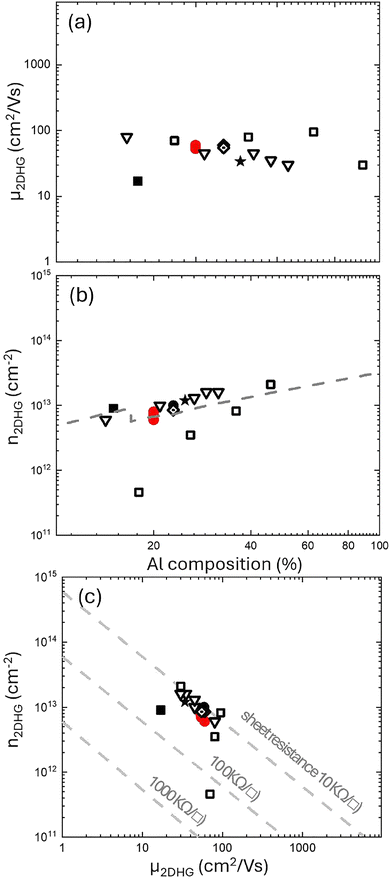

Fig. 7 Comparison of our data (red solid circles) with data reported in the literature from • Nakajima et al.,⁴¹ ★ Ng et al.,¹³ ▽ Beckmann et al.,⁴² □ Shao et al.,¹² ■ Zhang et al.,⁴⁵ and [diamond dotted] Nakajima et al.⁴⁶ Figures (a) and (b) show the 2DHG hole density and hole mobility, respectively, measured at T < 100 K as a function of the Al content (%) in the AlGaN layer. The dotted grey line in panel (b) indicates the theoretical hole density as function of the hole concentration calculated taking into account strain relaxation.⁴⁴ (c) Hole density as a function of hole mobility in the 2DHG.

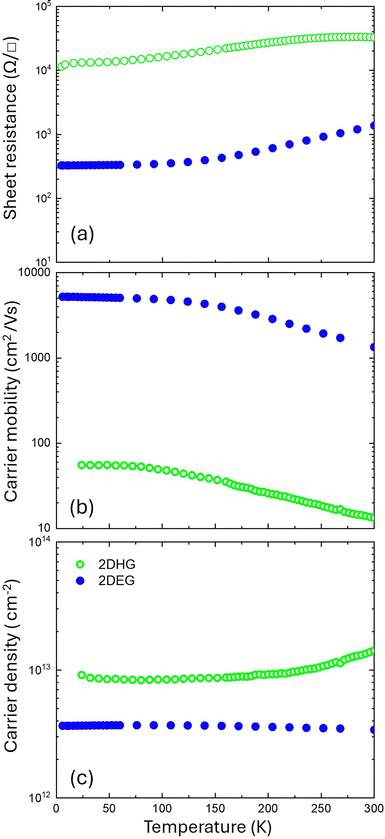

Fig. 8 Comparison of sheet resistance (a), hole mobility (b), and hole density (c) for the 2DEG (blue symbols) and 2DHG (green symbols) of the annealed sample at 860 °C in N₂ + O₂.

Conclusion

The activation of Mg impurities inside a GaN layer was investigated as a function of different annealing conditions. The annealing atmosphere and temperature significantly affect the R_s and the carrier transport characteristics. In detail, annealing in a N₂ + O₂ atmosphere guarantees lower R_s values and higher p values than annealing in N₂. Carrier mobility has similar values for all the samples considered, irrespective of the annealing conditions. ToF-SIMS analysis shows a reduction in H concentration upon annealing. The trend of the H dose in each atmosphere as a function of R_s shows that the presence of hydrogen has a negative impact on the material's resistance, according to the correlation between the H dose in the p-GaN layer and R_s data. Hall and R_s measurements as a function of temperature highlighted the differences between the annealed samples and the pristine sample highlighting the different levels of activation of the Mg impurities. The mean value of Mg activation energy across the samples was determined to be E_A = 129 ± 4 meV. At temperatures below 100 K, the hole concentration is found to be constant providing a clear signature of the presence of 2DHG at the interface between the p-GaN and AlGaN layers. This result is perfectly consistent with other reports in the literature and introduces important constraints in the design of the GaN based heterostructure devices that should be carefully evaluated. On the other hand, even if hole mobility in the 2DHG is quite limited compared with that of 2DEG, the presence of this conductive channel at the p-GaN/AlGaN interface provides an interesting scenario with the possibility of fabricating p-type transistors on GaN paving the way to CMOS technology implementation. To further explore this application, it is necessary to improve the mobility of the 2DHG through appropriate engineering of the heterostructure.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). See DOI: https://doi.org/10.1039/d5tc04494d.
