Enhanced activity and durability of Ir single-atom catalysts for the electrocatalytic oxygen evolution reactions through synergistic electronic coupling with Co₃O₄ matrix

Abstract

Single-atom catalysts (SACs), owing to their high activity, selectivity, and 100% atom economy, show great potential for heterogeneous catalysis. However, their synthesis is still a challenge because of their poor stability and low tendency to aggregate. In this regard, we propose an approach for synthesizing a stable Ir single-atom catalyst on a Co₃O₄ substrate using a hydrothermal technique followed by calcination. The XAS and XPS analyses revealed the strong electronic coupling between the Ir SAC and the support matrix, which stabilized the single atoms via the formation of Ir–O and Ir–Co bond pairs. The strong electronic interaction resulted in an enhanced density of unoccupied d-orbitals of Ir single atoms and a higher valence state of Co atoms, both of which synergistically improved the electrocatalytic activity. HAADF-STEM images confirmed the isolated homogeneous distribution of Ir single atoms on the Co₃O₄ matrix. The synthesized catalyst, Ir_SAC–Co₃O₄, showed improved activity for the electrocatalytic oxygen evolution reaction (OER) in 1 M KOH, with an overpotential of 270 mV and a Tafel slope value of 76 mV dec⁻¹. The Ir_SAC–Co₃O₄ catalyst exhibited a high electrocatalytic durability up to 96 hours at an elevated current density of 130 mA cm⁻², demonstrating the robust electronic interaction of single atoms with the support matrix, which prevented the aggregation of single atoms. Post-electrocatalytic XPS analysis revealed no substantial change in the valence state, which can be further accredited to the electronic coupling between the support and the single atom. DFT findings demonstrated that the presence of the Ir single atom promoted the OER kinetics by stabilizing the key reaction intermediates and lowering the overpotential of the rate-determining step.

---

1. Introduction

In the current context, the most extensive energy conversion sources are fossil fuels. This excessive dependence not only causes their exhaustion but also raises environmental concerns. To solve this issue, it is necessary to search for cleaner, abundant and affordable energy sources as alternatives. In this context, one of the most renowned approaches for producing renewable and sustainable energy is electrocatalytic water splitting, which generates hydrogen and oxygen.^1,2 The OER process is a multi-step, four-electron exchange procedure with the underlying complex mechanism involving O–O coupling and O–H bond cleavage, which makes it sluggish in nature compared with the HER, involving a two-electron transfer procedure. Thus, the overall productivity of electrocatalytic water splitting suffers from the slow reaction kinetics of the anodic OER, leading to substantial energy loss, necessitating the design of an efficient OER electrocatalyst. Currently, IrO₂ and RuO₂ are the most extensively employed commercial electrocatalysts for the OER, but their scarcity and poor stability limit their widespread application.^3–5 Consequently, many efforts have been made to develop affordable alternative electrocatalysts, such as transition metal-based oxides^6,7 or hydroxides,^8,9 sulphides,^10,11 phosphides,^12,13 selenides,¹⁴ and perovskite oxides,^15,16 for the OER. Nevertheless, their catalytic activity is inadequate and far less than the standard, requiring refinement to obtain substantial efficiency.

Single-atom catalysts (SACs) have garnered much consideration due to their electrocatalytic performance in heterogeneous catalysis, with many advantages such as enhanced homogeneity of active sites, improved activity, and maximum atom utilization.^17–21 Furthermore, the unsaturated coordination states of isolated atoms maximize the metal atom utilization and lower the reaction energy barrier, thereby promoting efficient adsorption and activation of reactant molecules. However, the synthesis of SACs remains challenging due to their low metal loading and poor stability, leading to the aggregation of isolated atoms into either a nanoparticle or a cluster.^22,23 These isolated atoms can be mounted to a variety of supports, such as carbon-based materials,²⁴ metal phosphides,²⁵ layered double hydroxides²⁶ and metal oxides.²⁷

Compared with the other types of support matrix, metal oxides have received extensive attention because of their distinctive properties such as their high stability, oxygen vacancies, and defect sites.^28,29 These sites work as anchored points for isolated atoms and provide strong metal–support interactions through the formation of M–M and M–O bonds between the isolated atoms and the metal oxide support matrix.^30,31 Moreover, under OER conditions, transition metal oxide supports can undergo dynamic surface reconstruction, leading to the formation of catalytically active (oxy)hydroxide layers. These reconstructed species are often considered the true active phase.^32,33 The presence of single atoms may facilitate this reconstruction process, which further contributes to the enhanced electrocatalytic activity.³⁴ In this regard, Kumar and co-workers³⁴ synthesized an Ir single atom on a NiO support, which exhibited a 256 mV overpotential value to generate a 10 mA cm⁻² current density. The isolated Ir atoms are partly embedded on a NiO substrate via forming an Ir–O and Ir–Ni bond that provides the structural rigidity and prevents the aggregation of Ir single atoms. Moreover, under operating conditions, the active structure of the electrocatalyst was analyzed by in situ Raman spectroscopy, which reveals the formation of NiOOH for both NiO and Ir-decorated NiO. The formation of NiOOH occurs at a much lower potential for the Ir-decorated NiO in contrast to the pristine NiO, suggesting the metal-support interaction among the NiO support and isolated Ir atoms. Yang and co-workers³⁵ developed an Ir single-atom catalyst over an oxygen-vacant CoNiO₂ support as an effective electrocatalyst for the OER. The Ir single atoms show a higher valence state and form an Ir–O covalent bond, resulting in the substantial overlay of 5d and 2p bands of Ir and O, respectively, which boosts the O₂ evolution by accelerating the conversion from O–O to OO* by following the lattice oxygen mechanism pathway. Cai and co-workers³⁶ reported Ir single atoms supported on CoO_x nanosheets for the OER. The Ir atoms captured by surface-absorbed oxygen form an Ir–O–Co bond, stabilizing the isolated Ir atoms and promoting the electrocatalytic OER. Shan and co-workers³⁷ synthesized Ir single atoms that integrated into a Co₃O₄ spinel (Ir_0.06Co_2.94O₄) to provide an efficient electrocatalyst for the OER in 0.1 M HClO₄. Ir single atoms integrated into the Co₃O₄ via an ion exchange process followed by calcination using ZIF-67 as a source for Co₃O₄. The observed onset potential was 1.45 V vs. RHE, with high mass activity of 2511 A g⁻¹. The cooperative contribution of nanodomains, containing Ir in the octahedral sites enclosed within the Co sites, is attributed to the elevated activity. The incorporation and stabilization of a Ce single atom on a Co₃O₄ support via a Ce–O bond was reported by Zhao and co-workers³⁸ for the OER in acidic medium. The synthesized electrocatalyst exhibited an onset potential of 1.57 V vs. RHE at 10 mA cm⁻² current density. The increased charge transportation and modified electronic environment post Ce single atom incorporation into Co₃O₄ were attributed to the enhanced activity. According to these observations reported in the literature, anchoring metal isolated atoms on a metal oxide support can effectively improve the electrocatalytic OER activity.

Inspired by the previous reports, we synthesized Ir single atoms supported on Co₃O₄ on carbon cloth (CC) via a hydrothermal process followed by pyrolysis. The synthesized catalyst demonstrated improved performance for the OER in 1.0 M KOH. Pristine Co₃O₄ and single-atom-decorated samples were intensively characterized using various techniques such as X-ray diffraction (XRD), high-angle annular dark field-scanning transmission electron microscopy (HAADF-STEM), X-ray absorption spectroscopy (XAS), and X-ray photoelectron spectroscopy (XPS). The optimized Ir SAC on Co₃O₄ showed superior electrocatalytic OER activity in an alkaline medium, achieving a current density of 10 mA cm⁻² at an onset potential of 1.51 V vs. RHE, and a low Tafel slope value of 76 mV dec⁻¹. The following points briefly describe the positive outcome of this work: First, the formation method is simple and easy to comprehend, resulting in an Ir single atom loading of 3.02 wt% on a Co₃O₄ support. Second, the enhanced activity resulting from faster charge transfer can be attributed to the synergistic electronic coupling between the Ir single atoms and the Co₃O₄ substrate. Third, the as-synthesized Ir_SAC–Co₃O₄ shows remarkable stability in the OER. Fourth, the DFT results unveil the metallic character of Ir_SAC–Co₃O₄ with a zero band gap after the introduction of Ir, which facilitates the charge transfer and subsequently improves the electrocatalytic activity.

2. Experimental section

2.1. Synthesis of Co₃O₄

The synthesis of Co₃O₄ involved a hydrothermal method followed by calcination. First, Co(NO₃)₂·6H₂O (0.6 g) and NH₂CONH₂ (0.6 g) were mixed in 30 mL of Milli-Q water. The entire solution was then transferred to an autoclave. The carbon cloth was cut into a suitable shape (4 × 3 cm) and placed in the autoclave to undergo an 8 hours hydrothermal reaction at 95 °C. In the first step, a metal-carbonate hydroxide precursor (Co(CO₃)_x(OH)_y·H₂O) was developed over the CC surface. After washing with water and ethanol, the as-deposited CC was dried for 8 h at 50 °C. The resulting carbonate precursor grown on CC was calcined for 3 h at 350 °C in a muffle furnace to yield Co₃O₄ and used as a pristine sample.

2.2. Synthesis of Ir_SAC–Co₃O₄

The synthesis of single-atom Ir-doped Co₃O₄ was completed in two steps. The Co(CO₃)_x(OH)_y·H₂O precursor was initially synthesized over CC by following the hydrothermal method as discussed above. In the second step, the metal-carbonate hydroxide complex deposited over CC was impregnated into a solution of IrCl₃ xH₂O (3.15 × 10⁻² M or 10 mg mL⁻¹) for 10 minutes, followed by drying and calcination at 350 °C for 3 h, to obtain Ir single-atom-doped Co₃O₄ (Ir_SAC–Co₃O₄). The amount of Ir precursor was optimized by varying the concentration of IrCl₃ xH₂O solution (5 mg mL⁻¹, 15 mg mL⁻¹, 20 mg mL⁻¹ and 25 mg mL⁻¹), where the other reactant remained unchanged. The ICP analysis of all the samples obtained by varying the concentration of the Ir precursor solution is presented in Table S1 (SI). The data indicate that the Ir weight percentage on Co₃O₄ increases with the increasing concentration of IrCl₃ solution. The optimized sample exhibits an Ir content of 3.02 wt%.

2.3. Electrochemical measurements

The electrocatalytic activity of Ir_SAC–Co₃O₄ and Co₃O₄ was evaluated in 1 M KOH by a three-electrode system. The working electrode was prepared with the sample obtained (Co₃O₄ and Ir_SAC–Co₃O₄) on CC, while Ag/AgCl and a graphite rod were used as the reference and counter electrodes, respectively. The working electrode area (0.4 × 0.4 cm²) was fixed by applying epoxy paste on the sample-deposited CC. The catalyst loading of Ir_SAC–Co₃O₄ and Co₃O₄ was 0.28 mg. All electrochemical investigations were performed using a CHI604E instrument. At a scan rate of 2.0 mV s⁻¹, a potential window of 0 to 0.8 V for the OER vs. Ag/AgCl was employed for the linear sweep voltammetry (LSV) analysis. The formula E_RHE = E_Ag/AgCl + 0.0591 × pH + E⁰_Ag/AgCl was employed to convert the potential of the Ag/AgCl reference electrode to the RHE scale. In the electrochemical impedance spectroscopy (EIS) analysis of Ir_SAC–Co₃O₄ and pristine Co₃O₄, the onset potential was used as an operational bias for data recording.

3. Results and discussion

3.1. Mechanism of synthesis

The experimental section explained the complete synthesis of Ir single atoms anchored over Co₃O₄. In the first step, i.e., hydrothermal process, the metal-carbonate hydroxide precursor (Co(CO₃)_x(OH)_y·H₂O) was formed. First, the hydrolysis of urea released CO₃²⁻ and OH⁻, which then reacted with Co²⁺ to form a metal-carbonate hydroxide precursor. In the second step, the metal-carbonate hydroxide precursor was converted into Co₃O₄ by calcination for 3 h at 350 °C. To synthesize Ir_SAC–Co₃O₄, the metal–carbonate–hydroxide complex was impregnated into the IrCl₃ xH₂O solution to enable the electrostatic adsorption of Ir-ions on the precursor surface, followed by drying and calcination for 3 h at 350 °C. The overall synthesis strategy for Ir_SAC–Co₃O₄ is given in Scheme 1. The plausible reaction mechanism involved in the formation of Co₃O₄ is as follows:

H₂NCONH₂ + H₂O → 2NH₃ + CO₂,

NH₃ + H₂O → NH₄⁺ + OH⁻,

CO₂ + H₂O → CO₃²⁻ + 2H⁺,

Co⁺² + xCO₃²⁻ + yOH⁻ + H₂O → Co(CO₃)_x(OH)_y·H₂O,

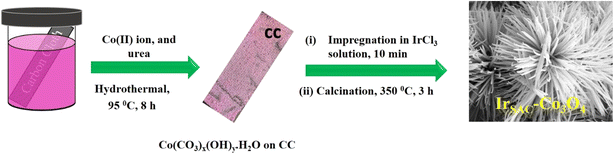

Scheme 1 Schematic of the synthesis of Ir_SAC–Co₃O₄ on CC.

3.2. Material characterization for structural analysis

The phase purity and crystallinity of pristine Co₃O₄ and Ir_SAC–Co₃O₄ samples were confirmed by XRD analysis. The distinct and prominent diffraction peaks for both samples (Fig. S1) are consistent with the cubic phase of Co₃O₄ (JCPDS 00-042-1467) with cell parameters a = b = c = 8.07 Å and α = β = γ = 90°. The well-matched diffraction patterns indicate the formation of a pure phase in the synthesized samples. A broad peak at 25° is observed corresponding to the CC. The diffraction angles of the Ir_SAC–Co₃O₄ sample show no significant change or shift, suggesting that Ir single atoms are not altering the lattice parameters and crystal structure of Co₃O₄. Moreover, no diffraction peaks for Ir and IrO₂ are observed in the Ir_SAC–Co₃O₄ sample, indicating the absence of both metallic Ir and IrO₂.

The morphology of both pristine Co₃O₄ and Ir_SAC–Co₃O₄ samples was analyzed by FESEM. The FESEM images of the pristine sample at various resolutions are shown in Fig. S2a and b that reveal the uniformly distributed nanoflower morphology throughout the carbon cloth. The synthesized nanoflower is composed of thin nanorods of thickness ranging from 100 to 400 nm along with rough morphology. Fig. 1a and b show the FESEM images of the Ir single atom-doped Co₃O₄ sample at low and high resolutions, confirming the retention of morphology. Thus, the uniform distribution of nanoflowers along with a rough surface ensures the complete exposure of catalytic sites and efficient contact between the electrode and the electrolyte. The FESEM images of other samples synthesized using various concentrations of the IrCl₃ solution are given in Fig. S2(c–h). The morphology of all the samples remained similar across varying concentrations of the IrCl₃ solution. This indicates that the amount of IrCl₃ does not influence the morphology of the material. The SEM-EDS mapping analysis of Ir/Co₃O₄ samples with varying Ir concentrations is presented in Table S2. The results indicate the uniform distribution of Ir elements with the increased concentration.

Fig. 1 FESEM images at low (a) and high (b) resolutions, HAADF-STEM images with the optimized Ir concentration of 10 mg mL⁻¹ (c)–(e), and the corresponding STEM elemental mapping images (f) of Ir_SAC–Co₃O₄. HAADF-STEM images with the Ir concentration of 25 mg mL⁻¹ (g) and (h) and elemental mapping image of the Ir_cluster–Co₃O₄ (i).

To further confirm the morphology and crystallinity of pristine Co₃O₄ and Ir_SAC–Co₃O₄, TEM and HRTEM analyses were performed. The TEM image of Co₃O₄ (Fig. S3a and b) verifies the nanoflower morphology. The d-spacing value of the (311) plane was calculated to be 0.24 nm for the pristine Co₃O₄ sample (Fig. S3c). The TEM image (Fig. S3d and e) of the Ir single-atom-doped sample shows a similar morphology of nanoflowers made of nanorods. The atomic dispersion of Ir single atoms over a Co₃O₄ support was confirmed by the HAADF-STEM images. As shown in Fig. 1c–e, the isolated bright spots corresponding to Ir atoms are uniformly distributed across the entire Co₃O₄ support matrix, showing the successful synthesis of Ir single atoms without any aggregation. HAADF-STEM element mapping analysis (Fig. 1f) further validates the uniform atomic distribution of Ir single atoms over the CO₃O₄ surface. Additionally, HAADF-STEM analysis of the Ir/Co₃O₄ sample with the highest content (4.91 wt%) of Ir was performed. Fig. 1g and h show the bright spots in aggregate form, indicating the formation of an Ir cluster on the Co₃O₄ support (Ir_cluster–Co₃O₄). The aggregated form of Ir cluster was further verified by EDS mapping analysis (Fig. 1i). This observation demonstrates the transition from atomically dispersed Ir to aggregation in a cluster form with the increasing content (wt%) of Ir.

In order to gain insights into the valence state and local coordination environment, the X-ray near-edge fine structure (XANES) and extended X-ray absorption fine structure (EXAFS) spectra were recorded for the Ir_SAC–Co₃O₄ sample, for which commercial IrO₂ and Ir foil were used as benchmarks. Fig. 2a shows the normalized XANES spectrum at the Ir L₃-edge for Ir_SAC–Co₃O₄ along with IrO₂ and Ir foil for reference. The intensity of the white line/spectral line intensity (H_A) of the Ir L₃-edge spectrum represents the density of the unoccupied Ir-d orbitals and the extent of surface chemisorption of oxygen.^39,40 Remarkably, the high intensity of the white line for Ir_SAC–Co₃O₄ compared to Ir foil indicates the increased density of unoccupied orbitals of Ir atoms.⁴¹ This explains the superior performance of Ir_SAC–Co₃O₄ for the electrocatalytic OER, since an increased density of unoccupied orbitals promotes the electrocatalytic efficiency. Furthermore, the shift in the inflection point (I_P) indicates the higher threshold energy (E₀) of Ir_SAC–Co₃O₄ than that of the Ir-foil, which validates the depletion of the Ir-d band. The higher surface oxygen chemisorption and depletion of the d-band of Ir present in the Ir_SAC–Co₃O₄ sample further suggest the existence of Ir single atoms.⁴² Additionally, the position of the inflection point (I_P) of Ir_SAC–Co₃O₄ lies between the Ir foil and IrO₂, which indicates the partial oxidation of Ir atoms in the Ir_SAC–Co₃O₄ sample. The bonding of Ir single atoms with the Co and O atoms of the support matrix can be attributed to the positive shift in the threshold energy (E₀) and the partial oxidation state of Ir atoms in Ir_SAC–Co₃O₄.

Fig. 2 X-ray absorption spectroscopy. (a) XANES and (b) FT-EXAFS spectra and (c) WT patterns at the Ir L₃-edge for Ir_SAC–Co₃O₄ along with the reference samples. (d) XANES and (e) FT-EXAFS spectra and (f) WT patterns at the Co K-edge for Ir_SAC–Co₃O₄ and the reference samples.

The Fourier transform EXAFS (FT-EXAFS) spectra of Ir_SAC–Co₃O₄, along with the reference sample (Ir foil and IrO₂) at the Ir L₃-edge, are shown in Fig. 2b. The related parameters for the quantitative structure of both Co₃O₄ and Ir_SAC–Co₃O₄ are summarized in Table S3. As evident, the Ir–Ir scattering path appears at 2.51 Å, corresponding to the Ir foil. For the Ir_SAC–Co₃O₄ sample, the peak corresponding to the Ir–Ir scattering is absent, and also the zero-coordination number (CN) for Ir–Ir bond pair (Table S3) firmly substantiates the formation of Ir single atoms on the Co₃O₄ support. The peak across 1.0 to 3.0 Å corresponds to the Ir–O and Ir–Co bond pairs with CN_Ir–O = 3.01 and CN_Ir–Co = 2.16, respectively. The reduced coordination of 3.01 for the Ir–O bond, in contrast to the expected CN = 6 for standard IrO₂, further validates the partial oxidation of Ir single atoms. Wavelet transform (WT) analysis provides additional insights into the structural characteristics. As illustrated in Fig. 2c, the Ir_SAC–Co₃O₄ catalyst does not show the peak corresponding to the Ir–Ir bond pair, further strengthening the presence of Ir-single atoms.

The chemical state of Co was also investigated by Co k-edge XAS analysis. The XANES spectra of Ir–Co₃O₄, pristine Co₃O₄, along with the Co foil, are shown in Fig. 2d, which includes essential characteristics such as inflection point (I_P). The positive shift in the inflection point (I_P) for Ir_SAC–Co₃O₄ compared to the pristine Co₃O₄ suggests a higher valence state of Co, ascribed to the electron transfer from Co to Ir through Ir–Co bonding. Furthermore, the FT-EXAFS spectrum reveals the coordination environment of Co-atoms. As shown in Fig. 2e, both Ir_SAC–Co₃O₄ and Co₃O₄ show similar FT-EXAFS profiles, indicating that the Ir single atoms do not affect the local structure of the Co₃O₄ lattice. Furthermore, the WT pattern of both Co₃O₄ and Ir_SAC–Co₃O₄ exhibits a missing peak intensity at 2.01 Å, which belongs to the Co–Co bond pair in the Co foil, indicating the total oxidation of Co atoms in both samples (Fig. 2f). The overlay spectra of Ir–Co₃O₄ EXAFS and corresponding fitting are given in Fig. S4a.

XPS analysis was performed to further assess the valence and chemical states of all elements in both the Co₃O₄ and Ir_SAC–Co₃O₄ samples. Fig. S4b–d demonstrate the survey and deconvoluted spectra of Co 2p and O 1s, respectively, for the pristine Co₃O₄ sample.

The deconvoluted XPS spectra of Co 2p exhibit two doublets along with three satellite peaks (Fig. S4c). The binding energy (BE) value of the doublets corresponding to the Co 2p_3/2 spectra is 779.37 and 780.81 eV, indicating the presence of Co³⁺ and Co²⁺, respectively. Another doublet peak for the Co 2p_1/2 state appeared at 794.31 and 795.75 eV, corresponding to Co³⁺ and Co²⁺, respectively. Three peaks can be seen in the O 1s deconvoluted XPS spectra (Fig. S4d): O1 (positioned at 529.52 eV), O2 (530.90 eV), and O3 (532.24 eV). The metal–oxygen bond or lattice oxygen is attributed to the peak at O1. The peak at O2 associated with the O-vacancy, while the peak at O3 corresponds to the oxygen in absorbed water. All of the BE values of Co and O are well matched with the literature.^43,44

Moreover, the presence of Ir and other ions in the Ir_SAC–Co₃O₄ sample was verified further with XPS survey scan (Fig. 3a). The deconvoluted Co 2p spectra reveal two prominent groups of spin–orbit coupling peaks (Fig. 3b). The peaks at 779.98 and 795.07 eV represent the Co³⁺ ions in the Co 2p_3/2 and Co 2p_1/2 states, respectively. Other two pairs of Co²⁺ are located at 781.40 and 796.68 eV, corresponding to Co 2p_3/2 and Co 2p_1/2. A substantial electronic interaction between the Ir single atoms and the support atoms is shown by the binding energy values of Co 2p in Ir_SAC–Co₃O₄, which exhibit a positive shift of approximately 0.63 eV compared to the pure sample. The three satellite peaks are positioned at 784.82 and 788.93 eV, corresponding to Co²⁺ and Co³⁺ for the Co 2p_3/2 shake-up satellite, respectively, while another peak at 804.41 eV corresponds to the shake-up satellite peak of Co³⁺ for Co 2p_1/2. The XPS spectra of O 1s are deconvoluted into three peaks (Fig. 3c). The peak at 531.53 eV (O2) is attributed to oxygen vacancies, while the peaks at 530.28 eV and 532.48 eV correspond to lattice oxygen (M–O) and adsorbed water (O–H₂O), respectively. The binding energy value of O 1s exhibits a positive shift of approximately 0.7 eV compared with the pure Co₃O₄, indicating a significant surface oxygen chemisorption following the insertion of an Ir single atom. The O-vacancy was quantified, which shows the % O-vacancy in Co₃O₄ and IrSAC-Co₃O₄ are 32.6 and 23.26, respectively. All the binding energy values for Co₃O₄ and Ir_SAC–Co₃O₄ are listed in Table S4.

Fig. 3 XPS analyses of the Ir_SAC–Co₃O₄ sample: (a) survey spectrum and deconvoluted XPS spectra of (b) Co 2p, (c) O 1s, and (d) Ir 4f regions.

The XPS spectra of Ir 4f is deconvoluted into three peaks (Fig. 3d). The peaks positioned at 62.39, 65.19, and 66.94 eV correspond to Ir 4f_7/2, Ir 4f_5/2, and satellite peak, respectively. Furthermore, a peak appeared at 60.32 eV, corresponding to Co 3p. A higher binding energy of Ir single atoms in the Ir_SAC–Co₃O₄ sample than that of the metallic Ir (60.8 eV) indicates that Ir atoms are highly oxidized, which aligns well with the Ir L₃-edge XANES result. Biswal and co-workers⁴⁵ observed that the values of binding energies of Ir 4f_7/2 in IrO₂ and IrCl₃ are 62.54 and 62.13 eV, respectively. The observed binding energy value (62.39 eV) of Ir 4f_7/2 for the Ir_SAC–Co₃O₄ sample falls between the binding energy values for metallic Ir (60.8 eV) and IrO₂ (62.54 eV), indicating the intermediate oxidation state of Ir single atoms that align well with the Ir L₃-edge XANES findings.

The enhanced valence state of the Co atoms of the substrate could be attributed to the highly oxidized Ir atoms over Co₃O₄, which acts as a Lewis acid and pulls the electron from the nearby Co atoms. By calculating the area within the curve, the ratio of Co²⁺/Co³⁺ is calculated for both Co₃O₄ and Ir_SAC–Co₃O₄, to confirm the electron-withdrawing nature of Ir atoms. The value of the Co^2+/Co³⁺ ratio for the Co₃O₄ sample is 0.43. Furthermore, the ratio in the Ir_SAC–Co₃O₄ sample is 0.39. The higher valence state of Co for Co₃O₄ is suggested by this lower value of the Co^2+/Co³⁺ ratio, which further indicates a significant electronic interaction between the Co atoms and the single Ir atoms that results in electron relocation. The Co K-edge XANES study and the XPS analysis results are in good agreement. Strong electronic coupling between the single atom and the support matrix is thus represented by the positive shift in the binding energy values of both Co and oxygen as well as the enhanced valence state of Co in Ir_SAC–Co₃O₄ in comparison to the pristine Co₃O₄. Our group noticed a similar phenomenon of decreased Ni²⁺/Ni³⁺ ratio following heteroatom doping.⁴⁶

The formation of oxygen vacancy was further verified by electron paramagnetic resonance (EPR) analysis. Both pristine Co₃O₄ and Ir_SAC–Co₃O₄ samples exhibit clear signals in the EPR spectra (Fig. S5), indicating the presence of unpaired electrons associated with oxygen vacancies. The measured g values (spectral splitting factor) are 1.91 and 1.93 for pristine Co₃O₄ and Ir_SAC–Co₃O₄, respectively. The coordination of Ir single atoms with O regulates the oxidation state and basic catalytic properties of single-atom catalysts, while the bonding of Ir with the Co atoms of the support matrix gives stability to the single atoms, which is reflecting in the durability during the electrocatalytic OER.²⁸

4. Electrocatalytic performance: OER study

The electrocatalytic activity of all the developed samples was assessed in 1 M KOH, using a three-electrode setup. The LSV analysis was performed at a scan rate of 2 mV s⁻¹. The OER performance of pristine Co₃O₄ and IrO₂ supported on CC was evaluated for comparison. The LSV polarization curve (Fig. 4a) shows that Ir_SAC–Co₃O₄ exhibited enhanced OER activity, requiring a low overpotential (η) of only 270 mV to reach a current density of 10 mA cm⁻², which significantly outperformed the benchmark IrO₂ catalyst (η₁₀ = 410 mV) and pristine Co₃O₄ (η₁₀ = 350 mV). The substantially improved OER activity of Ir_SAC–Co₃O₄ can be attributed to the presence of Ir single atoms over the Co₃O₄ support. The enhanced activity of Ir_SAC–Co₃O₄ can be seen by a histogram (Fig. 4b) that is plotted at 1.60 V vs. RHE for Ir_SAC–Co₃O₄, Co₃O₄ and IrO₂.

Fig. 4 Electrocatalytic OER activity: (a) LSV polarization curve for blank CC, Co₃O₄, Ir_SAC–Co₃O₄, and IrO₂ for the OER, (b) histogram plot at 1.6 V vs. RHE, (c) Tafel plots of Co₃O₄, Ir_SAC–Co₃O₄, and IrO₂, and (d) Nyquist plots of the pristine Co₃O₄ and Ir_SAC–Co₃O₄.

To optimize the amount of Ir, other samples were prepared using different concentrations of IrCl₃ xH₂O. The onset potential to achieve 10 mA cm⁻² current density is lowest for the catalyst prepared by using 10 mg mL⁻¹ concentration of Ir (Ir_SAC–Co₃O₄) and highest for the sample synthesized by using 25 mg mL⁻¹ concentration of Ir (Ir_cluster–Co₃O₄) (Fig. S6). This result reveals that, despite the Ir_cluster–Co₃O₄ sample having a higher Ir loading of 4.91 wt%, its OER activity is inferior compared to the Ir_SAC–Co₃O₄ sample, which contains a lower Ir content of 3.02 wt%. The superior performance of Ir_SAC–Co₃O₄ demonstrates the high atom utilization efficiency of SACs, where atomically dispersed Ir atoms are more effectively involved in the catalytic process, resulting in a higher catalytic activity than that of the higher Ir loading in the cluster-based counterpart.

The optimized concentration was further confirmed by TOF and mass activity analysis (Table S5). A comparative analysis of OER values reported in the literature is provided in Table S6. The high valence state of Ir atoms arising from the robust electronic interaction from the support matrix, which exhibited an elevated density of unoccupied orbitals, also enhanced the valence state of Co atoms, together contributing to the improved OER activity of Ir_SAC–Co₃O₄. Moreover, the superior OER performance of Ir_SAC–Co₃O₄ was corroborated by its higher mass activity, at a fixed potential of 1.55 V vs. RHE. The values of mass activity for Ir_SAC–Co₃O₄, Co₃O₄ and IrO₂ are 274.28, 35.74, and 35.71 A g⁻¹, respectively. Compared to pristine Co₃O₄, Ir_SAC–Co₃O₄ exhibits 8 times greater mass activity, indicating a significant electron transfer efficiency, as evidenced by its electrocatalytic activity.

In order to assess the kinetics of the electrode material, the Tafel slope was evaluated using the Tafel equation (given in the SI). The superior reaction kinetics of Ir_SAC–Co₃O₄ was reflected by its significantly smaller Tafel slope value (76 mV dec⁻¹) in contrast to Co₃O₄ (90 mV dec⁻¹) and IrO₂ (121 mV dec⁻¹) (Fig. 4c). The faster charge transfer kinetics of Ir_SAC–Co₃O₄ was further assessed by the EIS analysis (Table S7). Fig. 4d shows the lower charge transfer resistance (R_CT) for the Ir single-atom-doped sample (5.12 Ω) compared with the pristine Co₃O₄ (12.19 Ω). The lower R_CT value of Ir_SAC–Co₃O₄ indicates improved kinetics and higher charge transfer efficiency at the electrode–electrolyte interface of the material compared to the pristine Co₃O₄. Furthermore, the lower charge transfer resistance of Ir_SAC–Co₃O₄ unveils the close proximity between the electrode and the electrolyte. An equivalent circuit with solution resistance (R_S), charge transfer resistance (R_CT), and a constant phase element (CPE) is shown in the inset of Fig. 4d. To further corroborate the enhanced intrinsic activity of Ir_SAC–Co₃O₄ for the OER, reflected by its lower overpotential and higher mass activity than those of the pristine Co₃O₄ and benchmark IrO₂, the TOF was calculated. The obtained TOF values at an overpotential of 370 mV for Ir_SAC–Co₃O₄, Co₃O₄, and IrO₂ are 0.03, 0.005, and 0.002 s⁻¹. The TOF value of Ir_SAC–Co₃O₄ is 6 times higher than that of pristine Co₃O₄ and 15 times higher than that of the benchmark IrO₂. The significantly higher TOF value of Ir_SAC–Co₃O₄ than that of both pristine Co₃O₄ and IrO₂ indicates its enhanced intrinsic activity for the OER. Table S8 contains a list of all the recorded values of both Co₃O₄ and Ir_SAC–Co₃O₄ samples.

Moreover, to calculate the electrochemical active surface area (ECSA), first the electric double layer capacitance (C_dl) was evaluated by measuring the CV curves in the non-faradic potential region (Fig. S7a and b). The double-layer charging current was plotted against the scan rate for both pristine Co₃O₄ and Ir_SAC–Co₃O₄ samples at a potential of 1.11 V vs. RHE (Fig. S7c). The calculated ECSA values are 12.63 cm² and 4.03 cm² with a roughness factor of 78.75 and 25.18 for Ir_SAC–Co₃O₄ and Co₃O₄, respectively. The increased values of ECSA and roughness factor indicate the elevation in the catalytic active sites and better interaction of reactants with the electrode after the Ir single atom insertion to the Co₃O₄ support.

To comprehend the increased activity of Ir_SAC–Co₃O₄, CV analysis was performed for evaluation (Fig. S8). The CV curve can be separated into three different regions. Region (a) signifies the adsorption of OH⁻ ions to the active site. Region (b) contains the oxidation of Co²⁺ to Co³⁺ and the generation of O*, a crucial intermediate that binds with the OH⁻ group to produce *OOH for oxygen evolution. Finally, the higher potential region (c) consists of the formation of O₂ via the coupling of O–O. The significant decrease in both the peak potential and peak area for Co²⁺/Co³⁺ in the Ir_SAC–Co₃O₄ sample related to Co₃O₄ shows the modified electronic structure of the Co₃O₄ support as a result of strong electronic coupling with Ir single atoms. This electronic coupling accelerates the formation of Co²⁺ to Co³⁺ and the possible surface reconstruction from Co₃O₄ to the active CoOOH phase, and thus promotes the OER kinetics by elevating the pre-oxidation process.^35,47,48 Lin and co-workers⁴⁹ identified a similar phenomenon of the conversion of Ni²⁺ to Ni³⁺ during the electrocatalytic OER, which was accelerated by the presence of Pt single atoms. Moreover, with the help of in situ XAS analysis, Li and co-workers⁵⁰ reported the elevated oxidation states of Co and Fe during the OER process.

The durability of Ir_SAC–Co₃O₄ in the OER was assessed by 1000 LSV cycles along with the chronoamperometry test. No significant change was observed in the LSV after 1000 cycles (Fig. 5a). Furthermore, chronoamperometry analysis performed at 1.54 V vs. RHE shows no evident degradation after 96 h (Fig. 5b). Additionally, the durability of the catalyst was further evaluated at a higher current density of 130 mA cm⁻² under a fixed potential of 1.77 V. As shown in Fig. 5c, no significant current degradation was observed even after long operational hours, confirming the superior durability of the catalyst at elevated current density and highlighting its potential for industrial applications. This long-term durability further validates the robust electronic interaction of the Co₃O₄ support and Ir single atoms, which restrains the aggregation of Ir single atoms throughout the electrocatalysis process. In this regard, He and co-workers reported an extended durability of Ir single atoms anchored on Ni(OH)₂, which is due to the strong electronic interaction between the Ir single atoms and the support matrix.⁵¹ For the post-electrocatalysis characterizations, FESEM and XPS analyses were performed for Ir_SAC–Co₃O₄. The nanoflower-like morphology of Ir_SAC–Co₃O₄ was retained (Fig. S9). Moreover, XPS analysis was performed to determine the chemical and electronic states of elements after electrocatalysis. The presence of all elements was confirmed by the XPS survey spectra (Fig. S10a). The high-resolution XPS spectrum of Co 2p (Fig. S10c) reveals two doublets and three satellite peaks. The binding energy value of Co 2p_3/2 remains constant with peaks at 780.04 and 781.27 eV, and for Co 2p_1/2, peaks appeared at 795.06 and 796.44 eV. Moreover, the O 1s binding energy remains constant and appears at 530.22, 531.69, and 533.23 eV (Fig. S10b). The binding energy for Ir also stays the same and appears at 62.31 and 60.44 eV for 4f_7/2 and 4f_5/2, respectively (Fig. 5d). The post-XPS analysis shows that the electronic state of both Co and Ir remains unchanged after the 96 h stability test, which represents the superior robustness of the Ir single atoms on the Co₃O₄ support. To further confirm the firmness of the Ir single atoms on Co₃O₄, ICP-OES analysis of the electrolyte was performed after 24 h of electrocatalysis. The amount of Ir in the electrolyte was insignificant, which indicates no leaching of the Ir atom during catalysis. Moreover, following a 24 h stability test (chronoamperometry analysis), the UV-vis spectrum (Fig. 5e) of the electrolyte exhibits no absorption peak, compared to the UV-vis spectrum of the IrCl₃ solution. The presence of two prominent peaks at 375 and 412 nm corresponds to the hydrated Ir³⁺ ions in the IrCl₃ solution. A digital image of the electrolyte after electrocatalysis (inset of Fig. 5e) shows a colorless solution, suggesting no catalyst leaching. Furthermore, post-electrocatalysis HAADF-STEM analysis was performed to ensure the stability of Ir single atoms on the support. The bright, isolated spots corresponding to the Ir single atoms uniformly dispersed across the support matrix (Fig. 5f and g) show that there is no aggregation of Ir single atoms during the electrocatalysis.

Fig. 5 (a) LSV polarization curve before and after 1000 cycles. Chronoamperometry analysis for long-term stability at (b) 1.54 V vs. RHE and (c) 1.77 V vs. RHE. (d) XPS spectra of Ir 4f before and after the stability test for Ir_SAC–Co₃O₄. (e) UV spectra of Ir_SAC–Co₃O₄ after 24 h of electrocatalysis. (f) and (g) Post-electrocatalysis HAADF-STEM images of Ir_SAC–Co₃O₄. (h) HRTEM image of Ir_SAC–Co₃O₄ after post-electrocatalysis, showing a distinct boundary between the highly crystalline Co₃O₄ core and a surface-reconstructed, low-crystallinity CoOOH layer. Corresponding FFT images of (i) hexagonal symmetry for low-crystalline CoOOH phase and (j) cubic symmetry corresponding to Co₃O₄.

To further gain insights into the possible changes in the catalyst surface after electrocatalysis, HRTEM and FFT analyses were performed following 27 h of chronoamperometry. The post-electrocatalysis HRTEM image (Fig. 5h) demonstrates that the sample maintains its highly crystalline lattice fringes for the cubic Co₃O₄ phase. However, we also observed the presence of a surface reconstructed layer that shows lower crystallinity as compared to the Co₃O₄ phase. This region corresponds to the formation of the CoOOH active phase during the electrocatalysis. The associated FFT images corresponding to this reconstructed surface region exhibit diffuse diffraction spots that match with the hexagonal symmetry of the CoOOH (Fig. 5i). Meanwhile, the FFT pattern of the crystalline region exhibits distinct cubic diffraction spots (Fig. 5j), consistent with spinel Co₃O_4. These findings confirm that during the electrocatalytic OER, the oxide surface reconstructed into the highly active oxyhydroxide phase. The phenomenon of surface reconstruction confirmed from HRTEM analysis is well reported in the literature. Li and co-workers reported similar surface reconstruction of Co–Cr spinel oxides to the CoOOH phase. The surface reconstruction and formation of CoOOH was identified by the post electrocatalysis HRTEM images, where the poor crystalline region emerges due to the formation of an active oxy-hydroxide phase during the OER.³² Zou and co-workers also reported a similar structural evolution of Co₃O₄ to cobalt oxyhydroxide (CoOOH) during the OER in 1 M KOH. The presence of CoOOH was validated by the post electrocatalysis HRTEM analysis. The reconstructed surface shows a clear boundary between the crystalline Co₃O₄ core and the CoOOH shell with different crystallinities.³³ Mori and co-workers found the amorphous reconstructed layer with the help of both HRTEM and corresponding FFT images.⁵² Along with post-electrocatalysis HRTEM analysis, Raman analysis of the Ir_SAC–Co₃O₄ sample after 24 and 48 h (chronoamperometry) was performed to further verify the surface reconstruction. The Ir_SAC–Co₃O₄ sample exhibits the characteristic Raman peaks (Fig. S11) at ∼677, 608, 512, 189 and 471 cm⁻¹, associated with A_1g, three F_2g and E_g phonon modes of Co₃O₄, respectively. The A_1g and F_2g band can be related to the Co³⁺-O and Co²⁺–O bonds, respectively.⁵³ The Raman spectra of the post-electrocatalytic sample exhibit a significant red shift in the peak positions. This shift signifies the weakening of Co–O bonds, the formation of oxygen vacancies, and surface reconstruction.^54,55 Huang and co-workers reported a similar red shift to the Raman peak positions for Co₃O₄/CeO₂ after the OER. The shift was further attributed to the change in the local bonding environments due to surface reconstruction.⁵⁶ Post-electrocatalysis XRD analysis (Fig. S12) shows clear and prominent peaks, which are well matched with Co₃O₄ (JCPDS 00-042-1467). The well-matched 2θ values show that there is no change in the crystal structure of the sample. Therefore, all these analyses strengthen the robust electronic interaction and durability of Ir single atoms on the Co₃O₄ support matrix.

5. First-principles DFT calculations

5.1. Crystal structures of Co₃O₄ and Ir_SAC–Co₃O₄ systems

Under ambient pressure (P = 0 GPa), the Co₃O₄ compound exhibits a spinel crystal structure and belongs to the face-centered cubic symmetry with the space group Fd3̄m and space group number 227. The unit cell of the crystal consists of two non-equivalent Co ions with varying valence configurations, namely, Co³⁺ and Co²⁺. While the four O atoms in the unit cell form several tetrahedral environments by surrounding each Co²⁺ ion, the Co³⁺ ion is enclosed by six O atoms in order to form an octahedral coordination. The optimized crystal structure of Co₃O₄, so attained from the DFT calculations, is shown in Fig. 6a. The associated optimized lattice parameter of the system is estimated to be ∼8.046 Å, which is found to match closely with our XRD result (vide supra) and other results reported elsewhere in the literature.^57,58

Fig. 6 Optimized crystal structures of (a) Co₃O₄ and (b) Ir_SAC–Co₃O₄ as obtained from DFT calculations.

To model the Ir_SAC–Co₃O₄ compound, a Co atom has been substituted by a single Ir atom on the Co₃O₄ crystal. The substitutional site for Ir in the Co₃O₄ lattice was selected based on the local coordination environment, guided by experimental XAS analyses. Specifically, the coordination number (CN) between Ir and surrounding oxygen atoms has been considered by setting the Ir–O CN to 3 in our model. This choice closely matches our experimental EXAFS results, which estimate the Ir–O coordination number to be ∼3.01, as depicted earlier (vide supra). Such a coordination number is characteristic of tetrahedral sites in the spinel Co₃O₄ structure. Co atoms are typically coordinated to three or four oxygen atoms, depending on the lattice distortion and relaxation effects. Thus, we assigned Ir substitution at the tetrahedral Co site, as it best reproduces the local structure observed experimentally. The optimized crystal structure of the Ir-_SAC Co₃O₄ system with Ir substitution at the tetrahedral Co site is illustrated in Fig. 6.

The defect formation energy (ΔE), as calculated using eqn (S1) (SI), substantiates the thermodynamic preference between tetrahedral and octahedral sites. The ΔE values for Ir-substituted tetrahedral and octahedral sites of Ir_SAC–Co₃O₄ are estimated to be −76.61 Ry and −73.44 Ry, respectively, suggesting a favorable structural configuration towards Ir substitution at the tetrahedral Co site with lower ΔE. This result also prioritizes consistency with the determined local atomic structure, which is critical for accurately representing the active site geometry of single-atom catalysts. Therefore, the tetrahedral substitution of Ir is both experimentally supported and structurally justified. In this context, it is noteworthy to mention that, within the present DFT framework, additional oxygen vacancies were initially introduced explicitly on the (001) plane of the bare Co₃O₄ system, as illustrated in Fig. S13. The calculated ΔE value for this O-vacant configuration is 79.92 Ry, and its positive magnitude indicates that the oxygen-deficient system is energetically less stable than the pristine Co₃O₄ lattice. Since the lattice parameters and atomic coordinates of the pristine Co₃O₄ structure were directly adopted from the experimentally refined crystallographic data, the model inherently reflects the intrinsic oxygen vacancy characteristics typically present in the spinel framework.⁵⁹ This modeling strategy ensures that the structural model realistically captures the defect environment observed in Co₃O₄-based systems, thereby maintaining close consistency with experimental conditions. Consequently, to avoid the artificial amplification of defect effects and to preserve the intrinsic electronic environment of the system, no additional oxygen vacancies were introduced in the calculations.

5.2. Electronic characteristics of Co₃O₄ and Ir_SAC–Co₃O₄ systems

The electronic band structures (E–k diagrams) of Co₃O₄ and Ir_SAC–Co₃O₄ compounds, as estimated from the HSE functional, are shown in Fig. 7A and B, respectively, while the PBE functional is reported to underestimate the band gap (E_g) value of the Co₃O₄ system.^60–62 The PBE + Hubbard-U level of theory is known to overestimate the E_g value of the same compound^60,61 relative to the experimental result (E_g = 1.60 eV).⁶³ Considering the fact, the E_g values of the studied compounds have been calculated using the HSE functional with a screening parameter value of 0.20. The HSE functional, in general, is recognized to predict the E_g values of the systems close to the experimental findings.^64–67 From Fig. 7A, it is observed that Co₃O₄ exhibits an indirect (direct) band gap opening along the X → W (X → X) high-symmetry direction with an E_g value of ∼1.60 eV (1.64 eV). The E_g value of the compound, so attained from the HSE functional, is in good agreement with its experimental band gap, as reported by Shinde et al.⁶³ Interestingly, distinct band dispersions in the E–k diagram of the Ir_SAC–Co₃O₄ material are observed in Fig. 7B. The significant localization of electronic energy states on the Fermi energy level (E–E_F = 0 eV) indicates that Ir_SAC–Co₃O₄ is a conductor with an E_g value of 0 eV. The metallic behavior of Ir_SAC–Co₃O₄ further promotes the electron transfer efficiency and electrocatalytic activity towards the OER performance.^68–70

Fig. 7 Electronic band structures of (A) Co₃O₄ and (B) Ir_SAC–Co₃O₄ systems. Orbital-resolved PDOS plots of (a) Co₃O₄ and (b) Ir_SAC–Co₃O₄. [The Fermi energy level is marked at E–E_F = 0 eV. “Up” and “Down” represent the up spin and down spin states, respectively.]. Free energy versus OER pathways for (c) Co and (d) Ir atomic sites of the Co₃O₄ and Ir_SAC–Co₃O₄ systems, respectively.

The associated orbital-resolved PDOS of Co₃O₄ and Ir_SAC–Co₃O₄ compounds are depicted in Fig. 7a and b, respectively. The PDOS plots of the systems also reveal their respective semiconducting and metallic behaviors in line with the E–k diagrams [Fig. 7A and B]. In Fig. 7a, considerable asymmetries between the up- and down-spin channels of PDOS are reflected, which in turn result in a finite magnetic moment of 3.47 µ_B per cell. The magnetic moment of Co₃O_4, as attained from the HSE functional, is in close agreement with the experimental observation, as reported elsewhere.⁵⁸ Fig. 7a shows that while the up-spin channel of valence bands ranging from −1.5 to 0 eV for the Co₃O₄ system primarily originates from the Co³⁺-4s, Co³⁺-3d, Co²⁺-4s and Co²⁺-3d orbitals, while the down-spin channel mainly comes from the Co³⁺-3d and Co²⁺-3d orbitals. However, the weak contribution of the O-2p orbitals was also noticed on both the up- and down-spin channels of valence bands. The up- and down-spin channels of conduction bands ranging from 0–1.5 eV mostly consist of Co³⁺-3d, Co²⁺-3d, O-2p and Co³⁺-3d, Co²⁺-3d orbitals. Surprisingly, clear symmetries between the up- and down-spin channels of the PDOS spectra for the Ir_SAC–Co₃O₄ compound are portrayed in Fig. 7b. This observation shows an early indication of the antiferromagnetic behavior of the Ir_SAC–Co₃O₄ crystal system. In Fig. 7b, definite contribution of the Ir-5d atomic orbital is noticed in addition to the Co³⁺-3d, Co²⁺-3d and O-2p orbitals on both the up- and down-spin channels of PDOS. These results collectively suggest that Ir single-atom doping is vital in boosting the electrocatalytic performance of the Ir_SAC–Co₃O₄ compound, aligning well with our experimental results (vide supra). Additionally, upon the introduction of Ir single atoms, considerable Ir–O and Ir–Co interactions have been found to induce local structural relaxation, as evidenced from the orbital-resolved PDOS of the Ir_SAC–Co₃O₄ compound [Fig. 7b]. Owing to the larger atomic radius of Ir than that of O, local lattice distortion occurs, which can effectively suppress some pre-existing oxygen vacancies, thereby lowering their concentration. Similar effects of single atom anchoring leading to vacancy passivation have been reported in other systems.^71,72 Importantly, despite the reduced oxygen-vacancy concentration, the electronic coupling between Ir atoms and the Co₃O₄ matrix introduces new electronic states and optimizes charge redistribution near the Fermi energy level [Fig. 7B(b)], which in turn may enhance the catalytic activity. Therefore, the increase in OER performance can be ascribed to the synergistic electronic effects and strong coordination of Ir atoms within the Co₃O₄ framework.

The modulation of the electronic structure upon Ir single-atom doping was further quantified through d-band center analysis derived from the PDOS. For pristine Co₃O₄, the d-band center values of Co³⁺ and Co²⁺ were located at −1.63 eV and −1.21 eV relative to the Fermi energy level, respectively, indicating relatively deep-lying d states consistent with its semiconducting nature, as also reflected in the E–k diagram and PDOS spectra (cf. Fig. 7). Upon the introduction of Ir single atoms, a pronounced shift of the d-band centers was observed, with Co³⁺ shifting to −1.05 eV and 0.44 eV, and Co²⁺ to −0.51 eV and 0.19 eV, while the Ir d-band center values were positioned close to the Fermi energy level (−0.22 eV and 0.29 eV). This significant shift toward the Fermi energy level is attributed to strong orbital hybridization among the Ir-5d, Co-3d, and O-2p states, as evidenced by the PDOS results, which show enhanced electronic states near the Fermi energy and a transition from semiconducting to metallic behavior. Such hybridization, coupled with charge redistribution from the metal centers to oxygen atoms, leads to the reorganization and broadening of the d states, thereby elevating their energy closer to the Fermi energy level. The upshifted d-band center may imply a strengthening of the interaction between the catalyst surface and oxygenated intermediates, facilitating improved adsorption of *OH and *OOH species while maintaining the favorable kinetics for *O formation and O–O bond coupling. Consequently, the optimized positioning of the d-band center in the Ir_SAC–Co₃O₄ matrix enables a balanced adsorption–desorption behavior, thereby enhancing the intrinsic electrocatalytic activity toward the oxygen evolution reaction. This analysis, in conjunction with the PDOS observations, confirms that the improved OER performance originates from the Ir-induced electronic structure modulation and synergistic coupling within the Co₃O₄ framework rather than solely from pristine Co₃O₄.

5.3. Charge transfer mechanism and Bader charge analyses in the Ir_SAC–Co₃O₄ system

To elucidate the electronic interaction between the Ir single atom and the Co₃O₄ matrix, Bader charge analysis was performed. Bader charge difference reveals that Ir and Co atoms undergo electron depletion of +0.86 e and +0.50 e, respectively, while oxygen atoms exhibit electron accumulation of −1.35 e. This charge redistribution indicates that electrons are transferred from the transition metal centers to the surrounding oxygen atoms, leading to the formation of electron-deficient Ir and Co species and electron-enriched O sites. Such behavior suggests that the incorporation of the Ir single atom induces significant electronic perturbation within the Co₃O₄ crystal system, with Ir acting as a dominant charge modulation center. The resulting charge polarization is facilitated through strong Ir–O–Co interactions, giving rise to enhanced metal–oxygen co-valency and orbital hybridization. This interpretation is further supported by the orbital-resolved PDOS results (vide supra, cf. Section 5.2), wherein notable contributions from the Ir-5d states in conjunction with the Co-3d and O-2p orbitals near the Fermi energy level confirm strong electronic coupling and redistribution of electronic states upon Ir incorporation. The increased O-2p participation near the Fermi energy level is consistent with the observed electron accumulation on oxygen atoms, indicating improved charge delocalization across the lattice. Consequently, the formation of electron-rich oxygen sites is expected to promote proton-coupled electron transfer and stabilize the key OER intermediates (*OH and *OOH), while the electron-deficient Ir center may enhance the electrophilic character of the active site, facilitating *O formation and subsequent O–O bonding. In addition, the partial oxidation of Co sites further tunes the adsorption energetics, enabling an optimal balance between the intermediate binding strength and the reaction kinetics. Therefore, the enhanced OER activity of the Ir_SAC–Co₃O₄ compound is attributed to the synergistic electronic coupling and charge redistribution induced by the Ir single atom.

5.4. Electrochemical reaction pathway and active site(s) for the OER

To better understand the electrocatalytic water-splitting process and active site(s) for the OER, free energy changes were calculated as a function of the electrochemical reaction pathway. The calculations were performed for the Co and Ir atomic sites of Co₃O₄ and Ir_SAC–Co₃O₄ compounds, respectively. Fig. 7c and d show the results. Each site's overpotential (η) value was calculated for its rate-determining step (RDS). Although the RDS for the Co atomic site of Co₃O₄ can be estimated from the formation of O₂, the RDS for the Ir site of the Ir_SAC–Co₃O₄ system is correlated with the oxidation of OH* in the OER process.^73–75 From Fig. 7c and d, the η values of Co and Ir atomic sites in Co₃O₄ and Ir_SAC–Co₃O₄ systems were estimated to be 0.52 and 0.43 eV, respectively. The minimum η for the Ir site of the Ir_SAC–Co₃O₄ compound indicates the efficacy of Ir SAC as the predominant active site for the OER mechanism.

The binding energy difference of oxygen intermediates is directly linked with the η values of the atomic sites.⁷⁶ From Fig. 7c and d, the binding energy differences for OOH*–O₂ and OH*–O* intermediates of Co and Ir atomic sites along the reaction pathway were found to be 0.52 and 0.43 eV, respectively. This observation not only suggests that the Ir active site possesses a lower binding energy than the Co site but also shows that the estimated binding energy difference (=0.43 eV) falls under the optimal values of binding energy for the OER activity, as reported elsewhere.^77–80 The overall results portray that the Ir single atom doping on Co₃O₄ enhances the OER performance towards an improved electrocatalytic water-splitting mechanism in line with the experimental observations (vide supra).

In this connection, it may be relevant to mention that the mechanistic interpretation of the OER pathway can also be correlated with experimental electrochemical data. The Tafel slope obtained for the Ir_SAC–Co₃O₄ system is 76 mV dec⁻¹, indicative of an RDS involving the OH*-to-O* conversion, as suggested by the classical electro kinetic models for the alkaline OER. This observation is in good agreement with the DFT results, which identify the OH* → O* transition as the RDS at the Ir site, with an associated overpotential of 0.43 eV, lower than that of the Co site in pristine Co₃O₄. The reduced energy barrier and optimized binding energy difference of OH*–O* at the Ir center suggest that Ir substitution enhances the OER kinetics by stabilizing the key intermediates and lowering the energy requirement for the rate-limiting step. This mechanistic correlation between theoretical predictions and experimental electrochemical data underscores the significance of Ir-SAC doping in promoting the OER activity.

6. Conclusions

To summarize, a three-step process was used to synthesize an Ir single-atom catalyst on a Co₃O₄ support. The first phase was the hydrothermal process, which involved the formation of a cobalt–carbonate–hydroxide complex, followed by the impregnation of Ir ions over the metal hydroxide complex and subsequently calcination, which resulted in Ir single atoms on the Co₃O₄ support. The XRD pattern of the synthesized sample confirmed the formation of the pure phase of Co₃O₄. Moreover, no diffraction peak corresponding to the IrO₂ and metallic Ir was observed. FESEM analysis confirmed a nanoflower morphology with edge lengths ranging from 100 to 400 nm. The vertically grown nanoflower morphology and rough surface were highly active for the electrocatalytic OER. Furthermore, the presence of single atoms was validated by HAADF-STEM images and XAS analysis. The HAADF-STEM mapping confirmed the atomic distribution of Ir single atoms on the substrate matrix. EXAFS analysis shows no peak of Ir–Ir bond for the Ir_SAC–Co₃O₄ sample, providing a strong affirmation for the presence of Ir single atoms. These single atoms stabilized on the Co₃O₄ support matrix via interaction with the support atoms and formed Ir–O and Ir–Co bond pairs. The bonding resulted in strong electronic coupling between the Ir single atoms and the Co₃O₄ matrix that modified the electronic state of Ir and led to its increased density of unoccupied orbitals. Furthermore, the valence state of Co atoms was enhanced by the electronic interaction with highly oxidized Ir single atoms, which further strengthened the overall electrocatalytic performance of the material. Consequently, the improved electrocatalytic OER efficiency emerged from the combined synergistic interaction of the support matrix and Ir single atoms. An adequate loading of Ir (3.02 wt%) was observed with the help of ICP-OES analysis. The synthesized Ir_SAC–Co₃O₄ showed improved OER activity in an alkaline medium, exhibiting an onset potential of 1.51 V vs. RHE to generate 10 mA cm⁻² current density with a stability up to 96 h. This extended durability of Ir_SAC–Co₃O₄ demonstrated that Ir single atoms do not aggregate throughout the electrocatalysis. The calculated TOF value for Ir_SAC–Co₃O₄ was 0.03 s⁻¹, which was 15 times higher than that of the benchmark IrO₂. Post-electrocatalytic XPS analysis showed no substantial change in the oxidation state of Ir single atoms as well as Co atoms of the support matrix. Furthermore, post-electrocatalytic ICP-OES analysis confirmed no leaching of Ir atoms into the electrolyte. Both results demonstrated the robust electronic coupling between single atoms and the support matrix. The optimized binding energy values of intermediates during the OER calculated by DFT revealed an optimum binding energy for Ir sites, indicating that Ir is an active site for the OER. Therefore, this work demonstrated the anchoring of an Iridium single atom on a Co₃O₄ support with a strong synergistic electronic coupling, which indeed improves the electrocatalytic performance towards the OER under alkaline conditions.
