Machine-learning-driven integrated probing of oxygen-vacancy distribution and ionomer morphology in an iridium oxide catalyst–ionomer nanocomposite electrode for water electrolyzers

Abstract

Tuning the oxygen vacancy (V_o) content and spatial distribution of the ionomer in IrO_2−x–ionomer nanocomposite electrodes is a crucial strategy for developing stable and efficient water electrolyzers. This underscores the necessity of developing a methodology capable of jointly mapping the V_o and ionomer distributions with high spatial resolution. However, simultaneously visualizing and quantifying these two critical features in heterogeneous nanocomposite systems remains challenging. Exploiting the advantages of scanning probe-based electron energy-loss spectroscopy spectrum imaging (EELS SI) for identifying defect states and chemical phases on the nanoscale, we propose an efficient machine-learning-driven electron spectroscopic method for mapping the V_o and ionomer distributions over IrO_2−x–ionomer nanocomposites at high resolution. Integrating spectroscopic imaging and machine learning offers a novel solution for disentangling overlapping spectral features in complex nanocomposites. Based on the high-throughput data processing of large EELS SI datasets, our approach allows statistical assessment of the degrees of V_o homogeneity and ionomer coverage in the IrO_2−x–ionomer composite electrode. We found that the local V_o concentrations are closely related to the degree of local ionomer coverage over the IrO_2−x catalyst particles. This suggests that the surface charge density altered by V_o directly affects the electrostatic interactions governing ionomer adsorption. Because this machine-learning-driven EELS SI method is optimized for grouping and classifying C K- and O K-edges from unsupervised classes, it can be widely used as an efficient tool for characterizing the V_o distribution and differentiating carbon-based chemical phases in various vacancy-tailored oxide catalyst–ion-conducting polymer electrodes.

---

Introduction

In the development of high-performance proton-exchange membrane water electrolyzers (PEMWEs) that split water into hydrogen and oxygen using electricity, iridium oxide (IrO₂) is considered one of the most active catalysts and remains stable under acidic conditions in the oxygen evolution reaction (OER).^1,2 Continuous research efforts have been dedicated to improving the slow kinetics of the OER and sluggish material transport within catalyst-coated membranes (CCMs), which present significant challenges for the efficient operation of PEMWEs.^3,4 To achieve higher hydrogen production rates, enhancing the OER activity of IrO₂ catalysts (or Ir-based alloys/compounds) is an issue that needs to be addressed, as commercialized PEMWEs still require substantial use of Ir-based OER catalysts.^5–7 As the OER performance of IrO₂-based nanomaterials is closely tied to the surface atomic arrangements and related defect densities therein,^7–11 modifying the surface/interface atomic arrangements and controlling the atomic defect concentrations while maintaining their lattice structures have been adopted as effective strategies for tailoring electronic configurations to improve catalytic performance.^12–21

When oxygen vacancies (V_o) are created within IrO₂, resulting in IrO_2−x, the overpotential for the acidic OER can be reduced by modulating the Ir d orbital states, which is favorable for enhancing the OER performance.^20,22,23 Thus, balancing the V_o content and lattice structure stability of IrO_2−x provides insight into the V_o-mediated charge–lattice coupling effect and relevant electronic structure reconfiguration,^20,24–26 helping to establish strategies for developing more active and durable catalytic materials with reduced use of noble metals, such as Ir. The anode layer in the PEMWE is a composite of IrO_2−x and an ionomer with a porous morphology.²⁷ An ionomer is a specialized polymer that conducts ions while maintaining its structural integrity, thanks to ionic functional groups attached to the polymer backbone chain. In the use of the catalyst inks of IrO_2−x blended with an ionomer (Nafion® in this case) to prepare membrane electrode assemblies (MEAs) of PEMWEs via the CCM method, the morphological distribution of the ionomer, describing how it coats the catalyst particles, is a crucial parameter in optimizing the electrochemical performance of PEMWE electrodes.^28–31 Thus, the morphology of ionomers decorating IrO_2−x catalytic particles must be visualized and measured for efficient interface engineering of the IrO_2−x catalyst–ionomer composite.³²

(Scanning) transmission electron microscopy ((S)TEM) accurately captures not only the atomic arrangement (crystal structure) of metal-oxide catalysts such as IrO_2−x nanoparticles but also their morphological distribution with high precision.^13,17,33 However, this imaging method is typically unable to detect oxygen vacancies within the IrO₂ crystal lattice, and simultaneously imaging carbon-based ionomers and catalyst particles is challenging because of the relatively weak scattering of the ionomer under an electron beam. In this respect, nanoscale electron energy-loss spectroscopy (EELS) mapping of the O K- and C K-edges can be an alternative analytical method. However, EELS spectrum imaging (SI) analysis based on a few samples raises questions regarding the statistical significance of the results despite providing high-resolution information on the nanoscale phase distribution of the sample. Furthermore, conventional digital fitting using the multiple linear least squares (MLLS) algorithm to interpret EELS SI data can often misclassify the spatial distributions of chemical phases because it relies on high-quality references and sensitivity to experimental conditions.^34,35

Hence, a reference-free data processing approach based on a large EELS SI dataset must be established to address these concerns. From an experimental viewpoint, radiolytic damage to a sample is another concern because prolonged electron-beam irradiation is required to acquire interpretable chemical mapping data.³⁶ This unfavorable damage phenomenon can cause the artificial generation of oxygen vacancies inside the IrO_2−x nanoparticles and mass loss (or morphological distortion) of ionomers, leading to misleading interpretations. Therefore, an appropriate experimental strategy must be devised to prevent unwanted sample damage and ensure measurement accuracy.

In this study, we propose a machine-learning-driven chemical-mapping method based on a large EELS SI dataset of O K- and C K-edges to probe the morphological distributions of V_o and ionomers in IrO_2−x catalyst–ionomer composite electrodes with statistical significance. Using the machine-learning capability of reference-free clustering of the EELS spectra with contextual relationships, two distinctive phases of IrO_2−x with V_o and an ionomer decorating the catalyst particles in the electrode were reliably visualized. As the O K-edge profile is sensitive to the degree of V_o concentration,^{12,16,25,37,38} a series of O K EELS spectra were simulated using density functional theory (DFT) calculations to examine the variation of the O K-edge shape as a function of the V_o content in the IrO_2−x structure. The results indicated that the intensity ratio of t_2g to e_g peaks gradually decreased from the reference state of stoichiometric IrO₂ as the V_o content increased. This decreasing trend in the t_2g/e_g peak ratio was used as a scaling curve to obtain a V_o distribution map from the experimentally measured t_2g/e_g peak ratios for all the O K spectra. In parallel, machine-learning clustering of the C K-edges was conducted to determine how the ionomers decorated the IrO_2−x catalyst particles. By applying the two parallel machine-learning agents for interpreting O K- and C K-edges to a large EELS SI dataset, a statistically meaningful analysis of the V_o distribution in the IrO_2−x catalyst particles and the morphological distribution of ionomers was achieved without human bias in data interpretation. This machine-perspective EELS SI data processing technique can clarify the effects of the vacancy distribution inside the catalysts and the interfacial morphology of ionomers on water electrolysis properties, which are vital for the efficient engineering of high-performance OER electrodes.

Experimental

Fabrication of the iridium oxide–ionomer composite electrode

Rutile iridium(IV) oxide (043 396, Alfa Aesar) was used as the electrocatalyst. The catalyst ink was prepared by dispersing the catalyst in a 1 : 1 (w/w) mixture of water and 1-propanol, followed by the addition of a Nafion dispersion (D2021) to achieve an ionomer-to-catalyst (I/C) weight ratio of 0.2. The slurry was ultrasonicated for 15 min, mixed, and homogenized via magnetic stirring at 400 rpm for 30 min. After mixing, the catalyst layer was coated onto a polyethylene naphthalate substrate using an adjustable film applicator. The catalyst layer was dried in an oven at 80 °C for 2 h.

TEM sampling and EELS SI experiment

To prepare TEM samples for STEM EELS analysis, IrO_2−x catalyst–ionomer composite samples were dispersed in deionized water via bath sonication and drop-cast onto lacey carbon support or graphene/lacey carbon support TEM grids, followed by drying at 60 °C. The morphologies and atomic structures of the prepared samples were analyzed in the annular dark-field (ADF) STEM imaging mode using an aberration-corrected transmission electron microscope (JEM-ARM200CF, JEOL Ltd) operating at 80 or 200 kV with a probe current of 40 pA. For ADF STEM imaging, the collection-angle range of the ADF detector was set to 45–180 mrad, and the probe convergence semi-angle was ∼24 mrad. Core-loss EELS SI datasets for chemical mapping of the C K-edge and O K-edge were simultaneously acquired in the same sample regions in the ADF STEM mode using a GIF Quantum ER 965 spectrometer (Gatan, Inc.). The SI acquisition was conducted with a scan step size of 3 nm per pixel, a dwell time of 0.5 s per pixel, and an energy dispersion of 0.1 eV per channel. The mapping resolution of the SI was set to 50 × 50 pixels, corresponding to a field of view of 150 × 150 nm².

DFT calculations and O K EELS simulations

The calculations were performed using DFT within the projector-augmented wave (PAW) formalism,³⁹ as implemented in the Vienna Ab initio Simulation Package (VASP).⁴⁰ The exchange–correlation effects were treated using PBEsol functionals.⁴¹ The plane-wave energy cutoff was set to 400 eV. A (110) slab model containing 60 Ir and 120 O atoms was used. The slab consisted of five atomic layers and a vacuum region of approximately 10 Å in the z-direction. The bottom three layers were fixed, whereas the top two layers were allowed to relax. All structural relaxations were performed with an energy-convergence criterion of 10⁻⁶ eV/cell and force convergence of 10⁻² eV Å⁻¹. A Gamma-centered 1 × 1 × 1 k-point mesh was used for relaxation, and a 2 × 2 × 1 mesh with the tetrahedron method⁴² was used for density of states calculations. To further ensure that the theoretical results are reliable and quantitatively meaningful, we performed additional DOS calculations using higher cutoff energies of 450 and 500 eV, and the results are provided in the SI (Fig. S1). The overall DOS features remain essentially unchanged compared to those obtained at 400 eV, supporting the qualitative robustness of our conclusions. To obtain the O K near-edge structure spectra of defective IrO_2−x, the surface oxygen atoms were systematically removed in pairs to generate a series of configurations ranging from Ir₆₀O₁₂₀ to Ir₆₀O₁₀₈ slabs. O K-edge simulations were performed by calculating the dielectric function using the supercell core–hole method.⁴³ The imaginary part of the dielectric function in the long wavelength limit (q = 0) is proportional to the absorption intensity.

EELS SI data processing using machine learning

To process the experimental C K EELS SI dataset using machine-learning algorithms, the energy-loss window was set to 270–330 eV to isolate the C K-edge region after removing irrelevant spectral regions, which increased the processing efficiency and accuracy. Additionally, stride binning by a factor of two was applied along the spatial dimensions to reduce data volume and enhance signal quality. The machine-learning workflow for C K EELS of ionomer mapping consists of two main steps: dimensionality reduction and clustering. For dimensionality reduction, non-negative matrix factorization (NMF) was applied to decompose the data into additive and non-negative components, which are suitable for the physical interpretability of spectral data.⁴⁴ The decomposed components were subjected to K-means clustering to partition the spatially correlated spectral feature components. Among the grouped spectral components, the spectral feature components of k ≤ 3 were selected because the first three components reflected the physically meaningful morphologies of the IrO_2−x catalyst particles, ionomers, and graphene overlayer of the TEM sample. NMF was initialized using the non-negative double singular value decomposition (NNDSVD) method, and convergence was monitored via the Frobenius norm of the residual matrix with a relative tolerance of 10⁻⁴ and a maximum of 20 000 iterations. For K-means clustering, k-means++ initialization was employed with ten independent restarts (n_init = 10) and an absolute tolerance of 10⁻⁴ over a maximum of 1000 iterations to confirm cluster stability. Subsequently, segmentation maps of the three components were generated via binarization to evaluate their areal distributions. Background subtraction is generally applied before subsequent data interpretation as a preprocessing treatment for EELS SI data. However, background subtraction was not implemented in this case, because the most abundant feature (or variance) regarding the overall particle morphology was lost (Fig. S2). Specifically, power-law background subtraction redistributed the pre-edge spectral intensity and reduced the weight of the morphological variance, causing the first-ranked NMF component to no longer correspond to the overall particle shape and displacing the ionomer-associated component to a physically irrelevant position (Fig. S2b). Retaining the background-inclusive data, therefore, preserved the hierarchical ordering of the three principal chemical phases necessary for reliable ionomer identification.

To analyze the O K EELS SI dataset, 2 × 2 stride binning was applied to reduce the data volume and enhance the signal quality. Subsequently, principal component analysis (PCA) was employed to denoise the spectral data by truncating high-order spectral components (k ≥ 4 in this case) from the binned EELS SI dataset, after confirming that the reconstructed data preserved the key spectral features of the ionomer and graphene components. Background subtraction was performed by fitting the pre-edge region to a power-law model using linear regression. Background fitting was performed over a user-defined energy window (ΔE = 28 eV) at 3 eV, preceding the onset (532 eV) of the O K-edge. The resulting fit was then extrapolated and subtracted from the entire spectrum to isolate edge-related signals. To facilitate accurate identification of the A and B peaks, which correspond to transitions into the unoccupied t_2g and e_g states of the metal–oxygen coordination environments, respectively, the spectra were smoothed using the Savitzky–Golay filtering algorithm with a window length of 21 and polynomial order of 2. In this process, peak B is defined as the global maximum within the post-edge region, whereas peak A is identified as a local maximum or saddle point in the pre-B region, where the absolute value of the first derivative reaches a local minimum. This derivative-based fitting approach allows consistent and reproducible estimation of the A/B intensity ratio,^16,22 facilitating further comparison and interpretation.

All spectral data were collected exclusively from IrO_2−x–ionomer composite samples prepared in-house; no external datasets were used. Each SI dataset comprised 50 × 50 spatial pixels with simultaneous C K- and O K-edge spectra at each position, yielding approximately 175 000 spectra per ionization edge across the full ensemble of more than 70 datasets. Since NMF, PCA, and K-means are unsupervised algorithms that operate directly on experimental spectra without labelled examples, conventional training/testing split procedures are not applicable. The performance is instead evaluated by the physical interpretability of the decomposed components and the spatial coherence of the resulting maps. The machine-learning workflow for this study was designed using the Python-based Scikit-learn library, and the source code is available on GitHub (https://github.com/SKKU-STEM/ESICharWE).

Results and discussion

Microstructure and spectroscopic characterization of the IrO_2−x–ionomer composite

The typical morphology of the IrO_2−x–ionomer composite prepared for TEM analysis is shown in Fig. 1a. An ADF STEM image captured at low magnification revealed that the iridate particles in the composite were severely agglomerated, exhibiting a wide range of sizes from several nanometers to approximately 80 nm. Interestingly, statistical measurement revealed that the sizes of the IrO_2−x particles exhibit a bimodal distribution, with distinctive sizes of 6.8 ± 4.8 and 15.8 ± 15.2 nm (Fig. S3). A weak contrast appearing around the edges of the agglomerated particles indicated the presence of an ionomer decorating the iridate particles (see the arrow denoting the ionomer part). However, obtaining a holistic view of the mixing of conducting ionomers with iridate catalyst particles is challenging. In particular, the difficulty of discernibility worsens when the sample is on a carbon support. Atomic-scale ADF STEM imaging of the iridate particles oriented in the [011] and [131] directions indicated that the crystal structure was rutile, and the atomic models of the rutile lattices with these orientations confirmed the STEM observations (Fig. 1b and c). To distinguish the ionomer component from carbon, the spectral features of the C K-edge profile were examined using EELS, because the near-edge structure of the C K-edge is sensitive to chemical phases with different bonding attributes of carbon-based compounds or composites. In a recent study, the C K-edge profile of an ionomer exhibited a characteristic spectral peak at ∼288 eV, corresponding to the C 1s–π* transition associated with C=O or C–OH bonds in ionomer polymeric chains.⁴⁵ This peak is distinguished from π* and σ* peaks (denoted by C1 and C3, respectively), which are mainly associated with C=C sp² and C–C sp³ bonds, originating from the C-support and graphene protection overlayer. Indeed, we observed a characteristic peak at approximately 288 eV in the C K-edge profile obtained for the ionomer part of the composite sample (denoted as C2 in Fig. 1d). Thus, the distinguished C2 peak at ∼288 eV can be used as a characteristic spectral signature to probe the ionomer morphology in the composite sample. To map the ionomer distribution in IrO_2−x–ionomer composites, MLLS fitting is typically used because it can differentiate the local distribution of different chemical phases from the EELS SI data.^46,47 In this fitting process, the local phase spectra are represented as components with distinct linear coefficients, and the total spectrum is obtained by a linear combination of the local spectra. Hence, this method requires manually assigned reference components for linear fitting to obtain fit-coefficient maps. Given this requirement for manual input, the fidelity of the method is often not guaranteed, because the fitting results depend on the selected position-specific reference spectra, and the output data become unreliable when the difference among the local component spectra is subtle, as in the case of the C K-edge of the ionomer (Fig. S4). Machine-perspective data processing can be a solution to avoid data distortion caused by human bias when selecting reference spectral components.

Fig. 1 Typical structural and chemical features of the IrO_2−x–ionomer composite for the PEMWE electrode. (a) Low-magnification ADF STEM image of the IrO_2−x–ionomer composite sample supported on a C-support TEM grid. (b and c) Atomic-scale ADF STEM images of the rutile IrO_2−x nanoparticles aligned to the [011] and [131] orientations. (d) Comparison of O K EELS spectra obtained from ionomer and C-support regions. (e) Comparison of O K EELS spectra obtained from O-deficient IrO_2−x and stoichiometric IrO₂ particles in the sample.

In rutile IrO₂, six oxygen atoms are coordinated around the iridium cation, creating IrO₆ octahedral channels along the c-axis. The octahedral crystal field splits the Ir 5d orbitals into lower-energy (t_2g) and higher-energy (e_g) bands, resulting in a partially filled band in the t_2g orbitals, which is considered the fundamental basis for its intrinsic metallic conductivity.⁴⁸ When a V_o is created in the lattice, the Ir cations become unsaturated, leading to local distortions in the bond configuration, which result in different geometric and electronic environments. Thus, the increased number of undercoordinated sites with increasing V_o content imposes the combined effects of electronic perturbations and geometric changes, which typically act as loci for improved catalytic activity.⁴⁹ Despite the benefits of improving catalytic performance, the catalytic activity and stability of iridium oxide in acidic media often exhibit an inverse relationship, and rutile IrO₂ is degraded during the OER.^50,51 Furthermore, the lattice oxygen in rutile IrO₂ participates in the dynamic exchange process under various OER conditions.⁵⁰ Therefore, a method that can reliably visualize and monitor the formation and annihilation of V_o during the OER is needed to evaluate the effects of V_o on the catalytic performance and stability of oxide catalysts. To probe the V_o distribution in the IrO_2−x catalyst particles, the O K-edge profiles of the stoichiometric and oxygen-deficient iridate catalysts were compared, because the O K EELS spectrum reveals the electronic structure of the hybridized O 2p–Ir 5dt_2g and e_g orbitals in IrO₂ and its profile sensitively changes in response to the V_o content in the lattice.^12,52 Moreover, it delivers distinguishable information on the atomic structures of amorphous and hollandite-type IrO_x and rutile-type IrO₂ phases because they have different orbital hybridization profiles at the O K-edge.⁵³ Fig. 1e shows the experimental O K-edge profiles of stoichiometric IrO₂ and oxygen-deficient IrO_2−x. The experimental O K EELS spectra of the two samples exhibit a characteristic doublet profile featured by peaks A (∼531.3 eV) and B (∼534.4 eV) with an energy difference of ∼3 eV, which stems from the transition to hybridized empty states of 2p–Ir 5dt_2g and e_g orbitals. The results indicate that peak A (associated with t_2g orbitals) of the oxygen-deficient IrO_2−x was higher than that of the reference IrO₂, resulting in an increase in the A/B ratio. The increased intensity of peak A originates from the fact that the two electrons associated with the neutral V_o can contribute to the conduction band or localize to adjacent Ir sites, increasing the density of states near the Fermi level. This result suggests that we can obtain useful information on the distribution of V_o over the IrO_2−x catalyst particles by measuring and mapping the A/B ratios of site-specific O K-edges over the sample.

To investigate how the A/B ratio in the O K-edge fine structure of IrO₂ responds to varying V_o concentrations, we performed DFT simulations using a series of slab models with progressively reduced oxygen contents, ranging from stoichiometric Ir₆₀O₁₂₀ to Ir₆₀O₁₀₈ (corresponding to 10% oxygen deficiency) (Fig. 2). Surface oxygen atoms were systematically removed in pairs to generate these configurations, as illustrated in Fig. 2a (left). The density of states was calculated for stoichiometric IrO₂ and oxygen-deficient IrO_2−2x with x = 0.02 (2% V_o), and x = 0.1 (10% V_o), as shown in Fig. 2a (right). The pristine IrO₂ (110) slab exhibited metallic behavior, which persisted across all V_o concentrations. From the O K-edge simulations of the defective IrO_2−2x, the most distinct spectral evolution was a gradual increase (Fig. 2b (right)) and eventual saturation of the A/B peak intensity ratio with increasing V_o content (Fig. 2b (left)), which was used to scale the measured A/B ratio map to the V_o distribution map. The energy separation between peaks A and B (ΔE_B–A) remains constant at approximately 2.1 eV across the entire range of oxygen vacancy concentrations (Fig. 2b (left)).

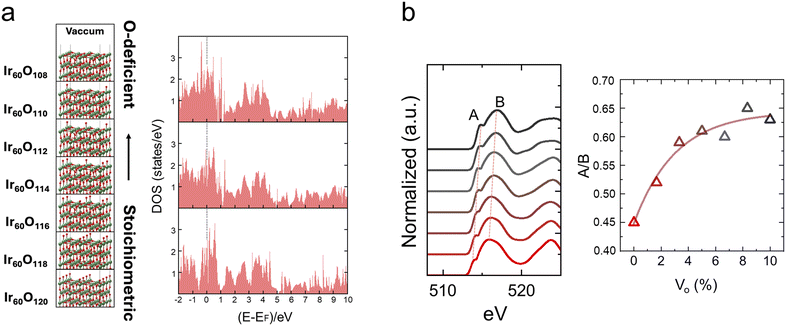

Fig. 2 DFT modeling of oxygen-deficient defective IrO_2−2x and O K-edge simulations. (a) (left) Atomic structures illustrating increasing oxygen vacancy concentration (V_o), from stoichiometric IrO₂ to defective IrO_2−2x (x = 0.1), and (right) the density of states for stoichiometric IrO₂, IrO_2−2x with x = 0.02 (2% V_o), and x = 0.1 (10% V_o). (b) (left) Normalized O K-edge spectra for IrO_2−2x with varying V_o concentration. (right) The A/B intensity ratio as a function of V_o concentration. Green and red spheres denote Ir and O atoms, respectively.

Scheme of machine-learning-driven EELS SI characterization

To address the need to establish an efficient methodology for simultaneously probing the V_o content in IrO_2−x catalyst particles and the morphological distribution of decorated ionomers, we employed two independent machine-learning agents combined for parallel data processing of the EELS SI dataset of O K- and C K-edges. The EELS SI dataset was acquired in the form of a 3D data cube in which every pixel in a 2D STEM image of the sample contained a position-specific 1D spectrum. The workflow of our machine-learning-driven process is shown in Fig. 3 and consists of three steps. First, the experimentally acquired EELS SI dataset for the IrO_2−x–ionomer composite sample was preprocessed via plural scattering deconvolution to remove the thickness-dependent multiple scattering effect, whereby thickness variations over the agglomerated particles induced artificial changes in the O K- and C K-edge intensities regardless of the actual content. A numerical treatment using min–max normalization was applied to the deconvoluted O K- and C K-edge signal components to prepare them for machine-learning data processing.

Fig. 3 Concept of a three-step workflow for machine-learning-driven analysis of the O K and C K EELS SI dataset of the IrO_2−x–ionomer composite electrode. (a) Step 1: experimental acquisition and preprocessing of the C K and O K EELS SI datasets. (b) Step 2: parallel machine-learning data processing for individual C K and O K EELS SI datasets with different processing algorithms. (c) Step 3: generation of the composite map of ionomer and V_o distributions over the sample, allowing statistical evaluation of the ionomer coverage, V_o concentration gradient, and geometric two-parameter correlation.

For the morphological distribution analysis of ionomers using C K EELS SI data, NMF⁴⁴ and K-means clustering⁵⁴ were employed to redistribute all the position-registered C K-edges into a low-dimensional latent space and group similar C K-edges, which were determined by the Euclidean distances among the spectral features scattered into a low-dimensional space. Because NMF is capable of extracting contextually related spectral features from multidimensional EELS SI data with non-negative constraints,^33,55 NMF-based feature classification can precisely discriminate individual spectra in EELS SI data with the complexity of overlapping or proximity in the real space of observation. We expected the following K-means clustering to provide the advantages of increased accuracy in identifying the spatial distribution of the ionomer phase and enhanced interpretability of the results in the EELS SI analysis of IrO_2−x–ionomer samples. This is because categorized clusters are associated with different regions or chemical phases in the sample, and physically meaningless clusters, such as noisy spectral data, can be ruled out during the process. Furthermore, this clustering process is relatively simple and computationally efficient, making it suitable for analyzing large EELS SI datasets for statistical evaluation.

In contrast to the C K-edges exhibiting different spectral profiles between the ionomer and carbon support, the shape difference in the O K-edges of many oxides with or without V_o is usually insignificant because the V_o content in oxides is small, at the level of a few percent. On the other hand, the relative t_2g/e_g peak ratio in the O K-edge profile is sensitive to changes in the V_o content.^12,13,56 Thus, precise measurement of the subtle variations in the peak ratio across all O K-edge spectra is crucial for probing the V_o distribution in oxide samples. This requires a high-quality O K-edge with the splitting of the t_2g/e_g doublet for reliable measurement. To this end, we utilized a PCA algorithm to remove the low-variance components of physically meaningless spectral features from the experimental EELS SI data of the O K-edge, thereby increasing the signal-to-noise ratio of the O K-edges. After the denoising process, we applied Gaussian fitting to extract t_2g and e_g (hereinafter denoted as A and B, respectively) peaks from all the denoised O K-edge spectra of the EELS SI, subsequently obtaining an A/B ratio map. Note that the power-law-dependent backgrounds should be subtracted from the input O K EELS SI data to make the Gaussian fitting more reliable, which is a different requirement for input data preparation from the case of C K EELS SI. We also prepared a scaling curve describing the change in the A/B ratio as a function of the V_o content via systematic DFT modeling. Using this scaling curve, the A/B ratio map was converted into a V_o distribution map via a code-based computation routine. In the last step, we generated a combined map of the two-phase areal distribution of the IrO_2−x–ionomer and the V_o distribution in the IrO_2−x nanoparticles. The obtained composite map simultaneously visualizes the morphological distribution of the ionomers on the IrO_2−x catalysts and the extent to which V_o is populated. Moreover, automated data processing for a large EELS SI dataset of the IrO_2−x–ionomer composite sample allowed the evaluation of the ionomer coverage, V_o concentration gradient, and geometric two-parameter correlation with statistical significance. This information enabled us to obtain valuable data-driven insights into establishing a reliable testbed for composite materials and an engineering strategy for developing high-performance catalytic electrodes for PEMWEs.

Electron-beam-induced damage-free EELS SI data acquisition

Iridium oxides suffer from electron-beam-induced damage due to knock-on displacement or radiolysis caused by high-energy electron-beam irradiation.⁵⁷ The pristine lattice structure of iridium oxide is readily reduced to iridium metal because of the knock-on effect, whereby oxygen atoms are physically sputtered from the lattice. This unfavorable effect can be mitigated by reducing direct momentum transfer to the atoms when the accelerating voltage of the electron beam is lowered. Nonetheless, the radiolytic bond breakage arising from the ionization of bonding electrons can drive oxygen loss in the rutile lattice, leading to the artificial generation of oxygen vacancies. Indeed, when the IrO_2−x sample was exposed to a 200 kV electron beam, oxygen vacancies were immediately generated at a high rate (Fig. 4a and the green curve in Fig. 4d), and rutile IrO_2−x was subsequently reduced to iridium metal (Fig. S5). By reducing the accelerating voltage to 80 kV, the threshold time to trigger radiolysis-induced vacancy generation was extended to ∼127 s at the same dose rate of 2.78 × 10⁷ e⁻ s⁻¹ nm⁻² (Fig. 4b and the light blue curve in Fig. 4d). However, this endurance to electron-beam irradiation is insufficient for obtaining damage-free STEM SI datasets of the C K- and O K-edges of the IrO_2−x–ionomer composite sample, because obtaining a STEM SI dataset requires >20 min for this acquisition condition, which corresponds to a total electron dose of 3.43 × 10¹⁰ e⁻/nm.²

Fig. 4 Examination of electron-beam-induced oxygen-vacancy generation. (a–c) Morphologies of three IrO_2−x samples prepared using a lacey carbon support and graphene overlayer, which were observed under accelerating voltages of 200 and 80 kV, respectively. The leftmost figures schematically describe the TEM samples prepared for STEM EELS SI analysis. (d) Profiles showing the temporal changes of A/B peak ratios in O K EELS spectra of the IrO_2−x TEM samples under electron beams accelerated at 200 or 80 kV at the dose rate of 2.78 × 10⁷ e⁻ s⁻¹ nm⁻². (e and f) First two consecutively acquired A/B ratio maps for the bare IrO_2−x and the IrO_2−x protected by the graphene overlayer, respectively. (g and h) Comparison of the histograms of the A/B peak ratios between the first and second acquisitions of the O K EELS SI for the bare IrO_2−x and the graphene-protected IrO_2−x particles. Note that the A/B ratio of the bare IrO_2−x was increased after the second acquisition, whereas the one protected by the graphene overlayer remained almost unchanged.

To address this issue, we utilized a graphene-supported TEM grid for sample preparation. Graphene overlayers with high in-plane thermal and electrical conductivities are known to confer effective protection against electron-beam-induced damage in oxide catalysts and other nanomaterials.^58,59 The primary protective mechanism is charge dissipation. Prolonged electron irradiation accumulates electrostatic charge on the relatively insulating IrO_2−x and ionomer surfaces, which lowers the activation barrier for radiolytic bond breakage. Graphene, as a highly conductive two-dimensional material, provides a lateral current pathway that efficiently drains the accumulated charge, thereby suppressing radiolysis-driven damage. A secondary contribution arises from thermal conduction, as the exceptionally high in-plane thermal conductivity of the graphene facilitates rapid lateral dissipation of locally deposited beam energy, thereby suppressing thermally activated oxygen loss. Indeed, when our sample was protected by a graphene overlayer, as shown in Fig. 4c, it exhibited a notably higher resistance to radiation damage, approximately 10-fold greater than that of the case without the graphene overlayer. Generally, the degree of the radiation-induced loss of oxygen atoms from IrO_2−x particles depends on their size; smaller particles correspond to greater loss of oxygen atoms. During the serial acquisition of the O K EELS SI, noticeable loss of oxygen atoms was observed for particles smaller than 5 nm in the bare IrO_2−x sample, resulting in an artificially increased vacancy concentration (red arrows in Fig. 4e). In contrast, the small IrO_2−x nanoparticles in the graphene-protected IrO_2−x sample remained intact even under prolonged electron-beam irradiation (Fig. 4f). Using this preparation method, we obtained all the STEM SI datasets for the IrO_2−x samples under pristine conditions.

Machine-learning-driven mapping of ionomer distribution and V_o gradient

The C2 peak observed at ∼288 eV at the C K-edge was a key spectral feature for discriminating the ionomer from the carbon support and graphene overlayer in the TEM grid sample, as shown in Fig. 1d. As the STEM EELS SI data consist of a hyperspectral cube (x, y, energy loss), where each pixel in the SI contains a spatially correlated EELS spectrum, this 3D dataset must be unfolded into a 2D matrix (S) with dimensions of N_x,y × E_c for mathematical manipulation using machine learning, where N_x,y represents the total number of spatial pixels and E_c represents the number of energy-loss channels. The NMF algorithm was then used to decompose the 2D spectral data matrix (S) into a product of two lower-dimensional matrices (S ≈ WH): the location-specific coefficient matrix (W = N_x,y × k) and spectral feature components (H = k × E_c), where k represents the number of classified spectral components (Fig. 5a). After the iterative optimization, the order of k reflects the rank of its contribution to the total spectral variance, where the first component exhibits the greatest variance across the energy range.

Fig. 5 Clustering and segmentation analysis of C K and O K EELS SI datasets of the IrO_2−x–ionomer sample. (a) Schematic of the mathematical procedure of matrix conversion and decomposition of the EELS SI data cube (top figures). The first three-ranked coefficient maps and (bottom graphs) the corresponding spectral feature components of the C K EELS SI, decomposed by NMF. (b) Artificial generation of a segmentation map showing the ionomer distribution over the IrO_2−x morphology, obtained via K-means classification. (c) (Top panels) PCA-driven denoising of O K EELS SI to improve the signal-to-noise ratio and Gaussian peak fitting for generating A and B peak intensity maps. (Bottom panels) Generation of the A/B ratio map and conversion to the V_o distribution map translated by the DFT-driven scaling curve (Fig. 2(b)). (d) Composite map simultaneously representing the spatial distributions of ionomers and V_o inside IrO_2−x nanoparticles. The scale bars represent 20 nm.

Fig. 5a (top panels) shows the first three coefficient maps decomposed using NMF. The first-ranked coefficient map (k = 1) represents the morphological distribution of the IrO_2−x catalyst particles because the agglomerated IrO_2−x particles manifest as an overall morphological feature with varying thicknesses in the composite sample. On the other hand, the third-ranked coefficient map represents the morphology of the ionomer, whereas the second-ranked coefficient map shows the total distribution of carbon including the graphene overlayer. The associated spectral feature component profiles for k ≤ 3 correspond to these sorted coefficient images, confirming that the NMF-driven spectral decomposition is reliable for discriminating physically relevant morphological features from C K EELS SI data of the IrO_2−x–ionomer composites. However, for k > 3, the coefficient maps with small variances exhibited physically irrelevant distributions of intensities, including the noise floor. Thus, the maps sorted as lower-ranked components of k > 3 were disregarded because of their morphological irrelevance for interpreting the distribution of the ionomer decorating the IrO_2−x particles. It was confirmed that the NMF-driven decomposition of the C K EELS SI reliably separates the ionomer component from the other carbon compounds. However, assessing the ionomer distribution with high accuracy is difficult because the thickness, which affects the EELS intensity, varies across the agglomerated IrO_2−x–ionomer composite sample. The limitation of 2D projection-based EELS for 3D irregular objects makes quantifying the local content of ionomers distributed over IrO_2−x catalysts difficult. In the present geometry, a pixel classified as ionomer-coated may reflect either genuine surface coverage on the top face of an IrO_2−x particle or a through-thickness overlap of ionomer and oxide along the beam direction. The impact of these projection artifacts on the statistical conclusions is, however, expected to be limited, as the coverage values represented statistical means derived from more than 70 EELS datasets, thereby reducing the influence of any projection artifact on the ensemble statistics. Hence, as the ionomer coverage on the IrO_2−x catalyst particles depends on the ionomer content,^26,60 the 2D EELS map, which visualizes the ionomer coverage, can provide useful information on how the ionomer is morphologically coated on the IrO_2−x catalysts. To obtain the ionomer distribution map, we employed an image-segmentation approach based on K-means clustering,⁶¹ which partitions the true EELS signals from the background signals. Thus, each map was classified into two groups of pixels: object (1) and empty space (0) (bottom panels, Fig. 5b).

Second, the experimental O K EELS SI data acquired simultaneously from the same sample region were denoised using the PCA algorithm to enhance the signal-to-noise ratio of the spatially correlated O K-edges (Fig. 5c). In contrast to NMF, PCA imposes no positivity constraints on the ranking of spectral components of the O K EELS SI data, allowing a bidirectional representation of the spectral data. In this case, negative loadings in the principal components were reported to effectively absorb noise fluctuations (classified as low-variance spectral features) without forcing them into artificial positive signals.⁶² Indeed, we confirmed that the truncation of higher-order spectral components (k ≥ 4) after PCA effectively removes noise fluctuations without creating spurious positive signals, whereas this artificial boosting of an irrelevant weak signal occurs with the application of NMF (Fig. S6). The adaptability and flexibility of PCA are crucial for preserving the authentic shape of O K-edges, allowing reliable evaluation of the A/B peak ratios in the O K-edges. It should be noted that weak signals in the EELS SI data may be filtered by noise components when using PCA. This concern was addressed by optimizing the acquisition conditions to obtain a relatively high-quality EELS SI for the sample protected by a graphene overlayer. After denoising, the reconstructed O K EELS SI was extracted into two intensity maps of the A and B peaks using a Gaussian fitting process to calculate the A/B ratio map, which indirectly represented the local distribution of V_o across the IrO_2−x catalyst particles.

As shown in Fig. 2, we observed an increasing trend in the A/B ratio with increasing V_o concentration from the simulated O K-edges. Using this plot as a scaling curve, we translated the measured A/B ratio of the O K fine structure into a variation in the V_o content, thereby directly visualizing the spatial distribution of V_o defects over the IrO_2−x catalyst particles (Fig. 5c). Interestingly, the resulting V_o map revealed that iridium oxides with particle sizes of <5 nm were more oxygen-deficient than larger particles (Fig. S7). This result supports previous reports indicating that iridium oxides become increasingly oxygen-deficient as their size decreases because of the multitude of lower-coordinated surfaces and a more flexible lattice that can bear the mixed valence states of iridium atoms.^63,64 By combining this V_o map with the segmented ionomer map, we created an artificial composite map that simultaneously visualized the V_o distribution and ionomer morphology in the iridium oxide catalyst–ionomer composite sample, as shown in Fig. 5d. The resulting composite map allows the evaluation of the ionomer coverage and local V_o content over IrO_2−x catalyst particles, which are key parameters in the design and evaluation of PEMWE electrodes. The ionomer coverage (C_I) was calculated using the simple relationship C_I = (A_T − A_E)/A_T, where A_T and A_E represent the total area of the IrO_2−x particles and the exposed area of the IrO_2−x particles uncoated by the ionomer, respectively. Because each pixel in the composite image of the IrO_2−x particles contains a specific V_o content, the global concentration and local variations of V_o can be simultaneously assessed. However, measurements with a single C K and O K EELS SI dataset may not represent the actual distribution of each electrode component, because of the limited field of observation of the large sample in the high-resolution EELS experiment. To address this concern, a large dataset of C K and O K EELS SI should be prepared and analyzed using the established machine-learning-driven approach, yielding a global landscape for each component distribution with statistical significance.

Statistical analysis with a large EELS SI dataset

To obtain statistically meaningful information on the ionomer and V_o distributions across the composite electrode sample, we acquired multiple C K and O K EELS SI datasets (n > 70 sets) for random locations on different TEM samples. For each TEM grid, acquisition positions were chosen to represent a range of morphological conditions, including regions with varying particle densities, different degrees of agglomeration, and locations both near and far from the lacey carbon film edges, to minimize systematic spatial bias arising from preferential selection of well-ordered regions. Using the automated machine-learning workflow, rapid clustering and segmentation were performed on a large EELS dataset to generate a series of segmentation maps of C_I and V_o distributions for statistical evaluation (Fig. 6a). After computing every pixel of all the composite maps, we obtained distribution plots that statistically delineated the C_I and V_o over the sample. Fig. 6b shows a histogram of the measured C_I values. The average C_I value was 42.2%, with a measurement variability of 7.3%. Within the IrO_2−x particles, the V_o content was measured to be 2.7% ± 3.2% in total (Fig. 6c). These values fell within the physically reasonable range for IrO_2−x synthesized under ambient conditions and were consistent with XPS-based V_o estimates reported for comparable IrO_2−x systems,^12,16,20,23 providing indirect support for the reliability of the DFT-calibrated A/B-to-V_o conversion. Given that higher V_o contents were observed in smaller particles, as discussed above, the local variation in the surface charge density induced by the V_o gradient could affect the ionomer–catalyst interface interaction because it is governed by electrostatic forces that control ionomer adsorption on the catalyst surface.⁶⁵ Thus, it is anticipated that the ionomer can preferentially adsorb onto a surface region with a relatively high V_o concentration.

Fig. 6 Statistical analysis of the ionomer coverage (C_I) and V_o concentration for the IrO_2−x–ionomer composite sample. (a) Pairwise series of composite maps showing C_I and V_o distributions. Four pairs of ionomer and V_o maps are representatively displayed among 76 processed maps. (b and c) Histograms of the measured values of C_I and V_o concentration, respectively. The n and f indicate the measured number of C_I and the number of datapoints (or pixels) of V_o values, respectively. (d) Procedure for regional separation of the total V_o distribution in two cases: P_Vo and I_Vo. (e) Histogram of the measured values of P_Vo and I_Vo. The scale bars represent 20 nm.

To investigate the spatial preference of the ionomer contact depending on the V_o content, we digitally separated the V_o distribution map into two parts of V_o distributions at bare and ionomer-coated IrO_2−x particles (denoted as P_Vo and I_Vo, respectively). The left panel in Fig. 6d shows a representative pair of ionomer and V_o distribution maps. Using the ionomer distribution map as a mask filter for the V_o map, the P_Vo and I_Vo maps were readily computed, as shown in the panels on the right of Fig. 6d. A statistical assessment of the two cases (Fig. 6e) revealed a distinctive bimodal distribution of V_o, which differed depending on whether the ionomers contacted the catalyst surface. The measured V_o content in I_Vo (6.1% ± 2.6%) exceeded that in P_Vo (4.8% ± 2.5%). This selective distribution behavior of V_o demonstrates that the electrostatic contact of ionomers on the IrO_2−x catalyst surface increases with the increased surface charge density induced by concentrated V_o, suggesting a close relationship between the two crucial parameters of C_I and V_o content. With this statistical information describing the degree of inhomogeneity in the ionomer coverage and the V_o concentration within the local regions of the IrO_2−x–ionomer composite electrode, we can reliably assess the morphological structure of the components in the composite electrode. This information is useful for the development of durable and active WE electrodes, as it provides insights into the relationships among catalyst morphology, V_o content, and ionomer coverage.

Conclusions

We proposed an efficient and reliable chemical-mapping method that leverages a spatially correlated STEM EELS SI technique combined with machine learning to analyze the morphological structure and defect distribution of IrO_2−x–ionomer nanocomposite electrodes used in PEMWEs. Additionally, we developed a TEM sampling approach and optimized data-acquisition conditions to reduce electron-beam-induced damage to the electrode sample, ensuring high-quality input for the machine-learning algorithms. Using two independent machine-learning models to process the C K and O K EELS data in parallel, we generated chemical maps that reveal the local distribution of V_o and the extent of ionomer coverage without data distortion, which is often caused by manual analysis. More importantly, we demonstrated that the automated processing of a large EELS SI dataset (>70 sets) of the IrO_2−x–ionomer composite enables the statistically significant evaluation of ionomer coverage and V_o distribution. These findings clarify the overall distribution behavior of V_o and ionomers across the nanocomposite electrode, aiding WE industries and academic researchers in designing high-performance WE electrodes and establishing a benchmark for reliable evaluation. Since this approach can be applied to any oxide catalyst–conducting polymer nanocomposite, we anticipate that it will become a valuable tool for the chemical characterization of sustainable energy conversion materials. The proposed framework is, in principle, extendable to other oxide catalyst–polymer composite systems in which the oxide exhibits a transition metal O K-edge with resolvable t_2g/e_g splitting sensitive to vacancy concentration and the polymer contains polar functional groups producing a distinguishable C K-edge feature near ∼288 eV. Connecting the nanoscale chemical heterogeneity characterized here to mesoscale morphological parameters, such as electrode porosity, surface area, and electrode–electrolyte contact ratio, represents an important direction for future investigation.

Author contributions

Yerin Jeon: investigation, validation, software, writing – original draft. Sang-Hyeok Yang: investigation, validation, software, writing – original draft. Hyeon-Ah Ju: investigation, validation, writing – original draft. Kwanhong Park: investigation, software, writing – original draft. Wooseon Choi: investigation. Daehee Yang: investigation. Hakjoo Lee: investigation. Dami Lim: investigation. Shin Jang: resource, investigation. Jaekwang Lee: supervision, software, funding acquisition, writing – review and editing. Jae-Hyeok Kim: supervision, investigation, funding acquisition, writing – review and editing. Young-Min Kim: conceptualization, supervision, investigation, funding acquisition, writing – review and editing.

Conflicts of interest

The authors declare that they have no competing financial interests or personal relationships that might have influenced the work reported in this study.

Data availability

The data supporting the findings of this study are available from the corresponding authors upon request.

Supplementary information: Fig. S1: DFT cutoff-energy convergence test; Fig. S2 and Note S1: background-subtraction effect on NMF clustering of C K-edge EELS; Fig. S3: bimodal size distribution of IrO_2−x particles; Fig. S4: reference dependence of MLLS fitting; Fig. S5: electron-beam-induced IrO_2−x-to-Ir phase transition; Fig. S6: PCA versus NMF noise removal for O K-edge EELS; Fig. S7: particle-size dependence of the O K-edge A/B ratio; and an Appendix with Python scripts (S1–S3) for STEM-EELS preprocessing, C K-edge phase analysis, and O K-edge oxygen vacancy quantification. See DOI: https://doi.org/10.1039/d5ta08480f.

Acknowledgements

This study was supported by the National Research Foundation of Korea (NRF) grant (RS-2024-00444986, 50%) funded by the Korean government and the Technology Innovation Program (RS-2024-00433399) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea). J. L. acknowledges support from the Nano & Materials Technology Development Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Science and ICT (RS-2024-00444649). We acknowledge the support of Hyundai Motor Company.
