ICT-driven Ag⁺ detection using xylene-spacer integrated naphthalene probes as fluorescent chemosensors: selectivity, practical monitoring, and anticounterfeiting

Abstract

Two xylene-linked naphthalene-based fluorescent probes, ONA and MNA, were designed, synthesized and fully characterized by NMR and mass spectrometry for the selective detection of Ag⁺ ions. In a MeOH : H₂O (1 : 1, v/v) medium at physiological pH (7.3), both probes exhibited pronounced selectivity and high sensitivity toward Ag⁺. The sensing response arises from a synergistic mechanism involving restriction of C–O bond rotation, suppression of the intramolecular charge transfer (ICT) process, and chelation-induced complex stabilization, leading to enhanced fluorescence accompanied by a hypsochromic shift. Quantitative evaluation through quantum yield measurements, limits of detection, and binding constant analysis confirmed efficient Ag⁺ recognition. The practical applicability of the probes was validated through successful detection in real samples, including millets, vegetables, ointments, and soils, as well as bacterial imaging in E. coli and anticounterfeiting stamping applications. These results establish ONA and MNA as versatile and multifunctional fluorescent chemosensors for Ag⁺ detection.

---

1. Introduction

The positively charged silver ion (Ag⁺) acts as a potent broad-spectrum antimicrobial agent by inhibiting the growth of and ultimately destroying a wide range of microorganisms including bacteria, fungi, and viruses. It exerts its effect primarily by binding to cellular membranes and biomolecules, disrupting membrane integrity, interfering with enzymatic activity, and causing irreversible damage to nucleic acids, which collectively leads to microbial death.^1–3 Due to these functions, Ag⁺ ions have been applied in a wide range of applications like wound dressing, water purification, antimicrobial coating for medical devices and consumer products.^4,5 Silver ions (Ag⁺) are generally considered to have low toxicity to humans in most practical applications. However, chronic or excessive exposure, particularly via inhalation of colloidal silver, can result in argyria, a condition characterized by irreversible bluish-gray skin discoloration. In addition to their broad-spectrum antimicrobial action, Ag⁺ ion technology is also effective in preventing the formation of biofilms, which are structured microbial communities known for their extreme resistance to conventional disinfectants.^6,7 Silver is one of the most commonly used noble metals in various industries such as photography, electronics, catalysis, and particularly food and medicine.^8–10 The therapeutic application of Ag⁺ involves its application for dressing wounds, creams and as an antibiotic coating.^11–13 Wound dressings with silver sulfadiazine or silver nanoparticles are used to treat surface infections.¹⁴ Nevertheless, significant concerns persist regarding the indiscriminate and excessive release of silver ions (Ag⁺) into the environment.^15–17 It is well documented that high levels of Ag⁺ induce cytotoxicity, bioaccumulation and disruption of enzymatic processes and all of which have significant implications to human health as well as aquatic life.^18–21 Therefore, stringent limits have been established by the World Health Organization (WHO) on silver content in drinking water emphasizing the immense need for analytical methods to determine it accurately.²²

Over the past few years, researchers have made significant efforts toward the design of molecular probes that are highly sensitive and selective for the detection of Ag⁺ ions, owing to their capacity for rapid, affordable and non-destructive detection. These sensors can convert the binding interaction of Ag⁺ into an observable optical signal, often visible as fluorescence enhancement, quenching or emission shifts. They are, therefore, very well suited for use in real-world applications, such as water quality monitoring in real time, sensing in food and cosmetic samples, logic gate systems and even biological imaging. A major challenge in developing effective Ag⁺ sensors is achieving high selectivity, since Ag⁺ shares close chemical similarity with other soft metal ions such as Hg²⁺, Pb²⁺, and Cd²⁺. To overcome this limitation, considerable effort has focused on designing molecular scaffolds bearing sulfur, amine or heteroaromatic donor groups, exploiting the strong affinity of Ag⁺ for soft Lewis bases. Additionally, supramolecular approaches, including the integration of Ag⁺ binding sites within conjugated fluorophores, have proven effective at maximizing sensitivity and tunability.^23,24 Such developments demonstrate the utility of fluorescent chemosensors as useful tools for sensing silver contamination in environmental and biological systems.

Conventional analytical techniques for Ag⁺ detection, such as voltammetry, inductively coupled plasma mass spectrometry (ICP-MS), and atomic absorption spectroscopy (AAS), are well established and offer extremely high sensitivity and precision.^25,26 These techniques are not necessarily best for quick or on-site analysis because they demand costly equipment and labor-intensive sample preparation. Fluorescence-based chemosensors have become popular substitutes in this environment because of their high sensitivity, selectivity, fast reaction, ease of use and real-time monitoring ability. Fluorescence chemosensors for Ag⁺ typically operate through one or more photophysical processes such as photoinduced electron transfer (PET), intramolecular charge transfer (ICT), excimer/exciplex formation, aggregation-induced emission (AIE), or fluorescence resonance energy transfer (FRET). The interaction of Ag⁺ with particular donor atoms (nitrogen, oxygen or sulfur) or π-conjugated systems often causes apparent photophysical changes that can be used for ratiometric, “turn-on”, or “turn-off” fluorescence responses.^27–29 The logical architecture of these sensors not only allows for accurate identification of Ag⁺ ions in biological and environmental samples but also gives insightful knowledge on its coordinating chemistry. Hence, developing selective and effective fluorescent chemosensors for Ag⁺ ions remains a popular area of research with significant consequences for medical applications, food safety, and environmental monitoring based on the fluorescence organic molecules (FOMs) like rhodamine, benzimidazole, Schiff base and thiourea based chemosensors.^30–33 The significance of fluorescence chemosensors is particularly notable in the realm of anticounterfeiting. Counterfeit products, including spurious medicines, foodstuffs, cosmetics and currency, inflict substantial economic damage and pose serious health risks. Fortunately, fluorescence chemosensors offer a sophisticated solution to this problem. By generating unique light signals, such as a change in color or emission of light under UV illumination, these chemosensors provide a reliable means of authentication that is difficult to replicate. By incorporating such sensors on packaging, labels, or product coatings, it is possible to swiftly verify authenticity by the naked eye or basic portable equipment. Their ease of visualization, high sensitivity and low price make fluorescent chemosensors an effective measure for the prevention of counterfeiting and consumer safety. Among the methods, the stamping-ink method is one of the best for preventing document forgery.^34,35

On continuation of our work on fluorescent organic molecules, two novel xylene-based fluorescence chemosensors, namely ONA and MNA, were designed for the selective detection of Ag⁺ ions. In this modular design, the naphthalene scaffolds act as the fluorophores, the oxygen atoms as the ionophores and the xylene moiety as the spacer. The probe's functionality relies on the binding of carbonyl oxygen (C=O) and the ether group (C–O) with Ag⁺ ions, resulting in the restriction of C–O rotation and inhibition of the intramolecular charge transfer (ICT) process. This leads to a hypsochromic shift through the formation of chelation-enhanced fluorescence (CHEF). Both ONA and MNA probes were successfully utilized for detecting Ag⁺ ions in real-world sample analysis, visualizing soil samples, and cell imaging using E. coli bacteria. Furthermore, the complexation solution was used to develop an invisible fluorescence stamping method.

2. Experimental section

Materials and instrumentation – SI

Synthesis of probes ONA and MNA.
Synthesis of ONA. Compound 1 was synthesized by the reaction of dibromo ortho-xylene with 2-hydroxy acetonaphthone in the presence of potassium carbonate (K₂CO₃) as a base, utilizing acetonitrile as the solvent.³⁶ Synthesis of probe ONA is obtained by treating compound 1 (0.20 g, 0.0004 mmol) dissolved in absolute ethanol (10 mL) and stirred at room temperature with 1-naphthaldehyde (0.13 g, 0.0008 mmol) in the presence of 10% NaOH. The reaction was monitored by thin-layer chromatography (TLC) and upon completion, the mixture was neutralized with dilute hydrochloric acid (HCl). Subsequently, a water–chloroform separation was performed to remove excess base. The solvent was then evaporated and the resulting residue was recrystallized using chloroform to yield the target compound, ONA, as a solid. Yield: 72%. ¹H NMR (300 MHz, CDCl₃): 8.21–8.17 (d, 1H), 7.79–7.54 (q, 4H), 7.48–7.47 (d, 1H), 7.45–7.29 (m, 6H), 7.13 (s, 1H), 7.09–7.06 (m, 4H), 5.28 (s, 2H) ppm. ¹³C NMR (75 MHz, CDCl₃): 196.63, 153.41, 142.22, 134.62, 133.59, 131.81, 131.59, 131.27, 130.74, 129.16, 128.99, 128.69, 128.18, 127.58, 126.83, 126.15, 125.41, 125.35, 124.27, 124.21, 123.16, 114.43, 69.52 ppm. LC-MS calcd for C₅₄H₃₈O₄: [M⁺] 750.89, found [M⁺ + H]⁺ 751.19 (Fig. S1, S3 and S5) (Scheme 1). This structure was further confirmed by single crystal XRD analysis with CCDC 2490615 and other data (Fig. S19, Table. S2).

Scheme 1 Schematic representation of ONA and MNA.

Synthesis of MNA. Compound 2 was synthesized using the mixture of dibromo meta-xylene with 2-hydroxy acetonaphthone in the presence of a base, potassium carbonate, by using acetonitrile as the solvent.³⁶ Synthesis of probe MNA is obtained by treating compound 2 (0.20 g, 0.0004 mmol) dissolved in absolute ethanol (10 mL) and stirred at room temperature with naphthaldehyde (0.13 g, 0.0008 mmol) in the presence of 10% NaOH. The reaction was monitored by thin-layer chromatography (TLC) and upon completion, the mixture was neutralized with dilute hydrochloric acid (HCl). Subsequently, a water–chloroform separation was performed to remove excess base. The solvent was then evaporated, and the resulting residue was recrystallized using chloroform to yield the target compound, MNA, as a solid. Yield: 71%. ¹H NMR (300 MHz, CDCl₃): 8.22–8.17 (d, 1H), 7.57–7.47 (q, 4H), 7.45–7.43 (d, 1H), 7.41–7.29 (m, 6H), 7.14 (s, 1H), 7.09–7.07 (m, 4H), 5.28 (s, 2H) ppm. ¹³C NMR (75 MHz, CDCl₃): 196.61, 153.45, 142.21, 134.64, 133.61, 131.81, 131.61, 131.44, 131.29, 130.76, 129.14, 128.99, 128.70, 128.41, 128.21, 127.59, 126.84, 126.15, 125.42, 125.36, 124.29, 123.16, 114.46, 69.53 ppm. LC-MS calcd for C₅₄H₃₈O₄: [M⁺] 750.89, found [M⁺ + H]⁺ 751.46 (Fig. S2, S4 and S6) (Scheme 1).

3. Results and discussion

Both probes ONA and MNA were prepared through a one-step protocol from their respective precursors. The mechanistic pathway involves a series of nucleophilic substitutions, condensations, and recrystallization steps, ultimately leading to the formation of the target compound ONA. The reaction begins with the nucleophilic substitution of dibromo ortho-xylene by 2-hydroxy acetonaphthone, facilitated by the base potassium carbonate (K₂CO₃). This step forms a new C–O bond. The resulting compound then reacts with naphthaldehyde in the presence of 10% NaOH, leading to the formation of an intermediate. The intermediate undergoes a condensation reaction, likely an aldol-type condensation resulting in the formation of the ONA probe. The final step involves the recrystallization of the crude ONA product using chloroform, yielding the pure solid probe. A similar procedure was followed for the synthesis of MNA, but instead of dibromo ortho-xylene, dibromo meta-xylene was used. Both the probes were well characterized by usual spectroscopic and analytical studies.

3.1. Selectivity of ONA and MNA towards cations

Before conducting fluorescence spectroscopic studies, UV–visible absorption measurements were first performed for both probes, ONA and MNA, to determine the appropriate excitation wavelength for subsequent emission experiments (Fig. S7). These studies were carried out at three different concentrations using methanol as a solvent. Based on the UV–visible spectral analysis, an excitation wavelength of 340 nm was selected for subsequent fluorescence measurements. Furthermore, the absence of any additional or shifted absorption bands in the spectra suggests that no aggregation or supramolecular association of the probe molecules occurred under the employed dilution conditions, indicating that the system remains predominantly in its monomeric form. Probes ONA and MNA's selectivity for Ag⁺ ions in the presence of several competing metal ions was evaluated under the same experimental environments of MeOH : H₂O (1 : 1) buffer solution at pH = 7.3. Only Ag⁺ showed a distinct reaction in both probes. Other metal ions, Fe²⁺, Bi³⁺, Hg²⁺, Cd²⁺, Al³⁺, Na⁺, K⁺, Ca²⁺, Mg²⁺, Cu²⁺, Zn²⁺, Ni²⁺, Co²⁺, Mn²⁺, Pb²⁺, Ba²⁺, Cr³⁺, Fe³⁺, Li⁺ and Sr²⁺, induced just small emission changes. As seen in Fig. 1, in the free state, when both probes ONA and MNA are excited at 340 nm, they exhibited dual emission with weak fluorescence intensity at 380 and 411 nm due to the rotation of the carbon oxygen single bond and charge transfer process. When Ag⁺ ions were introduced, due to the restriction of C–O bond rotation, inhibition of the charge transfer process and chelation formation, they exhibited a strong fluorescence intensity with hypsochromic shift in the shorter wavelength from 380 to 366 nm (approximately 14 nm). At the same time, the longer-wavelength band at 411 nm increased notably. These two emission wavelengths are excimer-like emission from π–π interactions between the aromatic moieties (long-wavelength band) and monomeric naphthalene fluorescence (short-wavelength band). Probes ONA and MNA with Ag⁺ ions are also treated with all other metal ions but have not shown any significant spectral changes. It evidences that both probes ONA and MNA specifically bind with Ag⁺ ions with a remarkable blue shift. For the confirmation of the selectivity for Ag⁺, interference studies were performed for both probes ONA and MNA. From Fig. S8, we can clearly see that both probes bind only with Ag⁺ ions and do not interfere with any other metal ions mentioned above. Therefore, both probes are selective and sensitive turn-on fluorescent sensors for Ag⁺ ions and they can be widely used for real world sample applications.

Fig. 1 Fluorescence emission spectra of a) ONA and b) MNA against Ag⁺ with various metal ions (100 equiv.) were obtained in MeOH : H₂O (1 : 1) HEPES buffer at pH = 7.3 (λ_ex = 340 nm).

3.2. Binding stoichiometry

To investigate the interaction mechanism and binding affinity of the probes ONA and MNA toward Ag⁺ ions, fluorescence titration experiments were carried out by incremental addition of Ag⁺. In the absence of Ag⁺ (0 equiv.), both probes exhibited weak intrinsic fluorescence. Upon gradual addition of Ag⁺, the fluorescence intensity increased steadily up to approximately 30 equivalents, accompanied by a progressive hypsochromic (blue) shift in the emission maximum, indicating the onset of probe–metal coordination. Continued addition of Ag⁺ from 30 to 85 equivalents resulted in further enhancement of fluorescence intensity and stabilization of the blue-shifted emission, consistent with the formation of a well-defined probe–Ag⁺ complex. Beyond 85 equivalents, no additional changes in either intensity or emission position were observed, demonstrating that the binding sites had reached full saturation. Thus, as shown in Fig. 2, both probes ONA and MNA achieve a saturated complexation state at around 85 equivalents of Ag⁺, beyond which no further fluorometric response is induced.

Fig. 2 Fluorescence spectral changes of a) ONA and b) MNA with various concentrations of Ag⁺ ions (0 to 85 equivalents) (λ_ex = 340 nm).

The binding stoichiometry was determined using Job's plot analysis, in which the mole fractions of the probes ONA and MNA and Ag⁺ ions were varied but the total concentration remained steady. For both ONA and MNA, the fluorescence intensity was at its highest at a mole fraction of 0.7, suggesting a ligand-to-metal binding ratio of 1 : 2 (Fig. S9). This encourages the creation of the probe–Ag⁺ complex in accordance with the suggested coordination model for both probes. Using the Benesi Hildebrand equation (eqn (1)), the association constant (K_a) was calculated to be 0.25 × 10⁴ M⁻¹ for ONA and 0.71 × 10⁴ M⁻¹ for MNA (Fig. 2). For ONA, the detection (LOD) and quantification (LOQ) limits were 3.32 × 10⁻⁵ M and 9.97 × 10⁻⁴ M respectively, and while they were 2.57 × 10⁻⁶ M and 7.71 × 10⁻⁵ M for MNA respectively (Fig. S10).

I = I₀ + (I_max − I₀) × K[A]/1 + K[A] (1)

where I is the fluorescence intensity, I₀ is the initial fluorescence intensity, I_max is the maximum fluorescence intensity, K is the binding constant and [A] is the metal ion concentration.

3.3. Reversibility studies, response time analysis, and pH effect

Reversibility studies play a critical role in evaluating the practical utility of chemosensors, particularly for reusable or real-time sensing platforms. A reversible response implies that the sensor–analyte interaction is not permanently destructive and that the system can be regenerated for multiple detection cycles, which is essential for cost-effective environmental monitoring devices, on-site test strips, wearable diagnostic platforms, and microfluidic sensing chips. Demonstrating reversibility also provides mechanistic insight into whether binding is dynamic and equilibrium-controlled rather than irreversible precipitation or chemical transformation. Consequently, reversibility not only enhances the sustainability and economic feasibility of a sensing system but also validates its suitability for dynamic monitoring applications where analyte levels fluctuate over time. Therefore, to test the reversibility of Ag⁺ ion detection, studies were conducted by the stepwise addition of Ag⁺ and EDTA to the probe solution of ONA and MNA. The free probes in the beginning showed a weak fluorescence emission due to the charge transfer (ICT) process. With the addition of Ag⁺ (1 equivalent), there was an striking fluorescence enhancement due to the chelation-enhanced fluorescence (CHEF) effect as a result of coordination between Ag⁺ and ester oxygen atoms, which restrict the ICT process. With further addition of EDTA, there was a sharp reduction in fluorescence intensity, which can be traced to sequestration of Ag⁺ ions by EDTA. This release of Ag⁺ destroyed the coordination complex, thus reverting the free probe back to its pre-modified non-emissive state. When further Ag⁺ ions were added, the intensity of fluorescence once more became quite high, proving the regeneration of the probe–Ag⁺ complex. The “on” (Ag⁺ addition) and “off” (EDTA addition) cycle of fluorescence response was reproducible for multiple cycles (up to 10 cycles tested), as proved in Fig. S12. This frequent switching behaviour evidently exhibits the reversibility and stability of the sensing process. Such reversibility is very much required in chemical sensors because this enables the probe to be utilized in several detection cycles without any loss of performance. Further, the full restoration of fluorescence intensity following each addition shows that the binding of Ag⁺ with the probe is an immaculate and dynamic equilibration process, not an irreversible chemical conversion.

The time-dependent fluorescence response of both probes, ONA and MNA, in the presence of Ag⁺ was examined to assess the kinetics of complex formation. As shown in Fig. S11, the fluorescence intensity increased progressively from 0 to approximately 2 minutes, reflecting the gradual formation of the probe–Ag⁺ complex. Beyond this point, no further change in emission intensity was observed up to 10 minutes, indicating that the binding equilibrium had been reached. The attainment of a constant fluorescence signal within ∼2–3 minutes confirms that the complexation process is rapid and kinetically favorable. This short response time is advantageous for real-time or near real-time monitoring and therefore supports the applicability of ONA and MNA for practical sensing applications where fast detection is essential.

To study the effect of pH on the sensing performance, the fluorescence intensity of the probes were examined under the pH condition ranging from 1.0 to 14.0 without and with Ag⁺ ions. The probes themselves showed extremely weak emission intensities in both acidic and basic environments, which are attributable to protonation and deprotonation effects, respectively. At acidic pH (1.0 to 5.0), protonation of the donor oxygen atoms prevents their lone pair accessibility, thus inhibiting Ag⁺ coordination and facilitating non-radiative decay channels to quench fluorescence. At basic pH condition (9.0 to 14.0), deprotonation of the functional groups can cause structural distortions or hydrolysis of the probe, while Ag⁺ ions can precipitate out as Ag₂O/AgOH, both of which inhibit Ag⁺ + probe complexation and decrease emission intensity. Conversely, at near neutral pH, the probe is structurally complete, and the donor oxygen atoms are still available for effective coordination of Ag⁺ (Fig. S13). This binding process enhances the rigidity of the probe structure and inhibits charge transfer, thus the reason for a significant fluorescence enhancement. Consequently, the best sensing efficiency of the probe for Ag⁺ ions is achieved at near neutral pH, while strongly acidic as well as highly basic conditions are undesirable for the fluorescence response. Therefore, a near neutral pH of 7.3 is the desirable condition for practical applications. The quantum yields were calculated for both probes. The emission intensities of both probes ONA and MNA were approximately 380 nm. Interestingly, after binding with Ag⁺, the emission intensities of the probes shifted to approximately 366 nm. Hence, an anthracene scaffold was chosen as a reference solution.³⁷ The quantum yield of probe ONA having 0.074 as the quantum yield increased to 0.218 upon the addition of Ag⁺ ions. Similarly, for probe MNA the quantum yield of 0.069 increased to 0.337 after binding with Ag⁺ ions. The observed increase in quantum yield suggests that the molecular framework of the probes becomes more rigid upon coordination with Ag⁺ ions. Such rigidity typically suppresses non-radiative decay pathways associated with intramolecular rotations or vibrational relaxation, thereby enhancing radiative emission efficiency. This rigidification-induced fluorescence amplification is consistent with the formation of a stable probe–Ag⁺ complex that restricts internal degrees of freedom and promotes photon emission.

4. Spectroscopic and theoretical validations for probes (ONA and MNA)–Ag⁺ binding

4.1. Fluorescence lifetime measurement

To gain deeper insight into the excited-state dynamics associated with complexation, time-resolved fluorescence lifetime measurements were carried out for both ONA and MNA in the absence and presence of Ag⁺ using a MeOH/H₂O (1 : 1, v/v) system buffered with HEPES at pH 7.3. As shown in Fig. S14, the free probe ONA exhibited an average lifetime of 0.355 ns, which decreased to 0.149 ns upon addition of Ag⁺. Similarly, the lifetime of MNA decreased from 0.363 ns to 0.139 ns after Ag⁺ binding. The pronounced shortening of lifetimes despite an overall enhancement in steady-state fluorescence intensity is characteristic of a static quenching or pre-association mechanism, in which complex formation alters the excited-state relaxation pathways. The results support the interpretation that Ag⁺ coordination inhibits the charge-transfer-mediated non-radiative decay channel that is operative in the free probes, while simultaneously rigidifying the structure and increasing the radiative efficiency observed in steady-state measurements.

4.2. Theoretical calculations

To understand the binding interactions between silver ions (Ag⁺) and the receptor molecules ONA and MNA, density functional theory (DFT) calculations were performed using the Gaussian 09w software package.⁴⁵ The geometries of the free ligands (L1 and L2) and their respective Ag⁺ complexes were optimized using the B3LYP/LANL2DZ method which is convenient for systems involving transition metals.⁴⁶ The optimized molecular geometries of the free ligands and their corresponding Ag⁺ complexes are presented in Fig. S17. From the figure, the two Ag⁺ atoms interact and coordinate with the four oxygen atoms connecting the naphthalene and benzene rings of the probe on either side respectively. The coordination distance between the Ag and O atoms was found to be 2.079 Å, 1.920 Å, 1.889 Å and 2.263 Å for L1 and 2.352 Å, 2.655 Å, 2.558 Å and 2.320 Å for L2. This interaction resulted in alteration of bond lengths and angles at the interaction site and the following are listed in Table 1. Fig. S18 illustrates the highest occupied molecular orbitals (HOMO) and lowest unoccupied molecular orbitals (LUMO) of the isolate and its complexation with Ag⁺. For the probe ONA the HOMO and LUMO are localized on the benzene of the probe which delocalizes partly to the naphthalene ring and oxygen atom on the right side at the LUMO level. Subsequently the HOMO–LUMO energy levels (E_HOMO and E_LUMO) for the free receptor were found to be at −4.55 eV and −1.99 eV resulting in an energy gap of 2.56 eV. Upon complexation of ONA + Ag⁺, the complex was found with a localization of HOMO at the benzene ring and Ag⁺ on the left and delocalization towards the benzene and naphthalene rings entirely on the right side respectively. However, the interaction resulted in stabilization of both E_HOMO and E_LUMO energy levels to −10.00 eV and −8.21 eV reducing its energy gap to 1.79 eV, whereas for the metal interaction on the MNA probe the HOMO and LUMO are localized on the benzene of the probe which delocalizes partly to the naphthalene ring and oxygen atom on the right side at the LUMO level. Subsequently the HOMO–LUMO energy levels for the free receptor were found to be at −5.81 eV and −1.86 eV resulting in an energy gap of 3.85 eV. Upon complexation of MNA and Ag⁺, the complex was found with a localization of HOMO at the benzene ring and delocalization towards the naphthalene rings entirely on the left side respectively. However, the interaction resulted in stabilization of both E_HOMO and E_LUMO energy levels to −9.62 eV and −7.90 eV respectively resulting in a reduced E_g of 1.72 eV. These findings clearly demonstrate that the binding of Ag⁺ to the ligands ONA and MNA leads to pronounced changes in their electronic properties. The substantial reduction in HOMO–LUMO gaps upon complexation highlights the potential of these ligands as effective chemosensors for silver ions, owing to their altered electronic structures and enhanced charge-transfer characteristics.

Table 1 Comparison table of Ag⁺ detection by recently reported compounds

Structure	Method	LOD	Mechanism	Application	Ref.
	Fluorometric/colorimetric	1.25 × 10^−6 M	PET	Biological sample, cell imaging, real sample analysis	38
		7.96 × 10^−6 M
	Fluorometric/colorimetric	0.00389 μM	PET	Real sample analysis	39
	Fluorometric	—	—	—	40
	Fluorometric	6.61 × 10^−9 M	PET	Test strip, real sample analysis, bio imaging	41
	Fluorometric	18.2 nM	—	Fluorescence imaging in mice cells	42
	Fluorometric	8.60 × 10^−7 M	AIE	Test strip	43
	Fluorometric	17.6 nM	CHEF	Test strip, water sample analysis	44
	Fluorometric	3.32 × 10^−5 M	ICT	Real sample analysis, soil analysis, anti-counterfeiting, bio-imaging	Current work
		2.57 × 10^−6 M

---

4.3. ¹³C NMR titration

To further establish the interaction between the probe and Ag⁺, ¹³C NMR spectra of both probes ONA and MNA and their Ag⁺ complexation (1 : 2 stoichiometry) were obtained. For that, 13-carbon nuclear magnetic resonance (¹³C NMR) spectroscopy analysis of the probes ONA and MNA was conducted which revealed distinct signals for key functional groups. The carbonyl carbon (C=O) exhibited a characteristic signal at approximately 196 ppm, while the ether carbon (C–O) and methylene group (–CH₂–) resonated at around 153 ppm and 69 ppm, respectively, as indicated in Fig. S15 and S16. Upon addition of Ag⁺ ions to both probes, notable downfield shifts were observed in the ¹³C NMR spectra. The carbonyl carbon signal shifted to approximately 198 ppm, suggesting strong coordination between the Ag⁺ ion and the carbonyl oxygen atom. This deshielding effect can be attributed to the electron-withdrawing nature of the Ag⁺ ion, which reduces the electron density around the carbonyl carbon nucleus. Similarly, the C–O peak shifted downfield to around 155 ppm, further supporting the notion of Ag⁺ coordination with the oxygen atom. This electron withdrawal effect likely contributes to the observed deshielding of the C–O carbon nucleus. The methylene (–CH₂–) group also exhibited a slight downfield shift to approximately 70 ppm upon Ag⁺ complexation. This subtle change suggests a localized alteration in the electronic environment surrounding the methylene group, potentially due to conformational changes or indirect effects of Ag⁺ coordination. These chemical shift values are well correlated with fluorescence enhancement, wherein Ag⁺ coordination inhibits intramolecular charge transfer (ICT) and triggers the CHEF effect.

4.4. Possible binding mechanism

The interaction between the ONA and MNA probes and Ag⁺ ions is primarily governed by chelation, where the oxygen-rich functional moieties of carbonyl (C=O) and ether (C–O) groups coordinate with the Ag⁺ center. Both probes possess these functionalities, rendering them potent ligands for Ag⁺ ion coordination, as illustrated in Scheme 2. Upon binding of two Ag⁺ ions, intense coordination occurs between the soft Lewis acidic Ag⁺ center and the lone pair of electrons on the carbonyl and ether oxygen atoms. The binding mechanism can be attributed to the following key factors: i) the carbonyl and ether oxygen atoms act as electron donors, forming strong coordinate bonds with the Ag⁺ ion through a chelation process, ii) the coordination of Ag⁺ ions with the oxygen atoms reduces the electron density at the donor sites, thereby inhibiting the ICT process and iii) the binding of Ag⁺ ions restricts the C–O rotation, leading to a conformational change that enhances fluorescence emission. These processes together ultimately trigger a strong fluorescence “turn-on” response. The 1 : 2 binding stoichiometry between the probes and Ag⁺ ions was confirmed through Job's plot analysis, ¹³C NMR spectroscopy, and fluorescence lifetime decay measurements. The combined results provide valuable insights into the molecular recognition mechanism of the ONA and MNA probes with Ag⁺ ions, highlighting their potential applications in sensing and detection.

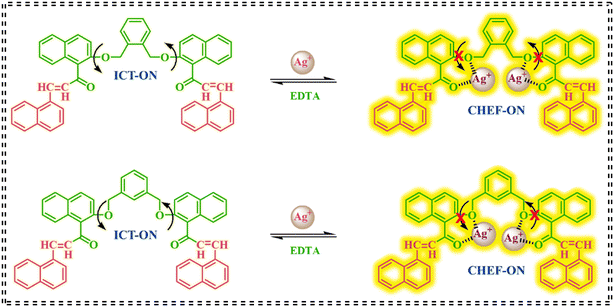

Scheme 2 Possible binding mechanism of the probes ONA and MNA upon addition of Ag⁺ ions.

5. Applications

5.1. Real-world applicability of ONA and MNA probes for Ag⁺ ion detection

The effectiveness of the ONA and MNA probes in detecting Ag⁺ ions in real-world samples was evaluated using the spike and recovery method. Various real-world samples, including pharmaceutical ointments and food samples (barley, sorghum, oats, black rice, radish, turnip, tapioca, sweet potato, and mushroom), were procured from local markets in Coimbatore, Tamil Nadu, India. The samples were extracted and spiked with three different concentrations of Ag⁺ ions (2, 4, and 6 μM). Both probes were then employed to detect the spiked Ag⁺ ions, and the recovery percentages were calculated. The results, presented in Tables 2 and 3, demonstrate excellent recovery rates ranging from 89% to 99%. The accuracy of the probes was validated using two independent techniques: fluorescence spectroscopy and inductively coupled plasma mass spectrometry (ICP-MS). The consistency between the two techniques confirms the reliability of the probes in detecting Ag⁺ ions in complex real-world samples. The successful application of the ONA and MNA probes in diverse real-world samples highlights their potential for practical use in environmental monitoring, food safety, and pharmaceutical analysis.

Table 2 Real sample analysis of ONA with spiked Ag⁺ ions

Samples	Ag^+ spiked (μM)	Quantified by PL			Quantified by ICP-MS
		Found (μM)	Recovery (%)	RSD	Found (μM)	Recovery (%)	Relative error (%)
Ointment	2	1.93 ± 0.07	96.5	2.48	1.99 ± 0.01	99.78	0.22
	4	3.92 ± 0.08	98.1	1.99	3.97 ± 0.03	99.32	0.68
	6	6.07 ± 0.03	101.3	1.87	6.00 ± 0	100.07	0.07
Barely	2	1.95 ± 0.05	97.7	0.96	1.97 ± 0.03	99.65	1.35
	4	3.95 ± 0.05	98.7	2.38	3.93 ± 0.07	99.27	1.73
	6	5.97 ± 0.03	99.6	2.36	5.94 ± 0.06	99.12	0.88
Sorghum	2	1.90 ± 0.10	95.2	1.14	1.99 ± 0.01	99.52	0.48
	4	3.85 ± 0.15	96.3	1.64	4.01 ± 0.01	99.84	0.16
	6	5.84 ± 0.16	97.4	1.62	6.09 ± 0.09	99.64	0.36
Oats	2	1.88 ± 0.12	94.3	1.89	1.97 ± 0.03	98.76	1.24
	4	3.82 ± 0.18	95.7	1.14	3.94 ± 0.06	98.76	1.33
	6	5.87 ± 0.13	97.9	0.63	5.99 ± 0.01	99.89	0.11
Black rice	2	1.93 ± 0.07	96.7	1.64	2.00 ± 0	100.41	0.41
	4	3.90 ± 0.10	97.5	3.75	3.98 ± 0.02	99.71	0.29
	6	5.98 ± 0.02	99.8	3.71	6.06 ± 0.06	100.05	0.05
Radish	2	1.85 ± 0.15	92.7	2.09	1.94 ± 0.06	97.39	2.61
	4	3.83 ± 0.17	95.8	4.26	3.94 ± 0.06	98.56	1.44
	6	5.78 ± 0.22	96.4	3.91	5.97 ± 0.03	99.65	0.35
Turnip	2	1.78 ± 0.22	89.2	3.41	2.00 ± 0	100.23	0.23
	4	3.75 ± 0.25	93.7	2.56	3.99 ± 0.01	99.97	0.03
	6	5.72 ± 0.28	95.3	2.47	6.10 ± 0.10	100.83	0.83
Tapioca	2	1.81 ± 0.19	90.7	3.06	1.99 ± 0.01	99.67	0.33
	4	3.73 ± 0.27	93.2	3.27	3.95 ± 0.05	98.87	1.13
	6	5.78 ± 0.22	96.4	3.31	5.99 ± 0.01	99.93	0.07
Sweet potato	2	1.81 ± 0.19	90.3	3.84	1.98 ± 0.02	99.23	0.77
	4	3.77 ± 0.23	94.3	4.29	3.98 ± 0.02	99.69	0.31
	6	5.85 ± 0.15	97.5	4.28	5.91 ± 0.09	98.56	1.44
Mushroom	2	1.79 ± 0.21	89.5	3.72	1.99 ± 0.01	99.96	0.04
	4	3.74 ± 0.26	93.6	2.78	3.93 ± 0.07	98.47	1.53
	6	5.78 ± 0.22	96.4	2.81	5.99 ± 0.01	99.94	0.06

---

Table 3 Real sample analysis of MNA with spiked Ag⁺ ions

Samples	Ag^+ spiked (μM)	Quantified by PL			Quantified by ICP-MS
		Found (μM)	Recovery (%)	RSD	Found (μM)	Recovery (%)	Relative error (%)
Ointment	2	1.97 ± 0.03	98.5	1.94	1.99 ± 0.01	99.78	0.22
	4	3.98 ± 0.02	99.7	4.13	3.97 ± 0.03	99.32	0.68
	6	6.14 ± 0.14	102.3	4.09	6.00 ± 0	100.07	0.07
Barely	2	1.88 ± 0.12	94.3	2.19	1.97 ± 0.03	99.65	1.35
	4	3.91 ± 0.09	97.7	1.95	3.93 ± 0.07	99.27	1.73
	6	5.89 ± 0.11	98.2	1.82	5.94 ± 0.06	99.12	0.88
Sorghum	2	1.89 ± 0.11	94.7	1.46	1.99 ± 0.01	99.52	0.48
	4	3.85 ± 0.15	96.3	2.14	4.01 ± 0.01	99.84	0.16
	6	5.85 ± 0.15	97.5	2.10	6.09 ± 0.09	99.64	0.36
Oats	2	1.87 ± 0.13	93.5	2.31	1.97 ± 0.03	98.76	1.24
	4	3.81 ± 0.19	95.3	4.09	3.94 ± 0.06	98.76	1.33
	6	5.87 ± 0.13	97.9	4.18	5.99 ± 0.01	99.89	0.11
Black rice	2	1.81 ± 0.19	90.3	2.76	2.00 ± 0	100.41	0.41
	4	3.70 ± 0.30	92.5	2.26	3.98 ± 0.02	99.71	0.29
	6	5.72 ± 0.28	95.4	2.32	6.06 ± 0.06	100.05	0.05
Radish	2	1.83 ± 0.17	91.3	3.49	1.94 ± 0.06	97.39	2.61
	4	3.78 ± 0.22	94.6	2.36	3.94 ± 0.06	98.56	1.44
	6	5.87 ± 0.13	97.9	2.55	5.97 ± 0.03	99.65	0.35
Turnip	2	1.87 ± 0.13	93.6	2.71	2.00 ± 0	100.23	0.23
	4	3.91 ± 0.09	97.8	3.31	3.99 ± 0.01	99.97	0.03
	6	5.90 ± 0.10	98.4	3.14	6.10 ± 0.10	100.83	0.83
Tapioca	2	1.81 ± 0.19	92.6	2.62	1.99 ± 0.01	99.67	0.33
	4	3.73 ± 0.27	94.3	1.71	3.95 ± 0.05	98.87	1.13
	6	5.78 ± 0.22	97.5	1.14	5.99 ± 0.01	99.93	0.07
Sweet potato	2	1.85 ± 0.15	95.3	1.68	1.98 ± 0.02	99.23	0.77
	4	3.85 ± 0.15	96.4	3.64	3.98 ± 0.02	99.69	0.31
	6	5.91 ± 0.09	98.5	3.76	5.91 ± 0.09	98.56	1.44
Mushroom	2	1.83 ± 0.17	91.7	3.01	1.99 ± 0.01	99.96	0.04
	4	3.73 ± 0.27	93.3	2.15	3.93 ± 0.07	98.47	1.53
	6	5.83 ± 0.17	97.2	1.67	5.99 ± 0.01	99.94	0.06

---

5.2. Detection of Ag⁺ ions in soil samples using ONA and MNA probes

To evaluate the detection of Ag⁺ ions in soil, four different types of soils (stream soil, ash soil, red soil and grass soil) were collected from various parts of Namakkal district, Tamil Nadu, India. Those soils were air-dried and sieved to >250 μm, then extracted under 30 min of sonication by using the solvent mixture of methanol : water (1 : 1). The extract was spiked with 20 μM concentration of Ag⁺ ions and left overnight to absorb the Ag⁺. Then the soil was added with probe solutions of ONA and MNA. As seen in Fig. 3, the pale-yellow colour was visible under the naked eye and strong bright yellow fluorescence was observed under UV 365 nm. This clearly evidences that both probes ONA and MNA were successfully utilized for the detection of Ag⁺ ions in environmental samples.

Fig. 3 Detection of Ag⁺ ions in soil samples by using probes ONA and MNA.

5.3. Anti-counterfeiting application

A stamping method was employed by immersing cotton pads with probes (ONA and MNA) + Ag⁺ complex solution. This solution was used as an ink for stamping on Whatman filter paper. The stamped region was mildly visible to the naked eye as pale yellow in colour. When 365 nm UV light was passed, it showed a bright yellow fluorescence with clear stamping patterns as seen in Fig. 4. This non-destructive fluorescence switching behaviour highlights the potential application in security printing and anticounterfeiting technologies.⁴⁷

Fig. 4 Visualization of fluorescence stamping by using complexation solution of ONA and MNA with Ag⁺ ions.

5.4. Visualizing Ag⁺ ions in biological systems using fluorescent probes ONA and MNA

This study aims to investigate the detection of Ag⁺ ions in Escherichia coli using fluorescent probes ONA and MNA, visualized through confocal laser scanning microscopy (CLSM) in a co-cultured medium. The medium was scanned at 40× magnification (bright field) with excitation. As shown in Fig. 5, probes ONA and MNA and their complexation with Ag⁺ ions were employed by using brightfield, confocal and overlay imaging. Both probes ONA and MNA (10 μM) showed weak fluorescence activity. The fluorescence activity of the complexation was detected through the green channel upon the addition of 20 μM Ag⁺ ions. This finding indicates that after Ag⁺ binding, both probes exhibit high fluorescence activity through the green channel. The cell imaging findings support this concept in that confocal scanning microscopy detects higher activity in E. coli bacteria using the complexation mechanism, suggesting that both probes can be effective fluorescent compounds for the detection of Ag⁺ ions in biological samples.⁴⁸ The MTT reduction test was used to assess the cytotoxicity and cell viability of the probes ONA and MNA and their in vitro anticancer action was compared with the MCF-7 cell line based on this approach. Table S3 displays the calculated IC₅₀ values from MCF-7 cells, whereas Fig. S20 shows the cytotoxicity of the probes ONA and MNA.

Fig. 5 Confocal microscopy imaging was performed on E. coli pathogens treated with probes a) ONA and b) MNA in the presence and absence of Ag⁺ ions in confocal, bright field and overlay [scale 10 μM] modes.

6. Conclusion

Our experimental results demonstrate that ONA and MNA probes are highly selective fluorescent sensors for detecting Ag⁺ ions in MeOH : H₂O (1 : 1) solution buffered with HEPES (pH 7.3). The sensing mechanism involves restriction of C–O rotation and inhibition of intramolecular charge transfer (ICT), resulting in a hypsochromic shift. The 1 : 2 binding stoichiometry between probes and Ag⁺ ions was confirmed by Job's plot, Benesi–Hildebrand plot, fluorescence lifetime measurements, and ¹³C NMR spectroscopy. The probes were successfully applied to detect Ag⁺ ions in real-world samples, including food (millets, vegetables), pharmaceuticals (ointments), and environmental samples (soil), as well as in live-cell imaging of E. coli bacterial cells, demonstrating biocompatibility. Additionally, the probes' complexation solution was used as a fluorescence-based stamp-ink method for anti-counterfeiting, highlighting their potential for security applications. Further work on the derivation of the probes and other potential applications is currently underway in our laboratory.

Conflicts of interest

The authors declare no conflict of interest.

Data availability

All data supporting the findings of this study are available within the article and its supplementary information (SI) files.

Supplementary information is available. See DOI: https://doi.org/10.1039/d5sd00202h.

CCDC 2490615 contains the supplementary crystallographic data for this paper.⁴⁹
