A highly stable, planar thiophene-fused triarylborane as a new building block for semiconductor polymers

Abstract

π-Conjugated compounds containing tricoordinate boron atoms have attracted significant attention because of their unique properties, including low-lying LUMO energy levels, extended π-conjugation, and high Lewis acidity. In particular, planarized triarylboranes have been extensively studied in recent years owing to their high chemical stability and excellent photoluminescence properties. Despite exhibiting potential for strong intermolecular interactions and superior semiconducting performance arising from the absence of bulky substituents, the synthesis of p–π* conjugated polymers using such planarized units as building blocks, along with the evaluation of their semiconducting properties, remains a significant challenge that has not yet been addressed. In this study, we report the synthesis of DTTB, a new planarized triarylborane featuring benzene and thiophene rings fused via boron and sulfur atoms. DTTB represents a versatile building block that combines good chemical stability with a perfectly planar geometry, facilitating intermolecular π–π stacking as confirmed by X-ray crystallography. Furthermore, the fused thiophene rings allowed for facile deprotonation at the α-positions, enabling the first integration of planarized triarylborane units into p–π* conjugated polymers. The synthesized p–π* conjugated polymers exhibited ambipolar transport behavior with enhanced carrier mobilities compared to non-planarized analogs. This work provides a conceptual advance by demonstrating that the rigid planarization of triarylborane units is a superior strategy for enhancing the semiconducting performance and thermal stability of p–π* conjugated materials, offering a design strategy for polymer semiconductors.

---

Introduction

The introduction of main group elements into π-conjugated systems has been utilized to develop various functional materials, as it induces unique changes in photophysical properties. For instance, the incorporation of nitrogen or sulfur is known to elevate the highest occupied molecular orbital (HOMO) energy level of compounds. Therefore, these elements are widely employed in p-type semiconductor materials.¹ Among main group elements, the introduction of tricoordinate boron causes particularly unique optoelectronic properties. Incorporating a tricoordinate boron atom into a π-conjugated system effectively and selectively lowers the lowest unoccupied molecular orbital (LUMO) energy level of the compound. This phenomenon arises from the p–π* interaction between the vacant p-orbital of the boron atom and the π*-orbital of the adjacent π-system (Fig. 1a). Furthermore, the inherent Lewis acidity of tricoordinate boron allows for interaction with Lewis bases, such as anions, which disrupts this p–π* conjugation, resulting in significant alterations in their optical properties. Moreover, by combining tricoordinate boron with Group 15 and 16 elements such as nitrogen or sulfur, it is possible to control intramolecular donor–acceptor interactions and aromaticity. Because of these intriguing characteristics, tricoordinate boron-containing π-conjugated systems have been extensively explored for applications in functional materials,² including n-type semiconductors.³ However, a significant challenge remains: tricoordinate boron compounds typically exhibit hydrolytic instability, necessitating robust stabilization strategies for practical application. The most prevalent strategy is kinetic stabilization via the introduction of bulky substituents, such as mesityl or tripyl groups, onto the boron atom (Fig. 1a). While this method reliably enhances stability, the steric hindrance imposed by these bulky groups often suppresses intermolecular interactions in the solid state, thereby limiting semiconductor performance. Consequently, reports of p–π* conjugated materials that exhibit excellent semiconductor properties remain scarce, leaving significant room for improvement.³

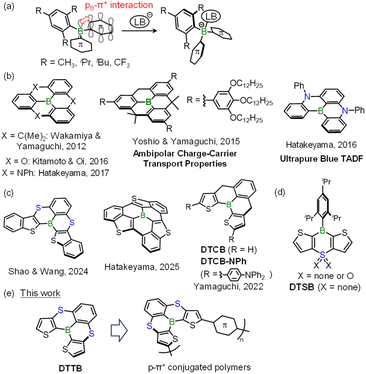

Fig. 1 (a) Electronic characteristics of tricoordinate boron via p–π* interaction. (b and c) Structures of previously reported planarized triarylboranes. (d) Chemical structure of DTSB. (e) Structure of the planarized triarylborane DTTB synthesized in this study.

In 2012, Yamaguchi and co-workers pioneered a stabilization strategy for triarylboranes by bridging the three aryl groups surrounding the boron atom, effectively locking the molecule into a planar conformation (Fig. 1b).⁴ This structural rigidity inhibits structural deformation toward a tetracoordinate state, imparting kinetic stability. In addition to exceptional chemical stability, these planarized triarylboranes can be tailored with unique properties depending on the bridging heteroatoms.⁵ For instance, Hatakeyama and co-workers demonstrated that using nitrogen as a bridging element induces a multiple resonance (MR) effect, yielding molecules with outstanding thermally activated delayed fluorescence (TADF) (Fig. 1b).^5b Following this discovery, numerous planarized triarylboranes with superior luminescence properties were reported.⁶ However, current research on planarized triarylboranes remains heavily focused on their luminescence (TADF) properties,⁷ and the structural advantages of these rigid, inherently planar frameworks for electronic applications have been largely overlooked. Although the high planarity and absence of bulky substituents are expected to facilitate strong intermolecular π–π interactions, to the best of our knowledge, there are no precedents for investigating the semiconducting properties of conjugated polymers incorporating such skeletons, except for small-molecule systems.⁸

Thiophene is one of the most frequently used building blocks for π-conjugated systems owing to its superior chemical and thermal stability and the ease of selective functionalization. Accordingly, compounds combining thiophene rings with tricoordinate boron have been widely investigated.⁹ Nevertheless, examples of planarized boron compounds fused to thiophene rings remain limited (Fig. 1c).¹⁰ Although benzothiophene is used in some cases, π-extension via the thiophene ring is not possible in these situations.^10a,c An exception is planarized borane (DTCB, Fig. 1c) featuring methylene-bridged thiophene and benzene rings; this unit allows for the extension of π-conjugation from the thiophene rings.^10b We previously synthesized p–π* conjugated polymers using a building block containing a thiaborin ring fused to thiophene rings (DTSB, Fig. 1d).¹¹ However, owing to the bulky substituents on the boron atom, thin films of these polymers failed to exhibit carrier transport properties.^11c In this study, we report a conceptual advance in the design of tricoordinate boron materials by synthesizing DTTB, in which two thiophene rings and a benzene ring are bridged by sulfur atoms across the boron center, and demonstrating its potential as a building block for semiconductor polymers. Unlike traditional triarylboranes that rely on bulky groups for kinetic stabilization, the DTTB unit achieves high chemical stability through rigid planarization, which simultaneously enables intermolecular π–π stacking. By leveraging the thiophene rings as synthetic handles, we achieved the first synthesis of p–π* conjugated polymers incorporating such planarized triarylborane cores. These polymers exhibited significantly enhanced carrier mobilities compared to their non-planarized counterparts, suggesting that planarization is an effective strategy for unlocking the semiconducting potential of boron-containing π-conjugated polymers.

Results and discussion

Synthesis and characterization

The synthetic pathway to DTTB is depicted in Fig. 2a. Initially, the 2-position of 1,3-dibromobenzene was deprotonated using lithium diisopropylamide (LDA), and a trimethylsilyl group was introduced. This silyl group introduction was critical for enhancing the reactivity of the ipso-carbon at the 2-position for the subsequent bromination. The two bromo groups were subsequently converted via stepwise thioetherification involving lithiation followed by nucleophilic substitution with bis(3-thienyl)disulfide. Precursor 4 was then prepared through the tribromination of 3 with N-bromosuccinimide (NBS). Subsequent trilithiation of 4, followed by treatment with trimethyl borate, afforded the target compound, DTTB, in 60% yield. Consistent with our expectations, DTTB exhibited high chemical stability and remained stable under ambient conditions for extended periods, with no noticeable degradation. The ¹¹B NMR spectrum of DTTB displayed a broad signal at 37 ppm, confirming the tricoordinate nature of the boron center. To confirm the molecular structure, single-crystal X-ray diffraction analysis was performed on crystals obtained via the slow evaporation of a CH₂Cl₂/ethanol solution. As shown in Fig. 2b, the sum of the C–B–C bond angles in DTTB is 360.0°, validating its perfectly planar conformation. Moreover, the crystal packing exhibits a distinct π-stacking arrangement with an intermolecular distance of 3.52 Å (Fig. 2c), demonstrating that the elimination of bulky substituents on the boron atom effectively promotes intermolecular π–π interactions.

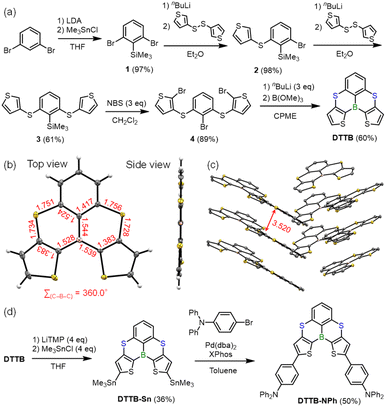

Fig. 2 (a) Synthetic route for DTTB. (b) Single-crystal X-ray structure of DTTB measured at 100 K and (c) its corresponding packing structure. Bond lengths and intermolecular distances are given in Å. Thermal ellipsoids are set at the 50% probability level. Hydrogen atoms in the packing structure are omitted for clarity. (d) Reaction pathway for the π-extension of DTTB via sequential lithiation and Stille coupling reactions.

Efforts were then directed toward modifying the outer α-positions of the thiophene rings in DTTB to introduce functional groups for further π-extension. Although an Ir-catalyzed direct C–H borylation was previously reported for DTCB,^10b this reaction failed to proceed with DTTB under identical conditions. Consequently, a lithiation approach was explored (Fig. 2d). Treatment with n-butyllithium or lithium diisopropylamide (LDA) resulted in complex mixtures. In contrast, the use of a bulky base, lithium tetramethylpiperidide (LiTMP), promoted the desired lithiation. Subsequent quenching with trimethyltin chloride afforded the distannylated derivative, DTTB-Sn, in 36% yield. As a model reaction, the Stille coupling reaction of DTTB-Sn with 4-bromotriphenylamine afforded the diphenylaminophenyl-substituted compound, DTTB-NPh, in 50% yield. These results demonstrate that both functionalization and extension of the π-conjugation of DTTB are achievable via sequential lithiation and Stille coupling reactions.

Optical and electrochemical properties

The optical properties of DTTB and DTTB-NPh were characterized (Fig. 3). In toluene, DTTB and DTTB-NPh exhibit absorption maxima at 423 nm and 470 nm, respectively. The absorption maximum of DTTB shows a significant bathochromic shift relative to that of DTCB (λ_abs = 330 nm in toluene).^10b This shift is likely caused by the destabilization of the HOMO energy level owing to the electron-donating nature of the bridging sulfur atoms. A red shift was also observed relative to DTSB (λ_abs = 347 nm in THF),^11b which can be attributed to the extended π-conjugation resulting from the improved coplanarity of the benzene and thiophene rings in DTTB. The further red shift in DTTB-NPh suggests effective extension of the π-conjugation and significant donor–acceptor interactions.

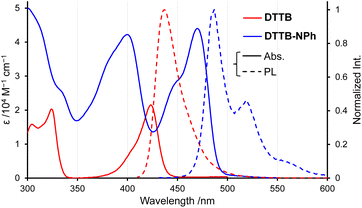

Fig. 3 UV-vis absorption and PL spectra of DTTB and DTTB-NPh in toluene at 0.01 mM.

In toluene, DTTB exhibits blue photoluminescence (PL) with a peak maximum at 437 nm (Fig. 3). The Stokes shift of DTTB is 757 cm⁻¹, smaller than that of DTCB (1894 cm⁻¹).^10b Furthermore, the full width at half maximum (FWHM) is very narrow at 28 nm. These results indicate that DTTB possesses a highly rigid structure that undergoes minimal structural relaxation in the S₁ state. The PL lifetime is 2.48 ns, confirming its fluorescent nature. The PL spectra and lifetimes of DTTB were virtually unaffected by solvent polarity (Fig. 4a, S1a, and Table 1), indicating that the intramolecular charge transfer (ICT) character in the excited state is negligible. Despite its high structural rigidity, the PL quantum yield (Φ_PL) of DTTB is moderate at 19% in toluene (Table 1). Given that boron/nitrogen hybrid systems often exhibit efficient TADF due to the MR effect,⁷ we investigated the potential TADF properties of structurally similar DTTB. Because TADF originates from the S₁ state populated via reverse intersystem crossing (RISC) from the T₁ state, it is typically susceptible to quenching by atmospheric oxygen.¹² Comparison of the PL spectra of a toluene solution of DTTB before and after deaeration revealed negligible changes (Fig. S2), confirming that DTTB does not exhibit TADF. To determine the underlying cause, the PL spectra of a DTTB-doped (1 wt%) PMMA film were measured at room temperature and 77 K (Fig. S3). At room temperature, a fluorescence band was observed at 442 nm, similar to the PL in toluene. In contrast, at 77 K, a new PL band appeared at 505 nm in addition to the fluorescence band. The lifetime of this new band was determined to be 157 ms (Fig. S4), confirming its assignment as phosphorescence. The energy difference between the S₁ and T₁ states (ΔE_ST), calculated from the onsets of these two PL bands, is relatively large at 0.40 eV, which explains the absence of TADF in DTTB. Similar relatively large ΔE_ST values were reported for benzothiophene analogs.^10c The large ΔE_ST value of DTTB compared with those of analogous planarized boron compounds^5b,7 may stem from the lower aromaticity of thiophene than benzene, which promotes greater electron delocalization across the entire molecule. Such delocalization likely reduces the spatial separation of HOMO and LUMO on specific atoms, thereby weakening the MR effect. Further details on this point are provided in the DFT calculations section. The observation of intense phosphorescence at 77 K suggests that intersystem crossing (ISC) from the S₁ to the T₁ state occurs efficiently even at room temperature, thereby competing with fluorescence and reducing Φ_PL.

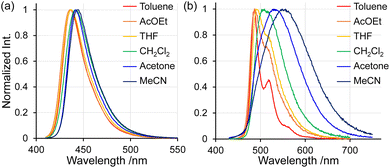

Fig. 4 PL spectra of DTTB (a) and DTTB-NPh (b) in various solvents at 0.01 mM.

Table 1 Optical properties of DTTB and DTTB-NPh in various solvents

Compound	Solvent	λabs/nm ^a	λPL/nm ^b	ΦPL/% ^c	τ/ns ^d
a Absorption maxima.b PL maxima.c Absolute PL quantum yield.d PL lifetimes. Values in parentheses represent the percentage lifetime contribution of each component.
DTTB	Toluene	423	437	19	2.48
	AcOEt	—	436	21	2.54
	THF	—	437	10	2.69
	CH2Cl2	—	442	10	3.34
	Acetone	—	442	20	3.43
	MeCN	—	444	19	3.89
DTTB-NPh	Toluene	470	487	14	0.71
	AcOEt	—	487	18	0.83
	THF	—	490	17	0.70 (18%), 0.90 (82%)
	CH2Cl2	—	509	19	0.89 (75%), 1.22 (25%)
	Acetone	—	530	23	1.48 (78%), 3.50 (22%)
	MeCN	—	556	3	1.99 (57%), 3.04 (43%)

---

The observed PL maximum of DTTB-NPh in toluene at 487 nm showed a significant bathochromic shift relative to that of DTTB, consistent with the absorption spectra. In contrast to DTTB, the PL spectra of DTTB-NPh exhibited a red shift with increasing solvent polarity (Fig. 4b and Table 1), indicating the formation of an ICT excited state in polar solvents. This implies that the diphenylaminophenyl groups act as donors and the DTTB unit as an acceptor, suggesting that the DTTB unit possesses intrinsic electron deficiency stemming from the tricoordinate boron atom. On the other hand, the difference between the ground- and excited-state dipole moments (Δµ) for DTTB-NPh, determined from a Lippert–Mataga plot¹³ (Fig. S5), is 11.1 D. This value is approximately half that of DTCB-NPh (20.9 D, Fig. 1c),^10b suggesting that the electron-accepting ability of the DTTB unit is attenuated by the electron-donating character of the sulfur atoms.

To determine the frontier orbital energies, cyclic voltammetry (CV) was performed. Neither DTTB nor DTTB-NPh exhibited reduction waves within the potential window, indicating the relatively low electron deficiency of the DTTB unit, consistent with the aforementioned discussion. On the other hand, clear oxidation waves were observed for both compounds (Fig. S6). The HOMO energy levels of DTTB and DTTB-NPh were estimated from their onset potentials to be −5.48 and −5.12 eV, respectively. The relatively high-lying HOMO energy level of DTTB can be ascribed to the electron-donating sulfur atoms, whereas the further increase in the HOMO energy level of DTTB-NPh is due to the electron-donating triphenylamine groups.

DFT calculations

Density functional theory (DFT) calculations were performed to gain insight into the electronic states of these compounds. Consistent with the single-crystal X-ray diffraction results, the optimized geometry of DTTB was found to be perfectly planar, with the sum of the C–B–C bond angles totaling 360.0° (Fig. 5a). The HOMO of DTTB is primarily located on the aromatic rings and the sulfur atom, whereas the LUMO is principally concentrated on the boron atom (Fig. 5b). The LUMO energy level of DTTB was calculated to be lower than that of DTSB, indicating that planarization effectively lowers the LUMO energy level while extending the π-conjugation. Furthermore, the presence of electron-donating sulfur atoms significantly destabilizes the HOMO of DTTB compared with that of the methylene-bridged analog DTCB, corroborating the experimental absorption and CV data. For DTTB-NPh, the HOMO is delocalized over the entire molecule, including the triphenylamine unit. In contrast, the LUMO remains localized on the DTTB core, confirming that the DTTB unit functions as a weak acceptor. TD-DFT calculations revealed that for both DTTB and DTTB-NPh, the S₀ → S₁ transition is primarily attributed to the HOMO → LUMO transition (Fig. S7 and Table S1). For DTTB-NPh, the long-wavelength absorption band was found to correspond to a transition with CT character. The higher-energy absorption bands were assigned to the HOMO−1 → LUMO and HOMO → LUMO+1 transitions for both compounds. Next, nucleus-independent chemical shift (NICS) calculations¹⁴ were performed to evaluate aromaticity (Table S2). The NICS(1) value for the thiaborin ring of DTSB is −4.44, suggesting moderate aromaticity, whereas that of DTTB is −2.14, indicating reduced aromaticity. This reduction likely results from the fusion of the highly aromatic benzene ring to the thiaborin core. Nonetheless, the NICS(1) value of DTTB remains more negative than that of the non-aromatic dihydroborin ring in DTCB (−0.34), indicating the presence of residual aromaticity, which likely contributes to the enhanced stability of DTTB. This trend is also consistent with the NICS(1)_zz results.

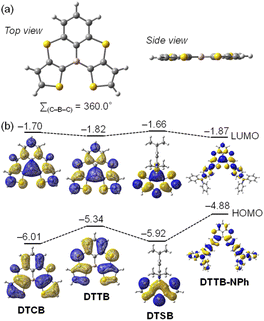

Fig. 5 (a) Optimized geometry of DTTB and (b) frontier molecular orbitals of planarized triarylboranes calculated at the B3LYP/6-31G(d) level.

To further elucidate the influence of the fused aromatic rings, the ΔE_ST values were compared (Fig. S8). In agreement with experimental observations,^5b,15 the theoretical ΔE_ST (ΔE_ST^DFT) value of DTTB is larger than those of analogous planarized boranes featuring fused benzene rings, consistent with the absence of TADF in DTTB. Detailed molecular orbital analysis revealed that the HOMO of DTTB is delocalized on the C=C double bonds of the thiophene rings. This substantial HOMO–LUMO overlap in this region is likely responsible for the increased ΔE_ST in DTTB. Furthermore, computational analysis of several additional systems revealed that while the bridging elements (nitrogen or sulfur) linking the aromatic rings exert minimal influence on ΔE_ST^DFT, the ΔE_ST^DFT values tend to increase significantly as the aromaticity of the fused rings decreases in the order of benzene > thiophene > furan (Fig. S8). Additionally, the orientation of ring fusion had a negligible effect in the case of DTTB. These results suggest that the selection of fused rings is the most critical factor for controlling the TADF and phosphorescence properties of planarized boranes.

Investigation of Lewis acidity

Triarylboranes typically exhibit Lewis acidity, leading to their investigation for use in catalysts and sensor materials. To explore how the structural features of DTTB influence the Lewis acidity of the boron center, titration experiments were conducted using pyridine as a Lewis base. Upon the addition of pyridine to a toluene solution of DTTB, the absorption band at 423 nm gradually decreased (Fig. 6a), indicating the coordination of pyridine to the boron center. The association constant (K_a) was determined to be 19 M⁻¹ from the resulting titration curve (Fig. S9).¹⁶ This relatively small value indicates that the Lewis acidity of DTTB is reduced upon planarization, consistent with observations for other planarized triarylborane derivatives.^6c,10a Furthermore, given that K_a for DTCB is reported as 90 M⁻¹,^10b the lower K_a value for DTTB suggests that electron donation from the sulfur atoms to the empty p-orbital of boron further attenuates its Lewis acidity. Although DTTB is a relatively weak Lewis acid, titration experiments with tetra-n-butylammonium fluoride (TBAF) revealed that it forms an adduct nearly quantitatively with anions that form strong bonds with boron, such as the fluoride ion (Fig. 6b). This coordination proceeded rapidly, and the spectral changes were nearly complete immediately upon the addition of the bases (Fig. S10). For a more detailed evaluation, fluoride ion affinity (FIA) calculations¹⁷ were performed. Despite the lack of bulky substituents, DTTB exhibits an FIA value (281 kJ mol⁻¹) that is nearly identical to that of DTSB (283 kJ mol⁻¹), indicating comparable Lewis acidity between the two (Table S3). The calculated FIA values for DTTB and DTCB are also comparable, a result that does not strictly align with the experimental trend observed in the K_a values of pyridine. This discrepancy is likely attributable to the differences in the steric requirements of the Lewis bases or to solvent effects. In any case, the calculated FIA value of DTTB is considerably smaller than that of tris(pentafluorophenyl)borane (449 kJ mol⁻¹), further supporting the relatively modest Lewis acidity of the DTTB framework.

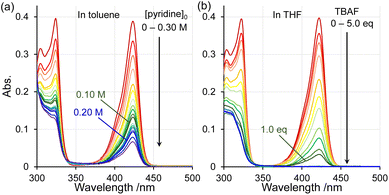

Fig. 6 UV-vis absorption spectral changes of DTTB (0.02 mM) upon the addition of (a) pyridine and (b) TBAF.

Synthesis and properties of organic semiconductor polymers

Tricoordinate boron-containing π-conjugated systems are promising candidates for n-type semiconductors owing to their inherent electron-deficient nature. We synthesized electron-deficient p–π* conjugated polymers by subjecting DTTB-Sn to Stille coupling copolymerization with common acceptor units, such as naphthalenediimide (NDI) and diketopyrrolopyrrole (DPP) (Scheme 1). The properties of the resulting polymers, P1 (the NDI copolymer) and P2 (the DPP copolymer), were characterized after purification via reprecipitation, as summarized in Table 2. P2 achieved a high number-average molecular weight (M_n) of 32,600, whereas P1 had a relatively low M_n of 7,500. This difference is attributed to the fact that P2 exhibited a monomodal molecular weight distribution, whereas P1 showed a bimodal distribution containing a low-molecular-weight fraction (Fig. S11), which could not be separated by reprecipitation. Thermogravimetric analysis (TGA) revealed 5% weight-loss temperatures (T_d⁵) of 450 °C for P1 and 424 °C for P2. Notably, these values are more than 70 °C higher than that of a previously reported copolymer of DTSB and DPP (354 °C),^11c demonstrating that planarization of the triarylborane unit significantly enhances the thermal stability of these p–π* conjugated systems.

Scheme 1 Synthetic route for electron-deficient p–π* conjugated polymers utilizing a DTTB unit as a building block.

Table 2 Properties of P1 and P2

Polymer	Mn	Mw/Mn	Td^5/°C ^a	λabs/nm ^b	Eg^Opt/eV ^c	HOMO/eV ^d	LUMO/eV ^e
a 5% Weight-loss temperature in N2.b Absorption maxima in chloroform; thin-film values are shown in parentheses.c Optical band gap estimated from the absorption onset in chloroform.d HOMO = −4.8 – Eox^onset.e LUMO = −4.8 – Ered^onset.
P1	7,500	2.25	450	605 (618)	1.61	−5.67	−3.87
P2	32,600	1.87	424	644, 693 (649, 714)	1.44	−5.40	−3.33

---

The absorption maxima for P1 and P2 in chloroform solutions were observed at 605 nm and 644 nm, respectively (Fig. 7a). These values represent a remarkable red shift relative to DTTB, indicating the effective extension of the p–π* conjugation through the boron atom. The low absorbance of the long-wavelength band in P1 compared with P2 is likely attributable to torsional strain within the polymer backbone (vide infra). Thin-film absorption spectra were slightly red-shifted relative to the solution-state spectra (Fig. 7a), particularly for P2, suggesting the presence of intermolecular π–π interactions in the solid state. The electrochemical properties were evaluated using CV on polymer thin films (Fig. S12). As anticipated, both P1 and P2 possess low-lying LUMO energy levels (below −3.3 eV), validating their potential as n-type semiconductors. Notably, NDI copolymer P1 exhibits a LUMO energy level of −3.87 eV, which is comparable to that of the archetypal n-type semiconductor polymer N2200 (−3.84 eV).¹⁸ DFT calculations performed on oligomer models revealed that the DTTB and DPP units in P2 exhibit a high degree of coplanarity (Fig. 7b). In contrast, the DTTB and NDI units in P1 are significantly twisted, characterized by a large dihedral angle of approximately 50°. Reflecting these structural differences, both the HOMO and LUMO of P2 are delocalized over both units (Fig. S13). Conversely, for P1, the HOMO is primarily localized on the DTTB units, whereas the LUMO is confined to the NDI units, which can be ascribed to the substantial steric twist between the two moieties.

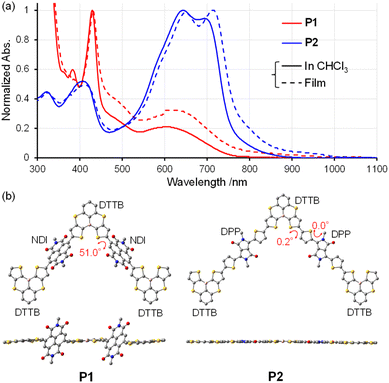

Fig. 7 (a) UV-vis absorption spectra of P1 and P2 in chloroform and as thin films. (b) Optimized geometries of the oligomer models for P1 and P2.

Charge carrier transport properties

To evaluate the charge carrier transport properties of the polymers, organic field-effect transistors (OFETs) were fabricated using a top-gate/bottom-contact (TG/BC) architecture. Fig. S14 shows the transfer and output curves of the resulting OFETs, and Table 3 summarizes the corresponding device parameters. Both polymers exhibited V-shaped transfer curves under saturation conditions (source–drain voltage V_d = ±100 V) for both p- and n-channel operations, indicating ambipolar transport behavior. The emergence of p-type transport behavior, in addition to n-type, is likely attributable to the relatively high-lying HOMO energy levels of these polymers. P2 demonstrated hole (µ_h) and electron (µ_e) mobilities of 8.2 × 10⁻³ and 1.1 × 10⁻³ cm² V⁻¹ s⁻¹, respectively, which are more than one order of magnitude higher than those of P1 (µ_h = 7.1 × 10⁻⁵ cm² V⁻¹ s⁻¹, µ_e = 3.4 × 10⁻⁴ cm² V⁻¹ s⁻¹). Although P1 exhibits a lower µ_e than P2, its electron-to-hole mobility ratio (µ_e/µ_h) is significantly higher, reaching 4.8 for P1 as opposed to 0.13 for P2, suggesting that P1 possesses a pronounced preference for electron transport. Furthermore, in p-channel operation, P1 exhibits a larger magnitude of threshold voltage (V_th) (−44 V) than P2 (−16 V), whereas in n-channel operation, P1 shows a lower V_th (55 V) than P2 (80 V). This enhanced n-channel behavior of P1 relative to P2 is most likely ascribed to its lower-lying LUMO energy level, which promotes more stable electron transport and facilitates efficient electron injection. Although it should be noted that these OFET devices were prepared and evaluated under different conditions, the carrier mobilities of P1 and P2 are higher than those of previously reported p–π* conjugated n-type semiconductors utilizing non-planarized triarylborane units.¹⁹ Furthermore, considering that our previously reported copolymer of DTSB and DPP exhibited no semiconducting behavior,^11c these results confirm that planarization of the boron unit is an effective strategy for enhancing charge transport performance.

Table 3 OFET characteristics

Polymer	p-channel		n-channel		µe/µh ^c
	µh/cm^2 V^−1 s^−1 ^a	Vth/V ^b	µe/cm^2 V^−1 s^−1 ^a	Vth/V ^b
a µh and µe represent the maximum hole and electron saturation field-effect mobilities, respectively. The average values obtained from eight devices are given in brackets with standard deviations.b Threshold voltage.c Electron-to-hole mobility ratio.
P1	7.1 × 10^−5 [6.0 × 10^−5 ± 9.2× 10^−6]	−44	3.4 × 10^−4 [2.8 × 10^−4 ± 6.5× 10^−5]	55	4.8
P2	8.2 × 10^−3 [7.7 × 10^−3 ± 5.5× 10^−4]	−16	1.1 × 10^−3 [1.0 × 10^−3 ± 1.1 × 10^−4]	80	0.13

---

Photovoltaic properties

We subsequently investigated the photovoltaic properties by fabricating all-polymer organic photovoltaics (OPVs) incorporating P1 and P2 as n-type semiconductors. The widely used donor material PTB7-Th (Fig. S15a) was selected as the p-type component. Active layers of ca. 100 nm thickness were spin-coated from 8 g L⁻¹ chloroform solutions of PTB7-Th : DTTB-based polymer blends at a 1 : 1 weight ratio. Fig. S15b and S15c display the current density (J)–voltage (V) curves and the external quantum efficiency (EQE) spectra of the optimized cells, respectively. The corresponding photovoltaic parameters are summarized in Table S4. Although OPVs based on these polymers did not exhibit exceptional power conversion efficiencies (PCEs), the device utilizing P1 achieved a PCE of 0.54%, confirming distinct photovoltaic characteristics. Although the maximum EQE values are relatively modest (∼10%), a clear photoresponse in the absorption region corresponding to P1 indicates that this polymer effectively contributes to the photoelectric conversion. In contrast, the PTB7-Th : P2 cells exhibited negligible photovoltaic performance, likely ascribable to the relatively high-lying HOMO and LUMO energy levels of P2, which resulted in an insufficient energetic offset with PTB7-Th (Fig. S15a), thereby suppressing efficient charge transfer.

Polymer ordering in neat and blend films

Finally, to investigate polymer ordering in neat and blend films, grazing incidence X-ray diffraction (GIXD) measurements were conducted. Fig. 8 displays the two-dimensional (2D) GIXD patterns, along with the corresponding out-of-plane (solid lines) and in-plane (dotted lines) diffraction profiles for the neat films. In the neat films, P1 exhibited no discernible diffraction peaks, indicating a predominantly amorphous nature. In contrast, P2 displayed a distinct (010) diffraction peak along the q_z axis, attributed to π–π stacking and suggesting a predominantly face-on orientation. The corresponding π–π stacking distance (d_π) for P2 was estimated to be 3.92 Å. The difference in crystallinity between the polymers can be rationalized by their respective polymer backbone conformations, as predicted by DFT calculations (Fig. 7b). Whereas P1 adopts a highly bent and twisted backbone, P2 features a less curved and more coplanar architecture. These structural features of P2 likely contribute to the high charge carrier mobilities observed in the OFET devices. Furthermore, the low molecular weight of P1 may contribute to its inferior carrier transport properties. In the PTB7-Th blend films, both polymers showed (010) diffraction peaks along the q_z axis (q_z = 1.72 and 1.68 Å⁻¹ for P1 and P2, respectively), again indicating a predominant face-on orientation (Fig. S16). The d_π values were determined to be 3.66 and 3.73 Å for the PTB7-Th : P1 and PTB7-Th : P2 blend films, respectively. Considering that P1 is amorphous in the neat film and d_π of the neat P2 film is 3.92 Å, the observed (010) diffractions in the blend films are likely attributable to the π–π stacking of PTB7-Th rather than the DTTB-based polymers. The low crystallinity of the DTTB-based polymers in the blend film is considered to be the primary cause of the low J_SC and FF observed in the corresponding OPV cells.

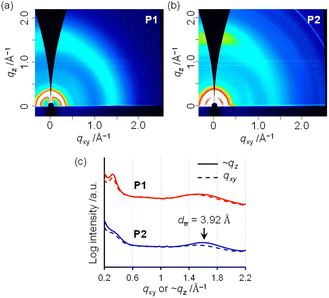

Fig. 8 2D GIXD patterns of neat polymer films of (a) P1 and (b) P2. (c) Cross-sectional diffraction profiles extracted from the 2D GIXD patterns along the q_xy (solid line) and ∼q_z (dashed line) axes.

Consequently, the OFET results demonstrate that rigid planarization can effectively resolve the inherent trade-off between chemical stability and intermolecular interactions in tricoordinate boron materials. By eliminating the need for bulky substituents while maintaining high stability, this design strategy enables efficient carrier transport in p–π* conjugated polymers, which has been difficult to achieve in non-planarized systems. However, the observed semiconducting properties of the DTTB-based polymers were modest, which is likely attributed to their low crystallinity. Since monomer structures with high curvature, such as DTTB, are known to impair polymer backbone linearity and thus reduce crystallinity.²⁰ Therefore, molecular designs aimed at minimizing curvature, for instance by altering the fusion orientation of the thiophene rings, will be essential to further enhance the semiconducting performance.

Conclusions

A new planarized triarylborane, DTTB, was developed by fusing benzene and thiophene rings onto thiaborin cores. DTTB is characterized by its perfect planar geometry and high chemical stability. Although DTTB is TADF-inactive, its intense low-temperature phosphorescence underscores its potential as a structural scaffold for new phosphorescent materials. By exploiting the facile deprotonation at the thiophene α-positions, we achieved the first synthesis of p–π* conjugated polymers incorporating planarized triarylborane units, representing a conceptual advance in the design of boron-containing materials. These polymers exhibited enhanced carrier mobilities compared with analogous p–π* conjugated polymers based on non-planar triarylborane units, thereby demonstrating that rigid planarization can be a strategy for resolving the inherent trade-off between chemical stability and intermolecular interactions. This work establishes a molecular design principle for improving the semiconducting properties of p–π* conjugated polymers without relying on bulky steric protection.

Author contributions

Yohei Adachi: conceptualization, writing – original draft, writing – review & editing, visualization, funding acquisition, supervision, project administration; Ryuji Matsuura: investigation, formal analysis, data curation, methodology; Hiroki Tobita: investigation; Tsubasa Mikie: investigation, formal analysis, writing – original draft, writing – review & editing; Itaru Osaka: resources, supervision; Joji Ohshita: funding acquisition, writing – review & editing, supervision.

Conflicts of interest

There are no conflicts to declare.

Data availability

CCDC 2538812 contains the supplementary crystallographic data for this paper.²¹

All data are available in the manuscript and in the supplementary information (SI). Supplementary information is available. See DOI: https://doi.org/10.1039/d6sc02594c.

Acknowledgements

This work was supported by JSPS KAKENHI (Grant Number JP22K14666). The 2D GIXD experiments were performed at BL13XU of SPring-8 with the approval of the Japan Synchrotron Radiation Research Institute (JASRI) (Proposal No. 2025A1652). The authors thank Dr T. Koganezawa (JASRI) for assistance with the 2D GIXD measurements.
