Interface charge engineering of ternary RuCoMo oxide nanofibers toward high-current-density water electrolysis

Abstract

The efficacy of RuO₂ as a bifunctional electrocatalyst for alkaline water electrolysis is usually constrained by its sluggish hydrogen evolution kinetics and poor stability. Herein, we report the fabrication of ternary RuCoMoO_x nanofibers (NFs) incorporating oxide heterojunctions, which address these issues through interfacial charge engineering. The electron redistribution induced by the constructed interface optimizes the local electronic environment, endowing the catalyst with superior activity and stability for both the hydrogen and oxygen evolution reactions (HER/OER). The RuCoMoO_x NFs require ultralow overpotentials of 274.8 mV for the HER and 367.9 mV for the OER to deliver a high current density of 1 A cm⁻², surpassing commercial Pt/C and RuO₂ benchmarks. Moreover, the catalyst possesses superior operational stability for both the HER and the OER at 1 A cm⁻² compared to Pt/C and RuO₂, respectively. In a practical electrolyzer, the assembled symmetric RuCoMoO_x NFs‖RuCoMoO_x NFs system delivers a much lower working voltage than Pt/C‖RuO₂ and maintains stable operation at 1 A cm⁻² for 60 h. This work validates interfacial charge engineering as a key strategy for creating high-performance noble-metal-lean electrocatalysts for industrial water electrolysis.

---

Introduction

The global energy crisis and the exacerbation of climate change, driven by greenhouse gas emissions from excessive fossil fuel consumption, have intensified the demand for sustainable low-carbon energy alternatives.^1–3 In this context, electrochemical water splitting powered by renewable electricity has consequently emerged as a pivotal carbon-neutral technology for hydrogen (H₂) production. The efficiency of this process is governed by the hydrogen evolution reaction (HER) and the oxygen evolution reaction (OER), placing critical demands on the development of highly efficient and robust electrocatalysts.^4,5 Although noble metal-based catalysts (e.g., Pt/C and IrO₂) currently dominate industrial electrocatalytic water splitting, their prohibitive costs and limited availability severely restrict widespread implementation. Therefore, the development of cost-effective and sustainable alternatives has become an urgent priority.^6,7

To address the cost and scarcity constraints of noble metal-based catalysts, recent research has focused on innovative designs that minimize noble metal loading while maintaining or even enhancing catalytic performance.^8,9 Strategies such as interface engineering and crystal-phase modulation enable atomic-level electronic structure tailoring, generating highly active sites with enhanced catalytic functionality.^10–12 In particular, heterojunction construction promotes interfacial charge redistribution, which optimizes the electronic environment of the catalyst and improves its intrinsic activity. The synergistic effects between components often yield performance enhancements that surpass those of individual-component catalysts.^13–15 Among various candidate materials, ruthenium-based oxides (e.g., RuO₂) have attracted significant interest due to their exceptional alkaline OER activity, yet face deployment barriers from high cost and insufficient stability at industrial current densities.^16–18 In contrast, CoMoO₄ presents a cost-effective alternative for the OER, featuring multivalent characteristics, a tunable electronic structure, and favorable intermediate adsorption energetics.^19–21 Although β-CoMoO₄ has been fabricated via a hydrothermal method and exhibits favorable OER activity with an overpotential of 366 mV at 10 mA cm⁻² in alkaline electrolyte, its OER activity remains intrinsically lower than that of noble-metal catalysts. Furthermore, its HER performance is limited by suboptimal H* adsorption energetics. Consequently, the implementation of CoMoO₄ as a bifunctional catalyst for overall water splitting remains constrained.²²

Herein, we propose an interfacial engineering strategy to construct ternary RuCoMoO_x nanofibers (NFs) featuring RuO₂/CoMoO₄ heterojunctions as a bifunctional electrocatalyst for water electrolysis. This design leverages interfacial electronic interactions and synergistic effects to achieve highly efficient and stable electrocatalytic performance. This unique configuration not only exposes abundant catalytically active interfaces that facilitate rapid charge transfer and redistribution, thereby optimizing the electronic states of the active sites, but also benefits from the continuous fibrous morphology to promote efficient axial electron transport along the NFs. The synergistic interplay endows RuCoMoO_x NFs with remarkable bifunctional activity in alkaline media, achieving ultralow overpotentials of only 274.8 mV for the HER and 367.9 mV for the OER at 1 A cm⁻², along with outstanding industrial stability. When assembled into a RuCoMoO_x NFs‖RuCoMoO_x NFs electrolyzer for overall water splitting (OWS), the system delivers a much lower working voltage and more robust operation than its commercial Pt/C‖RuO₂ counterpart. Density functional theory (DFT) calculations reveal that substantial electron redistribution across the RuO₂/CoMoO₄ interface effectively activates Co sites for the OER while optimizing Ru sites for the HER, thereby reducing the kinetic barriers and enhancing overall catalytic activity. This work demonstrates that coupling interfacial charge engineering with a nanofibrous architecture can overcome the limitations of single-metal oxides, providing a viable path to noble metal-lean electrocatalysts that meet industrial-current-density requirements for both activity and durability in alkaline water electrolysis.

Results and discussion

Electrospinning offers a versatile strategy that enables the fabrication of nanofibers.^23–25 As depicted in Fig. 1a, precursor NFs containing RuCl₃, Co(NO₃)₂ and molybdenum acetylacetonate dispersed in a polyvinylpyrrolidone (PVP) matrix are fabricated via electrospinning, yielding a uniform fibrous structure with an average diameter of approximately 198.8 nm (Fig. S1, SI). After calcination at 550 °C, field-emission scanning electron microscopy (FESEM) and transmission electron microscopy (TEM) images show sintering-induced shrinkage of the resulting RuCoMoO_x NFs, with the average diameter decreasing to 111.9 nm, attributable to the decomposition of PVP (Fig. 1b–d). Meanwhile, deliberate variation of the Ru molar content in RuCoMoO_x NFs shows that the uniform nanofibrous morphology is maintained across all compositions (Fig. S2–S5, SI). In addition, a systematic investigation of the calcination temperature reveals that increasing the temperature from 450 °C to 650 °C leads to significantly enhanced surface roughness of the nanofibers (Fig. S6 and S7, SI). The X-ray diffraction (XRD) pattern of RuCoMoO_x NFs confirms the presence of both tetragonal RuO₂ (JCPDS no. 43-1027) and monoclinic CoMoO₄ (JCPDS no. 21-0868), providing evidence for the successful formation of the RuO₂/CoMoO₄ composite (Fig. 1e).^26–28 With increasing Ru precursor loading, the intensity of the RuO₂ diffraction peaks increases proportionally, indicating a higher phase fraction of RuO₂ (Fig. S8a, SI). At a fixed Ru : Co : Mo molar ratio of 1 : 1 : 1, raising the calcination temperature from 450 °C to 650 °C results in progressively sharper and more intense diffraction peaks, reflecting improved crystallinity and larger average crystallite sizes (Fig. S8b, SI). In addition, the N₂ adsorption–desorption isotherm demonstrates that the RuCoMoO_x NFs exhibit a Brunauer–Emmett–Teller (BET) surface area of 24.88 m² g⁻¹ (Fig. S9, SI), which is similar to that of previous reported electrospun nanofibers.^29,30

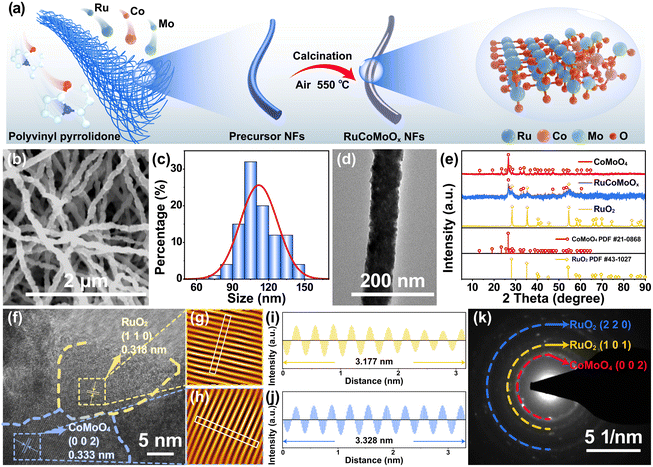

Fig. 1 (a) Schematic illustration of the synthetic procedure for RuCoMoO_x NFs. (b) SEM image, (c) fiber diameter distribution, and (d) TEM image of RuCoMoO_x NFs. (e) XRD patterns of CoMoO₄ NFs, RuCoMoO_x NFs, and RuO₂ NFs. (f) HRTEM image of RuCoMoO_x NFs with fast Fourier transform (FFT) patterns and lattice fringes of (g and i) RuO₂ (110) and (h and j) CoMoO₄ (002) crystal planes. (k) SAED pattern of RuCoMoO_x NFs.

High-resolution TEM (HRTEM) imaging of the RuCoMoO_x NFs reveals distinct lattice fringes with measured spacings of 0.318 nm and 0.333 nm (Fig. 3f), which are assigned to the (110) plane of RuO₂ and the (002) plane of CoMoO₄, respectively. The formation of a well-defined heterointerface between these two phases is evidenced, supported further by the corresponding fast Fourier transform (FFT) analyses (Fig. 1g–j).^31–33 Additionally, the selected area electron diffraction (SAED) pattern displays characteristic diffraction rings indexed to the (101) and (200) planes of RuO₂ alongside the (002) facet of CoMoO₄ (Fig. 1k). Energy-dispersive X-ray (EDX) analysis confirms the elemental composition of the as-prepared RuCoMoO_x NFs, with C, Cu, and Si signals originating from the TEM grid and instrumentation (Fig. S10, SI). The EDX result further shows that the molar ratio of Ru : Co : Mo is 9.21 : 9.64 : 8.21, which is nearly identical to their feeding ratio. Collectively, these complementary structural characterization results collectively validate the successful integration of RuO₂(110)/CoMoO₄(002) heterojunctions into the RuCoMoO_x NFs, providing a robust structural basis for exploring interfacial electronic redistribution and its influence on electrocatalytic performance.

To gain deeper insight into the surface chemical states and interfacial electronic interactions within the catalysts, X-ray photoelectron spectroscopy (XPS) analysis is conducted. The survey spectra (Fig. 2a) confirm the successful incorporation of all constituent elements into the catalysts. In the O 1s region (Fig. 2b), RuCoMoO_x NFs exhibit two distinct peaks centered at 530.6 eV and 529.6 eV, which correspond to the lattice oxygen in CoMoO₄ and RuO₂, respectively.^19,34 Notably, the binding energies of these lattice oxygen peaks are negatively shifted by 0.2 eV compared to pure CoMoO₄ and RuO₂. These negative shifts suggest significant interfacial charge redistribution, providing further evidence of strong electronic interactions between CoMoO₄ and RuO₂ within the heterostructure. The high-resolution Co 2p spectrum of pristine CoMoO₄ NFs displays the coexistence of Co²⁺ and Co³⁺ species, with the corresponding peaks located at 781.2 eV and 783.4 eV, respectively. In the RuCoMoO_x NF heterostructure, the Co²⁺ 2p_3/2 peak shifts positively by 0.5 eV to 783.9 eV relative to that of CoMoO₄ NFs, reflecting an altered electronic environment of Co²⁺ resulting from interfacial charge redistribution at the CoMoO₄/RuO₂ heterojunction (Fig. 2c).^35,36 For the Mo 3d region, both CoMoO₄ NFs and RuCoMoO_x NFs exhibit only Mo⁶⁺ signals, with the Mo 3d_5/2 and Mo 3d_3/2 peaks at 232.5 eV and 235.6 eV, respectively. No significant binding energy shift is observed between the two samples (Fig. 2d).^37–40 The Ru 3p spectrum of pristine RuO₂ NFs features characteristic Ru⁴⁺ peaks at 462.9 eV (Ru 3p_3/2) and 485.1 eV (Ru 3p_1/2).^41,42 Upon heterostructure formation, the Ru 3p_3/2 peak shifts positively by 0.3 eV, indicating a modified electronic environment of Ru arising from interfacial charge redistribution at the RuO₂/CoMoO₄ heterojunction (Fig. 2e).^43,44 Collectively, these XPS findings provide unambiguous evidence that the formation of a RuO₂/CoMoO₄ heterojunction induces charge redistribution, which effectively modulates the local electronic environment of the active sites, being responsible for the enhanced electrocatalytic activity.

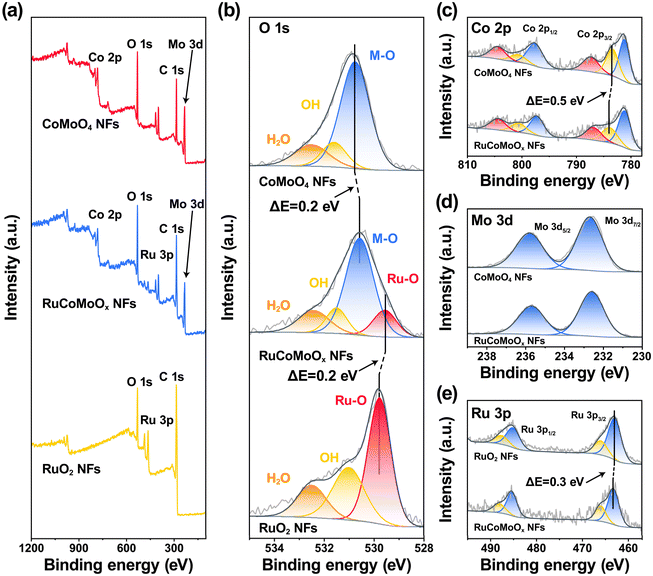

Fig. 2 XPS analysis of CoMoO₄ NFs, RuCoMoO_x NFs, and RuO₂ NFs: (a) survey spectra and (b) high-resolution O 1s spectra. High-resolution spectra of (c) Co 2p for CoMoO₄ NFs and RuCoMoO_x NFs, (d) Mo 3d for CoMoO₄ NFs and RuCoMoO_x NFs, and (e) Ru 3p for RuO₂ NFs and RuCoMoO_x NFs.

We systematically evaluated the electrocatalytic HER performance of RuCoMoO_x NFs alongside several control samples in 1.0 M KOH. Linear sweep voltammetry (LSV) profiles clearly demonstrate that RuCoMoO_x NFs exhibit optimal HER properties, achieving a current density of 1 A cm⁻² with an overpotential of only 274.8 mV, significantly lower than those of CoMoO₄ NFs (425.2 mV), 0.5RuCoMoO_x NFs (368.5 mV), 1.5RuCoMoO_x NFs (317.0 mV), RuO₂ NFs (324.9 mV), and commercial Pt/C (347.7 mV) (Fig. 3a). Optimization of the calcination temperature further confirms that RuCoMoO_x NFs treated at 550 °C afford the best HER activity (Fig. S11, SI). When benchmarked against recently reported HER electrocatalysts, the RuCoMoO_x NFs catalyst ranks among the top performers in terms of overpotential at 1 A cm⁻², highlighting its exceptional activity (Fig. 3b and Table S1, SI). Tafel analysis indicates superior HER kinetics for RuCoMoO_x NFs, with a Tafel slope of 41.3 mV dec⁻¹, approaching that of commercial Pt/C (30.0 mV dec⁻¹) (Fig. 3c). Electrochemical impedance spectroscopy (EIS) further supports these findings, with the Nyquist plot of RuCoMoO_x NFs exhibiting the smallest charge transfer resistance (R_ct) among the samples, suggesting the most rapid electron transfer kinetics (Fig. 3d). The EIS data are modeled using the equivalent circuits shown in Fig. S12, SI. The Bode plot (Fig. S13, SI) reveals distinct phase angle features, with the low-frequency region corresponding to the Volmer step and the mid-frequency region to the Heyrovsky step.^45,46 In addition, as the applied voltage decreases, the phase angle peaks in both the low- and mid-frequency regions progressively shift toward higher frequencies. This behavior is primarily ascribed to a reduction in charge transfer impedance at the catalyst surface/electrolyte interface and the acceleration of the interfacial reaction kinetics.^47,48

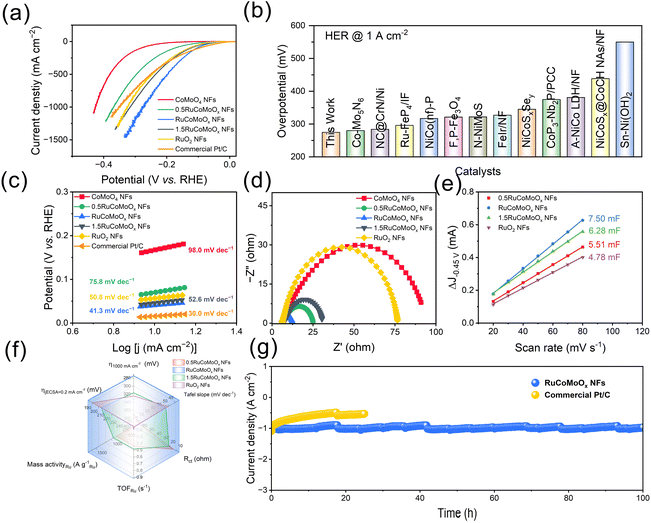

Fig. 3 HER performance in 1.0 M KOH. (a) LSV curves. (b) Performance comparison against state-of-the-art catalysts at 1 A cm⁻². (c) Tafel plots. (d) Nyquist plots. (e) C_dl values and (f) radar chart of RuCoMoO_x NFs and control catalysts. (g) I–t curves of RuCoMoO_x NFs and commercial Pt/C conducted at 1 A cm⁻².

The electrochemically active surface area (ECSA) is estimated from double-layer capacitance (C_dl) measurements derived from cyclic voltammograms (CVs) recorded at various scan rates (Fig. 3e and S14, S15, SI). RuCoMoO_x NFs exhibit the largest C_dl value of 7.50 mF, corresponding to the highest ECSA value (Table S2). Concurrently, the specific activity of the catalyst is assessed by analyzing ECSA-normalized LSV curves. Among all samples, RuCoMoO_x NFs show a favorable overpotential of 182.4 mV at a normalized current density of 0.2 mA cm⁻²_ECSA, indicating that the high intrinsic activity originates from the formation of the heterointerface (Fig. S16 and S17, SI). Furthermore, RuCoMoO_x NFs exhibit superior mass activity_Ru and the highest turnover frequency (TOF) per-Ru site (TOF_Ru) at an overpotential of 200 mV (Fig. S18 and S19, SI), providing further evidence of accelerated HER kinetics and enhanced intrinsic catalytic activity. A radar chart summarizing six key HER performance metrics highlights the overall superiority of RuCoMoO_x NFs (Fig. 3f). Long-term stability is assessed by chronoamperometry at 1 A cm⁻² (Fig. 3g). Notably, the current density of RuCoMoO_x NFs remains close to its initial value after 100 h of testing, whereas commercial Pt/C exhibits a significant performance degradation after only 25 h. Post-test characterization confirms the structural and chemical stability of RuCoMoO_x NFs. Specifically, FESEM, TEM and HRTEM images show that the nanofibrous morphology and chemical structure are well preserved (Fig. S20 and S21, SI). XRD reveals only a slight decrease in crystallinity, and XPS spectra indicate negligible changes in the chemical states of each element (Fig. S22, SI). Collectively, these results affirm the outstanding activity and stability of RuCoMoO_x NFs as an efficient HER electrocatalyst.

Inspired by the enhanced HER performance achieved through interface engineering in RuCoMoO_x NFs, the OER performance of the catalysts is also evaluated in alkaline media. Under optimized synthesis conditions, RuCoMoO_x NFs calcined at 550 °C exhibit optimal OER activity, with an overpotential of 270.5 mV at 100 mA cm⁻², considerably lower than those of CoMoO₄ NFs (393.4 mV), RuO₂ NFs (717.6 mV) and commercial RuO₂ (733.2 mV) (Fig. 4a and S23, SI). Remarkably, RuCoMoO_x NFs require only 367.9 mV to reach an industrial-level current density of 1 A cm⁻², surpassing most reported state-of-the-art alkaline OER catalysts (Fig. 4b and Table S3, SI). Furthermore, RuCoMoO_x NFs show the lowest Tafel slope of 58.2 mV dec⁻¹ among the tested catalysts, indicating favorable OER kinetics (Fig. 4c). EIS further reveals that RuCoMoO_x NFs possess the lowest R_ct of 2.32 Ω, suggesting highly efficient electron transfer that underpins their outstanding OER performance (Fig. 4d). The Bode plot (Fig. S24. SI) shows that the smaller phase peak angle of RuCoMoO_x NFs in the low frequency region of the operando Bode phase plots indicates that, during the OER process, RuCoMoO_x NFs with RuO₂/CoMoO₄ heterojunctions exhibit faster charge transfer compared to RuO₂ NFs and CoMoO₄ NFs, leading to rapid OER kinetics.^32,48 The specific activity is assessed using ECSA-normalized LSV curves to investigate the intrinsic activity of catalysts. RuCoMoO_x NFs demonstrate the highest intrinsic activity, with a low overpotential of 339.4 mV at 0.3 mA cm⁻²_ECSA (Fig. S25 and S26, SI). Moreover, RuCoMoO_x NFs deliver the highest TOF_Ru of 0.875 s⁻¹ at 370 mV and a mass activity of 3346.49 A g⁻¹_Ru (Fig. 4e, S27 and Fig. S28, SI), reflecting accelerated OER kinetics and superior catalytic efficiency. Integration of six key metrics in the radar chart conclusively demonstrates the comprehensive superiority of RuCoMoO_x NFs for the OER (Fig. 4f). A long-term chronopotentiometry test at 1 A cm⁻² reveals excellent operational stability of the RuCoMoO_x NFs, which retain a current density comparable to their initial value after 60 h, whereas that of commercial RuO₂ declines rapidly after 22.5 h under identical conditions (Fig. 4h). Post-stability characterizations further corroborate the structural and chemical robustness of RuCoMoO_x NFs. SEM, TEM and HRTEM images show that the nanofibrous morphology and chemical structure remain well preserved (Fig. S29 and S30, SI). The XRD pattern indicates only a slight reduction in crystallinity without any phase transformation. XPS spectra confirm that the valence states of all elements remain essentially unchanged. (Fig. S31, SI). Collectively, these results firmly establish RuCoMoO_x NFs as a highly efficient and durable OER electrocatalyst, demonstrating great potential as a bifunctional catalyst for overall water splitting applications.

Fig. 4 OER performance in 1.0 M KOH. (a) LSV curves. (b) Performance comparison against state-of-the-art catalysts at 1 A cm⁻². (c) Tafel plots. (d) Nyquist plots. (e) TOF values at η = 370 mV based on the Ru feeding content. (f) Radar chart of RuCoMoO_x NFs and other control catalysts. (g) I–t curves of RuCoMoO_x NFs and commercial RuO₂ conducted at 1 A cm⁻².

To elucidate the origin of the enhanced catalytic activity, systematic DFT calculations are conducted on a RuO₂ (110)/CoMoO₄ (002) heterojunction model (Fig. 5a). Differential charge density analysis demonstrates pronounced interfacial charge redistribution, characterized by electron accumulation on the RuO₂ side (yellow isosurfaces) and depletion on the CoMoO₄ side (cyan isosurfaces), confirming directional electron transfer from CoMoO₄ to RuO₂ across the heterojunction (Fig. 5b). Bader charge analysis quantifies this electron transfer as 5.34 e⁻, which is further corroborated by the plane-averaged differential charge density profile along the Z-axis (Fig. 5c). Collectively, these results provide compelling evidence of substantial electronic structure modulation induced by heterojunction formation. The adsorption energies for the key OER intermediates (*OH, *O, and *OOH) are computed at Co, Mo and Ru sites on the RuO₂/CoMoO₄ heterojunction (Fig. 5d). According to the Gibbs free–energy diagram, the Co site emerges as the most favorable active center for the OER, where the transformation from *O to *OOH serves as the rate-determining step (RDS) with an energy barrier of only 0.34 eV, much lower than those at the Mo (2.00 eV) and Ru (1.15 eV) sites, accounting for the superior OER kinetics observed at the Co site (Fig. 5e). For the HER, the Ru site exhibits a near-optimal H* adsorption free energy (ΔG_*H = 0.24 eV), outperforming the Co (−0.32 eV) and Mo (−0.41 eV) sites, thereby enabling highly favorable *H adsorption–desorption dynamics (Fig. 5f and g). Thus, the Co and Ru sites function as highly active centers for the OER and HER, respectively. This site-specific functionalization, driven by interfacial charge engineering, underpins the exceptional synergistic bifunctional performance of the RuO₂/CoMoO₄ heterojunction.

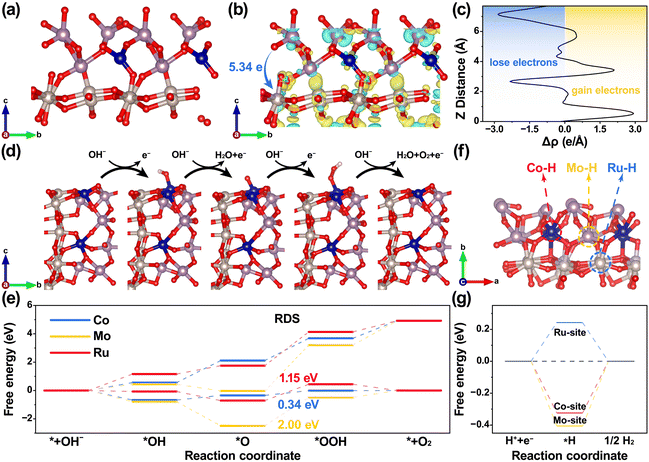

Fig. 5 DFT analysis of the RuO₂/CoMoO₄ heterojunction. (a) Atomic structure of the RuO₂/CoMoO₄ heterojunction model. (b) Differential charge density isosurfaces (yellow: charge accumulation; cyan: depletion). (c) Planar-averaged differential charge density along the z-axis. (d) Proposed OER reaction pathway on the heterojunction. (e) Calculated Gibbs free energy diagram for OER intermediates at U = 0 V and U = 1.23 V. (f) Atomic configurations of *H adsorption sites. (g) Corresponding *H adsorption free energies (ΔG_*H).

To assess the OWS performance of the RuCoMoO_x NFs under industrial current density conditions, a two-electrode electrolyzer is assembled using RuCoMoO_x NFs as both the cathode and anode (Fig. 6a). The RuCoMoO_x NFs‖RuCoMoO_x NFs electrolyzer requires only 1.53 V to reach 10 mA cm⁻², significantly lower than the 1.58 V required by the commercial Pt/C‖commercial RuO₂ electrolyzer (Fig. 6b). Furthermore, the RuCoMoO_x NFs‖RuCoMoO_x NFs system exhibits superior activity, as evidenced by a smaller activation overpotential region compared to the commercial counterpart (Fig. 6c and S32a, SI). In addition, this configuration outperforms most reported bifunctional electrocatalyst-based electrolyzers (Fig. 6d and Table S4). The faradaic efficiencies (FEs) for both the HER and the OER are measured at 100 mA cm⁻² using the water displacement method to assess the practical efficiency of the electrolyzer. The RuCoMoO_x NFs‖RuCoMoO_x NFs system delivers FEs of 102.9% for the HER and 100.2% for the OER, surpassing those of commercial Pt/C‖commercial RuO₂ (101.3% for the HER and 79.8% for the OER), respectively (Fig. 6e and S32b, SI). Moreover, long-term stability tests conducted at an industrial current density of 1 A cm⁻² reveal that the RuCoMoO_x NFs‖RuCoMoO_x NFs system retains stable current density after 60 h of continuous operation. In contrast, commercial Pt/C‖commercial RuO₂ shows a significant reduction in its current density after more than 20 h under identical conditions (Fig. 6f). These results underscore the outstanding durability and industrial applicability of RuCoMoO_x NFs-based water electrolysis for sustainable H₂ production.

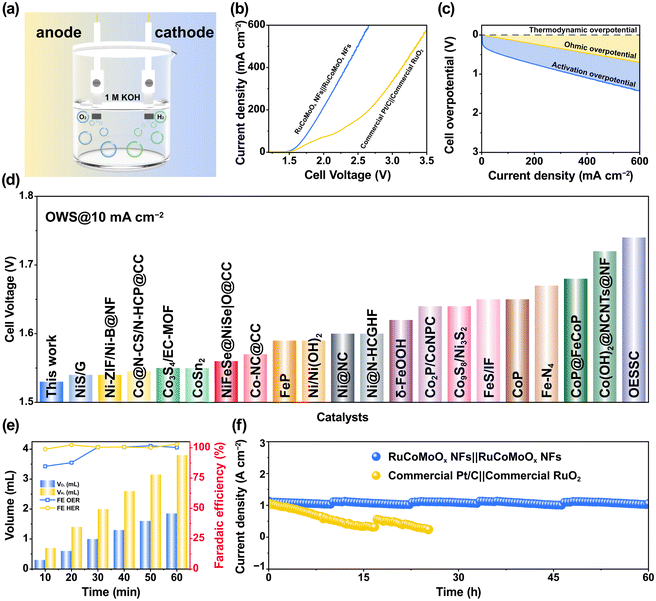

Fig. 6 Overall water splitting performance in a two-electrode system. (a) Schematic of the alkaline electrolyzer. (b) LSV curves of overall water splitting for RuCoMoO_x NFs‖RuCoMoO_x NFs and commercial Pt/C‖commercial RuO₂ electrolyzers. (c) Contributions of ohmic overpotential and activation overpotential. (d) Cell voltages required to achieve 10 mA cm⁻² compared with state-of-the-art alkaline electrolyzers. (e) FE of the RuCoMoO_x NFs‖RuCoMoO_x NFs electrolyzer. (f) Chronopotentiometric stability test of electrolyzers at 1 A cm⁻².

Conclusion

In summary, RuCoMoO_x NFs incorporating RuO₂/CoMoO₄ heterojunctions are successfully synthesized via electrospinning followed by controlled calcination. The optimized nanofibrous architecture facilitates efficient charge transfer, endowing the material with outstanding bifunctional activity, achieving ultralow overpotentials of 274.8 mV for the HER and 367.9 mV for the OER at 1 A cm⁻², while maintaining excellent durability at such ampere-level current densities. When assembled into an alkaline electrolyzer, the RuCoMoO_x NFs‖RuCoMoO_x NFs system requires only 1.53 V to deliver 10 mA cm⁻² and maintains stable current density after 60 h of operation under ampere-level conditions. DFT calculations reveal that interfacial electron redistribution across the RuO₂/CoMoO₄ heterojunction optimizes the adsorption energetics of key intermediates at Ru and Co sites, thereby enhancing the HER and OER performance, respectively. This study provides valuable design principles for developing robust noble-metal-lean Ru-based electrocatalysts that meet the practical demands of industrial alkaline water electrolysis.
