Non-radical pathways control methane sulfonation versus oxygenation C–H functionalization selectivity with Hg(II) and Au(III) catalysis

Abstract

Methane C–H functionalization by radical pathways is often unselective and not desirable. Transition metal catalyzed C–H functionalization of methane to methanesulfonic acid (sulfonation) in sulfuric acid has generally been interpreted as resulting from a radical mechanism whereas functionalization to methyl bisulfate (oxygenation) has been proposed to occur by both radical and non-radical pathways. For Hg^II and Au^III catalysis, formation of either methanesulfonic acid or methyl bisulfate depends on whether 98% sulfuric acid or oleum (SO₃ added) is used. Here we report new experiments combined with density functional theory calculations that have revealed that selectivity is determined by non-radical pathways where a Hg^II/Au^III-methyl intermediate can undergo either an electrophilic substitution pathway (S_E2) with SO₃ to form methanesulfonic acid or a nucleophilic substitution pathway (S_N2) with bisulfate to form methyl bisulfate. The favored pathway is determined by the electrophilicity/reduction potential of the metal and the sulfuric acid to SO₃/H₂O equilibrium. Overall, this new selectivity model provides a straightforward understanding of product selectivity and does not require a functionalization mechanism involving radicals.

---

Introduction

Functionalization of light alkane C–H bonds, especially methane, remains an important and unsolved catalysis challenge.^1–9 There are only a few homogeneous transition metal^10–14 and main group^15–17 systems that have been reported to catalyze or promote direct methane conversion to a C–H functionalized product. The most highly efficient catalysts operate in concentrated sulfuric acid, either in 98% sulfuric acid or in oleum (SO₃-added to sulfuric acid). While sulfuric acid provides a solvent suitable for high reactivity, sulfonation functionalization to methanesulfonic acid (CH₃SO₃H) or oxygenation functionalization to methyl bisulfate (CH₃OSO₃H) depends on the metal center, the exact solvent formulation, and reaction conditions (Fig. 1, Panel A). There is currently no unifying mechanistic model that provides the origin of sulfonation versus oxygenation selectivity for different metals and different formulations of sulfuric acid solvent. Also, it has often been proposed that methane C–H functionalization to methanesulfonic acid occurs through a radical reaction pathway where SO₃ captures a methyl radical intermediate (Fig. 1, Panel B).^18–20

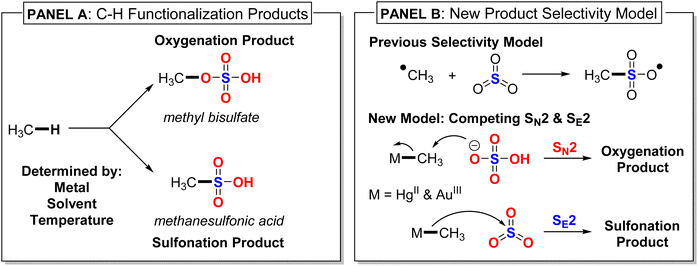

Fig. 1 Panel (A) outline of methane C–H functionalization products, which depends on the metal center, the sulfuric acid solvent formulation (98% or oleum), and reaction temperature. Panel (B) outline of the previously proposed radical pathway leading to methanesulfonic acid and the new selectivity model showing that from the metal–methyl intermediate there is competition between S_N2 and S_E2 functionalization pathways.

We decided to experimentally and computationally examine and compare Hg^II and Au^III because these metals give different product selectivity in sulfuric acid, and the selectivity depends on the exact sulfuric acid formulation. Periana reported that Hg^II(SO₄) in 98% sulfuric acid, which transforms to Hg^II(HSO₄)₂, catalyzes conversion of methane to methyl bisulfate (oxygenation) at 180 °C.²¹ In contrast to the 98% sulfuric acid conditions, methane reactions conducted by Sen and coworkers with Hg^II(SO₄) in oleum at 160 °C resulted in methanesulfonic acid (sulfonation) being the major product and methyl bisulfate as a minor product.^19,20,22 At 90 °C Sen found that only methanesulfonic acid was formed, indicating this is the kinetic product in oleum, and this result and similar results have been generally interpreted as evidence for a radical functionalization mechanism.

For Au^III, Au₂O₃ dissolved in 98% sulfuric acid at 180 °C catalyzed conversion of methane to methyl bisulfate.²³ Au^III catalysis has never been examined at lower temperatures, such as 90 °C, and so it is unknown whether methanesulfonic acid or methyl bisulfate is the kinetic product. Also, while reactions with Au⁰ have been examined in SO₃ added sulfuric acid, there has previously been no report of reactions of Au₂O₃ with methane in significant quantities of SO₃, such as 20% weight in H₂SO₄.

With this experimental background, we decided to complete the low temperature and oleum experiments with Au^III. Here we report that at lower temperatures in both 98% sulfuric acid and oleum, Au^III led to the exclusive formation of methyl bisulfate. Also, new low-temperature experiments with Hg^II in 98% sulfuric acid showed only methyl bisulfate as the kinetic product, while in oleum there was no detectable formation of methyl bisulfate. This means that Au^III and Hg^II have fundamentally different kinetic product selectivity for C–H functionalization. Density functional theory (DFT) calculations were then used to determine the origin of oxygenation versus sulfonation selectivity. In contrast to previous proposals where a radical mechanism has been used to rationalize sulfonation selectivity,^18–20 our DFT calculations indicate that selectivity arises from closed-shell reactivity differences between Hg^II–CH₃ and Au^III–CH₃ intermediates (Fig. 1, Panel B). For Hg^II–CH₃, the electrophilic S_E2 substitution transition state with SO₃ is inherently lower in energy than the nucleophilic S_N2 substitution transition state with bisulfate. Therefore, in oleum, methanesulfonic acid is the kinetic product. In contrast, in 98% sulfuric acid, the ground state sulfuric acid to SO₃/H₂O equilibrium disfavors the S_E2 pathway, resulting in a lower energy S_N2 kinetic pathway to methyl bisulfate. For Au^III–CH₃, the inherent transition state energies are reversed, and the S_N2 reaction pathway is always lower in energy than the S_E2 pathway, resulting in only methyl bisulfate product formation.

Results and discussion

Overview of previous Hg^II and Au^III reactions

To maximize reactivity and minimize overoxidation, the most effective homogeneous transition metal and main-group metal methane C–H functionalization catalysts use concentrated sulfuric acid as the solvent, either 98% sulfuric acid or oleum, which has added SO₃. Perhaps the most catalytically efficient system is Hg^II in 98% sulfuric acid. Periana and coworkers reported that Hg^II(SO₄) catalyzes conversion of methane to methyl bisulfate at 180 °C with a turnover frequency of about 10⁻³ s⁻¹ with minimal generation of CO₂ and other over-oxidized products.²¹ Experimental measurements by Periana, which included deuterium isotopologue incorporation studies, and more recently our DFT calculations,²⁴ led to the proposed catalytic cycle outlined in Fig. 2 (Panel A). In this cycle, a non-radical C–H activation/metalation reaction step (also called electrophilic substitution), generates a Hg^II–CH₃ intermediate, which upon reductive functionalization gives methyl bisulfate. Similar to Hg^II, Au₂O₃ dissolved in 98% sulfuric acid at 180 °C converts methane to methyl bisulfate. The proposed mechanism for Au^III also involves initial C–H activation to give a Au^III–CH₃ intermediate that is subsequently functionalized, which is very similar to the Hg^II cycle. While the catalytic cycle in Fig. 2 is consistent with experimental and computational data in 98% sulfuric acid, it does not readily rationalize products observed in oleum. In contrast to the 98% sulfuric acid conditions, reactions conducted by Sen for methane C–H functionalization with Hg^II(SO₄) in oleum at 160 °C resulted in a ∼3 : 2 ratio of methanesulfonic acid to methyl bisulfate.^19,20,22 At 90 °C there was only the formation of methanesulfonic acid, indicating this was the kinetic product. As discussed later, methanesulfonic acid can be converted to methyl bisulfate by heating >150 °C in oleum. Because known radical initiators can functionalize methane to produce methanesulfonic acid at low temperatures (90 °C or lower), it was proposed by Sen that with Hg^II in oleum methanesulfonic acid is generated by a radical functionalization mechanism,^19,20 which is outlined in Fig. 2 Panel B. Often inferred by the radical functionalization mechanism, but never evaluated, is that in 98% sulfuric acid methanesulfonic acid is first produced as the kinetic product and then methyl bisulfate is subsequently produced as the thermodynamic product.

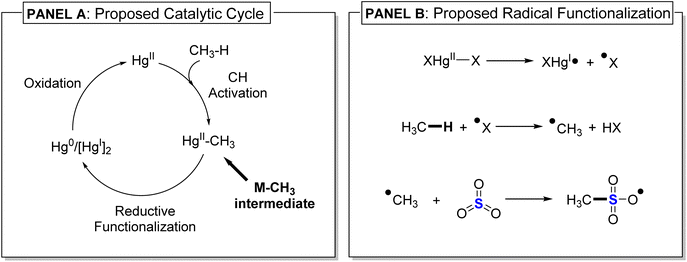

Fig. 2 Panel (A) previously proposed Hg catalytic cycle for forming methyl bisulfate using 98% sulfuric acid. Panel (B) outline of previously proposed mechanism for methanesulfonic acid formation in oleum.

While lower temperatures have been examined for Hg^II reactions, Au^III reactions have never been examined at lower temperatures, such as 90 °C, and therefore it is unknown whether methyl bisulfate or methanesulfonic acid is the kinetic product. Also, while reactions with Au⁰ have been examined only in 2% weight of SO₃ in sulfuric acid there has previously been no test of reactions of Au₂O₃ with methane in 20% weight of SO₃ in sulfuric acid.

New experiments demonstrating Hg^II and Au^III reaction selectivity

We decided to perform new experiments because it was unknown what the kinetic product was with Hg^II at lower temperatures in 98% sulfuric acid. Also, we decided to complete the low temperature and oleum experiments with Au^III. Therefore, to begin our experimental effort, we examined Hg^II catalysis with methane in 98% H₂SO₄ and oleum. This was done by preparing a 67 mM solution of Hg^II(SO₄) in 98% H₂SO₄ (or D₂SO₄) and in oleum (sulfuric acid, fuming, 20% as free SO₃), in a 10 mL glass insert that was loaded into a stainless-steel pressure reactor pressurized with 500 psig of methane (see the SI for full details). A similar process was completed for Au^III reactions using a 66 mM solution generated by dissolving Au₂O₃ in 98% H₂SO₄ (or D₂SO₄) or in oleum.

In 98% H₂SO₄ at 150 °C, both Hg^II(SO₄) and Au₂O₃ reactions with methane generated the oxygenation functionalized product methyl bisulfate in near quantitative yields after 3.5 hours (see SI). In the reaction of Hg(SO₄) with methane, the C–H activation/metalation intermediate (HSO₄)Hg^II–CH₃ (Fig. 3 peak at 1.06 ppm, ²J_199Hg,1H = 264 Hz) was also observed in ∼20% yield. In the Au₂O₃ reaction, no Au–CH₃ intermediate was observed. With observation of the expected products at 150 °C we then examined these 98% H₂SO₄ reactions at a lower temperature of 90 °C. This was done because if the sulfonation functionalization product methanesulfonic acid is generated, it is known to be thermally unstable at high temperatures. For the reaction of Hg^II(SO₄) at 90 °C only traces (∼1%) of (HSO₄)Hg^II–CH₃ was observed after three hours. No methanesulfonic acid or methyl bisulfate was observed (Fig. 3, spectrum 3).

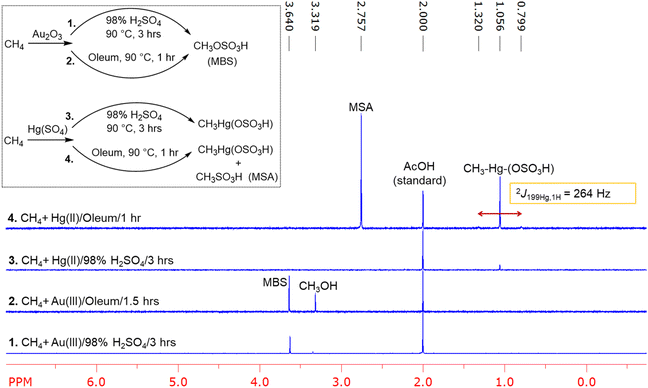

Fig. 3 Overlay of ¹H NMR spectra of crude reaction mixtures (reactions shown in the top left corner) of methane functionalization reactions carried out at 90 °C. ¹H NMR spectra were recorded after diluting reaction mixtures with D₂O. Spectrum (1): with Au₂O₃ in 98% H₂SO₄ after three hours. Spectrum (2): with Au₂O₃ in oleum after 90 minutes. Spectrum (3): with Hg^II in 98% H₂SO₄ after three hours. Spectrum (4): with Hg^II in oleum after 60 minutes. MSA = methanesulfonic acid. MBS = methyl bisulfate. AcOH = acetic acid. Note: observed methanol in the ¹H NMR spectra are due to the hydrolysis of methyl bisulfate (MBS) by added water.

The concentration of (HSO₄)Hg^II–CH₃ doubled when the reaction was run for six hours. For Au^III reactions, under the same 98% H₂SO₄ experimental conditions generated only methyl bisulfate in ∼2% yield (Fig. 3, spectrum 1). As anticipated, the Hg^II reaction is very different in oleum.^19,20 In oleum, the Hg^II(SO₄) reaction with methane at 90 °C generated methanesulfonic acid in about 65% yield and (HSO₄)Hg^II–CH₃ in about 31% yield after one hour. Methyl bisulfate was observed only in trace amounts (Fig. 3, spectrum 4). Regardless of the mechanism for formation of the Hg^II–CH₃ bond, observation of this intermediate is consistent with the idea that functionalization selectivity occurs through it (see later computational results). At 150 °C the same reaction generated methanesulfonic acid (359% yield), methyl bisulfate (256% yield), and bis-functionalized product, methanedisulfonic acid, CH₂(SO₃H)₂ (102% yield). The intermediate (HSO₄)Hg^II–CH₃ was generated in about 7% yield.

In contrast to Hg^II, methane functionalization reactions in oleum with Au^III at 90 °C, generated only methyl bisulfate (41% yield) after 90 minutes (Fig. 3, spectrum 2). No sulfonation functionalization product was observed. Au^III also functionalized methane at room temperature in oleum to generate approximately 5% of methyl bisulfate after 2.5 days (see SI). At a temperature of 150 °C, methylenedisulfuric acid, CH₂(OSO₃H)₂, started to form due to further functionalization of methyl bisulfate, albeit in traces (∼3%) after one hour (see SI).

Overall, these experiments provide compelling evidence that Au^III and Hg^II have fundamentally different kinetic product selectivity for C–H functionalization. Kinetically, Au^III only forms methyl bisulfate while Hg^II either forms methanesulfonic acid or methyl bisulfate depending on the sulfuric acid formulation. Consistent with this conclusion, control experiments without Hg^II or Au^III revealed that methanesulfonic acid is thermally unstable at higher temperatures and converts to methyl bisulfate. At temperatures over 120 °C, in the presence of SO₃, methanesulfonic acid further functionalized to generate methylenedisulfuric acid, and eventually to CO₂ after prolonged heating (see SI). In contrast, methyl bisulfate was found to be thermally stable in oleum in the absence of Hg^II or Au^III at 150 °C with more than 97% recovery after 60 minutes.

Computational evaluation and selectivity model

With the experimental detection of a (HSO₄)Hg^II–CH₃ intermediate in both 98% sulfuric acid and oleum conditions, and the new experimental measurements at a lower temperature indicating that methyl bisulfate is the kinetic product at low temperatures, we decided to computationally evaluate Hg^II pathways leading from this intermediate to both methanesulfonic acid and methyl bisulfate. The calculations were carried out with M06/def2-TZVPD//M06/def2-SVP using both an implicit solvent model that mimics sulfuric acid and with explicit solvent (see the Computational Methods section for details).

We previously reported the transition structure for bisulfate reacting with (HSO₄)Hg^II–CH₃ through an S_N2 type reaction mechanism (TS1, Fig. 4).²⁴ In this transition structure the bisulfate forms the new methyl bisulfate C–O bond with simultaneous cleavage of the Hg–C bond. We examined explicit solvent hydrogen bonding to the bisulfate nucleophile and the weakly coordinating bisulfate anion coordinated to the Hg center. Here, using both a continuum solvent model and an explicit H₂SO₄ solvent the activation enthalpy (ΔH^‡) for TS1 is 35 kcal mol⁻¹ and the activation Gibbs energy (ΔG^‡) is 33 kcal mol⁻¹, and this is very close to our previous estimate using a slightly different chemical model where ΔG^‡ was evaluated to be 34 kcal mol⁻¹.

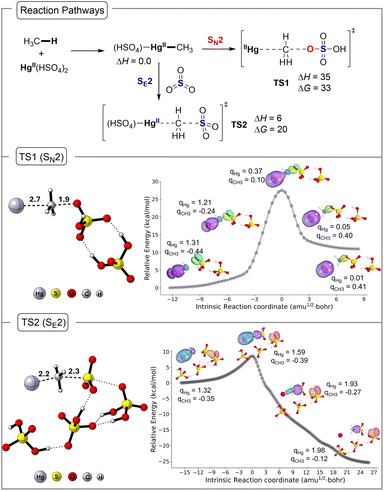

Fig. 4 Top: outline of DFT calculated reaction pathways involving S_N2, and S_E2 transition structures for Hg^II–CH₃ functionalization models. Relative enthalpy and Gibbs energy values (in kcal mol⁻¹) were calculated with M06/def2-TZVPD//M06/def2-SVP level of theory. Middle and bottom: geometrical features of TS1 and TS2 with IBO and NBO analyses along their IRC pathways.

We also located transition structures for SO₃ reaction with (HSO₄)Hg^II–CH₃ using explicit and continuum solvent. We identified two different transition structures. A frontside and a backside S_E2 transition structure, and the latter is shown as TS2 in Fig. 4. The backside S_E2 transition structure was found to be 8 kcal mol⁻¹ lower in energy than the frontside S_E2 transition structure. The backside S_E2 transition structure features a linear arrangement of the Hg–C–S atoms. There is explicit hydrogen bonding with the SO₃ portion of the transition structure, which enhances the electrophilicity of SO₃. The formal product of this S_E2 transition structure is an ion pair that with almost no barrier undergoes proton transfer to generate methanesulfonic acid. In this process the Hg center is not formally reduced and remains at Hg^II. The backside S_E2 transition structure TS2 has a ΔH^‡ value of 6 kcal mol⁻¹ and ΔG^‡ value of 21 kcal mol⁻¹, which is 12 kcal mol⁻¹ lower in Gibbs energy than the methyl bisulfate forming S_N2 transition structure. The lower energy TS2 compared to TS1 is perhaps surprising since in 98% sulfuric acid methyl bisulfate is the major kinetic product. It is useful to note that TS2 is significantly lower in energy than the Hg–C bond energy in (HSO₄)Hg–CH₃, which has a ΔH value of 42 kcal mol⁻¹ and ΔG value of 31 kcal mol⁻¹. Therefore, methanesulfonic acid is not generated through a radical, open-shell mechanism stimulated by Hg–C bond homolysis.

As shown in Fig. 4 (middle and bottom panel), an analysis of the intrinsic bond orbitals (IBO)²⁵ along the intrinsic reaction coordinate (IRC)²⁶ of TS1 and TS2 illustrates the electron flow direction in S_N2 and S_E2 mechanisms. For the S_N2 pathway, the oxygen lone pair in the SO₃H⁻ abstracts the CH₃⁺ and reduces the Hg^II to Hg⁰. For the S_E2 pathway, electron density from the Hg–CH₃ bond is transferred to the SO₃ to make the new C–S bond and to further oxidize the metal to Hg^II species. Natural bond orbital (NBO)²⁷ charges of Hg (q_Hg) and the transferring methyl group (q_CH3) along the IRC pathway shows that the S_N2 mechanism requires the reduction of Hg^II to Hg⁰ whereas for the S_E2 pathway Hg is fully oxidized to Hg^II (q_Hg = 1.98e⁻).

With calculations showing that the SO₃ S_E2 reaction pathway via TS2 is significantly lower in energy than the S_N2 reaction pathway, it becomes important to evaluate why in 98% sulfuric acid the kinetic product with Hg^II is methyl bisulfate and not methanesulfonic acid. This means that in 98% sulfuric acid, as is well known, there is only a small amount of SO₃ at equilibrium. Therefore, this equilibrium and the energy difference must be determining the overall oxygenation versus sulfonation functionalization selectivity. While there are several possible approaches to calculating the energy of an equilibrium in strong acid, we decided to use a solvent sphere of explicit solvent without any constraints. While this means that the outer edges of the solvent sphere are not treated exactly as bulk solvent, this provides a very reasonable evaluation for explicit solvation effects of H₂SO₄ and its conversion to SO₃ and H₂O within the solvent sphere. Fig. 5 shows the fully optimized H₂SO₄ solvent shell surrounding H₂SO₄ and SO₃/H₂O. These optimized structures were generated by using a cluster growth algorithm where a single H₂SO₄ was sequentially added until a total of 16 H₂SO₄ were added. At each addition of a sulfuric acid the solute was frozen and 10 different solvent locations were optimized with DFT and only the lowest energy structure was used for a subsequent solvent addition. With these solvent clusters the energy for H₂SO₄ → SO₃ + H₂O was calculated to have ΔH of 21.5 kcal mol⁻¹ and ΔG of 22.7 kcal mol⁻¹. While it is possible that this energy is overestimated, it is significantly higher than the energy difference between oxygenation and sulfonation pathways (i.e. the Gibbs energy difference between TS1 and TS2). In contrast, in oleum, there is essentially no energy required to generate SO₃ and therefore the direct energy difference between TS1 and TS2 determines selectivity, with sulfonation being the lowest energy pathway. Importantly, this establishes that an electrophilic S_E2 mechanism can generate methanesulfonic acid.

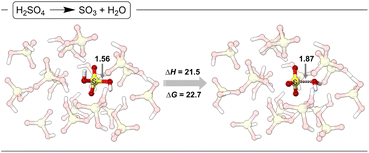

Fig. 5 DFT optimized structures of H₂SO₄ (left-hand side) and SO₃/H₂O (right-hand side) within a solvent sphere of 16 H₂SO₄. Solvent H₂SO₄ are faded for visual clarity. Distances reported in Å and energies (M06/def2-TZVPD//M06/def2-SVP) are in kcal mol⁻¹.

After establishing that there is an inherent transition state preference for sulfonation functionalization with (HSO₄)Hg^II–CH₃, we wanted to examine the selectivity for (HSO₄)₂Au^III–CH₃ functionalization. The experiments showed that only methyl bisulfate is formed as the kinetic product for both 98% sulfuric acid and oleum conditions. Therefore, we hypothesized that the Au^III inverts the relative energies of S_N2 and S_E2 transition states. Previous calculations by Goddard and Periana showed that Au^III is capable of electrophilic substitution with methane to generate a Au^III–CH₃ intermediate that can be functionalized.²³ Goddard also previously proposed that functionalization occurs through the overall anionic [(HSO₄)₃Au^III–CH₃]⁻ intermediate.²³ Therefore, we examined functionalization using this anionic model with an added explicit H₂SO₄ solvent as well as the neutral complex (H₂SO₄)(HSO₄)₂Au^III–CH₃. We also considered the possibility that functionalization occurs though Au^III–Au^III bridged species, but these barriers were similar to the mononuclear barriers. It is also important to note that as the Au-methane reaction progresses there is formation of Au^I and that this species can also react with methane to generate a Au^I–CH₃ intermediate. However, if significant C–H activation reactivity occurs between Au^I and methane to generate a Au^I–CH₃ intermediate, our calculations suggest that there would be rapid methyl transfer to Au^III for the functionalization. As an example, ligand exchange for Au^III(HSO₄)₃ + Au^I–CH₃ → (HSO₄)₂Au^III–CH₃ + Au^I(HSO₄) is exergonic by 31 kcal mol⁻¹.

Fig. 6 and 7 outline the functionalization results for (H₂SO₄)(HSO₄)₂Au^III–CH₃ and [(HSO₄)₃Au^III–CH₃]⁻. Not shown, but as expected, the Au^III–CH₃ bond in (HSO₄)₂Au^III–CH₃ is stronger than the Hg^II–CH₃ bond in (HSO₄)Hg^II–CH₃ (ΔH > 50 kcal mol⁻¹ for both neutral and anionic models) therefore, homolysis-driven functionalization is very unlikely. For the neutral system the transition structure for methyl bisulfate formation by a S_N2 type reaction mechanism (TS3, Fig. 6) has a ΔH^‡ value of 26 kcal mol⁻¹ and ΔG^‡ value of 26 kcal mol⁻¹. For the anionic system, (TS3_anionic, Fig. 7) has a ΔH^‡ value of 14 kcal mol⁻¹ and ΔG^‡ value of 15 kcal mol⁻¹. The neutral and anionic transition structure TS3 is similar to the structure previously reported by Goddard and Periana and very similar to the Hg transition structure where it features a linear arrangement of the bisulfate oxygen, the methyl group carbon, and the Au center.

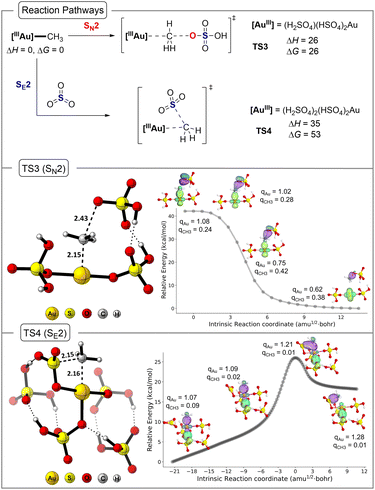

Fig. 6 Top: outline of DFT calculated S_N2 and S_E2 transition structures for neutral Au–CH₃ functionalization models. Enthalpies and Gibbs energies reported refer to M06/def2-TZVPD//M06/def2-SVP (kcal mol⁻¹). Middle and bottom: geometrical features of TS3 and TS4 with IBO and NBO analyses along their IRC pathways.

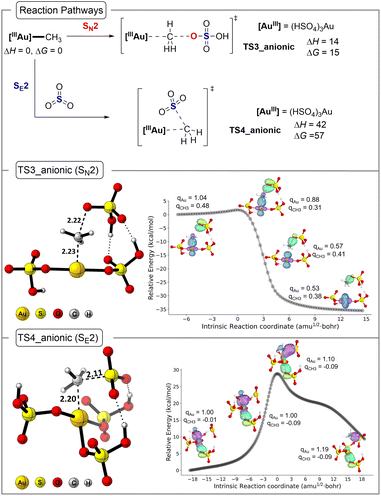

Fig. 7 Top: outline of DFT calculated S_N2 and S_E2 transition structures for anionic Au–CH₃ functionalization models. Enthalpies and Gibbs energies reported refer to M06/def2-TZVPD//M06/def2-SVP (kcal mol⁻¹). Middle and bottom: Geometrical features of TS3_anionic and TS4_anionic with IBO and NBO analyses along their IRC pathways.

Fig. 6 and 7 also give the transition structure energies for functionalization of the Au^III–CH₃ bond with SO₃. For the neutral system, this involves a frontside SO₃ S_E2 type transition structure (see 3D structure; TS4). Despite significant searching, we were unable to locate the backside S_E2 transition structure. For the neutral system, the ΔH^‡ value for TS4 is 35 kcal mol⁻¹, and this is 9 kcal mol⁻¹ higher in energy than TS3. For the anionic system, the ΔH^‡ value for TS4_anionic is 42 kcal mol⁻¹, and this is 28 kcal mol⁻¹ higher in energy than TS3_anionic. Analysis of the Gibbs energies also shows the same preference and lower energy pathway involving TS3.

IBO analysis along the IRC path presented in Fig. 6 and 7 (middle and bottom panel) establishes the characteristics of S_N2 and S_E2 mechanisms for Au, which are similar to that observed in Hg reactions. The NBO charge analysis of the TS3 and TS4 in both neutral and anionic states establishes the reluctance of Au to be further oxidized during the S_E2 mechanism where the methyl anion is transferred. Overall, this confirms that the effective electrophilicity of Au^III compared to the less electronegative Hg^II inverts the reaction pathway preference. Specifically, for Au^III with the bisulfate nucleophile (neutral pathway), the S_N2 transition structure is about 9 kcal mol⁻¹ lower in enthalpy than the Hg^II transition structure. This is readily rationalized by Au^III being a much better leaving group with a larger Au^III to Au^I reduction potential compared to the Hg^II to Hg⁰ reduction potential. The selectivity is also influenced by a S_E2 transition structure where the Au^III version is destabilized relative to the Hg^II version. The neutral TS4 is nearly 30 kcal mol⁻¹ higher in energy than TS2.

Experiments that support computational-based selectivity model

With calculations indicating that a closed-shell reaction mechanism provides adequate explanation for kinetic product selectivity with Hg^II and Au^III, and that there is no need to invoke a radical functionalization mechanism, we decided to test this prediction experimentally. Therefore, additional methane reactions with Hg^II and Au^III were carried out in both 98% H₂SO₄ and oleum under an oxygen atmosphere. Oxygen is a well-established radical scavenger for alkane functionalization reactions and is known to suppress radical pathways.^20,28 Reactions conducted in the presence of 14.7 psi (1 atm) of O₂ and 485.5 psi CH₄ showed no change in product selectivity, suggesting that no significant concentration of metal and carbon radicals are involved in the functionalization reactions.

Also, the implication of the calculated pathways is that if Hg^II–CH₃ and Au^III–CH₃ intermediates are synthesized and then subjected to sulfuric acid solvent environments there will be predictable product selectivity. Therefore, we carried out several reactions with different solvent environments and where Hg^II–CH₃ was first synthesized and then subjected several functionalization reaction conditions, including with Au^III where we hypothesized that Hg-to-Au methyl group transfer would be very fast.

The first reaction carried out was in a 1:1 mixture of 98% H₂SO₄ to oleum (containing 20 weight% free SO₃), resulting in an effective free SO₃ concentration of approximately 6 weight%. Methane functionalization using Hg^II(SO₄) in this acid solvent mixture generated methanesulfonic acid as the primary product, with a yield of ∼21% when the reaction was conducted at 90 °C for 3 hours (see the SI). A similar product distribution was observed at 110 °C after 1 hour, where methanesulfonic acid remained the dominant product (∼27% yield after 1 hour), and only trace amounts of methyl bisulfate were detected (see the SI). These results suggest that methanesulfonic acid is the favored initial product in the presence of free SO₃, despite the abundance of bisulfate anions in the reaction medium that could otherwise facilitate the formation of the alternative methyl bisulfate product, and this is consistent with the calculated reaction selectivity. No methane functionalization experiments were conducted with Au₂O₃ in this medium because as stated above Au^III only produced methyl bisulfate as the initial product in both neat 98% H₂SO₄ and oleum (20 weight% SO₃ in H₂SO₄), regardless of temperature.

To further understand the difference in solvent dependent product selectivity with Hg^II and Au^III, we performed methyl transfer reactions between separately synthesized (HSO₄)Hg^II–CH₃ and Au^III in 98% H₂SO₄, in oleum, and in a mixture of 98% H₂SO₄ and oleum (Scheme 1). The intermediate (HSO₄)Hg^II–CH₃ was prepared in 98% H₂SO₄ following the procedure described above by reacting methane with HgSO₄ at 110 °C for five hours (reaction a in Scheme 1 and Fig. 8, spectrum 1). Then in a Schlenk bomb flask at 0 °C, ∼0.01 mmol of the (HSO₄)Hg^II–CH₃ made through reaction a was mixed with oleum, making a 3 : 1 ratio of oleum and 98% H₂SO₄ (reaction b in Scheme 1). This reaction mixture was then gradually warmed to room temperature and stirred at room temperature for two additional hours. ¹H NMR analysis of the resultant reaction mixture showed only traces of methanesulfonic acid, indicating a somewhat slow reaction of (HSO₄)Hg^II–CH₃ with SO₃ (Fig. 8, spectrum 2). Similarly, reaction of ∼0.01 mmol of (HSO₄)Hg^II–CH₃ with 2 equivalents of Au^III solution prepared in 98% H₂SO₄ (reaction c in Scheme 1) resulted in quantitative conversion of (HSO₄)Hg^II–CH₃ to methyl bisulfate (Fig. 8, spectrum 3).

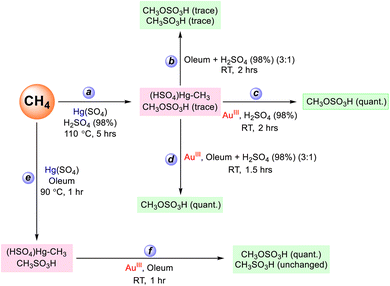

Scheme 1 Outline of methyl transfer reactions used to evaluate metal and solvent dependent product selectivity. See Fig. 8 for the corresponding ¹H NMR spectra.

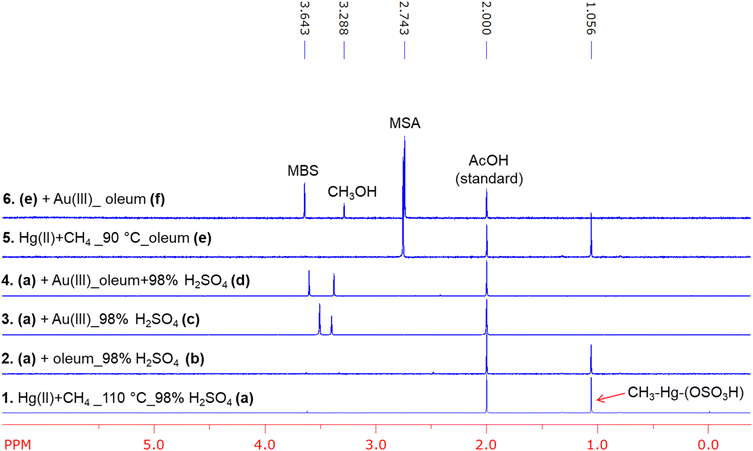

Fig. 8 Overlay of ¹H NMR spectra of reaction mixtures (a–f) outlined in Scheme 1. Spectrum (1): reaction of methane with Hg(SO₄) in 98% H₂SO₄ carried out at 110 °C for 5 hours (a). Spectrum (2): reaction of (HSO₄)Hg–CH₃ from a with oleum at room temperature for two hours (b). Spectrum (3): reaction of (HSO₄)Hg–CH₃ from a with Au^III in 98% H₂SO₄ run for 1.5 hours at room temperature (c). Spectrum (4): reaction of (HSO₄)Hg–CH₃ from c with Au^III in a 1 : 3 mixture 98% H₂SO₄ and oleum run for 1.5 hours at room temperature (d). Spectrum (5): reaction of methane and HgSO₄ carried out in oleum at 90 °C for one hour (e). Spectrum (6): reaction of products from e with Au^III prepared in oleum (f). Note: Observed methanol in the ¹H NMR spectra are due to the hydrolysis of methyl bisulfate (MBS) by added water. MSA = methanesulfonic acid.

We also investigated competitive methyl group functionalization in the presence of both Au^III and SO₃, where SO₃ was present in ∼67-fold excess relative to Au^III (reaction d in Scheme 1). In the first competition reaction a ∼0.01 mmol solution of (HSO₄)Hg^II–CH₃ prepared in 98% H₂SO₄ was added to oleum (see SI) at 0 °C. After stirring the mixture for 30 minutes, ∼2 equivalents of Au^III (relative to (HSO₄)Hg^II–CH₃), prepared in 98% H₂SO₄, were introduced to achieve a final molar ratio of [Au^III] : [SO₃] ≈ 0.02:1.34. The reaction mixture warmed to room temperature and then stirred for an additional 90 minutes at room temperature (reaction d in Scheme 1). ¹H NMR analysis of the resultant reaction mixture indicated generation of only the oxygenation product methyl bisulfate in quantitative yields with negligible amounts of the sulfonation product methanesulfonic acid (Fig. 8, spectrum 4). The formation of only methyl bisulfate can be interpreted by relatively fast and irreversible methyl group transfer from Hg to Au followed by functionalization of a Au^III–CH₃ methyl species. Similarly, a second competition reaction in oleum where there is a large excess of SO₃ compared to Au^III was carried out. This involved the initial reaction of Hg^II with methane in oleum at 90 °C to generate both (HSO₄)Hg^II–CH₃ and methanesulfonic acid (reaction e in Scheme 1 and Fig. 8, spectrum 5, also see the SI). Then at room temperature the resultant oleum reaction mixture was treated with ∼2 equivalents of Au^III, with respect to the concentration of (HSO₄)Hg^II–CH₃ (reaction f in Scheme 1). This second competition reaction also generated exclusively methyl bisulfate, and the concentration of methanesulfonic acid was nearly unchanged, suggesting that methanesulfonic acid was stable under these specific reaction conditions (Fig. 8, spectrum 6). Again, this reaction suggests that (HSO₄)Hg^II–CH₃ preferentially reacts with Au^III followed by functionalization to generate methyl bisulfate. Importantly, control experiments showed that methanesulfonic acid is stable in the presence of Au^III in oleum under these reaction conditions used. As another confirmation of the Au^III functionalization selectivity, we treated tetramethyltin with Au^III both in 98% H₂SO₄ and oleum. Similar to the reaction between (HSO₄)Hg^II–CH₃ and Au^III, we observed methyl bisulfate in quantitative yields with respect to added Au^III both in 98% H₂SO₄ and oleum. In oleum, we also observed methanesulfonic acid, due to the functionalization of methyltin species. Control experiments in oleum with only tetramethyltin generated methanesulfonic acid along with methane in the absence of any added Au^III. In 98% H₂SO_4, tetramethyltin did not undergo any type of functionalization in the absence of Au^III other than protonation of methyl group to generate methane under same reaction conditions. See SI for more details. These competition experiments strongly argue against involvement of any methyl radical species as they would be quickly trapped by excess SO₃ to generate methanesulfonic acid. Instead these reactions support a closed-shell, electrophilic methyl-transfer/heterolytic functionalization sequence.

Conclusions

New experiments and calculations have revealed that the kinetic products generated for methane C–H functionalization with Hg^II and Au^III catalysis in 98% sulfuric acid and oleum occur through a non-radical, closed-shell mechanism. For Hg^II, oxygenation to give methyl bisulfate occurs in 98% sulfuric acid while sulfonation to give methanesulfonic acid occurs in oleum. In contrast, Au^III only induces oxygenation functionalization of methane in both 98% sulfuric acid and oleum. Experiments and DFT calculations indicate that oxygenation versus sulfonation selectivity occurs from the Hg^II–CH₃ and Au^III–CH₃ intermediates. This selectivity model involves the competition between a bisulfate S_N2 type mechanism (oxygenation pathway) and a S_E2 mechanism (sulfonation pathway) with SO₃. For the Hg^II–CH₃ intermediate the barrier for the S_E2 transition structure is significantly lower than the barrier for the S_N2 transition structure. This means that the sulfuric acid to SO₃/H₂O equilibrium controls S_N2 versus S_E2 selectivity. In 98% sulfuric acid this equilibrium is highly unfavorable, which was estimated using a sphere of explicit solvent, and therefore the S_N2 pathway is lower in energy. In contrast, in oleum with free SO₃ the S_E2 pathway is lower in energy. For Au^III–CH₃, the selectivity of transition structures is reversed and the S_N2 transition structure is lower in energy than the S_E2 transition structure, and this change correlates with the higher Au^III to Au^I reduction potential compared to Hg^II to Hg⁰ reduction potential.

Computational methods

Calculations were mainly performed in Gaussian 16.²⁹ For geometry optimizations M06 (ref. 30)/def2-SVP was used. The use of larger basis sets, such as def2-TZVPD, to optimize structures showed nearly identical geometries. Therefore, we executed single point energies with the def2-TZVPD and the reported energies are M06/def2-TZVPD//M06/def2-SVP. Additional single-point energies with alternative density functionals and basis sets as a comparison were evaluated using ORCA³¹ and reported in the SI. All structures reported were confirmed as a minima or a saddle point through vibrational frequency calculations, which were also used to generate thermochemical corrections at 298 K and 1 atm. All geometries were optimized with a PCM³² solvent model with parameters that mimic 98% sulfuric acid (EPS = 98.0, radius = 2.205). While the dielectric of sulfuric acid decreases at high temperatures the exact value is unknown. Test calculations that use an EPS keyword value below 98.0 showed no significant difference for calculated structures and energies. Importantly, all calculations included at least one explicit H₂SO₄ solvent molecule. Each structure reported is the lowest energy of a set of configurations generated through manual searching as well as using CREST/x-TB.^33,34 IBO calculations were performed using the IBOView software.²⁵ Natural charges were obtained from NBO analyses as implemented in Gaussian 16. For the explicit solvent evaluation of the H₂SO₄ → SO₃ + H₂O energy, 16 H₂SO₄ molecules that were added to each side of the reaction equation. Each explicit solvent was sequentially added using CREST's QCG tool.³⁵ For each sequential addition, the 10 lowest energy xTB structures were optimized with DFT and then only the lowest energy DFT structure was carried onto adding additional sulfuric acid molecules.

Author contributions

D. H. Ess designed the experimental and computational studies, analyzed data, and wrote the manuscript. A. Koppaka designed experimental studies, executed experimental studies, interpreted data, and wrote the manuscript. C. Cullimore carried out calculations, interpreted data, and wrote part of the manuscript. J. Joy and A. Kraus carried out calculations. R. A. Periana analyzed and interpreted data.

Conflicts of interest

There are no conflicts to declare.

Data availability

Data supporting this work is part of the supporting information (SI). Supplementary information: additional experimental details, xyz coordinates, and absolute energy of optimized DFT structures. See DOI: https://doi.org/10.1039/d6sc01628f.

Acknowledgements

We thank Brigham Young University and the Office of Research computing, especially the Fulton Supercomputing Lab. This work was fully supported by the U.S. Department of Energy, Office of Science, Basic Energy Sciences, Catalysis Science Program, under Award # DE-SC0018329.
