Open Access Article
Dongseok Kim,
Papa K. Kwarteng
and
Erwin Reisner
*
Yusuf Hamied Department of Chemistry, University of Cambridge, Lensfield Road, Cambridge, CB2 1EW, UK. E-mail: reisner@ch.cam.ac.uk
First published on 11th May 2026

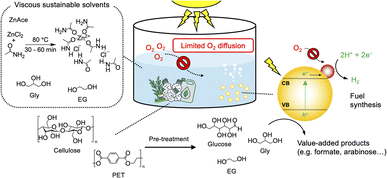

We report an air-tolerant solar reforming (SR) system for the valorisation of pre-treated biomass and plastic waste streams. This process operates in low O2-diffusivity solvents such as the robust deep eutectic solvent (DES) ZnCl2-acetamide, which prevents O2 from interfering with photocatalysis by avoiding easily oxidisable components (e.g. alcohols) in water. This approach sustains SR performance under aerobic conditions using a carbon nitride photocatalyst, enabling photooxidative valorisation of depolymerised cellulose and polyethylene terephthalate (PET) while generating H2 fuel. SR using low O2-diffusivity solvents is scalable and also adaptable to non-innocent viscous liquid wastes such as glycerol, which can act as both the low O2-diffusivity solvent to exclude O2 and the organic waste source to produce valuable chemicals.
The production of H2 through SR has therefore received significant attention, but the process requires anaerobic conditions as O2 (air) is known to have a detrimental effect on photocatalytic performance. (Photo)catalytic H2-evolution systems perform generally poorly in the presence of O2 due to the thermodynamically favourable O2 reduction reaction to produce reactive oxygen species (ROS) unless specific protection mechanisms are in place.6 Thus, inert atmospheres such as N2 or Ar are commonly employed in photo(electro)catalytic H2 production. However, tolerance to air is practically important as some exposure will be unavoidable in commercial or industrial deployment.7 While the development of O2-tolerant solid-state,8 metal complex,9,10 and enzymatic H2 catalysts11,12 is an active area of research, it remains unexplored in SR.
Deep eutectic solvents (DESs) have emerged as a novel class of green solvents characterised by their ease of preparation, low cost, and recyclability as well as their tuneable physicochemical properties (e.g., negligible vapour pressure), and environmental friendliness (e.g., biodegradability).13,14 DESs are typically formed through the complexation of a hydrogen bond donor and a hydrogen bond acceptor, often involving readily available components such as choline chloride and urea. DESs exhibit melting points significantly lower than those of their individual constituents due to strong hydrogen bonding interactions. Their unique solvent properties have enabled widespread applications across diverse fields, including catalysis,15,16 electrochemistry,17,18 and materials synthesis,19 thereby positioning DESs as versatile media for green and sustainable chemistry.
It has recently been demonstrated that O2-sensitive methyl viologen radicals can be stably generated via electrochemical, chemical, and photochemical methods and retained in DESs under air.20 This ultrastability is attributed to the significantly reduced O2 diffusivity in DESs, which protects the radicals from oxidative degradation under aerobic conditions. Low O2-diffusivity also led to the development of air-tolerant redox flow batteries by using pyridinium-based electrolytes, effectively mitigating capacity fade caused by reduced radical species.21 These findings highlight the possibilities of developing air-tolerant solvent systems with potential impact across various applications. Various DESs have also been used to demonstrate O2-tolerant H2 production,22,23 and CO2 reduction,24 but these photocatalytic systems required easily-oxidisable sacrificial electron donors (e.g., triethanolamine) as the DESs contained primary alcohols which can be readily oxidised and thereby decomposed under photocatalytic conditions. To extend this strategy for practical depolyment in SR processes, robust SR systems with DESs resistant to oxidative decomposition during the photocatalytic cycle are required.
Here, we report a DES, composed of ZnCl2 and acetamide (denoted as ZnAce), which is suitable for aerobic SR of polymeric waste streams. ZnAce, which avoids the presence of easily oxidisable primary alcohols commonly present in widely used DESs, exhibits high stability during SR cycles and thereby enables the selective, challenging oxidation of waste substrates without undergoing oxidation itself. SR in aqueous ZnAce thereby facilitates air-tolerant SR of pre-treated biomass and plastics to produce H2, maintaining SR performance under air without a significant loss in activity (Scheme 1). We further show that aerobic SR can be readily scaled up. Air-tolerant SR can even be achieved under practical conditions using viscous liquid waste steams such as glycerol and ethylene glycol, which act directly as the low O2-diffusivity solvent and organic substrate without DES. Our approach thus offers a versatile and scalable platform for aerobic operation of SR in the future.
:
4 molar ratio) at 80 °C until a homogeneous liquid was formed.27
SR was optimised in the robust DES, ZnAce, which is free of readily oxidisable primary alcohols typical of many DESs, and carried out in a glass reactor with full solar spectrum irradiation (100 mW cm−2, AM 1.5G) at 25 °C in a 3 mL solution of ZnAce with an aqueous solution containing glucose (50 mg mL−1, ∼280 mM) and phosphate buffer (KPi, 10 mM, pH 4.5). Mildly acidic conditions were selected because the aqueous ZnAce solution precipitated under alkaline conditions (pH ≥ 7), most likely due to disruption of the ionic interactions between ZnCl2 and acetamide (Fig. S2). Glucose is the soluble monomeric building block of cellulose and was therefore selected as a model electron donor. The glass reactor was charged with a solution containing the platinised carbon nitride (5 mg, Pt-loading 0.60 ± 0.03 wt%), sealed with a rubber septum to collect the produced H2, and the headspace contained air for aerobic SR or N2 containing 2% CH4 as an internal standard for anaerobic SR. The produced H2 was periodically monitored by analysing the headspace (4.8 mL) of the photoreactor using gas chromatography.

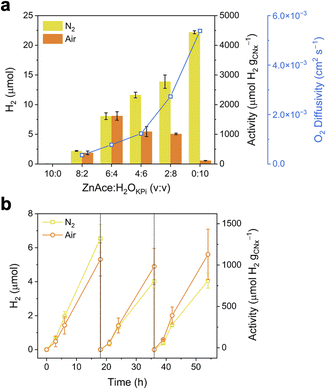

To investigate the effect of ZnAce on H2 production, the SR performance was initially screened under N2 by varying the reaction medium composition between ZnAce and the KPi buffered aqueous solution (Fig. 1a and S3). The activities under N2 gradually increased with the addition of water due to the improved supply of protons. However, a different trend was observed under air, where adverse effects on photocatalysis emerged above 60% of H2OKPi contents with negligible H2 production in pure aqueous solution (see below for details). Importantly, the SR performance under air was nearly comparable with the N2 purged system up to 40% of H2OKPi content, with a maximal activity of 1610 ± 114 µmol H2 per gCNx (53.7 ± 3.80 µmol H2 per gsubstrate) under N2 and 1620 ± 143 µmol H2 per gCNx (54.0 ± 4.78 µmol H2 per gsubstrate) under air after 18 h of SR in ZnAce
:
H2OKPi (6
:
4 v/v) solution (see Table S1 for literature comparison). The marginal differences in SR performance under N2 and air implied that atmospheric O2 did not significantly hamper the catalytic cycle of the photocatalyst in ZnAce.
Exclusion control experiments in air and N2 showed no or negligible amounts of H2 in the absence of electron donor, co-catalyst or light, verifying that ZnAce was not involved in the SR process (Table 1).
A comparison experiment was executed to identify the oxidative stability of different types of DESs under the oxidatively demanding conditions of SR using the photocatalyst. The most widely used DESs contain easily oxidisable alcohols (reline: choline chloride and urea; ethaline: choline chloride and ethylene glycol; glyceline: choline chloride and glycerol; Fig. S4), and a significant amount of H2 was detected during irradiation even in the absence of an external electron donor, indicating that these DESs oxidatively decompose and are not suitable for SR (Fig. S5). This is supported by linear sweep voltammograms (LSV) of DES
:
H2OKPi (6
:
4 v/v) solutions under N2, which demonstrate that ZnAce is more stable under oxidative conditions (anodic potential) compared to other DESs (Fig. S6). These results highlight that ZnAce provides a uniquely robust medium for air-tolerant SR of waste streams in the aqueous DES.
:
H2OKPi (6
:
4 v/v; H2O contains 10 mM KPi at pH 4.5) under N2 or air using a platinised carbon nitride photocatalyst under simulated solar light irradiation (100 mW cm−2, AM 1.5G) at 25 °C after 18 h. Blank (−) means the number of produced gases was less than the limit of detection (0.01 µmol)
| N2 | Air | |||||
|---|---|---|---|---|---|---|
| H2 [µmol] | Activity [µmol H2 per gCNx] | Yield [µmol H2 per gSubstrate] | H2 [µmol] | Activity [µmol H2 per gCNx] | Yield [µmol H2 per gSubstrate] | |
| Full system | 8.05 ± 0.57 | 1610 ± 114 | 53.7 ± 3.80 | 8.09 ± 0.72 | 1620 ± 143 | 54.0 ± 4.8 |
| No SED | 0.04 ± 0.00 | 8.89 ± 0.06 | 0.30 ± 0.01 | 0.031 ± 0.01 | 6.18 ± 2.00 | 0.21 ± 0.07 |
| No Pt | 0.05 ± 0.01 | 10.3 ± 1.25 | 0.34 ± 0.04 | 0.04 ± 0.01 | 7.89 ± 0.91 | 0.26 ± 0.03 |
| No light | — | — | — | — | — | — |
Molybdenum disulfide (MoS2) was also employed as co-catalyst instead of the precious-metal Pt for SR of glucose, and exhibited similar behaviour to Pt without significant decrease in performance under air compared to N2 (Fig. S7).
To elucidate the origin of the air-tolerant SR, several physicochemical properties of the ZnAce
:
H2OKPi solutions, O2 solubility, viscosity, and O2 diffusivity, were systematically investigated. As summarised in Table 2 and Fig. S8, increasing the ZnAce content led to a noticeable rise in viscosity, accompanied by an increase in O2 solubility. Notably, the O2 diffusivity calculated from the Levich equation (see experimental Section in SI for details) decreased as the ZnAce concentration increased, suggesting that suppressed O2 mass transport is a key factor enabling air-tolerant SR (Fig. 1a). This observation is consistent with the Stokes–Einstein relationship, where higher solution viscosity results in reduced molecular diffusion. Accordingly, the increased viscosity of the ZnAce
:
H2OKPi solution restricts O2 diffusion, thereby limiting the oxygen reduction reaction (ORR) kinetics and effectively facilitating SR under aerobic conditions. At the same time, however, viscosity is also closely associated with proton diffusion; consequently, the H2 production activity decreases as viscosity increases. These opposing effects reveal an inherent trade-off between minimising ORR and maintaining efficient H2 production. On the basis of this balance, the optimal reaction condition was identified as a 6
:
4 volume ratio of ZnAce
:
H2OKPi.
:
H2OKPi solutions
ZnAce : H2OKPi (v/v) |
Kinematic viscosity (cm2 s−1) | O2 solubility (mmol L−1) | O2 diffusivity (cm2 s−1) |
|---|---|---|---|
0 : 10 |
1.07 ± 0.032 × 10−2 | 0.121 ± 0.047 | 5.38 × 10−3 |
2 : 8 |
2.88 ± 0.040 × 10−2 | 0.222 ± 0.036 | 2.73 × 10−3 |
4 : 6 |
4.84 ± 0.104 × 10−2 | 0.361 ± 0.040 | 1.23 × 10−3 |
6 : 4 |
6.59 ± 0.040 × 10−2 | 0.469 ± 0.040 | 7.78 × 10−4 |
8 : 2 |
8.53 ± 0.040 × 10−2 | 0.653 ± 0.045 | 3.58 × 10−4 |
To directly validate the limited ORR during SR, O2 levels were monitored in the headspace to confirm O2 consumption during glucose SR (Fig. S9). O2 reduction is competing with proton reduction and occurs substantially in pure H2O, causing 48% of O2 consumption (∼21.5 µmol, which is comparable to the amount of generated H2 from SR under N2) after 24 h. In contrast, only 7.0% of O2 was consumed in the headspace above the ZnAce
:
H2OKPi (6
:
4 v/v) solution. These data support that O2 cannot effectively diffuse in the aqueous ZnAce medium, and the solvent thereby protects the photocatalyst from O2 exposure, thereby enabling efficient photocatalytic H2 production under aerobic conditions.
The oxidation products were determined by high-performance liquid chromatograph (HPLC) and 1H nuclear magnetic resonance (NMR) spectroscopy after SR of glucose with the platinised carbon nitride photocatalyst in ZnAce
:
H2O (6
:
4 v/v) mixture (Fig. S10). The main products of glucose SR in ZnAce/H2OKPi were arabinose (C5H10O5) and formate (HCOO−), which is consistent with the results of SR in H2O under N2.28 Although the quantified oxidation products were not stoichiometrically matched with the reduced products (ca. 2
:
1 Red
:
Ox), we speculate that formate may undergo further oxidation to CO2,29 which could account for the observed stoichiometry. Importantly, the formation of arabinose and formate indicates that ZnAce does not alter the reaction selectivity or directly participates in the photocatalytic SR cycle, but instead primarily regulates O2 diffusion, thereby enabling air-tolerant SR.
The platinised carbon nitride photocatalyst could be retrieved through centrifugation and reused by re-suspending in a fresh ZnAce
:
H2OKPi solution, followed by glucose SR under simulated solar light. The recycled photocatalyst maintained over 60% of its activity under N2 and nearly 100% under air of its SR activity compared to the previous 18 h irradiation interval (Fig. 1b). To further assess the robustness of the photocatalyst in the aqueous ZnAce medium, a 5 day continuous stability test was performed under the simulated solar light irradiation (Fig. S11). No noticeable decline in the H2 production rate was observed throughout the extended SR operation, demonstrating the sustained stability of the air-tolerant SR system.
X-ray Photoelectron Spectroscopy (XPS) and Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) of the photocatalyst, following washing and drying after 18 h of SR, revealed some photo-deposition of Zn0 and surface adsorption of Zn2+ ions on the carbon nitride (Fig. S12). In addition, transmission electron microscopy coupled with energy-dispersive X-ray (TEM-EDX) analysis also confirmed the presence of Zn on the catalyst surface, but no significant structural damage or detrimental changes to the photocatalyst were observed (Fig. S13). Despite the unexpected Zn-deposit on the photocatalyst, the retained recyclability under air, structural integrity, and long-term stability of the photocatalyst indicated that ZnAce did not exert a detrimental influence on SR performance and catalyst recyclability.
Air-tolerant SR (100 mg of substrates) into H2 using a ZnAce
:
H2OKPi (6
:

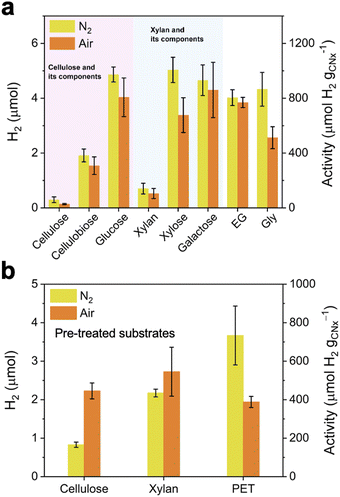

4 v/v) mixture was subsequently studied using polymeric substrates, viz. cellulose and xylan, along with their soluble substrates (Fig. 2a).30 As the solubility of the substrates in ZnAce/H2OKPi increases, improved photocatalyst-substrate contact leads to significantly enhanced SR activity. After 18 h of simulated solar light irradiation, xylose produced 1010 ± 92 µmol H2 per gCNx under N2 and 677 ± 127 µmol H2 per gCNx under air, and galactose generated 932 ± 112 µmol H2 per gCNx under N2 and 860 ± 202 µmol H2 per gCNx under air. The SR performance for insoluble, polymeric α-cellulose and xylan was 59.6 ± 20.7 µmol H2 per gCNx under N2 and 27.6 ± 4.43 µmol H2 per gCNx under air, and 141 ± 39.2 µmol H2 per gCNx under N2 and 105 ± 36.8 µmol H2 per gCNx under air, respectively. These results showed that the air-tolerant SR system could be successfully extended to various biomass substrates.
Further expansion to air-tolerant SR of polymer waste using ZnAce
:
H2OKPi was conducted by utilising ethylene glycol (EG), a monomeric component of polyethylene terephthalate (PET), as a substrate.31 H2 production coupled with EG oxidation exhibited significant activity of 805 ± 58 µmol H2 per gCNx under N2 and 769 ± 37 µmol H2 per gCNx under air after 18 h in a ZnAce
:
H2OKPi (6
:
4 v/v) solution (Fig. 2a). Thus, the SR activity of the PET monomer EG was retained under air compared to inert conditions.
In addition, glycerol (Gly), an industrially relevant alcohol and major byproduct of biodiesel, was also used as a substrate for air-tolerant SR (Fig. 2a).32 The SR of Gly in ZnAce
:
H2OKPi showed slightly lower performance under air, but it still achieved a notable value of 513 ± 79.9 µmol H2 per gCNx, considering that the reaction was performed in the presence of O2.
Subsequently, insoluble and robust polymeric substrates such as cellulose, xylan, and PET were subjected to acid hydrolysis pre-treatment using an aqueous H2SO4 solution at 120–140 °C depending on the substrate (see experimental Section in SI for details) to more completely depolymerise them into soluble monomers, glucose, xylose, and EG (72% conversion yield for PET according to a previous report; Fig. 2b).33,34 The pre-treated solutions were then diluted 10 times and directly used for SR. This pre-treatment step ensures suitable reaction kinetics and better accessibility of monomers to the photocatalyst for SR. It significantly improved the SR performances, yielding activities of 445 ± 41.5 µmol H2 per gCNx for cellulose, 545 ± 127 µmol H2 per gCNx for xylan, and 388 ± 29.1 µmol H2 per gCNx for PET, respectively, after 18 h of SR in ZnAce
:
H2Oacid (6
:
4 v/v) solution under air.
Intriguingly, the SR performance for cellulose under air was higher than under N2, which is likely due to the generation of ROS via residual ORR in the reaction mixture, promoting subsequent fragmentation of partially degraded cellulose into smaller, more readily oxidisable intermediates and thereby enhancing the overall SR efficiency. A control experiment was carried out using the radical scavenger 5,5-dimethyl-1-pyrroline N-oxide (DMPO) (Fig. S14). The presence of the radical scavenger showed no significant difference between N2 and air, supporting the speculation that the higher SR activity for cellulose under aerobic conditions in ZnAce
:
H2Oacid (6
:
4 v/v) solution is mainly attributed to ROS-mediated fragmentation of cellulose into oxidisable species, despite the anticipated low ROS levels resulting from inhibited ORR in the aqueous ZnAce solution. Nevertheless, additional mechanistic investigation will be required in future studies to fully understand the increased aerobic SR activity.

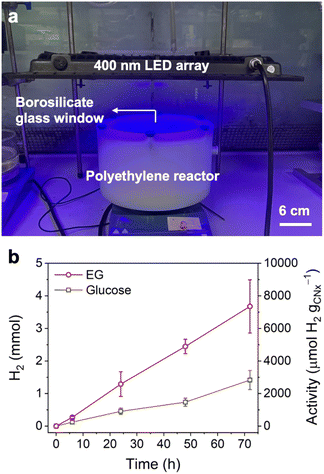

Next, the scalability of the air-tolerant SR system was demonstrated to simulate real-world conditions more closely. The scale-up employed a large polyethylene reactor (0.02 m2 irradiation area, 1.7 L reactor volume) with a borosilicate glass window allowing vertical irradiation of a 300 mL SR solution (Fig. 3a).34 The same reaction conditions used for the smaller scale aerobic SR were employed, including the concentration of catalyst and substrate as well as the ZnAce/H2OKPi solution composition. Using an LED array as the light source (400 nm, 8 mW cm−2), the large-scale air-tolerant SR produced 3.68 mmol ± 0.82 of H2 (7.35 ± 1.63 mmol H2 per gCNx, 36.8 ± 8.15 µmol H2 per gCNx cm−2) from EG oxidation with an apparent quantum yield (AQY) of 0.52%, and 1.42 mmol ± 0.29 of H2 (2.83 ± 0.589 mmol H2 per gCNx, 14.2 ± 2.95 µmol H2 per gCNx cm−2) from glucose SR with an AQY of 0.20% under air after 72 h (Fig. 3b), showing that this cost-effective and simple air-tolerant SR system could be successfully applied to large-scale operation.
Given that the high viscosity of the DES reaction medium leads to reduced O2 diffusivity and thereby enables the air-tolerant SR, we investigated the feasibility of employing viscous liquid waste directly as a substitute for the DES in order to broaden the applicability of the air-tolerant SR system. In other words, the viscous liquid waste can act directly as both the O2-protected reaction medium and the electron donor for SR instead of using ZnAce plus an additional solubilised waste substrate. Accordingly, Gly and EG were subjected to air-tolerant SR using glycerol
:
H2OKPi (6
:
4 v/v) and EG
:
H2OKPi (6
:

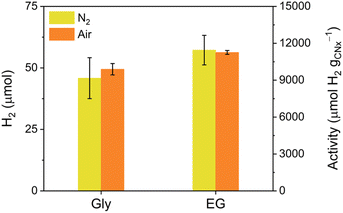

4 v/v) solutions, respectively (Fig. 4). In these air-tolerant SR systems, exceptional SR performance was achieved, exhibiting 9670 ± 1660 µmol H2 per gCNx under N2 and 9890 ± 460 µmol H2 per gCNx under air for Gly, and 11
400 ± 1200 µmol H2 per gCNx under N2 and 11
300 ± 158 µmol H2 per gCNx under air for EG. Hence, the viscous liquid wastes provided the electron donor for SR in very high concentration and also limited O2 diffusivity in the reaction mixture, thereby enabling efficient air-tolerant SR (Table S2). Moreover, Levich plot analysis based on the rotating disk electrode (RDE) voltammetry under O2-saturated conditions showed that the introduction of viscous liquids (ZnAce, EG, and Gly) effectively suppressed O2 mass transport rate with lowering ORR activity, resulting in sustained photocatalytic SR under aerobic conditions (Fig. S15, S16, Tables S3 and S4).
Beyond monomeric alcoholic waste substrates, polymeric viscous liquid wastes such as polypropylene glycol, polyethylene glycol, and honey were also tested as a reaction medium (Fig. S17). Although the SR activity was relatively low, likely due to the large and complex matrix of the substrate, air-tolerant SR was still achievable with direct use of the polymeric liquid wastes. As a control, methanol, a low-viscosity alcohol, was tested and showed negligible SR performance under air, confirming that high-viscosity liquids are critical to achieve air-tolerant SR.
Supplementary information (SI) is available. See DOI: https://doi.org/10.1039/d6sc01540a.
