Picolinate-based acyclic ligand for rare earth element extraction and separation

Abstract

The rare earth elements (REEs) play an important role in many modern technologies, particularly those relevant to clean energy. Despite their increasing importance, obtaining them in elementally pure forms suitable for downstream applications is challenging due to their similar chemical properties. This problem has impeded efforts to efficiently and selectively extract them from end-of-life materials and electronic waste. Here, we report a cost-efficient acyclic picolinate-based chelator H₄aapa. The REE stability constants (log K_ML) of this chelator were measured via pH potentiometric and UV-Visible spectrophotometric titrations, revealing it to preferably bind light over heavy REEs like many recently reported 18-membered macrocycles. Its REE complexes were characterized by X-ray crystallography and NMR spectroscopy, demonstrating that this chelator can attain different conformations. The unique properties of aapa were subsequently used to separate REEs via the dissolution of insoluble REE oxalate mixtures. This dissolution-based separation led to large separation factors, the most significant being that for the Ce³⁺/Lu³⁺ pair (38.6) at pH 4. Leveraging the strong REE binding affinity of aapa, we further demonstrated this chelator can leach REEs from authentic end-of-life materials in the form of magnet waste and autocatalyst smelting (autocat) slag. With this approach, exposure of these materials to a 20 mM solution of aapa at neutral pH generates a metal-containing solution enriched in Nd³⁺ and Dy³⁺ by 56.9 wt% and 3.0 wt%, marking a 4-fold improvement over the use of 4 M HNO₃.

---

Introduction

The unique electronic, magnetic, and physical properties of rare earth elements (REEs) make them essential components in over 200 commercial products, many of which are crucial for clean technologies.^1–6 With these REE-based products on the market across different industrial sectors, the demand for these critical minerals is projected to climb from 171 300 tons in 2022 to nearly 240 000 tons by 2030.⁷ For example, the global need for NdFeB magnets is expected to triple by 2035, while global production for neodymium (Nd) will only double over this same timeframe.^8,9 Likewise, other light REEs like lanthanum (La), cerium (Ce), and praseodymium (Pr) are also subject to shortages because of their use in battery electrodes, catalysts, and polishing.^10–12 To meet these growing demands, increasing mining and refining efforts is one option, but these processes come at significant environmental and health costs.^13–17 Alternatively, the implementation of recycling strategies to obtain these critical minerals from their end-of-life materials can contribute to a robust and sustainable supply chain.^18–20

Currently, hydrometallurgy is the state-of-the-art method to recover REEs from magnet and electronic waste (e-waste) compared to pyrometallurgy because of its lower energy demands, better efficacy at low temperatures, and scalability.^8,21 In this approach, REE-bearing e-waste are dissolved using strong acid lixiviants, like HNO₃, HCl, and H₂SO₄, to transform the insoluble REE-containing matrix into more soluble forms,^22,23 or by employing a concentrated (NH₄)₂SO₄ solution to form water soluble (NH₄)RE(SO₄)₂ salts.^24,25 These leachates are then subjected to chemical separations with either solvent extraction or ion exchange chromatography methods to obtain individual REEs. Despite their sufficient efficacy and cost-efficiency, these REE-leaching solutions suffer from some drawbacks. First, these strategies require large quantities of concentrated acid or aqueous (NH₄)₂SO₄ for the initial e-waste dissolution step, followed by the requirement of volatile organic solvents for large-scale solvent extraction separation. For example, 4 M HNO₃ or HCl and 0.5 M (NH₄)₂SO₄ are typically required, and their use generates acidic and ammonium-containing wastewater,^26–29 which are difficult and costly to remediate. Furthermore, these agents are not selective and leach other metals co-occurring in the matrix as well, reducing the purity of the leached REEs. Therefore, more efficient and environmentally friendly leaching and separation approaches are needed.

Greener and less energy-intensive bio-metallurgical strategies employ heterotrophic microorganisms to leach REEs into solution by biosynthesizing unique mixtures of organic acids, like gluconic, citric, and oxalic, from sugar-based carbon sources. Some engineered microorganisms like Gluconobacter oxydans, Acidithiobacillus thiooxidans, and Aspergillus niger have been successfully used to bioleach REEs from discarded LED lamps, spent automobile catalyst, and fluid cracking catalysts.^30–36 The success of these efforts has highlighted the growing interest in biologically inspired solutions for sustainable REE processing and have stimulated both academic and industrial efforts aimed at developing scalable bio-based REE recovery technologies. Although these bioleaching strategies provide a promising path forward for the clean dissolution of REEs from e-waste, they also often extract other metal ions at higher concentrations, requiring a subsequent separation process.

To increase the efficiency of e-waste leaching, organic chelators have been designed to strip REEs from their ores and secondary materials. For instance, the addition of the commonly used chelator ethylenediamine acetic acid (EDTA, 0.005 M) to a 0.2% (NH₄)₂SO₄ solution enabled the extraction of 90% of La from weathered crusts, achieving the same efficiency as a 2.0% (NH₄)₂SO₄ solution alone.³⁷ Similarly, 0.1 M ascorbic acid and acetic acid were able to leach 86% and 45% of REEs, respectively, from colloidal sediment phases.³⁸ Furthermore, gluconate and its metabolites (2-ketogluconate and 5-ketogluconate), which are the effective constituents in Gluconobacter oxydans for REE leaching, were also investigated as biolixiviants for extracting REEs from nickel–metal hydride (NiMH) batteries,³⁹ leading to a leaching yield of 56.1% at pH 3. These leaching approaches highlight how the use of chelators can accomplish efficient REE extraction from solid waste. An ideal chelator for this application should exhibit both strong affinity and excellent selectivity for REEs, compared to other metal ions present in such materials.

Chelators bearing picolinic groups have been intensively studied and applied for REE separations. For example, the large macrocyclic chelator macropa (Scheme 1), which has been extensively used in the nuclear medicine realm for actinium-225 targeted alpha therapy,^40,41 is also promising for REE chelation because of its good selectivity for large over small metal ions. For example, this chelator and its variants have been used for solvent extraction separations of REEs and actinides,^42–44 as well as within precipitation-based and resin-based separations to extract REEs in the presence of other small metal ions.^45,46 Additionally, macropa can rapidly dissolve barite due to its strong affinity for Ba²⁺, suggesting its use for leaching metal ions from solid materials.⁴⁷ Despite these promising applications, the macrocyclic nature of this chelator makes its large-scale synthesis challenging and costly, providing a potential limitation for its industrial use. Acyclic chelators, which tend to have more facile and high-yielding syntheses, have been investigated as alternatives by designing them to exhibit selectivity for large metal ions, like macropa. Most notably, the linear analogues of macropa, acyclopa and its amphiphilic version octadecyl acyclopa (ODA, Scheme 1), exhibit the same unique reverse-size selectivity properties of the parent chelator. Crystallographic and extended X-ray absorption spectroscopy (EXAFS) studies of the La³⁺ complexes of these two chelators show that they attain pseudo-cyclic structures that are nearly isostructural with those of macropa.^48,49 Another analogue H₂ampa (Scheme 1), which has two carboxamide pendent groups, may also be promising for REE extraction because of its ability to bind large metal ions like Pb²⁺, Bi³⁺, and La³⁺.⁵⁰ To optimize acyclic chelators like acyclopa, ODA and H₂ampa for REE leaching from end-of-life materials, more hydrophilic and stronger-donor end-cap groups may improve their properties for this application. This hypothesis is somewhat supported by related acyclic chelators that bear anionic picolinate groups. Octapa, for example, can form extremely stable complexes with lanthanides under mild condition.^51,52 The expansion of this acyclic chelator via the addition of a neutral oxygen donor into its backbone generates a ligand named oxyaapa or H₄noneunpa (Scheme 1).^53,54 which makes stable lanthanide complexes across the entire series.

Scheme 1 The chelators discussed in this study.

Inspired by the success of acyclopa for REE dissolution and leaching,⁴⁸ in this study we investigated a close structural analogue bearing anionic carboxylates in place of the neutral alcohol donors. This new chelator, called aapa, is also similar to related acyclic chelators octapa and oxyaapa, but contains an additional ether oxygen donor atom to afford a donor atom set similar to that of macropa. As shown here, the structural similarity of aapa to macropa confers it with a similar reverse-size selectivity for lanthanides, akin to the trends observed for acylcopa and ODA. Leveraging these properties, H₄aapa was investigated for its ability to separate REEs and extract them from relevant waste sources. This study demonstrates how acyclic chelators can be designed to mimic macrocycles and be leveraged effectively for green REE separations and leaching applications.

Results and discussion

Synthesis of H₄aapa

The chelator H₄aapa was targeted because it provides a similar donor atom set as macropa, while comprising an acyclic scaffold. Likewise, the investigation of H₄aapa was also motivated by the success of H₂ampa, which was shown to be an effective chelator for many large metal ions like Pb²⁺, Bi³⁺, and La³⁺,⁵⁰ and acyclopa, which can directly dissolve and separate REEs from REE(OH)₃ materials.⁴⁸ To access H₄aapa, it was synthesized from 2,2′-(ethane-1,2-diylbis(oxy))bis(ethan-1-amine) via a reductive amination of methyl 6-formylpicolinate to install the two picolinate methyl ester arms. The remaining secondary amines were subsequently functionalized with methyl 2-bromoacetate through an S_N2 reaction.^55–57 Finally, the esters on both the carboxylate and picolinate groups were removed under acidic conditions to afford H₄aapa with an overall yield of 47.0% (Scheme 2). This new chelator, as well as all of its synthetic intermediates, were characterized by NMR spectroscopy, elemental analysis (EA), and liquid chromatography-mass spectrometry (LC-MS, Fig. S1–S9, SI). This synthetic route is streamlined in comparison to those used to access related bis(picolinate)-bearing acyclic chelators, which used a less efficient sequential protection and deprotection of the amines to prevent overalkylation.^48–50 Additionally, H₄aapa is not a derivative of the expensive diaza-18-crown-6 macrocyclic precursor like analogues of macropa, and its synthesis is therefore more cost-effective. For example, we estimate the cost for 1 g macropa, based solely on chemical reagents and average yields for each reaction in our lab, to be $42.70, of which diaza-18-crown-6 contributes $35. By contrast, the reagent cost of aapa via this synthetic route is only $11.4 per g (Tables S1 and S2).

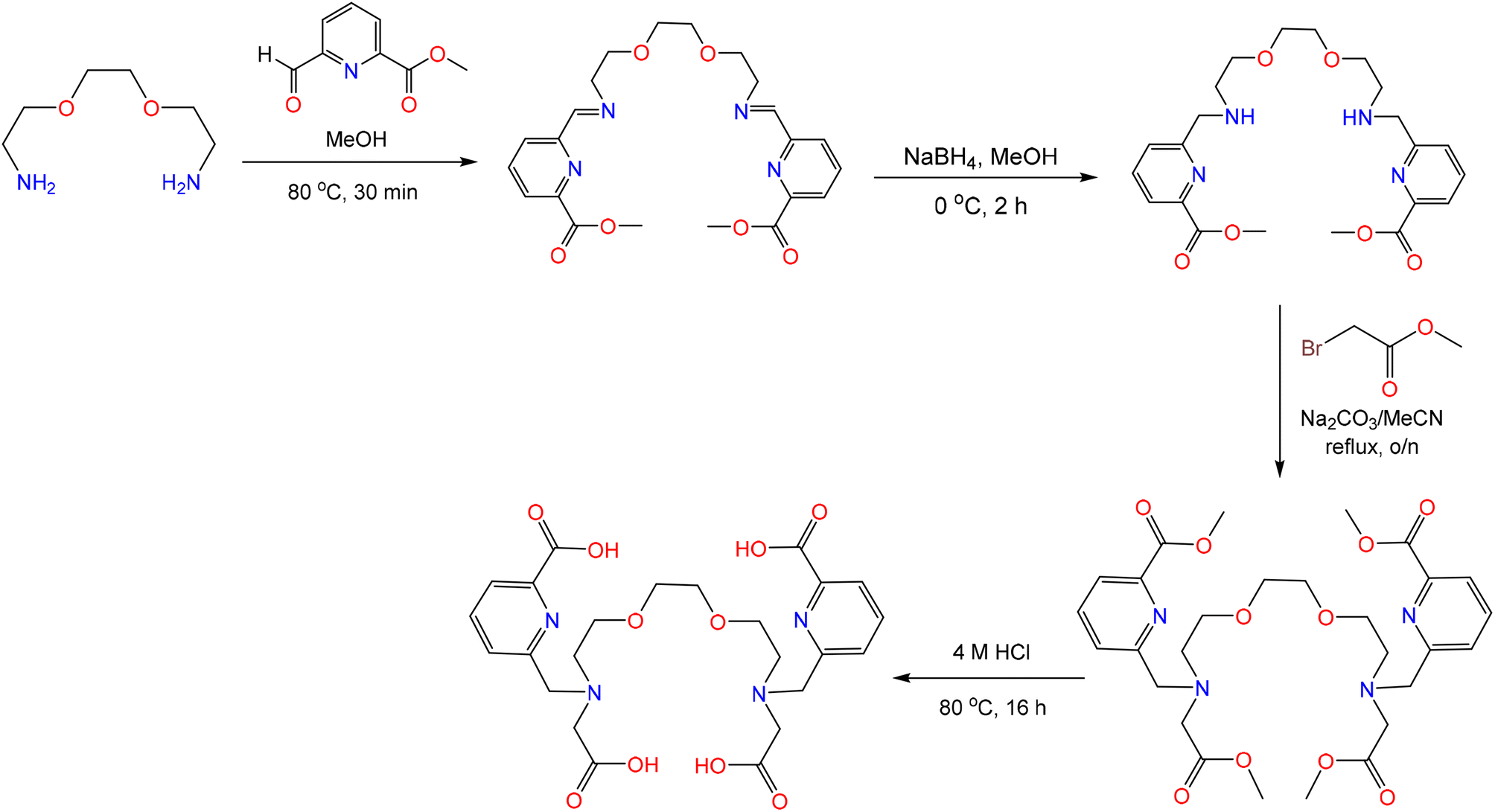

Scheme 2 Synthetic scheme of H₄aapa.

Solution characterization of the Ln³⁺ complexes of aapa

NMR spectroscopy (¹H, ¹³C{¹H}, 2D HSQC and HMBC), HPLC, LC-MS, and UV-Vis spectroscopy were carried out to investigate the coordination chemistry of aapa with REEs in solution. These studies focused on the largest and smallest lanthanide ions, La³⁺ and Lu³⁺, because they are diamagnetic, making them amenable for characterization by NMR spectroscopy and providing an opportunity to understand how aapa can differentially bind small and large REEs. The ¹H and ¹³C{¹H} NMR spectra of a 1 : 1 mixture of La³⁺ and aapa show the presence of two conformers in aqueous solution at pD 8 (Fig. S10 and S11, SI), and all resonances were assigned with 2D NMR spectroscopy using the numbering scheme shown in Fig. 1 and S10–S15. The integration of ¹H resonances of each conformation shows that they are present in a 1 : 3 ratio, with the major species lacking symmetry. This lack of symmetry is revealed by the appearance of two distinct sets of diastereotopically split CH₂ resonances of the picolinate arms (H-7 and H-8 in blue) and CH₂ resonances of the backbone carbon adjacent to the tertiary nitrogen (H-1 and H-6 in blue). By contrast, the minor species is symmetric, as reflected by the appearance of only one set of diastereotopic CH₂ resonances for each type of hydrogen (yellow labels). HPLC analysis of this mixture also reveals the presence of two species, characterized by peaks at retention times of 15.11 and 16.44 min, also at a ratio of 1 : 3 (Fig. S16, SI). The presence of conformers of different symmetries for La³⁺ complexes of related picolinate or picolinamide-based acyclic chelators has previously been observed.^50,54,58 Notably, the ¹H NMR spectrum of the La³⁺–aapa complex does not vary over the pD range of 4–10, indicating that the conformer equilibrium is not dependent on H⁺ concentrations (Fig. S17, SI). The mass spectrum of La³⁺–aapa only reveals one peak with an m/z = 670.9 (Fig. S18, SI), which matches the expected m/z value for [La(H₂aapa)]⁺. The observation of a single peak with the expected mass for the 1 : 1 ligand : metal complex by mass spectrometry supports our interpretation that the two species detected by NMR spectroscopy are conformers of the same complex.

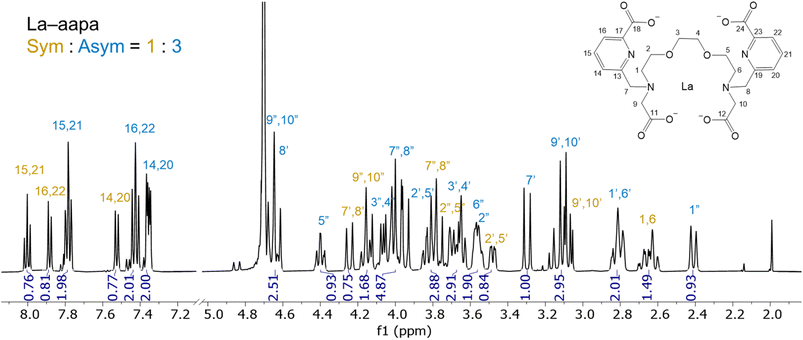

Fig. 1 ¹H NMR spectrum of the aapa complex formed with La³⁺ at a 1 : 1 ratio (500 MHz, D₂O, pD = 8, 25 °C). Resonances are assigned via the numbering scheme shown in the inset. The major conformer, labeled with blue numbers, is asymmetric, whereas the minor conformer, labeled with yellow numbers is symmetric. The peak at 4.70 ppm is from D₂O. Acetoitrile, apparent as a singlet at 2.00 ppm, was added as an internal reference.

The formation of the Lu³⁺ complex of aapa was afforded from a 1 : 1 mixture of the metal ion and ligand at pD 8. In contrast to that of the La³⁺–aapa complex, the ¹H NMR spectrum of the Lu³⁺ complex at room temperature revealed very broad resonances, possibly signifying fluxionality or conformational dynamics (Fig. S19, SI). The formation of the Lu³⁺–aapa complex was further confirmed by mass spectrometry, revealing a peak at m/z = 706.9 that matches the [Lu(H₂aapa)]⁺ ion (Fig. S20, SI), and by analytical HPLC, which showed a single peak with a retention time at 14.83 min, distinct from the free ligand (Fig. S21, SI). Under more acidic conditions, however, aapa cannot bind Lu³⁺ appreciably. For example, the ¹H NMR spectra of 1 : 1 solutions of Lu³⁺ and aapa at pD 2 reveal that no Lu³⁺–aapa complex forms (Fig. S19, SI), contrasting the ¹H NMR spectra for the 1 : 1: solution of La³⁺ and aapa, where partial complexation occurs at this pD value (Fig. S17, SI). These results suggest that aapa binds more strongly and stably to the light large La³⁺ over the heavy small Lu³⁺ ion, matching the properties observed for diaza 18-crown-6 macrocyclic chelators like macropa and its analogues. Lastly, the UV-Vis spectrum of the Lu³⁺ complex is red-shifted (λ_max = 269 nm) compared to the free ligand (λ_max = 265 nm). This shift is identical to that seen for the La³⁺ complex (Fig. S22, SI). Collectively, these data indicate that the acyclic aapa can form complexes with both large and small Ln³⁺ under mild conditions, while also retaining a reverse-size selectivity for light over heavy lanthanides like macropa.

X-ray crystallographic studies

Despite extensive efforts to obtain X-ray quality crystals of multiple different Ln³⁺ ions, we were only successful in accessing those of the La³⁺–aapa complex, which were grown from a mixture of La³⁺ and aapa in methanol via slow evaporation. The crystal structure is shown in Fig. 2, and its crystallographic data collection and refinement parameters are listed in Tables S3 and S4, SI. Within the asymmetric unit, two La³⁺–aapa complexes are present, and both complexes reside on crystallographic C₂ axes, conferring them with this symmetry. An analysis of the C–O distances on the picolinate groups, intermolecular hydrogen-bonding interactions, and residual electron density on the difference Fourier map led us to assign these two complexes in the asymmetric unit to be the doubly protonated cationic [La(H₂aapa)]⁺ and the fully deprotonated anionic [La(aapa)]⁻. Their existence in a 1 : 1 ratio leads to charge balance within the crystal. Within both the cation [La(H₂aapa)]⁺ and the anion [La(aapa)]⁻, the La³⁺ centers attain a 10-coordinate geometry, afforded by close interactions with all of the donor atoms available on the aapa ligand. Furthermore, the conformations attained by both ions are identical, with the two picolinate arms binding on opposite faces of the La³⁺ coordination sphere, as enforced by the crystallographic C₂ axes. The respective symmetries of these solid-state complexes are consistent with the symmetric minor conformation observed by ¹H NMR spectroscopy. Thus, even though there is a slight preference for the asymmetric conformer in solution, as revealed by NMR spectroscopy, the energy difference between these conformers is small enough to be influenced by solid-state packing interactions, which lead to crystallization of the less favored conformation. The La–N distances from the picolinate groups range from 2.737 to 2.739 Å, whereas the La–N distances from the backbone are longer, falling between 2.780 to 2.798 Å (Table S4). These distances do not vary substantially between the anion and cation within the structure. For the La–O picolinate distances, however, these values are larger (2.619 Å) for the protonated cationic species, compared to those within the anion (2.534 Å). This result is expected given the decrease electrostatic interaction afforded once the picolinate groups are protonated.

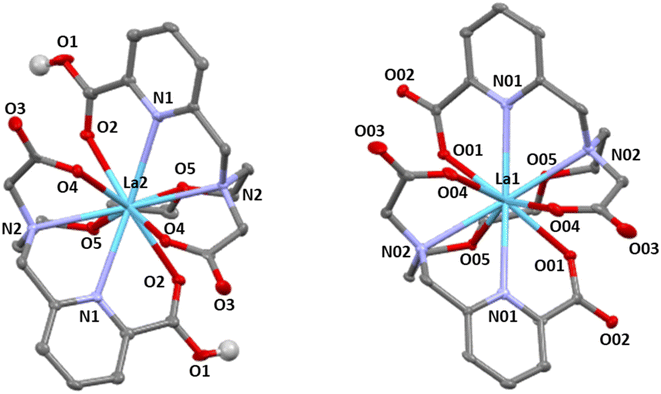

Fig. 2 Structures of [La(H₂aapa)]⁺ (left) and [La(aapa)]⁻ (right) with thermal ellipsoids drawn at the 50% probability level. Counteranions, nonacidic hydrogen atoms, and outer-sphere solvent molecules are omitted for clarity. Grey = C, blue = N, red = O, teal = La, and white = H.

Overall, the La³⁺–aapa complex geometries are similar to those observed in the crystal structure of the Bi³⁺ complex of the carboxamide analogue ampa.⁵⁰ However, the conformation is substantially different from those of the La³⁺–ODA_me, and La³⁺–acyclopa complexes, where two picolinate arms binding to the same face of La³⁺ like macropa,^48,49 and the DFT-optimized structure of the La³⁺–ampa, which reveal a 9-coordinate geometry that arises from a lack of coordination of one of the carboxamide.⁵⁰ We note, however, that the crystal structure of La³⁺–aapa does not represent the major species in solution, which is asymmetric. The major conformer in solution may more closely match those of the macropa and acyclopa complexes of La³⁺, where the picolinate arms bind with a syn orientation and lose their symmetry equivalence. Thus, like macropa, acylcopa and aapa may be able to attain a conformation that exhibits reverse-size selectivity.

Solution thermodynamics

To determine the quantitative binding affinity of H₄aapa for the lanthanide (Ln) series, the protonation constants (K_i) and stability constants of aapa with the Ln series (K_LnL) were measured by potentiometric titrations over a pH range of 2.2–11.3 (Fig. S23–S36). The stability constants of the light lanthanides (La³⁺–Nd³⁺) were also verified with UV-Vis titrations over the more acidic pH range of 1.28–2.22 (Fig. S37–S40). The constants K_i and K_LnL, which are defined in eqn (S1) and (S2), are summarized in Fig. 3 and Table 1. The log K_i and log K_LnL of the related chelators oxyaapa, octapa, and macropa are also provided for comparison. Similar to the acyclic oxyaapa and octapa, five protonation constants could be determined for aapa. These constants most likely correspond to the successive protonation of two tertiary nitrogen atoms (log K_a1 = 8.53 and log K_a2 = 7.48), two picolinate nitrogen atoms (log K_a3 = 3.70 and log K_a4 = 2.78), and one acetate donor (log K_a5 = 2.20). The sum of these five log K_i values, which corresponds to the overall basicity of the chelator, is 24.69, comparable to those for oxyaapa (24.52) and octapa (22.2). This result indicates that the additional ether oxygen atom within the linear backbone of this chelator does not appreciably affect their basicity.

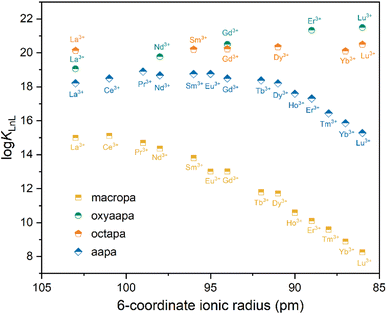

Fig. 3 The Ln³⁺ stability constants (log K_LnL) of aapa, oxyaapa, octapa, and macropa, versus ionic radii (CN = 6).

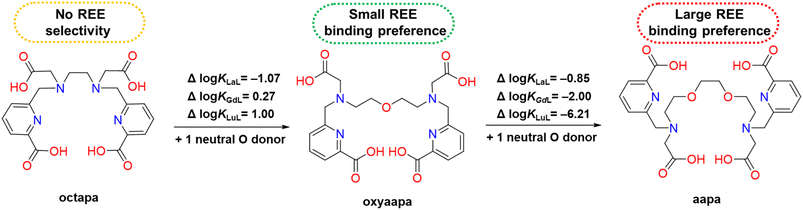

Fig. 4 The effect of the additional neutral oxygen donor atom on Ln³⁺ complex stability and selectivity.

Table 1 Protonation constants of aapa, oxyaapa, octapa, and macropa and stability constants of their Ln³⁺ complexes

		Aapa		Oxyaapa^c	Octapa	Macropa^e
a 0.1 M KCl, results obtained from potentiometric titration (pH 2.2–11.3), this work.b 0.1 M KCl, results obtained from UV-vis titration (pH 1.28–2.22), this work. The values in the parentheses are one standard deviation of the last significant figure.c 0.1 M KCl, ref. 54.d 0.15 M NaCl, ref. 52.e 0.16 M KCl, ref. 60f 0.1 M KCl, ref. 61.g pLn = −log[Ln^3+]free. Calculated for 10 µM total ligand and 1 µM total metal at pH 7.4 and 25 °C.
pKa1		8.53(5)^a		8.47	8.52^d, 8.58^e	7.41
pKa2		7.48(5)^a		7.63	5.40^d, 5.43^e	6.85
pKa3		3.70(8)^a		3.66	3.65^d, 3.75^e	3.32
pKa4		2.78(1)^a		2.99	2.97^d, 3.05^e	2.36
pKa5		2.20(3)^a		1.77	1.66^d, 2.21^e	1.69
Ln^3+	pLn^g	log KLnL	log KLnHL	log KLnL	log KLnL	log KLnL	log KLnHL
La^3+	19.2	18.21(7)^a	2.63(5)^a	19.06	20.13^d	14.99	2.28
		18.69(4)^b	2.13(5)^b
Ce^3+	19.1	18.50(8)^a	2.27(6)^a			15.11	2.07
		18.63(6)^b	2.10(3)^b
Pr^3+	19.9	18.90(8)^a	2.56(5)^a			14.70	2.96
		19.55(4)^b	2.04(5)^b
Nd^3+	19.7	18.68(6)^a	2.32(3)^a	19.77		14.36	2.08
		18.98(2)^b	1.97(4)^b
Sm^3+	19.8	18.75(10)^a	3.00(8)^a		20.20^e	13.80	2.70
Eu^3+	19.8	18.76(6)^a	2.49(3)^a			13.01	1.97
Gd^3+	19.5	18.50(9)^a	2.23(5)^a	20.50	20.23^d	13.02	2.48
Tb^3+	19.4	18.38(5)^a	2.36(6)^a			11.79	2.91
Dy^3+	19.2	18.21(5)^a	2.45(3)^a		20.35^e	11.72	2.42
Ho^3+	18.6	17.60(3)^a	2.58(2)^a			10.59
Er^3+	18.3	17.31(3)^a	2.67(5)^a	21.33		10.10
Tm^3+	17.4	16.44(5)^a	2.95(2)^a			9.59
Yb^3+	16.9	15.86(2)^a	2.98(2)^a		20.10^e	8.89
Lu^3+	16.3	15.28(4)^a	3.47(2)^a	21.49	20.49^d	8.25

---

The log K_LnL values for aapa shows that this chelator has a preference for binding large over small REEs. This result is consistent with the ¹H NMR data described above, which showed the failure of Lu³⁺ complex formation at pH values that led to La³⁺ complexation. Notably, the size preference of aapa is distinct from those of oxyaapa and octapa. The greater number of oxygen donor atoms on aapa can more stably accommodate the larger light and middle REEs, as indicated by the greater stability constants (log K_LnL > 18) for the La³⁺–Dy³⁺ complexes compared to those of Ho³⁺–Lu³⁺ (log K_LnL = 17.60–15.28). In particular, the high stability of the La³⁺–Nd³⁺ complexes required the use of low pH UV-Vis titrations to confirm the log K_LnL values (Table 1). The titration data was best fit by including an equilibrium for the protonated MHL species (Table 1). This type of species is consistent with the X-ray crystal structure, which shows that [La(aapa)]⁻ can exist in a protonated form. In comparing the Ln³⁺ stability constant trend between these three acyclic chelators, the reverse-size selectivity of aapa is driven by a decrease in affinity for heavy REEs compared to light REEs. For example, the Δlog K_LaL between oxyaapa and aapa is −0.85, whereas the Δlog K_LuL between oxyaapa and aapa is −6.21 (Fig. 4). By contrast, the Δlog K_LnL between octapa and oxyaapa are generally much smaller, as reflected by values of −1.07 for La³⁺, 0.27 for Gd³⁺, and 1.00 for Lu³⁺. Moreover, a 3.22 log unit difference between the largest log K_PrL (18.90) and smallest log K_LuL (15.28) for aapa is more significant than those for oxyaapa (2.43) and octapa (only 0.36). The larger difference in log K_LnL values for aapa indicates that it is a more promising candidate for REE separations, compared to oxyaapa and octapa. In addition, the increased selectivity of aapa for large metal ions is consistent with established chelator design principles that suggest the inclusion of additional neutral oxygen donor atoms leads to this type of metal-binding preference (Fig. 4).⁵⁹

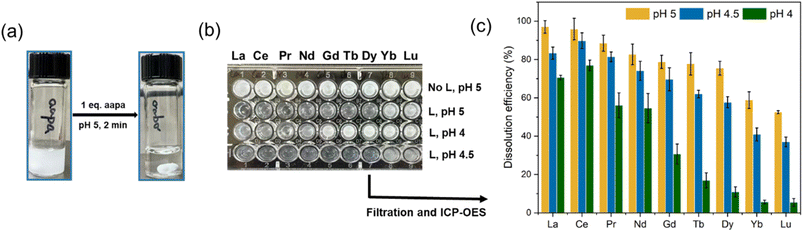

Fig. 5 REE oxalate dissolution using aapa. (a) La₂(C₂O₄)₃ was fully dissolved by aapa in 2 minutes at pH 5. (b) Photograph of dissolution of single REE₂(C₂O₄)₃ and (c) dissolution efficiencies of REE₂(C₂O₄)₃ in the presence of aapa at different pH values. Conditions: [REE³⁺] = 5 mM, [C₂O₄²⁻] = 15 mM, [aapa] = 5 mM; buffer: 100 mM ammonium acetate; t = 1.5 h.

In comparison to macropa and acyclopa, aapa exhibits systematically larger Ln³⁺-binding affinities (log K_LnL = 18.90–15.23 for aapa, log K_LnL = 14.99–8.25 for macropa, and log K_LnL are in a range of 14–9 for acyclopa respectively).^48,61 Additionally, aapa provides uniformly strong binding for early Ln³⁺ (La³⁺–Dy³⁺), whereas macropa has stability constants for these metal ions that decrease steadily across the series by ∼3 log K units. For the small Ln³⁺ ions (Dy³⁺–Lu³⁺), the stability constants of the aapa complexes decrease gradually by 2.93 log K units, which is comparable to the 3.47 and ∼3 log K unit decrease observed for the macropa and acyclopa complexes over the same range. Following the trends based on the higher affinity of aapa for larger REEs, this chelator is also expected to only weakly bind smaller non-REE metal ions like Fe³⁺, and Ca²⁺, which are present within common end-of-life REE materials. This type of selectivity was observed for BZmacropa, which enabled its use for enriching REEs from complex mixtures containing multiple metal ion types.^45,62 To further evaluate the selectivity of aapa for REEs over non-REE metals, we investigated its coordination chemistry Fe³⁺ and Cu²⁺, two of the most common contaminants in end-of-life materials. Mass spectrometry showed that aapa forms primarily a 2 : 1 M : L complex with Cu²⁺, whereas Fe³⁺ forms a 1 : 1 complex (Fig. S41 and S42). Potentiometric titrations were carried out, and the equilibria were modeled based on the stoichiometry observations from mass spectrometry. From these data, the pM values of these two metal ions and Ln³⁺ under standard conditions (10 µM total ligand and 1 µM total metal at pH 7.4 and 25 °C) were calculated to provide a direct comparison of conditional affinity of these ligands (Tables 1 and S5). The results show that pM values for the Ln³⁺ range from 16.3 (Lu³⁺) to 19.9 (Pr³⁺), whereas the non-REE metals exhibit substantially lower pM values (Fe³⁺: 12.75; Cu²⁺: 6.3), indicating that the ligand preferentially sequesters REEs over these competing ions. Overall, the difference between and overall larger stability constants for the Ln³⁺ ions makes aapa advantageous for applications in both REE extraction and separation.

Selective dissolution of REE oxalates

In a typical hydrometallurgical approach, REEs are recovered in the form of insoluble oxalate salts from the strongly acidic leachate solutions. This method is specifically efficient for REE extraction from Fe-containing matrix because Fe(C₂O₄)₃³⁻ is water soluble.^45,63,64 Although this precipitation strategy can remove non-REE ions reasonably well, the oxalate salts are obtained a mixture of the different REEs. Given both the binding affinity and selectivity of aapa for large REEs, we investigated whether this chelator could be used to simultaneously extract and separate REEs from solid REE oxalate mixtures. Because light REE oxalates have a larger thermodynamic stability (log K values of Ln₂(C₂O₄)₃ for La³⁺–Lu³⁺ increase from 4.5 to 5.3) but poorer solubility than heavy REE oxalates (K_sp values decrease from 10⁻²⁹ to 10⁻³²),^64,65 we hypothesized that aapa, which more strongly binds to more soluble light REE oxalates, could achieve effective dissolution-based separations of these elements.

First, the ability of aapa to dissolve pure individual REE oxalates at different pH values was investigated. Nine different solid REE₂(C₂O₄)₃ salts were prepared in ammonium acetate buffer by combining solutions of LnCl₃ (final concentration 5 mM) and excess ammonium oxalate (final concentration 15 mM) for 30 min. The precipitation efficiencies (E%), calculated based on eqn (S3), from this process were determined by measuring the remaining Ln³⁺ concentration in solution by inductively coupled plasma optical emission spectroscopy (ICP-OES) after removal of the solid REE₂(C₂O₄)₃ by filtration, as summarized in Tables S6, S7, Fig. 5, and S45. The REE concentration remaining in solution was below the detection limit, reflecting near-quantitative precipitation of the metal ions with oxalate at pH 5. Once these solids were formed, they were subsequently treated with 1 equiv. of aapa (5 mM) for 1.5 h at pH 5 to determine its dissolution efficacy. Under these conditions, aapa could dissolve nearly 100% of La₂(C₂O₄)₃ and Ce₂(C₂O₄)₃ (Fig. 5b, c and S41), highlighting its strong binding affinity for light REEs. Notably, La₂(C₂O₄)₃ can be fully dissolved by aapa in 2 minutes with stirring (Fig. 5a), underscoring the rapid dissolution kinetics achieved by aapa. In comparison, only 58.8% Yb₂(C₂O₄)₃ and 52% Lu₂(C₂O₄)₃ were solubilized by aapa under identical conditions (Fig. 5c). The large differences in dissolution efficiency of aapa for the light and heavy REEs is not entirely expected based on the relatively small differences in stability constants between these metal ions. However, the large dissolution efficiency differences are also a result of the poorer affinity of the light REEs for oxalate, which enables aapa to more easily bring these species back into solution via chelation.^65–67 Notably, the difference in dissolution efficiencies between light and heavy REEs can be enhanced significantly at lower pH values (Fig. 5c). At pH 4.5, aapa can dissolve 89.7% Ce₂(C₂O₄)₃, but only 57.7% Dy₂(C₂O₄)₃ and 37.0% Lu₂(C₂O₄)₃. At pH 4, the differences in dissolution efficiency between the light Ce³⁺ and the heavy Dy³⁺ and Lu³⁺ reached 66.0% and 71.6%, respectively.

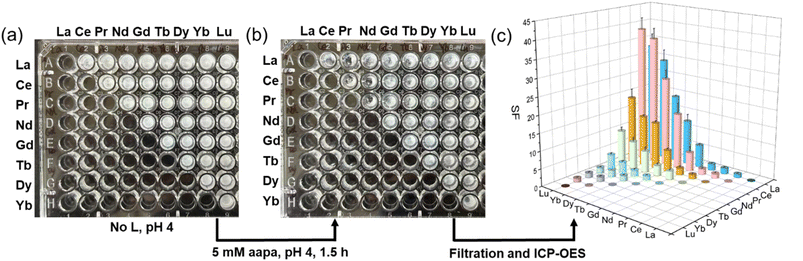

Fig. 6 The selective dissolution of REE oxalates using aapa within 96-well plate. (a) A photograph of REE₂(C₂O₄)₃ binary mixtures in the 96-well plate. (b) A photograph of the REE₂(C₂O₄)₃ binary mixtures after being mixed with aapa for 1.5 h. (c) The SF values of selective dissolution separation using aapa. Condition: [REE1] = [REE2] = 2.5 mM, [C₂O₄²⁻] = 15 mM; [aapa] = 5 mM. pH 4. Buffer: 100 mM ammonium acetate; t = 1.5 h.

Because aapa afforded the largest differences within the dissolution of the Ln₂(C₂O₄)₃ solids at pH 4, this pH was selected for subsequent separation experiments. A total of 36 binary Ln₂(C₂O₄)₃ mixtures were prepared and then contacted with aapa (Fig. 6a and b), following the procedures used for the single-element oxalate salts. The metal concentrations remaining the solution were measured by ICP-OES, and based on these data the separation factors (SFs), which quantify the extent of REE separation, were calculated with eqn (S4) and are summarized in Tables S8 and S9. The SF values increase as the difference in ionic radii between the REEs gets larger. The highest SF of 38.7 was achieved for the Ce³⁺/Lu³⁺ pair, followed by 33.1 for La³⁺/Lu³⁺ and 26.6 for Ce³⁺/Yb³⁺ (Fig. 6c). These binary REE separation data are consistent with the single Ln₂(C₂O₄)₃ dissolution experiments and provide a promising strategy for direct dissolution-based REE separations. Although these SFs are somewhat smaller than might be expected based on relative log K value, the experimentally observed SFs reflects the combined effects of metal–ligand complexation, precipitation–dissolution equilibria, and the specific experimental conditions employed. Consequently, further optimization of separation conditions could potentially improve the observed SFs. The chelator acyclopa was also used for dissolution-based separations of La³⁺ and Y³⁺ from insoluble REE(OH)₃. With acyclopa, SFs for these two metal ions up to 295 could be obtained, albeit with higher loading concentrations of insoluble REE(OH)₃ mixtures at pH 9.⁴⁸

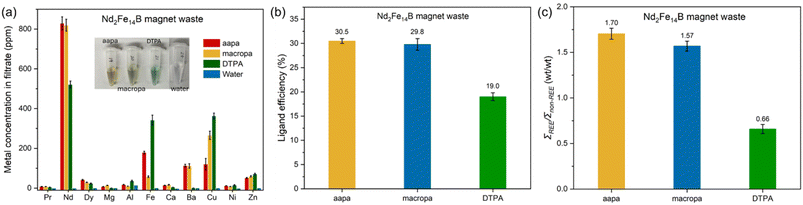

Fig. 7 REE leaching from waste magnet using different chelators. (a) Metal concentration in the filtrate of magnet waste leaching; (b) ligand efficiency of REEs for magnet waste; (c) weight ratio of REE to non-REEs in the filtrate of magnet waste leaching. Conditions: 20 mg magnet waste. 1 mL chelator solution (20 mM); buffer: 100 mM MOPS solution (pH 7.4); t = 24 h, rotated at 40 rpm.

REE-selective extraction from magnet waste and autocatalyst smelting slag

Building upon the ability of aapa to dissolve REE₂(C₂O₄)₃ solids, we investigated its use for selectively leaching REEs from Nd₂Fe₁₄B magnet waste and autocatalyst smelting slag (autocat slag). The Nd₂Fe₁₄B magnet waste was acquired from a computer hard drive that was ground and separated into 30-mesh (0.595 mm) particle size. These leaching experiments were performed at pH 7.4, buffered by 100 mM 3-(morpholin-4-yl)propane-1-sulfonic acid (MOPS), and studied in comparison to diethylenetriaminepentaacetic acid (DTPA) and macropa. Buffered water was used as a leaching control. After contacting the solid waste materials for 24 h with continuous mixing via end-over-end rotation at 40 rpm, the solid was removed by filtration, and the metal concentration in the filtrate was determined by ICP-OES. From these data, dissolution efficacy was calculated via the ligand efficiency parameter shown in eqn (1):where [REE_exp] is the molar concentration of REEs measured in the filtrate, and [REE_max] is the maximum molar concentration of REE that can be chelated by each ligand, calculated from the concentration of each ligand in the solution and assuming a 1 : 1 M : L binding model. For the Nd₂Fe₁₄B waste, a pulp density of 20 g L⁻¹ was employed. As shown in Fig. 7a, Tables S10 and S11, 1 mL of buffered water does not extract any metals from the Nd₂Fe₁₄B magnet waste at neutral pH. By contrast, the addition of 20 µmol (20 mM × 1 mL) aapa or macropa to the magnet waste leads to efficient dissolution of the REEs. This effect is most pronounced for Nd³⁺, the REE of highest abundance in these materials. Under this condition, the use of aapa and macropa gives leachates containing 828 ppm and 819 ppm Nd³⁺, corresponding to ligand efficiencies of 28.9% and 28.6% (Fig. 7a), respectively. Both of these chelators are more effective than DTPA, which gives rise to a leachate containing 521 ppm Nd³⁺ corresponding to a ligand efficiency of 18.1%. Moreover, both aapa and macropa achieved superior leaching of Dy³⁺ and Pr³⁺ compared to DTPA, even though DTPA complexes of these REEs have larger log K values than those of aapa and macropa,⁶⁸ as reflected by overall ligand efficiencies for REEs of 30.5%, 29.8%, and 19.1% for aapa, macropa, and DTPA, respectively (Fig. 7b). The poorer performance of DTPA can potentially be explained by the less selective metal-binding properties of this chelator. For example, DTPA also extracts large quantities of transition metals (342 ppm Fe³⁺ and 363 ppm Cu²⁺) into the solution. These values are 2–6 times larger than those extracted by aapa (179 ppm Fe³⁺ and 120 ppm Cu²⁺) and macropa (58 ppm Fe³⁺ and 265 ppm Cu²⁺). The difference in metal composition of the leachate obtained from these different chelators could be easily recognized from their colors (insert of Fig. 7a), as complexes of Cu²⁺ and Fe³⁺ give characteristic blue and yellow solutions. The selectivity of these ligands for REEs over non-REEs was calculated by determining the weight concentration ratio between the total quantity of REEs (∑_REEs) and total quantity of non-REEs (∑_non-REEs) in the filtrates (Fig. 7c). The chelator aapa shows the highest selectivity for REEs with a ∑_REEs/∑_non-REEs ratio of 1.70, somewhat larger than the 1.57 value obtained for macropa. The larger transition metal-leaching ability of DTPA is characterized by a poorer selectivity ratio of only 0.66. Next, the rate of dissolution of Nd³⁺ and Dy³⁺ from magnet waste by these chelators were investigated over a 0.5–24 h timescale (Fig. S46, SI). Faster Nd³⁺-leaching kinetics are observed for aapa and macropa compared to DTPA. Furthermore, even though aapa and macropa have a similar Nd³⁺-dissolution performance after 24 h, aapa dissolves Nd³⁺ much faster, achieving soluble concentrations of this metal ion of 730 ppm after only 4 h (Fig. S46a, SI). By contrast, macropa requires 16 h to dissolve Nd³⁺ to the same extent (774 ppm). The faster leaching properties of aapa are also apparent for Dy³⁺, as this chelator exhibits the fastest rates for dissolution of this metal ion from magnet waste throughout the entire leaching process (Fig. S46b, SI).

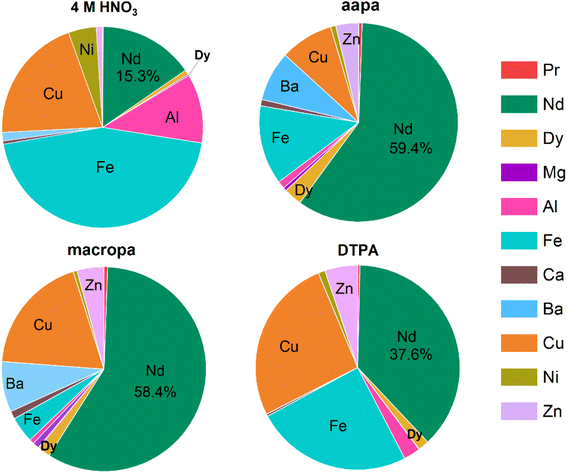

Fig. 8 Metal weight percentages of different magnet waste leachates using different ligands.

To evaluate the REE-selective dissolution of aapa and macropa, they were compared to the most commonly used lixiviant 4 M HNO₃. As shown in Tables S10 and S11 (SI), 4 M HNO₃ extracts both Nd³⁺ (2132.4 ppm) and Dy³⁺ (107.5 ppm), 2.6 times more effectively than aapa. However, this increased dissolution efficacy also leads to poorer REE selectively, leaching 89-, 35-, 5-, 23-, 53-, and 3-fold higher levels of Al³⁺, Fe³⁺, Ca²⁺, Cu²⁺, Ni²⁺ and Zn²⁺, respectively, than that of 20 mM aapa. Consequently, the REE weight percentage of the resulting HNO₃ leachate is very low. As shown in Fig. 8, this HNO₃ leachate contains only 15.6% Nd³⁺, 0.1% Pr³⁺, and 0.8% Dy³⁺, with larger weight percentages of Fe³⁺ (44.8%) and Cu²⁺ (20.3%). By contrast, the Nd³⁺ and Dy³⁺ content in the aapa and macropa leachate range between 58.4–59.4% and 2.1–3%, respectively, and the Fe³⁺ and Cu²⁺ weight percentages are only 19.9–4.1% and 8.7–19.0%, respectively. For comparison, 20 mM DTPA exhibits moderate selectivity for REEs, leading to a leachate that contains 37.6% Nd³⁺ and 1.7% Dy³⁺, but also with 26.2% Cu²⁺. Collectively, these leaching results demonstrate that aapa enables the most efficient and selective recovery of Nd³⁺, Dy³⁺, and Pr³⁺ from Nd₂Fe₁₄B magnet waste under neutral aqueous conditions, performing better than the macrocycle macropa, the conventional chelator DTPA, and 4 M HNO₃.

Similar leaching experiments were conducted with autocat slag. Compared to the Nd₂Fe₁₄B magnet waste, the relative amounts of main group and transition metals are hundreds of times larger than those of REEs within the autocat slag,⁴⁵ making selective REE leaching a more challenging process. First, the effects of the pulp density of the autocat slag on its chelator-assisted dissolution was studied (Tables S12, S13 and Fig. S47, SI). At larger pulp densities, both aapa and macropa were more effective at dissolving the REEs. For example, at a pulp density of 10 g L⁻¹, aapa and macropa led to soluble Ce³⁺ concentrations of 12.4 and 2.36 ppm, respectively, whereas at a pulp density of 50 g L⁻¹, these soluble concentrations increased to 28.4 and 10.2 ppm, respectively. Although higher pulp densities appear to lead to more efficient dissolution, the maximum practical pulp density used in these studies was 50 g L⁻¹, due to challenges arising from the mechanical mixture of higher pulp density suspensions. For direct comparison, all subsequent studies with aapa, macropa, DTPA, and buffered water used a pulp density of 50 g L⁻¹ (Tables S14 and S15, SI). As expected, pH 7.4 buffered water is unable to leach any metals from the autocat slag (Fig. S48a, SI). Remarkably, aapa solubilizes more REEs from autocat slag than macropa, yielding a leachate containing 3.76 ppm La³⁺, 28.4 ppm Ce³⁺, 0.92 ppm Pr³⁺, and 2.25 ppm Nd³⁺ that corresponds to an overall ligand efficiency of 1.26% (Fig. S48b, SI). In comparison, the concentration of these REEs solubilized by macropa were 1.62, 10.2, 0.26, and 0.83 ppm, respectively, which corresponds to only ∼30% of the REE content that can be dissolved by aapa (Fig. S48b, SI). These results indicate that aapa is more effective than macropa in leaching REEs from autocat slag, presumably due to its higher binding affinities for these elements. Under the same condition, DTPA extracted more Ce³⁺ (33.0 ppm vs. 28.4 ppm) and La³⁺ (4.8 ppm vs. 3.8 ppm) than aapa and gave a higher ligand efficiency of 1.67% (Fig. S48b, SI). However, this chelator also dissolved nearly two times as much Ca²⁺ (125 vs. 78 ppm) and more than twice as much Fe³⁺ (50 vs. 21.2 ppm) than aapa, which can be recognized from the color of chelate in insert of Fig. S48a, resulting in a slightly lower ∑_REEs/∑_non-REEs (0.23%) than that of aapa (0.25%, Fig. S48c, SI). Moreover, aapa and DTPA have similar kinetics for autocat slag leaching, as both reach equilibrium at 4 h. By comparison, macropa leaching is slower; it doesn't reach equilibrium until 24 h (Fig. S49, SI). However, the leaching efficiencies of those three chelators for autocat slag (2–3% of 4 M HNO₃ REEs leaching) is much lower than that for magnet waste (∼40% of 4 M HNO₃ REEs leaching), demonstrating that the composition of the secondary REEs materials is also an important factor for REEs leaching employing chelators.

Conclusion

Inspired by recent efforts to make acyclic versions of macropa, like acyclopa and ODA, we developed and evaluated a cost-efficient acyclic ligand, H₄aapa, for its abilities to chelate REEs from solid waste. This ligand has a high binding affinity for REEs, as marked by log K_LnL values that range from 18.95–15.28. Furthermore, it retains a preference for light over heavy REEs. These properties enable aapa to achieve a direct dissolution-based REE separation via its action on REE oxalate mixtures. The subsequent application of aapa for use in authentic magnet waste, as well as autocat slag, also reveals its potential for enhanced REE solubilization and enrichment, especially compared to a conventional chelator like DTPA and a strong acid, like HNO₃, which exhibit poor selectivity. Collectively, these studies highlight how chelator design efforts can be applied for the direct leaching of REEs from end-of-life materials. However, further efforts are needed to optimize and improve the overall selectivity of these chelators to achieve both higher leaching efficiency as well as REE selectivity.

Author contributions

Y. Gao designed and conducted experimental data and wrote the paper. A. M. Schmitz and S. Medin provided research materials and designed and aided in interpretation of the autocat slag experiments. J. J. Wilson conceived and supervised the project and wrote the paper.

Conflicts of interest

Alexa M. Schmitz and Sean Medin declare a financial interest in the company REEgen, Inc. which is exploring biological-based REE extraction technologies partially related to this research.

Data availability

CCDC 2528345 ([La(aapa)][La(H₂aapa)]) contains the supplementary crystallographic data for this paper.⁶⁹

Data to support the conclusions in this paper are available in the main text or the supplementary information (SI). Supplementary information: syntheses, potentiometric titrations, UV-vis titrations, NMR spectroscopy studies, X-ray crystallography studies, REE oxalate separation and REE waste leaching studies. See DOI: https://doi.org/10.1039/d6sc00975a.

Acknowledgements

This material is based upon work supported by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences under award number DE-SC0025792 and work supported by the U.S. National Science Foundation, Directorate of Technology, Innovation and Partnerships under Award No. 2527909. The hard drive magnet waste powder was provided by Dr Erik Spiller and Dr Brandon Ott at Colorado School of Mines by way of Dr David Reed at Idaho National Lab, and the autocat slag was provided by REEgen, Inc.
