Pyridine is a privileged scaffold in pharmaceuticals, and selective C2-alkylation, particularly methylation, represents a valuable strategy to fine-tune drug-like properties such as metabolic stability and solubility. However, achieving highly site-selective methylation at the C2 position remains challenging. Herein, we report a ruthenium-catalyzed, copper-mediated protocol that enables direct C2-methylation of pyridines. The transformation proceeds through a formal N-to-C methyl migration in N-methylpyridinium salts, which serve dually as activated substrates and internal methyl donors, thereby ensuring excellent atom economy. This operationally simple and scalable approach is compatible with the late-stage modification of complex bioactive molecules. Furthermore, the migratable groups can be extended to longer alkyl and benzyl substituents, highlighting the broad synthetic utility of this strategy.
However, the landscape of regioselective pyridine methylation reveals distinctly different challenges across positions.4 Notably, significant advances have been made in recent years to address these selectivity issues. For the inherently low-reactivity meta-position,5 elegant dearomatization-methylation-rearomatization sequences have emerged as robust solutions, exemplified by contributions from Donohoe,3e Wang,6 and others.7 In contrast, achieving selective methylation at the C2 and C4 positions is complicated by their electronic similarity and competing reactivity.8,9 Sporadic examples using nucleophilic reagents such as Wittig reagents3d and diborylmethane10 have been reported, but general and reliable regiocontrol remains limited. This issue is particularly pronounced in Minisci-type radical methylation.11 Despite elegant demonstrations by MacMillan,3a Li3b and others3c employing methanol as a methyl source under photochemical conditions, competing C4 addition persists, compromising the selectivity (Scheme 1B). Therefore, achieving exclusive C2-methylation within a radical framework continues to represent an unmet and notable challenge.
Recently, N-functionalized pyridinium salts have emerged as versatile radical precursors. Their low reduction potentials enable them to act as competent single electron acceptors. Upon reduction, the resultant pyridiniumyl radical cations fragment, liberating radical species for diverse transformations.12 This paradigm is well-established with precursors like N-alkoxypyridinium salts and N-amidopyridinium salts, as demonstrated in the elegant studies of Stephenson,13 Sungwoo Hong,14 and others.15 These precursors typically generate O- or N-centered radicals, which subsequently undergo β-scission or radical rearrangement to deliver C-centered radicals that participate in pyridine alkylation.16 In parallel, Katritzky salts (N-alkylpyridinium salts derived from the 2,4,6-triphenylpyrylium compound) have become widely used as practical alkyl radical precursors.17 However, this approach intrinsically consumes the triphenylpyridine scaffold, leading to poor atom economy and limited substrate scope (Scheme 1C).18 Methyl iodide readily undergoes N-methylation with pyridine to afford N-methylpyridinium salts, which represent the simplest members of this family. However, the generation of methyl radicals from N-methylpyridinium salts for the methylation reaction has not yet been achieved, probably because the highly reactive and short-lived methyl radical is difficult to control.11b,19
Herein, we designed a Ru/Cu bimetallic system that utilizes an N-methylpyridinium salt as both the methyl radical source and the activated substrate, enabling the site-selective C2-methylation of pyridine. A Cu(I) salt was employed to promote regioselective C2–H metalation of the pyridinium ring, leveraging the intrinsic preference of Cu(I) for coordination at the C2 position of pyridinium salts.20 The resulting C2–Cu intermediate is proposed to undergo transmetalation with a ruthenium species, generating a pyridyl–Ru complex. Considering the well-established metal-to-ligand charge transfer (MLCT) characteristics of Ru(II)–polypyridyl complexes,21 we proposed that a pyridiniumyl-Ru species could undergo intramolecular single-electron transfer (SET) from the Ru(II) center to the electronically more deficient pyridiniumyl ligand. This SET process would generate an N-methylpyridinium radical intermediate that subsequently fragments via N–C bond cleavage to release a methyl radical.12b The reactive methyl radical is stabilized by rapid rebound with the pyridyl-ligated ruthenium center. Finally, reductive elimination from the Ru center would deliver the desired C2-methylated pyridine. These sequences finally accomplish a formal N-to-C2 methyl migration, thereby providing a viable solution to the long-standing challenge of achieving exclusive C2-methylation of pyridines.
:
1 diglyme/monoglyme solvent mixture, heated at 140 °C for 16 h in a sealed tube under an N2 atmosphere. Under these conditions, product 1 was isolated in 87% yield, and the transformation was readily scalable to the gram scale without appreciable loss in efficiency (Table 1, entry 1). Control experiments underscored the critical roles of both Ru(COD)Cl2 and CuI. Omission of Ru(COD)Cl2 completely suppressed product formation, and lowering its loading substantially decreased the yield (entries 2 and 3). Similarly, CuI was also essential; no desired product was detected in its absence, and each 1.0 equiv. reduction in its loading resulted in an approximate 30% decrease in yield (entries 4, 5 and 6). Among the bases screened, PivOK was uniquely effective; in its absence, only trace amounts of the desired product were detected (entry 7). Intriguingly, its conjugate acid PivOH was also beneficial—its removal caused a pronounced drop in yield (entry 8). The solvent composition was found to be critical, with the 9
:
1 diglyme/monoglyme solvent mixture proving optimal; the use of neat diglyme significantly compromised the yield (entry 9). A nitrogen atmosphere was essential to prevent Cu(I) intermediate oxidation at elevated temperature (entry 10). Finally, reducing the reaction temperature to 120 °C led to a markedly lower yield (entry 11).
| Entry | Deviation from standard conditions | 1 (%)b |
|---|---|---|
a Unless otherwise noted, all of the reactions were carried out with 1a (0.25 mmol), Ru(COD)Cl2 (10 mol%), CuI (3.0 equiv.), PivOK (2.0 equiv.), PivOH (1.0 equiv.), diglyme/monoglyme (v : v 9 : 1, 1.0 mL), N2, 140 °C, and 16 h.b Isolated yields.c value in parentheses denotes gram-scale reaction (5 mmol). |
||
| 1 | None | 87 (78)c |
| 2 | w/o Ru(COD)Cl2 | n.d. |
| 3 | 5 mol% of Ru(COD)Cl2 | 63 |
| 4 | w/o CuI | n.d. |
| 5 | 2 equiv.CuI | 47 |
| 6 | 1 equiv. CuI | 16 |
| 7 | w/o PivOK | Trace |
| 8 | w/o PivOH | 53 |
| 9 | Diglyme as the solvent | 45 |
| 10 | Under air | 46 |
| 11 | T = 120 °C | 53 |

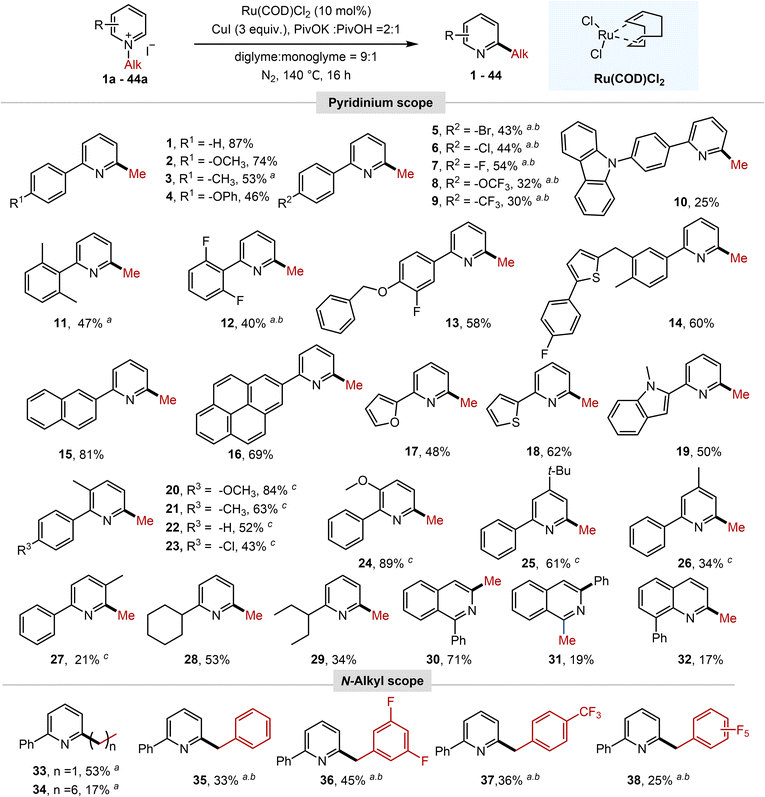

With optimized conditions established, the substrate scope was systematically evaluated for N-methyl-2-arylpyridinium salts, as summarized in Schemes 2 and 3. Initial studies focused on electronic effects at the aryl ring. para-Electron-donating groups (–OCH3, –CH3, and –OPh) afforded moderate yields (46–74%, 2–4). In contrast, para-electron-withdrawing substituents (–Br, –Cl, –F, –OCF3, and –CF3) markedly suppressed the reaction. However, by replacing CuI with CuBr and extending the reaction time, the corresponding product was obtained in moderate yields (30–54%, 5–9). Furthermore, the reaction scope could be extended to a 2-arylpyridinium salt bearing a para-carbazolyl group, which delivered the corresponding product 10 in a synthetically useful yield. Remarkably, the 2-aryl group of the pyridinium salts tolerated disubstitution patterns from 3,4-disubstituted to sterically hindered 2,6-disubstituted variants, as well as diverse functional groups (e.g., alkyl, ether, heterocycles, halogens, etc.), allowing efficient conversion to the desired products (11–14). Methyl migration proceeded with high efficiency for N-methylpyridinium salts bearing extended π-conjugated systems, such as 2-naphthyl and 2-pyrenyl substituents, affording products 15 and 16 in 81% and 69% yield, respectively. The reaction was also compatible with C2-heteroaryl substrates, which underwent methyl migration to deliver products in moderate yields (17–19). It should be noted that pyridinium rings bearing substituents at C3, C4, or C5 positions remained competent substrates, though efficiency varied with substitution patterns (20–27).
Crucially, the C2-aryl group proved indispensable; N-methylpyridinium salts lacking this moiety exhibited complete suppression of methyl migration (SI Fig. S6). This is likely because the C2-aryl group stabilizes the radical species generated upon SET from Ru(II) to the pyridinium moiety.12b,19a For 2-alkyl-substituted N-methylpyridinium salts, the reactivity is highly dependent on the alkyl chain structure. α-Branched alkyl groups, for example, cyclohexyl and pentan-3-yl, afforded products in synthetically useful to moderate yields (28, 29), while linear alkyl chains yielded only trace amounts of products under standard conditions (SI Fig. S6), likely due to deprotonation of the benzylic C–H bond under basic conditions to form alkylidene-1-methyl-1,2-dihydropyridines, thereby inhibiting the desired reaction. The protocol could be extended to N-methylquinolinium and N-methylisoquinolinium salts bearing an ortho-aryl group, as exemplified by compounds 30–32. In addition to N-methylpyridinium salts, other types of N-alkyl groups on pyridinium salts could also migrate to generate corresponding products. For those bearing straight-chain N-alkyl substituents, reaction efficiency inversely correlated with chain length, yielding products 33–34 with diminished efficiency. In the N-benzyl series, moderate electron-withdrawing substituents were generally beneficial (35–37), whereas the strongly electron-deficient perfluorobenzyl group resulted in significantly reduced yield (38).
The developed Ru/Cu synergistic strategy enables efficient late-stage modification of pyridine-containing drugs and their analogues. For example, Loratadine, a pyridine-based anti-allergy drug, was successfully transformed into its C2-methylated analogue (39). Substrates derived from the empagliflozin analogue (40), clofibrate (41), L-menthol acetate (42) and estrone (43) were also viable substrates for this strategy, affording corresponding ortho-methylated derivatives. Bisacodyl, a stimulant laxative containing an acetoxy group, underwent a methyl migration accompanied by acetoxy hydrolysis, yielding the C2-methylated product 44 in 35% yield.
To gain insight into the reaction mechanism, a series of mechanistic experiments were conducted. Mercury poisoning experiments were carried out to ascertain the homogeneous or heterogeneous nature of the catalytic system. The negligible change in reaction yield upon the addition of mercury, together with the observed near-linear correlation of yield over reaction time, indicated that the reaction proceeded via homogeneous catalysis (Scheme 4A). Subsequently, a series of control experiments were performed to elucidate whether the transformation follows a radical or ionic pathway (Scheme 4B). Under standard conditions, the addition of radical scavengers such as TEMPO or DMPO markedly suppressed the reaction yield. Notably, treatment of N-benzylpyridinium salts with TEMPO (6.0 equiv.) under standard conditions afforded the corresponding benzyl-TEMPO adducts, as confirmed by HRMS analysis. Furthermore, a radical clock experiment using N-cyclopropylmethylpyridinium iodide produced both the desired cyclopropylmethyl-migrated product 45 and a ring-opened derivative 46. The formation of the latter serves as a diagnostic indicator of radical-induced cyclopropyl ring opening, providing direct evidence for the involvement of radical intermediates in this N-alkyl migration process.
![]() | ||
| Scheme 4 Mechanistic study: (A) mercury poisoning test, (B) radical verification experiment, (C) KIE experiment, (D) deuterium experiment, and (E) crossover experiment. | ||
Kinetic isotope effect (KIE) studies were subsequently conducted (Scheme 4C). No primary kinetic isotope effect (KIE) was observed from parallel reactions between 1a and 1a-D4, suggesting that cleavage of the ortho C–H bond is not involved in the rate-determining step. It is noteworthy that deuterium from 1a-D4 was found to be distributed among the ortho positions of the 2-phenyl group, the pyridine ring, and the 2-methyl group in the final product. In this context, a control experiment was performed, where 1a was treated with stoichiometric CuI (without the Ru catalyst) and then quenched with D2O. The target methyl-migration product 1 was not detected, whereas significant amounts of 2-phenylpyridine were formed. The recovered 2-phenylpyridine exhibited deuterium incorporation at both the pyridine ring and the ortho C–H bonds of the 2-phenyl group. Crucially, when 2-phenylpyridine itself was subjected to the same treatment, no analogous deuterium incorporation was observed (Scheme 4D). These results unambiguously indicate that ortho cupration is a key step in this transformation, a process that can occur with stoichiometric CuI, thereby supporting our proposed mechanistic pathway. Crossover experiments were conducted to distinguish between intra- and intermolecular N-alkyl migration pathways (Scheme 4E). Reactions of 2a and 33a afforded their respective products 2 (68%) and 33 (39%) exclusively, with no cross-migration products observed, indicating that the methyl and ethyl radicals are short-lived and solvent-caged. In contrast, a trace amount of the crossover product was detected by GC-MS in the 3a/35a system, consistent with coupling between a 2-(p-methyl) pyridyl moiety and a benzyl radical. This observation indicates that the relatively stable benzyl radical can escape the solvent cage for intermolecular coupling, whereas less stable methyl and ethyl radicals cannot.
Based on the experimental evidence presented above, a plausible reaction mechanism is proposed in Scheme 5. The catalytically active Ru species A is generated in situ via metathesis between Ru(COD)Cl2 and PivOK. Concurrently, substrate 1a reacts with CuI with the aid of PivOK to generate the 2-pyridylidene–Cu(I) complex B.20 The catalytic cycle is initiated by the transmetalation of A and B to form the pyridiniumyl-Ru(II) intermediate C. Acting as an electron sink, the electron-deficient pyridiniumyl ligand drives an intramolecular single-electron transfer (SET) in C, resulting in homolytic cleavage of the CH3–N bond. This cleavage produces the Ru(III) species D and releases a methyl radical. Within the solvent cage, radical recombination between D and the methyl radical forms Ru(IV) intermediate E. An alternative pathway involves the methyl radical escaping the solvent cage, stabilizing by binding to the copper centre,22 and then being transferred to the ruthenium centre through transmetalation with Ru(III) complex D′ to afford Ru(IV) intermediate E. Finally, reductive elimination from E delivers the migration product and regenerates the active Ru(II) catalyst A, closing the catalytic cycle. The involvement of Ru(III) and Ru(IV) species is further corroborated by X-ray photoelectron spectroscopy (XPS) analysis (SI Fig. S5).
