Open Access Article
Tianchang Liu,
Jared E. Gonder†
,
Ryan P. Murphy†
,
Alexandra M. Bacon,
Michael R. Gau and
Neil C. Tomson
*
Department of Chemistry, University of Pennsylvania, 231 S 34th St, Philadelphia, Pennsylvania 19104, USA. E-mail: tomson@upenn.edu
First published on 6th February 2026
The metathesis of C–C σ-bonds holds potential as an atom-economical strategy for molecular engineering. While this reaction has been achieved in industrial and research settings, the former is energy-intensive and the latter has only been reported to operate either indirectly, proceeding through well-known π-bond metathesis chemistry, or through the use of structural/electronic factors that assist in C–C bond activation (e.g. anchimeric effects, directing groups, photochemical effects, etc.). Herein, we report the first example of a direct, thermodynamically favored C–C σ-bond metathesis reaction in which the C(sp)–C(sp2) bonds of diarylacetylenes are selectively cleaved before their fragments are metathesized and C(sp)–C(sp2) linkages are re-formed. Building on a known macrocycle-supported diiron system that undergoes selective C–C σ-bond oxidative addition, Lewis acid catalysts are shown to reversibly abstract Fe-bound aryl groups and perform aryl group exchange between diiron sites. Oxidatively induced reductive elimination reactions then re-form the C(sp)–C(sp2) σ-bonds to generate metathesis products. These studies culminated in a stoichiometric process for C–C σ-bond metathesis between diphenylacetylene and various diarylacetylenes.
![]() | ||
| Fig. 1 Carbon–carbon σ-bond metathesis processes. (A) Known methods for C–C σ-bond metathesis. (B) Proposed scheme for a novel, metal-mediated C–C σ-bond metathesis. | ||
We previously demonstrated the thermal activation and hydrofunctionalization of C(sp)–C(sp2/3) σ-bonds by the macrocycle-supported diiron complex, (3PDI2)Fe2(µ-N2)(PPh3)2 ([Fe2N2], Fig. 1B).15,16 Doing so formed the isolable dinuclear complexes (3PDI2)Fe2(µ-CCE)(E′)(PPh3) (E/E′ = aryl, alkyl), which feature bridging acetylide and terminal aryl/alkyl groups. This bond activation process was proposed to proceed through a µ-1,2-η2-bound alkyne complex, as observed with an isolable dicobalt analog,17 and was aided by the redox capacity of the pyridyldiimine units in the macrocycle. We reasoned that the diiron system could form the basis for a σ-bond metathesis process. To realize this goal, puzzles associated with acetylide/aryl/alkyl-group exchange between diiron centers and C–C bond re-formation would need to be overcome. Herein, we report on our initial success with these pursuits, yielding a C–C σ-bond metathesis process that operates through direct, thermodynamically favored C–C σ-bond activation, intermolecular exchange, and σ-bond re-formation steps. The chemistry, when applied to diarylacetylenes, is selective for metathesis at C(sp)–C(sp2) linkages and is successful toward a broad range of substrates with diverse electronic and structural profiles.
![]() | ||

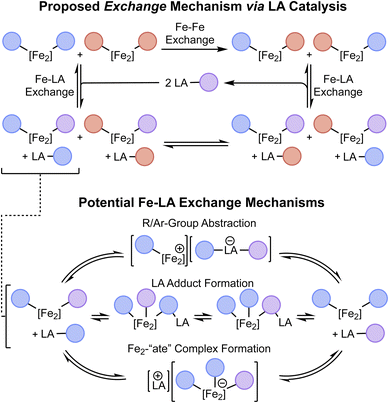

| Scheme 1 Top: Graphical illustration of the proposed Fe–Fe exchange reaction as catalyzed by a LA through sequential Fe–LA exchange reactions. Bottom: Various proposed Fe–LA exchange mechanisms. | ||
We envisioned that Fe–LA exchange could operate through various potential mechanisms, including the direct abstraction of an aryl/acetylide group from 1, the formation of a LA adduct with 1, or the delivery of an anion to 1 to generate an “ate” complex (Scheme 1, bottom). To evaluate the feasibility of this process as a whole, we initially performed stoichiometric reactions between 1H,H and traditional organometallic reagents. As will be described presently, we were gratified to find that this Fe–LA exchange process proceeded rapidly and achieved an appreciable equilibrium as would be required for a LA to operate within an Fe–Fe exchange scheme. The specific mechanism by which the LA mediates this exchange will be discussed below.
Treatment of 1H,H with 1 equiv. of ZnEt2 resulted in the rapid appearance of (3PDI2)Fe2(µ-CCPh)(Et)(PPh3) (2) in the mixture's 1H and 31P{1H} NMR spectra. This result is indicative of a successful Fe–LA exchange reaction (Scheme 2 and Fig. S54) and suggests that the Fe-bound aryl group is more available to exchange than the acetylide group. The conversion of 1H,H to 2 reached a maximum of 31% in 1 h. Further reaction monitoring revealed that the concentrations of 1H,H and 2 maintained a ca. 2
:
1 ratio over time. Treatment of 1H,H with superstoichiometric amounts of ZnEt2 resulted in increased conversion to 2, suggesting the presence of an equilibrium reaction mixture, though this could not be determined quantitatively due to slow β-H elimination from the Fe–Et unit (Fig. S55–58). Finally, treatment of isolated 2 with ZnPh2 led to the formation of 1H,H in a similar, apparent equilibrium mixture, with 2 not being completely consumed until 3 equiv. of ZnPh2 had been added (Fig. S59). These data suggest that Zn2+ ions and organozinc reagents undergo Fe–LA exchange, prompting us to investigate the extent to which Lewis acids can catalyze Fe–Fe exchange through a series of reversible Fe–LA exchange processes.
Next, to perform the Fe–Fe exchange reaction screening, we sought ready access to a mixture of two activation complexes, 1R,R′ and 1R′,R, which, following exposure to an appropriate Lewis acid, would generate the two exchange products 1R,R and 1R′,R′ (Fig. 2, top). The desired mixture was generated through the treatment of [Fe2N2] with 1 equiv. of ArMeCCArOEt (see SI). Doing so resulted in a gradual color change from red to green, along with the formation of two new signals in the mixture's 31P{1H} NMR spectrum at 62.2 and 62.4 ppm in a ca. 55
:
45 ratio. Further NMR spectroscopic and crystallographic studies revealed these signals to result from a mixture of 1Me,OEt and 1OEt,Me, respectively, each of which was formed by the activation of one of the C(sp)–C(sp2) bonds present within the starting alkyne.
![]() | ||

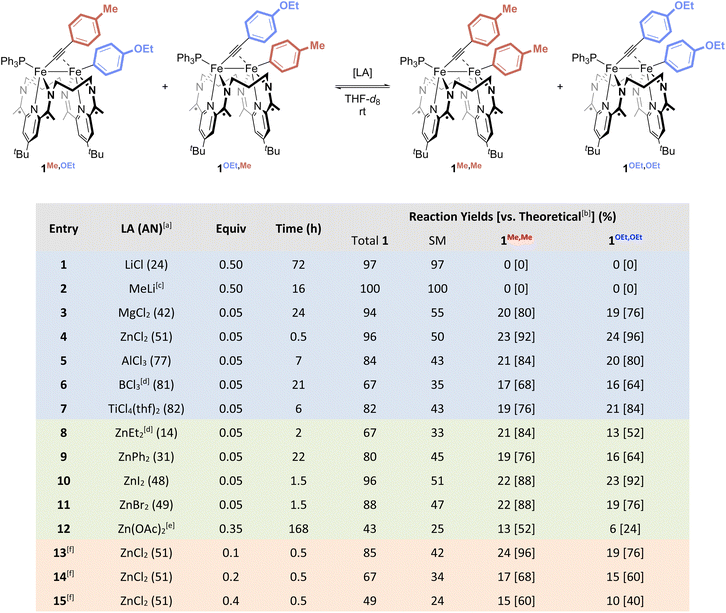

Fig. 2 Lewis acid screening for the Fe–Fe exchange reaction, showing various reaction yields based on the use of different metals (top, blue), anions (middle, green), and loadings (bottom, orange) of Lewis acids. aLewis acid acceptor number, as determined by the Gutmann–Beckett method18 (see SI). bPercent yield with respect to the theoretical yield of 25% that would be obtained from a 1 : 1 : 1 : 1 distribution of starting materials and products. cReaction performed in C6D6. dUsed as n-hexane solution. eSparingly soluble. fData obtained by the sequential addition of ZnCl2 from entries 13–15, followed by time to achieve a new equilibrium. | ||
No reactivity to form 1Me,Me and 1OEt,OEt was observed between 1Me,OEt and 1OEt,Me in solution (Fig. 3, top), but treatment of the roughly equimolar mixture with catalytic loadings of various Lewis acid chloride salts (5 mol% with respect to the total starting material) caused rapid changes in the reaction mixture (Fig. 3, bottom; Fig. S43–53). Monitoring the solutions by 31P{1H} NMR spectroscopy revealed the formation of two new features (62.0, 62.6 ppm). These were confirmed through independent syntheses to result from the presence of 1Me,Me and 1OEt,OEt, indicative of successful Fe–Fe exchange processes. In all cases, the signals for 1Me,OEt and 1OEt,Me decreased in intensity during the reaction but did not disappear. The final ratios of the concentrations of 1Me,OEt, 1OEt,Me, 1Me,Me, and 1OEt,OEt were close to 1
:
1
:
1
:
1, suggesting the system is under thermodynamic control and that the ArMe and ArOEt groups exert comparable steric and electronic effects on the thermodynamics of the system. This means the maximum yield expected for each of the products, 1Me,Me and 1OEt,OEt, would be ca. 25%.
![]() | ||

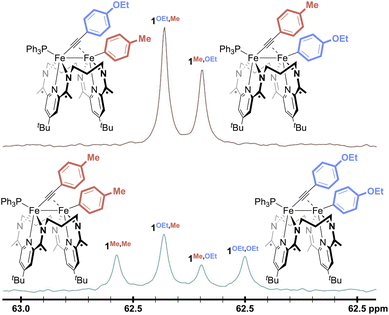

| Fig. 3 31P{1H} NMR spectra of a mixture of 1OEt,Me and 1Me,OEt before (top) and after (bottom) the addition of 5 mol% ZnCl2 in THF-d8 at 298 K. | ||
Alkali metal ions (Fig. 2, entries 1 and 2) were unable to mediate Fe–Fe exchange under the reaction conditions investigated. The chloride salts of several higher valent ions – MgCl2, ZnCl2, AlCl3, and TiCl4 – were found to be competent for Fe–Fe exchange (entries 3–5 and 7), but ZnCl2 provided superior yields in substantially shorter reaction times. A screen of the identity of the anion associated with Zn(II) revealed that chloride is not essential to the Fe–Fe exchange process. Other halide and carboxylate anions provide exchange products (entry 8–12), though chloride was the most effective of those studied to date. Comparison of the Gutmann acceptor numbers (ANs, see SI) for these Lewis acids revealed optimal performance at mid-range ANs (∼35–70). These data are consistent with an Fe–Fe exchange mechanism that relies primarily on the electron-accepting nature of the Lewis acid, presumably through involvement of the Lewis acid in the formation and cleavage of Fe–Ar σ-bonds. Notably, on screening the catalyst loading up to 40 mol%, we observed a progressive decrease in the yield of 1Me,Me and 1OEt,OEt at higher catalyst loadings, albeit without loss of catalytic activity (entry 13–15, see SI). Higher catalyst loadings were found, more generally, to decrease the amount of all four C–C activation complexes, suggesting that ZnCl2 reversibly reacts with members of compound class 1R,R′ to form a complex 1R,R′
:
LA. To gain further information on the nature of 1R,R′
:
LA, we performed stoichiometric studies and investigated the products through spectroscopic and crystallographic analyses.
On addition of an equimolar amount of ZnCl2 to a THF solution of a roughly 1
:
1 mixture of 1Me,OEt and 1OEt,Me, the system became paramagnetic as determined by 1H NMR spectroscopy. The subsequent addition of 1H,H led to the formation of 1Me,Me and 1OEt,OEt, as determined by 31P{1H} NMR spectroscopy (Fig. S23), indicating that the product mixture of ZnCl2 and 1Me,OEt and 1OEt,Me remained competent for Fe–Fe exchange. This suggests that the interaction between 1R,R′ and ZnCl2 is reversible. Further, the treatment of 1H,H with 1 equiv of BCl3, a stronger Lewis acid than ZnCl2, resulted in the rapid formation of a new species with a sharp signal in the material's 11B NMR spectrum at 8.48 ppm (THF-d8, 298 K). This signal is consistent with the reported chemical shift of the PhBCl3− anion19 (Fig. 4 and S24) and is indicative of the abstraction of a Ph− moiety from 1H,H by BCl3. The paramagnetic nature of the system (µeff = 4.7(2)µB), presumed to contain the cationic monophosphine species [(3PDI2)Fe2(µ-CCPh)(PPh3)]+ (Stot = 2 ground state by DFT), prevented identification of the diiron portion of the sample by 1H NMR spectroscopy. However, treatment of the 1H,H
:

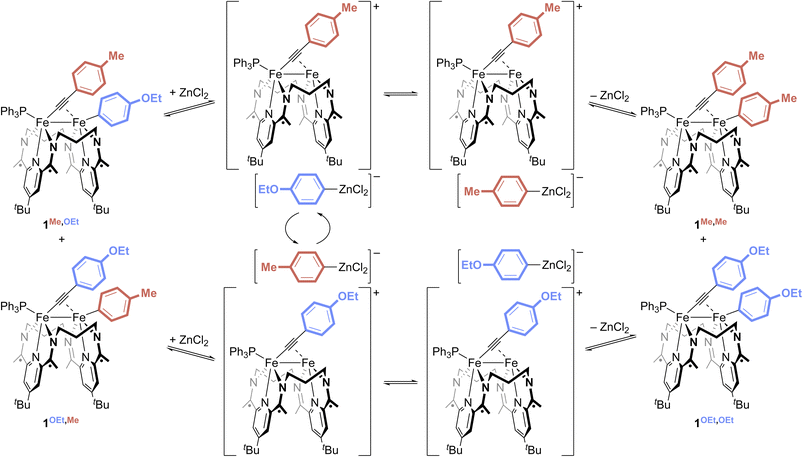

ZnCl2 system with 1 equiv. of NaBArF4 and 1 equiv. of PPh3 allowed for the isolation of the cationic diphosphine complex [(3PDI2)Fe2(µ-CCPh)(PPh3)2][BArF4] ([3][BArF4], Fig. 4 and S39; µeff = 2.6(2)µB). This result is indicative of the reversible abstraction of an Fe-bound Ph− moiety by ZnCl2, followed by anion exchange of PhZnCl2− with BArF4− and coordination of an additional equivalent of PPh3. Since both BCl3 and ZnCl2 were found to be competent for mediating Fe–Fe exchange, these results indicate that aryl group abstraction is available to the Fe–Fe exchange process. Finally, the addition of PPh3 to the catalytic reaction mixture slows the rate of the Ar group exchange process, consistent with the identification of [3]+ as an off-cycle intermediate in Fe–Fe exchange.
DFT computations were used to validate the feasibility of aryl group abstraction from 1H,H to form [3]+. All computations were performed on model complexes for which the ligand tBu groups were truncated to H, a modification that we have previously found to have little impact on the predictive capacity of the system.15,16 The abstraction of a Ph group from 1H,H by ZnCl2 to form both the cationic, open coordination site complex [(3PDI2)Fe2(µ-CCPh)(PPh3)]+ and the zincate anion [PhZnCl2]− was calculated to result in a 2.6 kcal mol−1 increase in the free energy of the system. Varying the identity of the Lewis acid revealed qualitative trends that scale with the acid's acceptor number (Fig. S66). Attempts to identify a transition state for the abstraction were unsuccessful, but [(3PDI2)Fe2(µ-CCPh)(PPh3)]+ is predicted to be favorably saturated by coordinating an additional equivalent of PPh3 (ΔG = −6.4 kcal mol−1). Finally, computations were used to probe the potential for alternative mechanisms by which the Lewis acid salt may activate complexes 1R,R′. In addition to the general mechanisms outlined in the bottom of Scheme 1, we also investigated the potential for Lewis-acid mediated abstraction of the phosphine to open a reactive coordination site. None of these alternative pathways provided reasonable energy profiles (see SI), which, together with the experimental data supporting the ability of Lewis acids to abstract an aryl group from 1R,R′, support an Fe–Fe exchange mechanism involving reversible aryl group abstraction and [Ar–LA]− exchange (Fig. 5).
We next sought the regeneration of a free alkyne from 1R,R′, as needed to complete a σ-bond metathesis process. The complexes 1R,R′, derived from diarylacetylenes have not been observed to undergo thermally accessible reductive elimination. We thus turned to oxidatively induced reductive elimination as a means of biasing the energy landscape toward reductive elimination.20–23 A cyclic voltammogram of 1H,H in THF revealed oxidation features of interest at −1.24, −0.40, and −0.08 V vs. Fc+/0 (Fig. 6), and we were gratified to find that treatment of a THF solution of 1H,H with 3 equiv. of AgOTf (E1/2 = +0.41 V vs. Fc+/0)24 resulted in the formation of PhCCPh in 38% yield as determined by GC-MS (Fig. S25).

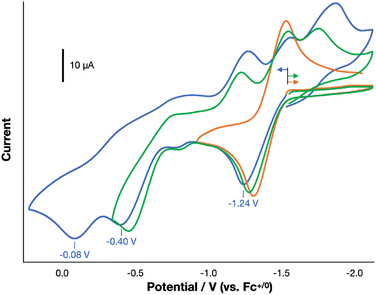

To identify the specific level of oxidation needed to achieve this result, we undertook an in-depth investigation into the oxidation chemistry. The treatment of a THF solution of 1H,H with 1 equiv. of [Cp2Co][OTf] (−1.33 V vs. Fc+/0)24 led to rapid color change from green to brown-green over 15 min. 1H and 31P{1H} NMR spectroscopic data indicated the full consumption of starting material to form an unidentified paramagnetic product and little formation of PhCCPh (<1%). Consistent with this outcome, a selective CV scan about the first oxidation feature revealed it to be quasi-reversible, suggesting that the oxidation of 1H,H with [Cp2Co][OTf] yields [1H,H]+, which does not reductively eliminate PhCCPh on the timeframe of the CV scan.
The treatment of a THF solution of 1H,H with 2 equiv. of FcPF6 led to a rapid color change from green to reddish brown. PhCCPh was again not observed by NMR spectroscopy, and a crystallographic study revealed the formation of a diiron bridging vinylidene species [(3PDI2)Fe2(µ-C
CPh2)(PPh3)](PF6)2 ([4][PF6]2, Fig. S40). This product appears to result from the migration of the Fe-bound Ph moiety to the β-position of the acetylide fragment and, importantly, indicates that a 3e− oxidation from 1H,H is needed to prompt the reductive elimination of PhCCPh. The appearance of [4]2+, however, raises a question about which species, [1H,H]2+ or [4]2+, is the immediate precursor to the C–C bond formation step that generates the alkyne. The migration of a vinylidene R/Ar-group to the α-carbon position has been shown previously to generate an η2-coordinated alkyne.25 However, the chemical oxidation of [4]2+ does not form PhCCPh (Fig. S60–63). This suggests that aryl-group migration to form [4]2+ from [1H,H]2+ competes with oxidation to [1H,H]3+, with the latter being the immediate precursor to the C–C reductive elimination process that forms PhCCPh (Fig. 7 and S60–63).
![]() | ||

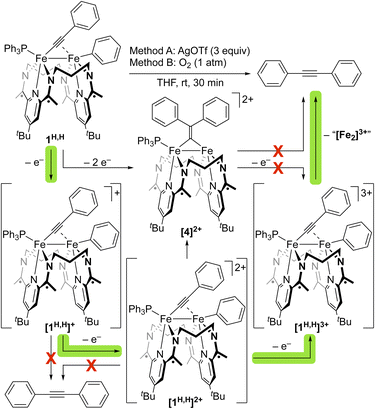

| Fig. 7 Overview of the potential pathways through which chemical oxidation of 1H,H could generate PhCCPh via oxidatively induced reductive elimination. | ||
Finally, we sought to determine if O2, a low-cost and innocuous chemical oxidant, would be suitable for generating alkyne from 1R,R′. Exposure of a THF solution of 1H,H to 1 atm of O2 for 30 min at room temperature resulted in the formation of PhCCPh in ca. 50% yield (Fig. S26), as determined by GC-MS, higher than the yield obtained through oxidation with 3 equiv. of AgOTf (38%, Fig. S25). Likewise, treatment of 1OMe,OMe with 1 atm O2 afforded ArOMeCCArOMe in a 60% spectroscopic yield, a marked improvement of the 28% spectroscopic yield obtained on treatment of 1OMe,OMe with 3 equiv. of AgOTf (Fig. S27 and S28). These transformations suggested that O2 would serve as an effective oxidant, in combination with the C–C σ-bond activation and Fe–Fe exchange chemistry described above, for the direct metathesis of C(sp)–C(sp2) σ-bonds.
Combining the elementary steps described above allowed us to perform C–C σ-bond metathesis between PhCCPh and various substituted diarylacetylenes, ArRCCArR (Fig. 8). This was achieved by first combining the two alkynes with a stoichiometric amount of [Fe2N2] in THF, then adding, in sequence, catalytic quantities of ZnCl2 (10 mol%) and an excess of O2 (1 atm). The higher loading of ZnCl2 over the amount found to be optimal in the Fe–Fe exchange study (Fig. 2) was found to be needed due to the presence of free PPh3 generated during the in situ formation of 1R,R from [Fe2N2]. Together, this process afforded the metathesis products PhCCArR in up to 49% yield (98% yield vs. expected), as determined by NMR spectroscopy and GC-MS analyses. In all cases, the presence of the starting material alkynes PhCCPh and ArRCCArR were also observed, owing to the equilibrium nature of the Fe–Fe exchange reaction. The metathesis process tolerated a range of electronic differences, including electron-rich (R = OMe) and electron-poor (R = CF3) functionalities, as well as substitutions at the meta- and para-positions of the aryl ring. However, with either certain substituents (R = Br, NH2) or ortho-substituted aryl rings (2-Me or 2,4,6-Me3), the initial C–C activation process was not observed. It should also be noted that [Fe2N2] was found to be incompatible with a range of halide salts, including those that lack a Lewis acid cation (e.g. [nBu4N][Cl]). This incompatibility will necessitate the identification of specialized Lewis acids to create a more integrated σ-bond metathesis process.
A trend in the product yield with respect to the electronic and steric properties of the R groups on the aryl rings was not observed. This is likely due to the intermediacy of multiple steps with comparable energy profiles that are all governed by the identity of the R groups in a non-complementary manner. Properties that favor oxidative addition may disfavor Fe–LA exchange and so on. The coordination spheres at Fe and the Lewis acid are also changing significantly during these processes, making the extent to which a given steric/electronic factor impacts each step vary from one step to the next. Furthermore, our earlier work revealed that the rate of the initial C–C oxidation addition process is highly dependent on the substrate's identity.16 The consequence is that variations in the rates of oxidative addition may yield mixtures that deviate from a 1
:
1 mixture of the two activation products within the 4 h timeframe given to step 1 of the metathesis process. For this reason and the other energy landscape considerations described above, the distribution of the four C–C activation products following Fe–Fe exchange may differ from a 1
:
1
:
1
:
1 ratio. Further research is needed to determine the underlying factors that control reaction selectivity in this system.
The data supporting this article have been included in the supplementary information (SI). Supplementary information: compound syntheses, NMR and GC-MS spectra, molecular structures from single-crystal XRD studies, supplementary experiments, and XYZ coordinates of optimized structures. See DOI: https://doi.org/10.1039/d5sc10054b.
