Water-mediated kinetic engineering of CTF QDs for emerging solar cells

Abstract

Covalent triazine framework quantum dots (CTF QDs) are promising low-toxicity, high-performance optoelectronic materials featuring molecular-level structural tunability and good charge-carrier mobility. Yet, achieving CTF QDs has long been hindered by the inherently rapid kinetics of triazine cyclization. Here, we overcome this limitation with a simple water-mediated kinetic strategy that modulates the forward Schiff-base reaction rate, thereby delaying triazine cyclization and controlling the degree of amidine–aldehyde polymerization. This approach produces CTF QDs smaller than 3 nm (denoted CTF-QD-1 and CTF-QD-2). By leveraging the pyridinic nitrogen and carbonyl oxygen-functionalized surface of CTF-QD-1 to coordinate interfacial Pb²⁺ in CsPbBr₃ perovskites, we achieve effective defect passivation and controlled crystallization, enhancing the power conversion efficiency from 8.40% to 11.01%—a 31% relative improvement. This efficiency represents one of the highest values reported to date for all-inorganic CsPbBr₃ solar cells. This kinetic engineering paradigm addresses the long-standing challenge in synthesizing CTF QDs and unlocks their potential for high-efficiency photovoltaics.

---

Introduction

Quantum dots (QDs) have long been investigated for their quantum-confinement effect and size-tunable photoluminescence, enabling widespread applications in the field of optoelectronics.^1,2 Major categories of QDs encompass the following: traditional cadmium- or lead-based QDs,^1,3 as well as perovskite QDs,^4,5 which offer high performance but pose toxicity concerns; heavy-metal-free alternatives such as InP and ZnSe,⁶ which are more environmentally friendly but suffer from lower stability; epitaxially grown QDs,⁷ often employed in single-photon sources; and carbon quantum dots (CQDs) known for low toxicity and biocompatibility but typically exhibiting inferior charge-carrier mobility.^8–11 Future development focuses on creating non-toxic, highly stable new materials and expanding their applications in sustainable technologies.

Covalent triazine frameworks (CTFs) are emerging as a class of crystalline organic semiconductors with precisely designable, tunable, and resolvable conjugated structures.^12–20 To date, research on CTF synthesis has predominantly focused on achieving high crystallinity and large crystal size, while studies concerning small-particle-size dispersion, processability, and especially their potential optoelectronic device applications have been largely overlooked.^21–23 Reducing CTFs to quantum-dot dimensions allows for molecular-level structural engineering, which promises good charge-carrier mobility, excellent dispersibility and processability, and enhanced optoelectronic performance. Consequently, the development of rational synthetic routes for CTF QDs opens new avenues for designing low-toxicity, high-performance photoelectric materials. However, the synthesis of CTF QDs remains a challenge, primarily due to the intrinsically rapid kinetics of triazine ring formation, which leads to uncontrolled polymerization, severe cross-linking, and consequently, great difficulty in controlling the particle size.^23–39 So far, only a few studies have been reported for the fabrication of CTF nanomaterials. They resorted to top–down exfoliation of bulk CTFs via oxidative H₂O₂/acid treatments^40–42 or small-molecule intercalation⁴³ to improve dispersion and processability. However, since their lateral dimensions (>10 nm) far exceed the typical quantum-confined size of QDs (generally <10 nm), these materials are more appropriately classified as nanosheets rather than CTF QDs.

In this context, if CTFs could be engineered into well-dispersed, colloidally stable quantum dots (CTF QDs), they would combine the advantages of molecular precision, rich surface coordination sites, and solution processability. Such CTF QDs could serve as ideal interfacial modifiers in thin-film inorganic solar cells, where they could uniformly passivate grain boundaries and defects, thereby enhancing both device efficiency and operational stability.^44–49 In this work, we developed a strategy to synthesize CTF QDs by controlling the reaction kinetics through a simple water-mediated polycondensation process. Through kinetic modulation, we successfully achieved CTF-QD-1 and CTF-QD-2 with sizes below 3 nm. Using CsPbBr₃ as a test platform, we incorporated CTF-QD-1 into CsPbBr₃ solar cells, achieving a 31% PCE increase (from 8.40% to 11.01%). This efficiency ranks among the highest reported for inorganic devices of this class. Our work pioneers a kinetic engineering approach for CTF quantum dots and unlocks their potential in photovoltaic devices for the first time.

Results and discussion

The CTF QDs were synthesized via a bottom-up, kinetically controlled microwave-assisted approach using water to regulate the polymerization in condensation reactions (details in the Experimental section, SI). During the preparation process (Fig. 1a), water was introduced into the amidine–aldehyde condensation polymerization system to modulate the kinetics of the forward Schiff-base reaction. The Schiff-base reaction between amidine and aldehyde monomers is reversible. In the absence of water modulation, the reaction proceeds rapidly, generating abundant Schiff-base intermediates that quickly undergo triazine cyclization. This leads to uncontrolled polymerization and the formation of large particles. In the presence of water, the equilibrium of the Schiff-base reaction shifts, reducing the concentration of Schiff-base intermediates. This control subsequently delays triazine cyclization and limits structural expansion, enabling precise control over the amidine–aldehyde polymerization degree. This intervention facilitates rapid generation of crystalline nuclei, suppresses Ostwald ripening and promotes formation of CTF QDs. Transmission electron microscopy (TEM) was employed to examine the morphology of CTF QDs. As shown in Fig. 1b, CTF-QD-1 is uniformly distributed with an average particle size of approximately 2.6 nm and exhibits blue fluorescence. In Fig. 1d, CTF-QD-2 displays uniform distribution with an average particle size of approximately 2.4 nm and emits green fluorescence. Fig. 1f further illustrates that the green fluorescence intensity of CTF-QD-2 at 505 nm is stronger than the blue fluorescence intensity of CTF-QD-1 at 475 nm. High-resolution TEM (HR-TEM) images (Fig. 1c and e) reveal clear lattice fringes for both CTF-QD-1 and CTF-QD-2, indicating their short-range ordered structure.

Fig. 1 (a) Schematic diagram of the synthesis of CTF QDs via water-mediated kinetic control of the degree of polymerization. TEM images of CTF-QD-1 (b) and CTF-QD-2 (d), respectively (insets: optical images and structural schematics of the CTF QDs). HR-TEM images of CTF-QD-1 (c) and CTF-QD-2 (e), respectively. (f) PL spectra of CTF QDs. (g) N₂ adsorption (black) and desorption (red) isotherms (77 K) of CTF QDs. (h) FT-IR spectra of CTF-QD-1 under various conditions.

The adsorption–desorption curves of N₂ (recorded at 77 K) for CTF-QD-1 and CTF-QD-2 display a type III pattern (as shown in Fig. 1g). These curves do not exhibit a clear turning point at low relative pressures (P/P₀). Brunauer–Emmett–Teller (BET) analysis graphs reveal that CTF-QD-1 has a specific surface area of 29 m² g⁻¹, while for CTF-QD-2 it is 33 m² g⁻¹ (Fig. S1). Therefore, this specific surface area is primarily attributed to the macropores formed by stacking. Thermogravimetric analysis (Fig. S2) evaluated the thermal stability of CTF QDs. Both CTF-QD-1 and CTF-QD-2 exhibited less than 5 wt% weight loss up to 260 °C. As the temperature increased, CTF-QD-2 demonstrated slightly better thermal stability than CTF-QD-1. Powder X-ray diffraction (PXRD) patterns of CTF QDs (Fig. S3) indicate the absence of long-range order. Using a water-modulated microwave-assisted method, we successfully synthesized CTF QDs with particle sizes below 3 nm and exhibiting tunable fluorescence color, as well as good thermal stability.

Fourier transform infrared (FT-IR) spectroscopy provided detailed structural elucidation of the synthesized materials. As illustrated in Fig. 2a, characteristic vibrational signatures at 1516 cm⁻¹ (C=N stretching) and 1344 cm⁻¹ (C–N stretching) confirm successful triazine ring formation.²⁴ Additional diagnostic peaks at 3383 cm⁻¹ (O–H stretching), 1660 cm⁻¹ (C=O stretching), and 1215 cm⁻¹ (C–O stretching) suggest incomplete polycondensation with residual aldehyde functionalities (–CHO groups). After exposure to strong alkali (5 M NaOH), strong acid (3 M HCl), and boiling water for four days, the FT-IR spectra of CTF QDs showed no changes (Fig. 1h), demonstrating their excellent chemical stability. Solid-state cross-polarization magic angle spinning ¹³C nuclear magnetic resonance (CP-MAS ¹³C-NMR) further elucidated the structure of CTF QDs. The spectrum for CTF-QD-1 (Fig. 2b) displays chemical shifts at 127.6 ppm, 138.2 ppm, and 169.1 ppm assigned to phenyl and triazine carbons, with an additional peak at 195.6 ppm attributed to the carbonyl carbon of the residual aldehyde.⁵⁰ For CTF-QD-2, peaks at 139.2 ppm, 137.1 ppm, 128.1 ppm, and 169.7 ppm correspond to thiophene ring carbons and triazine carbons, with a peak at 195.6 ppm indicating residual aldehyde. FT-IR and solid-state ¹³C NMR spectroscopy confirmed the formation of triazine rings in CTF QDs, and revealed some residual aldehyde functionalities, which demonstrate excellent chemical stability even after harsh treatments.

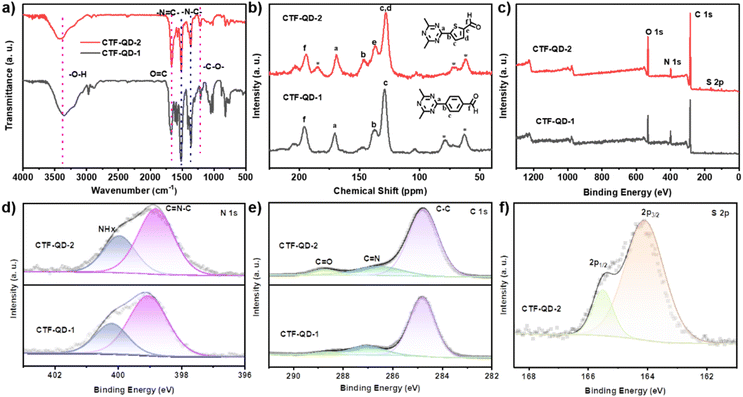

Fig. 2 (a) FT-IR and (b) CP-MAS ¹³C-NMR spectra of CTF-QD-1 and CTF-QD-2. In the ¹³C NMR spectrum with a magic angle spinning rate of 12 kHz and sidebands preserved, the right-hand sideband is marked with an asterisk (*). (c) XPS full spectra, (d) N1s spectra, and (e) C1s spectra of CTF-QD-1 and CTF-QD-2, as well as (f) the S2p spectrum of CTF-QD-2.

To support the structural analysis, X-ray photoelectron spectroscopy (XPS) analysis was performed on CTF-QD-1 and CTF-QD-2 to determine their elemental compositions. The survey spectra revealed peaks for C 1s, N 1s, and O 1s in both samples, with additional S 2p peaks in CTF-QD-2 (Fig. 2c). These results agree with the elemental analysis data (Table S1), corroborating the compositional differences between the two materials. The N 1s core-level spectrum displayed peaks at 399.3 eV and 400.4 eV, assigned to nitrogen atoms within triazine linkages (Fig. 2d).^51,52 The C 1s core-level spectrum was deconvoluted into three components with binding energies of 284.7 eV (C–C), 286.8 eV (C=N), and 288.7 eV (C=O) (Fig. 2e).⁵³ The S 2p core-level spectrum of CTF-QD-2 was fitted to S 2p_3/2 and S 2p_1/2 peaks at 164.1 eV and 165.5 eV, confirming the presence of sulfur (Fig. 2f). These results confirm that CTF-QD-1 and CTF-QD-2 are composed of CTF fragments with incompletely reacted aldehyde groups.

To elucidate the formation mechanism of CTF QDs via a kinetically controlled microwave-assisted approach, we investigated the size, specific surface area, and nitrogen adsorption–desorption properties of CTF-QD-1 synthesized using different amounts of water. The initial reaction between the amidine and aldehyde is a Schiff base reaction that occurs under basic conditions.³⁸ This is a reversible process that produces water as a byproduct. By introducing additional water into the system, the dynamic equilibrium can be manipulated to suppress the forward reaction progression, thereby controlling the degree of polymerization and facilitating the formation of small molecular fragments of CTFs. As illustrated in Fig. S4, the solution becomes progressively clearer with the addition of water, as evidenced by the Tyndall effect, suggesting a gradual reduction in particle size. TEM image analysis shows that the morphology and particle size of CTF-QDs exhibit significant changes with increasing water content in the synthesis system (0–4 mL). Specifically: (1) without added water (0 mL), the synthesized CTF-QD-1 exhibits larger particle sizes and poor dispersion (Fig. S5); (2) after adding water (1–4 mL), the resulting products consist of well-dispersed nanoparticles; (3) as the water content increases from 1 mL to 4 mL, the average size of CTF-QDs decreases (Fig. 3a–d). The average particle sizes for different water contents are 39.91 nm (1 mL), 3.41 nm (2 mL), 2.64 nm (3 mL), and 2.30 nm (4 mL), as shown in Fig. 3e and S6. Notably, the most significant size reduction occurs when 2 mL of water is added, representing a critical inflection point. Beyond this point, further increases in water content result in minimal changes in particle size; however, the CTF-QD yield notably drops when the water dosage is increased from 3 mL (yield: 27.6%) to 4 mL (yield: 10.1%). This yield decline arises because excess water (≥4 mL) excessively suppresses the amidine–aldehyde condensation reaction: water shifts the equilibrium of the reversible Schiff-base reaction far toward reactants, reducing the concentration of Schiff-base intermediates to levels insufficient for efficient triazine cyclization and nucleation. As a result, fewer CTF QD nuclei form, and unreacted monomers remain in the solution, leading to a sharp decrease in QD yield. These findings demonstrate that the kinetically controlled synthesis of CTF-QDs can be precisely tuned through water-mediated equilibrium manipulation of the reversible Schiff-base reaction.

Fig. 3 TEM images of CTF-QD-1 obtained with the addition of (a) 1 mL, (b) 2 mL, (c) 3 mL, and (d) 4 mL water during the polymerization reaction. (e) Particle size distribution curves for CTF-QD-1 samples synthesized with 1 mL, 2 mL, 3 mL, and 4 mL water. (f) N₂ adsorption (black) and desorption (red) isotherms (77 K) of CTF-QD-1 samples prepared with different water amounts. (g) BET analysis plots of CTF-QD-1 samples prepared with different water amounts.

The N₂ adsorption–desorption isotherms (measured at 77 K) of CTF QDs synthesized with different amounts of water exhibit type III behavior (Fig. 3f) with no distinct inflection point at low relative pressures (P/P₀). Thus, CTF QDs do not possess a well-developed microporous structure; instead, they are fragments formed during CTF synthesis. BET analysis plots demonstrate the influence of water content on the specific surface area of CTF QDs synthesized with varying amounts of water (0 mL, 1 mL, 2 mL, 3 mL, and 4 mL) (Fig. 3g). The specific surface areas for these water contents are 88 m² g⁻¹, 40 m² g⁻¹, 36 m² g⁻¹, 32 m² g⁻¹, and 15 m² g⁻¹, respectively. As the amount of water increases, the specific surface area decreases progressively, confirming that water plays a decisive role in determining both the specific surface area and particle size during the amidine–aldehyde condensation polymerization reaction. The amidine–aldehyde condensation reaction involves Schiff base formation followed by a Michael addition.^38,54 Adding water during the Schiff base formation process significantly inhibits further polymerization, thereby facilitating the creation of CTF QDs instead of larger polymers. By leveraging water as a dynamic polymerization modulator, it is possible to precisely control the reaction kinetics during the amidine–aldehyde condensation polymerization process. As illustrated in Fig. S7, the C=O stretching vibration peak exhibits a progressive increase in intensity correlating to increased water content, suggesting incomplete conversion of aldehyde functional groups. Importantly, this deliberate retention of –CHO groups is not a synthetic artefact but a design feature: the carbonyl oxygen in –CHO serves as an additional Lewis base site, which later enables synergistic coordination with Pb²⁺ in CsPbBr₃ perovskites. This controlled polymerization under aqueous conditions aids in the formation of quantum dots. Therefore, CTF QDs are essentially small fragments formed during CTF synthesis.

In this work, we selected CTF-QD-1 over CTF-QD-2 for its structural simplicity. CTF-QD-1 contains only the characteristic functional groups of covalent triazine frameworks (pyridinic nitrogen and carbonyl oxygen), while CTF-QD-2 incorporates additional sulfur atoms from thiophene moieties. This simpler structure allows us to specifically investigate how dimensional reduction of CTFs affects CsPbBr₃ solar cell performance, without confounding effects from extraneous heteroatoms. The preparation of CsPbBr₃ films typically involves a multi-step spin-coating method due to the solubility limit of bromide ions (see the Experimental section for details). The CTF-QD-1-incorporating CsPbBr₃ (CsPbBr₃@CTF-QD-1) film was utilized as an absorber material to fabricate all-inorganic solar cells. Fig. 4a illustrates the device architecture of the all-inorganic solar cells with the structure FTO/compact SnO₂/CsPbBr₃@CTF-QD-1/carbon. The J–V curves for CsPbBr₃@CTF-QD-1 (2.0 mg L⁻¹) and pure CsPbBr₃ solar cells are displayed in Fig. 4b, while additional J–V plots for CsPbBr₃@ CTF-QD-1 at various CTF-QD-1 concentrations can be found in Fig. S8. Table S2 provides a summary of the photovoltaic parameters for CsPbBr₃ solar cells at different CTF-QD-1 concentrations. The CsPbBr₃@CTF-QD-1 (2.0 mg L⁻¹) solar cell demonstrates significantly improved performance compared to pristine CsPbBr₃ devices.

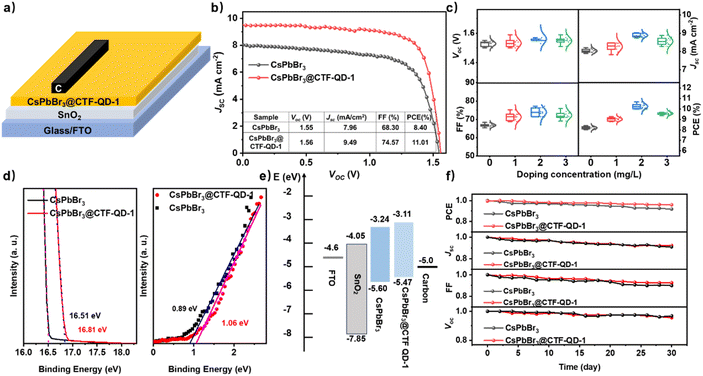

Fig. 4 (a) Device configuration of CsPbBr₃@CTF QD based solar cells. (b) J–V curves of CsPbBr₃ and CsPbBr₃@CTF-QD-1. (c) PV parameters (J_sc, V_oc, FF, PCE) for CsPbBr₃ solar cells with varying CTF-QD-1 concentrations. (d) UPS spectra of the CsPbBr₃ and CsPbBr₃@CTF-QD-1 films. (e) Energy gradient diagram for CsPbBr₃ and CsPbBr₃@CTF-QD-1 solar cells. (f) Long-term stability of PCE, J_sc, FF, and V_oc under RH = 50%, T = 25 °C conditions.

While the control device exhibited a PCE of 8.40% (J_sc = 7.96 mA cm⁻², V_oc = 1.55 V, FF = 68.30%), the CTF-QD-1 modified device achieved an impressive 11.01% efficiency (J_sc = 9.49 mA cm⁻², V_oc = 1.56 V, FF = 74.57%), representing a 31% enhancement and approaching the reported maximum of 11.21% (Table S4).⁴⁴ This performance gain notably surpasses the 15% improvement previously achieved by bulk ECTF-1 modified CsPbBr₃@ECTF-1, despite their structural similarities.⁴³ The superior performance of CTF-QD-1 over ECTF-1 can be attributed to its unique nanoscale characteristics: (1) smaller particle size, which enhances dispersibility, and (2) higher density of active sites, which facilitates effective defect passivation at the interface.

To systematically evaluate the influence of CTF-QD-1 on the photovoltaic performance of CsPbBr₃ solar cells, a comprehensive statistical analysis was conducted on 24 solar cells. This analysis focused on key parameters, including PCE, J_sc, V_oc, and FF (as illustrated in Fig. 4c). The results revealed that FF, J_sc, and PCE exhibited a concentration-dependent trend of initial increase followed by decrease, as presented in the boxplots with varying CTF-QD-1 concentrations. Meanwhile, V_oc exhibited minimal variations across different concentrations, indicating negligible fluctuation. These observations highlight the substantial role of CTF-QD-1 incorporation in enhancing photovoltaic performance, primarily by influencing J_sc and FF, which in turn significantly boosted the overall efficiency of the solar cells.

To elucidate the role of CTF-QD-1 doping in the energy-level structure and photovoltaic performance of CsPbBr₃ solar cells, ultraviolet photoelectron spectroscopy (UPS) was employed to probe the interfacial energetics of pristine CsPbBr₃ and CsPbBr₃@CTF-QD-1 films (Fig. 4d). UPS analysis revealed that CTF-QD-1 incorporation induces a systematic upward shift in the electronic bands: the conduction band minimum (CBM) rose from −3.24 eV to −3.11 eV, while the valence band maximum (VBM) increased from −5.60 eV to −5.47 eV (Fig. 4e). Critically, CTF-QD-1 doping elevates the Fermi level from −4.41 eV (pristine CsPbBr₃) to −4.71 eV (CsPbBr₃@CTF-QD-1). This Fermi level modulation, corroborated by electronic structure analysis (Fig. S9), drives the concomitant upshift of both the VBM and CBM. These CTF-QD-1-mediated energy-level modifications establish a built-in band alignment proximal to the CsPbBr₃/carbon interface. This optimized alignment facilitates interfacial charge separation and promotes hole transfer from the CsPbBr₃@CTF-QD-1 layer to the carbon electrode, thereby enhancing overall device performance.⁵⁵ External quantum efficiency (EQE) spectra (Fig. S10) confirm strong light absorption between 340 and 530 nm for both devices, consistent with UV-vis data. Stability assessments further underscore CTF-QD-1's role: after 30 days of ambient exposure (unencapsulated), the CsPbBr₃@CTF-QD-1 device exhibited a minimal PCE degradation of ∼3.7%, significantly outperforming the 8.9% loss observed for pristine CsPbBr₃ (Fig. 4f). This demonstrates that CTF-QD-1 doping substantially enhances the operational stability of CsPbBr₃ photovoltaics.

The obtained CTF-QD-1 quantum dots can induce the crystal growth of CsPbBr₃ and facilitate high-quality crystalline CsPbBr₃@CTF-QD-1 films via synergistic coordination between pyridinic N and carbonyl O (from –CHO groups) with Pb²⁺.⁴³ As shown in Fig. S11, the XRD peaks at 15.3°, 21.8°, 26.6°, 30.8°, and 37.9° correspond to the (100), (110), (111), (200), and (211) planes of CsPbBr₃ (JCPDS No. 54-0752).⁵⁶ Additional peaks at 11.8° and 29.5° suggest the presence of the CsPb₂Br₅ phase.⁵⁷ The addition of CTF-QD-1 enhanced XRD intensities while keeping peak positions and numbers unchanged, suggesting no alteration in structure or composition. As depicted in the SEM images (Fig. S12), the average particle size of CsPbBr₃ initially increases from 0.8 µm to 1.2 µm and subsequently decreases to 1.0 µm with the increasing concentration of added CTF-QD-1. This trend suggests that the –CHO– derived O and pyridinic N in CTF-QD-1 quantum dots suppress excessive nucleation and promote grain growth, yielding denser films with fewer grain boundaries. FT-IR and XPS analyses corroborate the coordination-driven film formation mechanism. The PbBr₂@CTF-QD-1 complex exhibits characteristic blue shifts of 16 cm⁻¹ (C=O), 5 cm⁻¹ (C–N) and 8 cm⁻¹ (C=N) in FT-IR spectra relative to pristine CTF-QD-1 (Fig. S13), indicating reduced electron density on the CTF-QD-1 surface due to simultaneous coordination of pyridinic N and –CHO derived O with Pb²⁺ ions (dual Lewis base–Lewis acid interactions). This interaction is further confirmed by XPS studies: N 1s spectra verify the presence of pyridinic N in CsPbBr₃@CTF-QD-1 composites (Fig. S14 and S15), while a 0.15 eV binding energy shift in Pb 4f peaks (Fig. S16) reflects the combined effect of N–Pb and O–Pb bond formation (from –CHO groups). The synergistic coordination effect facilitates CsPbBr₃ crystal growth, yielding high-quality crystalline films essential for enhanced photovoltaic performance. This optimized structure and interfacial interaction directly translate into improved optoelectronic properties, as revealed by the following spectroscopic and electrical characterization.

As indicated by the UV-vis absorption spectra (Fig. 5a), the absorption edge of the CsPbBr₃@CTF-QD-1 film remained unchanged compared to that of the reference CsPbBr₃. However, the steady-state photoluminescence intensity (PL) of the CsPbBr₃@CTF-QD-1 film was reduced relative to CsPbBr₃, suggesting a decrease in defects and a suppression of photogenerated charge recombination (Fig. 5b). Time-resolved photoluminescence (TRPL) spectra were employed using a bi-exponential decay model to investigate the carrier lifetime of the CsPbBr₃@CTF-QD-1 film.⁵⁷ The average carrier lifetime was prolonged from 2.89 ns for pristine CsPbBr₃ to 2.99 ns for CsPbBr₃@CTF-QD-1 (Fig. 5c). This increase suggests enhanced electron extraction and transfer within the CsPbBr₃@CTF-QD-1 films compared with those within the pristine CsPbBr₃ films. Transient surface photovoltage (TSPV) techniques were utilized to analyze the photo-induced charge behavior of photovoltaic thin films, enabling a rapid assessment and prediction of their photovoltaic properties.^58–60 The TSPV measurements show that the photovoltage magnitude for the CsPbBr₃@CTF-QD-1 film is greater than that of the unmodified CsPbBr₃ film, indicating an enhancement in charge separation efficiency (Fig. 5d). Based on prior research,^59,61,62 the parameter L = τ_t/τ_r has been employed to gauge the photoelectric performance of perovskite materials, where τ_t denotes the time from photovoltage initiation to its peak value, while τ_r signifies the duration from the peak to complete recombination of the photo-generated charge carriers. A lower L value typically indicates a more efficient and faster carrier transfer process. The measured τ_t, τ_r, and L values are summarized in Table S3. Specifically, the L value for the CsPbBr₃@CTF-QD-1 film (1.16 × 10⁻²) is significantly lower than that of the pristine CsPbBr₃ film (3.14 × 10⁻²), suggesting that CTF-QD-1 facilitates photoinduced carrier transfer, likely through its inductive effect on crystal growth via pyridinic N–Pb²⁺ coordination interactions.

Fig. 5 (a) Absorbance spectra, (b) steady-state PL spectra, (c)TRPL spectra, and (d) TSPV spectra of CsPbBr₃ and CsPbBr₃@CTF-QD-1 films. (e) J–V curves in the dark and (f) Nyquist plot curves based on CsPbBr₃ and CsPbBr₃@CTF-QD-1 devices.

Additionally, Nyquist plots were utilized to elucidate the charge transport kinetics in perovskite solar cells (Fig. 5f). The inset depicts the equivalent circuit model employed for impedance analysis of these solar cells. The semicircular arc corresponds to the charge recombination resistance of the device. Relative to the pristine CsPbBr₃ device, the CsPbBr₃@CTF-QD-1 device exhibits a higher charge recombination resistance, facilitating more efficient charge separation and transfer with minimal recombination. This enhancement is primarily attributed to the improved quality of the CsPbBr₃ film, characterized by a reduced density of trap states. Fig. 5e shows the dark J–V characteristics of CsPbBr₃ and CsPbBr₃@CTF-QD-1 devices. Upon incorporation of CTF-QD-1, the CsPbBr₃@CTF-QD-1 devices show a markedly lower dark-current density than the control CsPbBr₃ cells, which indicates that CTF-QD-1 facilitates the extraction of photogenerated carriers and thereby suppresses carrier recombination. Thus, the CsPbBr₃ film modified with CTF-QD-1 demonstrates superior film quality, characterized by fewer defects, which effectively enhances the separation and transfer of photogenerated charges.

Collectively, the remarkable enhancement in CsPbBr₃ solar cell performance upon incorporating CTF-QDs is directly governed by its unique molecular structure, which enables multifunctional interfacial modulation. The key structural features of CTF-QDs—namely, their pyridinic nitrogen-rich triazine framework and residual aldehyde groups—are pivotal for its properties. These functional sites act as strong Lewis bases, effectively coordinating with under-coordinated Pb²⁺ ions at the perovskite surface and grain boundaries. This coordination achieves two critical functions simultaneously: it provides excellent defect passivation, suppressing non-radiative recombination, and it modulates the crystallization kinetics of CsPbBr₃, leading to the formation of larger, high-quality grains. Consequently, this synergistic action results in enhanced charge carrier lifetime, improved charge extraction, and significantly reduced trap-assisted recombination. This structure-driven interfacial optimization directly boosts photovoltaic parameters (J_sc, FF, and PCE).

Conclusions

In summary, we have synthesized well-defined CTF-based quantum dots (CTF-QD-1 and CTF-QD-2) through a water-mediated kinetic strategy that controls amidine–aldehyde polymerization by modulating Schiff-base reaction kinetics. Synergistic Pb²⁺ coordination by CTF-QD-1's pyridinic N and aldehyde groups enables both crystallization control and defect passivation in CsPbBr₃ solar cells, achieving a 31% efficiency gain (8.40% → 11.01%). Furthermore, stability tests reveal that CTF-QD-1 dramatically suppresses device degradation, reducing the PCE loss by more than half (from 8.9% to 3.7%) over 30 days compared to the control device. Based on the principle of water-regulated reversible reaction kinetics, the rational design and synthesis of functionalized CTF QDs can be achieved by selecting different amine/aldehyde monomers. This study not only resolves the synthetic challenge of producing size-tunable CTF QDs but also establishes their transformative potential as interfacial modifiers in high-performance and stable photovoltaics, offering a general kinetic engineering paradigm for the design of functional nanomaterials.

Author contributions

M. Liu: supervision, methodology, data analysis and writing – original draft. Z. Lei: prepared CTF quantum dots and tested solar cell performance. P. Ma: infrared spectroscopy and electrochemical characterization. L. Feng: explored CTF QD preparation conditions. Y. Wang: reproduced CTF QDs, verified reproducibility. D. Zhao and Y. Guo: guided solar cell performance testing. Y. Zhang: guided solar cell device structure design. X. Zhao: conceptualization, review and editing. Z. Zheng: conceptualization, writing – review and editing, supervision, funding acquisition.

Conflicts of interest

The authors declare no conflict of interest.

Data availability

The data that support the findings of this study are available in the supplementary information (SI) of this article. Supplementary information: materials and methods; characterizations including BET, TG, XRD, FT-IR, and XPS data; XRD patterns of CTF-QD-1/2; digital photos and TEM images; an energy-level diagram; J–V and EQE curves; SEM images and statistical particle-size analyses; elemental composition tables; and photovoltaic and TSPV parameters. See DOI: https://doi.org/10.1039/d5sc08329j.

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (Grant No. 52472255, 22309158); Science and Technology Project of Henan Province (252102230120); Higher Education and Teaching Reformation Project (2024SJGLX0451); Academic Degrees & Graduate Education Reform Project of Henan Province (YJS2022JD34); Key Research and Development Projects of Universities in Henan Province (23B430009); Natural Science Foundation of Henan Province (232300420099); Key Scientific Research Project of Higher Education in Henan Province (25A150036); and Scientific Research Project of Xuchang University (2025ZD005).
