Electrostatic decatalysis through coulombic screening

Abstract

We demonstrate electrostatic decatalysis, where long-range coulombic interactions selectively screen parasitic chemistry, leading to distinct catalytic selectivity outcomes. By reconfiguring interfacial electrostatic landscapes, this approach achieves site- and flux-selective modulation of competing reactions while promoting ammonia electrosynthesis. Molecular dynamics simulations reveal a nearly sevenfold enhancement in substrate enrichment factors, arising from optimized electrostatic screening and strategic charge distribution. Experimentally, we observe more than a twofold increase in ammonia's faradaic efficiency at practically relevant current densities, suggesting electrostatics contribute to reaction selectivity with energy savings exceeding 50% relative to conventional benchmarks. Importantly, this approach based on activation of coulombic forces exhibits pH-insensitive universality, enabling broad applicability for electrochemical process modulations.

---

Introduction

Electrocatalysis is at the heart of transformative technologies spanning energy storage, green synthesis, and environmental remediation.^1–7 Yet, achieving high activity and selectivity for challenging reactions, such as nitrogen reduction,^8,9 carbon dioxide reduction,^10,11 and nitrate remediation,^12–16 remains hindered by the persistent challenge of parasitic side reactions, notably the HER. Conventional strategies, like structural tuning, facet engineering, interfacial modifications, etc.,^17–19 have made significant progress, but are often limited by pH dependency, complex fabrication, and reliance on expensive materials.^20,21

While the effect of electrostatic forces on molecular ordering and self-organization is well known,^22,23 we demonstrate here the electrostatic engineering of surface charges as an adaptive, intelligent gate to regulate reaction fluxes. By imparting static, long-range surface charges to carbon-based electrodes via simple, scalable synthesis, we harness electrostatic attraction or repulsion to selectively suppress parasitic pathways, such as the hydrogen evolution reaction (HER), while simultaneously promoting reaction selectivity. This universal, pH-independent strategy transcends traditional material modifications, enabling precise, energy-efficient control over electrochemical selectivity.

To demonstrate this concept, we activate long-range coulombic forces on the electrode surface and demonstrate a substantial suppression of the parasitic HER (Scheme 1), reducing its faradaic contribution by over 35%, while boosting ammonia electrosynthesis by two-fold. Integrating this electrostatic control into an energy-efficient electrochemical reactor reduces the overall energy input by over 50%, establishing that electrostatic decatalysis is a powerful, broadly applicable principle for sustainable electrochemical transformations. This work not only offers a new paradigm for universal, pH-independent catalytic control but also opens avenues to tackle some of the most pressing energy and environmental challenges with fundamental, physics-based strategies rooted in electrostatic modulation.

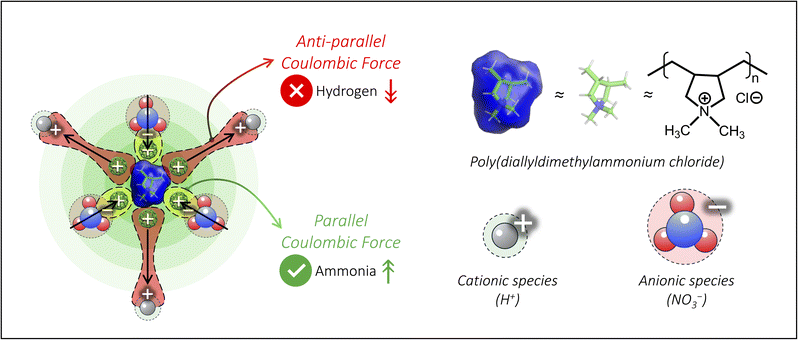

Scheme 1 Illustration of electrostatic decatalysis of parasitic chemistry while selectively favouring the desired reaction flux.

Influence of the interfacial charge and electrochemical double-layer structure on reaction kinetics is a mature and foundational concept, originating from Frumkin theory²⁴ and continuing through extensive modern literature^25–27 majorly attributed to microenvironmental wettability and double-layer modulations. We show that irrespective of the surface area, double-layer, and wettability factors electrostatic decatalysis of parasitic reaction leads to distinct catalytic outcomes of reaction selectivity.

Results and discussion

Surface activation of coulombic forces

Carbon nanotubes (CNTs) are widely used in electrochemical devices due to their high electrical conductivity, large surface area, and excellent mechanical and chemical stability. Their nanoscale morphology enables efficient electron transport and abundant active sites, making them an effective support for enhancing catalytic performance. To impart a positive surface charge on CNTs, we employed poly(diallyldimethylammonium chloride) (PDDA) as a cationic ionomer due to its quaternary ammonium groups. In a typical synthesis, 100 mg CNTs were dispersed in 100 mL of a 5 wt% PDDA solution under sonication for 2 h, followed by stirring for ∼20 h to achieve a homogeneous black suspension. The mixture was then filtered, thoroughly washed to remove excess PDDA, and dried under vacuum for 24 h to obtain the positively charged CNT (p-CNT).^28,29 For negative surface charge engineering, we utilized Nafion ionomer, utilizing its sulphonic acid groups, following the same synthesis protocol, and obtained the n-CNT (Fig. 1a).

Fig. 1 (a) Illustrative representation of surface charge engineering of CNTs with PDDA as the positive ionomer (p-CNT) and Nafion as the negative ionomer (n-CNT). (b) Theoretical interaction energy of CNTs with ionomers (p-CNT model and n-CNT model). (c) ATR-FTIR spectra, (d) Raman spectra, and (e) TGA curves of modified and unmodified CNTs. (f) Electrostatic surface potential of ionomers. (g) Zeta potential analysis and (h) TEM images of bare-CNT, p-CNT, and n-CNT.

Theoretical modeling approaches and molecular dynamics (MD) simulations enable the exploration of atomistic-level details of such modified surfaces, their stability and subsequent spatial effects. Herein, we employed the CHARMM-GUI web tool to model systems involving these complex surface interactions³⁰ and constructed two surface models using the nanomaterial modeler module³¹ of the CHARMM-GUI web platform: one with a positively charged surface (p-CNT model) and one with a negatively charged surface (n-CNT model). Each model represented the CNT surface as a planar graphene patch measuring 54.3 Å × 51.3 Å in the X–Y plane. This planar representation effectively approximates a local region of a CNT, which typically has outer diameters exceeding 6 nm. At this scale, the curvature is negligible, enabling the planar patch to capture the essential atomic-level features of surface–polymer interactions. Positive and negative surface charge modifications were introduced using the pentameric forms of PDDA and Nafion, respectively (Fig. S1, SI). For each functionalized surface, two independent solvated systems were generated. Each system contained over 26 000 atoms, making a complete quantum mechanical theory treatment computationally prohibitive. Accordingly, we employed a reliable and inexpensive parameterized classical force field level of theory for energy calculations and MD simulations. All simulations were performed using the CHARMM program (c50a1 development version),³² coupled with the OpenMM engine (version 8.1)³³ for GPU acceleration. Full details of the computational modeling, force field parameterization, and simulation protocols are provided in the SI. To assess the stability of polymer adsorption on CNT surfaces, we then calculated the interaction energies between the graphene patch and the pentamer ionomers from the modeled systems. Averaged over the MD simulation trajectories, the interaction energy was −53.8 ± 0.7 kcal mol⁻¹ for the p-CNT model and −47.2 ± 1.1 kcal mol⁻¹ for the n-CNT model, indicating thermodynamically favorable adsorption in both cases (Fig. 1b).

Surface engineering was comprehensively characterized using multiple spectroscopic techniques. Attenuated Total Reflectance Infrared (ATR-IR) spectroscopy confirmed the successful surface modification of CNTs through distinct vibrational signatures, as shown in Fig. 1c. The PDDA-functionalized CNTs exhibited characteristic absorption bands at 3356 cm⁻¹ (NR₃⁺ symmetric stretching), 3000–2800 cm⁻¹ (aliphatic C–H stretching), 1645 cm⁻¹ (N–C deformation), 1460 cm⁻¹ (CH₂ bending), and 1129 cm⁻¹ (C–N stretching vibration).^34,35 Similarly, Nafion-modified CNTs displayed signature peaks at 1140 cm⁻¹ (CF₂ symmetric stretching), 1050 cm⁻¹ (SO₃⁻ symmetric vibration), and 975 cm⁻¹ (C–O–C ether linkage), confirming the presence of the anionic polymer.³⁶ These well-resolved vibrational features demonstrate the effective incorporation of cationic (PDDA) and anionic (Nafion) modifiers onto the CNT surfaces. In Fig. 1d, Raman spectroscopy reveals significant changes due to surface charge modification through the I_D/I_G (disordered carbon/graphitic peak, 1290/1600 cm⁻¹) ratio analysis, where the increased ratio for both p-CNT (2.39) and n-CNT (2.52) compared to bare-CNT (1.61) indicates higher defect density due to polymer functionalization.³⁷ Thermal Gravimetric Analysis (TGA) results provided in Fig. 1e give further confirmation through distinct weight loss profiles that correlate with the decomposition temperatures of pure PDDA (∼30–150 °C: water loss; ∼200–350 °C: decomposition of quaternary ammonium group; >350 °C: backbone degradation)³⁸ and Nafion (∼30–150 °C: water loss; ∼250–400 °C: decomposition of sulfonic acid side chains; >400 °C: backbone degradation),³⁹ respectively.

We then characterized the electrostatic influence of such charged ionomers that could affect the spatial environment. Poisson–Boltzmann (PB) calculations⁴⁰ were performed on the modeled monomeric forms of PDDA and Nafion using the PBEQ module in the CHARMM program. These calculations were conducted using a solute dielectric constant of 1.0, a solvent dielectric constant of 80.0, and an ionic strength of 0.1 M on a special grid of 0.5 Å surrounding the ionomers, matching the aqueous solvent conditions used in the MD simulations (SI). The resulting electrostatic potentials were projected onto the solvent-accessible surface area (SASA) of each molecule to generate spatially interpretable electrostatic maps. As shown in Fig. 1f, the PDDA monomer produced a net positive potential (blue), while the Nafion monomer exhibited a net negative potential (red). These maps qualitatively indicate that the charged ionomers can attract or repel ions (say NO₃⁻) through long-range electrostatic interactions. Consistent with these predictions, the zeta potential measurement in Fig. 1g shows values close to +45 mV for p-CNT and −29 mV for n-CNT. As shown in Fig. 1h, morphological examination via transmission electron microscopy (TEM) clearly visualized the polymer coatings on CNT surfaces, while high-resolution TEM and X-ray diffraction confirmed that the functionalization process preserved the fundamental structure of the CNTs, as indicated by the maintained (002) plane spacing of 0.33 nm and almost unchanged diffraction patterns (Fig. S2, SI).^41,42 This approach, combining surface-sensitive vibrational spectroscopy, defect analysis, thermal decomposition profiling, surface charge measurement, and nanoscale imaging, provided unambiguous evidence for the successful surface charge engineering of CNTs with both cationic and anionic surface functionalities while maintaining their structural integrity.

Electrochemical nitrate reduction

These modified electrodes demonstrate the electrostatic decatalysis of the parasitic parallel HER during the electrochemical nitrate reduction reaction (eNO₃RR). The electrocatalytic activity of p-CNT (Fig. 2a) and n-CNT (Fig. 2b) toward the eNO₃RR was evaluated at room temperature using a three-electrode, single-compartment system via linear sweep voltammetry (LSV) in Ar-purged 10 mM HClO₄, both with and without 10 mM NO₃⁻. Each electrocatalyst was drop-cast onto a glassy carbon (GC) electrode and pre-conditioned by cyclic voltammetry (CV) until a steady-state response was achieved. In Fig. 2c, LSV results show that p-CNT exhibits enhanced eNO₃RR activity, reaching a current density of 1 mA cm⁻² at a lower potential (−0.57 V) compared to n-CNT (−0.91 V), attributed to electrostatic attraction between the positively charged surface (from PDDA functionalization) and the negatively charged NO₃⁻ ions. In contrast, n-CNT shows suppressed eNO₃RR activity, consistent with electrostatic repulsion between the negatively charged sulfonate surface and NO₃⁻ ions.

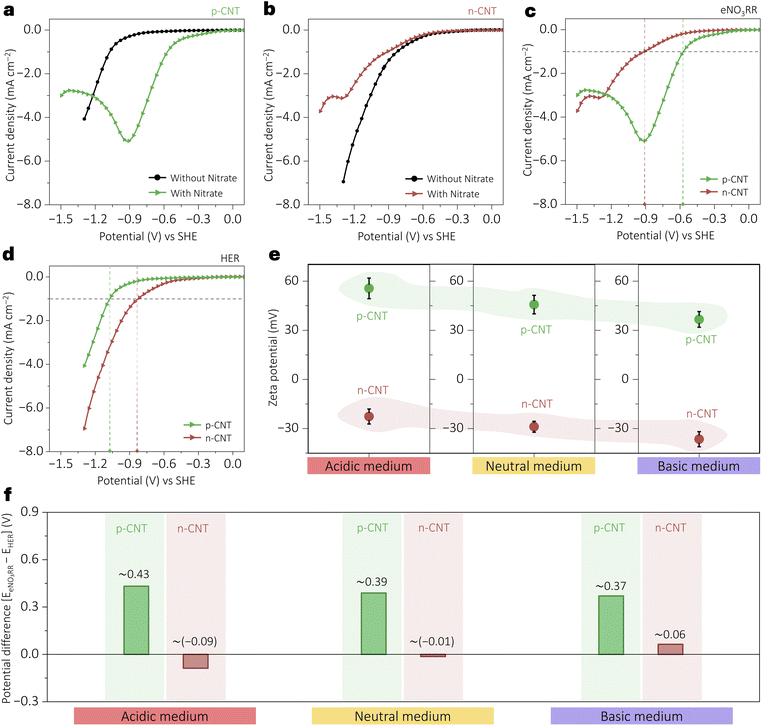

Fig. 2 Linear sweep voltammograms (LSVs) of the HER (without nitrate) and eNO₃RR (with nitrate) on (a) p-CNT and (b) n-CNT electrodes in 10 mM HClO₄ solution and 10 mM KNO₃ + 10 mM HClO₄ solution at a scan rate of 20 mV s⁻¹. (c) Comparison of LSVs for the eNO₃RR for p-CNT and n-CNT. (d) Comparison of LSVs for the HER (without nitrate) for pCNT and n-CNT electrodes. (e) Zeta potentials for p-CNT and n-CNTs in acidic, neutral and basic media. (f) Difference between the potentials to achieve a current density of 1 mA cm⁻² in all the media with nitrate (eNO₃RR) and without nitrate (HER) [extracted from Fig. S3, SI].

Interestingly, in the absence of NO₃⁻, LSV (only for the HER) reveals that n-CNT outperforms p-CNT, requiring the lowest overpotential to reach 1 mA cm⁻², as shown in Fig. 2d. This trend is reversed from that seen in the eNO₃RR (Fig. 2c) and is explained by favorable electrostatic attraction between H⁺ and the negatively charged n-CNT surface. Conversely, p-CNT repels protons, requiring a higher potential for the HER, confirming the key role of surface charge in modulating electrocatalytic selectivity. This demonstrates that surface charge-induced electrostatic fields can deactivate or activate parasitic HER pathways depending on their polarity, effectively functioning as a regulator of parasitic reaction flux.

These surface charges are pH independent, and to demonstrate this, zeta potential measurements (Fig. 2e) were conducted at various pH. The results show that p-CNT exhibits a consistent positive zeta potential due to PDDA's pH-independent quaternary ammonium groups, while n-CNT, functionalized with Nafion (which carries a sulfonate group), shows a consistently negative zeta potential. These trends were preserved across acidic, neutral, and basic media, validating the stability of the engineered surface charges. Subsequent eNO₃RR and HER evaluations under neutral and basic conditions (Fig. S3, SI) underline the acidic media trends; p-CNT consistently exhibits superior eNO₃RR performance due to electrostatic attraction between p-CNT and NO₃⁻, and consequently the dominance of NO₃⁻, while unfavorable for the parasitic HER performance due to electrostatic repulsion between p-CNT and H⁺/H₃O⁺. The potential difference to achieve 1 mA cm⁻² current density with nitrate and without nitrate (ΔE = E_eNO3RR – E_HER) was extracted as a metric for selectivity (Fig. 2f). A larger ΔE indicates enhanced eNO₃RR selectivity with minimized HER interference, and p-CNT consistently showed the highest ΔE across all pH conditions.

This study highlights the ability of p-CNT to mitigate the parasitic HER, a major challenge in the eNO₃RR, through electrostatic surface charge control. From the observed performance (Fig. 2), it could be argued that it originates from several surface-modified properties rather than electrostatic effects alone, including wettability changes, accessible surface area variations, or altered electrical properties. To systematically study these possibilities, we conducted various characterization experiments: contact angle measurements (Fig. 3a) revealed a wettability trend (p-CNT: ∼100.2°; n-CNT: ∼94.6°), which is comparable, suggesting wettability is not the dominant factor. In Fig. 3b, BET surface area analysis showed p-CNT with an area of 44.1 m² g⁻¹ and n-CNT with an area of 49.7 m² g⁻¹, demonstrating that the enhanced electrochemical activities occur despite the reduced surface area in p-CNT. Fig. 3c shows electrical transport measurements via a current–potential (I–V) plot (p-CNT: 3.74 × 10² S m⁻¹; n-CNT: 3.41 × 10² S m⁻¹), and the electronic conductivities fall in a similar range. Yet, the p-CNT showed superior eNO₃RR. Electrochemical active surface area (ECSA) assessment through double-layer capacitance measurements (Fig. S4–S6, SI) further confirmed that activity trends (n-CNT > p-CNT) oppose surface area variations. This comprehensive exclusion of wettability (contact angles), electrical conductivity (I–V curves), and surface area (BET and ECSA) effects provide substantial evidence that the eNO₃RR and HER performance in Fig. 2 originates primarily from electrostatic interactions within the reaction zone.

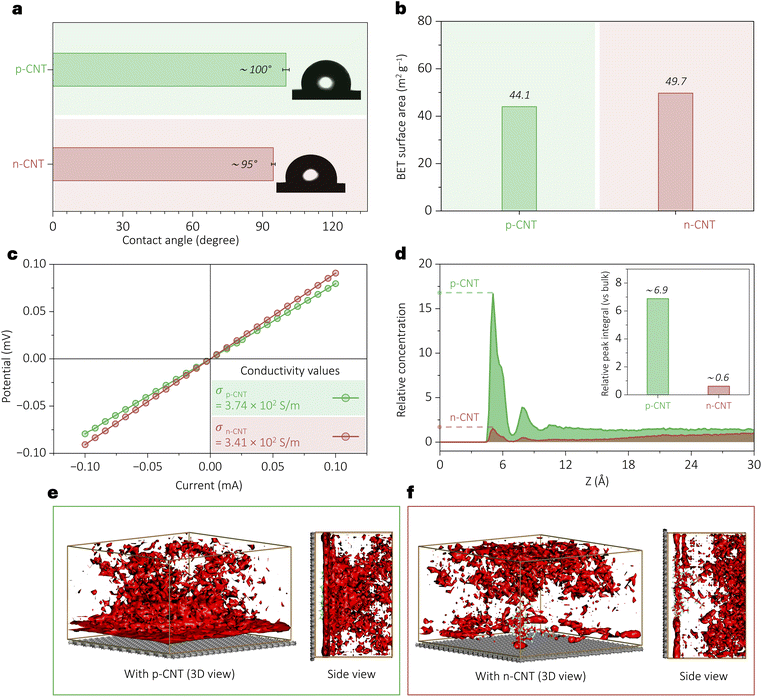

Fig. 3 (a) Hydrophilicity measurement, (b) BET surface area analysis, and (c) I–V plots. (d) NO₃⁻ ion concentration profile along the Z-axis, perpendicular to the modeled surface, showing deviations from the bulk concentration (0.1 M) to highlight near-surface accumulation or depletion. The inset panel reports the NO₃⁻ enrichment factor, obtained by integrating the first interfacial peak relative to a flat bulk profile [Fig. S7, SI]. (e and f) Solvation maps of NO₃⁻ ions near the (e) p-CNT model and (f) n-CNT model surfaces, derived from the corresponding MD simulation trajectories as detailed in the SI.

MD simulations of solvated surface models revealed how the coulombic force modulates long-range electrostatic effects on NO₃⁻ local concentration near the electrode surface. The relative concentration profiles show a pronounced accumulation of NO₃⁻ near the p-CNT surface, whereas the n-CNT surface exhibits a marked depletion (Fig. 3d; details of the analysis are provided in section S2, SI). Analysis of the relative concentration profiles revealed that the NO₃⁻ concentration was enriched by ∼sevenfold near the p-CNT surface, whereas it was reduced to about half near the n-CNT surface, as quantified by the NO₃⁻ enrichment factor, which measures the integrated intensity of the first interfacial peak relative to the bulk (Fig. 3d inset and S7, SI). These trends were corroborated by solvation maps, which showed enhanced NO₃⁻ density near the positively charged surface and depletion near the negatively charged surface (Fig. 3e and f). These results demonstrate that coulombic force can be strategically harnessed to tune the local concentration at the interface, thereby enabling control over local ion distributions and, in turn, influencing interfacial reaction kinetics and electrochemical selectivity. Moreover, this approach aims to tackle a key challenge in nitrate reduction: under reducing potentials, the electrode surface acquires a negative charge, which tends to repel the negatively charged nitrate ions and consequently lowers their local concentration near the interface. A nearly sevenfold increase in the NO₃⁻ enrichment factor (inset of Fig. 3d) suggests that this limitation can be overcome even under negative reduction potentials, by activating coulombic forces at the interface.

Device performance

After successfully verifying the electrostatic interaction in eNO₃RR studies, we have integrated this approach into a practical two-electrode ammonia synthesizer. To enable this in an energy-efficient way, firstly, systematic voltammetric screening (Fig. 4a and Table S1) was attempted to replace the sluggish counter electrode oxygen evolution reaction (OER) by a potential oxidation reaction. To achieve this, various species, including iron complexes, ruthenium complexes, ferrocene derivatives, TEMPO radicals, viologens, and quinone derivatives, were screened. From the analyses, ferrocyanide emerged as the superior choice due to its cost efficiency ($0.14 per gram; Sigma-Aldrich), which is remarkably low compared to the rest of the species, as shown in Fig. 4b. Cyclic voltammetric studies using platinum, gold, and glassy carbon electrodes (Fig. 4c) confirmed the reaction's electrode-independent nature, allowing the use of low-cost carbon electrodes to drive the reaction instead of precious metals. At sufficiently positive potentials, the redox behaviour of ferrocyanide (FOR) is mass transport-limited, with a near 0.5 slope in log (i) vs. log (v) plots (Fig. S8a–c, SI) and a diffusion coefficient (D) of ∼3.7 × 10⁻⁶ cm² s⁻¹ (calculation S1, SI).⁴³ Rotating disk electrode (RDE) studies further confirm a single-electron transfer process (n ≈ 1 from Levich analysis; Fig. S8d and e, calculation S2, SI) and a concentration-dependent current response (Fig. S8f, SI), supporting FOR's electrochemical suitability. Notably, the FOR requires ∼1.2 V lower potential than the conventional oxygen evolution reaction (OER), as shown in three-electrode measurements (Fig. S9, SI).

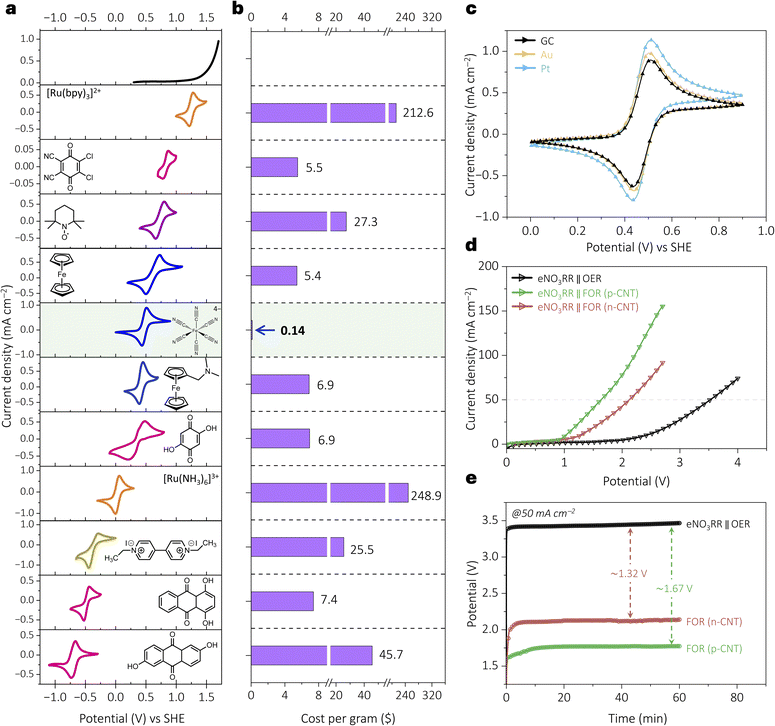

Fig. 4 (a) Cyclic voltammetry of candidate anolytes (including iron complexes, ruthenium complexes, ferrocene derivatives, TEMPO radicals, viologens and quinone derivatives) measured at 20 mV s⁻¹ and 10 mM active species concentration. (b) Cost comparisons of the redox species (data sourced from Sigma-Aldrich, India). (c) Electrochemical behavior of ferrocyanide on Pt, Au, and GC electrodes. (d) Polarization curves for the electrochemical nitrate reduction reaction (eNO₃RR) when the counter-reaction is the ferrocyanide oxidation reaction (FOR) instead of the OER. The eNO₃RR was carried out on p-CNT and n-CNT driving electrodes to compare their device level performance. (e) Corresponding chronopotentiometry profiles at 50 mA cm⁻² when the OER was replaced by the FOR.

After analysing this behaviour, we fabricated the ammonia electrosynthesizer by coupling the eNO₃RR (on p-CNT and n-CNT driving electrodes) with the FOR system (on a bare carbon electrode). Compared to the conventional eNO₃RR‖OER setup, the eNO₃RR‖FOR configuration with n-CNT showed a ∼1.3 V less potential to reach 50 mA cm⁻² (Fig. 4d). The input potential is further reduced for p-CNT due to the incorporation of the electrostatic effect. The sustained low-voltage operation was confirmed further via chronopotentiometry (Fig. 4e). When p-CNT was employed as the eNO₃RR electrocatalyst, the operating potential decreased further, resulting in an overall reduction of approximately 1.7 V compared to the conventional eNO₃RR‖OER configuration. Collectively, employing the FOR as the anodic reaction and p-CNT as the driving electrode in device-level ammonia synthesis offers significant energy savings and cost advantages.

To confirm ammonia formation in the cathodic compartment of the eNO₃RR‖FOR systems, a preliminary qualitative test was performed using Nessler's reagent.⁴⁴ The appearance of a yellow-brown coloration (Fig. 5a) in the catholyte after electrolysis (absent prior to the reaction) indicates the presence of NH₃ via the formation of the iodide complex of Millon's base [HgO·Hg(NH₂)I]. To further validate the origin of ammonia from nitrate and eliminate contributions from external nitrogen sources (e.g., N₂), isotope-labeling experiments were conducted using a K¹⁵NO₃ electrolyte. The post-electrolysis ¹H NMR spectra (Fig. 5b) exhibited distinct doublet peaks for ¹⁵NH₄⁺ (J = 73 Hz) and a triplet for ¹⁵NH₄⁺ (J = 52 Hz), while no such signals were present in the pre-electrolysis solution.⁴⁵ These results confirm that NO₃⁻ is the exclusive nitrogen source for NH₃ production in this system. In Fig. 5c, hydrogen evolution in the cathodic half-cell was verified for all electrodes using in situ electrochemical mass spectrometry by monitoring the m/z = 2 signal during electrolysis at 50 mA cm⁻². Notably, the noticeably lower H₂ partial pressure with the p-CNT electrode at the same current density indicates that coulombic interactions exert deliberate, site- and flux-selective modulation of parasitic pathways. As protons are positively charged, electrodes with static positive surface charge (such as p-CNT) electrostatically repel them, effectively suppressing the parasitic HER.

Fig. 5 (a) Nessler's reagent test for ammonia detection, before and after electrolysis. The characteristic yellow-brown colouration of ammonia after electrolysis suggests the conversion of nitrate to ammonia. (b) ¹H NMR spectra of the electrolyte before and after the eNO₃RR using ¹⁵NO₃⁻ and ¹⁴NO₃⁻ as the nitrogen sources. (c) In-situ electrochemical mass spectra of the cathodic outlet of the eNO₃RR‖FOR at a constant current density of 50 mA cm⁻². (d) Faradaic efficiency (FE) of ammonia (NH₄⁺) using p-CNT and n-CNT as the driving electrodes. (e) Faradaic efficiency of H₂ with p-CNT and n-CNT electrodes. (f) Total energy savings of the eNO₃RR‖FOR (with p-CNT) compared to the conventional electrolyzer system (eNO₃RR‖OER).

Given the complexity of the multi-electron NO₃⁻ to NH₄⁺ reduction, side-product formation was investigated using in situ electrochemical mass spectrometry and UV-vis spectroscopy. Negligible formation of typical byproducts, such as nitrogen (N₂), nitric oxide (NO), nitroxyl (HNO), nitrous oxide (N₂O), and nitrogen dioxide gas (NO₂), hydrazine (NH₂–NH₂), and hydroxylamine (NH₂OH) were observed (Fig. S10–S12, SI). However, we observed nitrite (NO₂⁻) as a major by-product during the electrolysis (FE for p-CNT ∼19% and for n-CNT ∼33%) (Fig. S13 and S14, SI). Its quantification was carried out by UV-vis spectroscopic analysis with the help of calibration plots (Fig. S13, calculation S3, SI) constructed using standard known concentrations (as detailed in the Experimental section, SI). The ratio of ammonia formed vs. nitrite produced is fairly constant over time for both p-CNT and n-CNT electrodes (Fig. S15, SI). Whether nitrite is a kinetically trapped intermediate or an end product is a matter of future investigation. Ammonia formation was quantified by ¹H NMR analysis of the electrolyte after 1 hour of electrolysis at 50 mA cm⁻² (Fig. 4e), using calibration curves constructed from standard ammonia solutions (Fig. S16, SI). The faradaic efficiency (FE) of ammonia was nearly ∼65% on p-CNT and ∼30% on n-CNT electrodes (Fig. 5d, calculation S4, SI). Notably, p-CNT exhibited more than twofold enhancement in the FE over n-CNT (Fig. 5d, calculation S5, SI), attributed to favorable electrostatic interactions. These results validate the viability of our approach in a two-compartment device system. Since no major side products could be detected other than nitrite, the FE of H₂ evolution was calculated from FEs of ammonia and nitrite, as shown in Fig. 5e (calculation S6, SI).

These results demonstrate that p-CNT, as a cathodic electrocatalyst, selectively enhances NO₃⁻ reduction (Fig. 5d) to ammonia while suppressing the parasitic HER (Fig. 5e). The inverse trends observed in the FE of NH₄⁺ and H₂ are attributed to its static electrostatic effect, which favors NO₃⁻ attraction toward the positively charged p-CNT while simultaneously repelling H⁺ ions. Energy analysis (Fig. 5f, calculation S7, SI) reveals that combining the eNO₃RR with the FOR (eNO₃RR‖FOR) with electrostatic charge modulation (p-CNT as the electrocatalyst) achieves 125.209 kJ mol⁻¹ (∼50%) energy reduction compared to the conventional system (eNO₃RR‖OER), highlighting the dual advantages of electrostatic decatalysis in this system.

To evaluate the stability of the p-CNT electrode, the device was operated in a wide current density range (10 to 100 mA cm⁻² and back to 10 mA cm⁻²). As shown in Fig. 6a, the system maintained consistent electrochemical activity. Durability was further validated through long term chronopotentiometry at a fixed current density of 10 mA cm⁻² for ∼30 hours (Fig. S17, SI) and rate capability tests (Fig. 6b), with ammonia quantified at each step. The faradaic efficiency remained nearly constant across all current densities (Fig. 6c, S18 and SI), confirming the stability of p-CNT under practically relevant conditions. To probe the suppression of the competing hydrogen evolution reaction (HER), H₂ partial pressures were monitored during electrolysis at low and high current densities. p-CNT consistently exhibited suppressed HER in the full current range (Fig. 6d and e, S19, SI), attributed to the dominance of NO₃⁻ near the positively charged surface, in contrast to n-CNT. Although the HER is typically increasingly favored at higher current densities, it displays diametrically opposite trends on p-CNT vs. n-CNT electrodes (Fig. 6e).

Fig. 6 (a) Stair-case stability test at various current densities (10 mA cm⁻² to 100 mA cm⁻²) for the eNO₃RR‖FOR cell with p-CNT as the driving electrode for the eNO₃RR. (b) Rate capability study of the eNO₃RR‖FOR cell with the p-CNT electrode. (c) ¹H NMR spectra of the electrolyte after electrolysis at various current densities. (d) Electrochemical mass spectra at a high current density of 100 mA cm⁻² (e) H₂ production on p-CNT vs. n-CNT at various current densities. (f) Ratios of H₂ produced on p-CNT vs. n-CNT at different current densities. (g) Ratios of charge, H₂ produced, and ammonia synthesized on p-CNT vs. n-CNT at 50 mA cm⁻².

Electrochemical mass spectrometry reveals that the H₂ partial pressure increases only modestly on p-CNT, whereas it rises sharply on n-CNT (Fig. 6e). Consequently, the ratio of H₂ produced on p-CNT relative to n-CNT decreases markedly with increasing current density, indicating that a substantially larger fraction of the applied charge is directed toward nitrate-to-ammonia conversion on p-CNT electrodes (Fig. 6f). At 50 mA cm⁻², this selectivity manifests as a pronounced divergence between H₂ production (∼0.2) and ammonia synthesis (∼1.9) on p-CNT relative to n-CNT for the same charge input (Fig. 6g).

As variations in wettability, electronic conductivity and surface area have been ruled out, these results confirm that electrostatic effects not only modulate reaction kinetics through additional electrostatic currents but also decatalyze parasitic pathways, thereby actively governing catalytic outcomes and selectivity under technologically relevant conditions. Post-experimental characterization techniques (zeta potential measurement, SEM, TEM, ATR-IR, and XRD) confirm the structural integrity of the p-CNT electrode. In Fig. S20 (ESI), zeta potential shows a minimal change after the eNO₃RR. In Fig. S21 and S22 (ESI), SEM and TEM images revealed a stable PDDA layer anchored to the functionalized CNTs, while ATR-IR and XRD confirmed its chemical stability (Fig. S23 and S24, SI). These results affirm that PDDA remains robustly attached to the p-CNT surface, contributing to sustained performance.

Conclusions

We enhance electrochemical performance by enabling electrostatic decatalysis of competing reaction pathways, thereby redefining catalytic selectivity. In contrast to conventional catalyst design strategies that are often constrained by pH and surface chemistry, electrostatic decatalysis provides a scalable, adaptive, and pH-independent route for reaction control. Through deliberate engineering of interfacial charge distributions, the parasitic hydrogen evolution reaction is effectively suppressed, while nitrate-to-ammonia conversion is selectively promoted by nearly twofold, resulting in over ∼50% energy savings at the device level. These results establish electrostatic decatalysis as a viable strategy for steering selectivity in sustainable electrochemical transformations.
