Open Access Article
Ziyang Xiaab,
Xuezhen Fengc,
Cheng Chen
*a,
Bin Caia,
Linqin Wangd,
Mengde Zhaia,
Xue Loue,
Sang Il Seok
*b and
Ming Cheng
*a
aInstitute for Energy Research, Jiangsu University, Zhenjiang 212013, China. E-mail: chencheng@ujs.edu.cn; mingcheng@ujs.edu.cn
bDepartment of Energy Engineering, School of Energy and Chemical Engineering, Ulsan National Institute of Science and Technology (UNIST), Ulsan, 44919, South Korea. E-mail: seoksi@unist.ac.kr
cShenzhen Key Laboratory of Interfacial Science and Engineering of Materials (SKLISEM), School of Environmental Science and Engineering, Southern University of Science and Technology, Shenzhen 518055, China
dCenter of Artificial Photosynthesis for Solar Fuels, School of Science, Westlake University, Hangzhou 310024, China
eInstrumentation and Service Center for Molecular Sciences, Westlake University, Hangzhou 310030, China
First published on 20th January 2026
Optimizing hole transfer at the perovskite/hole transport layer (HTL) interface remains critical for enhancing the efficiency and stability of perovskite solar cells (PSCs). Herein, we design a series of small-molecule-based hole transport materials (HTMs) via systematic tuning of peripheral functional group positions, aiming to enhance heterogeneous interfacial charge transfer at the perovskite/HTL interface. Among them, HTM 9,9′-([1,1′-biphenyl]-4,4′-diyl)bis(N3,N6-bis(7-methoxy-9,9-dimethyl-9H-fluoren-2-yl)-N3,N6-bis(4-(methylthio)phenyl)-9H-carbazole-3,6-diamine) (OPSF) exhibits superior intrinsic properties and adopts a well-aligned planar adsorption configuration on the perovskite surface, thereby facilitating efficient hole extraction and transport. Accordingly, OPSF-based devices achieve power conversion efficiencies (PCEs) of 25.61% (0.055 cm2) and 24.39% (1.0 cm2), highlighting OPSF as a promising HTM candidate for PSC applications. This work not only offers alternative strategies for efficient HTMs but also provides new insights into the interfacial engineering of the hole transfer process in PSCs.
9,9′-[1,1′-biphenyl]-4,4′-diylbis-9H-carbazole (CBP), with a rigid π-conjugated backbone, is one of the most widely used HTMs in organic light-emitting diodes due to its high hole mobility.16,17 However, its application in PSCs is restricted by its overly deep highest occupied molecular orbital (HOMO) energy level and suboptimal interface contact. To address these limitations, targeted molecular engineering of CBP is crucial. Electron-donating groups such as methoxy (–OCH3) and methylthio (–SCH3) are particularly effective in modulating material properties, including the energy levels, molecular stacking behavior, and interfacial interaction with perovskite, by altering molecular polarity and spatial conformation.18,19 For instance, the strong electron-donating nature of –OCH3 groups can raise the HOMO energy level of HTMs, thereby improving the hole transport driving force and interfacial charge extraction efficiency.20,21 In contrast, the –SCH3 group, with a larger atomic radius and polarity, can increase the possibility of intermolecular interactions, thus enhancing hole mobility.22,23 Additionally, the sulfur atom in the –SCH3 group exhibits enhanced Lewis basicity, facilitating stronger coupling with the perovskite film, further optimizing its orientation above the perovskite surface.24,25

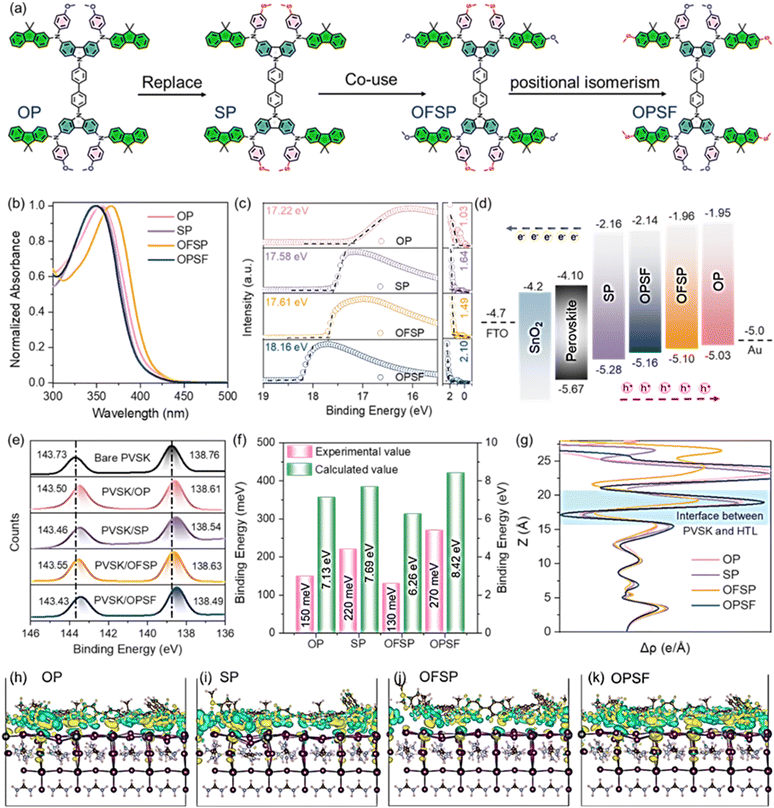

Based on these design principles, we developed a series of CBP-based HTMs, named OP, SP, OFSP, and OPSF (Fig. 1a), by tuning the substitution positions of –OCH3 and –SCH3 groups on the peripheral donor. These HTMs adopt a D-π-D architecture with CBP as the core building block and (N-(4-methoxyphenyl)-9,9-dimethyl-9H-fluoren-2-amine) (FNP) serving as the donor (D) unit. We systematically investigated the impacts of individual (–OCH3 or –SCH3) and combined substituent groups on their physicochemical and optoelectronic properties. This reveals that the mixed (–OCH3/–SCH3) combination, particularly with –SCH3 positioned on the more strongly π-conjugated unit (OPSF), significantly enhances charge transport efficiency in the HTL. Furthermore, OPSF exhibits optimal orientation on perovskite surfaces and a more favorable energy-level alignment, facilitating efficient interfacial charge extraction. With the above superior features, the OPSF-based device enables remarkable power conversion efficiencies (PCEs) of 25.61% (0.055 cm2) and 24.39% (1.0 cm2).
The charge extraction efficiency at perovskite/HTL interfaces plays a pivotal role in the overall charge transfer dynamics in PSCs, dominated by the interfacial energy level alignment and molecular dipole impact.27,28 The UV-vis absorption spectra are illustrated in Fig. 1b, with optical band gaps (Eg) of OP, SP, OFSP, and OPSF calculated to be 3.08, 3.12, 3.14 and 3.02 eV, respectively. Moreover, as shown in Fig. S18 and Table S1, based on cyclic voltammetry (CV) measurements and the above Eg, the HOMO and the lowest unoccupied molecular orbital (LUMO) energy levels for OP, SP, OFSP, and OPSF were determined to be −5.16/−2.08 eV, −5.29/−2.17 eV, −5.18/−2.04 eV and −5.20/−2.18 eV, respectively. Ultraviolet photoelectron spectroscopy (UPS) measurements reveal the HOMO energy levels for OP, SP, OFSP, and OPSF to be −5.03, −5.28, −5.10, and −5.16 eV in the film state, respectively, indicating a consistent trend in those HOMOs obtained in solution and on the film (Fig. 1c and d). Moreover, those experimental results also align with the density functional theory (DFT) calculation. The variation in HOMO energy levels is primarily attributed to the different electron-donating capabilities of the –OCH3 group and –SCH3 group. Frontier molecular orbitals analysis (Fig. S19) indicates that the LUMO levels for OP, SP, OFSP, and OPSF are mainly delocalized on the biphenyl units. The HOMO levels for OP, SP, and OPSF are predominantly localized on the carbazole and peripheral donor units on both sides, while they are only localized on one side for OFSP.
The electrostatic surface potential (ESP) shows that the negative charge (red) is mainly located on the –OCH3 and –SCH3 groups. These groups can interact with perovskite crystals through Lewis-base properties (see Fig. S20). The observed changes in binding energy in the Pb 4f and S 2p peaks of the XPS spectra prove this (see Fig. 1e and S21). This interaction will help charge transfer at the perovskite/HTL interfaces. As shown in Fig. 1f and S22, based on density functional theory (DFT) calculations, when the studied HTMs are adsorbed on a PbI2-terminal perovskite surface, the corresponding adsorption energies (Eads) of OP, SP, OFSP, and OPSF on the perovskite interface were calculated to be −7.13, −7.69, −6.26 and −8.42 eV, which indicate that the –SCH3 group binds more strongly to the perovskite than the –OCH3 group. Meanwhile, when both groups are present synergistically, the enhanced interfacial binding has been found when the –SCH3 group is positioned on the fluorene unit. This results from the fluorene unit's stronger conjugation and its external positioning, which reduces the S–S deficit force, thus facilitating closer adsorption on the perovskite surface (see Fig. S22 and S23). As displayed in Fig. 1g–k, the charge displacement profiles at the perovskite/HTL interfaces, together with the total electron density difference, show interfacial perpendicular charge transfer. Additionally, the OPSF/perovskite structure has a stronger and more uniform electron cloud distribution, which facilitates the efficient interfacial extraction and transfer of photogenerated charge carriers from the perovskite interface.

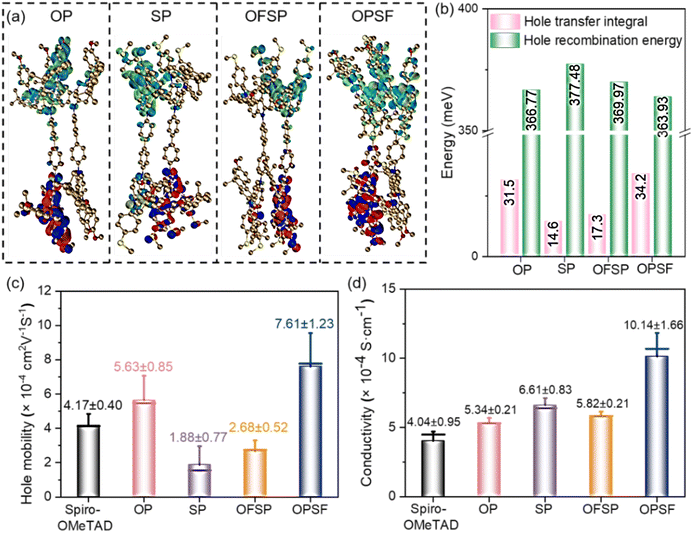

On the other hand, the charge transfer process in PSCs is constrained by the charge transport dynamics within the HTL. These charge transport dynamics are mainly influenced by intermolecular stacking behavior and interactions.29,30 As shown in Fig. 2a and b, the introduction of the –SCH3 group on the benzene unit results in lower hole transfer integrals and higher hole recombination energies compared to the –OCH3 group on the benzene unit. Statistical data obtained from single-hole devices using the space-charge-limited current (SCLC) method (see Fig. 2c) show that the hole mobility of the –OCH3 group on the benzene unit (OP = 5.63 ± 0.85 × 10−4 cm2 V−1 s−1; OPSF = 7.61 ± 1.23 × 10−4 cm2 V−1 s−1) is approximately 2 to 4 times higher than that of the –SCH3 group on the benzene unit (SP = 1.88 ± 0.77 × 10−4 cm2 V−1 s−1; OFSP = 2.68 ± 0.52 × 10−4 cm2 V−1 s−1). Hole conductivity measurements suggested that the introduction of –SCH3 groups can enhance the conductivity of the HTMs, whereas a significant enhancement is only achieved by incorporating –SCH3 groups into the fluorene unit (see Fig. 2d). Conductive atomic force microscopy (c-AFM) measurements further support this conclusion, demonstrating that the OPSF film exhibits higher and more uniform average surface current signals (see Fig. 3a–e).
Steady-state photoluminescence (PL) and time-resolved PL (TRPL) were further used to investigate the charge transfer dynamics at the perovskite/HTL interface. As depicted in Fig. 3f, the PL emission of the perovskite film, centered around 810 nm, is significantly quenched in the presence of HTL. The PL quenching represents the charge carrier extraction ability of the HTM from the excited perovskite. The steady state PL intensity of the perovskite films covered with OP, SP, OFSP, and OPSF was quenched by 96.68%, 93.48%, 94.80% and 97.81%, respectively, compared with the pristine perovskite film. The TRPL decay curves (see Fig. 3g) were fitted with a biexponential equation f(t) = A1exp(−τ/τ1) + A2exp(−τ/τ2), providing the fast (τ1) and slow (τ2) radiative lifetimes of the samples (see Table S12). The fast radiative lifetimes (τ1), which are associated with hole extraction from the photoexcited perovskite to the valence band of the hole transport material (HTM), are estimated to be 211.3 ns, 52.2 ns, 32.1 ns, 33.0 ns, and 31.0 ns for the pristine perovskite sample and the perovskite films coated with OP, SP, OFSP, and OPSF, respectively. It reveals that all HTMs can effectively extract holes from the perovskite film, and the efficiency follows the trend OPSF > SP > OFSP > OP, which is related to the interfacial energy level arrangements and interactions. Overall, collaboratively optimizing both the interface charge extraction efficiency and charge transport capability of HTMs is crucial for enhancing the performance of PSCs, as delays in hole transport following extraction can result in undesirable secondary charge recombination at the interface/bulk. PL mapping images in Fig. 3h–k reveal a similar trend where the perovskite films are coated with different HTLs. Meanwhile, improved quenching homogeneity was achieved by OPSF, indicating its more homogeneous and faster hole hopping transport.
To evaluate the photovoltaic performance of the studied HTMs in PSCs, a typical n-i-p configuration of FTO/c-TiO2/SnO2/(FAPbI3)0.992(MAPbBr3)0.008/HTL/Au electrode (see Fig. 4a) was fabricated. The cross-sectional scanning electron microscopy (SEM) images of the optimized device configuration are presented in Fig. 4b and S26. The thicknesses of the OP, SP, OFSP, and OPSF HTLs were estimated to be 120, 135, 120, and 130 nm, respectively. As shown in Fig. 4c and Table 1, the resulting doped OPSF-based device, with a small active area of 0.055 cm2, achieved a champion power conversion efficiency (PCE) of 25.61%, along with a VOC of 1.19 V, a short-circuit current density (JSC) of 25.44 mA cm−2, and a fill factor (FF) of 84.60%, which are higher than those of benchmark HTM Spiro-OMeTAD (see Fig. S27 and Table S13) and those of OP (22.67%), SP (22.09%), and OFSP (23.20%). The statistical distribution of photovoltaic parameters indicates good reproducibility (see Fig. 4d). The accuracy of the measured PCEs is corroborated by the steady-state power output at the maximum power point (MPP, as shown in Fig. 4e) and the incident photon-to-electron conversion efficiency (IPCE) spectra (see Fig. 4f). The integrated photocurrent densities are 24.30 mA cm−2 for OP, 22.84 mA cm−2 for SP, 23.56 mA cm−2 for OFSP, and 24.61 mA cm−2 for OPSF, respectively, with an error of less than 5% compared to the J–V curves. Overall, the improved performance of OPSF-based devices is primarily attributed to more rapid and homogeneous hole extraction at the HTL/perovskite heterointerface and higher hole mobility within the OPSF HTL. To further investigate whether OPSF can benefit large-area PSCs, we extended the active area of the device to 1 cm2 while maintaining the same perovskite composition and device architecture; the J–V curves are shown in Fig. 4g. The resulting OPSF-based large-area PSCs exhibited a high efficiency of 24.39% (with a VOC of 1.20 V, a JSC of 24.96 mA cm−2, and a FF of 81.45%), qualifying them as among the best 1 cm2 PSCs prepared using the n-i-p structure (see Fig. 4i). As demonstrated in Table 1 and Fig. 4h, compared to OP, SP, and OFSP, OPSF-based PSCs exhibit superior photovoltaic performances, including PCE, relative efficiency loss (REL), and reproducibility.
| HTL | Active area (cm2) | Voc (V) | Jsc (mA cm−2) | FF (%) | PCE (%) | RELa (%) |
|---|---|---|---|---|---|---|
a REL = (PCEsmall area − PCElarge area)/PCEsmall area × 100 %. |
||||||
| OP | 0.055 | 1.13 | 25.11 | 79.90 | 22.67 | 10.06 |
| 1.00 | 1.13 | 24.6 | 73.35 | 20.39 | ||
| SP | 0.055 | 1.15 | 23.34 | 80.11 | 21.50 | 19.07 |
| 1.00 | 1.16 | 23.12 | 64.72 | 17.40 | ||
| OFSP | 0.055 | 1.17 | 24.18 | 82.01 | 23.20 | 11.77 |
| 1.00 | 1.17 | 23.20 | 75.29 | 20.47 | ||
| OPSF | 0.055 | 1.19 | 25.44 | 84.60 | 25.61 | 4.76 |
| 1.00 | 1.20 | 24.96 | 81.45 | 24.39 | ||
Given the critical role of stability in the practical applications of PSCs, we systematically evaluated the environmental and operational resilience of these devices. After aging for 2000 hours under ambient conditions (relative humidity of 40 ± 5%), the unencapsulated OPSF-based PSCs retained 78.01% of their initial PCE, while the counterparts based on OP, SP, and OFSP maintained only 28.99%, 56.02%, and 65.01% of their original PCE, respectively (see Fig. 4j and S28). Additionally, the OPSF-based devices exhibited enhanced thermal stability (see Fig. S29). The HTMs functionalized with –SCH3 groups improved the hydrophobicity of the thin films (see Fig. S30), a key property for achieving stability when combined with a dense and pinhole-free microstructure (see Fig. S31–S32). Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) confirmed that the HTMs possessed high decomposition temperatures (Td) and glass transition temperatures (Tg), ensuring that the HTL could withstand thermal stress (see Fig. S33). Therefore, the efficiency decay of the devices under thermal stress primarily originated from ion migration within the devices. For the encapsulated champion devices, operational stability tracking demonstrated that OPSF exhibited excellent light-soaking stability (see Fig. 4k). The superior thermal and light-soaking stability is attributed to excellent interfacial interactions and charge transfer capability of OPSF, which mitigate irreversible efficiency loss by suppressing ion migration and interfacial charge recombination.

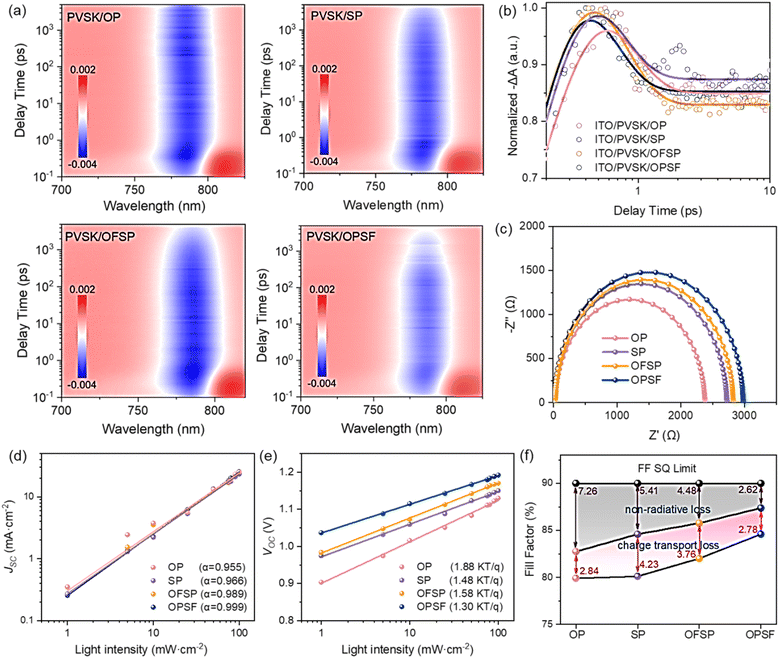

To thoroughly understand the performance differences of the studied HTMs in PSCs, femtosecond transient absorption spectroscopy (fs-TA) was used to explore the hole extraction dynamics. As depicted, the 2D pseudo-color fs-TA plots of perovskite/HTLs (see Fig. 5a) show a strong peak (blue color) centered around the band edge (≈785 nm), which originates from ground-state bleaching (GSB).31 Specifically, the GSB signal in the OPSF-based PVSK film intensified most rapidly, suggesting the most efficient hole extraction among the samples. This trend is consistent with the PL quenching results, both of which indicate enhanced charge transfer at the PVSK/HTL interface. PL quenching confirms that all HTLs effectively extract holes from the excited PVSK film, leaving hole carriers in the HTL and electron carriers in the PVSK. Therefore, the GSB recovery observed in transient absorption measurements primarily reflects charge recombination processes in HTL-coated PVSK films, which are expected to occur at the PVSK/HTL interface under open-circuit conditions. While PL quenching probes charge extraction rather than recombination, if the PVSK layer remains unchanged and the density of trap states is similar, the timescales obtained from TA and PL measurements may show related trends, even though the underlying pathways differ. This is due to the identical charge carrier transport pathway, with the difference primarily governed by the hole mobility in the HTL and the corresponding interfacial properties, considering that the PVSK layer remains unchanged (see Fig. S34). As shown in Fig. 5b, the normalized fs-TA kinetic curves at the GSB of these samples are extracted and fitted, and the corresponding fitted parameters are summarized in Table S14. Clearly, the perovskite/OPSF samples exhibit the shortest decay average lifetime (τex) of 215.6 fs compared to the other samples, which may be attributed to its exceptionally high hole mobility and efficient hole transfer to the perovskite, followed by recombination at the film interface under open-circuit conditions. This difference suggests that there is a decrease in charge aggregation and hole–electron recombination at the perovskite/OPSF heterointerfaces, which has been verified by the larger recombination resistance in the electrical impedance spectroscopy (EIS) curves (see Fig. 5c). Fig. 5d and e depict the relationship between JSC, VOC, and light intensity for the champion PSCs, indicating the rate of electron–hole recombination in these PSCs, which is in good agreement with the TA tests. Fig. 5f further quantifies the FF loss for the champion device, showing that the OPSF device has lower non-radiation loss and charge transport loss, which is mainly attributed to the stronger hole extraction and transfer dynamics of the perovskite/OPSF heterointerfaces.
