Exploring the formation of medium-sized cyclic amines within self-assembled yoctoliter inner-spaces

Abstract

Medium-sized (7-11-membered) rings are difficult to cyclize for both enthalpic and entropic reasons. Moreover, S_N2 cyclizations to such products in the greenest of solvent (H₂O) are complicated by competing substrate hydrolysis. Here we explore the utility of the yoctoliter (10⁻²⁴ L) inner-space of a dimeric container — assembled via the hydrophobic effect — to catalyze the formation of strained, 7–11-membered cyclic amines. Specifically, we examine the ability of the dimeric capsule of deep-cavity cavitand octa-acid 1 to promote cyclization processes, by leveraging relatively large pseudo-halide sulfonate leaving groups to minimize product inhibition and engender catalysis. We find that strained 7-membered azepane can be formed catalytically, with reaction rates dependent on the conformation or motif of the bound guest. We also find that the hydrolysis rate of a bound guest can be up to four orders of magnitude slower than the free state, and in such watertight complexes strained 11-membered aza-cycloundecane can also be formed. More generally, our results provide the first examples of S_N2 cyclizations to medium-sized cyclic amines in water, and provide benchmarks in quantifying the degree of water tightness of water-based container molecules.

---

Introduction

Pivotal to replicating the catalytic efficiencies observed in Nature's enzymes is an understanding of the roles played by the shape and structural dynamics of binding sites, as well as the electronics of the functionality crucial for reaction. To explore these and related topics, supramolecular chemists have most recently turned to the rules of self-assembly to devise a wide range of yoctoliter (10⁻²⁴ L) supramolecular containers for bringing about substrate encapsulation and conversion.¹ Whether such reactors are stoichiometric or truly catalytic, metal–ligand coordination² and hydrogen bonding^3,4 have played preeminent roles here, providing a wealth of design guidelines. Thus the resulting yoctoliter containers have facilitated exploring: (1) the modulation of reaction molecularity; (2) strategies for substrate conformational control to engender high energy pre-reaction complexes; (3) design approaches to engendering a high effective molarity of the reacting species, and; (4) the non-covalent contributions for minimizing the energy barrier to reaction by stabilizing and/or redistributing charge in the lead-up to reaction and transition state (TS^‡).

Water provides a challenging environment to explore yoctoliter container design and catalysis, but whilst the small size and cohesivity of water leads to unique solvation properties that are still not fully understood,⁵ the hydrophobic effect can nevertheless be leveraged to considerable effect to bring about assembly, substrate encapsulation, and reaction. Water-soluble deep-cavity cavitands have been particularly effective here, both when they form open 1 : 1 cavitand–guest complexes,^4,6–8 and when they self-assemble to form fully encapsulating, dimeric host–guest container complexes.^8–11

Previously, we have investigated the properties of dimer capsules of deep-cavitand such as 1 (Fig. 1). Thus, the dimer 1₂ can form around one to three guests depending on their size, encapsulating species that total between six and twenty-six non-hydrogen atoms.^12–14 These container complexes can possess lifetimes of tens of seconds, but also exhibit a fast, dynamic ‘breathing’ whereby the equatorial interface partially opens to allow the entry and egress of small guests; including adventitious water.¹⁵ Guests modulate this breathing, and hence the degree of capsule watertightness,¹⁶ imbuing a heterogeneity to the inner-space whereby the pole regions possess a lower ‘dielectric’ than the equatorial region.¹⁰ Additionally, the sixteen water solubilizing groups on the outer surface of the capsule engender a significant electrostatic potential field that can affect the physicochemical properties of the inner-space, and hence any bound guest.^10,17

Fig. 1 Structures of cavitand host 1, the amino sulfonate guests (G1–G12), and the cyclized products azepane, azocane, azonane and aza-cycloundecane.

One advantage of working in water is the ease by which guests too long for a binding pocket fold into U-shaped conformations (motifs) to open up reaction pathways rarely observed in solution. In essence, because of the confining nature of the inner-space, the hydrophobic effect provides a thermodynamic driving force for the guest to adopt high-energy conformations rarely sampled in free solution. Such motifs approximate to the structure of a substrate on the cusp of undergoing an intramolecular cyclization reaction, and correspondingly have been leveraged to considerable effect for the formation of macrocycles composed of up to 19-membered rings.^6,9,17,18

In wishing to explore S_N2 cyclizations within the 1₂ capsule further, we were mindful of several interrelated points. First, although such assemblies have been investigated for their ability to form macrocycles, there was no evidence as to whether they could form difficult-to-cyclize medium sized (7-11-membered) rings. Second, product inhibition is common in fully encapsulating yoctoliter spaces, suggesting that once the entropy of cyclization has been paid, a relatively high product affinity is not unusual; which strategies can skirt this issue? Third, although capsule watertightness for ideal guests is relatively assured,¹⁹ there is little to no understanding of how guest size, shape, or functionality can affect the degree of water ingress into their inner-spaces.

Given these points, we selected the amino-sulfonate guests shown in Fig. 1 to: (1) explore the feasibility of catalytically forming azepane, azocane, azonane and aza-cycloundecane; (2) investigate how the size of the sulfonate leaving group and therefore the change in the volume of the guest upon reaction (ΔV) affected turnover, and; (3) probe the watertightness of the capsule by assessing the degree to which guest hydrolysis (rather than cyclization) occurred.

Results

Host and guest synthesis

Host 1 was synthesized as previously described.²⁰ The synthesis (SI, Section 2) of guests G1–G12 is shown in Scheme 1. Briefly, for the requisite suite of amino alcohols, two were commercially available and two were synthesized by Gabriel synthesis using the corresponding bromides (Scheme 1a). These two precursors, in combination with commercially available 6-aminohexan-1-ol and 8-aminooctan-1-ol, were converted to the required amino-sulfonates G1–G12via a three step process of protection using Boc₂O, reaction with the requisite sulfonyl chloride, and deprotection with HCl (Scheme 1b). For the final step, under the conditions selected no significant sulfonate–chloride exchange was noted.

Scheme 1 (a) Synthesis of 7-aminoheptan-1-ol and 10-aminodecan-1-ol. (b) The protection, sulfonation, and deprotection strategy used to synthesize amino sulfonates G1–G12 from the precursor amino alcohols.

Host–guest complex characterization: identifying the guest motif

All guests formed the expected capsular 2 : 1 host–guest complexes with host 1. To characterize how the different guests packed in the yoctoliter inner-space of 1₂, 12.5 µL of a 20 mM stock solution of the guest ammonium salt (1 equiv.) was added to 0.5 mL of a D₂O solution of 1.0 mM host 1 (2 equiv.) in 10 mM phosphate buffer (pH = 11.3, corrected) and the resulting mixture vortexed for 1 min. Complexation was uniformly rapid because of the high solubility of the salt, and no issues were noted with the deprotonation of the guest by the excess buffer before or during encapsulation.

Characterization of each complex involved three types of NMR experiments: (1) ¹H NMR studies of the free and bound host and guest; (2) COSY NMR analysis of the free and bound guest; and; (3) NOESY NMR experiments of each host–guest complex. By this procedure three kinds of guest motifs were identified, epitomized by guests G3, G7 and G12 (Fig. 2). In the figure, the Δδ plots for G3, G7 and G12 are compared to n-alkanes of the same number of atoms in the mainchain. As discussed further below, because the pocket of each cavitand approximates to a truncated cone, in general protons that reside more towards the pole regions of the capsule are more upfield shifted. With this, these Δδ plots often provide sufficient information to identify the guest motif. However, in select cases it is necessary to also perform ¹H–¹H NOESY NMR analysis to confirm the motif. In such experiments the two inward-pointing hydrogen atoms of the cavitands H_b and H_c (Fig. 1) were used, and in examining the intensities of cross-peaks between these and the different guest atoms, the intensity of the intra-host H_e–H_f NOE of each capsule was used to normalize the data. Values ranging from one quarter to three times the reference were obtained. In Fig. 2 these are shown as white (NOEs with H_b) and blue (NOEs with H_c) disks, centered on the guest group in question and possessing diameters proportional to the normalized intensity. Full details of the Δδ plots and NOESY analysis for all guests G1–G12 with host 1₂ are provided in the SI (Section 4). As Fig. 2 summarizes, three general motifs were observed: a J-motif in which the sole terminal group anchoring to a capsule pole was the amino group (J_(NH2) motif), an extended motif (E-motif) in which the two termini occupy the poles, and a (weak; see discussion) J-motif in which the methyl was the anchoring terminal group (J_(CH3) motif).

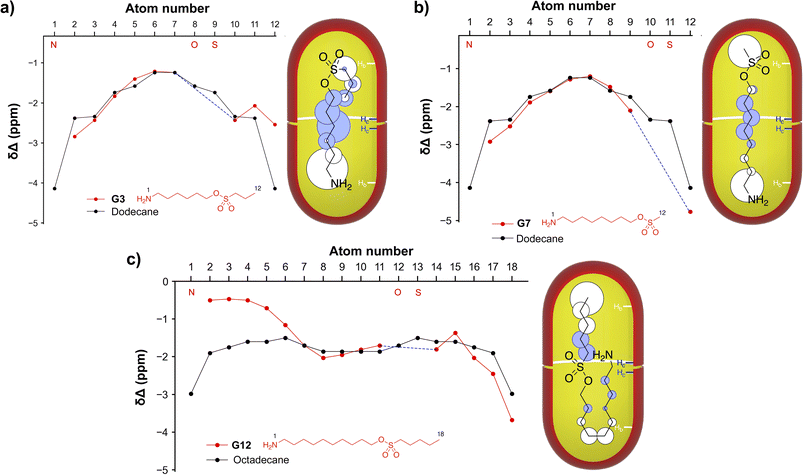

Fig. 2 Motif identification for guests G3 (a), G7 (b), and G12 (c) bound to the octa-carboxylate dimer represented as the scarlet capsule. Shown for each guest is a ¹H NMR spectroscopy Δδ plot revealing the shift in each guest signal between the free and the bound states (Δδ = δ_bound − δ_free). Studies were carried out in D₂O, and involved 1 mM complex solutions in 10 mM phosphate buffer, pH = 11.3 (corrected). In all plots the –NH₂ terminal is labeled as atom # 1, and all mainchain atoms labeled consecutively. The red guest structure under each plot shows the terminal atom numbering, and the mainchain N, O, and S atoms are also indicated (red) on the x-axis of each plot. The amino terminus was non-reporting because of N–H exchange with the D₂O solvent, and breaks in the data caused by the non-reporting O and S atoms are shown as dashed blue lines. For comparison, the data for each guest is plotted with that of the corresponding n-alkane possessing the same number of mainchain atoms. Also shown for each guest is a rendition of the inferred guest motif/conformation within each capsule. Each motif is further supported by the observed ¹H–¹H NOEs between the host H_b or H_c atoms (Fig. 1, and indicated in each scarlet capsule in blue and white respectively) and the guest. The NOE cross-peak intensities involving both H_b (white disks) and H_c (blue disks) with the different guest atoms were normalized by reference to the intra-cavitand H_e–H_f NOE of each capsule, giving relative values ranging from 0.25–3.0× the reference. These intensities are represented by the relative diameter of each disk on its respective group.

Further information of the guest motif was obtained by repeating the ¹H NMR experiments of the host–guest complexes in 95 : 5H₂O/D₂O to minimize the replacement of acidic hydrogen atoms with deuterium and so observe the amino group signal in the bound guest region. This allowed us to observe bound amino signal for nine guests, but not G9, G11 and G12. Table 1 summarizes the obtained data, revealing that the Δδ values for the amino groups can be very large; over −5 ppm in some cases.

Table 1 Chain length, motif, and observed Δδ values of terminal NH₂ and CH₃ groups for guests G1–G12 bound to 1₂.^a

Guest	Mainchain atoms	Motif	Δδ value (NH2, ppm)	Δδ value (CH3, ppm)
a Δδ = δbound − δfree, where the bound state corresponds to a 1 mM host–guest complex with 12 in 10 mM phosphate buffer solution (95 : 5H2O/D2O), and the free state the guest (1 mM) in CHCl3. b The kinetics of proton exchange on the amino group prevented observation of its ^1H NMR signal (see, Discussion).
G1	10	E	−3.90	−3.46
G2	11	J (NH2)	−4.76	−2.09
G3	12	J (NH2)	−4.96	−2.54
G4	13	E	−5.07	−3.43
G5	14	E	−5.05	−4.23
G6	11	E	−4.48	−4.10
G7	12	E	−4.97	−4.77
G8	14	J (NH2)	−4.93	−1.80
G9	16	J (NH2)	–^b	−1.87
G10	14	E	−5.15	−4.70
G11	16	J (NH2)	–^b	−2.33
G12	18	J (CH3)	–^b	−3.68

---

Bound guest reactivity

We examined the reactivity of guests G1–G12 inside the capsule formed by host 1. In these experiments 1 mM solutions of the preformed complexes in 10 mM sodium phosphate/D₂O buffer (pH = 11.3, corrected) were heated to 60 °C. Two possible reaction outcomes were assumed: cyclization and hydrolysis (Scheme 2).

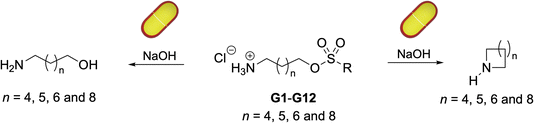

Scheme 2 Cyclization and hydrolysis of amino sulfonates within the container capsule 1₂.

Reaction rates were generally sufficiently slow to allow the extent of reaction to be monitored by ¹H NMR simply by periodically removing samples from a heating block and carrying out NMR analysis at 60 °C (G1–G5 and G12) or 25 °C (when signals were too broad for analysis at higher temperature). Monitoring the progress of reaction utilized different methyl and/or methylene signals in the starting material and product depending on the reaction under study. For example, the methyl group of the alkylsulfonyl group often served as a metric for the amount of remaining starting material, but in the case of methanesulfonyl guests this was not possible because the α-CH₃ to the sulfonyl group underwent relatively rapid hydrogen–deuterium exchange leading to signal disappearance. Thus, in the case of guest G1, the α-CH₂ to the sulfonate oxygen was used to gauge the amount of remaining starting material, whilst the α-CH₂ adjacent to the N-atom was used to monitor the appearance of cyclized product. This problem of exchanging acidic C–H groups, combined with occasional signal overlap, demanded a bespoke approach to analysis for many substrates (see SI Section 5). Regardless, in all cases data was gathered in triplicate. For guests G1–G5 first order cyclization was observed. The approximate reaction times and obtained rate constant (k_cyc) are given in Table 2. In each case, confirmation of the product was made using ¹H NMR by comparison of the authentic product (azepane, Fig. 1) complex with that obtained at the end of the reaction. The product was also confirmed by isolation and ¹H NMR and MS (ESI) analysis. Both by examination of the product complex and MS analysis of the isolated product, each reaction proceeded quantitatively (no hydrolysis observed).

Table 2 Cyclization rate data for guests G1–G5 inside 1₂.^a

Guest	Approximate reaction time (hrs)	Rate constant (kcyc, s^−1 × 10^5)
a Rate constants and errors obtained from the average of triplicate experiments.
G1	20	7.92 ± 0.2
G2	48	3.76 ± 0.1
G3	48	2.62 ± 0.2
G4	20	6.42 ± 0.3
G5	20	6.23 ± 0.2

---

Considering the differences in cyclization rate noted for homologues G3 and G4, we carried out Eyring analysis to determine the reaction thermodynamic parameters at 333–346 K (G3) and 323–339 K (G4). In both cases rates were determined at five temperatures, with data collected in triplicate. Reaction progress was monitored by ¹H NMR using the ‘H_d’ and ‘H_e’ peaks of the host. The data calculated at 298 K are given in Table 3.

Table 3 Kinetic parameters for the cyclization of guests G3 and G4 inside 1₂.^a

Kinetic parameters (298 K)	G3	G4
a Error propagation gave < 5% error in each thermodynamic parameters.
k (s^−1)	8.56 × 10^−7	8.72 × 10^−6
Half-life (s)	8.10 × 10^5	7.95 × 10^4
ΔG^‡ (kJ mol^−1)	107.6 ± 3.76	101.9 ± 2.90
ΔH^‡ (kJ mol^−1)	77.0 ± 8.41	45.9 ± 4.20
−TΔS^‡ (kJ mol^−1)	30.6 ± 1.25	56.0 ± 2.1

---

For guests G6–G12, confirmation of each product utilized: (1) ¹H NMR by comparison of the authentic hydrolysis product (7-aminoheptanol, 8-aminooctanol, or 10-aminodecanol) complex with that obtained, and; (2) MS analysis of the isolated product. Pseudo first order hydrolysis rates were observed for all guests, but G10 also gave a secondary minor product complex identified as aza-cycloundecane (20% yield). Table 4 shows the obtained hydrolysis data.

Table 4 Hydrolysis rate data for guests G6–G12 reacting inside 1₂.^a

Guest	Approximate hydrolysis time (d)	Rate constant (k × 10^7, s^−1)
a Rate constants and errors obtained from the average of triplicate experiments.
G6	60	7.07 ± 0.1
G7	90	3.71 ± 0.2
G8	60	4.74 ± 0.3
G9	10	30.1 ± 0.3
G10	100	1.28 ± 0.4
G11	10	29.1 ± 0.2
G12	3	512 ± 0.3

---

We also measured the rates of hydrolysis of free guests (Table 5). We utilized G1, G3, G5 and G7 to give representative data as these smaller guests were the best behaved in aqueous solution. Reactions were carried out using 1.0 mM solutions of each in either D₂O, or 10 mM sodium phosphate in D₂O (pH = 11.3, corrected) at 60 °C. In the reaction of G1, ¹H NMR spectroscopy was used to monitor the disappearance of the ¹H NMR signal of either the methylene adjacent to the sulfonate oxygen (for reaction in D₂O) or the methylene adjacent to the amino group (in phosphate buffer). For guests G3, G5 and G7 the signals from the methylene adjacent to the sulfonate oxygen could be utilized in both sets of conditions.

Table 5 Pseudo first order rate constants for the hydrolysis (k_hyd) of free guests G1, G3 and G5.^a

Guest	Rate constant in D2O (k × 10^4, s^−1)	Rate constant in buffer^b (k, × 10^3, s^−1)
a Rate constants and errors obtained from the average of triplicate experiments. b Buffer was 10 mM phosphate (pH = 11.3, corrected).
G1	2.28 ± 0.2	1.45 ± 0.3
G3	1.53 ± 0.3	1.53 ± 0.2
G5	1.80 ± 0.3	1.35 ± 0.4
G7	1.59 ± 0.2	1.46 ± 0.3

---

As the rates of hydrolysis were an order slower in D₂O versus buffer, where it was comparable to the rate of cyclization of encapsulated G5, we opted to probe cyclization using sub-stoichiometric amounts of the octa-sodium salt of 1₂ in the absence of excess base. For these experiments we formed 0.6 mL samples of a 1.0 mM solution of the ammonium salt of G5 containing 1 mM Na₂CO₃ in D₂O (pH 7.3). This deprotonated the guest, leaving one equivalent of NaHCO₃ for reacting with the RSO₃H generated from reaction. Cyclization itself was initiated with the addition of an aliquot of 1 from a 2 mM stock solution in 16 mM bicarbonate buffer (pH 7.6). Each reaction mixture was heated at 60 °C for 24 hours, after which time ¹H NMR spectroscopy used to determine the ratio of azepane to hydrolysis product. By this approach, 2, 5 and 10 mol% capsule were found to lead to 3 : 7, 3 : 7 and 1 : 1 ratios of azepane and hydrolysis product 7-aminohexanol.

Discussion

Bound guest motif

A comparison of the guest ¹H NMR signals in the free and bound states — a process that typically involves COSY NMR analysis to ensure signal assignment — provides Δδ values for each reporting atom. The resulting Δδ plots (listed reporting atom vs. each Δδ value) yield detail of the time-averaged preferred motif of bound guests. A summary of Δδ plot interpretation is given in the SI.

Ideally, to study the motif of guests G1–G12 it is necessary to determine the Δδ for both the NH₂ and the alkylsulfonyl CH₃ termini. Duplication of the initial NMR studies of the complexes in 95 : 5H₂O/D₂O demonstrated that our initial supposition that the proton exchange rate on the amino group would be close to the NMR timescale — rendering these signals unobservable²¹ — was only partially correct. As Table 1 summarizes, guests with ≤ 14 mainchain atoms provided observable bound NH₂ signals. We attribute an observable NH₂ signal for guests G1-G8 and G10 to two structural features rendering it inaccessible to bulk water: (1) a relatively deep position in the least water-accessible volume of the container, and; (2) a relatively watertight capsule in which the rims of both cavitands are in intimate contact with each other. In such cases, NH₂ exchange with bulk water is relatively slow and its signal observable. Prior work has demonstrated that partial opening of the capsule to allow the entry and egress of small guests (such as water) — so-called “breathing” — occurs typically 10⁵ times more rapidly than guest exchange.¹⁵ This breathing leads to a wetter equatorial region of the inner-space, a corresponding gradient of the effective dielectric, and modulation of the pK_a of any acidic group in the guest.¹⁰ Thus the absence of an amino signal from bound G9 and G11 can be attributed to their larger size (16 mainchain atoms) promoting capsule ‘breathing’ and acceleration of NH₂ exchange. This is also true for guest G12 (18 mainchain atoms), but here another factor is its motif that locates the NH₂ group in the equatorial zone of the yoctoliter space (Fig. 2c).

Overall for guests G1–G12 we identified three packing motifs: extended (E) motifs, and two J-motifs in which there is a turn in the mainchain of the host and the sole terminal group anchoring to a pole region of the capsule was either the amino or methyl group (J_(NH2) and J_(CH3)). All guests that adopt an E-motif, and three that adopted a J_(NH2)-motif, allowed the Δδ values of the NH₂ termini to be determined (Table 1). These were large chemical shifts. For reference, maximal chemical shifts for the methyl termini of bound n-alkanes are typically around −4.5 ppm,^14,22 whereas the majority of this set of guests had Δδ values for the NH₂ group close to or in excess of −5.0 ppm. This difference between the free and the bound states suggests that the two polarized N–Hs of the NH₂ group are close to the aromatic walls and form a relatively strong anchor via N–H⋯π hydrogen bonding.

As it was not possible to observe the NH₂ signal from all guests, we used its α-CH₂ as a proxy to calculate the asymmetry between the Δδ values of the termini. Fig. 3 plots the relationship between the number of atoms in the mainchain of the guest against the difference in Δδ value of the terminal CH₃ and the NH₂ α-methylene (ΔΔδ = Δδ_CH3 − Δδ_CH2). Based on these differences, the time-averaged motif was assigned to a guest as follows: positive values (J_(NH2)-motif), small negative values (E-motif), and large negative ΔΔδ value (J_(CH3)-motif). Each of these assignments was corroborated with NOE data. Guests that adopted E-motifs included all of the methyl sulfonyl derivatives G1, G6, G7 (Fig. 2b), G10, as well as G4 and G5. In contrast, G2, G3 (Fig. 2a) G8, G9, and G11 were observed to bind in a J_(NH2)-motif. G12 was the sole guest adopting a J_(CH3)-motif (Fig. 2c).

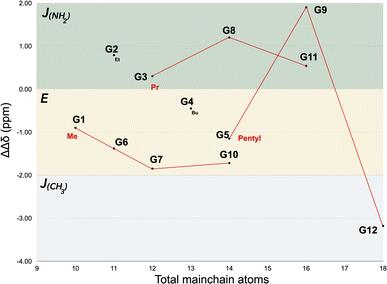

Fig. 3 Plot of the number of guest mainchain atoms versus the difference in the Δδ values reported by the terminal CH₃ and the NH₂ α-methylene (ΔΔδ = δ_CH3 − δ_CH2). Guests on the same vertical are constitutional isomers. The sets of guests sharing common methanesulfonyl (G1, G6, G7, and G10), n-propyl sulfonyl (G3, G8, and G11) and n-pentyl sulfonyl (G5, G9, and G12) leaving groups are highlighted with red connecting lines.

Our interpretation as to why the E-motif and J_(NH2)-motif are observed with guests of identical constitution or similar size is that a key structural feature is the polarized nature of the C–H bonds alpha to the sulfonyl (which leads to H-D exchange in the guest). The polarization of the sulfonyl α-CH₂ group, or α-CH₃ group in the case of methanesulfonyls, leads to C–H⋯π host–guest interactions stronger than those of simple alkanes. Consider for example constitutional isomers G3 (J_(NH2)-motif) and G7 (E-motif), and how their motifs compare to their corresponding alkanes. With alkanes bound to 1₂, the switch from E- to J-motif is controlled by guest length and occurs at ∼17 mainchain atoms.²³ Shorter guests adopt E-motifs with some degree of helical structure/compression.^13,14,22,24 However, at ≥17 atoms the guest adopts a J-motif.²³ In contrast, guests G3 and G7 are only 12 atoms long, but the former nevertheless adopts a J_(NH2)-motif. We believe that the E- to J_(NH2)-motif switch occurs with such short guests because of the acidic sulfonyl α-CH₂ in G3 and the α-CH₃ in G7. Thus, in G3 it is energetically preferred for the n-propyl group to form a turn so that its α-CH₂ group anchors to the base of the pocket,²⁵ rather than adopting an E-motif in which its terminal CH₃ anchors.²⁶ In contrast, constitutional isomer G7 can adopt a low energy E-motif using its acidic α-CH₃ as anchor. This noted, at a certain length of alkyl sulfonyl this observed preference for acidic α-CH₂ anchoring breaks down. Consider for example constitutional isomers G5 (E), G8 (J_(NH2)), and G10 (E). Whilst the sulfonyl α-CH₃ in G10 is a firm anchor, G8 prefers to anchor with its acidic α-CH₂ group. However, in the case of G5, the n-pentyl sulfonyl preferentially binds with its terminal CH₃ rather than with its α-CH₂. Evidently, the flexibility of the n-pentyl group to pack into the pole is energetically preferred.²⁷ This is also apparent in the homologous series G1–G5. Thus, after the motif switch between G1 (E) and G2 (J_(NH2)) there is a gradual trend back to a E-motif as the guest increases in length and the preference for sulfonyl α-CH₂ anchoring decreases.

The homologs with the n-pentyl sulfonyl group (G5, G9, and G12) demonstrated the greatest range of motifs. Smallest G5 adopts an E-motif controlled by the strong anchoring of the NH₂ and the efficient packing of the n-pentyl chain. Add two CH₂ groups to the mainchain, and the 16 atom long G9 cannot adopt an E-motif and instead adopts a J_(NH2)-motif by anchoring with its NH₂ and its sulfonyl α-CH₂. Add two more CH₂ groups and the 18 atom mainchain G12 switches to a J_(CH3)-motif in which the anchors are the CH₃ of the n-pentyl sulfonyl group and the midsection of the carbon chain between the NH₂ and SO₃R groups. We believe that G12 forms this singular J_(CH3)-motif because the power of its NH₂ group to act as anchor is overridden by geometrical considerations and steric crowding. Thus, typically the start of a turn in a J-motif is located 9–10 bonds from the anchor. This provides little issue for the J_(CH3)-motif, but in the case of the J_(NH2)-motif forces the bulbous sulfonate group to be located at or near the narrow polar region of the capsule (Fig. 4). As a result, the CH₃ is energetically preferred as the anchor and the NH₂ group left relatively exposed to bulk water and invisible to ¹H NMR.

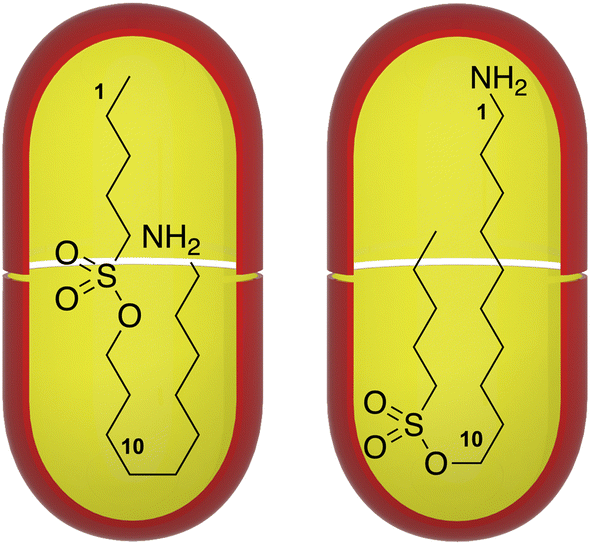

Fig. 4 The two extreme J-motifs for guest G12 within the 1₂ capsule. The J_(CH3)-motif (left) is observed, whereas the J_(NH2)-motif (right) in not.

To recap, despite guests G1–G12 possessing similar structures, NMR analysis reveals three motifs within capsule 1₂. All of the methyl sulfonates examined use their two termini as anchors. In each case the Δδ plots demonstrate the NH₂s have the greatest anchoring ability. Guests with alkyl sulfonate groups other than CH₃ possess three latent anchors: the NH₂, the sulfonyl α-CH₂, and the terminal CH₃. The balance between the non-covalent interactions that these anchors form with the capsule, the length of the guest, and the relative position of the sulfonyl group dictates which two anchors dominate. This leads to a relatively complex motif space for the different guests.

Bound guest reactivity

As discussed above, the three interrelated aims of this work were: (1) explore the formation of difficult-to-cyclize medium-sized rings; (2) investigate the effect of leaving group volume on minimizing product inhibition and maximizing the likelihood of turn-over, and (3) investigate the extent to which the different capsular complexes are waterproof, i.e., cyclization can occur in the absence of hydrolysis.

Although the cyclization of α,ω-amino (pseudo)halides have not been determined for a wide number of ring sizes,²⁸ it is uniformly the case that the ΔG^‡ of cyclization of 7–11 membered (medium) rings is higher than that of common-sized rings.²⁹ Both enthalpy and entropy contribute. Thus, ΔH^‡ of cyclization is increased because of significant bond angle deformations, eclipsing conformations, and transannular ring strain within medium rings. Additionally, for rings larger than 7–8 atoms there is an increasing ΔS^‡ penalty associated with the two ends of the molecule attaining a suitable geometry for reaction. To compensate for the high ΔG^‡ values for the synthesis of medium rings we surmised that in much the same way as capsule 1₂ can promote the cyclization of 13–19 macrocycles,¹⁷ so it may be capable of binding guests G1–G12 in relatively high energy J-motifs to facilitate cyclization.

Regarding maximizing the likelihood of turn-over, prior cyclization reactions within capsules using halide leaving groups were found to generally suffer from product inhibition; in most cases the affinity of the cyclic product binding was higher than that of the J-motif precursor. In seeking to avoid this, we reasoned that the use of larger sulfonate leaving groups could be leveraged to cause a large (and adjustable), negative change in guest volume (ΔV) upon reaction. Thus, with alkanes of 12–14 atoms typically being ideal for capsule 1₂,^13,22,23,30 we deduced that 7–11 membered ring products would have relatively low affinities compared to guests G1–G12, be readily displaced, and facilitate turnover.

The 7-membered ring of azepane (Fig. 1) — the product of cyclizing G1–G5 — represents the upper limit of “common rings” and possesses approximately the same degree of strain as 5-membered rings. In contrast, the products of cyclization of G6, G7/8/9 or G10/11/12, i.e., 8-membered azocane, 9-membered azonane, and 11-membered aza-cycloundecane (Fig. 1) were expected to possess roughly twice the ring strain of azepane. Moreover, as the entropy change upon cyclization becomes more penalizing as the number of bonds between the reacting termini increases, this was also expected to disfavor cyclization. In short, G1–G5 were expected to cyclize more readily than G7–G12.

As their 2 : 1 capsular complexes, guests G1–G5 cyclized smoothly and quantitively to give azepane (Fig. 5). The rates of cyclization (Table 2) followed the order: G1 > G4 ≈ G5 > G2 > G3. In comparing pairs of guests, the most striking differences involve the slowest reacting G3. Thus, adding one CH₂ to the substrate (G4) resulted in a rate acceleration of 150%, whilst removing two CH₂s (G1) resulted in a 200% rate acceleration. There are evidently at least two factors at play behind the non-monotonic trend in cyclization rates of G1–G5. We rationalize that the nature of the sulfonate anchor was central. G1 only has its CH₃ sulfonate anchor, and is only ten-atoms in length; a length sufficient to span between the two anchor-points of the capsule, but only in a fully extended (all-trans dihedrals) E-motif. This leads to relatively poor anchoring of both termini (Table 1) and an increased likelihood of them attaining a suitable reaction trajectory. Hence G1 reacts quickly. In the case of 11- and 12-atom long G2 and G3, the width of the turn in the guest (e.g., Fig. 2a) prevents deep anchoring, forcing the amino group to be more deeply buried (Table 1) and potentially less available to act as a nucleophile. Simultaneously, the turn in the sulfonyl alkyl group may block access to the proximal electrophilic site. This may be by simple steric encumbrance, or may also involve the guest adopting a combination of dihedrals that turn the electrophilic CH₂ towards the NH₂ group, preventing backside S_N2 attack. It is not possible to discern specifics from the time-averaged data provided by NMR spectroscopy, but evidently the combination of a deep NH₂ and a sterically encumbered electrophilic center slows cyclization. In contrast, guests G4 and G5 exist in the capsule in E-motifs. Like G1, the E-motif dictates more deeply anchored NH₂ groups, but this is the only impediment to cyclization. Thus, in an E-motif the electrophilic center of both G4 and G5 is pushed away from the narrow pole region by the length of the sulfonyl alkyl, and hence towards the wider and more hydrated equatorial zone of the yoctoliter space. As a result, cyclization of G4 and G5 are faster than G2 and G3, but slower than G1. Interestingly, the similar cyclization rates of G1, G4 and G5 suggest that deep anchoring of a NH₂ group is not a major impediment to reaction, suggesting accessibility to the electrophilic methylene is more important in controlling reaction rate.

Fig. 5 Stack of ¹H NMR spectra (600 MHz) showing the guest binding region for: (1) substrate G3 bound to 1₂; (2) product of reaction with G3 (including free propyl sulfonate), and; (3) Authentic azepane complex.

Eyring analysis of the cyclization of G3 and G4 revealed that the faster reaction of G4 was rooted in ΔH^‡, with a 40% lower enthalpy cost to cyclization (Table 3). This decrease was partially countered by an increased entropic cost to reach the TS^‡. We attribute these differences to the starting motif for several reasons. First, both reactions form azepane, and so however the energetics of the product factors into the TS^‡, the contributions from each are the same. Second, unlike thiol/thiolate cyclizations,¹⁷ amine cyclizations are not sensitive to the electrostatic potential field generated by the sixteen charges of the capsule.⁹ In other words, we have no evidence of unanticipated charge development in either encapsulated TS^‡, and correspondingly conclude little difference in the charge distribution within each. Moreover, because of the exergonic nature of the S_N2 mechanism, the early TS^‡ (Hammond postulate) dictates that differences in the substrate energetics weigh more heavily. As there are essentially no differences in the charge distribution within each substrate (n-propyl versus n-butyl sulfonyl groups), we surmise that it is the motif that primarily dictates differences in ΔH^‡ and TΔS^‡. Furthermore, as the NH₂ group of both guests are anchored to similar extents (Table 1) this is unlikely to be important. Given this, then it is the differences in the environment around the electrophilic CH₂ under S_N2 attack that are key. In other words, the Eyring analysis points to the turn in the sulfonyl group in G3 impeding nucleophilic attack (higher ΔH^‡) but rigidifying the guest somewhat making cyclization less entropically costly (lower TΔS^‡).

How do the rates of cyclization within the capsule compare to that in free solution? To address this question we attempted the cyclization of G5 in benzene (as a surrogate for the walls of the container). However, we saw no evidence of cyclization at 60 °C in a timeframe twice that of cyclization. Presumably reaction is facilitated by polar aprotic solvents,³¹ but we did not examine such radically different conditions as any inferences about rate changes would be limited in nature.

Separately, we confirmed that the rates of hydrolysis of the sulfonates were slower in base-free conditions (Table 5) and only ∼2.9 times faster than the rate of cyclization of G5 (Table 2). Given this we probed the catalytic properties of the octa-sodium salt of 1₂ in the absence of excess base. We examined three sets of conditions — 10, 5 and 2 mol% capsule — reacting each mixture at 60 °C for 24 hours and recording the ratio of hydrolysis product and azepane determined by integration of the relevant ¹H NMR spectroscopy signals. The resulting azepane to 6-aminohexan-1-ol ratios obtained were respectively: 1 : 1, 3 : 7, and 3 : 7. In other words, at a low 2 mol% host the turnover number (TON) was ∼35.³² Without removal of the product, product inhibition would ultimately inhibit the capsule. However, considering the degree of hydrolysis observed, we anticipate that the TON value of catalyst 1₂ is >35, and only limited under the conditions investigated because of substrate hydrolysis.

Guest motif differences aside, G6–G12 were expected to cyclize much more slowly than guests G1–G5. Indeed, we saw no evidence of the formation of azocane or azonane, and only in the case of guest G10 was aza-cycloundecane isolated. Rather, the guests were found to undergo hydrolysis to generate the corresponding amino alcohol, with only G10 leading to both hydrolysis and cyclization in a 4 : 1 ratio.

Regarding guest hydrolysis, recall that the presence or absence of a bound NH₂¹H NMR signal was strongly suggestive of differences in its accessibility to bulk water; deeply bound NH₂ groups in smaller guests gave sharp signals, whereas larger guests and/or cases where the NH₂ group was located at the equatorial region led to no signal. Of the seven guests G6–G12, three showed no amino signal (G9, G11 and G12), with one of the remaining four exceptions (G10) also giving cyclized product. This suggested that these larger guests led to more open capsules, a loss of watertightness, and hydrolyses out-competing slow cyclization.

To gauge the extend of watertightness of the different capsules, we examined the position of the ¹H NMR signal from host proton H_c (Fig. 1). Located at the cavitand rim, H_c is very sensitive to capsule formation. Thus for the guest n-decane it undergoes a −0.40 ppm shift from the free to the bound state (Δδ = δ_complex − δ_free) because in the dimer capsule the H_c proton of one cavitand is shielded by the aromaticity of the other. Moreover, as the n-alkane guest is increased in size, so this shift is attenuated (to ∼ −0.17 ppm in the case of n-heptadecane). This highlights how the signal of proton H_c can be used as a surrogate for defining the degree of capsule watertightness.

A plot of the corresponding Δδ value for H_cversus log k_hyd of guests G6–G12 shows a reasonable linear correlation (Fig. 6, R² = 0.85). The two series G7–G9 and G10–G12 both trend as expected, with hydrolyses rates increasing and Δδ values decreasing as the guest size increases. Of these guests, only G10 gives cyclized product because it forms the tightest capsule by the metric of its hydrolysis rate inside the capsule (and third tightest by the metric of H_c Δδ value), and because the product of cyclization (aza-cycloundecane) contains the least amount of strain (after azepane).

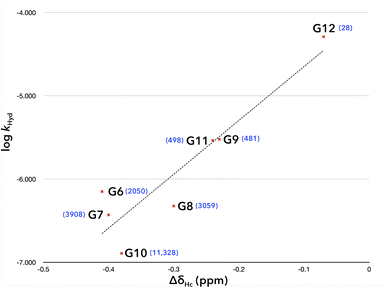

Fig. 6 Plot of the ¹H NMR Δδ value for host (1) proton H_c (Δδ = δ_complex − δ_free) versus the log of the hydrolysis rate constant (log k_Hyd) of the bound guest with the 1₂ capsule.

The one outlier in Fig. 6 is arguably G6. Despite being smaller than G7, its complex is apparently more open as measured by its hydrolysis rate (but just as tight in terms of H_c Δδ value). The methanesulfonyl group of G6 is not so deeply bound into the pole region as G7 (Table 1). Thus, we conclude that when the electrophilic CH₂ of a guests resides away from the pole it not only favors S_N2 attack by the NH₂ group, but also attack by adventitious water that enters the capsule. Presumably hydrolysis is not a problem for slightly shorter G1 because the rate of formation of 7-membered azepane is much quicker than 8-membered azocane.

How do the observed rates of hydrolysis compare to the hydrolysis rates in the free state? To gauge this we averaged the rate constants of hydrolysis given in Table 5 (̄k_hyd = 1.45 × 10⁻³ s⁻¹). Thus, the quotient of the bound hydrolysis rates and average rates of hydrolysis in the free state gives a measure of the watertightness of each complex. For 1₂. GX these quotients were calculated to one-two significant figures to be: G6 (2̄100), G7 (3̄900), G8 (3̄100), G9 (4̄80), G10 (1̄1,000), G11 (̄500), and G12 (̄30). In other words, hydrolysis of guest G10 is attenuated over 10⁴ times relative to the free state, whilst guest G12 is protected less than 30 fold. A comparison of the constitutional isomeric complexes undergoing hydrolysis reveal that in smaller constitutional pair G8 (J_(NH2)-motif) and G10 (E-motif), the former is protected 3.7 times more than the latter. In contrast, larger G9 and G11 (both J_(NH2)-motifs) are protected to essentially the same extent. This confirms that the motif of a bound guest influences the watertightness of the complex and hence its rate of hydrolysis.

Conclusions

To explore cyclization reactions within the yoctoliter inner-space of the 1₂ capsule, we have targeted the cyclization of amino-sulfonate guests. These guests allowed the exploration of the catalytic formation of difficult-to-cyclize medium-sized rings (7-11-membered), whilst at the same time providing information concerning the watertightness of the inner-space engendered by the dimeric assembly of octa-acid 1. Thus, 1₂ catalytically forms 7-membered azepane at only 2 mol%, with a turnover that is only limited by substrate hydrolysis in free solution. On the other hand, the formation of 8–11 membered cyclic amines is considerably slower and as a result substrate hydrolysis largely outcompetes cyclization. In these instances hydrolysis occurs in the inner-space of 1₂, but at a rate up to 10⁴ times slower than the free state. Thus, using the capsule stoichiometrically, only the most watertight of complex forms the strained 11-membered aza-cycloundecane product. These results demonstrate for the first time that the use of a relatively large leaving group allows catalytic turnover for the synthesis of strained 7-membered cyclic amines. In the case of the most highly strained 8–11 membered rings, amine cyclization is slow relative to bound guest hydrolysis and stoichiometric amounts of container are required to form aza-cycloundecane. Simultaneously then, these cyclizations provide a valuable benchmark for the degree to which capsular complexes of 1₂ are watertight, and hence the rates of any desired reaction that are needed to ensure water ingress and alternative side reactions are to be avoided. Further studies of catalytic cyclizations of difficult-to-cyclize medium-sized rings are ongoing, and will be reported in due course.

Author contributions

YAI performed the described syntheses, complexations, motif determinations, and assessment of complex reactivity. DR assisted with the synthesis of the guests G1–G12. BCG designed the overall study, advised YAI, and wrote the manuscript.

Conflicts of interest

The authors declare no conflict of interest.

Data availability

The data that support the findings of this study are available in the supplementary information (SI) of the article. Supplementary information is available. See DOI: https://doi.org/10.1039/d5sc07390a.

Acknowledgements

This work was supported in part by a grant from the National Science Foundation (CHE-2305018). A significant portion of the reported NMR data was collected on a 600 MHz NMR spectrometer funded by an NSF Major Research Instrumentation Program under the award number MRI 2216220.
