Electron enrichment enables RuPd to achieve 1.406 V overall water splitting

Abstract

The development of cost-effective and stable bifunctional catalysts is crucial for reducing the cost of green hydrogen production via water electrolysis. Herein, we report a RuPd-RuNiFeO_x catalyst supported on nickel foam, synthesized via a facile non-homogeneous nucleation method. The catalyst exhibits exceptional hydrogen evolution (HER, 17 mV@10 mA cm⁻²) and oxygen evolution (OER, 263 mV@50 mA cm⁻²) activities in alkaline freshwater, requiring only 1.406 V for overall water splitting at 10 mA cm⁻² with outstanding stability over 100 h. Remarkable performance is also demonstrated in seawater electrolysis. Combined experimental characterization and density functional theory (DFT) calculations reveal that the superior activity and stability originate from electron enrichment at the interfacial Ru sites, driven by charge redistribution from the NiFeO_x support to the RuPd cluster. This electron enrichment optimizes the d-band center of Ru, yielding a near-ideal hydrogen adsorption free energy (ΔG_H*≈ −0.10 eV), and significantly reduces energy barriers for both water dissociation and the OER rate-determining step. This work provides mechanistic understanding and a practical strategy for designing high-performance, durable catalysts for sustainable hydrogen production.

---

1 Introduction

Low-temperature water electrolysis allows the rapid production of green hydrogen as an ideal way of storing renewable energy from sources such as wind and solar in future clean energy infrastructures.^1–3 Electrochemical water splitting typically consists of two half-reactions: the oxygen evolution reaction (OER) and hydrogen evolution reaction (HER). Efficient overall water splitting requires the use of bifunctional electrocatalysts with high HER and OER activities to reduce the reaction barrier.^4–6 In addition, although seawater is an abundant natural resource accounting for 96.5% of total global water resources, large-scale seawater electrolysis still faces significant challenges due to its complex composition.^7–11 Currently, iridium (Ir)- and platinum (Pt)-based materials are the best catalysts for the OER and HER, respectively. However, their high cost and limited reserves have seriously hindered the widespread application of water electrolysis technology.¹² In addition, most catalysts can only exhibit single HER or OER performance in the same medium, which undoubtedly increases the difficulty of industrial hydrogen production. Therefore, the development of cost-effective bifunctional catalysts is imminent.

Ruthenium (Ru), which is only 1/4 of the price of Pt, has aroused widespread interest.¹³ However, although Ru-based catalysts possess high catalytic activity, their low electrochemical stability restricts their application in practical electrochemical reactions. To break through the performance limitation of Ru-based catalysts, Ru-based composite catalyst systems have been developed. Among them, alloying Ru with other Pt-group metals (e.g., Pt, Ir, etc.) or constructing heterostructures is a promising strategy.^14,15 However, the oxidation of Ru at high potentials (from tetravalent to octavalent) and the subsequent precipitation of dissolved Ru can lead to the deactivation of Ru-based catalysts.¹⁶ Therefore, the design of suitable support materials that can effectively stabilize Ru species is essential for optimizing dispersion problems, reducing particle size, and increasing the density of active sites and cycling durability.

Among various support materials, three-dimensional transition metal oxides containing different metals (e.g., cobalt, nickel, iron, etc.) are promising for electrocatalysts due to their unique layered structures and abundant active sites, wherein nickel (Ni)–iron (Fe) oxides are regarded as ideal catalyst carriers due to their highly efficient OER activity and stability.¹⁷ However, their intrinsic HER activity is severely insufficient, which limits their applications in water electrolysis.¹⁸ To overcome these limitations, various strategies have been proposed to enhance the catalytic performance of nickel-iron oxides. For example, by filling the oxygen vacancy in them with atoms such as Ru, phosphorus (P), and sulfur (S), both the activity and stability of Ni–Fe oxides have been enhanced.^19–21 In addition, it was shown that Ni–Fe mixed oxides with surface oxygen vacancies prepared by a simple two-step thermal-assisted method exhibited excellent electrocatalytic properties. This method not only optimized the precursor composition and calcination temperature but also improved the electrocatalytic performance through nanosizing and porous structure formation.²² It was also found that the activity of Fe-doped β-nickel oxyhydroxides strongly depends on the crystallographic facets. Doping on certain crystallographic facets can significantly reduce the thermodynamic overpotential and thus increase the HER activity.²³ Thus, the catalytic properties of Ni–Fe oxides can be improved by elemental doping, precursor optimization and other strategies, which provide new possibilities for their application in water electrolysis.

Herein, we aim to achieve electron enrichment at the Ru active sites-a targeted electronic state where Ru gains increased electron density through interfacial charge transfer from a tailored support-to simultaneously modulate adsorption energetics and enhance electrochemical stability.

To this end, this work innovatively introduces Ru and palladium (Pd) onto the NiFe oxide substrate through the strategy of strain and electron synergistic modulation in polymetallic oxides to achieve electron enrichment at the RuPd site and construct a RuPd-RuNiFeO_x/NF catalyst where Ru is dispersed in Pd clusters and amorphous NiFeO_x.²⁴ The design is based on three considerations: First, to enhance HER activity under alkaline conditions, Ru, as a larger element, is selectively introduced to the NiFeO_x/NF surface to generate strain, oxygen vacancies (O_Vs), and active sites.²⁵ Second, to enhance desorption kinetics and Ru stability under alkaline conditions, Pd with a mixed-valence oxidation state of Pd^δ+ is also introduced to the NiFeO_x surface.²⁶ This facilitates the adsorption of oxygen-containing intermediates in the OER process and the dissociation of H₂O in the HER, and inhibits the overoxidation of Ru due to its high electronegativity. Third, the charge redistribution at the RuPd/RuNiFeO_x interface synergistically accelerates the reaction path and increases the oxygen vacancy concentration in the process, which is conducive to electronic distribution and interfacial charge transfer during the catalysis process, simultaneously enhancing the performance of water/seawater electrolysis.²⁷

2 Results and discussion

2.1 Catalyst synthesis and characterization

The synthesis process of the catalyst is shown in Scheme 1. By a non-homogeneous nucleation method, an aqueous solution of FeSO₄ was slowly added to an ethanol solution of Ni(NO₃)₂, which resulted in the formation of insoluble nanoparticles due to the poor solubility of sulfate in organic solvents.²⁸ The nanoparticles adsorbed on the surface of the NF, which reduced the interfacial energy and they acted as nuclei without the need for a basic nucleation process. Subsequently, RuCl₃-xH₂O and PdCl₂-xH₂O were introduced into the above solution, and the nickel foam (NF) was immersed in the liquids for 24 h at 25 °C. The non-homogeneous nucleation method was used to easily prepare large-sized catalysts with uniform distribution on nickel substrates (Fig. S1, SI). Scanning transmission electron microscopy (STEM) images show that these insoluble nanoparticles were widely and uniformly distributed, with an average diameter of 3.84 ± 0.02 nm (Fig. S2, SI). The solution was measured by inductively coupled plasma mass spectrometry (ICP-OES) to have a Ni/Fe atomic ratio of 5.74 (Fig. S3, SI). The whole synthesis process was completed at room temperature and atmospheric pressure without harsh conditions. In addition, to investigate the effect of Ru/Pd doping, Ru-NiFeO_x/NF, Pd-NiFeO_x/NF and NiFeO_x/NF were synthesized in the absence of RuCl₃-xH₂O and PdCl₂-xH₂O, respectively. For comparison, RuPdO_x was synthesized without addition of Ni(NO₃)₂ and FeSO₄.

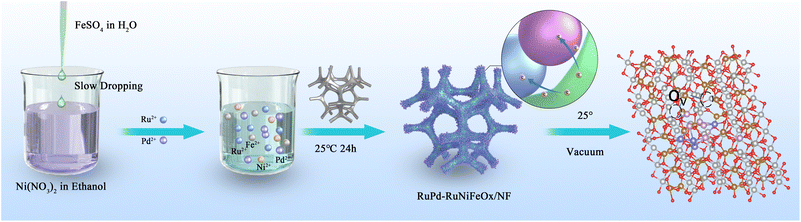

Scheme 1 Synthetic illustration of the RuPd-RuNiFeO_x/NF catalyst.

X-Ray diffraction (XRD) patterns confirm that there is only one set of interfacial angles located at 44.5°, 51.8°, and 76.4° (Fig. S4, SI), which corresponds to the (111), (200), and (220) planes. Such diffraction peaks can be indexed to the metallic Ni originating from the nickel foam substrate (JCPDS No. 87-0712), suggesting the amorphous nature of RuPd-RuNiFeO_x. To determine the microscopic morphology of RuPd-RuNiFeO_x/NF, field emission scanning electron microscopy (FE-SEM), TEM, and spherical aberration-corrected atomic resolution HAADF-STEM were used for structure characterization. SEM images of NiFeO_x/NF (Fig. S5, SI) and RuPd-RuNiFeO_x/NF (Fig. 1a and S6, SI) show that after Ru and Pd doping, the nanosheet of the sample is altered greatly, and the morphology of the catalyst changes from a continuous, interwoven nanofiber network to a nanoflower-like nanoparticle agglomerate. The TEM image (Fig. 1b) further confirms the nanoflower structure of RuPd-RuNiFeO_x. The elemental mapping of RuPd-RuNiFeO_x determined by the TEM image (Fig. 1c) reveals the uniform distribution of elemental Pd, Ru, Ni, and Fe on the nanoflower. The selected area electron diffraction (SAED) pattern of RuPd-RuNiFeO_x/NF (Fig. 1d) indicates its amorphous nature, consistent with the previous XRD analysis results. From HAADF-STEM images, there are distinct clusters and amorphous regions in Fig. 1e. For the cluster, its lattice spacing of 0.221 nm corresponds to the (111) crystalline plane of Pd in RuPd-RuNiFeO_x/NF, which is wider than the lattice spacing of the standard Pd (0.22 nm), suggesting that the doping of Ru generates typical lattice strain in Pd clusters.²⁹ For the amorphous region, it could be attributed to NiFeO_x as a support of RuPd clusters. From the HAADF-STEM image with spherical aberration correction (Fig. 1f), isolated metal (Ru or Pd) single atoms are uniformly distributed as bright spots on the surface of RuPd-RuNiFeO_x/NF. Furthermore, RuPd-RuNiFeO_x identified through HAADF-STEM images (Fig. 1g) and corresponding elemental mapping (Fig. 1h) reveal that the elements of Ni and Fe are uniformly distributed on the nanoflower, whereas Ru is uniformly dispersed on Pd clusters and the substrate in the form of monoatoms. The Ru and Pd content of RuPd-RuNiFeO_x/NF was determined to be 3.4 and 4.1 wt%, respectively, by ICP-OES analysis (Fig. S7, SI).

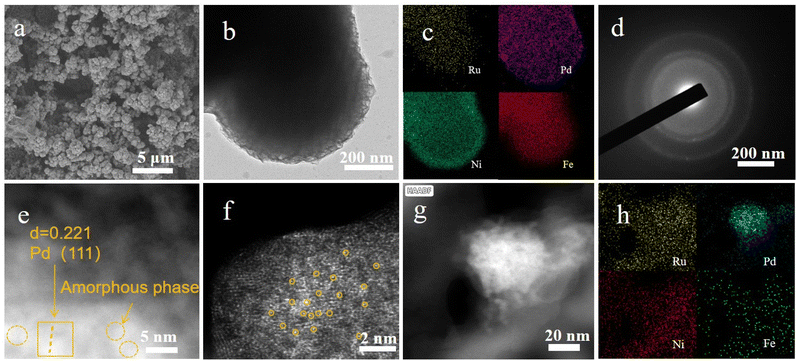

Fig. 1 (a) SEM image of RuPd-RuNiFeO_x/NF. (b) TEM image of RuPd-RuNiFeO_x. (c and h) EDS mapping of RuPd-RuNiFeO_x. (d) Selected-area electron diffraction (SAED) pattern of RuPd-RuNiFeO_x. (e, f and g) Spherical aberration-corrected atomic resolution HAADF-STEM image of RuPd-RuNiFeO_x/NF.

As seen in X-ray photoelectron spectroscopy (XPS), RuPd-RuNiFeO_x/NF consists of elemental Ru, Pd, Ni, Fe, and O (Fig. S8, SI), whereas NiFeO_x does not contain elemental Ru and Pd, which indicates the successful introduction of Ru and Pd on NiFeO_x. The XPS elemental semi-quantitative results show only 0.29 at% of Ru and 1.45 at% of Pd (Table S1), which again indicates that the precious metal content in this catalyst is extremely low. In the spectra of Ni elements (Fig. 2a), the peaks located at 855.78 and 873.35 eV correspond to Ni²⁺ 2p_3/2 and Ni²⁺ 2p_1/2, respectively, and the two peaks at 861.4 and 878.2 eV are satellite peaks of Ni 2p. In Fig. 2b, the peaks at 711.56 and 724.36 eV correspond to Fe³⁺ 2p_3/2, and the peaks at 707.09 and 719.89 eV are attributed to Fe²⁺. In addition, the Ru 3p spectrum (Fig. 2c) shows characteristic peaks at 462.3 (3p_3/2) and 485.8 eV (3p_1/2), which are assigned to Ru⁴⁺.³⁰ The weaker peak intensity stems from the low loading of Ru, which was confirmed to be dispersed in monoatomic form in combination with HAADF-STEM (Fig. 1h). Fig. 2d shows the presence of characteristic double peaks in the Pd 3d orbitals at 335.03 (3d_5/2) and 340.48 eV (3d_3/2), which correspond to the metallic state Pd⁰, respectively.³¹ The binding energy is positively shifted by 0.07 eV compared to that of bulk Pd (335.1 eV), which is attributed to the nanoscale effect and the electronic interaction between Pd and the substrate (NiFeO_x). The O1s XPS spectra (Fig. 2e) exhibit three characteristic peaks: the M–O bond (530.0 eV), the oxygen vacancy (531.5 eV), and the O–H (533.0 eV). Compared with the NiFeO_x/NF sample, for the O1s XPS of RuPd-RuNiFeO_x, the overall negative shift of the oxygen spectral band is 0.5 eV, and the intensity of the oxygen vacancy peak increases, indicating that the formation of oxygen vacancies and the electron redistribution alter the chemical environment of the support. This electron reorganization facilitates the electron transfer from the support to the RuPd sites. This is further supported by the electron paramagnetic resonance (EPR) (Fig. 2f) results where the EPR peak intensity of RuPd-RuNiFeO_x/NF is significantly higher than that of the other samples, suggesting that the introduction of Ru and Pd does produce more oxygen vacancies (O_Vs). This phenomenon is self-corroborating with the positive shift (electron loss) of Ni 2p/Fe 2p and the negative shift (electron gain) of Ru/Pd. This directional flow of electrons increases the interaction between RuPd sites and NiFeO_x and the intrinsic activity of the catalyst, resulting in a lower water splitting energy barrier.

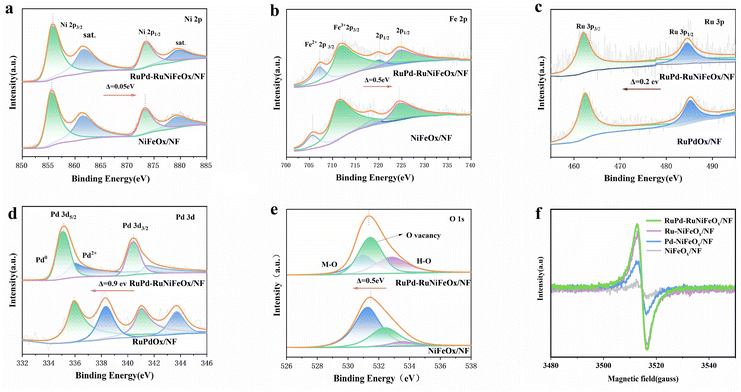

Fig. 2 (a–e) High-resolution XPS comparison spectra of RuPd-RuNiFeO_x/NF, NiFeO_x/NF and RuPd/NF. (a) Ni2p, (b) Fe2p, (c) Ru3p, (d) Pd3d, (e) O1s. (f) EPR spectra.

2.2 Electrocatalytic properties of hydrogen evolution and oxygen evolution reactions

The HER behavior of catalysts was first investigated in a standard three-electrode system and 1 M KOH freshwater. As shown in Fig. 3a, the HER activity is as follows: RuPd-RuNiFeO_x/NF > Pt/C on NF > Ru-NiFeO_x/NF > Pd-NiFeO_x/NF > NiFeO_x/NF. Among them, RuPd-RuNiFeO_x/NF shows the highest catalytic activity, which requires only 17 and 55 mV overpotentials to achieve current densities of 10 and 50 mA cm⁻² (Fig. 3b), respectively, much lower than that of commercial Pt/C (27 and 71 mV), Ru-NiFeO_x/NF (40 and 89 mV), Pd-NiFeO_x/NF (65 and 131 mV), and NiFeO_x/NF (103 and 162 mV). At larger current densities, RuPd-NiFeO_x/NF still outperforms the control samples. The excellent HER performance is also superior to that of the recently reported noble metal catalysts (Table S2, SI). As shown in Fig. 3c, the Tafel slope of RuPd-RuNiFeO_x/NF is the smallest, which indicates an optimal electrocatalytic kinetics compared to the control sample. Meanwhile, RuPd-RuNiFeO_x/NF exhibits the smallest charge transfer resistance (R_ct), suggesting an extremely high charge transfer capability (Fig. 3d). In addition, the bilayer capacitance was calculated from cyclic voltammetry (CV) curves at successive scanning speeds in the non-Faraday region (Fig. S9, SI). As presented in Fig. 3e, the C_dl value of RuPd-RuNiFeO_x/NF (235.5 mF cm⁻²) is much higher than those of Ru-NiFeO_x/NF (33.6 mF cm⁻²), Pd-NiFeO_x/NF (17.95 mF cm⁻²) and NiFeO_x/NF (17.73 mF cm⁻²). Subsequently, C_dl was utilized to reflect the electrochemically active surface area (ECSA), which indicates that RuPd-RuNiFeO_x/NF has the highest intrinsic activity (Table S3, SI).

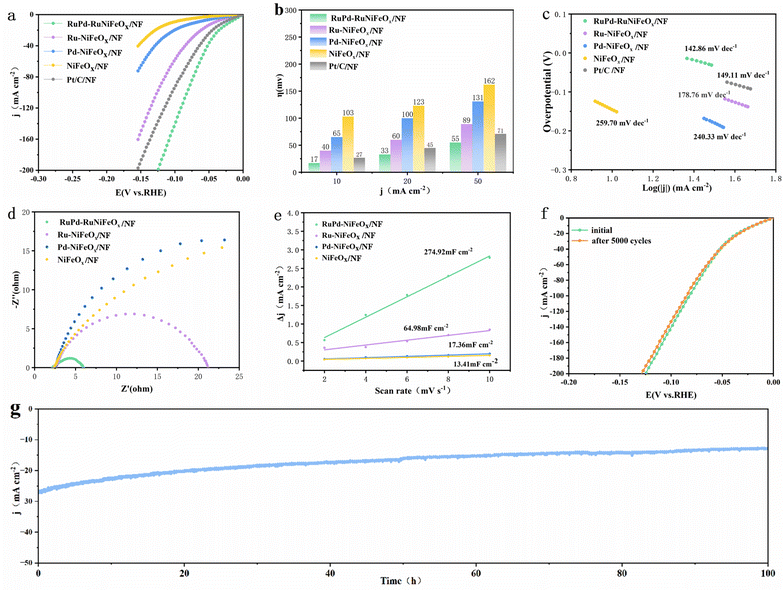

Fig. 3 (a) HER polarization curves of various catalysts in alkaline freshwater. (b) Tafel slope. (c) Corresponding overpotentials. (d) Nyquist plots. (e) Plots of current density versus scan rate for various catalysts. (f) LSV curves initially and after cyclic voltammetry cycling. (g) i–t tests of RuPd-RuNiFeO_x/NF.

As shown in Fig. 3f, the linear scanning voltammetric (LSV) curves of RuPd-RuNiFeO_x/NF before and after 5000 cycles show only a slight shift. In addition, the chronoamperometric test (Fig. 3g) presents that the catalyst can maintain a stable catalytic performance up to 100 h. This confirms the excellent long-term stability of RuPd-RuNiFeO_x/NF. After the HER test, it can be observed that RuPd-RuNiFeO_x/NF still has a pristine nanoparticle agglomerate structure after the 100 h HER test (Fig. S10, SI). Fig. S11 shows the XPS spectra of the elemental Ni, Fe, Ru, and Pd. As expected, there is no significant change in the Ni2p spectrum, indicating that the surface Ni composition was not changed. In contrast, the peak of Fe2p decreased significantly, indicating that the precipitation of Fe occurred during the hydrogen evolution process. Meanwhile, the negative peak shift of Ru3p and Pd3d peaks can be attributed to the reduction reaction during the HER, which indicates that Ru and Pd are the active species for electrochemical hydrogen evolution.³² This further proves that NiFeO_x as a support provides electrons to Ru and Pd, as evidenced by a negative shift of binding energy for Ni2p and Fe2p peaks, which enhances the hydrogen evolution activity of Ru and Pd sites. The single-metal catalyst (Ru/Pd-NiFeO_x) is limited in activity due to the incomplete reaction path, while NiFeO_x/NF lacks metal sites, resulting in the lowest activity. In addition, the Raman spectra before and after the HER do not show significant changes, further demonstrating the excellent stability of the catalyst (Fig. S12, SI).

Similarly, the OER behavior was examined. As shown in Fig. 4a and b, the OER performance is ranked as RuPd-RuNiFeO_x/NF > Ru-NiFeO_x/NF > RuO₂ on NF > Pd-NiFeO_x/NF > NiFeO_x/NF. Among them, RuPd-RuNiFeO_x/NF exhibits the highest catalytic activity. It requires only 263 and 290 mV overpotentials to achieve current densities of 50 and 100 mA cm⁻², respectively, which are significantly lower than those of commercial RuO₂ (279 and 310 mV), Ru-NiFeO_x/NF (277 and 308 mV), Pd-NiFeO_x/NF (290 and 318 mV), and NiFeO_x/NF (280 and 311 mV). At larger current densities, RuPd-NiFeO_x/NF still outperforms other catalysts. Such excellent activity is also quite competitive among the recently reported catalysts (Table S4, SI). As shown in Fig. 4c, it has the smallest Tafel slope, which indicates a faster electrocatalytic kinetics compared to the control sample. As expected, RuPd-RuNiFeO_x/NF exhibits the smallest charge transfer resistance (R_ct), suggesting a higher charge transfer capability (Fig. 4d). In addition, according to CV curves (Fig. S13, SI), the C_dl value of RuPd-RuNiFeO_x/NF (274.92 mF cm⁻²) was calculated (Fig. 4e), which is much higher than those of Ru-NiFeO_x/NF (64.95 mF cm⁻²), Pd-NiFeO_x/NF (17.36 mF cm⁻²) and NiFeO_x/NF (13.41 mF cm⁻²). Furthermore, according to the ECSA value (Table S5, SI), RuPd-RuNiFeO_x/NF has the highest intrinsic activity.

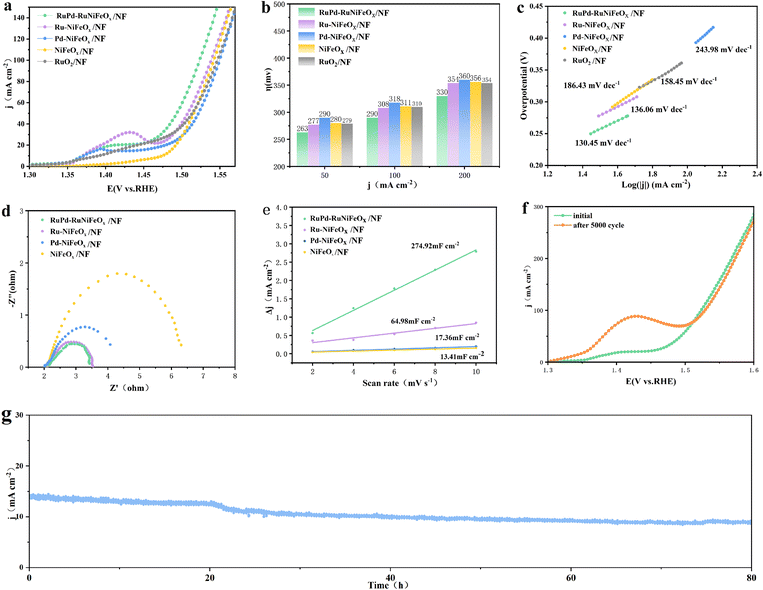

Fig. 4 (a) OER polarization curves of various catalysts in alkaline freshwater. (b) Corresponding overpotentials. (c) Tafel slope. (d) Nyquist plots. (e) Plots of current density versus scan rate for various catalysts. (f) LSV curves initially and after cyclic voltammetry cycling. (g) Chronoamperometric i–t tests of RuPd-RuNiFeO_x/NF.

As demonstrated in Fig. 4f, the LSV curve of RuPd-RuNiFeO_x/NF before and after 5000 cycles for the OER exhibits only a slight shift. Furthermore, the outcome of the chronoamperometric (i–t) evaluation (Fig. 4g) demonstrates that the catalyst possesses the capacity to sustain consistent catalytic functionality for a duration of 80 h. This validates the long-term stability of RuPd-RuNiFeO_x/NF in the context of the OER. From Fig. S14 (SI), we can observe that the catalyst surface of RuPd-RuNiFeO_x/NF after an 80 h OER test shows a high-density nanoparticle agglomerate structure compared with the pristine one (Fig. S5, SI). And the particle was stacked in a disordered manner in the form of spherical clusters, with a high-density exposure of active sites such as the alloy interfaces, and not obviously sintered, which provides a microstructure for OER processes. In addition, XPS and Raman spectroscopic analyses of RuPd-RuNiFeO_x/NF after the OER show that surface oxidation occurred. The Ni2p spectra have no significant change, indicating that the surface Ni composition did not change. The positive peak shift of Fe2p and Pd3d indicates that the oxidation of Fe and Pd took place during the OER process (Fig. S15a and b, SI). Note that no new peaks appear for Ru3p, nor was there any significant shift, consistent with expectations. The special electron distribution can inhibit the excessive oxidation of Ru (Fig. S15c, SI). The Pd3d orbitals have characteristic double peaks at 335.8 (3d_5/2) and 340.98 eV (3d_3/2), which correspond to the electronic structure of PdO_x (x < 1) (Fig. S15d, SI). In addition, Raman spectra further confirm the formation of metal oxides. Two new characteristic peaks appear at 474.1 and 544.3 cm⁻¹ (Fig. S16, SI), attributed to Ni–O vibrations, indicating the formation of NiOOH.³³ These oxides and hydroxides can continue to drive the reaction as additional active sites, reducing the adsorption energy of the intermediates and thus improving the OER performance of RuPd-RuNiFeO_x/NF.

The excellent HER and OER activities of RuPd-RuNiFeO_x/NF, characterized by ultralow overpotentials and favorable kinetics, are directly correlated with its distinctive interfacial electronic structure. XPS and EPR analyses confirm electron transfer from the NiFeO_x support to the RuPd cluster via oxygen vacancies, resulting in an electron-rich state at the Ru active sites. This modulation of the electronic structure corresponds directly to the enhanced water dissociation capability in the HER and the optimized reaction kinetics in the OER, collectively contributing to the outstanding activity and stability of the catalyst for overall water splitting.

2.3 Seawater and overall water splitting performance

The catalytic performance of the samples in alkaline seawater media was also investigated. As shown in Fig. 5a and S17 (SI), RuPd-RuNiFeO_x/NF exhibits excellent HER activity, requiring only 22 and 66 mV to achieve current densities of 10 and 50 mA cm⁻², respectively, superior to those of commercial Pt/C on NF in seawater (34 and 89 mV, respectively). Meanwhile, as shown in Fig. 5b and S19 (SI), it also exhibits excellent OER activity in seawater, with overpotentials as low as 283 and 312 mV at current densities of 50 and 100 mA cm⁻², respectively, superior to those of commercial RuO₂ catalysts on NF (326 and 399 mV, respectively) and comparable to those of commercial RuO₂ catalysts on NF. In addition, RuPd-RuNiFeO_x/NF has a lower Tafel slope (Fig. S18 and S20, SI), also suggesting a rapid reaction kinetics in seawater.

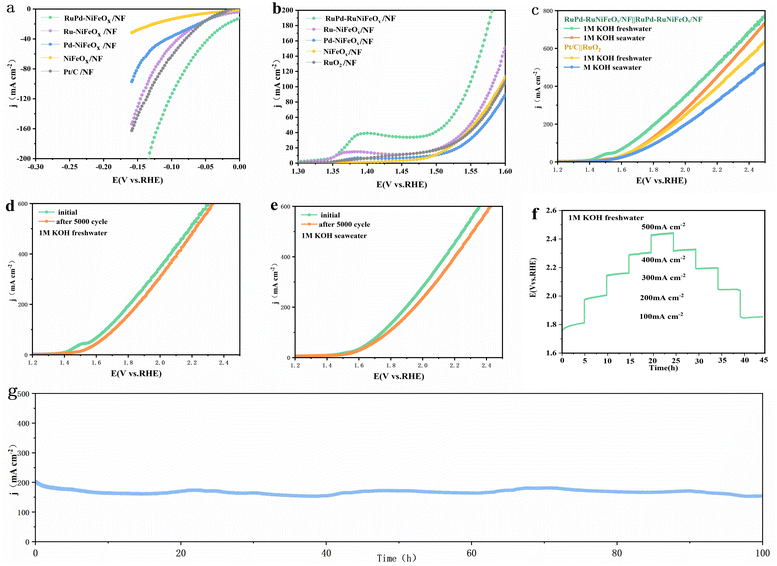

Fig. 5 (a) HER and (b) OER polarization curves for various catalysts in alkaline seawater. (c) Polarization curves of RuPd-NiFeO_x/NF‖RuPd-NiFeO_x/NF and Pt/C‖RuO² on NF in alkaline freshwater and alkaline seawater. (d) LSV curves in the initial state and after cycling (e) in alkaline freshwater and (f) Multicurrent chronopotentiometry response for RuPd-RuNiFeO_x/NF in alkaline freshwater. (g) Chronoamperometric i–t tests of RuPd-RuNiFeO_x/NF‖RuPd-RuNiFeO_x/NF at 200 mA cm⁻² in alkaline electrolytes.

Encouraged by the robust HER/OER properties, the RuPd-RuNiFeO_x/NF catalyst was further examined in symmetric overall water splitting (OWS) in alkaline media (Fig. 5c). The RuPd-RuNiFeO_x/NF‖RuPd-RuNiFeO_x/NF pair requires only 1.406 V to obtain a current density of 10 mA cm⁻²,which exhibits excellent OWS performance in alkaline freshwater, which also outperforms the Pt/C‖RuO² pair (1.51 V) as well as other catalysts reported recently (Table S6, SI). In addition, the RuPd-RuNiFeO_x/NF‖RuPd-RuNiFeO_x/NF pair also exhibits excellent OWS activity (1.47 V@10 mA cm⁻²) in seawater. And then, to achieve a larger current density of 100 mA cm⁻², under alkaline conditions, it requires only 1.66 and 1.75 V in alkaline freshwater and alkaline seawater, respectively. Although the presence of insoluble precipitates, bacteria, and microorganisms in seawater can passivate active sites, the catalyst still maintains high catalytic activity in alkaline seawater.

As shown in Fig. 5d and e, the LSV curves of RuPd-RuNiFeOx/NF before and after 5000 cycles only slightly shift. Meanwhile, the multi-step timed potential test (Fig. 5f) shows that the catalyst has a stable gradient trend at different current densities, and the voltage remains almost unchanged after reaching 500 mA cm⁻² at the same current density (100–500 mA cm⁻²). In alkaline electrolytes, the RuPd-RuNiFeO_x/NF electrode can deliver a high OWS activity with a negligible attenuation rate for 100 h at 200 mA cm⁻². Undoubtedly, all of this proves that RuPd-NiFeO_x/NF has excellent durability. Besides, the RuPd-RuNiFeO_x/NF‖RuPd-RuNiFeO_x/NF pair only has weak performance degradation in seawater (Fig. S21, SI), and the post-test SEM image (Fig. S22 and S23, SI) reveals that the catalyst maintains its structural integrity without significant corrosion or aggregation after seawater electrolysis, further confirming its robustness.

2.4 Theoretical calculations

To gain an in-depth understanding of the electronic structure and catalytic mechanism of the RuPd-RuNiFeO_x/NF catalyst at the atomic scale, density functional theory (DFT) calculations were performed. We constructed four representative theoretical models to systematically study the structure–activity relationship of catalysts: (1) a pure Pd(111) surface (Fig. S24, SI), (2) a Ru-doped Pd(111) surface (Fig. S25, SI), (3) a RuPd cluster supported on a NiFeO_x surface with an oxygen vacancy (denoted as RuPd-NiFeO_x-Ov), used for HER simulations (Fig. S26 and S27, SI); to better simulate the significantly increased oxygen vacancy concentration in the catalyst due to the introduction of Ru/Pd (as evidenced in Fig. 2e and f), we introduced approximately 10% oxygen vacancies into the NiFeO_x surface model, and constructed the RuPd-NiFeO_x-Ov model to reasonably reflect its modulatory effect on the interfacial electronic structure, (4) a RuPd cluster supported on a NiFeOOH surface (denoted as RuPd–NiFeOOH), used for OER simulations (Fig. S28–S30, SI). The adsorption free energies (ΔG) of reaction intermediates were calculated using the standard hydrogen electrode (SHE) model.

Fig. 6a and b shows the structural model of Ru–Pd(111) and the heterostructure model of PdRu-NiFeO_x-O_v, respectively. The charge redistribution at the RuPd/NiFeO_x interface was investigated using differential charge density (DCD) analysis. As shown in Fig. 6c (PdRu-NiFeO_x) and Fig. S31 (RuPd–NiFeOOH), the isosurface of the differential charge density clearly reveals significant electron accumulation around the RuPd cluster and electron depletion in the adjacent NiFeO_x support. This indicates a directional electron transfer from NiFeO_x to RuPd. Therefore, the DFT calculations provide direct evidence for the electron enrichment effect at the RuPd sites in the catalyst, consistent with the XPS and EPR observations.

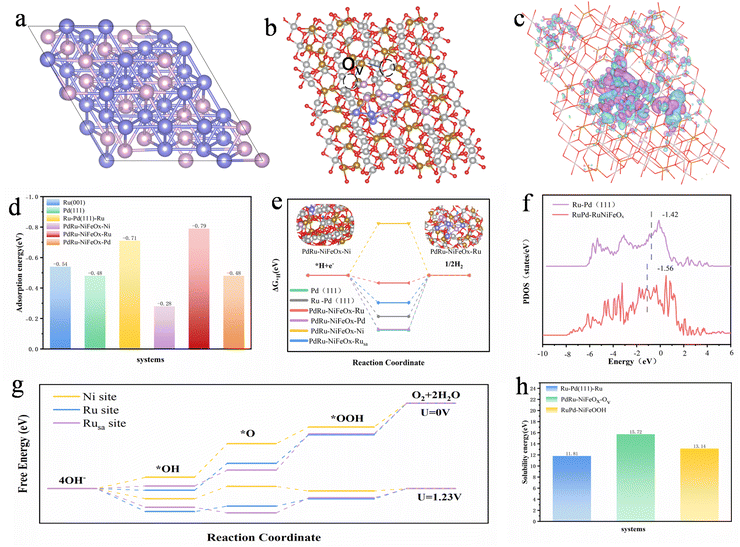

Fig. 6 Catalytic enhancement mechanism analyses. (a) Structure model of Ru–Pd(111). (b) Structure model of PdRu-NiFeO_x-O_V. (c) The DCD. (d) ΔE_H2O on different sample surfaces. (e) Energy barriers for the HER at different sites. (f) The partial density of states (PDOS) of Ru in Ru–Pd(111) and PdRu-NiFeO_x. (g) OER free energy diagram for RuPd–NiFeOOH. (h) Solubility energy.

Given that water adsorption is a prerequisite for water splitting, we further calculated the H₂O adsorption energy (ΔE_H2O) for Pd(111), Ru(001), Ru–Pd(111), and PdRu-NiFeO_x systems. As shown in Fig. 6d, the ΔE_H2O value of Ru–Pd(111) (−0.71 eV) is higher than those of Ru(001) (−0.54 eV) and Pd(111) (−0.48 eV), demonstrating that the presence of Pd can enhance water adsorption on Ru. In the PdRu-NiFeO_x system, the ΔE_H2O at the Ru site is higher than that at the Pd and Ni sites, confirming Ru as the genuine active center, in agreement with the XPS results. The higher ΔE_H2O for PdRu-NiFeO_x compared to Ru–Pd(111) suggests that the presence of NiFeO_x renders the PdRu-NiFeO_x surface more hydrophilic, beneficial for subsequent HER/OER catalytic steps. In the subsequent water dissociation process, PdRu-NiFeO_x-Ru exhibits the lowest H₂O dissociation barrier (0.31 eV), indicating its favorability for H₂O dissociation and H* intermediate formation (Fig. S32, SI).

The hydrogen evolution reaction (HER) activity is closely related to the hydrogen adsorption free energy (ΔG_H*). Then we calculated ΔG_H* on different models to elucidate the role of electron enrichment. As shown in Fig. 6e, the ΔG_H* for the pure Pd(111) surface is −0.72 eV, indicating overly strong adsorption for the HER. When Ru is doped into the Pd(111) surface, ΔG_H* becomes −0.54 eV, which is still not optimal. In contrast, the RuPd cluster supported on NiFeO_x-Vo exhibits a near-optimal ΔG_H* of −0.10 eV (close to 0 eV). This nearly neutral ΔG_H* in the heterostructure helps balance hydrogen adsorption/desorption behavior, thereby enhancing HER performance. This significant improvement is attributed to the electron enrichment effect at the RuPd site, which modulates the d-band center of Ru. As shown in Fig. 6f, the d-band center of Ru in the RuPd-NiFeO_x model shifts down by 0.12 eV compared to that in the Ru-doped Pd(111) model, leading to weaker H* adsorption and thus a more favorable ΔG_H*.

For the oxygen evolution reaction (OER), we investigated the adsorption free energies of reaction intermediates (*OH, *O, and *OOH) on the RuPd–NiFeOOH model. The adsorption site for these intermediates on various systems is shown in Fig. S28–S30 (SI). The OER free energy diagram is shown in Fig. 6g. The overpotential is determined by the potential-limiting step (the step with the largest increase in free energy). The results show that the rate-determining step (RDS) for the Ni site is the transformation of *OH to *O (the *OH → *O step), while the RDS for both the Ru site and the Ru_sa (single atom) site is also the *O → *OOH step. Notably, the RDS energy barriers for the Ru site at U = 0 V and U = 1.23 V (1.72 eV and 0.42 eV, respectively) are significantly lower than those for the Ni site (1.94 eV and 0.71 eV) and the Ru_sa site (2.09 eV and 0.81 eV). This indicates that the Ru site exhibits the most favourable thermodynamic and kinetic properties, representing the true active center. To visually distinguish the OER pathway and energetics between the two distinct Ru configuration, the schematic illustration and corresponding free energy diagrams are provided in Fig. S33a and c to depict the reaction pathway and energy profile for the Ru site within the RuPd cluster, while Fig. S33b and d correspond to those for an isolated Ru single atom (Ru_sa). The direct comparison demonstrates that the Ru site in the cluster affords a more favourable reaction pathway with a lower energy barrier than the Ru_sa site, confirming that the superior OER activity originates from the electron-enriched Ru within the RuPd cluster.

The stability of Ru-based catalysts is often limited by the over-oxidation and dissolution of Ru at high potentials. To explain the exceptional stability of our catalyst, we calculated the dissolution energies of Ru and Pd atoms in different environments. As shown in Fig. 6h, the dissolution energies of Ru in the PdRu-NiFeO_x (HER) and RuPd–NiFeOOH (OER) models are 15.72 eV and 13.14 eV, respectively, whereas it is 11.81 eV for Ru–Pd(111). This indicates that the atoms in our catalyst are thermodynamically less prone to dissolution. The enhanced stability is attributed to the electron enrichment at the Ru site, which reduces the tendency of Ru to lose electrons and form soluble high-valence species (e.g., RuO₄²⁻). Therefore, the DFT calculation confirms that the designed electron-enriched structure not only enhances catalytic activity but also ensures long-term stability.

3 Conclusions

In summary, a high-performance RuPd-RuNiFeO_x/NF bifunctional catalyst was successfully fabricated via a straightforward non-homogeneous nucleation method. The catalyst demonstrates outstanding activity and durability for overall water splitting in both alkaline freshwater and seawater, requiring only 1.406 V to achieve 10 mA cm⁻². The exceptional performance is attributed to a synergistic mechanism elucidated through combined experimental and DFT calculation analysis: (1) electron enrichment at Ru sites: interfacial charge transfer from the NiFeO_x support to the RuPd cluster creates electron enrichment on Ru as an active center. (2) Optimized reaction energetics: this electronic configuration downshifts the d-band center of Ru, leading to optimized adsorption strengths for key intermediates, as evidenced by a near-neutral ΔG_H** and lowered OER energy barriers. (3) Enhanced structural stability: the electron-rich state of Ru substantially increases its dissolution energy, providing a robust thermodynamic barrier against over-oxidation and metal leaching, thereby ensuring long-term operational stability. This study not only presents a superior catalyst but also establishes “targeted electron enrichment” as a fundamental design principle, validated by multiscale evidence from atomistic simulations to macroscopic performance, paving the way for the rational development of advanced catalysts for green hydrogen economies.
