Open Access Article
Muhammad Hassan Ahmada,
Muhammad Atif
*a and
Bilal Anjum Ahmedb
aChemistry Department, University of Education Lahore (Vehari Campus), Punjab, Pakistan. E-mail: muhammad.atif@ue.edu.pk; chemistatif@yahoo.com
bCore Research Facilities, Research Institute, King Fahad University of Petroleum and Minerals, Dhahran, Saudi Arabia
First published on 27th May 2026
Permanent adhesives pose significant environmental concerns because they cannot be reversed or recycled, limiting repair, reuse, and material recovery. Temporary and reversible adhesives offer a better option by allowing removal, repair, and recycling when needed. In this study, UV-responsive adhesives were prepared from natural oils, including castor, sesame, mustard, and eucalyptus, without using a photoinitiator. Five formulations (UVad-1 to UVad-5) were developed and tested. Their physical, structural, and mechanical properties were evaluated. Samples containing sesame and castor oil (UVad-4) and samples with eucalyptus and mustard oil (UVad-5) exhibited superior detachment and reusability, achieving up to 10 and 12 cycles of bonding and debonding under 638.79 KN m−2 and 532.97 KN m−2 applied stress, respectively. Mechanical strength was also evaluated under UV and non-UV conditions. Results indicate that these materials are suitable for temporary yet robust bonding and reuse.
Increased demand for reuse, repair, and recycling has enhanced focus and research about detachable adhesives.13,14 These materials form strong bonds during use and can be released upon external stimulation.15–17 They respond to heat, pH, moisture, pressure, ultrasound, electricity, magnetism, or light. Nevertheless, both types are associated with weaknesses, including damage to sensitive components, potential for residue in pH-sensitive systems, softening of moisture-sensitive adhesives on soft surfaces, and use of pressure-based systems.5,18–22 Safety and compatibility may also be issues with ultrasonic, electrical, and magnetic methods.4,8,23–32 Such limitations point to the need for cleaner and more selective reversible bonding methods.
UV light can be used as an accurate and non-contact method for adhesive detachment. UV-based separable systems can be separated without the use of heat, chemicals, or mechanical force, which is beneficial for protecting valuable resources.33–36 When bio-based sources are used to create UV-responsive adhesives, these materials eliminate the use of synthetic materials and support the sustainability purpose.37 These systems enable clean removal, controlled activation, and minimal residue. Their selective response makes them suitable for applications where surface preservation and recyclability are important.38,39
Several studies have reported UV-responsive detachable adhesives based on synthetic photoinitiators. Kim et. al.,13 formulated UV-responsive detachable optically cleared acrylic adhesives (OCA) using benzophenone-derived initiators that detached under 365 nm UV at 4200 mJ cm−2, but sometimes left residue and needed an addition of an external photoinitiator. Wang et. al.,14 developed coumarin-based pressure-sensitive tapes with peel strength up to 10.15 N cm−1 and reversible adhesion under 254 nm and 365 nm UV. This formulation lacks an intrinsic photoinitiator capability and relies on the addition of a coumarin-based photoinitiator. Another study by Kim et. al.,40 used nitrobenzyl dimethacrylate and observed a drop in adhesion from 341 kPa to 223 kPa, a reduction of 38% after 30 min irradiation, and further decreased to 150 kPa after 3 h, resulting in a total drop of 56%. These systems demonstrate UV-triggered detachment but still face limitations such as surface residue, reduced strength over time, and dependence on synthetic photoinitiators (Table 1).
| Starting materials | Catalyst | Substrate | DB UV (nm)/Intensity (mWcm−2) | PI | DB time/cycles | Product | Ref. |
|---|---|---|---|---|---|---|---|
| a This work, NR = not reported; nBA = n-butyl acrylate; HBA = d 4-hydroxybutyl acrylate; DMAEA = dimethylaminoethyl acrylate; DMAEAc = dimethylaminoethyl acetate; 4Cz-IPN = 2,4,5,6-tetra(9H-carbazol-9-yl)isophthalonitrile; OCA = optically clear adhesive; HMC = 7-hydroxy-4-methylcoumarin; HEOMC= (7-hydroxy-ethoxy-4-methylcoumarin); PPG1000 = polypropylene glycol; 2-HEA = hydroxyethyl acrylate; IPDI = isophorone diisocyanate; S-PSA = switchable pressure sensitive adhesives; pSBMA = poly(sulfobetaine methacrylate); DOPA = 3,4-dihydroxyphenylalanine; NBDM = 2-nitro-1,3-benzenedimethanol dimethacrylate; AIBN = azobisisobutyronitrile; MDOPA-co-SBMA-co-poly(N-methacryloyl-3,4-dihydroxyl-L-phenylalanine-co-sulfobetaine methacrylate-co-2-nitro-1,3-benzenedimethanol dimethacrylate; EuO = eucalyptus oil; HEuO = hydroxylated eucalyptus oil; MSO = mustard seed oil; HMSO = hydroxylated mustard seed oil; HSSO = hydroxylated sesame seed oil; CaO = castor oil; DMG = dimethyl glyoxime; TDI = toulene 2-4,diisocyanate; DBTDL = dibutyl tin dilaurate. | |||||||
| nBA, HBA, BA, DMAEA, DMAEAc | Cyanoarene | Glass | 365/14 | 4Cz-IPN | 5 min/NR | OCA | 13 |
| HMC, HEOMC, PPG1000, 2-HEA, IPDI | DBTDL | Glass | 365/31.3 | Coumarin | 5 min/NR | S-PSA | 14 |
| pSBMA, DOPA, dioxane, KMnO4 | AIBN | Polyester | 352/NR | NBDM | 3.5 h/5 | MDOPA-co-SBMA-co-NBDM | 40 |
| EuO, HEuO, MSO, HMSO, HSSO, CaO, DMG, glycerin, TDI | DBTDL | Glass | 365/20 | Nil | 3 min 47 s/4 | UVad-2 | a |
| 23 s/10 | UVad-4 | ||||||
| 43 s/12 | UVad-5 | ||||||
This study presents a new type of UV-responsive Polyurethane (PU) adhesive made entirely from plant oils, without using synthetic photoinitiators. Oils such as Castor (CaO), Mustard seed (MSO), Sesame seed (SSO), and Eucalyptus (EuO) were used for their natural response to UV light. Adhesives exhibited good bonding under normal conditions and easy detachment when exposed to UV light. They also performed well in terms of mechanical strength, water resistance, thermal stability, and repeated attachment–detachment cycles. By replacing petrochemical ingredients with renewable materials, this work supports the development of practical and eco-friendly adhesives for modern applications.
Epoxidation of EuO was performed according to the reported method.41 0.0073 mol acetic acid and 0.19 mol 35% H2O2 were condensed at 60 °C for 2.5 h with a dropwise addition of 0.06 mol EuO. Mixture was heated at 130 °C for 30 min, organic layer (Ep-EuO) was separated and used for hydroxylation.
For hydroxylation, 0.28 mol of deionised (DI) water, 0.133 mol formic acid, and 0.137 mol ethanol were heated at 60 °C with continuous stirring. Ep-EuO (0.026 mol) was added dropwise, and mixture was heated for 30 min. HEuO layer was separated after 24 h. SSO was epoxidised and hydroxylated using the same reported procedure. Similarly, MSO was also epoxidised and hydroxylated following the same reported procedure utilised for previous oil modifications.
| Sample | BioSource (mol) | DMG (mol) | Solvent (mol) | DBTDL (mol) | TDI (mol) | Glycerin (mol) | PU (wt%) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EuO | HEuO | MSO | HMSO | CaO | HSSO | |||||||
| UVad-1 | 6 × 10−3 | — | 9.2 × 10−3 | — | — | — | 6.9 × 10−3 | 8.6 × 10−2 | 8 × 10−3 | 6.9 × 10−3 | 6.8 × 10−3 | 51.51 |
| UVad-2 | 6 × 10−3 | — | 4.6 × 10−3 | — | — | — | 6.9 × 10−3 | 8.6 × 10−2 | 8 × 10−3 | 6.9 × 10−3 | 6.8 × 10−3 | 58.82 |
| UVad-3 | — | 5 × 10−3 | 4.6 × 10−3 | — | — | — | 6.9 × 10−3 | 8.6 × 10−2 | 8 × 10−3 | 6.9 × 10−3 | 6.8 × 10−3 | 58.60 |
| UVad-4 | — | — | — | — | 1 × 10−3 | 8.2 × 10−4 | 6.9 × 10−3 | 8.6 × 10−2 | 8 × 10−3 | 6.9 × 10−3 | 2 × 10−2 | 49.54 |
| UVad-5 | 1.2 × 10−2 | — | 4.6 × 10−3 | 2.6 × 10−3 | — | — | 1.7 × 10−3 | 3.4 × 10−2 | 3.4 × 10−4 | 3.4 × 10−3 | 7.2 × 10−3 | 21.57 |
Small changes were made for some adhesives: UVad-3 used HEuO instead of EuO, UVad-2 had slightly more MSO to change gelation time, UVad-4 replaced EuO/MSO with CaO/HSSO, and UVad-1, UVad-3, and UVad-5 had slight differences in curing time.
| ΔTb = Kbm | (1) |
A slightly modified reported method has been used to determine iodine value (IV).42 A sample of 0.2 g in 10 mL of chloroform was mixed with 30 mL of Hanus solution for 30 min. A 10 mL aliquot of 15% KI solution was diluted with 100 mL of DI and subsequently titrated with 0.1 N Na2S2O3 until a yellow color endpoint was reached. 2 drops of indicator were added, and titration proceeded until a blue color appeared. IV was calculated by using eqn (2).
![]() | (2) |
HCl-acetone titration-based method42 has been used to determine epoxy value (EV). A sample solution was prepared by mixing 0.25 g of sample in 5 mL of HCl (0.1 N) and 35 mL of acetone. 5 mL of this solution with 2 drops of indicator was titrated with 0.1 N NaOH until the pink color endpoint was reached. EV was calculated by eqn (3).
![]() | (3) |
Free fatty acid (FFA) was determined by using a reported method of acid-base titration.43 1.5 g of oil was dissolved in 25 mL of ethanol, and after the addition of 2 drops of phenolphthalein, solution was titrated with 0.1 N NaOH until a pink hue emerged. Determination of FFA was conducted through the application of eqn (4).
![]() | (4) |
Samples' water absorption capacity (WAC) was determined using a previously reported method.4 Weighed adhesive samples were immersed in DI water for specified time intervals of 1, 2, 3, 4, 24, 48 h and 72 h. Samples were promptly taken out of water and subsequently dried to determine their WAC through the application of eqn (5).
![]() | (5) |
Gel content (GC) was evaluated in samples using a reported method.4 % GC in adhesive was calculated by immersing a weighed amount of adhesive in 10 mL of DCM for 24 h. Subsequently, samples were taken out from solvent and allowed to dry at ambient temperature, and samples were weighed again. Eqn (6) and (7) were used to estimate GC of samples.18
![]() | (6) |
| % GC = 100 − % Extract | (7) |
PU weight percent content of prepared adhesives (% wt PU) was calculated by using eqn (8).
![]() | (8) |
Mechanical evaluation of UV-responsive adhesive samples (UVad-1 to UVad-5) was performed using single lap joint (SLJ) method, following the reported methods outlined in literature, while standardised methods such as ASTM D1002 are typically conducted on universal testing machines, this study employed a custom-built dead-weight loading apparatus to evaluate the apparent shear strength of SLJ. This simpler and cost-effective approach is supported by prior research, which highlights the validity of using non-standardised test setups for comparative adhesive assessments, particularly when access to advanced instrumentation is limited.4,6,44 Two clean glass slides (25 × 75 mm2) were used as adherends, and 0.08 g of adhesive was applied uniformly to a defined overlap area. Slides were gently pressed together to ensure even spreading of adhesive and were allowed to cure at room temperature for about 1 hour. After curing, bonded joints were subjected to weight-bearing tests where known weights were gradually applied to bonded slides until joint failure occurred, and the maximum load sustained before failure was recorded. Strength of bonds was then calculated as normalised applied load relative to effective bonded area, allowing comparison across all samples and several reattachments.
Normalised force (FN) was determined by eqn (9).4 Applied pressure was calculated by taking force (N) and dividing it by the area of the adhesive (m2).
![]() | (9) |
Statistical analysis for cycle-to-cycle change, like mean, standard deviation (SD), and Coefficient of variation (CV), was evaluated by using eqn (10)–(12), respectively.
![]() | (10) |
![]() | (11) |
= the mean (average) of all values, and n = total number of values.
![]() | (12) |
| Sample | MM (g mol−1) | IV (g I2/100g) | EV (mmol g−1) | FFA (%) | Density (g cm−3) |
|---|---|---|---|---|---|
| EuO | 154.25 | 123.6 | 3.2 | 0.073 | 0.9225 |
| Ep_EuO | 178.6 | 70.5 | 105.5 | 0.0809 | 0.9301 |
| HEuO | 185.2 | 61.8 | 93.5 | 0.0987 | 0.9351 |
| SSO | 1103.5 | 129.20 | 104.78 | 0.798 | 0.9140 |
| ESSO | 1290.1 | 114.25 | 131.15 | 1.03 | 0.9520 |
| HSSO | 1322.3 | 100.70 | 104.95 | 1.366 | 1.0881 |
| MSO | 99.15 | 104.20 | 1.75 | 0.008 | 0.912 |
| EMSO | 158.6 | 90.55 | 5.05 | 0.066 | 0.942 |
| HMSO | 189.16 | 7.88 | 2.31 | 0.055 | 0.975 |
| CaO | 933.43 | 95.25 | 5.6 | 0.099 | 0.9585 |
C–H str peaks at 3008 cm−1,41 along with C–O–C linkages at 1242 cm−1.41 Epoxidation was verified by presence of peak reduction for C
C (723 cm−1)41 and
C–H bend (3008 cm−1),41 as well as epoxy peak appearance at 826 cm−1.42 In addition, widening of the C–O–C peak suggests an increase in ether linkages. After hydroxylation, O–H peak (3500 cm−1)4 broadened, whereas C–O–C and epoxy peaks decreased, indicating the process of epoxy ring opening and later generation of hydroxyl groups.
FTIR spectra (Fig. 1c) of the transformation of MSO to EMSO and HMSO confirmed chemical transformation. MSO had characteristic peaks of hydrocarbons (3000 cm−1),47 C
C of alkene (1660 cm−1),48 and amide II band (1533 cm−1) (N–H bending coupled with C–N stretching)49 attributed to the presence of proteinaceous components in crude mustard oil. Epoxidation of MSO resulted in the appearance of new peaks at 1700 cm−1 (carbonyl group),41 1250 cm−1 (C–O–C stretching),41 and 826 cm−1 (epoxy group),42 indicating successful chemical modification. Hydroxylation gave another broad peak between 3400–3600 cm−1 (hydroxyl)4 and at 1700 cm−1 (carbonyl),41 showing a successful hydroxylation.
C peak at 1660 cm−1.48 Following the reaction completion, FTIR analysis of prepared adhesive revealed the disappearance of NCO peak, indicating utilisation of TDI isocyanate. Emergence of a C–N peak at 1230 cm−1 further substantiated the successful formation of adhesive. Moreover, a strong C
O str peak at 1700 cm−1 (ref. 41) and N–H str peak at 3300 cm−1 are characteristic peaks of urethane group. Further evidence has emerged from new peaks observed in the range of 1000–1200 cm−1, specifically relating to C–O stretching,4 which is a major component of PU adhesive network. A slight reduction in the C
C peak indicates partial utilisation of the functional group.
FTIR spectrum of UVad-3 showed the quenching of OH and NCO peaks, indicating consumption of these functional groups during synthesis. Concurrently, new peaks emerged at 1048 cm−1 (C–O), 3293 cm−1 (NH), and 1230 cm−1 (C–N), confirming the formation of urethane bonds.41
FTIR spectrum of UVad-4 exhibited characteristic peaks corresponding to OH groups from glycerin, DMG, and HSSO in range of 3200–3500 cm−1.4 Additionally, NCO group from TDI was observed at 2245 cm−1.41 Isocyanate groups reacted with hydroxyl groups to form urethane bonds, resulting in maximum consumption of NCO groups, as evidenced by the disappearance of NCO peak. FTIR analysis verified the formation of urethane groups, with characteristic peaks observed for C
O str at 1700 cm−1 (ref. 4) and N–H str at 3300 cm−1.41 Additionally, peaks at 1538 cm−1 indicated the presence of aromatic or cyclic structures,41 while C–O str vibrations within 1100–1200 cm−1 range4 further supported the development of a robust urethane network.
UVad-5 spectrum revealed OH str from Glycerin, DMG, and HMSO at 3200–3500 cm−1 (ref. 42) and TDI's NCO peak at 2245 cm−1.41 MSO and EuO C
C str at 1660 cm−1 indicated unsaturation.48 Formation of adhesive was evidenced by the vanishing of NCO and OH peaks, signifying a successful reaction between isocyanates and hydroxyls that created urethane bonds. Appearance of new peaks at approximately 1703 cm−1 (C
O)41,42 and 3300 cm−1 (N–H)41 indicated formation of urethane linkages. Reduction of the C
C peak at 1660 cm−1 suggested cross-linking in unsaturated oils. Urethane network was supported by C–O str at 1100–1200 cm−1,4 while peaks at 1219 cm−1 (C–N) indicated production of PU linking after cross-linking.4
![]() | ||
| Scheme 1 Proposed mechanisms for synthesis and UV detachment of prepared samples as (a) UVad-1, (b) UVad-2, (c) UVad-3, (d) UVad-4, and (e) UVad-5. | ||
In samples UVad-2 and UVad-5, the presence of DMG's hydroxyl group in close proximity of 1,8-cineole may facilitate detachment, whereas absence of this situation in UVad-1 may explain the lack of responsiveness. In sample UVad-3, widespread cross-linking because of HEuO may limit DMG's bonding with 1,8-cineole, suppressing detachment. In sample UVad-4, DMG and CaO (natural PI) connections may contribute to UV-based detachment.
![]() | ||
| Fig. 3 TGA and DTA combined spectra of UVad-1 (a), UVad-2 (b), UVad-3 (c), UVad-4 (d) and UVad-5 (e). | ||
All samples exhibited significant weight losses in the second segment, indicating a breakdown of the polymeric network in adhesives. Weight losses observed in second segment for UVad-1, UVad-2, UVad-3, UVad-4, and UVad-5 have been 69.21%, 67.55%, 79.29%, 45.29%, and 53.01%, respectively. In second segment, UVad-3 presented the highest weight loss, whereas UVad-4 presented the least, which is likely indicative of differences in cross-linking density and degradation pattern of different hydroxylated plant oils. It might be considered as one of the reasons, which is counter confirmed by their GC.
In third segment, observed weight losses indicated degradation of remaining aromatic network, leaving behind unoxidizable residues. Final weight losses observed for UVad-1, UVad-2, UVad-3, UVad-4, and UVad-5 have been 19.13%, 20.28%, 13.08%, 35.88%, and 27.90%, respectively. In third segment, the least degradation in UVad-3 demonstrates the lowest aromatic content in comparison to other samples. On contrary, the highest degradation rates observed in UVad-4 and UVad-5 suggest high aromatic content that disintegrated at elevated temperatures.
For a better understanding of thermal degradation behavior in all adhesives, DTA spectra are presented in Fig. 3. Data showed three main decomposition processes in thermal degradation profiles of adhesive samples. First decomposition was observed between 200–220 °C, with highest intensity, corresponding to PU depolymerisation.42 Second decomposition with slightly less intensity was observed at about 260–280 °C, attributed to polyol and isocyanate degradation.42 Third decomposition with the least intensity was observed between 390–450 °C, indicating breakdown of thermally stable TDI structure with aromatic rings, isocyanate moieties, and methylene bridges.43 DTA spectra of UVad-1 and UVad-5 presented sharp, well-defined peaks for all three distinct processes, which might be attributed to homogenised sample compositions. Contrarily, the other three samples showed diffused peaks for some of these transitions.
UVad-1 to UVad-5 showed a range of Tm from 207 to 219 °C. This variation in Tm among the samples shows different molecular connectivity, which likely influences depolymerisation behavior.55 Data showed that UVad-4 lacked a well-defined Tm, which might be attributed to the presence of CaO among the ingredients, notorious for high density and step-growth polymerisation reaction,45 therefore not supportive in building huge polymers. Sample UVad-3 exhibited a sharp and well-defined Tm, likely due to nearly equal and relatively low polyol density, combined with high hydroxyl contents of HEuO, resulting in a more ordered polymeric network. Samples UVad-1 and UVad-2, which were made of same ingredients but varying mole ratios, exhibited a clear difference in Tm profiles. Specifically, UVad-1, with a higher MSO concentration, exhibited a prominent Tm peak, which is slightly split, whereas UVad-2, with a higher EuO concentration, displayed a diffused Tm peak, which was characterised by two distinct maxima. These differences indicate differences in bond formation, as shown in Scheme 1. Sample UVad-5 had a broad and non-segmental peak for melting and decomposition, likely caused by high viscosity of HMSO, which prevents large polymer chains from forming. Despite this, high functionality facilitated the development of a cross-linked network, which might also be associated with hydrogen bond formation.56
Endothermic peaks from 250 °C onwards corresponded to degradation temperatures, which fell into two distinct sets: below 300 °C, attributed to the segregation of polyol and isocyanate groups, and above 300 °C, attributed to degradation of hard segments of aromatic components.57
To summarise, UVad-4 and UVad-5 show improved resistance to deterioration at high temperatures because of their increased cross-linking density and thermal stability. On the other hand, UVad-1 and UVad-3 show less thermal resistance and a weaker cross-linking structure due to their lower thermal transitions. Variations in UV-triggered detachment characteristics account for the observed variation among samples. In particular, two thermally stable and cross-linked adhesives, UVad-4 and UVad-5, showed better resistance to heat and UV-induced degradation.
| Sample ID | WAC (%) | GC (%) | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 h | 2 h | 3 h | 4 h | 24 h | 48 h | 72 h | ||
| a Dissolution of the samples was observed at some stages. | ||||||||
| UVad-1 | −2.77a | −7.54a | −8.73a | −10.32a | 7.14 | 10.71 | −4.36a | 78.92 |
| UVad-2 | −1.38a | −2.06a | −3.10a | −4.13a | 10.00 | 15.51 | 8.62 | 84.78 |
| UVad-3 | 0.91 | 2.71 | 2.11 | −1.51a | 2.71 | 3.93 | −9.48a | 81.01 |
| UVad-4 | 3.27 | 4.92 | 5.73 | 4.92 | 3.28 | 1.64 | −7.38a | 89.03 |
| UVad-5 | 2.99 | 5.97 | 2.99 | 1.49 | −1.49a | 4.48 | 7.46 | 85.10 |
![]() | ||
| Fig. 5 Microscopic and SEM images of UVad-1 (a and b), UVad-2 (c and d), UVad-3 (e and f), UVad-4 (g and h), UVad-5 (i and j). | ||
SEM analysis of five samples revealed two general morphologies: needle-shaped structures and lump-like domains. The lump-like appearance may be related to increased crosslinking density, localised phase separation, or brittle fracture, whereas the needle-like features may result from oriented polymer domains or irregular curing. Correlating SEM analysis with UV-responsive detachment, it has been noticed that samples with needle-shaped structures presented UV-responsive detachment, demonstrating the crucial role of internal crosslinking in adhesive performance. UVad-1 (Fig. 5b) and UVad-3 (Fig. 5f) showed a morphology consisting of a lump-like structure. These samples showed no UV-responsive detachment, probably because of an agglomerated structure that has no requisite functional groups for such detachments. SEM analysis of UVad-2 (Fig. 5d), UVad-4 (Fig. 5h), and UVad-5 (Fig. 5j) showed that they had needle-shaped structures, indicating that they have significant crosslinking, which is related to their ability to withstand multiple bonding–debonding cycles.
UVad-1 showed a load-bearing capacity of up to 3.95 kg with a normalised force of 1 in fourth cycle. UVad-2 demonstrated an enhanced load-bearing capacity as compared to UVad-1 and reached a maximum loading of 4.45 kg with a normalised power of 1 in fifth cycle. A gradual rise in pressure and normalised force through cycles is suggestive of improvement in reattachment and bonding consistency. This improved performance could be attributed to a change in composition. However, the performance of UVad-3 was reduced compared to UVad-2 and attained a maximum load of 3.9 kg, with a normalised force of 1 for first cycle. Load-bearing capacity and mechanical strength were decreased gradually thereafter. UVad-4 showed a certain moderate level of performance, with a maximum load of 2.5 kg, having a normalised force of 1 during fourth cycle. Addition of HSSO in this sample has resulted in improved UV responsiveness but decreased its mechanical performance in comparison to its previous samples. Lastly, UVad-5 exhibited a load-bearing capacity of 3.85 kg with a normalised force of 1 in sixth cycle. Mechanical strength was slowly increased, showing an enhancement in mechanical performance. Impressive performance highlighting the efficacy of HMSO and EuO for improving mechanical strength and UV responsiveness. Mechanical evaluation highlights continuous enhancement of adhesive properties from UVad-1 to UVad-5, with UVad-5 standing out as the most effective sample. Findings indicated that modified oils have a considerable effect on adhesive strength, durability, and reusability, suitable for applications that require frequent detachment and reattachment (Table 6).
Mechanical testing evaluation was conducted to determine the bonding strength of prepared adhesives, and their maximum weight-bearing capacity for multiple cycles is given in Table 5.
| No. of cycles | Sample weight (g) | Length (mm) | Width (mm) | Area (mm2) | Area (m2) | Thickness (mm) | Load (kg) | Applied stress σ (KN m−2) | Normalised force (FN) | |
|---|---|---|---|---|---|---|---|---|---|---|
| UVad-1 | C1 | 0.08 | 20.55 | 23.12 | 475.12 | 0.0004751 | 0.13 | 0.95 | 19595.21 | 0.00 |
| C2 | 20.55 | 23.14 | 475.53 | 0.0004755 | 0.12 | 2.95 | 60795.71 | 0.67 | ||
| C3 | 20.56 | 23.14 | 475.76 | 0.0004758 | 0.11 | 2.8 | 57676.33 | 0.62 | ||
| C4 | 20.56 | 23.17 | 476.38 | 0.0004764 | 0.10 | 3.95 | 81259.48 | 1.00 | ||
| C5 | 20.57 | 23.20 | 477.22 | 0.0004772 | 0.08 | 3.8 | 78034.63 | 0.95 | ||
| C6 | 20.60 | 23.20 | 477.92 | 0.0004779 | 0.07 | 3.8 | 77920.99 | 0.95 | ||
![]() |
||||||||||
| UVad-2 | C1 | 0.08 | 19.20 | 21.55 | 413.76 | 0.0004138 | 0.17 | 2.75 | 65134.38 | 0.11 |
| C2 | 19.26 | 21.56 | 415.25 | 0.0004152 | 0.16 | 2.55 | 60181.25 | 0.00 | ||
| C3 | 19.27 | 21.58 | 415.85 | 0.0004158 | 0.14 | 3.45 | 81304.02 | 0.47 | ||
| C4 | 19.27 | 21.58 | 415.85 | 0.0004158 | 0.13 | 3.7 | 87195.61 | 0.61 | ||
| C5 | 19.28 | 21.59 | 416.26 | 0.0004163 | 0.13 | 4.45 | 104767.46 | 1.00 | ||
| C6 | 19.30 | 22.00 | 424.6 | 0.0004246 | 0.11 | 4 | 92322.19 | 0.72 | ||
![]() |
||||||||||
| UVad-3 | C1 | 0.08 | 15.1 | 16.55 | 249.905 | 0.0002499 | 0.22 | 3.9 | 152938.12 | 1.00 |
| C2 | 15.13 | 16.56 | 250.553 | 0.0002506 | 0.21 | 2.5 | 97783.78 | 0.60 | ||
| C3 | 15.2 | 16.59 | 252.168 | 0.0002522 | 0.19 | 1 | 38862.98 | 0.17 | ||
| C4 | 15.22 | 16.62 | 252.956 | 0.000253 | 0.18 | 1 | 38741.85 | 0.17 | ||
| C5 | 15.25 | 16.63 | 253.608 | 0.0002536 | 0.17 | 0.5 | 19321.20 | 0.03 | ||
| C6 | 15.26 | 16.65 | 254.079 | 0.0002541 | 0.15 | 0.4 | 15428.27 | 0.00 | ||
![]() |
||||||||||
| UVad-4 | C1 | 0.08 | 18.62 | 17.90 | 333.298 | 0.0003333 | 0.14 | 1 | 29403.12 | 0.25 |
| C2 | 18.65 | 17.91 | 334.022 | 0.000334 | 0.13 | 0.5 | 14669.71 | 0.00 | ||
| C3 | 18.68 | 17.93 | 334.932 | 0.0003349 | 0.12 | 1.5 | 43889.45 | 0.50 | ||
| C4 | 18.71 | 17.95 | 335.845 | 0.0003358 | 0.10 | 2.5 | 72950.43 | 1.00 | ||
| C5 | 18.73 | 17.96 | 336.391 | 0.0003364 | 0.09 | 1 | 29132.78 | 0.25 | ||
| C6 | 18.75 | 17.99 | 337.313 | 0.0003373 | 0.08 | 2 | 58106.36 | 0.75 | ||
![]() |
||||||||||
| UVad-5 | C1 | 0.08 | 21.96 | 25.85 | 567.666 | 0.0005677 | 0.21 | 1.5 | 25895.51 | 0.00 |
| C2 | 21.96 | 25.86 | 567.886 | 0.0005679 | 0.21 | 2 | 34513.99 | 0.21 | ||
| C3 | 21.92 | 25.88 | 567.29 | 0.0005673 | 0.20 | 2.5 | 43187.82 | 0.43 | ||
| C4 | 21.93 | 25.90 | 567.987 | 0.000568 | 0.19 | 3 | 51761.75 | 0.64 | ||
| C5 | 21.96 | 25.91 | 568.984 | 0.000569 | 0.17 | 3.5 | 60282.93 | 0.85 | ||
| C6 | 21.99 | 25.93 | 570.201 | 0.0005702 | 0.15 | 3.85 | 66169.68 | 1.00 | ||
692 KN m−2 (UVad-4) to 79
212 KN m−2 (UVad-2). SD reflected the dispersion of individual cycle data around respective means, while CV enabled direct comparison of relative variability among samples. Among the five formulations, UVad-2 exhibited the most consistent performance (CV = 20.6%), whereas UVad-3 showed the highest variability (CV = 87.7%). Subsequently, an artificial neural network (ANN) model was developed using statistical parameters as inputs to predict target stress. At epoch 0, the ANN's best validation mean squared error (MSE) was 0.00022158. Its correlation coefficients for training, validation, testing, and combined dataset were 0.96773, 1.000, 0.94713, and 0.96891, respectively. These findings suggest that the combination of statistical analysis and ANN modelling offers a reliable way for assessing the mechanical reliability of adhesives subjected to cyclic loading conditions (Fig. 6).
| Sample | Input data | Output data | ANN | Error | ||
|---|---|---|---|---|---|---|
| Mean | SD | CV | Target stress | |||
| UVad-1 | 72 713 |
22 981 |
31.6 | 72 713 |
−1.4379 | 0.067479 |
| UVad-2 | 79 212 |
16 311 |
20.6 | 79 212 |
−1.432 | −0.015072 |
| UVad-3 | 57 162 |
50 147 |
87.7 | 57 162 |
−1.3918 | −0.004376 |
| UVad-4 | 38 692 |
22 636 |
58.5 | 38 692 |
−1.4437 | 0.09262 |
| UVad-5 | 44 569 |
14 788 |
33.2 | 44 569 |
−1.4986 | −0.0068324 |

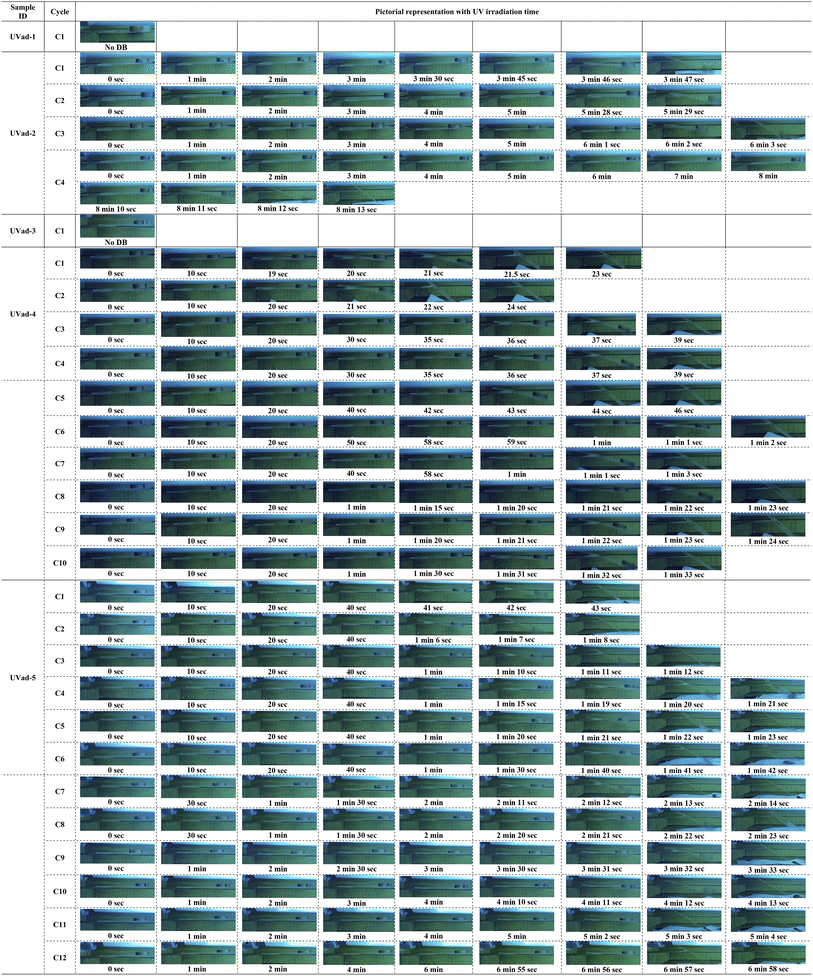

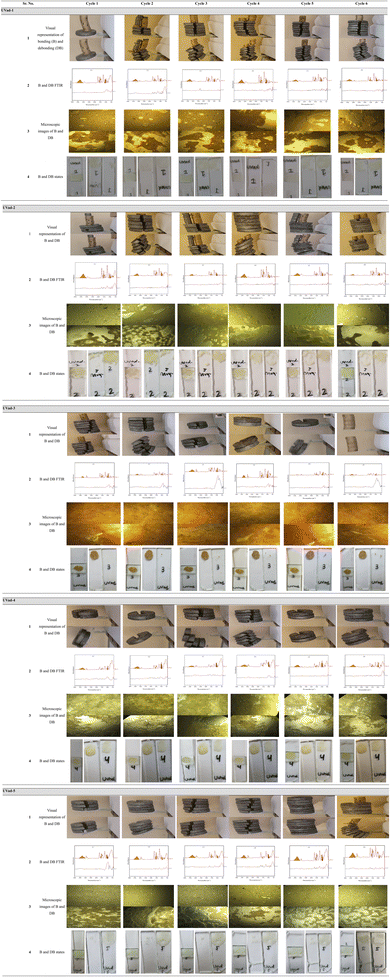

All samples were analysed in FTIR in bonding and debonding states while undergoing UV-responsive cycles of detachment. This test was done to study the chemical differences between bonded and debonded states. Data presented in Table 9 indicate that after debonding, all samples exhibited three distinct peaks at 1048 cm−1 (C–O),4 1533 cm−1 (alkene),41 and 3200 cm−1 (OH).42 This indicated that UV-based separation of adhesives is at a location where alkene and hydroxyl components are produced. Physical parameters of adhesives, tested during UV-responsive debonding, are presented in Table 10.
| Sample ID | Cycles | Sample weight (g) | Length (mm) | Width (mm) | Area (mm2) | Thickness (mm) | Load (kg) | Applied stress σ (kN m−2) | Detachment time |
|---|---|---|---|---|---|---|---|---|---|
| Uvad-1 | C1 | 0.05 | 11.53 | 11.92 | 137.44 | 0.26 | 0.01 | 713.05 | No DB |
![]() |
|||||||||
| Uvad-2 | C1 | 0.05 | 13.05 | 13.15 | 171.61 | 0.17 | 0.01 | 571.07 | 3 min 47 s |
| C2 | 13.11 | 13.19 | 172.92 | 0.15 | 566.73 | 5 min 29 s | |||
| C3 | 13.14 | 13.25 | 174.11 | 0.14 | 562.88 | 6 min 3 s | |||
| C4 | 13.17 | 13.28 | 174.90 | 0.12 | 560.33 | 8 min 13 s | |||
![]() |
|||||||||
| Uvad-3 | C1 | 0.05 | 13.51 | 12.87 | 173.87 | 0.19 | 0.01 | 563.63 | No DB |
![]() |
|||||||||
| Uvad-4 | C1 | 0.05 | 11.41 | 12.72 | 145.14 | 0.25 | 0.01 | 675.23 | 23 s |
| C2 | 11.43 | 12.75 | 145.73 | 0.24 | 672.46 | 24 s | |||
| C3 | 11.46 | 12.79 | 146.57 | 0.21 | 668.61 | 39 s | |||
| C4 | 11.50 | 12.83 | 147.55 | 0.19 | 664.20 | 39 s | |||
| C5 | 11.51 | 12.85 | 147.91 | 0.18 | 662.59 | 46 s | |||
| C6 | 11.53 | 12.88 | 148.51 | 0.17 | 659.90 | 1 min 2 s | |||
| C7 | 11.57 | 12.92 | 149.48 | 0.16 | 655.59 | 1 min 3 s | |||
| C8 | 11.60 | 12.95 | 150.22 | 0.15 | 652.38 | 1 min 23 s | |||
| C9 | 11.65 | 12.99 | 151.33 | 0.13 | 647.58 | 1 min 24 s | |||
| C10 | 11.72 | 13.09 | 153.41 | 0.10 | 638.79 | 1 min 33 s | |||
![]() |
|||||||||
| Uvad-5 | C1 | 0.05 | 13.20 | 12.22 | 161.30 | 0.23 | 0.01 | 562.44 | 43 s |
| C2 | 13.22 | 12.25 | 161.95 | 0.21 | 560.74 | 1 min 8 s | |||
| C3 | 13.23 | 12.27 | 162.33 | 0.20 | 559.89 | 1 min 12 s | |||
| C4 | 13.26 | 12.30 | 163.10 | 0.19 | 557.36 | 1 min 21 s | |||
| C5 | 13.28 | 12.32 | 163.49 | 0.19 | 555.69 | 1 min 23 s | |||
| C6 | 13.28 | 12.33 | 163.74 | 0.18 | 555.69 | 1 min 42 s | |||
| C7 | 13.30 | 12.36 | 164.39 | 0.16 | 554.02 | 2 min 14 s | |||
| C8 | 13.31 | 12.37 | 164.64 | 0.15 | 553.18 | 2 min 23 s | |||
| C9 | 13.34 | 12.40 | 165.42 | 0.13 | 550.70 | 3 min 33 s | |||
| C10 | 13.40 | 12.48 | 167.36 | 0.11 | 545.78 | 4 min 13 s | |||
| C11 | 13.50 | 12.55 | 169.43 | 0.10 | 537.72 | 5 min 4 s | |||
| C12 | 13.56 | 12.61 | 170.99 | 0.09 | 532.97 | 6 min 58 s | |||
