Structural studies, thermochromic luminescent properties and crystal-to-crystal transformation of a double-stranded Cu^I–I-bisquinoline coordination polymer

Abstract

The development of thermochromic luminescent materials with reversible chemical transformation capabilities based on earth-abundant metals is a central topic in materials chemistry. While several stimuli-responsive materials have been reported, compounds that respond to physical stimuli and can undergo single-crystal-to-single-crystal transformations (SCSC) are still rare. Herein, a new color-emitting Cu^I coordination polymer (CP), ^1D{[Cu₂(µ-I)₂(L)₂]·(CH₃CN)}, (L = synthetic ligand, N²,N⁶-bis(quinolin-5-yl)pyridine-2,6-dicarboxamide), CP1 was prepared, structurally described by single crystal X-ray diffraction at different temperatures and studied in detail as a multi-responsive luminescent material to temperature and mechanical force in the solid state. Upon excitation at 413 nm and low temperature of 97 K, CP1 displays intense orange emission at 618 nm which is linearly quenched up to 191 K, subsequently, its emission is weakened under ambient conditions. The cuprophilic interactions (d_Cu–Cu= 2.848 Å) formed at low temperature are particularly responsible for the intense color emission as evidenced by crystallographic studies and DFT calculations. Upon mechanical grinding of crystalline CP1, the amorphous material (CP1-G) presents a bright orange emission at 620 nm with a quantum yield of 0.51 and bi-exponential lifetime of τ₁ = 2.17 µs and τ₁ = 7.62 µs at ambient conditions. Based on multiple analytical tools (fluorescence, quantum yields, PXRD, IR-ATR, and lifetime) and SEM observations, this color emission is attributed to a desolvation process, involving CH₃CN molecules' release and formation of cuprophilic interactions. Mechanochromic luminescence and the crystalline phase of CP1 can be reversibly restored by exposing the amorphous material to CH₃CN vapors. Furthermore, CP1 exhibits a reversible SCSC transformation whereby the 1D-double-stranded stair polymer is converted into a 1D zigzag chain ^1D[CuI(L)], CP2, by controlled heating with drastic changes in the Cu^I coordination environment and in the crystal lattice. This work showcases the potential of Cu^I–I-bisquinoline-based materials for new applications.

---

1 Introduction

The development of crystalline luminescent molecular compounds with external multi-stimuli response capabilities, through a quick change in their photophysical properties by modifications of physical or chemical environments, such as temperature, mechanical force or solvents, remains an active topic of research and an ongoing challenge in materials chemistry.^1–4 Among these multi-stimuli-responsive compounds, those that emit in the visible spectral region are highly desired in manifold fields of science and technology owing to a plethora of applications in sensing of chemical–physical parameters, actuation and optical storage devices.^5–7

Fluorescent multi-stimuli compounds with mechano-, thermo- or solvatochromism have been dominated by synthetic organic crystals, arising from elastic π-conjugated structures derivative of carbazole,^6,8–10 cyanostyrene,^11,12 helicenes,¹³ triphenylenes^14,15 benzofulvene,¹⁶ and donor–acceptor fluorescent dyes.^2,17,18 Typically, these organic dyes exhibit intense color emission in the nanosecond range^8,9,18,19 and display efficient chromic responses to outer stimuli. However, they still suffer from some drawbacks such as too laborious synthesis, and short-live emissions, which may hamper their desired applications.¹³ In the field of chromic stimuli-responsive materials, species which display long-lived emission in the microsecond range are of interest since their emission may be discriminated readily from scattered light and shorter lived background settings present in the real enviroments.^20–22 In this line, the literature features some heavy-metal-based complexes (Au^I, Pt^II, Ir^III) bearing P/N-donor ligands with phosphorescence dependent on temperature and mechanical stress.^23–27 Additionally, there are phosphorescent Ln^III-based complexes depicting a sub-group of external conditions responsive materials, such as thermal, magnetic, conductive, and mechanical parameters.^28–32 This class of precious and rare-earth metal compounds have predominated in the field of inorganic outer stimuli-responsive photochemical materials. However, their intended applications are seriously hindered due to their low commercial availability, high cost and toxic waste in the mining extraction.³³ In this context, molecular strategies for the creation of color emitting compounds with cheap, low-toxic and earth-abundant metals capable of modifying their emission by stimuli such as temperature or mechanical force, are of immerse importance for sustainable scientific applications.^34,35

In recent decades, diamagnetic Cu^I–I-based compounds have emerged as a viable alternative for the development of chromatic luminescent materials, because they exhibit multiple color long-live photophysical mechanism³⁶ originated from excited triplet states derivative of metal-to-ligand charge transfers (³MLCT) and d¹⁰–d¹⁰ cluster-centered (³CC) transitions (Cu^I, 3d¹⁰ → 3d⁹4s¹).^37,38 The use of I⁻ anion favors the spin–orbit coupling (SOC), transitions between different multiplicities and the emission properties.³⁹ It is well-known that the color emission properties originated from cuprophilic interactions are strongly influenced by the molecular environment around the Cu^I-cluster, such as solvents, temperature and mechanical stress.^40–44

Cu^I–I complexes bearing P/N/S-donor ligands (L) have drawn attention for their appealing structural diversity that include dimers [Cu₂I₂L_n],^37,45–53 trimers [Cu₃I₇L_n],⁵⁴ cubanes [Cu₄I_mL_n],^{36,42,50,55–59} hexamers [Cu₆I₆L_n],⁶⁰ single chains ^1D[CuIL_m]_∞,^48,61 double chains ^1D[Cu₂I₂L_n]^{48,49,62–69} and layered networks ^2D[Cu_nI_nL_m].^50,70,71 Closed Cu^I⋯Cu^I interactions have contributed to achieve innovative structures striking emissive features.^43,72,73

Cu^I–I complexes exhibit a wide set of geometries in the metal cluster due to the relatively small energy difference between the polymorphs where the final structure strongly depends on the synthetic conditions. In this line, the single-crystal-to-single-crystal transformation is an exciting topic and feasible property for these Cu^I–I materials; however, to date it has been little explored, compared to their optical or catalytical properties.^52,74 In general, understanding the photophysical and chemical mechanisms present in Cu^I–I-based chromatic materials that respond to multiple stimuli in the solid state remains a challenge.

Recent reports in nanochemistry have shown that [Cu₂I₂(aminopyrazine)]-based on double-chain possess alterations of distances Cu^I⋯Cu^I depending on external mechanical stress.³ So far, the overwhelming majority of staircase double-chain Cu^I–I compounds have been built with ligands containing only one ring of pyridine or pyrazine as revealed by recent reviews.^59,73,75

Our interest in Cu^I coordination chemistry is mainly focused on self-assembly process with fluorescent bisquinoline ligands due to the scant research on their structures and their photophysical properties.

To our best knowledge, only one CP stair-case Cu^I–I with methylquinoline complex, which has green emission and d¹⁰ cuprophilic interactions.⁷⁶ Taking this into account, we surmised that a novel color emitting Cu^I–I CP with optical responses to physical stimuli and the ability to undergo single-crystal-to-single-crystal transformation (SCSC) can be created using a ditopic bisquinoline ligand that in principle can amplify the possibility of metallophilic interactions.⁷⁷

The results obtained for a novel double-stranded staircase Cu^I–I CP including synthesis, X-ray single crystal structural studies at different temperatures, its orange-emitting evolution under thermal and mechanical stimuli in solid state, as well as a SCSC transformation and theoretical DFT studies are summarized below.

2 Results and discussion

2.1 Crystal structure, characterization and morphology of ^1D[Cu₂(µ-I)₂(L)₂]_∞, CP1

Cu^I–I-based compounds appending a quinoline ring as ligand have shown rich photoluminescence properties with yellow/orange emissions (∼590–650 nm)^76,78,79 and these have been used as amino acid sensors, and mechanochromic materials. However, reversible luminescent response to multiple stimuli at the molecular level and crystal-to-crystal transformations remain largely unexplored.

For these investigations, a new Cu^I–I-bisquinoline compound, CP1, was synthesized by a solvothermal method through the reaction of CuI with N²,N⁶-bis(quinolin-5-yl)pyridine-2,6-dicarboxamide (L) in CH₃CN using equimolar amounts (Scheme 1).

Scheme 1 Synthetic path for CP1. Inset: photographs of single crystals under natural light.

L was synthesized by a modification of a previously reported method^80,81 and it was pure according to ¹H, ¹³C, MS-DART(+) analysis (Fig. S1–S3). Single crystal X-ray diffraction of Cu^I–I-bisquinoline at different temperatures (100, 150 and 293 K, Table S1, SI) reveals that CP1 crystallizes in the monoclinic C2/c space group with formula ^1D{[Cu₂(µ-I)₂(L)₂]·(CH₃CN)_0.88}_∞. CP1 is constructed from a double staircase chain with asymmetric rhombohedral [Cu₂(µ-I)₂] dimers and coordinated to ligands (L) at periphery of staircase (Fig. 1A and S4). Such structure is still rare, and there are only a few examples, such as, [Cu₂I₂(Py)],^{49,62,65–67} [Cu₂I₂(pyrimidines)]⁶³ and [Cu₂I₂(pyrazine)].^48,68,69

Fig. 1 (A) Perspective view of crystal structure of CP1 in a ball and stick model. (B) 1D double-strained staircase chain formed by [Cu₂(µ-I)₂] cluster along c axis. (C) intermolecular H-bonds (N–H⋯O, cyan dashed lines) between amide groups and π⋯π stacking interactions (3.731(4)–3.736(6) Å orange dashed lines) measured between the quinoline rings. Hydrogen atoms and solvent molecules are omitted for clarity. (D) Depiction of void surfaces (gold) for a packing section of CP1 along c axis. Atom codes: Cu (orange), I (purple), C (grey), O (red), N (blue) and H (white).

It is noteworthy that CP1 represents the first example of a double staircase structure bearing a bisquinoline ligand (Fig. 1B) where the asymmetric unit involves half of [Cu₂(µ-I)₂] cluster and one L unit. Each Cu^I atom is coordinated by three I⁻ anions and one quinoline ring forming a distorted tetrahedral geometry of [CuI₃N] type (see Table S2 for selected distances and angles around the Cu^I atom). The Cu^I–I cluster includes two crystallographically independent I⁻ atoms which bridge the metal centers in µ₄-I(1) and µ₂-I(2) coordination modes.

The Cu^I–I bond distances ranging from 2.5870(4) Å to 2.9025(5) Å and Cu^I–N bond distance is 2.037(2) Å at 100 K. All of them are within the range of values found in Cambridge Structural Database (Cu¹–I ∼2.66(5) Å and Cu^I–N ∼2.04(3)Å).^43,76 The shorter Cu^I⋯Cu^I distance (2.849(3) Å) is close to the sum of van der Waals radii of Cu^I atoms (2.85 Å)⁶⁹ suggesting a cuprophilic interaction, which is favorable to our aims because this interaction is the cause of the emission in several compounds. The hydrophobic bisquinoline ligands wrap around the double-stranded Cu^I–I chain via a Cu–N coordination bonds with one of the quinoline unit; interestingly, the second quinoline unit remains uncoordinated. The ligands are tightly packed by intermolecular H-bonds between the amide groups (N–H⋯O=C, see Table S3 for H-bonding parameters within crystal packing) and multiple stacking π⋯π interactions (ranging from 3.731(4) Å and 3.736(6) Å) between quinoline rings as shown in Fig. 1C and S5. Eventually, each one double-stranded Cu^I–I chain has the shape of half a square prism which is linked to another chain by π⋯π interactions of the uncoordinated quinoline arm closing a complete square prism-shape structure as is depicted in Fig. 1D.

PLATON software calculations⁸² yield a solvent accessible volume of 6.66% of the total volume, corresponding to 314.7 A³ out of 4734.4(3) ų per unit cell volume available in the crystalline structure of CP1. These small channel-shaped voids (dimensions ∼7.5 Å × 13.8 Å) are occupied by crystallization CH₃CN molecules as depicted in Fig. 1D, S6 and S7. IR-ATR spectrum of crystalline sample of CP1 (Fig. S8) shows a low-intensity band (cm⁻¹) characteristic for CH₃CN at 2254 (C≡N stretching).⁸³ The low band intensity may be a result of the occupational (0.88) and positional disorders of this molecule inside the voids. The intermolecular H-bonds between the amide groups observed in the crystal structure are evidenced in IR-ATR spectra when compared the bands of CP1 with the free ligand (Δν_(Ν−Η) = 139 cm⁻¹). Elemental analysis (C, H, N) matched perfectly to crystal structure. A comparison of the powder X-ray diffraction (PXRD) pattern of a bulk sample of freshly synthesized CP1 with the simulated pattern of the crystal structure matches well with respect to the main peaks and intensities (Fig. 2A), confirming the high purity of the phase. Thus, this crystalline sample was used for further multi-stimuli experiments and crystal-to-crystal transformation.

Fig. 2 (A) Experimental and simulated PXRD (Cu K_α) pattern of CP1. (B) SEM images of the as-synthesized CP1. Inset: EDS chemical mapping elements showing O, I, C, Cu and N signals.

The morphology and elemental distribution of crystals of CP1 were examined by Scanning Electron Microscopy (SEM) equipped with an Energy Dispersive X-ray (EDS) detector.

SEM analysis revealed that this Cu^I–I-based material exhibits a smooth surface and large block-like morphology at the micrometer level (Fig. 2B), their growth seems layer-by-layer, as shown in Fig. S9. Moreover, the elemental distribution observed in the EDS mapping (inset Fig. 2B) indicates a homogeneous distribution of all elements throughout the single crystal. The carbon content obtained from EDS measurements (49.69%) closely agrees with the value determined from elemental analysis (C = 49.75%), further confirming the composition and purity of CP1. The thermal analysis (TGA) of CP1 from 25 °C to 700 °C (Fig. S10) under N₂ atmosphere shows thermostability up to 220 °C. After that, a three-steps mass breakdown process was observed. The first weight breakdown loss (65.83%), between 240 °C and 430 °C, corresponds to the loss of L (calcd, 66.07%), while the second weight loss (19.51%) through 450 °C to 580 °C, corresponds to the loss of I atoms (calcd: 20.80%). Finally, the remaining mass (14.66%) coincides with that estimated for CuO (calcd 13.04%).

2.2 Temperature single crystal X-ray diffraction and thermochromism of CP1

Firstly, single crystal X-ray data for CP1 were collected at three different temperatures to gain further insight the correlation between intended luminescent thermochromism and Cu^I⋯Cu^I distances, as well as to detect the potential change in molecular structure of ^1D[Cu₂(µ-I)₂] cluster. Temperature-dependent X-ray crystallographic data at 100 K, 150 K and 293 K (Table S1) shows that cell volumes of the single crystal get considerable smaller (∼146 ų, ca. 3%, Table 1) as the temperature decreases. It is reasonable to assume that the contraction of the unit cell shortens the distance between Cu^I atoms and the bond distances of the I⁻/N atoms of the ligands in the core. Upon cooling at 100 K, the Cu^I⋯Cu^I distances are substantially shorter (∼4.2%) compared to those found at 293 K, from 2.970(3) Å to 2.8482(8) Å as shown in Fig. 3 and Table 1.

Table 1 The Cu^I–I/Cu–N bond distances, Cu^I⋯Cu^I interactions (Å) and cell volume (ų) of the single crystal of CP1 at three different temperatures

	100 K	150 K	293 K
I(1)–Cu(1)	2.5870(4)	2.5812(12)	2.5823(14)
I(2)–Cu(1)	2.6424(5)	2.6478(14)	2.6515(16)
I(1)–Cu(1)#2	2.9025(5)	2.8988(14)	2.9079(19)
Cu(1)–N(3)	2.037(2)	2.034(6)	2.042(16)
Cu(1)–Cu(1)	2.8482(8)	2.885(2)	2.970(3)
I(1)–I(2)	4.385(5)	4.361(3)	4.309(4)
Cell volume	4734.4(3)	4774.7(6)	4880.46(12)

---

Fig. 3 (A) Cu^I⋯Cu^I distances and Cu–I–Cu angles from X-ray crystal structures of CP1 at three different temperatures. (B) molecular structures of the Cu^I–I CP1 at 293 K, 150 K and 100 K showing Cu^I⋯Cu^I distance.

Conversely, distances I(1)⋯I(2) enlarged from 4.309(4) Å to 4.385(5) Å because of the rhombohedral Cu^I–I(1)–Cu^I–I(2) core contraction. On the other hand, the angles Cu^I–I–Cu^I and I(1)–Cu^I–I(2) are reduced (68.13° → 65.24°) and increased (110.83° → 113.98°), respectively.

Instead, Cu^I–N and Cu^I#2-I (adjacent [Cu₂I₂] units) bond lengths remain practically constant. Interestingly, at all temperatures the atoms that form the rhombohedral Cu^I–I(1)–Cu^I–I(2) cluster are perfectly coplanar. Despite the known correlation between bond distances in Cu^I–I-based compounds and their emission properties at different temperatures, very few studies have reported Cu^I–I and Cu^I⋯Cu^I bonding trends from experimental X-ray diffraction data at different temperatures^43,74,84 which is crucial for better understanding of thermochromism and other cuprophilic interactions-dependent phenomena.

From the comparison of these temperature-dependent structural findings, it is possible to predict that CP1 will display greater color emitting properties at low temperature. At room temperature, CP1 is a bright yellow solid with a weak orange emission under UV light (see Scheme 1). However, a bright orange emission appears after CP1 manual grinding (∼10 min) or when cooling this compound at N₂ liquid temperature, this behavior is displayed in Fig. 4. These photophysical phenomena are reversible. CP1 loses its intense color emission significantly when warmed up to room temperature or several hours after it was ground.

Fig. 4 (A and B) Photos of CP1 at 293 K under natural light and UV irradiation. (C) at low temperature and (D) after grinding under UV light.

CP1 solid-state UV-vis absorption spectrum under ambient conditions shows a broad/intense band in the range from 290 nm to 420 nm and a very weak band at 495 nm (Fig. S11).

Upon excitation at 413 nm and at 100 K, the powder sample of CP1 exhibits an intense emission band centred at 612 nm, which is consistent with the observed orange emission (Fig. 5A, watch Video1 SI).

Fig. 5 A) Luminescence excitation (λ_em = 610 nm) and emission (λ_ex = 413 nm) spectra of CP1 at 100 K. (B) Fragment in the visible range of emission spectra of CP1 at different temperatures (K). (C) CIE-1931 and (D) intensity at 612 nm at variable temperature. Inset: solid line was obtained by linear fitting.

Simultaneously, a higher-energy band around 470 nm is observed, which is commonly found in quinoline moieties, ascribed to intraligand (IL) electronic transitions involving π* orbitals of the unsaturated rings.⁷⁷

The free ligand L displays only a single high energy blue emission band centred at 450 nm upon excitation at 360 nm in the solid state, which is attributed to intraligand n–π*and π–π*charge transfer.^43,77

By comparing the emission spectra of L and CP1, it is reasonable to think that low energy color emission at 620 nm originates from the Cu^I–I cluster and metal–ligand contributions.

The corresponding excitation spectrum (λ_em = 610 nm) of CP1 at 100 K displays a broad and high-energy band ranging from 290 to 415 nm with a maximum at 360 nm. At 100 K, the emission intensity of CP1 at 612 nm shows ∼8-fold increase in intensity compared to its room temperature spectrum (Fig. S12). This improvement in intensity is sufficient for the orange emission to be observed with the naked eye. Similar orange emission bands within range from 570 nm to 630 nm have been reported by some Cu^I–I CPs/dimers with S-/N-donor ligands, and these are typically assigned to a combination of MLCT and a metal cluster centered [³MCC, d_Cu → (s,p)_Cu] transitions.^{3,67,74,76,84–88} The involvement of cuprophilic interactions in the deep orange emission of CP1 at low temperature is unambiguously supported by crystallographic studies at 100 K (vide supra).

Next, temperature-dependent emission spectra (λ_ex = 413 nm) of CP1 were recorded between 97 K and 221 K to track its thermochromism (Fig. 5B).

At 221 K, the luminescence spectrum displays an unstructured broad emission band. Conversely, lowering the temperature to 97 K results in a significant increase in intensity with the formation of a well-structured band centred at 612 nm. Additionally, a modest shift (9 nm) towards red of the band maximum was observed from 603 nm (CIE coordinate, X = 0.30, y = 0.55) to 612 nm (CIE, X = 0.36, y = 0.54), as illustrated in chromaticity diagram (Fig. 5C). It is well documented that a decrease of Cu^I⋯Cu^I distances are responsible for red shifting in a low energy bands (visible region),⁸⁹ particularly at low temperature, while the increase of the Cu⋯Cu distance⁹⁰ and/or contribution from MLCT/LMCT is associated with blue-shift both in low energy and higher-energy bands closest to UV region.^76,90–92 Previous theoretical works have demonstrated that attractive cuprophilic interactions within Cu^I–I complexes in the excited state (LUMO) are of bonding character.⁹³ Thus, when the temperature decreases result in (1) Cu^I⋯Cu^I shorter distances, (2) an increase in the binding character and (3) energy levels drop.^60,93

Thus, the energy difference between excited states and the ground state becomes smaller. Hence, low-energy emission bands correspond to transition from excited states of shorter Cu^I⋯Cu^I bonds.^34,74,89

The emission intensity at 612 nm drastically increases as the temperature decreases as a result of the formation of cuprophilic interactions at low temperature (see Table 1).

Fig. 5D shows the thermal quenching effect of CP1 at 612 nm. Notably, there was a linear dependence of the luminescence intensity on the temperature in the range of 97–191 K. This linear data can be well fitted to eq. Intensity = 22 500–109.23[T], with a correlation coefficient (R² = 0.9959). Above 200 K the emission intensity is very weak, and it remains practically constant. From structural X-ray analyses, it is observed that the Cu–N and Cu^I–I distances practically do not change at different temperatures; therefore, the increase in emission can be attributed mainly to the shortening of the cuprophilic distances.

2.3 Mechanochromism by grinding

The first evidence of mechanochromic luminescence of CP1 was obtained by manual grinding (10 min) at room temperature using a pestle (ground sample named CP1-G). Upon grinding, a naked eye intense orange emission luminescence is generated under UV light at 365 nm (Fig. 4). On the other hand, no color changes were detected in the sample under natural light.

After treatment of CP1-G with CH₃CN fuming (10 min), the orange emission is turned off almost completely returning to its initial naked eye non-emissive state. This turn-on and off emission change of CP1 was observed in repeating cycles of grinding and treating the sample with CH₃CN vapors. Fig. 6A shows the emission spectra (λ_ex = 425 nm) of starting unground sample of CP1, and ground sample CP1-G at ambient temperature. Clearly, the color emission intensity centred at 612 nm turns on after grinding. The absolute quantum yield (Φ) of emissive compound CP1-G is 0.51 and upon excitation with a 405 nm laser at ambient temperature, its emission decay shows a bi-exponential lifetime (τ = 2.17 µs and 7.62 µs), monitored at 645 nm (Fig. 6B). The µs scale for these long-live emissions are common for Cu^I-halide-based clusters involving triplet states ³CC which implies presence of cuprophilic interactions.^{2,3,67,71,94–97} Indeed, ³CC emissions are dependent on the Cu^I cluster cores and are independent of the coordinated ligands.⁴³ Therefore, this lifetime in µs range strongly suggests the presence of cuprophilic interactions induced in CP1-G.

Fig. 6 (A) Emission spectra (λ_ex = 425 nm) of CP1 and CP1-G at room temperature. (B) Luminescence decay at room temperature of CP1-G upon excitation 405 nm laser and monitored at 645 nm. The solid line was obtained by a bi-exponential fitting with a goodness-of-fit parameter χ² = 0.994. The IRF is shown in grey. Inset: residual plot. (C) emission spectra (λ_ex = 425 nm) of CP1 and (D) emission intensities at 620 nm and Φ in the different states of the cycles of grinding (10 min) and exposure to CH₃CN vapor (10 min).

Conversely, CP1 before grinding shows a very low emission intensity in the visible region with a Φ of 0.03, which is consistent with the virtually zero color emission of this sample under the UV lamp. The luminescence decay of CP1 (before the grinding process) monitored at low energy, particularly in the color emission region at 645 nm (λ_ex = 405 nm) is almost zero. The absence of color emission indicates that unground CP1 in its crystalline state at room temperature does not present cuprophilic interactions, as proved in its crystallographic studies at 293 K.

To insight the mechanism of the reversible mechanochromic luminescence of CP1, unground, ground and recovered samples with CH₃CN of three cycles were analyzed by fluorescence spectroscopy, quantum yields, IR-ATR, PXRD and SEM. To avoid misunderstanding, we have named the treated samples with CH₃CN as CP1-R.

Fig. 6C shows the emission spectra of CP1 in different states of grinding/treatment with CH₃CN. In all cycles, the ground samples (CP1-G) show the intense emission band centred at 612 nm together with Φ values around ∼0.5, which is consistent with the intense solid-state orange luminescence visually perceived under UV light (Fig. 6D).

On the other hand, treated samples with CH₃CN fuming (CP1-R) display a very low intense emission band centred at 610 nm with Φ values <0.03. This low intense emission band in the CP1-R samples is almost the same as that observed in the spectrum of crystalline CP1 before grinding.

IR-ATR spectra of CP1 during the cycles (Fig. S13) practically do not show changes in the main ligand bands (ν_(C=N) = 1524 cm⁻¹, ν_(C=O) = 1688 cm⁻¹ and, ν_(N–H) = 3324 cm⁻¹). This suggests that there are no chemical modifications regarding the modes of coordination of the ligand with the Cu^I atoms.⁴⁰ After treating the samples with the solvent (CP1-R), a weak band is observed at ∼2255 cm⁻¹, which can be assigned to the presence of CH₃CN in the CP1 void spaces, as observed in its crystalline structure (Fig. S6).

Elemental analysis (C, H, N) of unground crystalline sample CP1 and amorphous CP1-G gave the expected composition (Table S4) for solvated and non-solvated samples, respectively, which supports the removal of solvent CH₃CN molecules by the grinding process.

To confirm that the original structural arrangement of CP1 is maintained during mechanochromism by grinding and subsequent treatment with CH₃CN, PXRD experiments were caried out in the different states of the cycles (Fig. 7). Initially, the grinding practically eliminates the diffraction peaks (CP1-G), which suggests a very strong reduction in the crystalline domains.^43,89,92 Upon treating of ground sample CP1-G with CH₃CN vapors, the original diffraction peaks at 6.53, 7.51, 8.86, 9.75, 14.62, 16.43 and 28.81° corresponding to crystalline structure (CP1) are restored, and no new peaks appear. However, the recovered CP1-R recovered PXRD peaks are broader and present some differences in the reflection intensity, which is probably due to (1) a partial reconstitution of the crystalline phase and (2) an orientation effect in powders as described for some Cu^I–I complexes treated by grinding and solvation processes.^43,98

Fig. 7 PXRD (CuK_α) patterns of unground crystalline sample (CP1), ground samples (CP1-G) and treated samples with CH₃CN (CP1-R) for different states of the cycles. The dashed gray lines indicate the main diffraction peaks.

SEM observations of CP1, CP1-G and CP1-R are consistent with a reversible crystalline-to-amorphous-to-crystalline transition (Fig. 8). As the cycles increase, SEM micrographs show smaller and less homogeneous crystalline material compared to the initial crystalline unground sample (Fig. S14). Similar crystalline-amorphous-crystalline transitions induced by solvatation–desolvatation processes have been recently described in [Cu₄I₄(phosphines)]·CH₃CN complexes.⁴⁰

Fig. 8 SEM micrographs (1.0 µM, 5Kx) of the microcrystalline unground sample of CP1 (left), ground sample CP1-G (middle) and treated sample with CH₃CN vapors, CP1-R (right).

We conclude that the grinding removes CH₃CN molecules from the interior of crystalline CP1, significantly influencing its emission properties and causing a loss of crystallinity, but preserving the chemical composition. Subsequently, CP1-G is able to capture CH₃CN molecules and partially recovering its crystalline phase along with its initial photophysical properties.

The desolvation/solvation process in CP1 is not unexpected because its crystal structure shows that CH₃CN molecules, lodged inside the voids, have weak interactions of the type C_sp²-H⋯N≡C–Me (distances, C⋯N, 3.422(4) Å; H⋯N, 2.719(2) Å and ∡ 131.37°) with fragments of L (Fig. S6). So far, a very few Cu^I-halide complexes with reversible crystal-to-amorphous-to-crystal phase transformations by grinding and solvent vapors have been described, some notable examples including diimides or pyrazines as ancillary ligands.^69,85

Mechanochromic luminescence in Cu^I–I complexes is commonly associated with an aggregation state change and to the increased rigidity of the systems.^69,100 However, there are scarce examples of rigidity based on reversible (de)solvatation process similar to that observed for CP1.

Considering forementioned outputs, the intense orange emissive of amorphous CP1-G can be rationalized by (1) elimination of inherent vibrations to solvent molecules within the CP1 cavities, disfavoring of non-radiative pathways.^{2,88,101–103} (2) compressing of the crystal packing under mechanical force which favors the cuprophilic interactions and turning on low energy color emission at 620 nm from triplet states centred transitions ³CC as evidenced by the long-live lifetime in µs range.^{2,3,67,71,76,94–97,104,105} Previous theoretical studies of Cu₂I₂ chains have been demonstrated contraction in Cu^I⋯Cu^I distances as far as mechanical pressure increases without modification of its structure.³

Interestingly, the emission spectra of CP1 at 100 K and ground sample CP1-G at room temperature are similar in shape and maximum (Fig. S15), with the exception that the ground sample has a higher emission intensity.

This similarity suggests that the origin of the orange emission is the same for both samples, mainly due to cuprophilic interactions, as unambiguously demonstrated by low temperature X-ray diffraction and the higher emission intensity in CP1-G compared to CP1 at 100 K may be due to the absence of CH₃CN molecules, which thereby eliminates vibrations inside emissive double-stranded Cu^I–I cluster.^43,103,104

The vast majority of mechanochromic materials based on Cu^I-halides quench their emission under mechanical stress.^38,43,99 To our knowledge, only one green emitting mechanochromic material based on [Cu₄I₄(phosphines)] exists that turns on its emission.⁴¹ In this context, CP1 represents the first example of a mechanochromic compound formed by Cu^I–I with a quinoline ligand that turns on an orange emission under mechanical pressure.

2.4 Single-crystal-to-single-crystal (SCSC) transformation

An exciting topic in the modern materials coordination chemistry is the understanding of solvation phenomena in the SCSC transformation. In this line, little efforts have been invested in molecular studies focused on SCSC transformations in Cu^I–I complexes.^52,74,106

Interestingly, heating CP1 (∼25 mg) in oven at 50 °C generated a transformation into a SCSC fashion without the need of solvents, yielding a novel non-luminescent CP with formula ^1D[CuI(L)]_∞, CP2 (Scheme 2). Since the single crystallinity was retained during heating process, we were able to obtain the X-ray crystal structure of the solvent-free product, CP2, successfully.

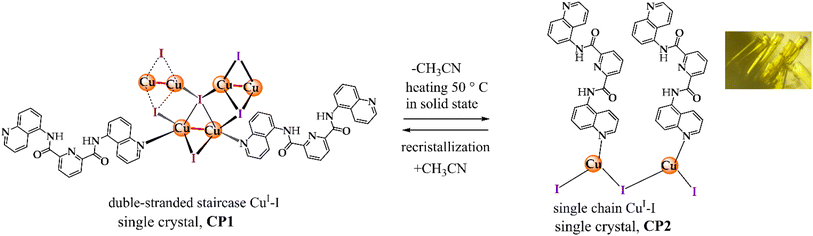

Scheme 2 Single crystal structural transformation between CP1–CP2.

X-ray analysis of CP2 reveals that Cu^I atoms have an ideal trigonal planar geometry (Σ∡(X–Cu–X) = 360°, X = I⁻ or N) of [CuI₂N] type where a quinoline ring and two I⁻ ligands (in µ₂ environment) are coordinated (Fig. 9A). Such trigonal geometry still rare among Cu^I compounds.^107,108 The Cu–N (1.962 Å) and Cu–I (2.504(3) and 2.532(2) Å) bond lengths (Table S5) are within the range of known values. Ligand units are stacked in chains by a combination of π⋯π interactions and H-bonds N–H⋯O=C between amide groups (Table S6) similar to CP1. CP2 structure grows from a zigzag 1D chain of Cu^I–I units (Fig. 9B). Conveniently for our purposes, CP2 crystallized in the monoclinic space group P2₁/c as opposed to the C2/c space group of CP1. In this SCSC reaction, the cell volume is strongly contracted from 4734.3(3) Å to 2226.11(Å) with the release of CH₃CN molecules (Fig. 10).

Fig. 9 (A) Perspective view of crystal structure of CP2 in a ball and stick model. (B) Single chain of CP2 formed along c axis showing H-bonds (N–H⋯O, cyan dashed lines) and π⋯π interactions (3.917(2) Å orange dashed lines) measured between the quinoline rings.

Fig. 10 Polyhedrons (top) and view along the c axis of a portion of crystal structures of CP1 and CP2 (bottom).

All atoms in the Cu^I–I chain underwent significant changes in bond distances (Table S5). Also, intra-chain Cu^I⋯Cu^I distances in CP2 are longer ∼36% (3.895(3) Å) compared to those found in CP1 (2.8482(8) Å).

These long distances imply no cuprophilic interactions; hence, it can be predicted that this compound has no color emission. Indeed, CP2 is a non-emitting species even at low temperatures or after grinding.

A comparison between the simulated PXRD pattern of CP2 and PXRD pattern of CP1 after heating are agreed perfectly (Fig. S16); therefore, the SCSC transformation of bulk sample seems to be taking place completely.

To verify the dynamic transformation of CP1 to CP2 by heating, we recorded the in situ PXRD pattern of CP1 at 40 °C (Fig. S17). Interestingly, the main diffraction peaks of CP1 and CP2 are present, confirming thus the coexistence of the two crystalline phases.

This system is the first example of a reversible SCSC transformation that involves double-stranded staircase and zigzag chain of Cu^I–I described by single crystal X-ray diffraction.

Additionally, immersing crystalline CP2 sample in CH₃CN during 10 h restores the starting PXRD pattern of CP1 and IR-ATR spectra of CP1 and regenerated from CP2 in CH₃CN (Fig. S18) shows the signal corresponding to CH₃CN at 2250 cm⁻¹. This fact indicates a reversible structural transformation upon removal/uptake of CH₃CN from CP2 to CP1 by slow recrystallization.

2.5 Density functional theory (DFT) analysis

In order to gain insight related to the nature electronic transitions of CP1, we used DFT to optimize its geometry (Fig. S19) using X-ray data at 100 K as input file. All calculations were carried out with the Gaussian 16 suite of programs¹⁰⁹ at the M052X/LANL2DZ//cc-pVDZ-PP (basis set and pseudopotential for iodine) level of theory with the corresponding pseudopotentials for Cu^I (details in SI). Molecular orbitals (MOs) for CP1 are shown in Fig. S20. At lower-energy absorptions (>287 nm), CP1 exhibits ligand-based LUMO and HOMO based on Cu^I–I cluster, where HOMO, through HOMO-1 and HOMO-5 can be described as primarily metal centered, 3d orbitals with contribution of iodine 5p orbitals (Fig. 11). From the ground state optimized geometry, the excited state transitions for CP1 were calculated by time-dependent density functional theory (TD-DFT) with the same model (80 excited states were requested to properly describe low energy excitations), and the outputs are compilated in Table S7 including the simulated UV-vis spectrum (Fig. S21).

Fig. 11 Representation of selected MOs of the [Cu₂(µ-I)₂(L)₂] fragment of CP1 with oscillator strengths (f) and energy levels. The input file was built using the X-ray data at 100 K, with structure optimization.

In agreement with experimental UV-vis spectrum, CP1 displays strong, high-energy peaks that have mainly ligand centered character (at 264 nm, i.e., π–π*) and MLCT (285 nm and 335 nm, Fig. 11). Also, lower-energy transitions at ∼479 nm are observed with oscillator value of 0.08 which are ascribed to combination of MLCT and metal cluster-centered (³CC) transitions (i.e., cuprophilic interactions/halide-to-metal transitions). This calculated band at 479 nm matches very to the experimentally low-intense band at 495 nm.

For the sake of comparison, the same analysis was performed on the CP1 structure collected at 293 K, to which the same theoretical treatment as for the first structure was given and the results are collected in Table S7. No Cu^I–I orbitals were involved in the main transitions, all of which occur at high energies around 200 nm (Fig. S22 and S23) and all these transitions are of type IL.

Overall, these theoretical results are consistent with temperature-dependent crystallographic studies and low-temperature lifetime measurements in microseconds. Taking together, these results provide compelling evidence that the origin of the orange emission observed in CP1 at low temperature is due to ³CC and MLCT transitions within the Cu^I–I cluster.

For comparison purposes, excited state transitions and the UV-vis plot were calculated for non-emitting complex CP2 (Table S7 and Fig. S24). CP2 shows two distinct high-energy bands at 182 nm and 211 nm with only a minor charge transfer contribution to the bright state at 211 nm with oscillator value of 0.08.

3 Conclusions

In summary, we have developed a new orange-emitting luminescent 1D-coordination polymer involving a double-stranded staircase Cu^I–I structure with a synthetic ditopic pyridine-2,6-bisquinoline ligand, CP1, and thermostability up to 220 °C.

In solid state, CP1 exhibits reversible thermo- and mechanochromism as well as SCSC transformation whereby the 1D-double-stranded stair coordination polymer is converted into a 1D zigzag chain coordination polymer, CP2 with marked molecular changes within the coordination environments of Cu^I and I atoms, in addition to the intra-chain Cu^I⋯Cu^I distances.

The temperature-dependent orange emission band at 612 nm has a linear behavior within the range 97–191 K, subsequently, the emission becomes very weak at room temperature. Spectroscopic and crystallographic studies at different temperatures reveal that the origin of the color emission at low temperatures hinges on mainly cuprophilic interactions that reach minimum distances of 2.8482(8) Å at 100 K. Based on multiple spectroscopic tools, PXRD and SEM-EDS, the strong increase in color emission intensity by a manual mechanical stimulus is the result of a desolvation process of CH₃CN molecules and formation of cuprophilic interactions.

Both the mechanochromism and the crystalline phase can be reversible built by exposing the amorphous material of CP1 to CH₃CN vapors, as evidenced by SEM, PXRD, IR, quantum yield measurements in repeating cycles.

Furthermore, reversible single-crystal-to-single-crystal transformation by heating/recrystallization has been demonstrated for this Cu^I–I-bisquinoline CP with drastic molecular and crystal lattice changes.

Overall, these results highlight further the utility of a low-cost and luminescent Cu^I coordination compound in the development of multi-stimuli-responsive materials with SCSC transformation capacity.

4 Experimental section

All reagents, solvents and instrumentation are described in the SI.

4.1 Chemical synthesis of L

L was synthesized from a modification of the previously reported methodology.¹¹⁰ The details of the synthesis are included in SI.

4.2 Chemical synthesis of polymer Cu^I–I-bisquinoline, CP1

CP1 was synthesized from the self-assembly reaction between the salt CuI (10.47 mg, 0.05 mmol) and L (20.95 mg, 0.50 mmol) in 6.0 mL of degassed CH₃CN. The reaction mixture was stirred for 1 h at room temperature, thus the yellow solid product was filtered and then washed with CH₃CN hot (yield 86.90% based on Cu). The crystallization of CP1 was achieved by putting this compound in a 25 mL Teflon-lined stainless-steel container at 110 °C for 6 h, subsequently, slowly cooled down with a temperature ramp of 10 °C h⁻¹ until room temperature. After the system cooled down, yellow single crystals with prismatic shape of CP1 were obtained. The crystals were filtered and washed with 4 mL of CH₃CN hot. Elemental analysis (%) calcd for X-ray crystal sample C₂₅H₁₇CuIN₅O₂, C, 49.23; H, 2.80; N, 11.48. Found, C, 49.17; H, 2.90; N, 11.81. FT-IR (ATR) (cm⁻¹): 3347.97 ν(N–H); 3240–2957 ν(C–H)_ar; 1978.24–1754.98 ν(C=C)_ar; 1681.81 ν(C=O); 1546.27 ν(C=N). T_d (°C): 323.

4.3 Crystallographic investigations

The crystallographic data and refinement details for CP1_100K, CP1_150K, CP1_293K and CP2_275K are summarized in Table S1 (SI). Data for a CP1_100K and CP1_150K were collected on a Bruker APEX II CCD Diffractometer at 100 K and 150 K using Mo–Cu K_α radiation (k = 0.71073 Å) from an Incoatec ImuS sources and Helios optic monochromator.¹¹¹ Single crystals were coated with hydrocarbon oil, picked up with a nylon loop, and mounted in the cold N₂ stream of the diffractometer. Frames were collected using ω scans and integrated with SAINT.¹¹² Multi-scan absorption correction (SADABS) was applied.¹¹² The structures were solved by direct methods and refined using full-matrix least-squares on F² with SHELXL-2018 (ref. 113) and SHELXLE GUI.¹¹⁴ The structure for CP1_100K and CP1_150K presented positional disorder in the CH₃CN solvent, which was modeled using the SIMU, RIGU and SAME instructions implemented in SHELXLE GUI.¹¹⁴ For CP1_100K the proportion of all positions of solvent was refined using free variables, obtaining a total occupancy of 88.3% distributed in 4 different positions, 3 orientations in general position and one orientation in special position. The structure for CP1_150K also presented a positional disorder in CH₃CN solvent. The occupancy was constrained to unity and distributed over four different positions using a free variable. The structure of CP1_150K was refined as a non-merohedral twin with a 60 : 40 ratio between the two domains. The hydrogens of N–H moiety were founded in the map of residual density, and their position was refined with U_iso = aU_eq (where a is 1.5 for –CH₃ and –NH moieties and 1.2 for others).

Data for CP1₂₉₃ and CP2 were measured using ω scans of 0.5° per frame for 0.1 s with CuK_α radiation. The diffraction pattern was indexed, and the total number of runs and images was based on the strategy calculation from the program CrysAlisPro (Rigaku). The maximum resolution that was achieved was Θ = 79.020° (0.79 Å) for CP1₂₉₃ and Θ = 68.288° (0.83 Å) for CP2. The total number of runs and images was based on the strategy calculation from the program CrysAlisPro (Rigaku), likewise the unit cell was refinedon 17 217 reflections.

A gaussian absorption correction was performed using CrysAlisPro 1.171.43.144a (Rigaku Oxford Diffraction, 2024) Numerical absorption correction based on gaussian integration over a multifaceted crystal model Empirical absorption correction using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm.

The structures were solved with a space group C2/c for CP1₂₉₃ and P2₁/c for CP2 and determined by the ShelXT¹¹⁵ structure solution program using Intrinsic Phasing and refined by Least Squares using version 2018/3 of ShelXL 2018/3.¹¹⁶ All non-hydrogen atoms were refined anisotropically. Hydrogen atom positions were calculated geometrically and refined using the riding model. Special details: a solvent mask was calculated, and 154 electrons were found in a volume of 716 ų in 1 void per unit cell. This is consistent with the presence of 1 molecule of CH₃CN per asymmetric unit which accounts for 176 electrons per unit cell.

Conflicts of interest

There are no conflicts to declare.

Data availability

CCDC 2489658 for compound CP1 at 100 K, 2489659 at 150 K, 2489660 at 293 K and 2489661 for compound CP2 at 275 K contain the supplementary crystallographic data for this paper.^117a–d

Supplementary information: general information, X-ray crystallographic data, crystal packing diagrams of CP1 and CP2. ¹H, ¹³C, IR-ATR, MS spectra for L, CP1. Spectroscopic experiments, SEM-EDS micrographics and DFT calculations details. See DOI: https://doi.org/10.1039/d6ra01043a.
