Mechanochemical synthesis of bis-benzoquinonylmethanes promoted by sulfonic acid-functionalized chitosan

Abstract

A sustainable mechanochemical method for synthesizing functionalized bis-lawsones from 2-hydroxynaphthalene-1,4-dione and aldehydes under solvent-free conditions is described. Sulfonated chitosan acts as both a biodegradable grinding auxiliary and a solid acid promoter, enabling high yields, broad tolerance to aryl-substituted aldehydes, and recyclability over multiple cycles with minimal loss of activity. The protocol is readily scalable without compromising efficiency.

---

Introduction

Quinone-based molecules are a noteworthy class of organic compounds due to their broad biological activities (Scheme 1A), valuable industrial applications, and utility as intermediates in heterocycle synthesis.¹ These properties have generated substantial interest among synthetic chemists and pharmacologists, motivating the development of sustainable strategies for their synthesis and functionalization.

Scheme 1 (A) Biologically active quinones. (B) Previous methods for the synthesis of bis-lawsones. (C) This study: mechanochemical synthesis of arylmethylene-bislawsones (3) promoted by CS-SO₃H.

Among the established strategies for the synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-diones), the pseudo three-component reaction between 2-hydroxy-1,4-naphthoquinone (HNQ) and aldehydes represents a straightforward way for accessing this class of compound. Since this synthesis is based on an inherently slow reaction, several catalysts have been employed to facilitate this reaction (Scheme 1B).^2–10 Moreover, non-conventional techniques, such as microwave and ultrasound irradiation, have been demonstrated to exert a promotional effect on these reactions.¹¹

Despite substantial methodological advancements, the majority of existing protocols suffer from several disadvantages, such as long reaction times, difficult product isolation, high temperatures, low-yielding products, and the employment of toxic organic solvents. Consequently, the development of an operationally simple, efficient, eco-friendly, and energy-saving protocol for the one-pot assembly of biologically important compounds, exemplified by arylmethylene-bislawsones (3), continues to be of significant scientific interest.

Mechanochemical synthesis has emerged as a practical and sustainable alternative to traditional solution-phase methodologies.¹² These approaches effectively eliminate the need for solvents (sometimes toxic) and elevated temperatures by harnessing the mechanical energy generated by impact forces within the reaction vessel. The continuous development of specialized equipment suitable for small-scale reactions and easy scale-up has expanded the applicability of mechanosynthesis to solvent-free reactions and even to processes involving gas-phase reagents.¹³ Moreover, advances in the elucidation of the mechanisms involved have contributed to the identification of intermediates formed during these reactions.¹⁴

Recent developments in heterogeneous catalysis have significantly broadened the synthetic toolbox for accessing structurally complex and highly functionalized molecules. In this context, polymer-supported catalysts have attracted growing attention in recent years due to their operational simplicity, ease of product isolation, and advantageous economic and environmental benign.^15–18 Among these, chitosan (CS) stands out as a promising support material due to its natural origin, biocompatibility, and biodegradability. Its structure, rich in amino and hydroxyl groups, offers multiple reactive sites for chemical modification and the anchoring or stabilization of catalytic species.^19–24 A notable functionalization strategy involves sulfonation, yielding sulfonic acid-functionalized chitosan (CS-SO₃H), which has demonstrated efficacy as a solid acid catalyst in various organic transformations.^25–30 In certain cases, sulfonated chitosan exhibits superior catalytic performance compared to the unmodified form. This enhanced activity is generally attributed to improvements in surface area, a greater density of accessible acidic sites, and increased thermal stability, making the functionalized biopolymer particularly suitable for reactions under elevated temperatures.³¹

We herein report the mechanochemical synthesis of functionalized bis-lawsones (3a–z) via the reaction between lawsone (2-hydroxynaphthalene-1,4-dione) (1) and a arylaldehydes (2). The transformation is carried out under solvent-free conditions, employing sulfonated chitosan as a biodegradable, readily available, and recyclable material that acts both as a grinding auxiliary and a solid acid reaction promoter. This protocol enables the efficient and environmentally benign construction of the target compounds, aligning with the principles of green chemistry (Scheme 1C).

Results and discussion

Synthesis and characterization of CS-SO₃H

Chitosan-SO₃H (CS-SO₃H) was prepared according to a previously described protocol.²⁹ Chlorosulfonic acid (2 mL) was added dropwise to a magnetically stirred suspension of chitosan (1.00 g) in anhydrous dichloromethane (10 mL) maintained at 0 °C over the course of 1 hour. After the addition was complete, the reaction mixture was allowed to stir at ambient temperature for an additional 2 hours to ensure full elimination of HCl. The solid was then collected by filtration and thoroughly washed with methanol until the filtrate reached neutral pH. The material was subsequently dried at room temperature, affording chitosan-SO₃H as a white solid (Scheme 2).

Scheme 2 CS-SO₃H preparation.

For a comprehensive characterization of CS-SO₃H and verification of its structural, thermal, and elemental features, a combination of complementary analytical techniques was employed.²⁹ Fourier Transform Infrared (FT-IR) spectroscopy was applied to confirm the successful introduction of sulfonic groups onto the chitosan framework. Thermogravimetric Analysis was performed to assess the thermal stability, determine the organic fraction, and evaluate the efficiency of component incorporation throughout the synthesis process. X-ray Diffraction (XRD) analysis was conducted to evaluate the crystalline structure of the catalyst and ensure its phase purity and structural integrity during synthesis. Field Emission Scanning Electron Microscopy was used to observe the morphology and particle size distribution, while Energy Dispersive X-ray Spectroscopy provided information on the elemental composition and sulfur content at the catalyst surface.

The FT-IR spectrum confirmed the presence of distinct functional groups in CS-SO₃H. Based on previous studies and the present data, the characteristic bands observed at 1208 cm⁻¹ and 1055 cm⁻¹ correspond to the S=O stretching vibrations of the –SO₃H group in –O–SO₃H and NH–SO₃H, respectively. In addition, the peak at 804 cm⁻¹ is attributed to the stretching vibration of the S–N bond in –HN–SO₃H (Fig. 1).

Fig. 1 FT-IR spectrum of CS-SO₃H.

The thermal stability of the synthesized catalyst (CS-SO₃H) was assessed by thermogravimetric analysis (TGA) over the temperature range of 50–500 °C. The first weight loss (approximately 5%) at around 90 °C corresponds to the removal of residual solvent and other small molecules. The second major weight loss (approximately 20–75%) occurring between 250 and 300 °C is associated with the degradation of the chitosan polysaccharide backbone and the SO₃H groups (Fig. 2).

Fig. 2 TGA curve of CS-SO₃H.

The XRD pattern of CS-SO₃H exhibits a broad diffraction peak centered between 15° and 25° (2θ), characteristic of the semicrystalline nature of chitosan. After sulfonation, the peak becomes broader and less intense, indicating increased amorphization due to disruption of intermolecular interactions and hydrogen bonding. This structural change confirms that the introduction of –SO₃H groups reduces crystallinity and enhances the amorphous character of the material (Fig. 3A). EDS analysis revealed the elemental composition of the material, confirming the presence of carbon, oxygen, nitrogen, and sulfur with weight percentages of 61.7%, 19.2%, 13.1%, and 6.0%, respectively. These results verify the successful incorporation of –SO₃H groups onto the chitosan backbone (Fig. 3B). Furthermore, the surface morphology, particle features, and size distribution of CS-SO₃H were examined using FE-SEM (Fig. 3). The observations showed a uniform fibrous surface with visible voids and cracks, which are expected to serve as active sites for the catalytic reaction.

Fig. 3 (A) XRD pattern of CS-SO₃H; (B) EDS spectra of the CS-SO₃H.

Evaluation of the activity of CS-SO₃H in the mechanochemical synthesis of arylmethylene-bislawsones

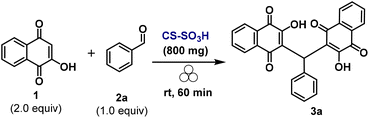

The study was initiated using lawsone (1) and benzaldehyde (2a) as model substrates to evaluate the influence of different parameters on the reaction outcome. The reaction between 1 (2.0 equiv.) and 2a (1.0 equiv.) was carried out in the presence of 100 mg of CS-SO₃H as catalyst, yielding the desired product (3a) in 54% after 2 h of grinding at 3000–4000 oscillations per minute, using 10 stainless steel balls (5 mm × 16) (Table 1, entry 1). During this process, the formation of a paste was observed (see Fig. S5 in the SI), reducing the efficiency of collisions during the milling process,³² and consequently lowering product yields. To overcome this limitation, a grinding aid was added. Thus, 800 mg of silica gel was added, as a grinding auxiliary solid, allowing the reaction to proceed efficiently (Table 1, entry 2). To enhance sustainability and allow catalyst reuse, acidic chitosan was evaluated in a dual role as grinding auxiliary and catalyst, providing 3a in 92% yield after 1 h under identical conditions (Table 1, entry 3). When the reaction was conducted using 10 mol% of p-toluenesulfonic acid, only 66% of 3a was obtained (Table 1, entry 4). In contrast, when the amount of p-TSA was increased to 1 equiv., the product 3a was obtained in 87% yield (Table 1, entry 5). Another advantage of CS-SO₃H over conventional p-TSA is its straightforward and clean separation from the reaction medium, in addition to its recyclability. The reaction was subsequently evaluated using unmodified chitosan (low molecular weight); however, no formation of the target product was observed (Table 1, entry 6), underscoring the crucial role of the SO₃H functionalities in aldehyde activation and stabilization of the reaction intermediates. Reducing the CS-SO₃H amount (Table 1, entries 7 and 8) or the number of grinding balls (Table 1, entries 9 and 10) decreased efficiency. Control experiments confirmed that both CS-SO₃H and the grinding balls were essential for the reaction (Table 1, entries 11 and 12).

Table 1 Optimization and control studies^a

Entry	Deviations from the optimized condition	Yield 3a^b (%)
a Unless otherwise noted, all reactions were carried out with 1 (1.00 mmol), 2a (2.00 mmol), and CS-SO3H (800 mg), using 10 stainless steel grinding balls (5 mm diameter × 16) in a Ultra-Turrax Tube Drive (IKA) of 15 mL.b lsolated yield.
1	100 mg of CS-S03H	54
2	100 mg of CS-SO3H and 800 mg of SiO2	70
3	None	92
4	10 mol% of p-TSA	66
5	1.0 equiv. of p-TSA	87
6	Chitosan	nr
7	500 mg of CS-SO3H	81
8	700 mg of CS-S03H	87
9	5 stainless steel grinding balls of 5 mm	Trace
10	8 stainless steel grinding balls of 5 mm	69
11	Without catalyst	nr
12	Without grinding balls	nr

---

With the optimal reaction conditions established, we then focused our attention on evaluating the scope and limitations of the mechanochemical synthesis of arylmethylene-bislawsones (3) promoted by CS-SO₃H (Scheme 3). Accordingly, unsubstituted aldehyde (3a) as well as aryl aldehydes bearing electron-donating (3b–3k) or electron-withdrawing (3l–3r) groups successfully underwent the transformation, furnishing the corresponding products in moderate to good yields. Notably, substituents in the ortho, meta, and para positions were all well accommodated under the optimized conditions. In addition, the bromine-containing aryl aldehyde—an important synthon for transition-metal-catalyzed cross-coupling reactions—also reacted efficiently, providing product 3n in good yield. Furthermore, a series of heteroaryl substituents, including pyridyl (3t and 3u) and thienyl (3s), proved to be compatible under the reaction conditions. The corresponding products were obtained in satisfactory yields, demonstrating the good functional group tolerance of the mechanochemical synthesis of bis-benzoquinonylmethanes.

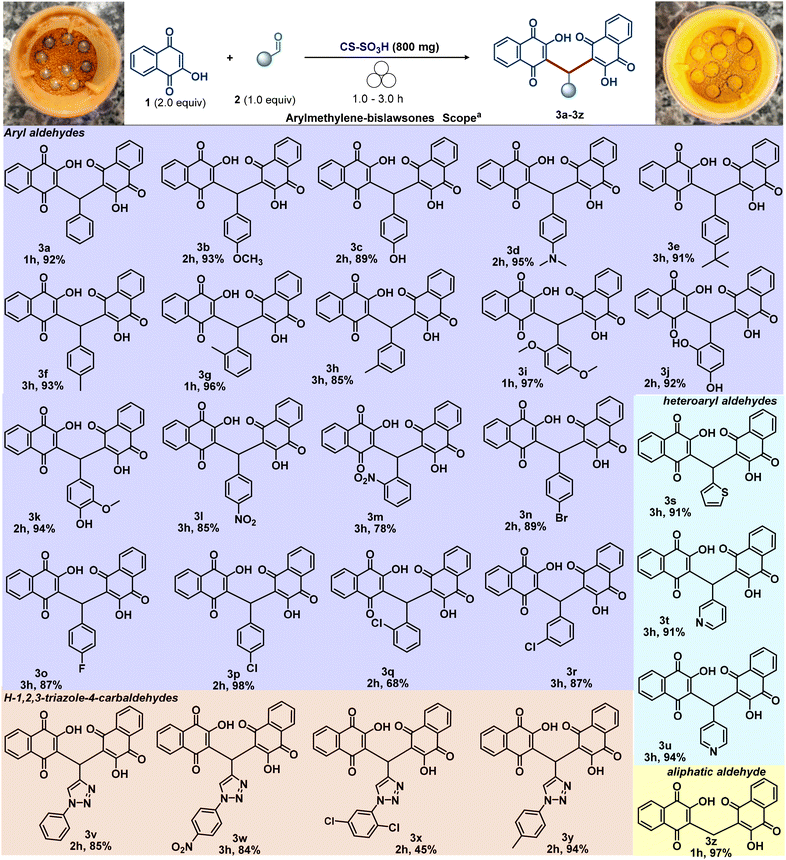

Scheme 3 Mechanochemical synthesis of arylmethylene-bislawsones (3) using CS-SO₃H as both a biodegradable grinding auxiliary and catalyst.

Evaluation of aliphatic aldehydes, including paraformaldehyde, phenylacetaldehyde, citral, and citronellal, revealed that only paraformaldehyde underwent successful conversion to product 3z in high yield (94%). We assume that aliphatic aldehydes exhibited inferior performance due to the absence of electronic conjugation and stabilization that enhance the reactivity of aromatic aldehydes. Moreover, steric effects and higher volatility under milling further decreased their efficiency, with only paraformaldehyde affording high yields. Other aldehydes, such as furfural, glucose, and reactive ketones like isatin, were also investigated; however, no product formation was observed. Densely functionalized triazole derivatives are very important chemical architectures, also presenting physiological and pharmacological properties.³³ Therefore, the development of straightforward protocol to achieve this important scaffold is highly desirable. Gratifyingly, employing our protocol afforded the 3,3′-((1-aryl-1H-1,2,3-triazol-4-yl)methylene)bis(2-hydroxynaphthalene-1,4-diones) 3v–3y, highlighting the robustness of this method (Scheme 3 and Fig. 4).

Fig. 4 FE-SEM images of CS-SO₃H.

To demonstrate the robustness and efficiency of the method, the standard reaction using model substrate 1a was performed on a 5.0 mmol scale. The desired product 3a was obtained in 89% yield, with no observable loss in reactivity, highlighting the potential of this protocol as a sustainable and environmentally benign synthetic approach (Fig. 5A). Furthermore, the recyclability of CS-SO₃H was further investigated, as the ability to reuse a heterogeneous catalyst over multiple cycles represents a major advantage and a key criterion for its practical applicability in sustainable synthetic methodologies.

Fig. 5 (A) Mechanochemical synthesis scale-up of arylmethylene-bislawsone 3a (B) evaluation of CS-SO₃H recycling.

After separation from the reaction mixture by filtration, CS-SO₃H was washed with hot ethanol and air-dried. The recovered material was then reused in the model reaction for five consecutive cycles. A slight decrease in product yield was observed with each reuse (run 1: 92%; run 2: 90%; run 3: 84%; run 4: 82%; run 5: 80%), highlighting the catalyst's notable recoverability and demonstrating its potential for recyclability with only a moderate loss in catalytic activity (Fig. 5B).

To assess the structural and functional stability of CS-SO₃H under solvent-free mechanochemical conditions, FT-IR, EDS, FESEM, and XRD analyses were performed on the material before and after the reaction. The consistent spectral and morphological features confirm that CS-SO₃H remains stable throughout the process (Fig. 6).

Fig. 6 FT-IR spectrum (A), EDS analysis (B), FE-SEM image (C), and XRD pattern (D) of CS-SO₃H recycled.

By examining the FT-IR spectrum of the recycled material, it was observed that the structure of CS-SO₃H remained intact after the reaction (Fig. 6A). EDS analysis further confirmed that the elemental composition of the CS-SO₃H was preserved after reuse (Fig. 6B). FE-SEM images revealed that the overall morphology, particle size, and surface uniformity of CS-SO₃H were virtually unchanged, with no evidence of particle aggregation, surface collapse, or structural degradation—demonstrating the strong structural integrity of the CS-SO₃H under both chemical and mechanical stress (Fig. 6C). Moreover, comparison of the XRD patterns before and after the reaction showed no significant changes or shifts in the position or intensity of the diffraction peaks (Fig. 6D). Collectively, these results confirm the high crystallographic and structural stability of CS-SO₃H, and, together with its excellent recyclability, underscore its effectiveness as a dual-function material serving both promoter and grinding-assistant roles in mechanochemical synthesis.

This work advances beyond previous methods by combining the dual functionality of sulfonated chitosan as both solid acid and grinding auxiliary under solvent-free conditions, leading to significantly improved reaction efficiency. Compared with recent protocols employing humic acid, sulfamic acid, or camphor sulfonic acid catalysts, the present method delivers higher yields (up to 97%) in markedly shorter reaction times (1–3 h versus 6–12 h) without the need for organic solvents or high temperatures. Moreover, the CS-SO₃H can be reused for at least five consecutive cycles with only minor loss of activity, highlighting its superior sustainability and environmental performance relative to conventional approaches.

Based on the obtained results and previous literature reports,¹⁰ a plausible reaction mechanism is proposed, highlighting the catalytic role of CS-SO₃H (Scheme 4). In the first step, quinone methide intermediate A is formed via nucleophilic attack of lawsone on the protonated aldehyde 2, followed by elimination of water. Subsequently, intermediate A reacts with a second molecule of lawsone to generate species B, which then undergoes tautomerization to yield the desired product 3.

Scheme 4 Proposed mechanism for the synthesis of arylmethylene-bislawsones (3).

Experimental

General experimental information

All chemicals were purchased and used without further purification. Anhydrous solvents were either purchased or dried employing standard drying agents and freshly distilled before use. Reactions were monitored by Thin-layer chromatography (TLC) (Silica gel 60 F254, Merck KGaA, Darmstadt, Germany). Flash column chromatography was performed using Silica Gel 60 M (40–63 µm, Machery Nagel GmbH & Co., Düren, Germany). Melting points were obtained on a Fisatom 430D apparatus and uncorrected. Infrared spectra were recorded on an FT-IR Thermo Nicolet IS-50 equipment operated in the ATR mode (32 scans) (resolution 4 cm⁻¹). ¹H and ¹³C NMR spectra were acquired on a Bruker Advance NEO spectrometer operating at 500 MHz, employing a direct broadband probe at 125 MHz in CDCl₃ or DMSO-d₆ at 25 °C. Chemical shifts (δ) are reported in parts per million relatives to residual solvent signals, and coupling constants (J) are reported in hertz. Multiplicities are described as brs = broad signal, s = singlet, d = doublet, t = triplet, q = quartet, dd = doublet of doublets, dt = doublet of triplets, and m = multiplet. APPI-Q-TOFMS measurements were obtained on a mass spectrometer equipped with an automatic syringe pump for sample injection.

Chitosan-SO₃H (CS-SO₃H) was synthesized following a literature process^30a (characterization data and FT-IR spectra, Thermogravimetric Analysis (TGA), Field Emission Scanning Electron Microscopy (FE-SEM), Energy Dispersive X-ray Spectroscopy (EDS), and X-ray Diffraction (XRD) analysis, are provided in the SI).

General procedure

3,3′-(Arylmethylene)bis(2-hydroxynaphthalene-1,4-diones) synthesis general procedure on a 1.0 mmol scale (3a–z). In a 15 mL BMT-20-S tube (IKA Ultra-Turrax Tube Drive) containing 10 stainless steel balls (5 mm × 16), the appropriate aldehyde (1.0 mmol, 1.0 equiv.) and 2-hydroxy-1,4-naphthoquinone (2.0 mmol, 2.0 equiv.) were milled for 5 min at 300–4000 oscillations per minute. Subsequently, chitosan-SO₃H (0.80 g) was added to the mixture and milling was continued for the time indicated in each case under the same oscillation conditions. The reaction progress was monitored by TLC. After grinding, the crude mixture was transferred to a becker and extracted with 30 mL of ethanol. The solid chitosan-SO₃H was filtered off, washed with hot ethanol, and stored for reuse. The solvent was evaporated under reduced pressure, and the product was recrystallized from ethanol. 3,3′-(Arylmethylene)bis(2-hydroxynaphthalene-1,4-diones) 3a–z were determined by ¹H, and ¹³C NMR spectroscopy (characterization data and ¹H, and ¹³C NMR spectra are provided in the SI). General procedure on a 5 mmol scale. The aforementioned protocol was followed using lawsone (1,74 g, 10.0 mmol), benzaldehyde 2a (05 102 mL, 5.0 mmol), and chitosan-SO₃H (0.800 g). The solid chitosan-SO₃H was filtered off, washed with hot ethanol, and stored for reuse. The solvent was evaporated under reduced pressure, and the product was recrystallized from ethanol providing compound 3a as a yellow solid (1940 mg, 89%).

3,3′-(Phenylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3a): ⁷ reaction time: 1 hour (401 mg, 92% yield), yellow solid, purified by recrystallization in ethanol, mp: 206.2–209.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.99 (dd, J 7.5, 1.5 Hz, 2H), 7.93 (dd, J 7.5, 1.5 Hz, 2H), 7.85–7.74 (m, 4H), 7.26–7.16 (m, 4H), 7.15–7.09 (m, 1H), 6.03 (s, 1H). FT-IR (ATR, vmax/cm⁻¹): 3328, 3060, 1641, 1590, 1494, 1299, 1264, 1039, 721.

3,3′-((4-Methoxyphenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3b):⁷ reaction time: 2 hours (433 mg, 93% yield), yellow solid, purified by recrystallization in ethanol, mp: 226.8–230.3 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.99–7.96 (m, 2H), 7.94–7.91 (m, 2H), 7.79 (ddd, J 16.1, 7.5, 1.5 Hz, 4H), 7.17–7.08 (m, 2H), 6.75 (d, J 8.7 Hz, 2H), 5.97 (s, 1H), 3.70 (s, 3H). FT-IR (ATR, v_max/cm⁻¹): 3395, 3239, 1634, 1458, 1333, 1042, 967, 821, 718.

3,3′-((4-Hydroxyphenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3c):^8c reaction time: 02 hours (401 mg, 89% yield), brown solid, purified by recrystallization in ethanol, mp: 207.2–209.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.99–7.95 (m, 2H), 7.93–7.90 (m, 2H), 7.85–7.72 (m, 5H), 7.05–6.96 (m, 2H), 6.62–6.54 (m, 2H), 5.92 (s, 1H). FT-IR (ATR, v_max/cm⁻¹): 3388, 3277, 1654, 1450, 1042, 1007, 829, 724, 689.

3,3′-((4-(Dimethylamino)phenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3d):⁷ reaction time: 02 hours (456 mg, 95% yield), yellow solid, purified by recrystallization in ethanol, mp: 154.0–156.8 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.94 (ddd, J 8.8, 7.6, 1.4 Hz, 4H), 7.83–7.70 (m, 4H), 7.12 (d, J 8.2 Hz, 2H), 6.15 (s, 1H), 2.93 (s, 6H). FT-IR (ATR, v_max/cm⁻¹): 3537, 2363, 1670, 1460, 1214, 1133, 1050, 912, 838.

3,3′-((4-(Tert-butyl)phenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3e): previously unreported compound reaction time: 03 hours (449 mg, 91% yield), yellow solid, purified by recrystallization in ethanol, mp: 226.7–227.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.02–7.70 (m, 8H), 7.33–7.02 (m, 4H), 6.00 (s, 1H), 1.25 (s, 9H). ¹³C{¹H} NMR (DMSO-d_6, 125 MHz) δ 31.7, 34.4, 37.6, 123.7, 124.8, 126.0, 126.5, 128.3, 130.3, 132.7, 133.5, 135.1, 138.1, 147.9, 156.6, 181.6, 184.0. FT-IR (ATR, v_max/cm⁻¹): 3239, 2957, 1639, 1345, 1277, 1050, 904, 830, 791. HRMS (ESI): m/z calc. for C₃₁H₂₄NaO₆ [M + Na]⁺ 515.1465, found 515.1458.

3,3′-(p-Tolylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3f):^8b reaction time: 03 hours (421 mg, 93% yield), yellow solid, purified by recrystallization in ethanol, mp: 179.1–182.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.98 (dd, J 7.4, 1.5 Hz, 2H), 7.92 (dd, J 7.6, 1.4 Hz, 2H), 7.85–7.74 (m, 4H), 7.11 (d, J 7.9 Hz, 2H), 6.99 (d, J 7.9 Hz, 2H), 5.99 (s, 1H), 2.24 (s, 3H). FT-IR (ATR, v_max/cm⁻¹): 3335, 3027, 1653, 1626, 1459, 1301, 897, 866, 722.

3,3′-(o-Tolylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3g):^3c reaction time: 01 hours (431 mg, 96% yield), yellow solid, purified by recrystallization in ethanol, mp: 220.6–223.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.02–7.96 (m, 2H), 7.95–7.90 (m, 2H), 7.85–7.74 (m, 4H), 7.17 (dd, J 7.4, 1.6 Hz, 1H), 7.11–6.98 (m, 3H), 6.01 (s, 1H), 2.21 (s, 3H). FT-IR (ATR, v_max/cm⁻¹): 3290, 3247, 1671, 1630, 1459, 1336, 1270, 779, 724.

3,3′-(m-Tolylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3h):^8c reaction time: 3 hours (382 mg, 85% yield), yellow solid, purified by recrystallization in ethanol, mp: 221.2–223.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.01–7.96 (m, 2H), 7.95–7.90 (m, 2H), 7.80 (ddd, J 15.8, 7.5, 1.5 Hz, 4H), 7.11–6.98 (m, 3H), 6.95–6.89 (m, 1H), 6.01 (s, 1H), 2.22 (s, 3H). FT-IR (ATR, v_max/cm⁻¹): 3342, 2901, 1654, 1628, 1459, 901, 860, 755, 698.

3,3′-((2,5-Dimethoxyphenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3i): previously unreported compound reaction time: 1 hour (481 mg, 97% yield), orange solid, purified by recrystallization in ethanol, mp: 217.8–218.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.09 (ddd, J 11.8, 7.7, 1.4 Hz, 5H), 7.80–7.58 (m, 7H), 6.74 (s, 3H), 6.29 (s, 1H), 3.71 (d, J 9.6 Hz, 6H). ¹³C{¹H} NMR (DMSO-d_6, 125 MHz) δ 33.6, 55.5, 56.5, 110.3, 111.2, 116.8, 123.8, 126.0, 126.5, 130.2, 130.6, 132.6, 133.5, 135.1, 152.0, 153.3, 156.2, 181.5, 183.7; FT-IR (ATR, v_max/cm⁻¹): 3206, 3129, 3038, 2835, 1652, 1444, 1303, 920, 861. HRMS (ESI): m/z calc. for C₂₉H₂₀NaO₈ [M + Na]⁺ 519,4608, found 519.1046.

3,3′-((2,4-Dihydroxyphenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3j): previously unreported compound reaction time: 2 hours (159 mg, 92% yield), orange solid, purified by recrystallization in ethanol, mp: 251.9–255.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.04–7.92 (m, 4H), 7.87–7.75 (m, 5H), 6.93 (d, J 8.4 Hz, 1H), 6.65–6.49 (m, 2H), 6.18 (s, 1H), 5.65 (s, 1H); ¹³C{¹H} NMR (DMSO-d_6, 125 MHz) δ 103.3, 111.5, 113.6, 125.8, 126.1, 126.2, 126.4, 129.7, 130.3, 130.7, 131.0, 131.6, 132.0, 132.4133.6134.3134.9, 135.0, 135.2, 149.8, 157.9, 178.3, 181.7, 183.4; FT-IR (ATR, v_max/cm⁻¹): 3374, 1672, 1642, 1457, 1308, 1210, 904, 867, 797.

3,3′-((4-Hydroxy-3-methoxyphenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3k):⁷ reaction time: 2 hours (433 mg, 94% yield), yellow solid, purified by recrystallization in ethanol, mp: 224.3–228.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.03–7.90 (m, 5H), 7.85–7.74 (m, 5H), 6.80 (s, 1H), 6.59 (d, J 2.1 Hz, 2H), 5.94 (s, 1H), 3.64 (s, 3H); FT-IR (ATR, v_max/cm⁻¹): 3326, 1637, 1460, 1245, 1202, 1042, 903, 861, 800.

3,3′-((4-Nitrophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3l):^8b reaction time: 3 hours (412 mg, 85% yield), orange solid, purified by recrystallization in ethanol, mp: 182.4–185.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.12–7.88 (m, 6H), 7.87–7.75 (m, 4H), 7.58–7.51 (m, 2H), 6.09 (s, 1H). FT-IR (ATR, v_max/cm⁻¹): 3324, 1644, 1459, 1348, 1294, 1052, 1017, 858, 820.

3,3′-((2-Nitrophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3m):^8c reaction time: 3 hours (378 mg, 78% yield), yellow solid, purified by recrystallization in ethanol, mp: 212.9–214.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.01–7.90 (m, 6H), 7.88–7.74 (m, 8H), 7.57–7.50 (m, 3H), 7.47–7.40 (m, 2H), 6.42 (s, 1H). FT-IR (ATR, v_max/cm⁻¹): 3353, 3083, 1643, 1607, 1578, 1460, 1297, 1249, 902.

3,3′-((4-Bromophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3n):⁷ reaction time: 2 hours (458 mg, 89% yield), yellow solid, purified by recrystallization in ethanol, mp: 200.6–202.9 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.03–7.88 (m, 4H), 7.86–7.73 (m, 4H), 7.36 (d, J 8.5 Hz, 2H), 7.20 (d, J 8.5 Hz, 2H), 5.97 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3335, 1653, 1641, 1459, 1277, 1209, 1300, 897, 826.

3,3′-((4-Fluorophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3o):^8c reaction time: 3 hours (396 mg, 87% yield), yellow solid, purified by recrystallization in ethanol, mp: 165.0–168.3 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.03–7.88 (m, 4H), 7.86–7.73 (m, 4H), 7.27 (d, J 3.6 Hz, 2H), 7.00 (t, J 8.9 Hz, 2H), 5.98 (s, 1H). FT-IR (ATR, v_max/cm⁻¹): 3294, 1638, 1459, 1274, 1213, 1007, 905, 797, 721.

3,3′-((4-Chlorophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3p):⁷ reaction time: 2 hours (461 mg, 98% yield), yellow solid, purified by recrystallization in ethanol, mp: 171.1–175.5 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.07–7.89 (m, 4H), 7.88–7.71 (m, 4H), 7.33–7.16 (m, 4H), 5.99 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3339, 1641, 1590, 1459, 1300, 1277, 898, 808, 722.

3,3′-((2-Chlorophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3q):^8c reaction time: 2 hours (320 mg, 68% yield), yellow solid, purified by recrystallization in ethanol, mp: 226.6–230.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.00 (dd, J 7.4, 1.5 Hz, 2H), 7.93 (dd, J 7.7, 1.5 Hz, 2H), 7.87–7.75 (m, 4H), 7.33 (td, J 7.7, 2.1 Hz, 2H), 7.25–7.14 (m, 2H), 6.10 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3410, 3224, 3071, 1663, 1635, 1470, 1299, 873, 820.

3,3′-((3-Chlorophenyl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3r):^8c reaction time: 3 hours (412 mg, 87% yield), yellow solid, purified by recrystallization in ethanol, mp: 225.2–228.8 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.02–7.90 (m, 4H), 7.86–7.73 (m, 4H), 7.32–7.12 (m, 4H), 6.00 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3345, 1643, 1627, 1297, 1265, 907, 816, 790, 691.

3,3′-(Thiophen-2-ylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3s):³³ reaction time: 3 hours (405 mg, 91% yield), yellow solid, purified by recrystallization in ethanol, mp: 201.2–204.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.96 (ddd, J 12.0, 7.6, 1.4 Hz, 4H), 7.86–7.74 (m, 4H), 7.25 (dd, J 4.9, 1.5 Hz, 1H), 6.89–6.79 (m, 2H), 6.30 (d, J 1.1 Hz, 1H); FT-IR (ATR, v_max/cm⁻¹): 3254, 1672, 1638, 1459, 1343, 1267, 972, 726, 690.

3,3′-(Pyridin-3-ylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3t):⁴ reaction time: 3 hours (400 mg, 91% yield), orange solid, purified by recrystallization in ethanol, mp: 230.0–233.2 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.72–8.52 (m, 2H), 8.23 (d, J 8.3 Hz, 1H), 8.01–7.89 (m, 4H), 7.84–7.68 (m, 6H), 6.62 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3440, 3056, 2887, 2455, 1640, 1251, 1080, 998, 917.

3,3′-(Pyridin-4-ylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3u): previously unreported compound reaction time: 3 hours (411 mg, 94% yield), orange solid, purified by recrystallization in ethanol, mp: 247.0–251.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.61 (d, J 6.9 Hz, 2H), 8.01–7.89 (m, 4H), 7.84–7.76 (m, 4H), 7.71 (td, J 7.5, 1.4 Hz, 2H), 6.78 (s, 1H). ¹³C{¹H} NMR (DMSO-d_6, 125 MHz) δ 35.4120.5, 125.6, 125.8, 126.3, 131.4, 132.7, 133.4, 134.4, 142.2, 162.9, 164.1, 182.6, 183.2; FT-IR (ATR, v_max/cm⁻¹): 3059, 2856, 1671, 1637, 1278, 1059, 912, 874, 801. HRMS (ESI): m/z calc. for C₂₆H₁₆NO₆ [M + H]⁺ 438.0978 found 438.0966.

3,3′-((1-Phenyl-1H-1,2,3-triazol-4-yl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3v):³⁴ reaction time: 2 hours (251 mg, 85% yield), yellow solid, purified by recrystallization in ethanol, mp: 206.8–210.4 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.56 (s, 1H), 8.04–7.93 (m, 4H), 7.89–7.76 (m, 6H), 7.54 (t, J 8.0 Hz, 2H), 7.47–7.39 (m, 1H), 6.13 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3290, 3145, 1649, 1460, 1252, 1047, 1028, 901, 726.

3,3′-((1-(4-Nitrophenyl)-1H-1,2,3-triazol-4-yl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3w):³⁴ reaction time: 3 hours (320 mg, 84% yield), yellow solid, purified by recrystallization in ethanol, mp: 208.9–210.7 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.77 (s, 1H), 8.41 (d, J 9.3 Hz, 2H), 8.18 (d, J 9.3 Hz, 2H), 8.06–7.93 (m, 4H), 7.90–7.75 (m, 4H), 6.14 (s, 1H); FT-IR (ATR, v_max/cm⁻¹): 3348, 3132, 3077, 1680, 1643, 1458, 1306, 1009, 903.

3,3′-((1-(2,5-Dichlorophenyl)-1H-1,2,3-triazol-4-yl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3x):³⁴ reaction time: 2 hours (472 mg, 94% yield), yellow solid, purified by recrystallization in ethanol, mp: 206.6–208.6 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 10.14 (s, 1H), 9.36 (s, 1H), 8.03–7.99 (m, 3H), 7.94 (dd, J 7.3, 1.4 Hz, 2H), 7.86–7.77 (m, 7H), 6.17 (s, 1H). FT-IR (ATR, v_max/cm⁻¹): 3139, 1699, 1678, 1633, 1342, 1280, 1043, 808, 725.

3,3′-((1-(p-Tolyl)-1H-1,2,3-triazol-4-yl)methylene)bis(2-hydroxynaphthalene-1,4-dione) (3y): previously unreported compound reaction time: 2 hours (490 mg, 94% yield), yellow solid, purified by recrystallization in ethanol, mp: 217.9–220.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 8.59 (d, J 0.9 Hz, 1H), 8.03–7.87 (m, 6H), 7.86–7.74 (m, 4H), 7.64–7.58 (m, 2H), 6.11 (d, J 0.9 Hz, 1H), 2.07 (s, 3H). ¹³C{¹H} NMR (DMSO-d_6, 125 MHz) δ 20.9, 30.2, 119.6, 121.2, 122.1, 126.0, 126.5, 130.4, 130.5, 132.7, 133.5, 135.1, 138.0, 148.0, 157.1, 181.7, 183.6; FT-IR (ATR, v_max/cm⁻¹): 3329, 3146, 1649, 1588, 1459, 1339, 1046, 899, 817. HRMS (ESI): m/z calc. for C₃₀H₁₉N₃NaO₆ [M + Na]⁺ 540.1172, found 540.1170.

3,3′-Methylenebis(2-hydroxynaphthalene-1,4-dione) (3z):⁶ reaction time: 1 hour (350 mg, 97% yield), yellow solid, purified by recrystallization in ethanol, mp: 251.5–254.0 °C. ¹H NMR (DMSO-d₆, 500 MHz) δ 7.97 (ddd, J 7.6, 6.2, 1.4 Hz, 4H), 7.88–7.71 (m, 4H), 3.76 (s, 2H); FT-IR (ATR, v_max/cm⁻¹): 3071, 1678, 1457, 1307, 1262, 1210, 1069, 974, 732.

Conclusions

In summary, we have developed a simple, efficient, and environmentally benign mechanochemical protocol for the synthesis of functionalized arylmethylene-bislawsones (3) via the reaction of lawsone with a broad range of aldehydes. The use of sulfonated chitosan as both a biodegradable grinding auxiliary and a solid acid catalyst proved crucial, providing high yields, short reaction times, and broad functional group tolerance under solvent-free conditions. This approach also enables straightforward catalyst recovery and reuse over multiple cycles with minimal loss of activity, demonstrating its practical applicability. The scalability of the process without compromising efficiency further highlights its potential as a sustainable alternative to conventional solution-based methodologies for the preparation of arylmethylene-bislawsones.

Author contributions

I. S. J. and J. B. P carried out most of the experiments, prepared the starting materials, and began the method optimization. The manuscript was written by I. S. J., F. C. S., D. T. G. G., and V. F. F. All authors provided manuscript inputs and result discussions.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data presented in this study are available in the published article and its online supplementary information (SI). Supplementary information: experimental procedures, characterization data, nuclear magnetic resonance spectra, and high-resolution mass spectrometry analyses are provided. See DOI: https://doi.org/10.1039/d6ra00136j.

Acknowledgements

Fellowships granted by CNPq, CAPES, and FAPERJ are gratefully acknowledged. This work was partially supported by FAPERJ grant numbers CNE E-26/203.954/2024 and Pensa Rio E-26/010/00168/2015. CNPq bolsa A 304243/2024-8.

References

1. M. Dong, X. Ming, T. Xiang, N. Feng, M. Zhang, X. Ye, Y. He, M. Zhou and Q. Wu, Recent Research on the Physicochemical Properties and Biological Activities of Quinones and Their Practical Applications: A Comprehensive Review, Food Funct., 2024, 15, 8973–8997,  10.1039/D4FO02600D.
2. (a) C. E. Dalgliesh, Naphthoquinone Antimalarials. Mannich Bases Derived from Lawsone, J. Am. Chem. Soc., 1949, 71, 1697–1702; (b) K. Bock, N. Jacobsen and B. Terem, Reaction of 2-hydroxy-1,4-naphthoquinone with aldehydes. Synthesis of 2-hydroxy-3-alk-1-enylnaphthoquinones, J. Chem. Soc., Perkin Trans., 1986, 1, 659–664,  10.1039/P19860000659.
3. (a) Z. N. Tisseh and A. Bazgir, An efficient, clean synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-dione) derivatives, Dyes Pigm., 2009, 83, 258–261,  DOI:10.1016/j.dyepig.2008.09.003; (b) P. F. Carneiro, M. C. F. R. Pinto, R. K. F. Marra, V. R. Campos, J. A. L. C. Resende, M. Delarmelina, J. W. M. Carneiro, E. S. Lima, F. C. Silva and V. F. Ferreira, Insight into and Computational Studies of the Selective Synthesis of 6H-Dibenzo[b,h]xanthenes, J. Org. Chem., 2016, 81, 5525–5537,  DOI:10.1021/acs.joc.6b00864; (c) D. T. G. Gonzaga, R. S. P. Gomes, R. K. F. Marra, F. C. Silva, M. W. L. Gomes, D. F. Ferreira, R. M. A. Santos, A. M. V. Pinto, N. A. Ratcliffe, C. C. Cirne-Santos, C. S. Barros, V. F. Ferreira and I. C. N. P. Paixão, Inhibition of Zika Virus Replication by Synthetic Bis-Naphthoquinones, J. Braz. Chem. Soc., 2019, 30, 1697–1706,  DOI:10.21577/0103-5053.20190071.
4. B. Mitra and P. Ghosh, Humic acid: A Biodegradable Organocatalyst for Solvent-free Synthesis of Bis(indolyl)methanes, Bis(pyrazolyl)methanes, Bis-coumarins and Bis-lawsones, ChemistrySelect, 2021, 6, 68–81,  DOI:10.1002/slct.202004245.
5. G. Kaur, D. Singh, A. Singh and B. Banerjee, Camphor sulfonic acid catalyzed facile and general method for the synthesis of 3,3’-(arylmethylene) bis(4-hydroxy-2H-chromen-2-ones), 3,3’-(arylmethylene) bis(2-hydroxynaphthalene-1,4-diones) and 3,3’-(2-oxoindoline-3,3-diyl)bis(2-hydroxynaphthalene-1,4-dione) derivatives at room temperature, Synth. Commun., 2021, 51, 1045–1057,  DOI:10.1080/00397911.2020.1856877.
6. Z. Liu, S. Yin, R. Zhang, W. Zhu and P. Fu, High-Efficiency Synthesis of Carbon-Bridged Dimers via Bioinspired Green Dimerization Involving Aldehydes, ACS Sustainable Chem. Eng., 2022, 10, 655–661,  DOI:10.1021/acssuschemeng.1c06194.
7. S. Nirmale, K. Patil, A. Kumbhar and A. Rajmane, Brønsted Acid Saponin Combined Catalyst (BASapC) for the Synthesis of Diverse 1,1-Dihomoarylmethane Scaffolds in Aqueous Solution, ChemistrySelect, 2024, 9, e202403008,  DOI:10.1002/slct.202403008.
8. (a) H. W. Wang, Z. Wang, C. Wang, F. Yang, H. Zhang, H. Yue and L. Wang, Lipase catalyzed synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-dione), RSC Adv., 2014, 4, 35686–35689,  10.1039/C4RA06516F; (b) F. Asghari-Haji, K. Rad-Moghadam and N. O. Mahmoodi, An efficient approach to bis-benzoquinonylmethanes on water under catalysis of the bio-derived O-carboxymethyl chitosan, RSC Adv., 2016, 6, 27388–27394,  10.1039/C5RA26580K; (c) G. Brahmachari, Sulfamic Acid-Catalyzed One-Pot Room Temperature Synthesis of Biologically Relevant Bis-Lawsone Derivatives, ACS Sustainable Chem. Eng., 2015, 3, 2058–2066,  DOI:10.1021/acssuschemeng.5b00325.
9. G. L. N. Thuy, D. T. Tuyet Anh and H. Thi Phuong, DMAP-catalyzed efficient and convenient approach for the synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-dione) derivatives, Nat. Prod. Commun., 2021, 16, 1–7,  DOI:10.1177/1934578X211045808.
10. S. Shaikh, I. Yellapurkar, S. Bhabal, M. M. V. Ramana and J. A. Shaikh, A Novel Ultrasound-Assisted Approach for the Synthesis of Biscoumarin and Bislawsone Derivatives Using rGO/TiO₂ Nanocomposite as a Heterogeneous Catalyst, Chem. Afr., 2023, 6, 1479–1494,  DOI:10.1007/s42250-023-00587-6.
11. (a) A. S. de Oliveira, L. C. Lianes, R. J. Nunes, R. A. Yunes and I. M. C. Brighente, Use of Ultrasound and Microwave Irradiation for Clean and Efficient Synthesis of 3,3’-(Arylmethylene)bis (2-hydroxynaphthalene-1,4-dione) Derivatives, Green Sustainable Chem., 2014, 4, 177–184,  DOI:10.4236/gsc.2014.44023; (b) M. V. de Araújo, P. S. O. de Souza, A. C. de Queiroz, C. B. B. da Matta, A. B. Leite, A. E. da Silva, J. A. A. de França, T. M. S. Silva, C. A. Camara and M. S. Alexandre-Moreira, Synthesis, Leishmanicidal Activity and Theoretical Evaluations of a Series of Substituted bis-2-Hydroxy-1,4-Naphthoquinones, Molecules, 2014, 19, 15180–15195,  DOI:10.3390/molecules190915180.
12. (a) E. Evangelista and S. Cunha, Mechanosynthesis of Enaminones and Mechanochemical Telescopic Synthesis of β,γ-Unsaturated Butyrolactams, Asian J. Org. Chem., 2024, 13, e202400434,  DOI:10.1002/ajoc.202400434; (b) E. O. L. Filho, A. S. N. Aguiar, L. L. Borges, V. F. Ferreira and F. C. Silva, Mechanochemistry Metal-Free Synthesis and Molecular Modeling Study of 4-Arylamino-1,2-naphthoquinones by C sp²-Csp² Bond Formation, J. Braz. Chem. Soc., 2025, 36(6), 20250019,  DOI:10.21577/0103-5053.20250019; (c) L. Vaghi, E. Palomba and A. Papagni, Al₂O₃ promoted mechanochemical nucleophilic aromatic substitution, RSC Mechanochem., 2024, 1, 342–348,  10.1039/D4MR00039K; (d) Y. S. Zholdassov, L. Yuan, S. R. Garcia, R. W. Kwok, A. Boscoboinik, D. J. Valles, M. Marianski, A. Martini, R. W. Carpick and A. B. Braunschweig, Acceleration of Diels-Alder reactions by mechanical distortion, Science, 2023, 380, 1053–1058,  DOI:10.1126/science.adf5273; (e) T. Seo, K. Kubota and H. Ito, Mechanochemistry-directed ligand design: Development of a high-performance phosphine ligand for palladium-catalyzed mechanochemical organoboron cross-coupling, J. Am. Chem. Soc., 2023, 145, 6823–6837,  DOI:10.1021/jacs.2c13543; (f) E. Juaristi and C. G. Avila-Ortiz, Salient achievements in Synthetic Organic chemistry enabled by Mechanochemical Activation, Synthesis, 2023, 55, 2439–2459,  DOI:10.1055/a-2085-3410; (g) B. R. Naidu, T. Sruthi, R. Mitty and K. Venkateswarlu, Catalyst-free mechanochemistry as a versatile tool in synthetic chemistry: a review, Green Chem., 2023, 25, 6120–6148,  10.1039/D3GC01229H; (h) N. Fantozzi, J.-N. Volle, A. Porcheddu, D. Virieux, F. García and E. Colacino, E. Green metrics in mechanochemistry, Chem. Soc. Rev., 2023, 52, 6680–6714,  10.1039/D2CS00997H; (i) V. Martinez, T. Stolar, B. Karadeniz, I. Brekalo and K. Uzarevic, Advancing mechanochemical synthesis by combining milling with different energy sources, Nat. Rev. Chem., 2022, 7, 51–65,  DOI:10.1038/s41570-022-00442-1; (j) C. Espro and D. Rodríguez-Padron, Re-thinking organic synthesis: Mechanochemistry as a greener approach, Curr. Opin, Green Sustainable Chem., 2021, 30, 100478,  DOI:10.1016/j.cogsc.2021.100478; (k) T. Friscic, C. Mottillo and H. M. Titi, Mechanochemistry for Synthesis, Angew Chem., Int. Ed. Engl., 2020, 59, 1018–1029,  DOI:10.1002/anie.201906755.
13. C. Bolm and J. G. Herandez, Mechanochemistry of Gaseous Reactants, Angew. Chem., Int. Ed., 2019, 58, 3285–3299,  DOI:10.1002/anie.201810902.
14. K. L. Ardila-Fierro and J. G. Hernandez, Intermediates in Mechanochemical Reactions, Angew. Chem., Int. Ed., 2024, 63, e202317638,  DOI:10.1002/anie.202317638.
15. (a) B. Pugin and H. U. Blaser, Immobilized complexes for enantioselective catalysis: when will they be used in industry?, Top. Catal., 2010, 53, 953–962,  DOI:10.1007/s11244-010-9514-8; (b) C. Lucarelli and A. Vaccari, Examples of heterogeneous catalytic processes for fine chemistry, Green Chem., 2011, 13, 1941–1949,  10.1039/C0GC00760A.
16. C. Vogt and B. M. Weckhuysen, The concept of active site in heterogeneous catalysis, Nat. Rev. Chem., 2022, 6, 89–111,  DOI:10.1038/s41570-021-00340-y.
17. P. Lanzafame, S. Perathoner, G. Centi, S. Gross and E. J. M. Hensen, Grand challenges for catalysis in the Science and Technology Roadmap on Catalysis for Europe: moving ahead for a sustainable future, Catal. Sci. Technol., 2017, 7, 5182–5194,  10.1039/C7CY01067B.
18. A. Chaudhary, S. Pasricha, H. Kaur and N. Avasthi, Multicomponent reactions through pristine and modified chitosans: current status and future prospects, J. Iran. Chem. Soc., 2022, 19, 2191–2253,  DOI:10.1007/s13738-021-02477-5.
19. N. Anbu, S. Hariharan and A. Dhakshinamoorthy, Knoevenagel-Doebner condensation promoted by chitosan as a reusable solid base catalyst, Mol. Catal., 2020, 484(No), 110744,  DOI:10.1016/j.mcat.2019.110744.
20. S. Behrouz, M. N. S. Rad and M. A. Piltan, Chitosan–silica sulfate nanohybrid: a highly efficient and green heterogeneous nanocatalyst for the regioselective synthesis of N-alkyl purine, pyrimidine and related N-heterocycles via presilylated method, Chem. Pap., 2020, 74, 113–124,  DOI:10.1007/s11696-019-00863-1.
21. K. Hasan, Methyl salicylate functionalized magnetic chitosan immobilized palladium nanoparticles: an efficient catalyst for the Suzuki and Heck coupling reactions in water, ChemistrySelect, 2020, 5, 7129–7140,  DOI:10.1002/slct.202001933.
22. R. Beiranvand and M. G. Dekamin, Trimesic acid-functionalized chitosan: A novel and efficient multifunctional organocatalyst for green synthesis of polyhydroquinolines and acridinediones under mild conditions, Heliyon, 2023, 9, e16315,  DOI:10.1016/j.heliyon.2023.e16315.
23. R. P. Sourkouhi, M. G. Dekamin, E. Valiey and M. Dohendou, Magnetic decorated 5-sulfosalicylic acid grafted to chitosan: A solid acid organocatalyst for green synthesis of quinazoline derivatives, Carbohydr. Polym. Technol. Appl., 2024, 7, 100420,  DOI:10.1016/j.carpta.2023.100420.
24. I. S. de Jesus, J. B. de Pontes, A. S. de Carvalho, P. G. Ferreira, A. S. de Souza, F. C. da Silva, V. M. F. Paschoalin, D. O. Futuro and V. F. Ferreira, Recent Advances in the Application of Sulfonic Acid Chitosan as Heterogeneous Organocatalyst in Organic Reactions, Curr. Org. Chem., 2025, 29, 1078–1091,  DOI:10.2174/1385272829666241029121512.
25. I. S. de Jesus, J. B. de Pontes, V. M. F. Paschoalin, F. C. da Silva and V. F. Ferreira, Direct Lawsone O-Alkylation Employing Sulfonic Acid-Functionalized Chitosan as a Biodegradable Organocatalyst, ACS Omega, 2025, 10, 4163–4169,  DOI:10.1021/acsomega.4c07165.
26. (a) K. Khan and Z. N. Siddiqui, An Efficient Synthesis of Tri- and Tetrasubstituted Imidazoles from Benzils Using Functionalized Chitosan as Biodegradable Solid Acid Catalyst, Ind. Eng. Chem. Res., 2015, 54, 6611–6618,  DOI:10.1021/acs.iecr.5b00511; (b) S. B. Bathula, K. Mukkanti and V. Hariharakrishnan, Chitosan-SO₃H: A Green Approach to 2-Aryl/Heteroaryl Benzothiazoles under Solvent-Free Conditions at Room Temperature, Asian J. Chem., 2018, 30, 1512–1516,  DOI:10.14233/ajchem.2018.21209.
27. R. Perumal, B. Bathrinarayanan, M. Ghashang and S. S. Mansoor, An Efficient One-Pot Synthesis of 7,7-Dimethyl-2-(2-oxo-2H-chromen-3-yl)-4-aryl-7,8-dihydroquinolin-5(6H)-one Derivatives Using Chitosan–SO3H as Biodegradable Organocatalyst, J. Heterocyclic Chem., 2019, 56, 947–955,  DOI:10.1002/jhet.3473.
28. A. Kumar, C. Patel, P. Patil, S. Vyas and A. Sharma, Chemoselective synthesis of bis(indolyl)methanes using sulfonic acid-functionalized chitosan, Chem. Pap., 2019, 73, 3095–3104,  DOI:10.1007/s11696-019-00846-2.
29. N. Sahiba, A. Sethiya, J. Soni, P. Teli, A. Garg and S. Agarwal, A facile biodegradable chitosan-SO₃H catalyzed acridine-1,8-dione synthesis with molecular docking, molecular dynamics simulation and density functional theory against human topoisomerase II beta and Staphylococcus aureus tyrosyl-tRNA synthetase, J. Mol. Struct., 2022, 1268, 133676,  DOI:10.1016/j.molstruc.2022.133676.
30. (a) J. Safari, Z. Zarnegar, M. Sadeghi and F. Azizi, Chitosan-SO₃H: An Efficient and Biodegradable Catalyst for the Green Syntheses of 1,4-dihydropyridines, Curr. Org. Chem., 2016, 20, 2926–2932,  DOI:10.2174/1385272820666160805112; (b) Y. Xiao, Y. Xiang, R. Xiu and S. Lu, Development of cesium phosphotungstate salt and chitosan composite membrane for direct methanol fuel cells, Carbohydr. Polym., 2013, 98, 233–240,  DOI:10.1016/j.carbpol.2013.06.017.
31. Y. Wan, K. A. M. Creber, B. Peppley and V. T. Bui, Ionic conductivity of chitosan membranes, Polymer, 2003, 44, 1057–1065,  DOI:10.1016/S0032-3861(02)00881-9.
32. D. Tan and F. García, Main Group Mechanochemistry: From Curiosity to Established Protocols, Chem. Soc. Rev., 2019, 48, 2274–2292,  10.1039/C7CS00813A.
33. G. Sharma, S. V. Kumar and H. A. Wahab, Molecular docking, synthesis, and biological evaluation of naphthoquinone as potential novel scaffold for H5N1 neuraminidase inhibition, J. Biomol. Struct. Dyn., 2018, 36(1), 233–242,  DOI:10.1080/07391102.2016.1274271.
34. C. S. Bortolot, L. S. M. Forezi, R. K. F. Marra, M. I. P. Reis, B. V. F. de Sá, R. I. Filho, Z. Ghasemishahrestani, M. Sola-Penna, P. Zancam, V. F. Ferreira and F. C. da Silva, Design, Synthesis and Biological Evaluation of 1H-1,2,3-Triazole-Linked 1HDibenzo[b,h]xanthenes as Inductors of ROS-Mediated Apoptosis in the Breast Cancer Cell Line MCF-7, Med. Chem., 2019, 15, 119–129,  DOI:10.2174/1573406414666180524071409.

---
