Palladium catalysts are widely used in the Suzuki–Miyaura cross-coupling reaction; however, their high cost and scarcity demand strategies to reduce Pd usage without compromising catalytic performance. In this study, we report supported Pd catalysts with low loading, prepared by the ball milling method, an eco-friendly and efficient route to highly active catalysts. These low-loading Pd catalysts were supported on alumina (Al2O3), silica (SiO2), and titania (TiO2). The influence of support properties on catalytic performance in the Suzuki–Miyaura coupling reaction was systematically investigated. In this work all Pd catalysts exhibit good thermal stability with less than 10% weight loss at 1000 °C. They have high surface areas ranging between 20.6 ± 1.0 to 296 ± 15 m2 g−1. Diffuse Reflectance Ultraviolet-Visible (DR-UV-Vis) spectroscopy indicated that smaller clusters have altered redox potentials; their electron density changes due to introduction of discrete, redox-active states that strongly couple with the oxide support. A comparison was made between the solution-phase and solid-phase methods for the Suzuki–Miyaura reaction. The catalysts exhibited excellent catalytic activity, achieving up to 97% substrate conversion within one hour at room temperature via the mechanochemical route. These catalysts also showed good reusability for at least four catalytic cycles without losing significant activity. Therefore, our study offers an eco-friendly method to develop highly stable Pd-based catalysts for efficient catalytic Suzuki–Miyaura reaction.
The reduction in metal size can drastically alter the electronic structure and catalytic behavior of the catalyst, influencing the reaction kinetics and mechanism of the Suzuki coupling process.11 Single atom and small cluster types of catalysts provide a new and exciting opportunity to improve the performance of heterogeneous catalysts.12 Not only are these minimalist catalysts allowing for full utilization of the expensive precious metals, but the metal also inherits different properties, leading to enhanced activity and selectivity for several reactions.13 However, the synthesis of ultrasmall cluster catalysts and nanoparticles is still challenging.14 The ultrasmall cluster catalysts or nanoparticles tend to migrate and aggregate into larger particles during their synthesis or under harsh reaction conditions, making it difficult to maintain their isolated state or uniform size. It is difficult to achieve uniform dispersion of metals on catalytic support, and it is also hard to scale up reproducibly. Different approaches, such as hydrothermal, sol–gel, wetness co-impregnation, atomic layer deposition, and physical vapor deposition, have been employed in their synthesis.15–17 While these methods allow fine control over particle size, mechanochemical synthesis offers solvent-free conditions, reduced energy input, and scalability.18
Recently, mechanochemistry, often referred to as the ball-milling method, has captured the attention of many researchers for the fabrication of heterogeneous catalysts because of its distinct advantages centred around eco-friendliness, scalability, and a wide application scope.19 However, despite these advantages, mechanochemical methods may present challenges, such as limited control over particle size distribution and potential structural modification of the support. Therefore, understanding how mechanochemical synthesis influences metal dispersion, surface properties, and catalytic performance remain essential.20–22 In mechanochemical synthesis, mechanical energy is generated in the ball milling apparatus, where the movement of the grinding bowl generates kinetic and potential energy in the grinding balls and material loaded inside it to reconstruct chemical bonds of the new material. This method is affected by several milling parameters, such as grinding ball size, time, and speed or frequency of the milling process, to mention a few.23–25
Herein, we report a highly efficient and pollution-free ball milling method for the direct synthesis of low loading ultrasmall clusters of palladium (Pd1) and nanoparticles (Pdn) supported on different catalyst supports (Al2O3, SiO2, and TiO2). We aim to study the size effect induced by the solid-state mechanochemical synthesis of the catalysts in the green Suzuki–Miyaura reaction at mild temperatures.
![]() | (1) |
:
Vwater = 1
:
1) was added to an agate grinding jar. The mixture was placed into a vibratory ball mill at 25 Hz for 30 minutes, then the product was calcined at 400 °C for 3 hours. The synthesis of nanoparticles followed the same procedure as that of ultrasmall Pd clusters. The sample's stoichiometric amounts of palladium acetate were 1 wt% and 5 wt% Pd, and instead of adding HCl, 0.05 mol of urea and 0.05 mol NaBH4 were added to achieve the reduction of Pd cations to Pd0. Thereafter, the synthesized catalysts were characterized using various techniques described in the SI.

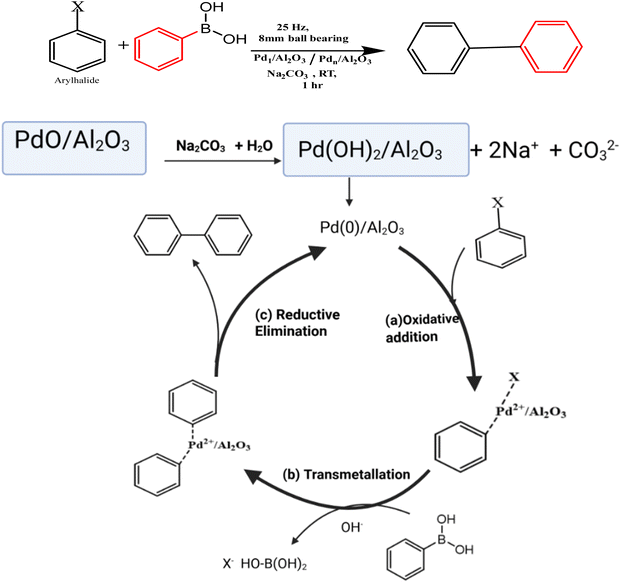

![]() | (2) |
![]() | ||
| Scheme 1 Proposed MSI of atomically dispersed ultra-small clusters (Pd1), compared with aggregated nanoparticles (Pdn). | ||
:
1000 and 1
:
100 to achieve 0.1 Pd wt% and 1 Pd wt%. Hydrochloric acid was introduced to suppress nucleation, thereby favoring the formation of atomically dispersed Pd species. In addition, the acidic environment influenced the coordination state of the metal precursor, which further stabilized Pd in the early stages of dispersion. For nanoparticles synthesis, higher precursor-to-support ratios of 1
:
100 and 1
:
20 were employed to achieve 1 and 5 Pd wt%, respectively. In this case, emphasis was placed on nucleation and particle growth, achieved through the combined use of urea and sodium borohydride. Urea played a dual role in controlling the pH and facilitating the gradual decomposition of the metal precursor to release ions, which are subsequently reduced to form nanoparticles by sodium borohydride. After complete ball milling, the resulting mixtures were subjected to calcination at 400 °C. The calcination step ensured the removal of residual organics and incomplete decomposition products of the Pd precursor, leading to well-defined Pd small clusters or nanoparticles, depending on the synthesis route. The product was the characterized with different techniques.
Powder X-ray diffraction (p-XRD) analysis was used to track the formation of Pd nanoparticles and to identify the phases of the synthesized catalytic materials. Fig. 1(a) shows the diffractograms of Pd/Al2O3. For 0.1% Pd1/Al2O3 and 1% Pd1/Al2O3 ultrasmall clusters, the diffraction patterns only showed the phases of the support (Al2O3) due to the undetectable amounts of Pd in the overall catalyst materials. Four distinct diffraction peaks at 37.6, 39.4, 45.8, and 66.8° correspond to (311), (222), (400), and (440) planes, respectively.27 These planes matched with standard ICDD card no 00-056-0457, thus indicating the cubic γ-Al2O3 phases, see Table 1. In the patterns of both the 0.1% Pd1/Al2O3 and 1% Pd1/Al2O3 catalysts, there were no Pd0 diffraction planes observed, indicating most Pd species are nanoclusters and/or single atoms that are fully dispersed on metal oxide support.28 The diffraction pattern for 1% Pdn/Al2O3 and 5% Pdn/Al2O3 nanoparticles showed diffraction planes attributable to PdO phases around 33.9°, which correspond to (101) facets, indicating traces of PdO nanoparticles. The PdO peak intensity change between 1% Pdn/Al2O3 and 5% Pdn/Al2O3 materials due to Pd loading, with the higher Pd loading giving higher intensity peaks, signifying the extent of oxidation of Pd metal and the incomplete reduction by borohydride. Also, Table 1 shows that the crystal structure and phases of these catalysts were different from those of supported-ultrasmall clusters, since they have PdO. The formation of PdO instead of zerovalent Pd is expected due to the high calcination temperature during synthesis. Also, PdO is thermodynamically favoured at high temperatures in oxygen-rich environments. It may also be due to Strong Metal–Support Interaction (SMSI). The Pd nanoparticles strongly interact with the supports, leading to stabilization through oxidation.29 The formation of palladium oxide (PdO) was confirmed through p-XRD pattern from the JCPDS software database (ICDD: 04-005-4781). In Fig. 1(b), the diffraction pattern of Pd/SiO2 is shown. The patterns confirm the presence of amorphous mesoporous silica in all samples. For 0.1% Pd1/SiO2 and 1% Pd1/SiO2 ultrasmall clusters, the diffractograms were similar to the support (SiO2), confirming that the clusters were fully dispersed on the support and the support retained its structural integrity upon deposition. However, the diffractogram of the 5% Pdn/SiO2 and 1% Pdn/SiO2 nanoparticles showed sharp diffraction peaks of PdO located at 33.9° 2θ angles next to the usual SiO2 peak, also indicating the formation of Pd nanoparticles. In Fig. 1(c), the XRD pattern of Pd/TiO2 typically shows characteristic peaks corresponding to both TiO2 anatase and rutile phases. All samples showed diffraction planes at 25.3°; 37.7°; 48°; 53.7°; 55°; 62.6°; 68°,69°; 75.6°; and 82° which is characteristic of the anatase form of TiO2 corresponding to (101), (004), (200), (105), (211) (204), (116), (220), (215), and (224) reflections, respectively.30 These planes matched the standard ICDD card no 04-011-0664. The diffraction planes seen at 27.8°, 36.2°, and 39.8° are attributed to the rutile form of TiO2, corresponding to (110), (101), and (111) planes, respectively. For 0.1% Pd1/TiO2, 1% Pd1/TiO2, and 1% Pdn/TiO2 catalysts, the XRD patterns were similar to that of TiO2, confirming that the metal loading was too low for detectable amounts and fully dispersed on the support. While 5% Pdn/TiO2 also showed a PdO phase, suggesting the formation of Pd nanoparticles.
![]() | ||

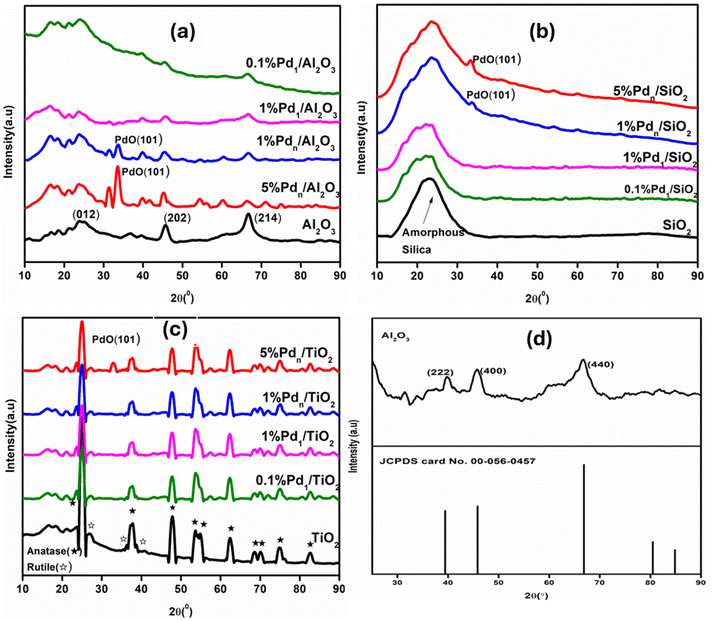

| Fig. 1 (a–c) Powder XRD pattern of Pd catalysts on different Pd loadings on different supports and (d) ball milled Al2O3. | ||
| Entry | Sample | Crystal structure | Space group | Lattice parameters | References | ||
|---|---|---|---|---|---|---|---|
| a (Å) | b (Å) | c (Å) | |||||
| 1 | Al2O3 | Cubic | Fd m |
7.9110 | 7.9110 | 7.9110 | This work |
| 2 | 1% Pd1/Al2o3 | Cubic | Fd m |
7.9110 | 7.9110 | 7.9110 | |
| 3 | 1% Pdn/Al2o3 | Tetragonal | P42/mmc | 3.0430 | 3.0430 | 5.3370 | |
| 4 | 5% Pdn/Al2o3 | Tetragonal | P42/mmc | 3.0430 | 3.0430 | 5.3370 | |
| 5 | TiO2 | Tetragonal | I41/amd | 3.8720 | 3.8720 | 9.6160 | |
| 6 | 0.1% Pd1/TiO2 | Tetragonal | I41/amd | 3.8720 | 3.8720 | 9.6160 | |
| 7 | 1% Pd1/TiO2 | Tetragonal | I41/amd | 3.8720 | 3.8720 | 9.6160 | |
| 8 | 1% Pdn/TiO2 | Tetragonal | I41/amd | 3.8720 | 3.8720 | 9.6160 | |
| 9 | 5% Pdn/TiO2 | Tetragonal | P42/mmc | 3.0430 | 3.0430 | 5.3370 | |
| 10 | γ-Al2O3 | Cubic | Fd m |
7.938 | 7.938 | 7.938 | 32 |
| 11 | 0.2 Au/γ-Al2O3 | Cubic | Fd m |
7.938 | 7.938 | 7.938 | 32 |
Based on the XRD patterns of both sol–gel and ball-milling-synthesized Al2O3 supports exhibit diffraction peaks characteristic of γ-Al2O3 and cubic structure. No additional reflections corresponding to phase transformation of the alumina support were observed, indicating that the mechanochemical synthesis did not induce a detectable phase change of Al2O3 under the applied milling conditions. This might be due to the fact that both sol–gel and ball milling were performed under moderate temperature. Chung et al. reported that α-Al2O3 and other phases are mostly formed at 1000 °C.31

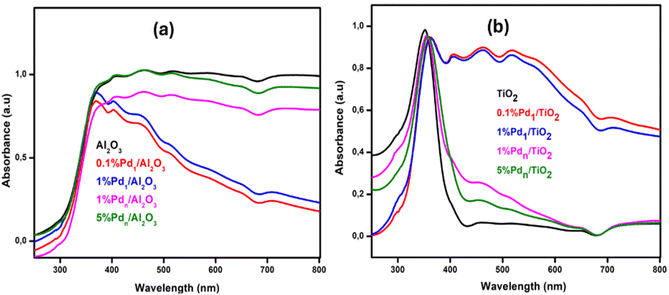

The electronic structure of the catalysts was analysed by DR UV-Vis between 250–800 nm, as shown in Fig. 2. The UV-Vis diffuse reflectance spectra of each catalyst gave a distinct DRS signature. Comparing these catalysts with their supports helps to understand how different Pd loadings and forms alter the support's electronic structure. In Fig. 2(a), a pure Al2O3 has a wide band gap between λ = 350 and 370 nm; thereafter, the spectrum stays featureless due to the lack of d-orbitals for electron transfer in the visible region. While TiO2 (Fig. 2(b)) has a clear band gap (∼3.2 eV), showing narrow optical absorbance at λ = 360 nm. The ultrasmall clusters (Pd1) show distinct spectra from their supports because they are almost atomically dispersed, as shown in Scheme 1. Each Pd cluster behaves like a positively charged unit due to electron withdrawal by the O atoms of the support. This charge transfer creates a strong metal–support interaction.33 New discrete states inside the band gap (donor or acceptor levels) arise from Pd–O coordination, leading to a new visible absorption pathway.34 Nanoparticles are metallic in nature (Pd–Pd metallic bonding). Only surface atoms contact the oxide support, thus bulk atoms interact only with other Pd atoms (as shown in Scheme 1), leading to weaker MSI per atom compared to single atoms or ultrasmall clusters.35 Optical features mainly come from interband transitions and weak plasmonic effects, not discrete mid-gap states. Hence, the absorption resembles the baseline of the support, with less visible-light enhancement compared to Pd1 containing catalysts. Weaker MSI means they don't strongly alter the support's band structure.
The FTIR analysis shown in Fig. S1 in the SI was used to monitor the functional groups of metal-oxides upon deposition of different Pd loadings. The catalytic materials exhibit similar FTIR fingerprints. All catalysts displayed bands at ∼ λ = 3400 cm−1 attributed to surface-adsorbed water molecules. The band at λ = 2340 cm−1 may be attributed to the stretching vibration of CO2 molecules from the atmosphere. This typically takes place on the Al2O3 surface, due to the presence of basic sites on the γ-Al2O3 surface.36 The Al2O3 vibrational and stretching modes were affected by Pd deposition. A visible shift is observed between λ = 1400 to 1600 cm−1 due to H–O–H bending vibrations of adsorbed water molecules. The sensitive FTIR technique was able to detect even the smallest amount of Pd present on the support, while it was not the case for analysis with P-XRD. The changes in the FTIR of pure alumina after Pd deposition were detected in the range 1400–1600 cm−1. Wherein Pd deposition changes hydroxyl distribution, so comparing Pd/Al2O3 to pure Al2O3 revealed Pd–OH interactions by reduction in the intensity of the OH bending mode.37
The thermogravimetric analysis (TGA) was performed to evaluate the thermal stability of the catalyst with immobilized nanoparticles (1% Pdn/Al2O3 and 5% Pdn/Al2O3), which lost more weight compared to catalysts with immobilized ultrasmall clusters (0.1% Pd1/Al2O3 and 1% Pd1/Al2O3). This implies that the immobilization of ultrasmall clusters brings about better thermal stability than immobilized nanoparticles, as shown in Fig. S2 in the SI. The first weight loss in all catalytic materials between 30 and 180 °C is due to the removal of surface-adsorbed water derived from atmospheric moisture. The weight loss observed between 200 and 600 °C is attributed to removal of organic species and carbon that remain present on the catalyst surface during the synthesis. All the synthesized materials exhibited good thermal stability with less than 10% weight loss at 1000 °C. The high thermal stability of these catalysts means less sintering or particle aggregation in harsh reaction conditions.
The N2 sorption measurements gave insights into the surface area and porosity of the synthesized catalysts. Fig. 3 and S3 in SI show that all the synthesized catalysts exhibit type IV absorption–desorption isotherms signifying mesoporous nature, but different hysteresis loops were observed. Pd ultrasmall clusters supported on alumina showed H4 type hysteresis loops,38 signifying narrow slit mesopores limited by the presence of micropores. This might be due to atomically dispersed atoms resulting in strong anchoring or interactions with the support and possibly defect sites, thus altering the porosity.39,40 SiO2 and ultrasmall clusters that are supported on silica showed an H1 hysteresis loop, steep uptake near P/P0 ≈ 0.4 corresponds to capillary condensation in mesopores. TiO2 supported clusters and all nanoparticles from all supports showed type IV isotherms with an H3 hysteresis loop, indicating a widely distributed slit-like porous structure.41 The BET surface areas range between 25.76 ± 1.0 to 296.48 ± 15 m2 g−1, and the average pore diameters are between 3.56 to 23.5 nm, see Table 2. The surface area and pore volume decreased with increasing metal loading for catalysts on all supports. This phenomenon is due to the blockage of the porous network by Pd particles, partially filling mesopores, thus occupying space.42 In terms of the surface areas of the supports, the decrease is because the deposited metal occupies the adsorption sites, thus prohibiting N2 adsorption space. However, for TiO2-supported catalysts, a different trend was observed. When adding extra small clusters surface area increased, and it was higher than the supports. This might be due to enhanced dispersion. Small clusters of Pd may have created new mesoporosity rather than simply blocking pores. Similar results were reported.43–45 The actual Pd loading was measured by ICP-OES. The Pd content in the 5% Pdn/Al2O3 catalyst is 5.47 wt%, and in the 1% Pdn/Al2O3 catalyst it was found to be 1.12 wt%. These experimentally determined values are not significantly different from the theoretical loadings. This is observed for all other catalysts, as shown in Table 2.
![]() | ||

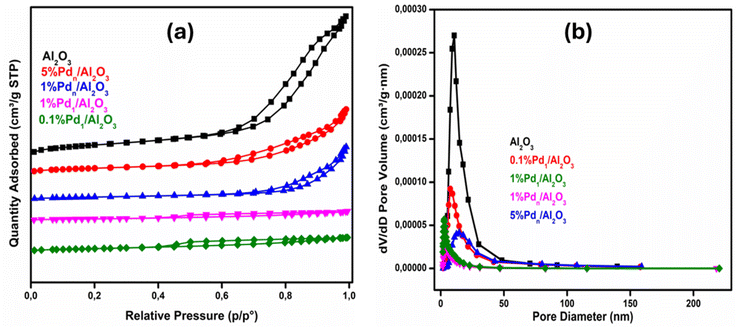

| Fig. 3 (a) N2 adsorption–desorption isotherms of Pdn-loaded Al2O3 and (b) the pore size distribution plots. | ||
| Entry | Sample | Actual Pd wt% loading | BET surface area (m2 g−1) | VPore (cm3 g−1) | DPore (nm) | Pd particle size (nm) | References |
|---|---|---|---|---|---|---|---|
| a Actual loading measured by ICP-OES. The average Pd particle size was estimated from the TEM images (Fig. S5 and S7). | |||||||
| 1 | Al2O3 | — | 103 ± 5.0 | 0.41 | 23.54 | — | This work |
| 2 | 5% Pdn/Al2O3 | 5.47 | 48.8 ± 2.4 | 0.02 | 6.54 | 4.08 ± 1.8 | |
| 3 | 1% Pdn/Al2O3 | 1.12 | 57.3 ± 2.9 | 0.05 | 7.91 | 2.6 ± 0.7 | |
| 4 | 1% Pd1/Al2O3 | 1.31 | 52.3 ± 2.6 | 0.15 | 8.20 | ||
| 5 | 0.1% Pd1/Al2O3 | 0.17 | 71.7 ± 3.6 | 0.21 | 11.14 | ||
| 6 | TiO2 | — | 25.8 ± 1.3 | 0.38 | 2.22 | ||
| 7 | 5% Pdn/TiO2 | 4.70 | 22.8 ± 1.1 | 0.04 | 13.27 | 4.6 ± 1.4 | |
| 8 | 1% Pdn/TiO2 | 0,92 | 20.6 ± 1.0 | 0.154 | 11.20 | 2.1 ± 1.4 | |
| 9 | 1% Pd1/TiO2 | 0.81 | 34.1 ± 1.7 | 0.116 | 3.8 | ||
| 10 | 0.1% Pd1/TiO2 | 0.09 | 36.7 ± 1.8 | 0.18 | 10.2 | ||
| 11 | SiO2 | — | 288 ± 14 | 0.35 | 3.56 | ||
| 12 | 5% Pdn/SiO2 | 4.11 | 38.8 ± 1.9 | 0.32 | 7.51 | ||
| 13 | 1% Pdn/SiO2 | 0,32 | 63.0 ± 3.2 | 0.33 | 4.61 | ||
| 14 | 1% Pd1/SiO2 | 0,64 | 291 ± 15 | 0.36 | 3.9 | ||
| 15 | 0.1% Pd1/SiO2 | 0.07 | 296 ± 15 | 0.37 | 4.2 | ||
| 16 | 10Ni–2La/SiO2 | 10% Ni | 292 | 0.25 | 0.29 | 40 | |
| 17 | 10Ni–5La/SiO2 | 10% Ni | 274 | 0.23 | 0.29 | 40 | |
| 18 | Pd1/ZnO | 0.26 | 18.0 | — | — | 18 | |
| 19 | AC | — | 775 | 0.39 | 6.2 | 46 | |
| 20 | Pd/AC | 4.7 | 747 | 042 | 69 | 46 | |
When considering the support materials, the observed decrease in surface area for Al2O3 after Pd deposition can be attributed to partial collapse of the porous network caused ball milling technique. This is evidenced by the decreasing pore sizes upon Pd deposition seen in Table 2. On the other hand, TiO2 and SiO2 structures appear to be swelling upon deposition of Pd metal. This is seen by increases in both pore volume and pore diameter. Thus, gaseous adsorption can readily take place within the enhanced pore structures. Also, the deposition of Pd within the extended pores enhances the number of active sites.
A comparison of the vibrational or electronic modes of the support before and after metal deposition at different mass loadings was conducted. In Fig. 4(a), the modes of TiO2 confirm that it is mostly in anatase form, as it has six Raman active modes similar to those reported literature.47 Typical TiO2 bands appear at 133 (Eg), 143 (Eg), 195 (Eg), 394 (B1g), 515 (A1g), and 639 cm−1 (Eg). With a reduction in the metal size loaded, the peaks become less intense, and there is a greater shift of Raman modes, with the band at 133 (Eg) disappearing. After loading 5% Pdn, the frequency of Eg mode shifted from 143 and 144 cm−1 on 5% Pd/TiO2, and as the metal size is reduced to 0.1% of Pd, the frequency of Eg mode shifted to 143 and 155 cm−1 on 0.1% Pd/TiO2. When comparing our results with literature, we found that this trend has been previously reported for metal-loaded oxide catalysts. The disappearance of the Raman bands after Pd deposition can be attributed to strong metal–support interactions. Pd species anchored on the support surface can reduce the characteristic lattice vibrations of the support resulting in peak broadening or complete disappearance of the corresponding Raman bands. This effect becomes more pronounced as Pd is dispersed on the support surface, even at low metal loadings.48 The shift of the band at 143 (Eg) is reported to be due to the formation of oxygen vacancies on the support structure. Therefore, the larger Raman shift observed for smaller clusters is likely due to the formation of oxygen vacancies on the support's surface as the size gets reduced.49 This suggests that a low amount of Pd loading facilitates the generation of oxygen vacancies on the support itself, while a higher amount of Pd loading may tend to block a portion of the oxygen vacancies of the support. As aforementioned, as the metal size is reduced to a smaller cluster, the peaks became less intense at 394 (B1g), 515 (A1g), and 639 cm−1 (Eg). The intensity weakens due to Pd–O bonding. Strong Pd–O bonding is ideal in catalysis as it induces oxygen vacancies on the support surface, which act as active adsorption sites for substrates near the metal–support interface. Fig. 4(b) shows the Raman spectra of γ-Al2O3 supported catalysts. The Raman signatures, Eg and A1g modes observed, correspond to γ-Al2O3. The Raman bands at ∼378, 500, and 710 cm−1 are assigned to Eg, and the 419 cm−1 band is assigned to A1g mode. After loading 5% Pdn, the frequency of A1g mode shifted from 419 cm−1 to 420 cm−1, and as the metal size is reduced to 0.1% of Pd, the frequency of Eg mode shifted from 419 cm−1 to 427 cm−1. The peaks become less intense at 378 (Eg) and 419 (A1g), and the intensity weakens due to Pd–O bonding. Fig. 4(c) shows the Raman spectra of SiO2-supported catalysts. The Raman spectra showed three distinct peaks associated with SiO2 at ∼464, 601, and 800 cm−1. Despite their similar modes with the supports, with the reduction in the Pd loading, the band shifted slightly to higher wavenumbers.
![]() | ||

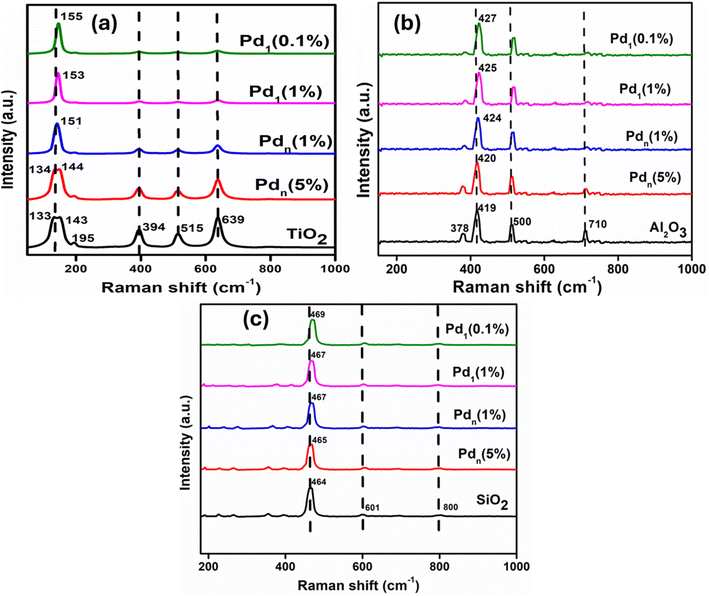

| Fig. 4 The Raman spectra of the prepared catalysts supported on (a) TiO2, (b) Al2O3 and (c) SiO2 showing effect of size on structural changes on the overall catalysts. | ||

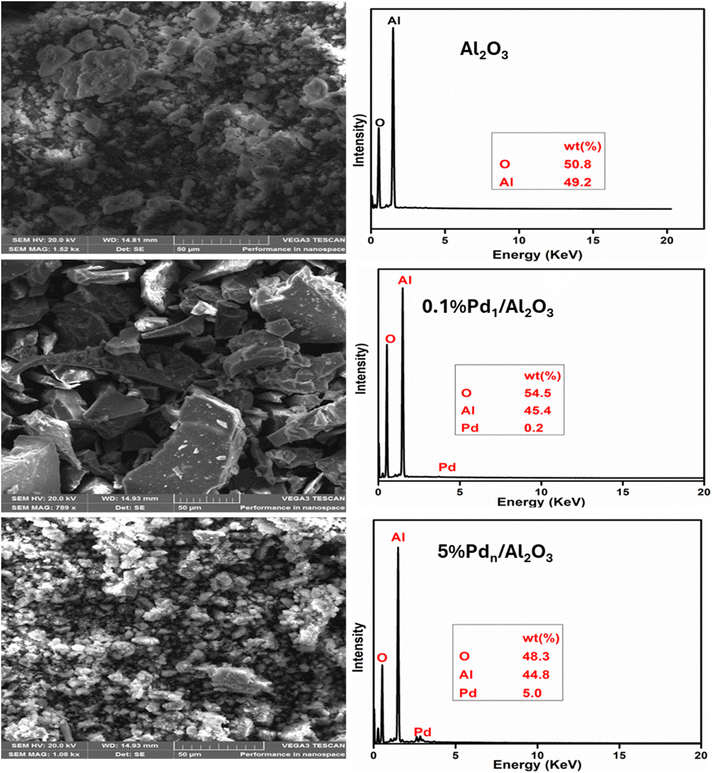

The SEM images and EDX spectra of the as-synthesized catalysts are shown in Fig. 5 and S4 in the SI. All catalysts exhibit rough granular shapes with relatively small particle sizes present on the bulk surface. It was observed that the Pd metal loading influences the size and shape of the supports. The higher the Pd content in the overall catalysts, the smaller the particles in size. Smaller Pd clusters (Pd1) show larger, irregular shapes and fractured surface morphologies due to their strong interaction with the support. This interaction lowers the surface energy of the support, making it energetically favorable for the support to undergo particle growth or aggregation, which results in larger and more stable particles.50,51 Such electronic effects at the metal–support interface influence both the stability and the morphology of the overall catalyst. The EDX analysis further confirmed the presence of all the expected elements (Al, Ti, Si, O, and Pd) in the catalysts.
The corresponding size distributions of all the catalytic materials were calculated from HR-TEM images using ImageJ software. The TEM image of the 0.1% Pd1/Al2O3 ultrasmall cluster in Fig. S5(a) revealed small metallic clusters on the surface of the alumina support. As the amount of Pd increased in the metallic cluster to 1% Pd (Fig. S5(b) in SI), clusters were too small or dispersed to give a meaningful distribution. The 1% Pdn/Al2O3 and 5% Pdn/Al2O3 TEM images n Fig. S5(c) and (d) in SI showed the presence of Pd nanoparticles. In 1% Pdn/Al2O3 nanoparticles, the histogram shows an average particle size of 2.6 ± 0.7 nm, indicating relatively small and narrowly distributed Pd nanoparticles. The 5% Pdn/Al2O3 nanoparticles are formed with an average size of 4.06 ± 1.8 nm, confirming a broader distribution. The growth of Pd nanoparticles with increasing loading is expected due to limited anchoring sites on the Al2O3 support and stronger Pd–Pd interactions.
Fig. S6 in SI shows elemental mapping for 0.1% Pdn/Al2O3, showing that Pd, Al, and O atoms were distributed homogeneously on the material's surface. Fig. S7 in SI shows TEM images of TiO2 catalysts. In Fig. S7(a and b), 0.1% Pd1/TiO2 and 1% Pd1/TiO2, no larger Pd particles were observed. We confirmed the presence of Pd atoms in 0.1% Pd1/TiO2 using elemental mapping (Fig. S8), which showed that Pd atoms are very dispersed, small, and isolated. 1% Pdn/Al2O3 and 5% Pdn/Al2O3 (Fig. S8(c and d) in SI) show the presence of distinct nanoparticles with an average size of 2.1 ± 1.4 nm and with an average size of 4.6 ± 1.4 nm. At higher loading (5%), Pd nanoparticles become more prominent, with larger and more particles. As Pd loading increases, dispersion decreases from atomically dispersed Pd to aggregated nanoparticles, particle size increases, and metal–support interaction weakens, while Pd–Pd interaction strengthens.

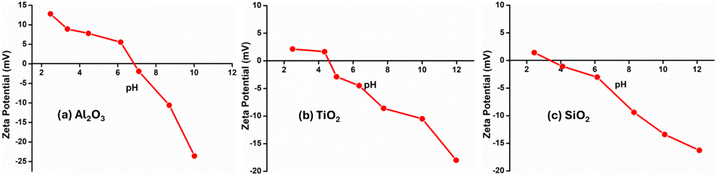

Fig. 6 shows the zeta potential as a function of pH for Al2O3, TiO2, and SiO2 supports. The Al2O3 exhibits the highest PZC (PZC = 6.8), while TiO2 displays an intermediate PZC (PZC = 4.9). In contrast, SiO2 shows a low PZC (PZC = 3.2), indicating a predominantly acidic surface. In Fig. 7, the 0.1% Pd/Al2O3 catalyst exhibits a significantly lower point of zero charge (PZC = 4.8), indicating modification of surface charge properties at low Pd loading. This decrease in PZC suggests strong interaction between Pd atoms and the Al2O3 surface. Strong Lewis acidic Al3+ sites easily trap Pd atoms, leading to alteration of the surface hydroxyl groups and the formation of more acidic surface sites, such as Pd–O(H) and Pd–O–Al linkages, thus the surface becomes more acidic.54 Márquez, et al. studied DFT and shown that isolated Pd atoms preferentially anchor to tetrahedrally coordinated Al3+ sites of Al2O3 supports.54 Therefore, as the loading increases, further changes in the zeta potential profile were observed, which can be attributed to increased surface coverage by PdO species and partial coverage of Al2O3 surface sites. These results demonstrate that Pd loading has a strong influence on the surface charge behaviour of Al2O3, and that zeta potential measurements are highly sensitive to changes in surface composition and metal–support interactions.
![]() | ||

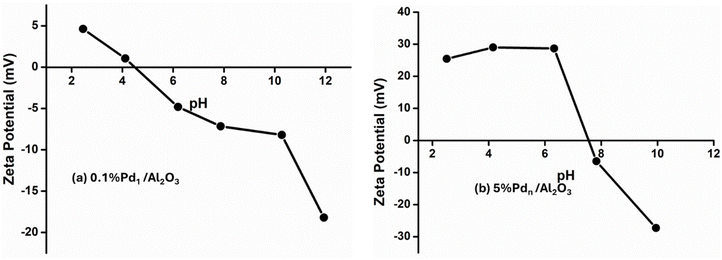

| Fig. 7 Surface charge vs. pH of (a) 0.1% ultrasmall cluster of Pd and (b) 5% Pd nanoparticles on Al2O3. | ||
Pyridine probe-FTIR spectroscopy was used to investigate the nature of the acidic sites of the catalysts. Fig. 8(a) shows Al2O3 exposed to pyridine with characteristic bands at ∼1580 and ∼1445 cm−1 corresponding to Lewis acidic sites (L), and a band at ∼1490 cm−1 assigned to combined Lewis–Brønsted acidic sites (L and B), confirming the Lewis acidic nature of the support. In Fig. 8(b) no significant bands were detected in the absence of pyridine, confirming that these features originate from adsorbed pyridine. The Al2O3 has more electron accepting sites which come from unsaturated cation (Al3+) than donating sites (H+). After Pd deposition (0.1–5 wt%), the pyridine-FTIR spectra show similar band positions with no new peaks, indicating that Pd loading does not generate additional acidity but rather interacts with pre-existing acid sites of Al2O3. Now comparing 0.1% Pd and 5% Pd loading, it is clear that the intensities became weaker when adding more metal due to metal coverage.
![]() | ||

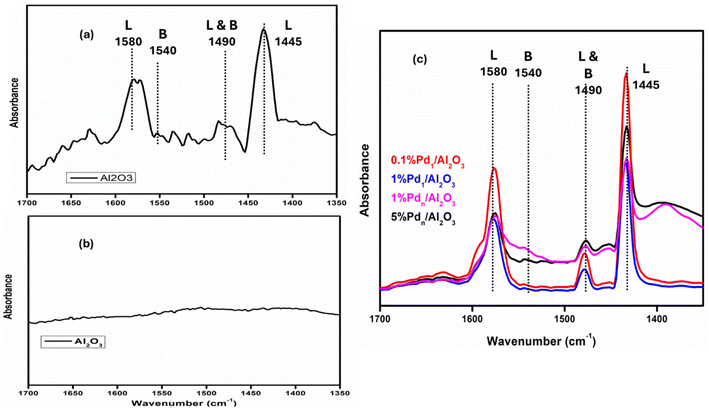

| Fig. 8 Pyridine FTIR of the (a) Al2O3 support exposed to pyridine, (b) the Al2O3 without exposure to pyridine, and (c) Pd-supported catalysts. | ||

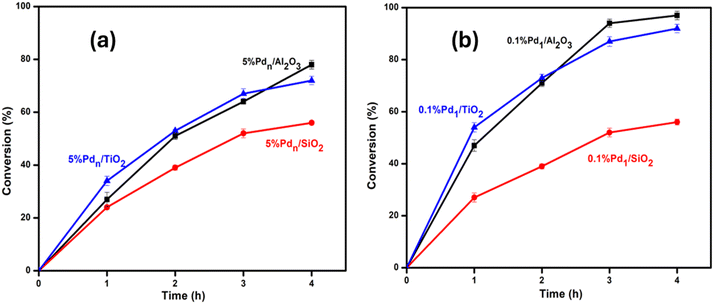

We then compared ultrasmall clusters supported on different metal oxides (0.1% Pd1/Al2O3, 0.1% Pd1/SiO2, and 0.1% Pd1/TiO2) in the same reaction using the same reaction conditions. The results showed that with the change in catalytic support, the catalytic activity changes. The percentage conversion varies in the following order: 0.1% Pd1/Al2O3 (97%) > 0.1% Pd1/TiO2 (92%) > 0.1% Pd1/SiO2 (56%) in 4 hours. Again, alumina showed better catalytic activity, as in the case of supported nanoparticles, thus it was chosen as the optimum support for the metal size effect study.
![]() | ||

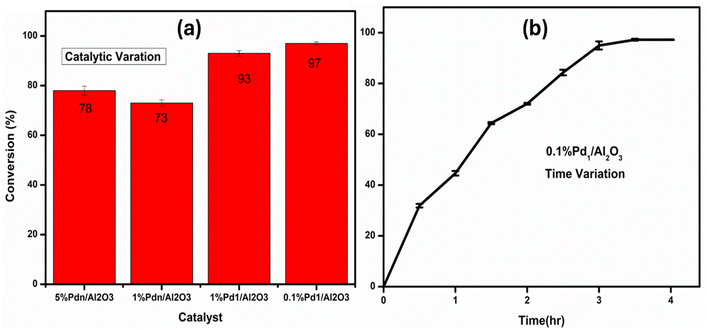

| Fig. 10 (a) Comparison of reaction activities of Pd/Al2O3 catalysts (catalytic variation) in different metal loading and (b) time effect of 0.1% Pd1/Al2O3 catalyst for the Suzuki coupling reaction. | ||
The effect of reaction time on catalytic performance is shown in Fig. 10(b). The reaction time was varied from 1 to 4 hours. Up to 3.5 hours, the percentage conversions increased with time. However, at prolonged reaction time, above 3.5 hours, the percentage conversion remains almost the same. This may be due to the irreversible reaction reaching its equilibrium between 3.5 to 4 hours. Therefore, 3.5 hours was selected as the optimum time in the solution set-up.
For mechanochemical C–C coupling setup the term solvent will be dropped and replaced by liquid. This is because the liquids are used for a different role unlike as solvents in the liquid–solid interfacial reactions. In this work, the best parameter optimizations from the solution setup were used. The yield decreased significantly because of the optimum liquid effect, water from the solution set-up. Among the liquids evaluated in Table 3, methanol (51% conversion) and isopropanol (33% conversion) performed better than DMF, toluene, and water. This is due to poor binding of alcohols to Pd, thus they do not deactivate the catalyst. While DMF as a Lewis acid binds strongly to Pd, making it a less effective liquid for ball milling technique. This applies to water as well because it interacts strongly with Pd, reducing its effectiveness. Lastly, toluene is an organic liquid, and most organics are known for their lubricating effect. Because of this, toluene reduces the effect of the impact and lowers the effectiveness of the ball milling technique.
| Entry | Liquid (µl) | Ball milling parameters | Temperature | Conversion% | References | ||
|---|---|---|---|---|---|---|---|
| Time | Speed | Grinding ball size | |||||
| a Reaction conditions: a mixture of phenylboronic acid (3 mmol), bromobenzene (1 mmol), Na2CO3 (3 mmol), catalyst (5 mmol%), and liquid (0.1 ml) was milled in a stainless-steel jar at 25 Hz with two stainless-steel balls that were 8 mm in diameter at ambient temperature for 1 hour. Yield determined by GC analysis using an internal standard. | |||||||
| 1 | H2O | 1 h | 25 Hz | 8 mm | 25 °C | 6 | This work |
| 2 | Methanol | 51 | |||||
| 3 | Toluene | 17 | |||||
| 4 | Isopropanol | 33 | |||||
| 5 | DMF | 29 | |||||
| 6 | H2O : methanol (1 : 1) |
77 | |||||
| 7 | H2O | 10 min | 30 Hz | 5 mm | 110 °C | 95 | 58 |
A mixture of methanol and water provided an excellent percentage conversion, 77% as shown in Table 3, entry 6. Different ratios of water and methanol mixture were evaluated as shown in Fig. 11(a). Firstly, the pure liquids induced activity is lower than that of the mixtures. Secondly, a high percentage of methanol in the mixture is less active than when water is in access. Lastly, a mixture consisting of a 1
:
4 methanol
:
water ratio is the optimum mixture that gives the highest percentage conversion of the substrate (97%). By using this MeOH/H2O ratio (1
:
4), phenyl boronic acid is 97% converted within an hour at room temperature, which is also the highest conversion obtained for the time variation study shown in Fig. 11(b). The water/methanol mixture gave 77% conversion when mixed in equal amounts. This much improved activity is induced by the synergistic effect of water and methanol on Pd surface chemistry. The high binding affinity of water is countered by the less binding capability of methanol. On the other hand, the phase segregation of water and the reactants is reduced by the presence of methanol. All these factors aid in achieving better catalytic yields.
The atomically dispersed ultrasmall clusters in 0.1% Pd1/Al2O3 gave the highest TON, 5.879 × 105. On the other hand, the nanoparticles in the form of 5% Pdn/Al2O3 exhibited the lowest TON, 1.396 × 104 among the synthesized catalysts. This also shows the potent catalytic nature of the ultrasmall Pd clusters in driving the Suzuki–Miyaura coupling reaction. Furthermore, the highly selective nature of the 0.1% Pd1/Al2O3 catalyst (96.8%) reiterates that the smaller clusters operate more like the atomically dispersed atoms of Pd, thus offering near isolated catalytically active sites that are highly selective. While on the hand, nanoparticles such as 5% Pdn/Al2O3 (94.8%) have facets that offer different adsorption energies, thus leading to less selective route to product formation. Eqn (3)–(5) were used to calculate turnover number (TON), percentage selectivity, and percentage yield, respectively. Table 4 shows the catalytic turnovers of the synthesized catalysts.
![]() | (3) |
![]() | (4) |
![]() | (5) |
| Entry | Catalyst | No. of moles of Pd (mmol) | Conversion (%) | Selectivity (%) | Yield | TON | Reference |
|---|---|---|---|---|---|---|---|
| 1 | 0.1% Pd1/Al2O3 | 1.597 × 10−3 | 97.0 | 96.8 | 93.9 | 5.879 × 105 | This work |
| 2 | 1% Pd1/Al2O3 | 0.0123 | 84.4 | 97.3 | 82.1 | 6.675 × 104 | |
| 3 | 1% Pdn/Al2O3 | 0.0105 | 71.1 | 97.1 | 69.0 | 6.571 × 104 | |
| 4 | 5% Pdn/Al2O3 | 0.0514 | 75,7 | 94.8 | 71.76 | 1.396 × 104 | |
| 5 | Pd–Co–Mg–Fe–CHT | 0.009 | — | — | 93 | 4.261 × 104 | 59 |
| 6 | Pd/CNS | 0.45% w/w | — | — | 95 | 1.2 × 102 | 60 |
| 7 | Pd/AC | 4.7 | — | — | 80 | 222 | 46 |
| 8 | Ac–Pd | 7.63 | — | — | 69 | 192 | 61 |
![]() | ||

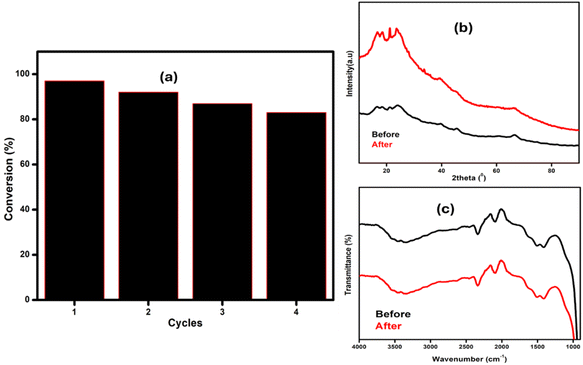

| Fig. 12 Recyclability studies, (a) conversion versus number of cycles, (b) P-XRD of the catalyst (before and after 3 cycles), and (c) FTIR results before and after reaction. | ||
Supplementary information (SI): description of characterization methods, FTIR, TGA, TEM, SEM, EDX, elemental mapping, and NMR spectra. See DOI: https://doi.org/10.1039/d6ra00004e.
