Copper tungstate-assisted photocatalytic degradation of industrial products (dyes and pharmaceuticals) in water

Abstract

The contamination of ecosystems, specifically aquatic ecosystems, has emerged as a substantial concern in recent decades. This is mostly owing to the extensive growth of large industries that not only promote societal advancements but also impose adverse effects on the environment. Azure A (AA) and Azure B (AB) are the cationic dyes commonly employed in industrial and biomedical fields as intermediates in the production of several pharmaceuticals and as mediators for electrochemical biosensing, and indigo carmine (IC) is an anionic dye used in the textile industry for dyeing. Micropollutants such as pharmaceuticals, propranolol hydrochloride (β-blocker) (PPH) are the pollutants in the subject of discussion. In this research, the efficient degradation of AA (91%), AB (84.6%), IC (87.3%) and PPH (>80%) by the CuWO₄ photocatalyst is highlighted. Both the dye and drug degradations followed pseudo-first order kinetics. CuWO₄ catalyst is used to alleviate the impact of the environment on its ecosystem as a photocatalyst with ultraviolet (UV) irradiation of pollutants (AA, AB, and PPH). For the analysis of pollutant decomposition, UV-visible absorption spectroscopy and high-performance liquid chromatography (HPLC) are employed. This study highlights the potential of nanomaterial-based photocatalysis as a viable and effective method for sustainably mitigating water pollution.

---

1. Introduction

Over the decades, the development of industrialization has gained strength in society; nevertheless, it has also caused negative environmental impacts on ecosystems.¹ As a report, about 15% of dyes are unscientifically discarded in the environment, especially in aquatic environments, which poses risks for both nature and health.^2,3 Numerous dyes, including methylene blue (a phenothiazine dye)⁴ and indigo carmine, among others, contain aromatic rings; therefore, their biodegradation is not feasible.^5,6

“Emerging contaminants” are detected increasingly as low amounts in an ecosystem. The drugs,^7–9 such as metoprolol, propranolol, atenolol, and pindolol belong to this group of contaminants are fall in this category. These drugs possess characteristic multi-functionalized aromatic groups, and they are soluble in water and susceptible to deionization.^10–12 In European wastewater, an average concentration of 0.01 µg L⁻¹ has been quantified up to concentrations of 0.29 µg L⁻¹ for PPH.¹³ Many of the drugs are designed to be consumed orally, as they are resistant to neutral and/or basic hydrolysis, oxidation, or photolysis, which become their main routes of abiotic dissipation in natural waters. In relation to this, propranolol has a naphthalene skeleton, which indicates that it can act as a photosensitizing agent and be unstable to light.¹⁴

Propranolol hydrochloride (PPH) is a non-selective β-blocker drug used in clinical practice, which is administered mainly during cardiovascular therapy and for the management of primary hypertension.^15–17 The assertion that the decrease in blood pressure is a consequence of diminished cardiac output caused by the inhibition of beta-receptors in the heart is subject to criticism.¹⁸ The presence of PPH in water is of concern due to its potential adverse effects on aquatic organisms and aquatic ecosystems in general.¹⁹ Although PPH is a commonly prescribed beta-blocker, it can be considered safe for humans²⁰ only when used correctly. PPH can have adverse effects on aquatic organisms, especially at concentrations higher than the permissible limit in drinking water.

Industrial dyeing generates effluents, which comprise organic contaminants, and require treatment prior to discharge into natural water sources. Contemporary methods for treating wastewater involve the utilization of specialized oxidation techniques, including ozonation, Fenton reactions, and photocatalysis.^21–24 Considerable interest has been directed towards photocatalysis due to its potential to eliminate toxic inorganic compounds, heavy metals, and organic pollutants from wastewater in a sustainable, eco-friendly, and straightforward manner.^25–27

Solutions to technological and environmental challenges in the fields of solar energy conversion, catalysis, medicine, and water remediation are offered by nanomaterials.^28,29 Researchers utilize metal oxide nanomaterials as a catalyst, including those of Fe₃O₄, TiO₂, Al₂O₃, CuO, ZnO, and MgO, due to their versatile physical, chemical, and morphological properties that can be customized by tuning their synthesis parameters.^30–33 The photodegradation of pollutants in water is a process that involve the production of reactive oxygen species.³¹

Conventional methods such as reverse osmosis, hydrogen peroxide treatment, dialysis, and UV photocatalysis³⁴ are used for pollutant remediation from water. UV photocatalysis is a highly effective method owing to its easy operation, simple design, and the ability to completely degrade wastewater. The nanomaterials of metal oxides have the ability to degrade dyes present in industrial effluents. Notably, under ultraviolet light, low molecular weight metal oxide nanomaterials can engage in oxidation processes, yielding industrial CO₂, H₂O and aliphatic acids as final products. Researchers have shown significant interest in creating inorganic nanomaterials, such as metal oxide, metal tungstate, and metal molybdates, through synthesis.^34,35

Copper tungstate (CuWO₄) belongs to the tungstate family of compounds containing divalent transition metal ions that are structurally related. The 3d-orbitals of these metal ions are responsible for the observed electronic correlation effects.³⁵ This semiconductor material with a high catalytic capacity is applied for nitric oxide gas sensing^36,37 and photoelectrochemical water splitting.^38–40 CuWO₄ contains Cu²⁺ ions and has a d⁹ electronic configuration unlike common d⁰ photocatalysts such as WO₃, TiO₂, and BiVO₄, and this distinct electronic structure results in different optical transitions, altered charge‑carrier behavior, stronger electronic correlation effects, and consequently unique photocatalytic properties.^41–44 Recent research indicates that CuWO₄ nanoparticles exhibit higher photocatalytic activity than P25.³⁵ CuWO₄ is formed through the reaction of Cu²⁺ with WO₃ at high temperatures,⁴⁵ and it can be produced in the form of thin films via the controlled addition of Cu²⁺ on the WO₃ substrate.⁴⁶

The present study aims to understand the degradation of PPH, AA, AB, and IC by the green photocatalyst⁴² CuWO₄ under UVC and visible light irradiations. Analytical techniques such as UV-visible absorption spectroscopy and HPLC are used for the performance evaluation of CuWO₄, and kinetic studies are also performed. The heterogeneous nature of the catalyst facilitates its subsequent removal following its utilization.⁴⁷

2. Experimental methods

2.1. Chemicals

The compounds copper(II) sulphate pentahydrate CuSO₄·5H₂O (≥98%), AA, AB and IC were acquired from Sigma-Aldrich, USA. Sodium tungstate dihydrate, Na₂WO₄·2H₂O (≥99%), was acquired from Sigma-Aldrich, India. DL-propranolol hydrochloride (99%) (Scheme 1) was provided by Thermo Fisher Scientific, Japan. Acetonitrile (ACN) for HPLC gradient grade (≥99.9%), phosphoric acid (H₃PO₄), and water for HPLC (H₂O) were obtained from Sigma-Aldrich, France. For the synthesis of the catalyst, AA, and AB, we used double-distilled water. Nevertheless, to spike the IC, we used tap water from Pavia (Italy).

Scheme 1 Structure of propranolol hydrochloride.

2.2. Synthesis of CuWO₄

CuWO₄ was prepared via coprecipitation by mixing two aqueous solutions: 50 mL of 0.4 M solution A (CuSO₄·5H₂O) and 50 mL of 0.4 M solution B (Na₂WO₄·2H₂O). Solution B was poured into solution A under stirring at a temperature of 60 °C and kept for 2 hours; subsequently, it was filtered, and the solid was dried at 100 °C for 24 hours in an oven, obtaining copper tungstate dihydrate.⁴⁸

2.3. Instrumentation for degradation analyses

AA (Scheme 2), AB (Scheme 3) and IC dye decomposition analyses were performed by UV-visible absorption spectroscopy (Hewlett Packard 8452A diode array spectrophotometer) in 1 cm quartz cuvettes. The drug, PPH, was analyzed by HPLC. The HPLC setup is as follows: The Waters' HPLC system has an HPLC-UV-vis detector WATERS 2487 set to 291 nm. The system was equipped with a C-18 reverse phase Phenomenex column (150 × 4.6 mm, particle size 5 µL). The operating parameters for the HPLC analysis are as follows: a mobile phase consisting of a mixture of acetonitrile (ACN, 30% by volume) and water containing 0.1% of phosphoric acid (H₃PO₄) (70% by volume), a column temperature of 30 °C, an injection volume of 10 µL, and mobile phase flow rate set at 1 mL min⁻¹.

Scheme 2 Structure of azure A.

Scheme 3 Structure of azure B.

2.4. Sample preparation

A suspension of 50 ppm of propranolol hydrochloride, was added to 50 mg of CuWO₄ in 100 mL. In the case of dye decomposition, 5 mg of CuWO₄ was used in 25 mL of dye solution with a concentration of 5 × 10⁻⁵ mol dm⁻³. As the samples (dyes or/and drugs) were adsorbed on the CuWO₄, the photocatalytic activity of the nanoparticles was tested. The dye samples were kept in darkness for 20 minutes. Then they were irradiated in quartz tubes inserted in a photoreactor equipped with 4 low pressure mercury lamps of 15 W each. All these solutions were also verified (maximum irradiation time of 2 h) by irradiating with an 18 W visible light LED lamp at 30 mW cm⁻² (EvoluChem P204-18-1 6200K LED0000034) which has no appreciable reactivity. In the case of PPH this visible light is sufficient to perform the photo reaction. In the case of IC, we employed the dye in tap water to understand its decomposition efficiency as industrial waste on a real time scale (Scheme 4).

Scheme 4 Structure of indigo carmine.

3. Results and discussion

3.1. Characterization of CuWO₄

3.1.1. X-ray diffraction. Fig. 1 illustrates the X-ray diffraction pattern of the prepared CuWO₄, which is in agreement with triclinic CuWO₄ that belongs to the P1̄ space group in the open crystallographic database 2024 (JCPDS number: 96-210-1693). The obtained diffraction patterns matched with the (101), (111), (012), (1−12), (1−22) and (3−11) planes of triclinic CuWO₄.

Fig. 1 X-ray diffraction pattern of CuWO₄.

3.1.2. UV-visible absorption spectrum of CuWO₄ and the Tauc plot of CuWO₄ for the bandgap calculation. Fig. 2a depicts the UV-visible absorption spectrum of the as-prepared CuWO₄ photocatalyst, which displays the absorption maximum at around 300 nm. Fig. 2b displays the Tauc plot of CuWO₄, which reveals that the optical bandgap energy is 2.90 eV. The obtained bandgap value of the CuWO₄ is consistent with the past investigation of CuWO₄, which is 2.25 eV to 2.4 eV.^49–51 This narrow bandgap of CuWO₄ enables it to resist photocorrosion^39,52 in aqueous solutions at a neutral pH. In this context, we tried CuWO₄ as a photocatalyst powered by visible light, owing to its capability of capturing visible light at a wavelength of 540 nm.^53,54

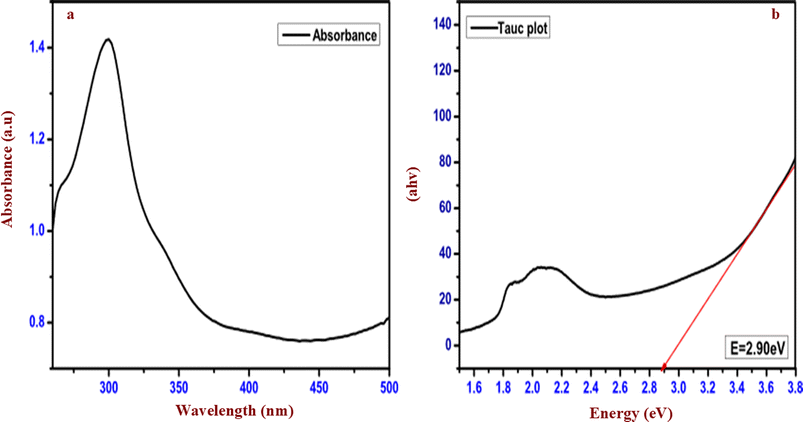

Fig. 2 (a) UV-visible absorption spectrum of CuWO₄. (b) Tauc plot of CuWO₄.

At lower concentrations of the dyes and the drug, the CuWO₄ photocatalyst performed more efficiently under UVC light. We selected lower concentrations of dyes and drugs because the study focuses on conditions relevant to industrial effluents.

3.1.3. Scanning electron microscopy analysis. In Fig. 3a and b, the SEM images of CuWO₄ thin films with a thickness of 2 µm are shown, which reveal irregular granule-like structures above 500 µm. Fig. 3c shows the elemental distribution of CuWO₄, with Cu and W as the major elements.

Fig. 3 (a and b) Scanning electron microscopic image of CuWO₄. (c) Elemental distribution of CuWO₄, showing the presence of (O), copper (Cu), and tungsten (W).

The proportional amounts of oxygen (O), copper (Cu), and tungsten (W) obtained from the elemental analysis of CuWO₄ photocatalyst as measured by SEM/EDX are shown in Table 1. Each of the values given would be acquired from the elemental analysis technique employed and indicate the proportional abundance of each element in the CuWO₄ photocatalyst as measured by SEM/EDX.

Table 1 Percentage of elements present CuWO₄, as determined by EDX

Elements	Weight percentage (%)	Atomic percentage (%)
Copper (Cu)	17.24	11.07
Tungsten (W)	36.01	7.68
Oxygen (O)	28.05	56.78

---

3.1.4. Thermogravimetric analysis. Thermogravimetric analysis (TGA) was conducted on a CuWO₄ sample to figure out its thermal degradation characteristics. TGA was performed under a nitrogen atmosphere (which provides an inert environment) within a temperature range of 25–1000 °C. In the absence of oxygen, the thermochemical processes cause the decomposition of volatile constituents, resulting in the formation of a residue.

Fig. 4 illustrates the process of thermal degradation of the CuWO₄ sample. At temperatures below 200 °C, the TG measurements indicated a mass loss of less than 10%. This value is around 200–400 °C which depicts the necessity of the heating of CuWO₄ catalyst after the synthesis above this temperature to obtain the anhydrous salt. However, since we are performing the application of the catalyst in water, the calcination step was not carried out. In addition, at temperatures above 850 °C, TG measurements indicated a mass loss of 12.86% which confirms the formation of CuWO₄ which is further confirmed by the thermodynamic stability of the tungsten trioxide.^55,56

Fig. 4 Thermogravimetric analysis (TGA) and differential thermogravimetric analysis (DTGA) plots of CuWO₄ samples.

3.2. Degradation of dyes using CuWO₄

The utilization of photocatalysts to degrade dyes offers a viable solution for addressing water pollution issues caused by effluents containing dyes from diverse sectors such as textile, pharmaceutical, and chemical manufacturing. The dye molecules in wastewater will be bound to the photocatalyst surface by physical interactions, such as electrostatic attraction or van der Waals forces. This step increases the density of dye molecules that are in close proximity to the photocatalyst, facilitating their easy decomposition. Here, we selected the dye molecules of AA and AB (cationic dyes) and IC (an anionic dye) to be used in conjunction with the photocatalyst, CuWO₄. In both cases, the photocatalyst exhibited the capability to gather and accumulate dye molecules in its close proximity.

Upon absorbing photons with sufficient energy, photocatalysts produce electron–hole pairs that initiate dye degradation. Concurrently, reactive oxygen species (ROS) are generated on the catalyst surface such as hydroxyl radicals (˙OH) and superoxide ions when electron–hole pairs react with water and oxygen molecules or adsorbed substances.^{31,44,57–59} ROS with strong oxidative potential break chemical bonds and transform dye molecules into fragments. Photocatalysis maintains its effectiveness by converting dye molecules into non-toxic inorganic chemicals such as CO₂ and H₂O,⁶⁰ making it a sustainable and environmentally benign method for treating wastewater.

To check the physical interaction (adsorption) of the dyes AA, AB, and IC with CuWO₄, the catalyst and the solution were stirred for 20 minutes in the dark, as shown in Fig. 6, and the decrease in the absorption value of the solution was measured. It is well known that CuWO₄ might be adsorbed on the dye surfaces with aromatic ring structures.⁶¹ After absorbing a photon, CuWO₄ produces electron–hole pairs. These highly active charge carriers initiate the disintegration of dye molecules. The plausible mechanism reported in the literature is as follows: when the electron–hole pairs react with the oxygen molecules in water or adsorbed compounds, the surface of the photocatalyst forms reactive oxygen species (ROS), such as hydroxyl radicals (˙OH) and superoxide ions (Fig. 5).^{31,44,57–59} The generated ROS have a high oxidation potential, which means that they can break chemical bonds and convert dye molecules into basic chemicals, such as CO₂ and H₂O, which are safe for living beings. In the experiment, AA, AB, and IC were subjected to irradiation in the absence of CuWO₄, as seen in Fig. 6.

Fig. 5 Plausible reaction mechanism for the photocatalytic pollutant degradation using CuWO₄.

Fig. 6 UV-vis absorption spectra of AA, AB, and IC with and without CuWO₄ under UVC light.

The kinetics of the photoreactions were found to follow a pseudo-first-order model (Fig. 7). The kinetic constants were found to be, −2.4 × 10⁻² a.u. min⁻¹ and −2.14 × 10⁻² a.u. min⁻¹ for IC and AB, respectively. For AA, the pseudo-first order kinetic constant is −2.85 × 10⁻² a.u. min⁻¹; however, the deviation from linearity, as visible in Fig. 6, and the low R² value (0.98) indicate that the underlying mechanism is probably more complex. The pseudo-first order rate constants were calculated using eqn (1).^62,63

ln(C/C₀) = −kt (1)

Fig. 7 Kinetics of the degradation of dyes (AA, AB, and IC) using CuWO₄ under UVC irradiation.

To interpret the photoreaction dynamics, we calculated the amount of light absorbed by the catalyst with respect to dyes. Since the UVC lamp emits mainly at 254 nm, the radiation could be considered monochromatic, and hence, the calculation was performed at this wavelength. The AA, AB and IC dyes used in this experiment exhibited a measured molar absorption of 75 300, 92 600 and 20 500 dm³ mol⁻¹ cm⁻¹, respectively. In these experiments, CuWO₄ is about 20 times more concentrated, thus drugs have a competitive absorption with the photocatalyst ranging from 50 to 70% of the light absorbed by dyes. Under these conditions, we expect an energy transfer from the excited state of the dye (that we demonstrated to be nonreactive) to the catalyst, giving rise to electron/hole pairs. By fast recombination of electron/hole pairs, molecules adsorbed onto the surface are mainly decomposed. This fact gives importance to the study of adsorption (a dark reaction) before irradiation.

3.3. Degradation of PPH by CuWO₄

Fig. 8 summarizes the outcomes of the degradation of PPH under the influence of the CuWO₄ catalyst. Within 140 minutes, >80% of PPH removal from the solution was achieved. Dark equilibration for 30 minutes revealed only a negligible interaction between the dye and the catalyst. On exposure to visible light, the dye concentrations reduced sharply within the first period of illumination. The kinetics of degradation were later determined using HPLC.

Fig. 8 Percentage of PPH degradation in the presence of CuWO₄ under visible light and in dark conditions.

The presence of CuWO₄ facilitates chemical interactions, creating a conducive environment for the activation of PPH molecules. This activation process involves many transformations, such as oxidation and hydrolysis, which are particularly favored by catalysts of the metal oxide type, such as CuWO₄.⁶⁴

The addition of CuWO₄ enhances the degradation efficiency of PPH, resulting in a higher conversion rate of the drug into breakdown products or metabolites. Thus, CuWO₄ can be advantageous in wastewater treatment applications or in the elimination of medicinal compounds from the environment.⁶⁴

The decomposition of PPH is directly related to the duration of irradiation, whether it is sunlight or artificial light, on the catalyst's surface because irradiation leads to the formation of electron pairs that engage in redox reactions with the adsorbed PPH. The percentage of PPH degradation is subject to variations depending on certain parameters, such as the catalyst type, PPH concentration, reaction conditions, and reaction duration, and modulating these parameters is essential to achieve optimal efficiency in the process.^64–67

The kinetics of the reaction followed a pseudo-first-order model (Fig. 9). The kinetic constant was calculated to be −0.98 × 10⁻² a.u. min⁻¹ using eqn (1), but the deviation from linearity, as visible in Fig. 7, and the low R² value (0.95) indicate that the underlying mechanism is probably more complex. This might be related to the decomposition of PPH by direct light absorption or due to the interactions between secondary products and PPH.

Fig. 9 Kinetics of the degradation of PPH using CuWO₄ under visible light irradiation.

4. Conclusion

The effective use of CuWO₄ (a green photocatalyst) eliminates pollutants such as AA dye (91%), AB dye (84.6%), and IC (87.3%) under UVC irradiation and degrades the drug PPH (>80%) under visible light irradiation. Both the dye and drug degradation reactions follow pseudo-first-order kinetics. Such research on pharmaceutical and dyeing industries will ensure that there is a sustainable and environment-friendly approach to dealing with water pollution. UV-visible absorption spectroscopy and high-performance liquid chromatography (HPLC) are employed to analyze the catalyst's efficacy. These findings indicate the advantages of using material-based photocatalysis (green photocatalyst) as an effective method to mitigate the effects of industrial and medicinal pollutants on the environment. Further exploration and advancements in this domain could potentially result in the development and wider use of enhanced methodologies for water treatment, eventually fostering the preservation of natural environments.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have influenced the work reported in this paper.

Data availability

The data supporting the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgements

This work was funded in part through the project NODES, Ministry of University and Research (M4C2 1.5 PNRR), and in part by the European Union, NextGenerationEU program under the grant agreement no. ECS00000036. D. V. and D. D. acknowledge support from the Ministry of University and Research (MUR) and the University of Pavia through the program “Dipartimenti di Eccellenza 2023–2027.”

References

1. A. Gaur, V. S. Chauhan and R. Vaish, Environ. Sci.:Adv., 2023, 2, 462–472.
2. R. Yang, Y. Fan, R. Ye, Y. Tang, X. Cao, Z. Yin and Z. Zeng, Adv. Mater., 2021, 33, 2004862.
3. T. Wu, Q. Liang, L. Tang, J. Tang, J. Wang, B. Shao, S. Gong, Q. He, Y. Pan and Z. Liu, J. Hazard. Mater., 2023, 443, 130251.
4. T. Chellapandi, G. Madhumitha, S. M. Roopan, M. Elamathi, K. Leeladevi, E. R. Nagarajan, D. Vadivel and D. Dondi, Opt. Mater., 2023, 142, 114099.
5. F. Wang, Y. Gao, S.-S. Liu, X.-H. Yi, C.-C. Wang and H. Fu, Chem. Eng. J., 2023, 463, 142466.
6. E. Aneggi, S. Hussain, W. Baratta, D. Zuccaccia and D. Goi, Molecules, 2024, 29, 2074.
7. A. Speltini, M. Sturini, F. Maraschi, E. Mandelli, D. Vadivel, D. Dondi and A. Profumo, Microchim. Acta, 2016, 183, 2241–2249.
8. M. Hu, J. Song, X. Yi, Z. Yuan, C. Wang, R. Gao, H. Zou, H. Zhang, C. Lv, H. Cui, T. Wang, C. Zhang, Z. Wei, K. Yun and C.-E. Chen, Environ. Sci.:Adv., 2025, 4, 1782–1795.
9. S. Karishma, P. R. Yaashikaa, P. S. Kumar, R. Kamalesh, A. Saravanan and G. Rangasamy, Environ. Sci.:Adv., 2023, 2, 1488–1504.
10. R. Zhang, G. Zhang, Q. Zheng, J. Tang, Y. Chen, W. Xu, Y. Zou and X. Chen, Ecotoxicol. Environ. Saf., 2012, 80, 208–215.
11. S. Zou, W. Xu, R. Zhang, J. Tang, Y. Chen and G. Zhang, Environ. Pollut., 2011, 159, 2913–2920.
12. M. J. Martínez Bueno, M. D. Hernando, A. Agüera and A. R. Fernández-Alba, Talanta, 2009, 77, 1518–1527.
13. I. Sirés, N. Oturan and M. A. Oturan, Water Res., 2010, 44, 3109–3120.
14. R. F. Dantas, O. Rossiter, A. K. R. Teixeira, A. S. M. Simões and V. L. Da Silva, Chem. Eng. J., 2010, 158, 143–147.
15. K. Kovács, A. Tegze, A. Bezsenyi and L. Wojnárovits, J. Environ. Chem. Eng., 2023, 11, 110330.
16. A. Piram, R. Faure, H. Chermette, C. Bordes, B. Herbreteau and A. Salvador, Int. J. Environ. Anal. Chem., 2012, 92, 96–109.
17. H. Karppanen, Naunyn-Schmiedeberg's Arch. Pharmacol., 1974, 281, 1–12.
18. E. D. Frohlich, R. C. Tarazi, H. P. Dustan and I. H. Page, Circulation, 1968, 37, 417–423.
19. D. Zhou, H. Liu, J. Wang, Y. Li, N. Wang and W. Li, Chemosphere, 2024, 357, 141985.
20. L. Luyten, A. Chalkia, A. E. Schnell, B. Özcan, L. Leng, N. Schroyens, L. Van Oudenhove, W. Vanpaemel and T. Beckers, J. Anxiety Disord., 2024, 104, 102870.
21. S. Chen, T. Ren, Z. Zhou, K. Lu, X. Huang and X. Zhang, Chem. Eng. J., 2023, 475, 145874.
22. K.-T. Lee, K.-Y. Ho, W.-H. Chen, E. E. Kwon, K.-Y. A. Lin and S.-R. Liou, Environ. Pollut., 2023, 335, 122246.
23. V. P. Sarvothaman, V. K. Velisoju, J. Subburaj, M. S. Panithasan, S. R. Kulkarni, P. Castaño, J. Turner, P. Guida, W. L. Roberts and S. Nagarajan, Ultrason. Sonochem., 2023, 99, 106548.
24. Z. Huang, X. Huang, K. Liu, J. Fu and M. Liu, Environ. Sci.:Adv., 2026, 5, 9–42.
25. S. Kumar, W. Ahlawat, G. Bhanjana, S. Heydarifard, M. M. Nazhad and N. Dilbaghi, J. Nanosci. Nanotechnol., 2014, 14, 1838–1858.
26. C. Khaokhajorn, P. Amornpitoksuk, C. Randorn, T. Rattana and S. Suwanboon, Inorg. Chem. Commun., 2023, 157, 111392.
27. M. A. Al-Nuaim, A. A. Alwasiti and Z. Y. Shnain, Chem. Pap., 2023, 77, 677–701.
28. M. A. Vallejo Pat, H. Ezekiel-Hart and C. D. Powell, Nanomaterials, 2025, 15, 1377.
29. S. Liu, G. Huang, J. Wang, J. Bao, M. Wang, Y. Wei, Y. Zhong and F. Bai, Nanomaterials, 2023, 13, 660.
30. S. Haviar, J. Čapek, Š. Batková, N. Kumar, F. Dvořák, T. Duchoň, M. Fialová and P. Zeman, Int. J. Hydrogen Energy, 2018, 43, 22756–22764.
31. B. R. Gomes, J. L. Lopes, L. Coelho, M. Ligonzo, M. Rigoletto, G. Magnacca and F. Deganello, Nanomaterials, 2023, 13, 2276.
32. N. Kumar, S. Haviar and P. Zeman, Nanomaterials, 2021, 11, 3456.
33. S. Yousafzai, M. Farid, M. Zubair, N. Naeem, W. Zafar, Z. U. Zaman Asam, S. Farid and S. Ali, Environ. Sci.:Adv., 2025, 4, 1142–1165.
34. S. Narendhran, P. B. Shakila, M. Manikandan, V. Vinoth and P. Rajiv, Spectrochim. Acta, Part A, 2020, 232, 118164.
35. H. Ramezanalizadeh and F. Manteghi, J. Photochem. Photobiol., A, 2017, 338, 60–71.
36. C. M. Gonzalez, X. Du, J. L. Dunford and M. L. Post, Sens. Actuators, B, 2012, 173, 169–176.
37. W. Zhang, D. Zhang and Y. Zhang, J. Mater. Sci.:Mater. Electron., 2020, 31, 6706–6715.
38. V. Gajraj and C. R. Mariappan, J. Electroanal. Chem., 2021, 895, 115504.
39. Y. Chang, A. Braun, A. Deangelis, J. Kaneshiro and N. Gaillard, J. Phys. Chem. C, 2011, 115, 25490–25495.
40. C. M. Tian, M. Jiang, D. Tang, L. Qiao, H. Y. Xiao, F. E. Oropeza, J. P. Hofmann, E. J. M. Hensen, A. Tadich, W. Li, D. C. Qi and K. H. L. Zhang, J. Mater. Chem. A, 2019, 7, 11895–11907.
41. J. E. Yourey, K. J. Pyper, J. B. Kurtz and B. M. Bartlett, J. Phys. Chem. C, 2013, 117, 8708–8718.
42. H. Ramezanalizadeh and F. Manteghi, J. Cleaner Prod., 2018, 172, 2655–2666.
43. V. Vinesh, M. Preeyanghaa, T. R. N. Kumar, M. Ashokkumar, C. L. Bianchi and B. Neppolian, Environ. Res., 2022, 207, 112112.
44. P. Raizada, S. Sharma, A. Kumar, P. Singh, A. A. Parwaz Khan and A. M. Asiri, J. Environ. Chem. Eng., 2020, 8, 104230.
45. J. C. Hill and K.-S. Choi, J. Mater. Chem. A, 2013, 1, 5006.
46. D. Wang, P. Bassi, H. Qi, X. Zhao, Gurudayal, L. Wong, R. Xu, T. Sritharan and Z. Chen, Materials, 2016, 9, 348.
47. N. A. Lima, G. C. Mendonça, G. T. S. T. Da Silva, B. S. De Lima, E. C. Paris and M. I. B. Bernardi, J. Mater. Sci.:Mater. Electron., 2021, 32, 1139–1149.
48. S. Medidi, S. Markapurapu, M. R. Kotupalli, R. K. R. Chinnam, V. M. Susarla, H. B. Gandham and P. D. Sanasi, Mod. Res. Catal., 2018, 7, 17–34.
49. N. Le Minh Tri, D. Q. Trung, D. Van Thuan, N. T. Dieu Cam, T. Al Tahtamouni, T.-D. Pham, D. S. Duc, M. H. Thanh Tung, H. Van Ha, N. H. Anh Thu and H. T. Trang, Int. J. Hydrogen Energy, 2020, 45, 18186–18194.
50. X. Hu, D. Gao, Y. Li, H. Dong, W. Zhou, L. Yang and Y. Zhang, SN Appl. Sci., 2019, 1, 119.
51. J. E. Yourey and B. M. Bartlett, J. Mater. Chem., 2011, 21, 7651.
52. M. Shekofteh-Gohari and A. Habibi-Yangjeh, J. Ind. Eng. Chem., 2016, 44, 174–184.
53. D. P. Dutta, A. Rathore, A. Ballal and A. K. Tyagi, RSC Adv., 2015, 5, 94866–94878.
54. Y. Tang, N. Rong, F. Liu, M. Chu, H. Dong, Y. Zhang and P. Xiao, Appl. Surf. Sci., 2016, 361, 133–140.
55. J. Wendel, Master thesis, Lund University, 2014.
56. W. Hu, F. Donat, S. A. Scott and J. S. Dennis, RSC Adv., 2016, 6, 113016–113024.
57. D. Vadivel and I. Malaichamy, F1000Research, 2018, 7, 1574.
58. D. Vadivel, D. S. Branciforti, A. Speltini, M. Sturini, V. Bellani, I. Malaichamy and D. Dondi, Catalysts, 2020, 10, 270.
59. D. Vadivel, M. Sturini, A. Speltini and D. Dondi, Catalysts, 2022, 12, 310.
60. M. Foroughi, S. J. Peighambardoust, B. Ramavandi, R. Foroutan and N. S. Peighambardoust, Sep. Purif. Technol., 2024, 344, 127265.
61. M. F. Hanafi and N. Sapawe, Mater. Today: Proc., 2020, 31, 318–320.
62. P. Kumbhakar, A. Pramanik, S. Biswas, A. K. Kole, R. Sarkar and P. Kumbhakar, J. Hazard. Mater., 2018, 360, 193–203.
63. H. Zeghioud, M. Kamagate, L. S. Coulibaly, S. Rtimi and A. A. Assadi, Chem. Eng. Res. Des., 2019, 144, 300–309.
64. E. Isarain-Chávez, R. M. Rodríguez, P. L. Cabot, F. Centellas, C. Arias, J. A. Garrido and E. Brillas, Water Res., 2011, 45, 4119–4130.
65. J. Santiago-Morales, A. Agüera, M. D. M. Gómez, A. R. Fernández-Alba, J. Giménez, S. Esplugas and R. Rosal, Appl. Catal., B, 2013, 129, 13–29.
66. V. Romero, N. De La Cruz, R. F. Dantas, P. Marco, J. Giménez and S. Esplugas, Catal. Today, 2011, 161, 115–120.
67. A. H. Navidpour, M. B. Ahmed and J. L. Zhou, Nanomaterials, 2024, 14, 135.

---
