Fabrication of a Z-scheme 3D/2D MgIn₂S₄/BiOBr heterojunction for enhanced photocatalytic removal of ciprofloxacin in water

Abstract

Engineered Z-scheme semiconductor systems offer promising strategies for the removal of antibiotics from contaminated water. Here, we report the fabrication of a Z-scheme heterojunction by coupling two-dimensional (2D) bismuth oxybromide (BiOBr) nanosheets with three-dimensional (3D) magnesium indium sulfide (MgIn₂S₄) nanoflowers to enhance the photocatalytic degradation of ciprofloxacin (CIP) under visible light irradiation. The BiOBr/MgIn₂S₄ composite was synthesized through a simple in situ hydrothermal method, and comprehensive characterization techniques, including X-ray diffraction (XRD), field-emission scanning electron microscopy (FESEM), and transmission electron microscopy (TEM), confirmed the successful formation of a highly intimate 2D/3D heterojunction. Among the various composites, the BiOBr/30%MgIn₂S₄ heterojunction exhibited the highest CIP degradation efficiency, achieving 89.9% within 60 minutes, significantly outperforming the pristine BiOBr (52.6%) and MgIn₂S₄ (58.5%) under visible light. This remarkable enhancement in photocatalytic activity is attributed to the synergistic effects of improved visible light absorption and, more critically, efficient charge separation, as evidenced by photoelectrochemical measurements and photoluminescence spectroscopy. X-ray photoelectron spectroscopy (XPS), Mott–Schottky analysis, and radical trapping experiments provided conclusive evidence for a Z-scheme charge transfer mechanism. This mechanism facilitates the spatial separation of charge carriers, where oxidative holes in the valence band of BiOBr are preserved for direct CIP oxidation and hydroxyl radical (˙OH) generation, while the reductive electrons in the conduction band of MgIn₂S₄ drive the generation of superoxide radicals (O₂˙⁻). Moreover, the composite demonstrated excellent reusability, maintaining its performance over five consecutive cycles. These findings offer valuable insights into the design and optimization of efficient 2D/3D Z-scheme photocatalysts for advanced environmental remediation applications, particularly in the removal of organic contaminants from water.

---

1 Introduction

The persistent contamination of global water resources by pharmaceutical pollutants represents a critical environmental challenge of the 21st century.^1–3 Among these contaminants, antibiotics pose a particular threat due to their biological activity, persistence, and role in promoting antimicrobial resistance.⁴ Ciprofloxacin (CIP), a second-generation fluoroquinolone antibiotic,⁵ is among the most frequently detected antibiotics in water systems due to its broad-spectrum efficacy and high consumption.⁶ Its stable molecular structure, characterized by a piperazinyl ring and a quinolone moiety, makes it recalcitrant to natural degradation and conventional treatment methods like adsorption, coagulation, and biological processes.⁷ These methods often transfer the pollutant to another phase (such as sludge) rather than mineralizing it, creating a secondary waste problem.⁸ Consequently, there is an urgent and critical need to develop advanced, efficient, and sustainable technologies for the complete removal of CIP and other antibiotic residues from water.

Heterogeneous photocatalysis has emerged as a promising advanced oxidation process (AOPs) for antibiotic degradation, utilizing solar energy to generate reactive oxygen species that can mineralize organic pollutants.⁹ Typically, AOPs are based on the in situ generation of reactive oxygen species (ROS), such as holes (h⁺), hydroxyl radicals (˙OH), and superoxide anions (O₂˙⁻), which can non-selectively oxidize and mineralize complex organic pollutants into harmless end products like CO₂ and H₂O.¹⁰ However, the efficiency of this process is fundamentally affected by three key factors: rapid recombination of photogenerated charge carriers, limited visible-light absorption, and insufficient redox potential in single-component photocatalysts.¹¹ While various strategies have been developed to overcome these issues, the construction of heterojunction photocatalysts with aligned band structure has demonstrated its effectiveness in enhancing charge separation through interfacial engineering.^12–14 Traditionally, a type-II heterojunction is formed, where the band edges are staggered. This allows photogenerated electrons to migrate to the semiconductor with the conduction band (CB) that is more positive, while holes transfer to the semiconductor with the valence band (VB) that is more negative. While this spatial separation reduces recombination, the electrons and holes accumulate on less negative CB and less positive VB, respectively, significantly weakening their redox abilities.^15,16 This trade-off between charge separation and redox power is a fundamental drawback of the type-II mechanism for degrading highly stable pollutants like CIP, which require strong oxidative potential. Therefore, using the type-II band alignment, a Z-scheme heterojunction simultaneously achieves superior spatial charge separation and maintains the strongest possible redox potentials, making it ideal for photocatalytic reactions such as pollutant degradation.^17,18

Moreover, the selection of appropriate semiconductors is important for constructing an efficient Z-scheme system. BiOBr, a two-dimensional (2D) p-type semiconductor, has attracted considerable attention due to its unique layered structure, chemical stability, and appropriate valence band position with strong oxidative capability.¹⁹ However, its wide band gap restricts visible light absorption.²⁰ On the other hand, MgIn₂S₄ is a three-dimensional (3D) n-type semiconductor, which is visible-light-driven with a narrower band gap and excellent chemical stability. Its more negative conduction band position is suitable for reduction reactions.^21,22 Individually, both materials suffer from rapid charge recombination. However, their complementary band structures and opposite semiconductor types (p–n) make them ideal candidates for forming a heterojunction. Furthermore, 2D nanomaterials offer exceptional advantages, including abundant active sites, high surface-to-volume ratios, and short charge migration paths.²³ Their structure facilitates strong interfacial contact with other components and provides enhanced accessibility to reaction sites.²⁴ Conversely, 3D hierarchical structures provide robust frameworks with improved light harvesting through multiple scattering effects, enhanced mass transfer capabilities, and better structural stability.²⁵ Therefore, the construction of a 2D/3D interface between BiOBr nanosheets and MgIn₂S₄ microspheres offers a large contact area, facilitating efficient interfacial charge transfer and providing abundant surface-active sites.

Heterojunctions such as CdS/BiOBr,²⁶ BiOBr/Bi₂O₂S,²⁷ SnO₂/BiOBr,²⁸ MgIn₂S₄/CdS,²⁹ g-C₃N₄/MgIn₂S₄,²² BN/Zn₃In₂S₆,³⁰ W₁₈O₄₉/Bi₄NbO₈Cl,³¹ and so on, have been constructed for the treatment of organic pollutants in water. Herein, we proposed a rational design and synthesis of a 2D/3D BiOBr/MgIn₂S₄ Z-scheme heterojunction photocatalyst for the enhanced degradation of Ciprofloxacin. We systematically investigate the synthesis, optical properties, morphology, and photocatalytic performance of the BiOBr/MgIn₂S₄ composite. Through a combination of spectroscopic techniques and radical trapping experiments, we provide evidence for the Z-scheme charge transfer mechanism. This study not only presents an efficient photocatalyst for mitigating antibiotic pollution but also offers insights into the electronic principles governing charge dynamics in advanced heterojunction systems, paving the way for the rational development of advanced photocatalysts.

2 Experimental section

2.1 Materials used

Bismuth nitrate pentahydrate (Bi(NO₃)₃ 6H₂O), sodium hydroxide (NaOH), L-cysteine, magnesium nitrate hexahydrate (Mg(NO₃)₂ 6H₂O), deionized water, indium chloride (InCl₃), ethanol, potassium hexacyanoferrate (II) (K₄Fe(CN)₆), polyvinylidene fluoride (PVDF), ethylenediaminetetraacetic acid disodium salt (Na₂EDTA), silver nitrate (AgNO₃), p-Acrylamide(AA), isopropanol (IPA), Ciprofloxacin (CIP), potassium chromate (K₂Cr₂O₇), potassium hexacyanoferrate (III) (K₃Fe(CN)₆), and N-methyl-2-pyrrolidone (NMP) were used for this study and purchased from Sigma-Aldrich (South Africa).

2.2 Synthesis of bismuth oxybromide (BiOBr)

The BiOBr nanosheets were prepared via a hydrothermal approach using the synthesis approach described by Lixin et al.³² In this process, Bi(NO₃)₃. 5H₂O (0.002 mol) and potassium bromide (0.0021 mol) were dissolved in 50 mL of deionised H₂O and sonicated for 30 min. The resulting solution was subjected to hydrothermal treatment for 24 h at 180 °C. After cooling, the synthesised product was washed repeatedly with deionised H₂O and ethanol before drying for 8 h.

2.3 Synthesis of magnesium indium sulfide (MgIn₂S₄)

A mixture containing 0.2 mmol of magnesium nitrite hexahydrate (Mg(NO)₂·6H₂O), indium(III) chloride 0.4 mmol, L-cysteine (0.9 mmol) was prepared in a beaker. The solution was stirred for one hour before transferring to a Teflon-lined autoclave. The autoclave was then placed in a furnace and heated for 24 h at 180 °C. After the reaction, the resulting solid was separated via centrifugation and thoroughly washed three times with both deionized water and ethanol. Finally, the product was dried for eight hours at 70 °C to obtain pure MgIn₂S₄.³³

2.4 Synthesis of BiOBr/MgIn₂S₄

The hydrothermal in situ method was employed to synthesize the heterojunction. Different mole ratios (10%, 20%, 30%, and 50%) of the as-synthesized MgIn₂S₄ were weighed and dispersed into four separate beakers, each containing 20 mL of deionized water. The mixtures were sonicated for 1 hour to ensure uniform dispersion. Subsequently, BiOBr was synthesized in each beaker following the procedure described in Section 2.2.

2.5 Characterisation and instruments

The detailed procedures of the instruments used for characterisation are listed in the SI section.

2.6 Photocatalytic degradation experiments

Photocatalytic degradation tests were conducted using a 100 W Xenon solar lamp as the light source, placed at a fixed distance of 10 cm from the solution. In a typical procedure, 40 mg of the synthesized catalyst was added to 50 mL of an aqueous ciprofloxacin (CIP) solution (10 mg L⁻¹, pH 7). This suspension was first stirred in the dark for 20 minutes to allow the system to reach adsorption–desorption equilibrium. Upon turning the lamp on, 3 mL aliquots were withdrawn at scheduled time intervals. The solid catalyst was subsequently separated from these samples by centrifugation (7000 rpm, 10 min), and the supernatant was examined. The residual ciprofloxacin (CIP) concentration was quantified using a UV-Vis spectrophotometer at 278 nm to evaluate photocatalytic efficiency at 10-minute intervals. To assess the reusability and stability of the catalyst, successive photocatalytic degradation cycles were performed under identical conditions. After each cycle, the catalyst was recovered by centrifugation, washed thoroughly with deionized water and ethanol to remove any adsorbed intermediates, dried at 60 °C overnight, and reused in the subsequent run. The degradation efficiency was monitored over five consecutive cycles.

The degradation efficiency was calculated using eqn 1

2.7 Radical trapping experiment

The major reactive species participating in the oxidation mechanism were investigated through radical trapping experiments. Specific scavengers (2 mM each) were introduced to selectively inhibit different active intermediates: isopropanol (IPA) for hydroxyl radicals (˙OH), Acrylamides (AA) for superoxide radicals (O₂˙⁻), and sodium EDTA for photogenerated holes (h⁺), these controlled trapping experiments helped elucidate the predominant pathways involved in the photocatalytic degradation process.

3 Results and discussion

3.1 Structural and morphological studies

The structural properties and crystalline phases of the synthesised materials were confirmed using the XRD analysis. As displayed in Fig. 1a, the diffraction peaks of MgIn₂S₄ at peak positions: 14.07^°, 23.23^°, 27.42^°, 28.88^°, 33.18^°, 43.57^°, 47.79^°, 56.09^°, 59.43^° & 66.72^° correspond to the hkl (111), (220), (311), (222), (400), (333), (440), (533), (444), & (731) planes, respectively, confirming the cubic phase of MgIn₂S₄ (JCPDS No. 04-007-9835). The synthesised BiOBr shows characteristics peaks at 10.76^°, 21.79^°, 25.05^°, 31.59^°, 32.10^°, 40.43^°, 44.62^°, 46.12^°, 50.60^°, 53.27^°, 56.11^°, 57.06^°, 70.96^°, & 76.58^° which are well indexed to the hkl planes (001), (002), (101), (102), (110), (103), (004), (103), (200), (104), (211), (114), (212), (006) & (310) of the tetragonal phase BiOBr (JCPDS No. 00-009-0393). The spectra show minimal peak broadening, thus indicating good crystallinity. In the BiOBr/MgIn₂S₄ composite, the XRD diffraction pattern showed the combination of peaks from both BiOBr and MgIn₂S₄ without additional phase, confirming the successful synthesis of a heterojunction rather than a new compound. However, a minor 2θ shift (>0.5^°) was observed in the (111) and (222) planes of MgIn₂S₄ in BiOBr/MgIn₂S_4, which can be attributed to interfacial strain³⁴, because of the synthesis method.

Fig. 1 (a) XRD diffraction pattern of BiOBr, MgIn₂S₄ & BiOBr/MgIn₂S₄. FESEM micrograph of (b) BiOBr, (c) MgIn₂S₄, (d) BiOBr/MgIn₂S₄. TEM micrograph of (e) BiOBr, (f) MgIn₂S₄ (g) BiOBr/30%MgIn₂S₄.

In addition, the crystallite sizes of the photocatalysts were determined using the Scherrer equation (eqn (2))³⁵ and the data extracted from the XRD analysis (Table S1)

where λ = X-ray wavelength (usually 0.1540 nm for Cu-Kα radiation), K = 0.9 for materials (a factor), θ = Peak diffraction angle (in radians), D = Crystallite size and β = Full width at half maximum (FWHM, in radians). The calculated average crystallite sizes for BiOBr, MgIn₂S_4, and BiOBr/MgIn₂S₄ composite were 322.67 nm, 93.63 nm & 287.74 nm, respectively. Materials with smaller crystallites offer high surface area and more active sites but experience increased recombination due to short diffusion length, while larger crystallite enhances crystallinity and charge transport but tend to reduce surface reactivity.³⁶ Therefore, the BiOBr/MgIn₂S₄ composite with reduced crystallite size from 322.67 nm in MgIn₂S₄, combines the surface activity of BiOBr and the charge mobility of MgIn₂S₄ to form a heterojunction with improved charge separation and enhanced photocatalytic activity.

The surface morphology of the photocatalysts was examined using FESEM. As displayed in Fig. 1b, the BiOBr micrograph shows a hierarchical morphology of nanosheets assembled into a flower-like microstructure. These nanosheets are loosely stacked and layered, which favours surface redox reaction.²² On the other hand, the MgIn₂S₄ micrograph (Fig. 1c) displays a well-defined three-dimensional (3D) microsphere that is made up of interconnected nanoflakes. This morphology offers rough surface texture and high porosity, which are beneficial for visible light harvesting and easy charge transport.²⁵ In the BiOBr/MgIn₂S₄ composite (Fig. 1d), a mixed morphology is observed where the BiOBr nanosheets are uniformly anchored onto the surface of the MgIn₂S₄ nanoflakes, resulting in a well-integrated 2D/3D heterostructure with strong interfacial interaction, improved light harvesting, and effective charge mobility, which affects the overall degradation efficiency.

Furthermore, the TEM micrographs of BiOBr (Fig. 1e) also reveal the nanosheet-like structure in a loosely and layered arrangement, while the MgIn₂S₄ micrograph (Fig. 1f) reveals a dense spherical structure composed of interconnected flakes. Similarly, the TEM image of BiOBr/MgIn₂S₄ shown in Fig. 1g confirms the interfacial interaction between BiOBr and MgIn₂S₄, with some areas showing lattice fringes, thus confirming the crystallinity of the material.³⁷

3.2 Elemental composition

The chemical states and surface composition of the as-synthesized BiOBr, MgIn₂S₄ & BiOBr/MgIn₂S₄ were investigated using XPS measurement. The survey scan (Fig. S1) confirms the presence of bismuth, oxygen, bromine, and magnesium, indium, and sulphur in BiOBr, MgIn₂S₄, and BiOBr/MgIn₂S₄. Furthermore, the spectra of Bi 4f, Mg 1s, O 1s, Br 3d, In 3d, & S 2p were further investigated to verify the oxidation states and investigate any binding energy shifts associated with interfacial electronic interactions. The Bi 4f spectra (Fig. 2a) show two peaks of Bi 4f_7/2 & Bi 4f_5/2 at binding energies of 159.2 eV & 164.6 eV for BiOBr, which shifted to 159.5 eV & 164.9 eV for BiOBr/MgIn₂S₄. Also, the O 1s spectra (Fig. 2b) show two peaks at 530.2 eV & 531.6 eV for BiOBr, which correspond to the lattice oxygen (Metal–Oxygen bond) and are shifted to 530.3 eV & 531.9 eV in BiOBr/MgIn₂S₄. Furthermore, the Br 3d spectra (Fig. 2c) show a peak at a binding energy of 68.4 eV in BiOBr and 68.8 eV in BiOBr/MgIn₂S₄. On the other hand, the Mg 1s spectra (Fig. 2d) show a peak at a binding energy of 1303.6 eV for MgIn₂S₄ and 1302.7 eV for BiOBr/MgIn₂S₄. The In 3d spectra (Fig. 2e) show two peaks that correspond to In 3d5/2 and 3d3/2 at binding energies of 444.4 eV & 452.0 eV for MgIn₂S₄ and 442.7 eV & 452.9 eV for BiOBr/MgIn₂S₄, respectively. Finally, the S 2p spectra (Fig. 2f) show two peaks, which are attributed to S 2p3/2 & 2p1/2 at binding energies of 161.1 eV & 164.2 eV for MgIn₂S₄, and 159.5 eV and 164.7 eV for BiOBr/MgIn₂S₄, respectively.

Fig. 2 XPS spectra of (a) Bi 4f, (b) O 1s, (c) Br 3d of BiOBr & BiOBr/MgIn₂S₄, (d) Mg 1s, (e) In 3d (f) S 2p of MgIn₂S₄ & BiOBr/30%MgIn₂S₄.

In summary, upon the formation of BiOBr/MgIn₂S₄ heterojunction, the core level positions of all elements undergo positive and negative shifts relative to the pristine semiconductors. As clearly illustrated in Table 1, the Bi 4f, O 1s & Br 3d shift to a higher binding energy from BiOBr to BiOBr/MgIn₂S₄. Likewise, the Mg 1s, In 3d & S 2p shift to lower binding energy from MgIn₂S₄ to BiOBr/MgIn₂S₄, although with minor deviation in the In 3d_3/2 and S 2p_1/2 orbitals that undergo a shift to higher binding energy. Therefore, this shift suggests that electrons were transferred from BiOBr to MgIn₂S₄ upon heterojunction formation. This implies that there is a reduction in electron density around the elements of BiOBr, leading to electron accumulation on the surface of MgIn₂S₄. The slight positive shifts observed for In 3d_3/2 and S 2p_1/2 could be attributed to partial surface oxidation of sulphur or indium due to interaction with oxygen.³⁸

Table 1 Binding energies of orbitals of BiOBr, MgIn₂S₄, and BiOBr/MgIn₂S₄

Orbitals	Binding energy (eV)
	BiOBr	BiOBr/MgIn2S4	MgIn2S4
Bi 4f7/2	159.2	159.5	—
Bi 4f5/2	164.6	164.9	—
O 1s (M–O)	530.2	530.3	—
O 1s (–OH)	531.6	531.9	—
Br 3d	68.4	68.8	—
Mg 1s	—	1302.7	1303.6
In 3d5/2	—	442.7	444.4
In 3d3/2	—	452.9	452.0
S 2p3/2	—	159.5	161.1
S 2p1/2	—	164.7	164.2

---

In all, the XPS results demonstrate that strong electronic interaction occurs at the interface of BiOBr/MgIn₂S₄, establishing the formation of an internal electric field and favourable band alignment for effective charge separation.

3.3 Photoelectrochemical properties and optical studies

The Nyquist plots (Fig. 3a), with the equivalent circuit model (Fig. S2), revealed a decrease in charge transfer resistance (R_ct) value of BiOBr/MgIn₂S₄ (71 Ω) relative to the pristine BiOBr (155 Ω) and MgIn₂S₄ (210 Ω). In EIS measurements, the semicircle radius in the high frequency region relates to the R_ct at the semiconductor–electrolyte interface.³⁹ The smaller R_ct value observed for BiOBr/MgIn₂S₄ indicates that there is more efficient interfacial charge separation and faster electron transfer kinetics. It can be attributed to the strong contact between BiOBr and MgIn₂S₄ in the heterojunction formation, thereby leading to suppression of charge recombination of photogenerated carriers.

Fig. 3 (a) Nyquist plot of BiOBr, MgIn₂S₄ and BiOBr/30% MgIn₂S₄ (b) photocurrent response (c)UV-Vis DRS spectra of BiOBr, MgIn₂S_4, BiOBr/10% MgIn₂S₄, BiOBr/20% MgIn₂S₄, BiOBr/30% MgIn₂S_4, and BiOBr/50% MgIn₂S₄ (d) photoluminescence spectra of BiOBr, MgIn₂S₄ and BiOBr/30% MgIn₂S₄.

The transient photocurrent response provided complementary evidence. As shown in Fig. 3b, the BiOBr/30% MgIn₂S₄ exhibits photocurrent density of 0.057 mA cm⁻², which is the highest, when compared with 0.033 mA cm⁻², 0.029 mA cm⁻², 0.01 mA cm⁻², 0.036 mA cm⁻², 0.048 mA cm⁻² of BiOBr, MgIn₂S₄, BiOBr/10% MgIn₂S₄, BiOBr/20% MgIn₂S₄ & BiOBr/50% MgIn₂S₄, respectively. The enhanced photocurrent response of BiOBr/30% MgIn₂S₄ can be attributed to the heterostructure formation using the optimal ratio of BiOBr to MgIn₂S₄, which promotes efficient charge transfer of photogenerated electrons and holes to the suitable reaction sites while maintaining strong redox potentials. In addition, the stability of the photocurrent over repeated on/off light cycles confirms the photostability of the photocatalyst.

Moreover, the UV-Vis DRS spectra of BiOBr, MgIn₂S₄, and different mole ratios of BiOBr/MgIn₂S₄ heterojunction are illustrated in Fig. 3c. BiOBr possesses an absorption edge in the ultraviolet region at a wavelength of 471 nm, with limited absorption in the visible region. In contrast, MgIn₂S₄ shows strong and broad absorption in the visible light region at a wavelength of 677 nm. Upon the formation of a heterojunction, an increasing ratio of MgIn₂S₄ in the composite leads to enhanced visible light absorption. Hence, BiOBr/10% MgIn₂S₄, BiOBr/20% MgIn₂S₄, and BiOBr/50% MgIn₂S₄ exhibit absorption wavelengths of approximately 518 nm, 551 nm, and 659 nm, respectively, while BiOBr/30% MgIn₂S₄ possesses an absorption wavelength of 610 nm. Therefore, the broader absorption range is expected to promote higher photogenerated charge carrier density under visible light, leading to enhanced photocatalytic performance.⁴⁰

Furthermore, the photoluminescence spectra (PL) were measured to gain insights into the charge carrier recombination mechanism of the photocatalysts. In general, a strong PL emission corresponds to a fast recombination rate of photogenerated electrons and holes, whereas a weaker PL intensity indicates more efficient charge separation and transfer.⁴¹ As shown in Fig. 3d, pristine BiOBr and MgIn₂S₄ exhibited strong PL signals, suggesting fast recombination of charge carriers and limited photocatalytic efficiency. In contrast, the BiOBr/30% MgIn₂S₄ heterojunction displayed significantly reduced PL intensity compared with the individual photocatalyst, highlighting its enhanced ability to suppress charge recombination. This observation is consistent with the photocatalytic degradation results and kinetic studies, confirming that the enhanced activity of the heterostructures arises from the efficient charge separation and transfer at the BiOBr/30% MgIn₂S₄ interface.

3.4 Calculation of band energies

The band gap energies of BiOBr and MgIn₂S₄ were estimated from the Tauc plots. As shown in Fig. 4a, the extrapolated value for BiOBr is 2.59 eV, while MgIn₂S₄ possesses a narrower band gap of 1.78 eV, which is consistent with its strong visible light absorption. The conduction (E_CB) and valence band (E_VB) energies were calculated using the extrapolated band gap (E_g) values in eqn (4) and (5).

E_CB = X − E_C − 0.5E_g (3)

X is the Mulliken electronegativity, which was calculated to be 6.17 (ref. 42) and 4.68 for BiOBr and MgIn₂S₄, respectively. And, E_C is the energy of free electrons on the hydrogen scale, usually 4.5 eV.

Fig. 4 (a) Tauc plot of BiOBr and MgIn₂S₄. Mott Schottky plot (b) BiOBr (c) MgIn₂S₄ (d) illustration of band positions of BiOBr and MgIn₂S₄.

Therefore, the E_CB & E_VB are +0.38 eV & +2.97 eV for BiOBr and −0.71 eV & +1.14 eV for MgIn₂S₄, respectively.

Additionally, from the Mott–Schottky analysis, the semiconductor type and flat-band energy (E_fb vs. Ag/AgCl) were determined. The negative slope observed for BiOBr (Fig. 4b) confirms that it is a p-type semiconductor with E_fb value of +0.038 V, while the positive slope observed for MgIn₂S₄ (Fig. 4c) confirms that it is an n-type semiconductor with E_fb value of −0.97 V. Eqn (3) was used to convert the E_fb value to the normal hydrogen electrode standard. Therefore, the E_fb (Vs NHE) for BiOBr and MgIn₂S₄ are 0.23 eV and −0.78 eV.

E_(NHE) = E_(Ag/AgCl) + 0.194 (4)

However, it is assumed that the E_CB is more negative E_fb with 0.1–0.2 for an n-type semiconductor, while for a p-type semiconductor, the E_CB is more positive than the E_fb.⁴³

Using eqn (4) and (5), taking ΔE = 0.1, the E_CB of BiOBr and MgIn₂S₄ are +0.33 eV and – 0.88 eV, respectively, which are remarkably close to the calculated values. Therefore, the VB of BiOBr and MgIn₂S₄ are 2.92 eV and 0.9 eV, respectively (Fig. 4d).

E_VB = E_CB + E_g (5)

E_CB = E_fb – ΔE for n-type (6)

E_CB = E_fb + ΔE for p-type (7)

3.5 Photodegradation, kinetic, reusability, mineralisation studies

The degradation efficiency of the BiOBr/MgIn₂S₄ heterojunction was investigated using 10 mg L⁻¹ ciprofloxacin (CIP) under visible light irradiation. Prior to illumination, the adsorption equilibrium was evaluated by maintaining the photocatalyst in the pollutant suspension in the dark for 20 min. As shown in Fig. 5a, the adsorption contribution was approximately 10%, 16%, 27%, 27%, 32%, and 27% for BiOBr, MgIn₂S₄, BiOBr/10% MgIn₂S₄, BiOBr/20% MgIn₂S₄, BiOBr/30% MgIn₂S_4, & BiOBr/50% MgIn₂S_4, respectively. These results indicate that the incorporation of BiOBr into MgIn₂S₄ slightly enhances the adsorption capacity, which is likely due to the improved surface affinity and increased surface area of the composites compared with the pristine materials. And the degradation efficiency, when only light was used, was calculated to be 2%.

Fig. 5 Degradation plot showing (a) effect of photocatalyst heterojunction, (b) Kinetic studies, (c) effect of pH, (d) stability studies, (e) radical testing (tetracycline 10 mg L⁻¹, 60 min).

Upon visible-light irradiation for 60 min, the photocatalytic degradation efficiencies of BiOBr, MgIn₂S_4, BiOBr/10% MgIn₂S₄, BiOBr/20% MgIn₂S₄, BiOBr/30% MgIn₂S_4, and BiOBr/50% MgIn₂S₄ were calculated to be 52.6%, 58.5%, 80.3%, 84.4%, 89.9%, & 77.6%, respectively. The composite photocatalysts exhibited higher activity than the pristine materials, confirming the synergistic effect of the BiOBr/MgIn₂S₄ heterojunction. Notably, the BiOBr/30% MgIn₂S₄ heterostructure displayed the highest degradation efficiency, suggesting that an optimal loading of MgIn₂S₄ facilitates efficient interfacial charge separation and transfer. However, excessive loading (50%) led to a reduction in performance, which could be attributed to the surface coverage of active sites. These findings demonstrate that band gap tuning of the BiOBr/30% MgIn₂S₄ heterojunction composition significantly enhances photocatalytic performance.

To further evaluate the photocatalytic performance, the degradation kinetics of the photocatalyst over the degradation of CIP were analysed using the pseudo-first-order kinetics (eqn (8))

where k = reaction rate, C₀ and C_t = initial and final concentration of CIP, and t = time of degradation.

As shown in Fig. 5b, the BiOBr/30% MgIn₂S₄ exhibited the fastest rate of reaction with the k value 0.031 min⁻¹ as compared to BiOBr (0.010 min⁻¹), MgIn₂S₄ (0.011 min⁻¹), BiOBr/10% MgIn₂S₄ (0.020 min⁻¹), BiOBr/20% MgIn₂S₄ (0.019 min⁻¹), & BiOBr/50% MgIn₂S₄ (0.019 min⁻¹). The enhanced rate constant reflects the accelerated charge separation and transfer dynamics within the heterojunction, which effectively suppresses electron–hole recombination and promotes the generation of reactive species.

The effect of pH on the photocatalytic degradation of ciprofloxacin was evaluated. As shown in Fig. 5c the maximum efficiency of 89.9% was observed at pH 6.2. Degradation decreased at both acidic (73.1% at pH 3) and alkaline conditions (80.4% at pH 8.0 and 69.5% at pH 10.6), indicating that the photocatalyst exhibits optimal activity under near-neutral conditions. This behaviour is due to the influence of pH on the surface charge of the photocatalyst and the ionization state of the pollutant, affecting adsorption and subsequent degradation.

Moreover, the reusability of the photocatalyst was evaluated over five consecutive cycles of ciprofloxacin degradation (Fig. 5d). The initial cycle exhibited a degradation efficiency of 89.9%, which slightly decreased to 87.8%, 86.8%, 84.5%, and 82.3% in the second, third, fourth, and fifth cycles, respectively. The gradual but minimal decline in performance indicates that the photocatalyst retains a high level of activity over multiple cycles, demonstrating good stability and potential for practical applications. The minor reduction in efficiency could be attributed to partial surface fouling or minor loss of active sites during repeated use. In addition, the structural stability of the synthesized composite after the photoreaction was further evaluated using XRD analysis. As shown in the XRD patterns in Fig. S3, the characteristic diffraction peaks of the composite remain unchanged in position and intensity when compared to the unused photocatalyst, indicating that no phase transformation or structural degradation occurred during the photocatalytic process.

To evaluate the extent of mineralisation, Total Organic Carbon (TOC) analysis was performed after 60 minutes of visible-light irradiation using the BiOBr/30% MgIn₂S₄ heterojunction (Fig. S4). A TOC removal efficiency of 54% was obtained, indicating that more than half of the organic carbon in ciprofloxacin was converted into inorganic products. While the UV-Vis results showed 89.9% degradation of the parent compound, the lower TOC value suggests the formation of intermediate organic species that were not fully mineralised within the reaction time. The enhanced adsorption capacity observed for the BiOBr/MgIn₂S₄ composites can be directly correlated with their unique 2D/3D hierarchical morphology. SEM and TEM analyses reveal that the ultrathin BiOBr nanosheets are uniformly anchored onto the surface of the MgIn₂S₄ microspheres, leading to increased surface roughness and the exposure of additional active adsorption sites. This architecture also creates open interstitial spaces and short diffusion pathways, facilitating improved mass transfer and accessibility of ciprofloxacin molecules to the catalyst surface. Consequently, the composites exhibit higher adsorption capacity than the pristine materials, with the BiOBr/30%MgIn₂S₄ sample showing the most favourable balance between surface accessibility and interfacial contact.

3.6 Determination of reactive species

The experiment to trap radicals was conducted to determine the dominant ROS responsible for the degradation of CIP over the BiOBr/MgIn₂S₄ photocatalyst. As illustrated in Fig. 5e, the addition of Na-EDTA, a hole scavenger, caused a pronounced reduction in the degradation efficiency from 89.9% to 42%, suggesting that the photogenerated hole (h⁺) plays the primary role in the degradation of CIP. Likewise, the addition of acrylamide lowered the degradation efficiency to 48%, showing that superoxide anion radical (O₂˙⁻) is also a major contributor to the degradation process. In contrast, hydroxyl radical (˙OH) plays a secondary role since the addition of isopropanol reduced the degradation efficiency to 72%.

4 Proposed heterojunction and photocatalytic mechanism

The results obtained from the Mott Schottky analysis were used to deduce an appropriate band diagram for BiOBr and MgIn₂S₄. In addition to the XPS analysis and radical testing experiment, it was confirmed that the VB and CB used for the degradation process must possess sufficient oxidation potential to directly oxidise CIP (∼1.0–1.2 V) and produce ˙OH (˙OH/H₂O = +2.26 V), as well as sufficient reduction potentials to generate O₂˙⁻ (O₂/O₂˙⁻ = −0.33 V). As illustrated in Fig. 5d, the band alignment of BiOBr and MgIn₂S₄ is the type II heterojunction. However, XPS shows that there is an increase in electron density around MgIn₂S_4, and the scavenger results show that the CB of MgIn₂S₄ and VB of BiOBr, with the highest reduction and oxidation, respectively, took part in the degradation process; hence, the formation of heterojunction did not follow the type II charge transfer mechanism.

Therefore, as displayed in Scheme 1, for a heterojunction to be formed, the Fermi level (E_f) of BiOBr and MgIn₂S₄ must align upon contact. To achieve this, electrons are transferred from BiOBr to MgIn₂S₄ as revealed by the XPS analysis, creating an electric field, leading to electron accumulation on MgIn₂S₄, thus making BiOBr hole-rich. Upon light radiation, photogenerated electrons and holes are generated in the CB and VB, respectively. The h⁺ in the VB of MgIn₂S₄ and the e⁻ in the CB of BiOBr are relatively close to each other and can recombine easily, leaving behind the h⁺ in the VB of BiOBr with sufficient potential to directly oxidise CIP or H₂O to generate ˙OH, and the e⁻ in the CB of MgIn₂S₄ with sufficient potential to reduce absorbed oxygen to O₂˙⁻ (eqn 9–12). Therefore, the synergistic combination of 2D BiOBr and 3D MgIn₂S₄ forms a direct Z-scheme heterojunction, enabling spatially redox reactions where the highly oxidative and reductive holes and electrons, respectively, for efficient pollutant degradation.

BiOBr/MgIn₂S₄ + Visible light → BiOBr/MgIn₂S₄ (e⁻ + h⁺) (9)

h⁺ + H₂O → ˙OH + H⁺ (10)

e− + O₂ → O₂˙⁻ (11)

h⁺ + O₂˙⁻/˙OH + CIP → Small molecules → CO₂ + H₂O (12)

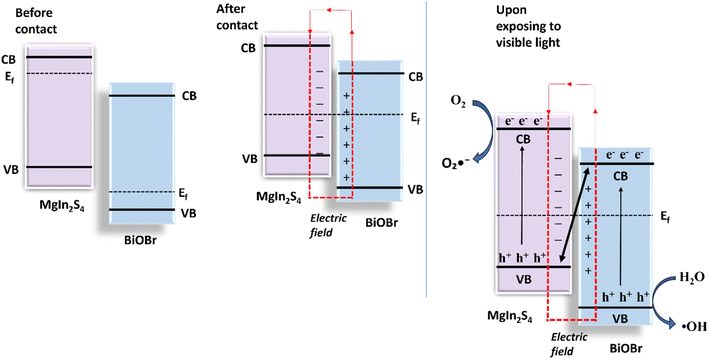

Scheme 1 Schematic illustration of heterojunction formation and photocatalytic mechanism.

Table S3 shows how the BiOBr/MgIn₂S₄ heterojunction favourably compares with previously reported photocatalysts. Compared with previously reported photocatalytic heterojunction systems, the present BiOBr/MgIn₂S₄ photocatalyst offers distinct architectural and functional advantages arising from its 2D/3D configuration. The ultrathin BiOBr nanosheets provide abundant exposed reactive facets and short diffusion lengths for photogenerated holes, while the three-dimensional MgIn₂S₄hierarchical microspheres enhance visible-light harvesting through multiple light scattering and offer efficient electron transport pathways. This complementary structural integration maximizes the interfacial contact area and promotes the formation of a strong internal electric field at the interface. More importantly, the direct Z-scheme charge transfer pathway preserves the highly oxidative holes in BiOBr and the strongly reductive electrons in MgIn₂S₄overcoming the redox potential loss commonly associated with conventional type-II heterojunctions. As a result, the BiOBr/MgIn₂S₄ 2D/3D architecture achieves a synergistic enhancement in charge separation efficiency, redox capability, and photocatalytic stability, making it particularly effective for the degradation of recalcitrant antibiotics.

5 Conclusion

In conclusion, this work demonstrates the successful construction of a Z-scheme heterojunction via the in situ deposition of two-dimensional BiOBr onto three-dimensional MgIn₂S_4. Extensive morphological and structural analyses indicated that the strong interfacial contact between these photocatalysts was instrumental in promoting rapid charge transfer. The resultant synergistic effects led to enhanced visible light harvesting and superior charge carrier separation. Consequently, the BiOBr/30% MgIn₂S₄ photocatalyst exhibited peak performance, removing 89.9% of CIP in 60 minutes and demonstrating excellent recyclability with minimal loss of activity. These findings provide a valuable framework for developing advanced heterostructure photocatalysts for antibiotic degradation and other environmental applications. Beyond its high degradation efficiency and stability under visible light, the BiOBr/MgIn₂S₄ Z-scheme heterojunction holds promise as a versatile platform for advanced water treatment applications. The intimate 2D/3D interfacial architecture not only promotes efficient charge separation and strong redox capability but also provides a rational basis for further optimization toward practical deployment. Future efforts aimed at correlating surface properties with photocatalytic kinetics, elucidating degradation pathways and mineralisation behaviour at the molecular level, and validating performance in complex wastewater environments will be crucial for translating this material from laboratory-scale studies to real-world implementation. Overall, this work establishes a solid foundation for the rational design of next-generation Z-scheme photocatalysts capable of addressing persistent organic contaminants under sustainable, solar-driven conditions.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information is available. See DOI: https://doi.org/10.1039/d5ra07896b.

Acknowledgements

This work is supported by the African Research Universities Alliance (ARUA)/Carnegie Early Career Research Fellowship used at the University of Lagos and the University of Pretoria Research Development Program.
