Nanoparticle ultrastructure allows reversible pH sensitivity using ¹⁹F NMR and in vivo ¹⁹F MRI

Abstract

Fluorine-19 magnetic resonance imaging (¹⁹F MRI) is a powerful imaging modality that provides background-free imaging. Its sensitivity can be modulated through environmentally responsive probe designs exploiting paramagnetic relaxation enhancement (PRE) and related mechanisms. Here, we present a novel pH-sensitive ¹⁹F MRI nanosystem in which signal activation is governed by nanoparticle (NP) ultrastructure. Poly(lactic-co-glycolic acid) (PLGA) NPs were synthesized co-encapsulating perfluoro-15-crown-5-ether (PFCE) and lipophilic gadolinium (Gd) chelates, yielding either single-core or multi-core structures. While single-core NPs, the conventional structure for polymer-encapsulated perfluorocarbons, remained pH-insensitive, multi-core NPs exhibited a pronounced and reversible pH-dependent ¹⁹F signal modulation. The ¹⁹F T₁ decreased slightly (from ∼700 to ∼600 ms) in both NP types due to the presence of Gd, whereas T₂ shortened markedly at neutral pH (∼20 ms, “OFF” state) and increased substantially under acidic conditions (“ON” state); this variation was absent in single-core NPs. The pH-dependent ¹⁹F T₂ behaviour was consistent across both high-field (14 T) and low-field (3 T) MRI. Such behaviour of multi-core NPs was validated in vitro and in vivo, as the ¹⁹F signal reappeared only after lysosomal internalization in RAW 264.7 cells and was selectively activated within acidic tumour regions, but not at the neutral subcutaneous injection site. By exploiting nanoparticle ultrastructure to achieve reversible signal switching, this work introduces a general strategy for activatable ¹⁹F MRI probes for imaging applications in tumours and other pH-sensitive disease environments. It demonstrates, for the first time, PRE-driven signal enhancement and suppression governed by structural rearrangement rather than chemical modification in response to pH variation.

---

1 Introduction

Non-invasive imaging techniques are crucial for early disease detection, driving the need for more sensitive and specific molecular imaging probes. Among emerging strategies, nanoparticle (NP)-based contrast agents have gained particular attention for their ability to enhance imaging sensitivity, improve targeting, and support multimodal imaging. Their tunable physicochemical properties, such as size, surface charge, and composition, enable control over circulation time, tissue accumulation, and contrast agent encapsulation, making them adaptable tools for a wide range of imaging modalities.^1,2 These advantages have made NPs increasingly relevant in biomedical applications aimed at visualizing molecular and cellular processes in vivo.³ Clinical imaging enables real-time, non-invasive monitoring of physiological and pathological conditions, with magnetic resonance imaging (MRI) offering superior soft-tissue contrast, deep tissue penetration, and high spatial resolution without ionizing radiation.⁴

However, conventional proton (¹H) MRI suffers from strong background signals caused by the high-water content in biological tissues (65–90%), reducing contrast and making it difficult to distinguish specific targets, particularly early-stage tumours.^4–6 This has led to growing interest in alternative MRI-active nuclei, such as ²³Na,^{7 19}F,^8,9 and ³¹P,^10,11 which offer improved specificity and signal clarity. Among them, fluorine-based MRI (¹⁹F MRI) has gained significant attention due to its high sensitivity, comparable to that of protons, and its exceptional specificity, as fluorine is nearly absent in biological tissues (≤10⁻⁶ M).^12,13 These characteristics have made ¹⁹F MRI a powerful tool for diverse applications, including tracking cellular therapies and quantitative imaging.^14–17 Among the different fluorine labels, perfluorocarbons (PFCs) are the most commonly used in ¹⁹F MRI, owing to their high fluorine content, excellent molecular mobility, and favourable safety profile.¹⁸ PFC-based agents have also been used clinically.^19,20

Beyond direct fluorine imaging, activatable ¹⁹F MRI probes enhance sensitivity by exploiting changes in relaxivity^6,21 or chemical shift^22,23 to detect biological processes or trigger drug release.^24,25 Stimulus-induced relaxivity alterations can create on/off signal switches, significantly improving ¹⁹F MRI sensitivity. These effects are primarily regulated by their structural properties, particularly their influence on transverse relaxation (T₂).²⁶ Two key strategies regulate ¹⁹F MR signal modulation: (1) fluorine nuclei tethered to paramagnetic centres via stimuli-responsive linkers, where proximity modulates the paramagnetic relaxation enhancement (PRE) effect,^27–29 and (2) reversible fluorine agent aggregation, where restricted motion quenches the signal and disassembly restores it.^21,30,31 PRE is highly distance-dependent, following an inverse sixth power relationship (r⁻⁶) with fluorine–chelate separation.^32–34 Thus, precise nanoscale control over molecular reconfigurations is essential for responsive probe design.^26,35 Nanomaterials provide ideal platforms for designing such activatable probes, as their tuneable physicochemical properties allow optimization of PRE effects and fluorine relaxation behaviour for enhanced responsiveness.^36,37

Among external stimuli, pH is particularly relevant, as it is tightly regulated in normal tissues (7.2–7.4) but disrupted under pathological conditions such as inflammation and cancer.³⁸ Tumours exhibit a characteristic acidic extracellular microenvironment due to metabolic reprogramming.^39,40 As a hallmark of disease, these variations make pH-sensitive imaging valuable for detection and monitoring.⁴¹

Most pH-responsive polymer NPs used for ¹⁹F MRI contain ionizable groups, such as tertiary amines, with varying acid dissociation constants (pK_a values).^42–46 Fluctuations in pH induce protonation or deprotonation of these groups, leading to polymer swelling or shrinking, which indirectly modulates⁴⁷ the fluorine signal.^48,49 However, a key challenge for these agents remains increasing the usable fluorine signal while maintaining sufficient fluorine mobility.⁴⁵ Higher fluorine content often increases hydrophobicity and fluorophilicity, leading to aggregation in aqueous environments, which reduces molecular mobility and signal intensity, and may cause toxicity risks in vivo.^18,24

Our previous research demonstrated the successful co-encapsulation of lipophilic gadolinium (Gd) chelates and perfluoro-15-crown-5-ether (PFCE) within a polymer matrix (poly(D,L-lactide-co-glycolide), PLGA), yielding NPs with either multi-core or single-core structures, as confirmed by Small-Angle Neutron Scattering (SANS).^50–52

While PRE in PFCs typically requires fluorophilic chelators,^53,54 in our earlier methodological study,⁵¹ we showed that NP ultrastructure alone significantly influences ¹⁹F MR relaxation, with multi-core NPs exhibiting stronger paramagnetic effects than single-core NPs. That same work also revealed only preliminary indications of pH-sensitive ¹⁹F MR relaxation, uniquely associated with the multi-core configuration, without systematic mechanistic analysis or validation under physiologically relevant conditions. Moreover, the internal structure was previously shown to influence in vivo clearance⁵² and in vitro cellular uptake.⁵⁵

Building on these findings, the present study systematically investigates the mechanism, reversibility, and physiological relevance of this pH responsiveness. Using both high- and low-field MRI (14 T and 3 T), we observed pH-dependent ¹⁹F MRI signal changes, with multi-core NPs exhibiting pronounced pH responsiveness even under physiologically relevant conditions. In proof-of-concept in vivo experiments (7 T MR), a ¹⁹F signal was observed only in the tumour and not subcutaneously. Overall, we have built on earlier structural observations towards a translational imaging context, with further mechanistic understanding of the reversibility of the signal generation.

2 Results and discussion

PFCs are advantageous for ¹⁹F MRI due to their high fluorine content but present challenges such as fluorophilicity, low surface tension, and slow clearance.¹⁸ Customizable nanocarriers, such as lipid- or polymer-based NPs, address these limitations.^18,56–58 Our group has focused on optimizing and characterizing PLGA-loaded PFCE NPs, demonstrating that slight procedural modifications yield NPs with either multi-core or single-core ultrastructure (Fig. 1a and b).^50,59 The ultrastructure plays a crucial role in PFCE clearance, with multi-core NPs exhibiting 15-fold faster clearance in vivo compared to single-core NPs.⁵² These structural differences also influenced MR properties, particularly when a lipophilic Gd-chelate was co-encapsulated with PFCE in the PLGA matrix. Gd entrapment increased with the amount of Gd-chelate added, with higher encapsulation observed for chelates containing longer hydrophobic chains.⁵¹ However, the consistent pH sensitivity across different Gd chelates suggests that the NP ultrastructure, rather than the chelator itself, determines the response. Based on these findings, only the chelator with the longer hydrophobic tail was used because of its slightly higher encapsulation efficiency.⁵¹ In this study, three types of NPs were investigated: (1) Gd single-core, (2) Gd multi-core, and (3) control NPs (Gd-free) (Fig. 1a–c). Gd single-core and multi-core NPs were used to investigate the role of NP ultrastructure in pH sensitivity, while control NPs served to determine whether the observed effects were intrinsic to the PLGA matrix or specifically due to the co-encapsulation of Gd-chelate and PFCE.

Fig. 1 Schematic representation of PLGA–PFCE NP formulation using a single oil-in-water emulsion process for (a) Gd single-core, (b) Gd multi-core, and (c) control NPs. (a) Gd single-core NPs are prepared by sonication of the organic phase with sodium cholate as a surfactant (1), which is later replaced by PVA after solvent evaporation (2a and 2b). (b) Gd multi-core and (c) control NPs are directly formulated using PVA as the surfactant (1), with control NPs omitting the Gd-chelate in the organic phase. After solvent evaporation (2), all NPs are washed to remove excess PVA and free Gd-chelate (3), collected by ultracentrifugation, and freeze-dried (4). Chemical structures of key components, PFCE, Gd-chelate, PLGA, and PVA, are shown at the bottom of the figure for reference.

To ensure comparability across pH sensitivity experiments, NPs were standardized based on (1) Gd entrapment measured by ICP-OES, (2) PFCE entrapment (% wt), and (3) T₁ and T₂ relaxation times measured by ¹⁹F NMR (Table 1). Due to inherent batch-to-batch variation, Table 1 reports average values from multiple batches used in this study. While Gd entrapment remained consistent across NP types, PFCE entrapment varied slightly, with Gd multi-core NPs exhibiting the lowest encapsulation efficiency. The co-encapsulation of Gd-chelate did not significantly alter the NP parameters, such as diameter and PDI (Table S1), with multi-core NPs (∼200 nm, PDI 0.2) and single-core NPs (∼160 nm, PDI 0.15) showing similar size distributions.

Table 1 Characterization of Gd multi-core, Gd single-core, and control NPs. The table presents average values for: (1) Gd entrapment (µg of Gd per mg of NPs) determined by ICP-OES; (2) T₁ and T₂ relaxation times (ms) measured via 500 MHz NMR in water (pH 7); and (3) PFCE entrapment (% wt). Data represent averages from 9, 4, and 5 batches, respectively

NP type	Batches	Gd entrapped µg (Gd) per mg (NP)	^19F T1 (ms)	^19F T2 (ms)	PFCE% wt
Gd multi-core	9	2.3 ± 0.7	550 ± 40	21 ± 9	14 ± 2
Gd single-core	4	2.0 ± 1.0	640 ± 15	55 ± 10	18 ± 4
Control	5	N/A	750 ± 35	390 ± 50	22 ± 4

---

The encapsulation of paramagnetic chelates significantly affected ¹⁹F MR properties, particularly in multi-core NPs, where it induced line broadening, potentially affecting quantification accuracy. The paramagnetic effect was more pronounced in T₂ than in T₁, with greater T₂ shortening observed in multi-core NPs due to T₂'s higher sensitivity to local magnetic field variations, which are amplified by paramagnetic agents such as Gd.^32,60 The effect of paramagnetic ions on the relaxation times of ¹⁹F nuclei depends on their distance from the fluorinated core.^54,61,62 Previous SANS measurements indicated that each PFCE core in multi-core NPs has a radius of 9–12 nm with a 4 nm shell thickness, while single-core NPs have a core radius of approximately 20 nm with a similar shell thickness.⁵⁰ This configuration results in a maximum Gd to PFCE distance of approximately 15 nm in multi-core NPs, compared to about 24 nm in single-core NPs.⁵¹ Given that PRE decreases steeply with increasing distance,³⁵ the robust PRE effect observed in multi-core NPs suggests that additional structural factors, such as PFCE confinement or restricted mobility, may enhance fluorine relaxation beyond what would be expected based on spatial averages alone. In contrast, the larger, less confined single-core NPs allow for greater PFCE mobility, reducing these interactions and weakening PRE. These structural differences likely account for the stronger PRE effect observed in multi-core NPs.

¹⁹F PRE has long been used to improve ¹⁹F MR signal sensitivity and to develop stimuli-responsive systems by incorporating specific functional groups sensitive to environmental changes, which modulate the ¹⁹F signal.^18,24,26,28 Beyond chemical modifications, the internal structure of PLGA NPs also influences PRE upon pH response. Indeed, Gd single-core NPs showed minimal changes in ¹⁹F relaxation times across different pH conditions. In contrast, multi-core NPs exhibited a pronounced response to pH variations, with T₂ relaxation times increasing 15-fold from neutral to acidic pH.^{51 19}F MRI at 14 T (Fig. 2a) confirmed these observations, showing a marked ¹⁹F signal increase for multi-core NPs under acidic conditions, whereas no changes were observed in single-core and control NPs. The T₂ relaxation time of multi-core NPs increased with decreasing pH, while the T₁ and T₂ values for control NPs and Gd single-core remained stable (Fig. 2b and S1). Notably, even at acidic pH, the T₂ of Gd multi-core NPs does not fully recover to the level observed for pristine PFCE NPs. This likely reflects residual PRE effects from the encapsulated Gd chelate, which continues to influence nearby ¹⁹F nuclei.

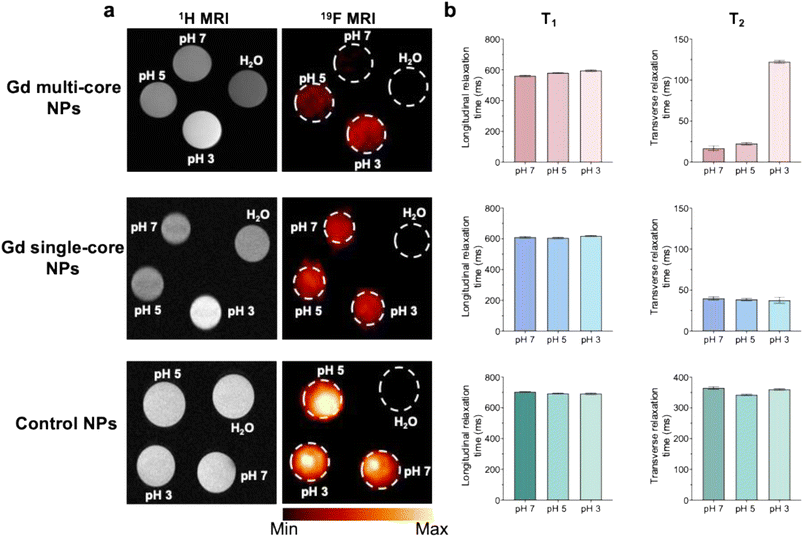

Fig. 2 (a) ¹H and ¹⁹F MRI (14 T) of Gd multi-core, Gd single-core, and control NPs (concentration of 6.5 mg mL⁻¹) at pH 7, 5, and 3, with water (H₂O) as a reference. (b) Corresponding ¹⁹F T₁ (longitudinal) and T₂ (transverse) relaxation times under the same pH conditions. Relaxation values are voxel-averaged from a single imaging run with one NP batch.

In addition, control NPs exhibited higher ¹⁹F signal intensity compared to Gd-loaded NPs, attributed to their higher PFCE content (% wt) (Table 1). Additionally, the defined area of higher intensity (Fig. 2a) likely reflects NP sedimentation due to the shape of the sample tube.

While ¹⁹F PRE effects are primarily dictated by the proximity and interaction of Gd chelate with the fluorinated core, the enhanced ¹H MRI contrast observed at pH 3 for Gd multi-core NPs (Fig. 2a) suggests that acidic environments induce structural changes in the polymer matrix, increasing water permeability and Gd–water interactions. The ¹H T₁ relaxation time (Table S2 and Fig. S2) further supports this, showing a significant reduction in T₁ at pH 3, while T₁ values at pH 5 and 7 remain comparable. These findings suggest that acidic pH induces polymer swelling, likely due to carboxylic group protonation, which reduces rigidity and enhances water permeability, ultimately facilitating water access to Gd and amplifying its paramagnetic effects. Previous NMR spectroscopy studies corroborate this, confirming water's presence within the polymer network and its proximity to the PFCE cores.⁵⁰

To confirm the pH sensitivity observed at 14 T, multi-core NPs were further investigated using a low-field (3 T) MRI scanner (Fig. 3). The results at 3 T were consistent with those at 14 T, as T₁ and T₂ of control NPs remained constant across pH conditions (Fig. 3b and d). In contrast, multi-core NPs exhibited an increase in T₂ under acidic conditions (Fig. 3c), corresponding to a brighter ¹⁹F signal and reinforcing their pH responsiveness.

Fig. 3 ¹⁹F T₁ (a and b) and T₂ (c and d) relaxation times of Gd multi-core and control NPs. All samples were measured at the same concentration 6.5 mg mL⁻¹ on a 3 T MR scanner.

Given the lack of pH sensitivity in single-core NPs, subsequent investigations focused on multi-core NPs with Gd-free PLGA–PFCE NPs used as controls to confirm the effect of Gd-chelate interactions rather than intrinsic polymer properties.

To rule out the possibility that the observed effects were due to PLGA hydrolysis or Gd-chelate release under acidic conditions, the stability of encapsulated Gd was previously confirmed using ¹H NMR.⁵¹ Furthermore, Gd release was mimicked by supplementing GdCl₃ (gadolinium chloride) to Gd-free NPs; while proton relaxation was similarly affected, the ¹⁹F signal remained unchanged, confirming that the lipophilic Gd-chelates remained confined within the hydrophobic PLGA matrix even in acidic environments.⁵¹

With hydrolysis excluded, the pH-dependent effect was next examined in terms of possible NP swelling, which remained undetectable by DLS (Fig. S3 and Tables S3, S4). Therefore, the size of Gd multi-core NPs was measured using AFM at both acidic (pH 3) and neutral (pH 7) pH. While statistical analysis showed no significant size difference (Fig. 4a), the mean diameter at pH 3 was slightly larger (∼10 nm, Fig. 4b). Although this increase was not statistically significant, even minor changes in nanoscale dimensions could, in principle, influence the PRE effect due to its high sensitivity to minor distance variations in effective Gd–¹⁹F distance.³⁴

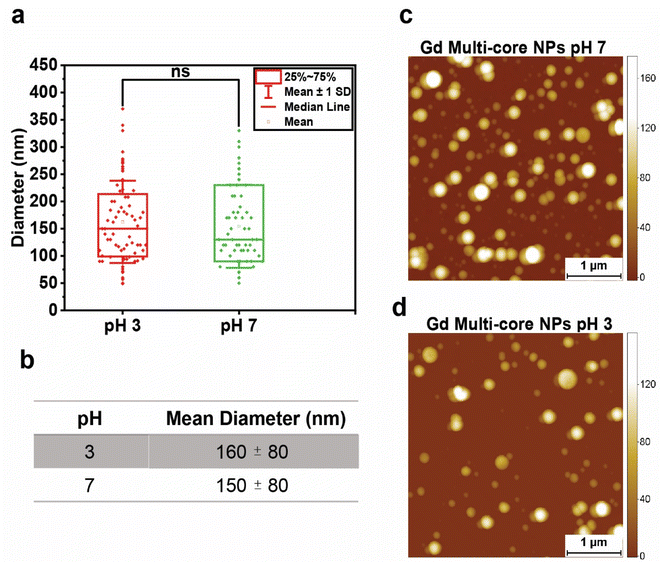

Fig. 4 (a) Statistical analysis of the Gd multi-core NP diameter (nm) measured by AFM in acidic (pH 3) and neutral (pH 7) environments. Two-sample t-test for variance: p > 0.05. (b) Mean diameter of NPs under acidic and neutral pH conditions. (c and d) AFM images of Gd multi-core NPs at (a) neutral pH and (b) acidic pH. Scale bar: 1 µm.

Importantly, the absence of a statistically significant change in particle size indicates that geometric expansion alone is unlikely to account for the pronounced pH-dependent changes observed in ¹⁹F relaxation. Instead, these results suggest that additional mechanisms contribute, including pH-induced alterations in internal nanoparticle dynamics, such as increased PFCE mobility or changes in the effective correlation time within the polymer matrix, which can strongly modulate PRE without requiring large changes in average Gd–¹⁹F separation.

AFM imaging (Fig. 4c and d) further supported the structural stability of Gd multi-core NPs, showing that the NPs retained a spherical shape across different pH levels.

To determine whether this effect was driven solely by increased permeability and swelling or also influenced by the surrounding environment, ¹⁹F signal intensity and T₂ values were examined in different acidic media. Gd multi-core NPs were resuspended in formic acid, acetic acid, HCl, and D₂O. The consistent ¹⁹F signal intensities and T₂ values (Fig. 5a and b) across these conditions suggest that the pH sensitivity is inherent to the NP structure rather than specific ion interactions. Furthermore, DLS measurements confirmed that the particle size remained stable, indicating that the NPs were not structurally degraded by the acid exposure (Table S3 and Fig. S3).

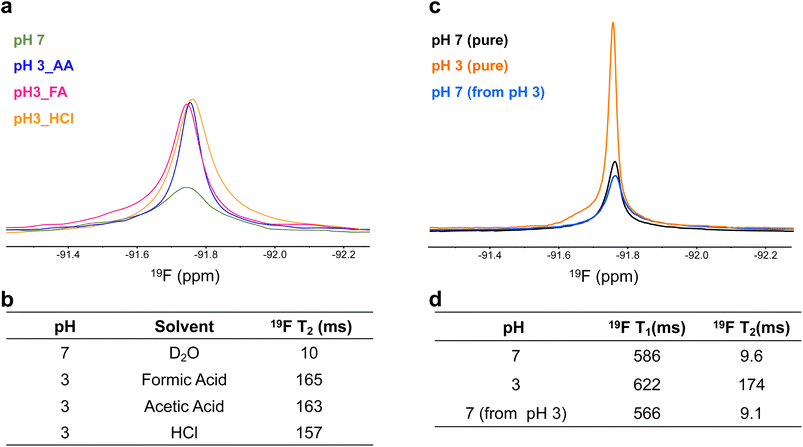

Fig. 5 (a) ¹⁹F spectral line profiles of NPs resuspended in formic acid (FA), acetic acid (AA), hydrochloric acid (HCl), and deuterium oxide (D₂O, pH 7) as a control, illustrating signal characteristics across different acidic environments. (b) ¹⁹F T₂ relaxation times of NPs under the same conditions. (c) Reversible pH-dependent ¹⁹F signal modulation, showing the ¹⁹F signal of NPs resuspended at pH 7, pH 3 (HCl solution), and the same sample at pH 3 after neutralization to pH 7 with 5 N NaOH. (d) ¹⁹F T₁ and T₂ relaxation times corresponding to the same samples under the indicated pH conditions. All samples were measured by ¹⁹F NMR at 500 MHz with a concentration of 6.5 mg mL⁻¹ for all conditions.

A key feature of the Gd multi-core NPs is their reversible pH-dependent ¹⁹F signal modulation, as observed by ¹⁹F NMR. To investigate this reversibility, samples from the same batch were compared: one resuspended at pH 7, one at pH 3, and the latter subsequently neutralized to pH 7 using 5 N NaOH. Initially, the ¹⁹F signal at pH 3 was higher, but upon neutralization, it decreased to match that of the sample originally resuspended at pH 7 (Fig. 5c). This behaviour aligns with the increase in T₂ values under acidic conditions (Fig. 5d). Reproducibility of this reversible behaviour across independently prepared nanoparticle batches is shown in the SI (Table S5).

DLS measurements confirmed that the NPs remained structurally stable throughout the pH transition, with no effective changes in size or PDI (Table S4). A similar reversible effect was observed in NPs resuspended in acetic acid (Table S6), reinforcing that the pH responsiveness arises from the NP ultrastructure rather than the acidic medium itself.

To further investigate the pH responsiveness of Gd multi-core NPs under biologically relevant conditions, in-cell ¹⁹F NMR spectroscopy was performed using RAW 264.7 macrophages. Previous phantom experiments were conducted under non-physiological pH conditions, which do not fully reflect the moderate acidity of cellular compartments. Thus, assessing whether the NPs exhibit similar pH sensitivity under physiological conditions was necessary. For this purpose, cells were labelled with Gd multi-core and control NPs and analysed via ¹⁹F NMR in a Shigemi tube containing culture medium with 5% D₂O. Cell viability remained high before and after measurements.

Three experimental conditions were analysed: (1) NPs in medium, to assess the influence of the medium's biochemical composition on pH responsiveness, (2) premixing, representing extracellular NP presence at pH 7, and (3) overnight incubation, mimicking NP uptake and intracellular processing (Fig. 6).

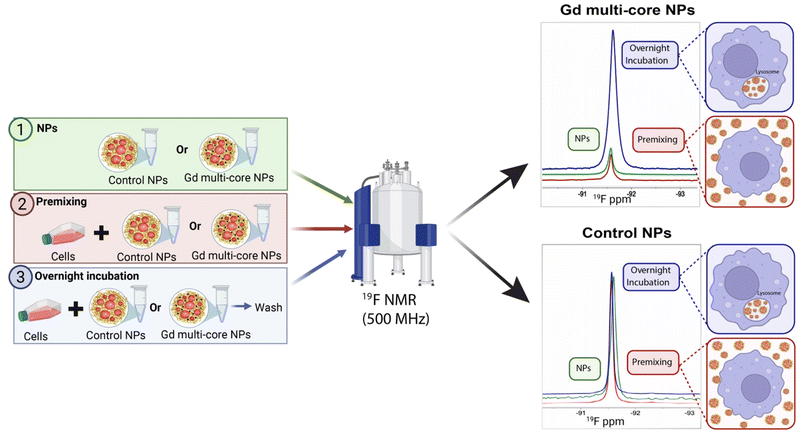

Fig. 6 Experimental setup and ¹⁹F NMR spectra at 500 MHz for control NPs and Gd multi-core NPs with RAW 264.7 macrophages. The results present three conditions: premixing, overnight incubation, and NPs in medium (Biorender).

PLGA-based particles of this size are primarily internalized through fluid-phase pinocytosis and clathrin-mediated endocytosis.^63,64 Due to their terminal carboxylic acid groups, negatively charged PLGA NPs tend to accumulate in lysosomes, unlike positively charged NPs, which can escape lysosomes and exhibit perinuclear localization.⁶⁵ Therefore, we expected that the acidic lysosomal environment would influence the ¹⁹F relaxivity of the Gd multi-core NPs.

Under premixing conditions (Fig. 6), the ¹⁹F signal of Gd multi-core NPs was initially low, similar to the baseline signal of the NPs in medium. However, following overnight incubation, the ¹⁹F signal increased substantially, indicating responsiveness to the mildly acidic intracellular environment. In contrast, the control NPs exhibited consistently high signal intensity both before and after incubation, with no significant increase over time, indicating no pH responsiveness (Fig. 6). T₂ values (Table S7) further support these observations, showing an increase for Gd multi-core NPs from ∼30 ms to ∼200 ms after incubation, whereas control NPs remained stable (∼750 ms). The fact that the T₂ of Gd multi-core NPs remains at 208 ms, significantly lower than that of control NPs (Table S7), suggests that the ¹⁹F nuclei still experience the PRE effect from Gd. This indicates that Gd has not been entirely released, and the particles remain structurally intact, rather than undergoing complete degradation.

Confocal microscopy confirmed intracellular localization, showing that Gd multi-core NPs remained outside the cells under premixing conditions but colocalized with lysosomes after 8 hours and overnight incubation (12 hours) (Fig. 7). The increase in the ¹⁹F NMR signal after overnight incubation aligns with this lysosomal localization, suggesting that the mildly acidic environment enhances the pH responsiveness of Gd multi-core NPs under physiological conditions.

Fig. 7 Confocal microscopy images of RAW 264.7 macrophages with NPs under three conditions: premixing and after 8 hours and overnight (12 hours) uptake. Nuclei are stained in blue (Hoechst EasyProbe), NPs in red (AttoOxa12), and lysosomes in yellow (LysoTracker™ Green DND-26). Live-cell imaging was performed using an inverted microscope with a 63× oil-immersion lens. Fluorescence and bright-field channels are displayed separately, along with the merged image. The signal from the NPs is visible in lysosomes after 8- and 12-hour incubation.

The trends observed in the NMR studies were further corroborated by in vitro ¹⁹F and ¹H MRI (14 T) of RAW 264.7 macrophages incubated with Gd multi-core or control NPs (Fig. 8). Cells were incubated under the same conditions described above for the in-cell NMR, namely, “premixing”, which mimics extracellular NP presence at neutral pH, and “overnight incubation”, which allows for intracellular processing in mildly acidic compartments. After incubation, cells were fixed, resuspended in PBS, and imaged. Both the pellet and the supernatant were imaged to distinguish signal contributions from internalized versus extracellular particles (Fig. 8).

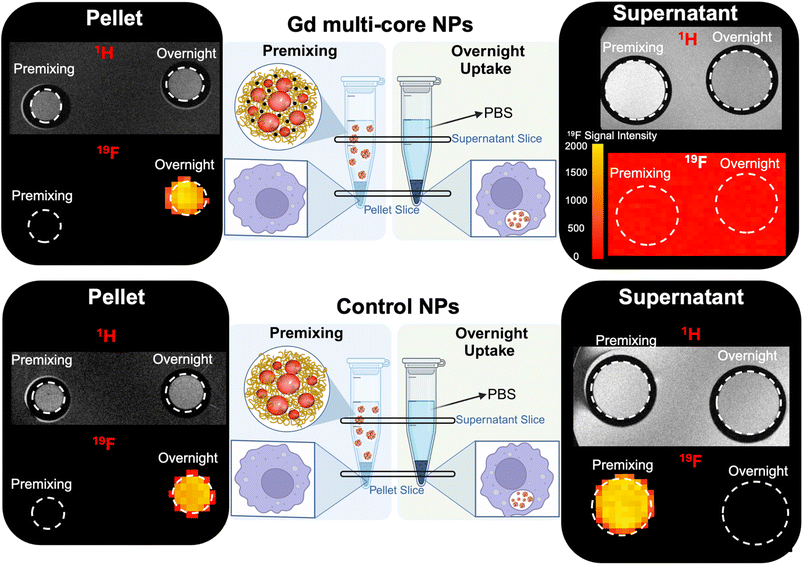

Fig. 8 In vitro ¹⁹F and ¹H MRI (14 T) of RAW 264.7 macrophages incubated with Gd multi-core and control NPs under premixing conditions and after overnight incubation. MR imaging was performed in two slices: one of the cell pellets (left) and one of the supernatants (right). To demonstrate the absence of a ¹⁹F signal in the supernatant for the Gd multi-core condition, the ¹⁹F signal is displayed without background suppression, showing only noise.

In the supernatant of the cells incubated with Gd multi-core NPs, no ¹⁹F MR signal was detected after overnight incubation, as uninternalized NPs were washed away. Similarly, under the premixing conditions, the ¹⁹F signal remained undetectable, consistent with the previously observed “off” state due to the PRE effect of Gd (Fig. 8 and S4). However, under premixing condition, an increased ¹H signal confirmed the presence of Gd multi-core NPs in the supernatant, indicating Gd-driven contrast enhancement (Fig. 8). This behaviour differs from that observed in aqueous suspension (Fig. 2), where ¹H signal enhancement occurred only at pH 3, likely due to polymer swelling induced by carboxyl group protonation. In contrast, the enhanced ¹H signal in PBS at pH 7 suggests that ionic interactions with salts in the buffer may also contribute to mild NP swelling. We hypothesize that these interactions disrupt polymer packing and increase hydration, allowing greater water permeability around the Gd chelates and enhancing relaxivity. However, this effect alone was insufficient to mitigate the PRE effect and restore the ¹⁹F MR signal. This indicates that while some structural rearrangement may occur in PBS, it does not significantly alter the Gd–PFCE proximity required to relieve PRE suppression.

In the cell pellet, no ¹⁹F MR signal was observed under the premixing conditions, consistent with the NPs remaining extracellular in PBS (pH 7), where the PRE effect continues to suppress the ¹⁹F signal. After overnight incubation, however, the ¹⁹F signal became clearly detectable in the pellet. This signal recovery suggests that intracellular uptake and subsequent trafficking into mildly acidic compartments, such as late endosomes or lysosomes, alleviated the PRE effect, likely through ultrastructural rearrangement that increased the average Gd–PFCE distance or altered PFCE mobility.

For the control NPs, which lack Gd, a clear ¹⁹F MR signal was observed in the supernatant under premixing condition and remained detectable in the pellet after overnight incubation (Fig. 8), with no evidence of signal modulation. This confirms that these NPs are not pH-responsive and that their signal remains stable over time regardless of location.

Interestingly, these findings reveal an additional advantage of Gd multi-core NPs for ¹⁹F MRI-based cell tracking.⁶⁶ In ex vivo cell labelling workflows, it is often difficult to distinguish between truly internalized NPs and extracellular surface-bound particles that persist despite washing, potentially confounding in vivo imaging readouts. In our system, only particles that are internalized and processed within the mildly acidic intracellular environment undergo structural changes sufficient to restore the ¹⁹F signal. In contrast, extracellular particles remain undetectable by ¹⁹F MRI due to the ongoing PRE effect. This selective signal activation improves labelling specificity and offers a promising strategy to enhance the reliability of ¹⁹F MRI for tracking labelled cells in vivo.

Building on the strong in vitro pH response of Gd multi-core NPs, their behaviour was further evaluated in an in vivo tumour model as a proof of concept. As shown in Fig. 9, the Gd multi-core NPs produced a strong ¹⁹F MR signal within the tumour, whereas no detectable signal was observed in the reference tube or at the subcutaneous injection site, both mimicking the pH 7 conditions previously studied in vitro. The presence of the ¹⁹F MR signal within the tumour was further confirmed by ex vivo imaging after tumour extraction (Fig. S5), demonstrating the responsiveness of Gd multi-core NPs to the acidic tumour microenvironment. In contrast, control NPs remained clearly visible by ¹⁹F MR in both the subcutaneous injection and reference tube, while the ¹⁹F MR signal in the tumour was notably lower. This may be due to differences in NP distribution or local microenvironmental factors affecting MR signal decay. These findings highlight the potential of Gd multi-core NPs as a smart, pH-responsive probe capable of selectively activating ¹⁹F MRI contrast in acidic environments, making them advantageous for precision imaging and diagnosis in tumour microenvironments and other conditions where pH variations are critical.

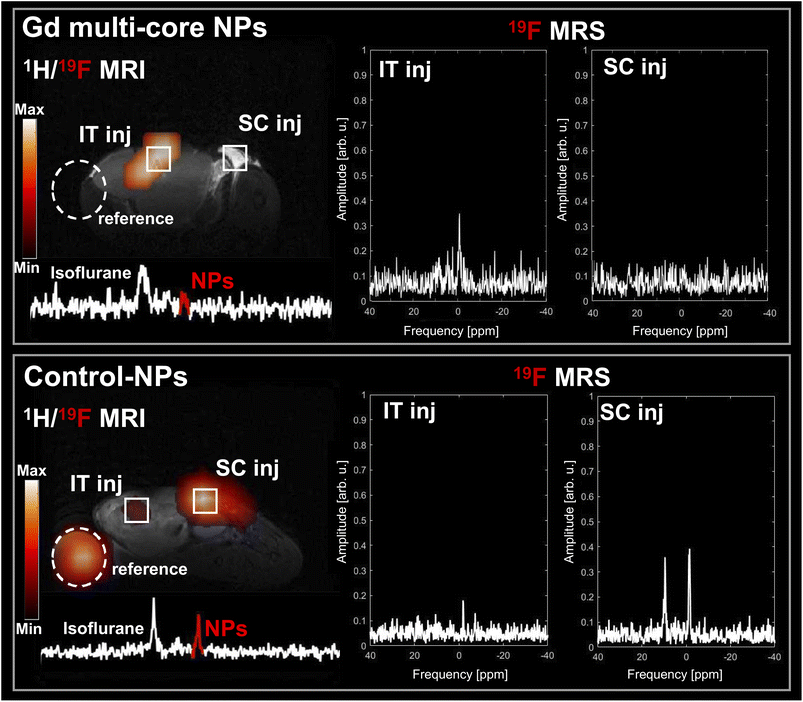

Fig. 9 In vivo ¹H and ¹⁹F MRI (7 T) of Gd multi-core and control NPs (5 mg/100 µL) following intratumoral (IT) and subcutaneous (SC) injections, with a reference (2 mg/100 µL) on site. On the left, merged ¹H/¹⁹F MR images of mice, with corresponding non-localized ¹⁹F MR spectra from NPs, shifted from the isoflurane anaesthesia. On the right, ¹⁹F MR spectra from voxels within IT and SC injections. The fluorine signal is marked in red. Total ¹⁹F MRI acquisition time: 60 min.

Collectively, our results indicate that the pH responsiveness is not driven by Gd release, PLGA degradation, or specific ionic effects. At pH 3, reduced ¹H T₁ values (Table S2) suggest matrix swelling and increased permeability. However, at more physiological acidity (pH 5), ¹H T₁ remains comparable to pH 7 despite clear ¹⁹F signal enhancement, indicating that matrix softening alone is insufficient to explain the effect. Minor factors, such as localized PFCE mobility and other physicochemical changes, may contribute synergistically. Still, among all tested variables, internal ultrastructural rearrangement remains the most plausible and dominant mechanism driving the pH-dependent ¹⁹F MRI signal modulation.

Additionally, multi-core PFCE–PLGA NPs have previously demonstrated excellent biocompatibility, with no toxicity observed even at high doses, further supporting their suitability for clinical translation.⁵² Interestingly, previous studies with PFCE–PLGA NPs incorporating hydrophilic gadoteridol showed enhancement of the ¹H MR signal, but no significant modulation of the ¹⁹F signal.⁵⁰

Although our multi-core design leads to a lower absolute ¹⁹F signal and shorter T₂ values (Fig. 2a, b and 3), it represents a rational design compromise, prioritizing stimulus-responsive behavior over maximal signal intensity. This approach is particularly well-suited for applications requiring conditional signal activation, such as imaging of pH-sensitive pathological environments.

This distinction is important: if the primary goal is to enhance the ¹⁹F signal under all conditions, other paramagnetic centers such as Fe³⁺ or Mn²⁺, which preferentially shorten T₁ with minimal impact on T₂, may be more appropriate.^35,54 In contrast, our Gd-based multi-core system is designed to enable ¹⁹F ON/OFF switching. Here, effective modulation of the ¹⁹F signal depends not only on the presence of Gd chelates but also critically on maintaining a short Gd–¹⁹F distance, as achieved within the multi-core nanoparticle structure.

While the present in vivo experiments demonstrate proof-of-concept pH-responsive ¹⁹F MRI signal activation, intratumoral and subcutaneous administration do not fully reflect clinically relevant diagnostic scenarios, where intravenous delivery is currently the predominant route. Following systemic administration, dilution, clearance, and reduced local nanoparticle concentration are expected to further limit signal-to-noise ratio and detection sensitivity. In this context, the relatively low absolute ¹⁹F signal and short T₂ values represent a limitation for whole-body diagnostic imaging. Nevertheless, by prioritizing conditional signal activation over maximal signal intensity, this platform may be particularly suited for applications involving localized accumulation, targeted delivery, or image-guided administration.

3 Conclusion

This study presents a novel pH-sensitive ¹⁹F MRI nanosystem in which NP ultrastructure modulates signal activation via the PRE effect, without requiring fluorophilic chelators or molecular linkers. By co-encapsulating PFCE and Gd-chelates within a PLGA matrix, we showed that multi-core NPs exhibit strong pH-responsive behaviour, enhancing ¹⁹F MR signal intensity under acidic conditions. In contrast, single-core NPs, representing the conventional structure for polymer-encapsulated PFCs, remained unaffected by pH changes. These findings were validated across high-field (14 T) and low-field (3 T) MRI platforms, as well as in vitro and in vivo, where tumour acidity selectively activated the ¹⁹F MR signal.

Notably, multi-core NPs exhibited reversible pH-dependent ¹⁹F signal enhancement under controlled in situ NMR conditions, a phenomenon not previously described in the literature. This reversibility supports the hypothesis that the observed effect is primarily driven by internal ultrastructural rearrangement, rather than by polymer degradation or Gd release, thereby preserving nanoparticle integrity. In contrast, single-core NPs remained pH-insensitive, emphasizing the role of nanoscale organization in modulating PRE-based contrast.

Given their high fluorine content, biocompatibility, and tunable response, Gd multi-core NPs offer a promising platform for stimulus-responsive MRI probes, with potential applications in tumour imaging and other pH-sensitive disease conditions. Their improved safety profile is further supported by the use of a biodegradable polymer matrix and chelated Gd, helping to mitigate concerns regarding free Gd toxicity. Moreover, the ability of these NPs to selectively activate the ¹⁹F signal only after cellular internalization provides an additional advantage for accurate and reliable ¹⁹F MRI-based cell tracking. More broadly, this work demonstrates that the nanoparticle architecture can be leveraged as a switchable contrast mechanism, offering a promising strategy for adaptive diagnostic imaging and stimulus-responsive theranostic applications.

4 Materials and methods

4.1 Materials

All chemicals were used as received. Poly(D,L-lactide-co-glycolide) (PLGA) Resomer RG 502H, with a lactide : glycolide molar ratio of 50 : 50, was obtained from Evonik Industries AG, Essen, Germany. Polyvinyl alcohol (PVA, 9000–10 000 M_w, 80% hydrolyzed), dichloromethane (DCM), deuterium oxide (D₂O), trifluoroacetic acid (TFA), gadolinium chloride (GdCl₃), and 3-aminopropyl-triethoxysilane (APTES) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Perfluoro-15-crown-5 ether (PFCE) was obtained from Exfluor (Texas, USA). Water was purified using a Purelab Chorus water purification system from Elga (Milli-Q water). Lipophilic gadolinium (Gd) chelate was synthesized as described previously.⁶⁷ Phosphate-buffered saline (PBS), Dulbecco's Modified Eagle Medium (DMEM), fetal bovine serum (FBS), and 1% penicillin/streptomycin were purchased from Gibco, Thermo Fisher Scientific, USA.

4.2 Methods

4.2.1. Synthesis of multi-core NPs. The detailed preparation of the NPs was described in our previous manuscripts.^50–52 Briefly, PLGA (100 mg) was dissolved in DCM (3 mL), followed by the addition of PFCE (900 µL). Due to the immiscibility of PFCE in DCM, the mixture forms a two-phase system, which was continuously mixed by pipetting to ensure homogeneity. In parallel, a stock solution of Gd-chelate in DCM was prepared (c = 0.0166 mg µL⁻¹), and the desired amount of Gd-chelate was added to the organic phase. This mixture was then added to 25 g of an aqueous solution of PVA (2 wt%) and emulsified in an ice-water bath using a sonicator (Sonifier 250; Branson Sonic Power, Danbury, CT, USA) at 40% amplitude for 3 minutes.

After sonication, the organic solvent was allowed to evaporate overnight, solidifying the particles. The NPs were washed four times with Milli-Q water by centrifugation at 16 000 × g (4 °C, 35 minutes) with supernatant replacement after each wash. The NPs were then resuspended in 5 mL of water, frozen using liquid nitrogen, and freeze-dried. The resulting powder was stored at −20 °C. Control NPs were prepared using the same procedure, excluding the addition of the Gd-chelate solution to the organic phase. For confocal microscopy experiments, NPs were prepared using the same procedure, with the addition of a fluorescent dye (AttoOxa12, ATTO-TEC GmbH, Germany) to enable imaging. In this manuscript, NPs containing Gd-chelate will be referred to as Gd multi-core NPs, while those without Gd-chelate will be referred to as control NPs (Fig. 1).

4.2.2. Synthesis of single-core NPs. Single-core NPs were synthesized using an adapted multi-core NP synthesis protocol as previously described.^50,51 A two-phase system consisting of PLGA (100 mg), DCM (3 mL), and PFCE (900 µL) was added to an aqueous sodium cholate solution (24 625 g, 1.5 wt%) and sonicated under the same conditions described above (40% amplitude, 3 minutes). Sodium cholate served as a surfactant during the sonication step. The desired amount of Gd-chelate (c = 0.0166 mg µL⁻¹) was added to the organic phase prior to sonication. Following sonication, DCM was evaporated overnight under stirring to solidify the particles. To replace the surfactant, PVA solution (10 g, 2 wt%) was added to the emulsion, which was continuously stirred at 4 °C for 4 days. The single-core NPs were then washed four times with Milli-Q water through centrifugation (16 000 × g, 35 minutes, 4 °C), resuspended in 5 mL of water, frozen with liquid nitrogen, and freeze-dried. The resulting powder was stored at −20 °C. In this manuscript, single-core NPs containing Gd-chelate will be referred to as Gd single-core NPs (Fig. 1).

4.2.3. Inductively coupled plasma optical emission spectroscopy (ICP-OES). The Gd content in the NPs was determined using ICP-OES (Avio 500; PerkinElmer, Waltham, MA, USA) using GdCl₃ and unloaded NPs as internal standards. Samples were prepared by adding 10 mg of the NPs to 2 mL mixture of nitric acid (HNO₃, 69%) and hydrochloric acid (HCl, 37%) in a 3 : 1 volume ratio. The mixture was incubated at 40 °C for two days to ensure complete degradation of the NPs. After degradation, the samples were diluted to a total volume of 10 mL prior to measurement.

4.2.4. Dynamic light scattering (DLS). NPs at a concentration of 0.1 mg mL⁻¹ were characterized for their diameter and polydispersity index (PDI) using DLS (Zetasizer Nano, Malvern Panalytical Ltd, UK). Measurements were carried out at a scattering angle of 173° using disposable cuvettes. The reported values represent the mean from four independent measurements, with each measurement comprising six runs of 10 seconds each, conducted at 25 °C.

4.2.5. Atomic force microscopy (AFM). Polymeric NPs were prepared for AFM analysis by depositing them onto positive functionalized mica substrates. The mica surface was first cleaved, and then functionalized by incubating it with 10 µL of APTES (0.1% v/v in Milli-Q water) for 1 minute. The substrate was then rinsed three times with 1 mL of Milli-Q water and dried using a gentle nitrogen stream. Subsequently, a solution of polymeric NPs (10 µL, 0.1 mg mL⁻¹) at pH 3.0 and 7.0 was deposited onto the positive functionalized surface. The droplet was incubated for 10 minutes, rinsed with 1 mL of Milli-Q water, and dried with a gentle nitrogen stream. All preparation steps were conducted at room temperature under laminar flow. AFM maps of the 3D morphology were acquired for both samples in a regime of constant phase change,⁶⁸ with 4 nm/pixel resolution by means of an NX10 (Park Systems, South Korea) operating in non-contact mode and equipped with an aluminum-coated cantilever (PPP-NCSTR, 7.4 N m⁻¹) with a probe of nominal radius <7 nm. Mountains SPIP software (Digital Surf) and SPIP software (version 6.7.3, Image Metrology, Denmark) were used for image processing and further analysis. Cross-sectional profiles of individual particles under both conditions were extracted for statistical analysis (n = 76).

4.2.6. Cell labelling. A murine macrophage cell line (RAW 264.7 cells, obtained from ATCC) was cultured in DMEM medium supplemented with 10% foetal bovine serum (FBS) and 1% penicillin/streptomycin under standard conditions (37 °C, 5% CO₂). Cells were evaluated under two conditions: overnight incubation and premixing.

In the overnight incubation condition, cells were seeded in 6-well plates and incubated for ∼12 hours with Gd multi-core or control NPs at a concentration of 2 mg per 1.0 × 10⁶ cells to allow uptake. After incubation, excess NPs were removed by washing the cells three times with PBS, followed by scraping and resuspension in fresh medium.

In the premixing condition, cells were mixed with the desired NPs immediately before measurement, without allowing time for uptake.

For MRI measurements, the same conditions were used, except that after washing and collecting the cells, cells were fixed with 4% paraformaldehyde (PFA) at room temperature for 30 minutes. Following fixation, cells were washed three additional times, resuspended in PBS, and centrifuged to form a pellet before scanning.

4.2.7. Fluorine-19 nuclear magnetic resonance ( ¹⁹F NMR). ¹⁹F NMR experiments were performed on a Bruker Avance III 400 MHz NMR spectrometer (Bruker, Ettlingen, Germany) equipped with a 5 mm BBFO+ probe at 298 K for quantitative analysis, or on a JEOL ECZ-R 500 MHz spectrometer (JEOL, Tokyo, Japan) equipped with a RoyalHFX probe to investigate pH effects on relaxation times in cells and various environments, including different organic acids. Measurements included ¹⁹F signal intensity, T₁ (longitudinal), and T₂ (transverse) relaxation times.

For quantitative ¹⁹F NMR spectroscopy, 5 mg of NPs was resuspended in 500 µL of D₂O and mixed with 1 vol% TFA (100 µL) as an internal reference (δ = 0.00 MHz). The solution was transferred into a 5 mm NMR tube, and measurements were performed using 8 scans with a 25-second interscan relaxation delay.

For relaxation time measurements, 5 mg of NPs were resuspended in D₂O or a D₂O-based solvent with the desired pH at the same concentration used for quantitative analysis right prior to the measurement and transferred to an NMR tube. The ¹⁹F 90° pulse was calibrated prior to measurement and T₁ and T₂ ¹⁹F relaxation times were measured as described below.

T₁ measurements were conducted using the inversion recovery method, which involves a 180° pulse followed by variable delay times to allow recovery of the longitudinal magnetization, followed by a 90° detection pulse. T₁ was initially estimated using a simple 1D sequence, followed by a full pseudo-2D acquisition with delays and an interscan delay set to 5 × T₁ (longest). Recovery curves were fit to an exponential growth function to calculate T₁. The ¹⁹F T₁ experiments were performed without ¹H decoupling.

T₂ measurements were performed using the Carr–Purcell–Meiboom–Gill (CPMG) sequence, which involves a 90° pulse followed by a train of tau-180-tau sequences, where tau is a variable delay. For rapidly T₂-relaxing nuclei (T₂ < 30 ms), a tau of 0.5 ms was used and for slower T₂-relaxing nuclei, a tau of 1.2 ms was used. T₂ was first estimated using a simple 1D sequence, followed by a full pseudo-2D acquisition with a list of refocusing pulse repetitions ranging from 2 to 1750 and an interscan delay set to 5 × T₁ (longest). The recovery was fit to a mono-exponential decay function to determine T₂ relaxation time.

For in-cell ¹⁹F NMR experiments cells were prepared as described above for the premixing and overnight incubation conditions. Following cell labelling, washing, and harvesting, cells were resuspended in 0.5 mL of full medium supplemented with 10% D₂O and transferred to a 5 mm Shigemi tube. The inner Shigemi tube was omitted to prevent compression of the cells. Cell viability was assessed using trypan blue staining and quantified with an Invitrogen™ Countess™ 3 (Thermo Fisher Scientific, USA) automated cell counter. All NMR data analysis was performed using Mestrenova 14.3.0 (Mestrelab Research, Barcelona, Spain).

4.2.8. Fluorine-19 magnetic resonance imaging (¹⁹F MRI).
4.2.8.1. 14 T MRI. MR experiments with phantoms were conducted on a Bruker wide-bore 600 MHz Avance NEO spectrometer (Bruker, Ettlingen, Germany) equipped with a Micro 2.5 microimaging gradient system and Paravision 360 imaging software. A MicWB40 microMRI probehead, fitted with a 30 mm diameter dual-tuned ¹H/¹⁹F coil, was used for all experiments. All ¹⁹F sequences were run with a chemical shift offset appropriate for the NP fluorine signal (approximately −91.6 ppm).

Fluorine and hydrogen MRI were performed on (1) Gd single-core NPs, (2) Gd multi-core NPs, and (3) control NPs at a concentration of 6.5 mg mL⁻¹. Phantoms were prepared using 200 µL Eppendorf tubes, each containing NPs at pH 3, 5, or 7, along with a control tube containing water. All four tubes were placed in a 25 mm NMR tube for simultaneous scanning. To evaluate relaxation time changes following cell uptake, cells were treated as described in Section 4.2.6, using the overnight incubation and premixing conditions. T₁ and T₂ relaxation times were then measured for both conditions in the cell pellets and the supernatant.

T₁ relaxation times were measured using a Flow-Sensitive Alternating Inversion Recovery with Rapid Acquisition with Relaxation Enhancement (FAIRRARE) sequence with the following parameters: echo time (TE) of 4.36 ms, repetition time (TR) of 5000 ms, and inversion times (TI) of 23, 100, 250, 500, 800, 2000, and 4000 ms, yielding seven MR images. The number of averages (NA) was set to 60 for the control NPs and 240 for the Gd NPs. The matrix size was 32 × 32, with a field of view (FOV) of 20 × 20 mm, a slice thickness (ST) of 10 mm, and a RARE factor of 32. Total scan time was 35 minutes for control NPs and 140 minutes for Gd NPs.

T₂ relaxation times were measured using a multi-scan multi-echo (MSME) sequence with the following parameters: TE of 20 ms, echo spacing of 20 ms, and a total of 60 echo images. TR was 5000 ms, with NA set to 30. The matrix size was 32 × 32, with a FOV of 20 × 20 mm and a slice thickness of 10 mm. The total scan time was 80 minutes.

Phantom localization was established using a ¹H RARE sequence with the following parameters: TE of 20 ms, TR of 1000 ms, NA of 4, matrix size of 256 × 256, FOV of 20 × 20 mm, slice thickness of 0.4 mm, and a RARE factor of 8. The scan time was approximately 2 minutes. A subsequent ¹⁹F RARE sequence was performed using the same orientation as ¹H (axial). The parameters for the ¹⁹F MR sequence were: TE of 18 ms, TR of 2075 ms, NA of 512, matrix size of 40 × 34, FOV of 20 × 20 mm, slice thickness of 10 mm, and a RARE factor of 34, with a scan time of approximately 18 minutes.

4.2.8.2 3 T MRI. To assess the pH sensitivity at clinically relevant magnetic field strengths, NPs were examined using a 3 T Bruker BioSpec system with ParaVision 360 v.3.3 software (Bruker, Ettlingen, Germany). The same conditions described in Section 4.2.8.1 were used, including the types of NPs, concentration, and phantom preparation.

T₁ relaxation times were measured using an inversion recovery RARE sequence with a TE of 6.5 ms, a TR of 5000 ms, and TIs of 23, 100, 250, 500, 800, 2000, and 4000 ms, producing seven MR images. The NA was set to 60, with a matrix size of 32 × 32, a spatial resolution of 1.5 × 1.5 mm² and a slice thickness of 5 mm. The RARE factor was set to 32, and the total scan time was 35 minutes.

T₂ relaxation times were measured using a MSME sequence. Parameters for the control samples and the Gd-loaded sample at pH 3 were as follows: TE of 20 ms, echo spacing of 20 ms, and a total of 60 echo images, with a TR of 5000 ms and NA set to 60. The matrix size was 32 × 32, with a spatial resolution of 1.5 × 1.5 mm² and a slice thickness of 5 mm. For the Gd samples at pH values of 5 and 7, the parameters were adjusted as follows: TE of 6.3 ms, echo spacing of 6.3 ms, and a total of 60 echo images, with a TR of 1800 ms and NA set to 60. The matrix size, spatial resolution and slice thickness remained the same.

4.2.9. Confocal microscopy. Live cell fluorescence microscopy was performed under controlled conditions (37 °C, 5% CO₂) with an inverted microscope Leica SP8 WLL (Leica Microsystems BV, Amsterdam, Netherlands) using a 63× oil-immersion lens. Images were acquired and post-processed with LAS X software (Leica Microsystems BV, Amsterdam, Netherlands). This experiment aimed to determine whether the ¹⁹F MRI signal observed after overnight incubation was due to the internalization of NPs into the acidic environment of lysosomes in RAW 264.7 cells. For this purpose, cells were seeded in 8-well chamber slides (LabTek, Nunc, Langenselbold, Germany) at a density of 5 × 10³ cells per well one day prior to the assay.

Fluorescently labelled multi-core NPs (AttoOxa12) were incubated at 2 mg per 1 × 10⁶ for either 12 or 8 hours prior to imaging. At each endpoint, cells were washed three times with PBS to remove excess NPs, and fresh medium with (or without) LysoTracker™ Green DND-26 (Thermo Fisher Scientific, USA) was added at a concentration of 100 nM for 2 hours. Fifteen minutes before washing, a drop of Hoechst EasyProbe (ABP Biosciences, Beltsville, USA) was added to each well for nuclear staining.

To image the premixing conditions, the particles were added to live cells in situ and immediately imaged. The acquisition settings were consistent between samples, and the same post-processing workflow was applied for the analysis.

4.2.10. Proof-of-principle in vivo MRI (7 T MRI). All animal procedures were conducted in accordance with ethical guidelines and approved by the Ethics Committee of the Institute for Clinical and Experimental Medicine and the Ministry of Health of the Czech Republic (approval no. 58/2014). The protocols adhered to the European Communities Council Directive (2010/63/EU) on the protection of animals used for scientific purposes. Adult Balb/c mice (6 months, n = 2, female) were housed in standard laboratory cages with a 12-hour light/dark cycle, in a conventional breeding facility, and were provided with water and pelleted food ad libitum. During injections of the NPs and MR experiments, anaesthesia was induced using 5% isoflurane (Baxter, Deerfield, USA) and maintained at 1.5 to 2%. Respiratory function was continuously monitored using a trigger unit (Rapid Biomedical, Berlin, Germany), and eye protection was ensured by applying eye cream (Ophthalmo-Septonex, Zentiva, Czech Republic). To maintain body temperature at 37 °C during MR measurements, animals were positioned in a custom coil holder equipped with water-filled tubes.
4.2.10.1 4T1 cell incubation and tumor induction. The murine mammary carcinoma 4T1 cell line was cultured in Roswell Park Memorial Institute (RPMI) 1640 media (Gibco, Thermo Fisher Scientific) supplemented with 2 mmol per L L-glutamine, 10% FBS, and 1% penicillin–streptomycin. All cells were incubated under standard conditions (37 °C; 5% CO₂). To induce tumour growth in vivo, a cell suspension (2 × 10⁶; V = 0.1 mL in PBS) was subcutaneously injected into the right mammary fat pad of healthy Balb/c mice. Tumour growth was monitored daily.
4.2.10.2 NP phantom measurement. The NPs (control and Gd multi-core) were tested prior to the in vivo experiments using a custom-made dual ¹H/¹⁹F surface radiofrequency (RF) coil on a 7 T MR experimental scanner (Bruker, Ettlingen, Germany). The half-saddle RF coil (30 mm diameter) was tuned and matched to the Larmor frequencies of both ¹H and ¹⁹F nuclei for optimal performance. Phantom experiments of aqueous control NPs and Gd multi-core NPs (10 mg/100 µL) were performed to establish sensitivity. Phantom localization was achieved using ¹H MRI with a T₂-weighted turbo spin-echo RARE sequence with the following parameters: TR of 1000 ms, TE of 36 ms, 2 NA, RARE factor of 8, FOV of 20 × 20 mm², matrix size of 256 × 256 and 0.078 × 0.078 mm² resolution. ¹⁹F MR non-localized spectroscopy (¹⁹F MRS) was assessed using a single-pulse sequence with a TR of 1000 ms, a bandwidth (BW) of 41 ppm, and a NA of 1–600 to observe the MR sensitivity at different scan times (1 second to 10 minutes). The chemical offset (−91 ppm) was determined from the phantom measurements. ¹⁹F MR images were acquired by MR spectroscopic imaging (MRSI), which enables spectrally resolved signal acquisition from a 2D voxel slab, providing targeted signal separation at a specific resonance frequency. Following parameters were used: TR of 30 ms, BW of 80 ppm, FOV of 20 × 20 mm², total scan time of 30 seconds to 1 hour (NA of 1–175), slice thickness of 5 mm, matrix size of 64 × 64 and 0.313 × 0.313 mm² resolution. All phantom images were measured in the coronal plane.
4.2.10.3 Tumour imaging. In vivo ¹⁹F MRS measurements were performed using the same RF dual coil and MR sequence parameters on a 7 T MR scanner as in phantom experiments, with a modified BW (50 ppm). The ¹⁹F MRSI sequence (TR of 100 ms) was optimized for the animal measurements with a FOV of 35 × 35 mm², a slice thickness of 25 mm, and a scan time of 10 minutes (NA of 17). Measurements were conducted directly after NP injection (5 mg/100 µL), administered subcutaneously (SC) and intratumorally (IT), at 24 hours post-injection (day 1) and on day 5 (only control NPs). Control NPs and Gd multi-core NPs (2 mg/100 µL) were mixed in 4% gelatine and used as signal references placed next to the animal. Tumour containing Gd-multi-core NPs was extracted at day 1 and measured ex vivo using the same sequences.

Conflicts of interest

There are no conflicts of interest to declare.

Data availability

All data supporting the findings of this study are available within the article and its supplementary information (SI). Supplementary information: Fig. S1–S5 and Tables S1–S7 providing additional data supporting the main findings of the manuscript. These include detailed nanoparticle size and polydispersity measurements by DLS, ¹⁹F and ¹H MR relaxometry data, reversibility experiments confirming pH sensitivity, and MR images of in vitro and ex vivo samples. See DOI: https://doi.org/10.1039/d5na01005e.

Acknowledgements

All experiments related to in vivo tumour visualization were funded by the Ministry of Health CR-DRO (Institute for Clinical and Experimental Medicine IKEM, project no. IN00023001). This project was also supported by the ZonMW PSIDER consortium – TRACER (Grant No. 0250022110001) and the EU Horizon 2020 Programme – Phoenix (Grant No. 953110). We sincerely thank Niels Wever from the ANU Department of Animal Nutrition for performing the ICP-OES analysis. We acknowledge the uNMR-NL Grid, a distributed state-of-the-art Magnetic Resonance facility for the Netherlands (NWO grant 184.035.002), and the MAGNEtic resonance research FacilitY (MAGNEFY) at Wageningen University for providing access to the NMR instruments. We are also grateful to Dominik Havlicek and Andrea Galisova from IKEM for their invaluable assistance with the in vivo MRI experiments. We would also like to thank Marcia Arini Ardyanti for her contribution to the preparation of the graphical abstract.
