Vat photopolymerization (VP) additive manufacturing (AM) enables the fabrication of complex 3D metal and ceramic objects by using light to selectively cure liquid resins, followed by post-processing to convert precursors to inorganic materials. This technique has been applied across diverse practical applications and can produce metals and ceramics with unique and tailored properties. In this perspective, we discuss VP-based AM within the broader context of the AM field, with a focus on the recent advances in fabrication of metals and ceramics, including approaches where precursors are incorporated prior to printing and those where they are introduced post-printing. We also evaluate polymer thermal decomposition processes, a critical step in VP-based AM of metals and ceramics. Finally, we discuss current challenges, future opportunities, and emerging technological directions including multi-material printing and high-entropy alloy manufacturing.
Metal AM has been widely adopted in various industries including aerospace,7 automobile,8 medical9 and construction.10 PBF, DED, and BJ are the most commonly used technologies for metal AM due to their ability to produce metallic parts with higher mechanical performance than those processes that use wires or metallic sheets as feedstock materials, and they have received extensive investigation.11,12 Commonly processed materials include titanium alloys, aluminum alloys, nickel-based alloys, high entropy alloys, and steels, among others. However, these powder-based methods have challenges when fabricating materials with high thermal conductivity due to difficulties in maintaining a localized melting zone, and a propensity for high porosity and thermal distortions, typically requiring intensive optimization of processing parameters.13 These limitations have motivated growing interest in indirect metal AM strategies that decouple geometric definition from metal densification by leveraging polymeric intermediates or scaffolds.
Vat photopolymerization combined with post-processing conversion reactions is a promising example of such an indirect approach, enabling the fabrication of 3D metallic and ceramic structures by using printed polymer parts as scaffolds for subsequent materials processing. VP offers the advantages of high dimensional resolution, precision, and speed, making it a powerful tool for fabricating high-quality, complex inorganic structures. VP has been extensively studied for fabrication of polymeric materials and has seen wide applications in recent years. According to an independent market report, the VP photopolymer market reached a size of $3.14 billion in 2024 and is expected to grow at a compound annual growth rate of 11.3% from 2025 to 2033.14 While this market is mainly dedicated to fabrication of polymeric parts and is dominated by dental applications, which accounted for 32.38% of the market share in 2024, there is an opportunity to expand the capabilities of VP printing more broadly to inorganic materials.14 However, several challenges remain, including the need for high precursor loadings that lead to excessive resin viscosity, limited precursor-resin compatibility that can compromise printability, and complex post-processing steps that influence the final structural and mechanical properties. Here, we discuss recent progress towards addressing these challenges in VP-based metal AM to support continued development in this field and to identify areas with opportunities for future impactful research.
Scanning stereolithography (SLA) was the first commercially available AM system introduced to the market in 1980s.15 It operates using either the “top-down” or “bottom-up” approach combined with a point-to-point tracing strategy, as shown schematically in Fig. 1A. Since SLA techniques expose one voxel at a time, they make use of high-intensity laser spots but require high linear translation speeds to achieve efficient throughput. In contrast, digital light processing (DLP), uses a digital micromirror device (DMD) or a liquid crystal display (LCD) as a dynamic mask to project sequential 2D sliced images within a vat to fully cure the entire resin layer at a time, shown schematically in Fig. 1B. Compared to SLA techniques, DLP techniques tend to expose each voxel with a lower intensity, but for a longer duration. Continuous liquid interface production (CLIP) is a variation of DLP printing, projecting a sequence of 2D images through an oxygen-permeable, UV-transparent window below a liquid resin bath to continuously fabricate a 3D object,16 shown schematically in Fig. 1C. The continuous nature of CLIP enables faster fabrication (exceeding 50 cm h−1) with smoother surface finishes. Two-photon lithography (TPL) is the most common and well-developed multiphoton lithography (MPL), in which the local photopolymerization of photoresins can be carried out by absorption of two photons stimulated by focused and pulsed femtosecond laser radiation, shown schematically in Fig. 1D. TPL allows for the fabrication of structures with feature sizes as small as 65 nm, and even reaching 9 nm when a secondary inhibition laser is employed.17–19 Volumetric additive manufacturing (VAM) techniques (Fig. 1E) create a 3D light intensity distribution that enables polymerization and crosslinking to occur in a controlled, contactless manner within the volume of a liquid photoresin, leading to the formation of the desired object.20,21 VAM techniques enable the use of highly viscous resins and the fabrication of centimeter-scale geometries within tens of seconds, significantly faster than traditional layer-by-layer 3D printing methods.
![]() | ||

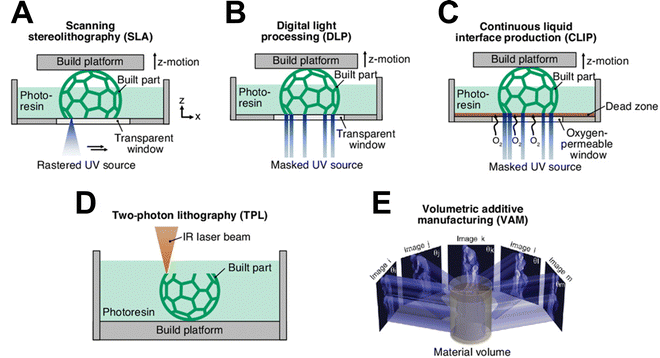

| Fig. 1 Schematics of common VP techniques including (A) scanning stereolithography, (B) digital light processing, (C) continuous liquid interface production, (D) two-photon lithography, and (E) volumetric additive manufacturing. Adapted from ref. 20 and 22 with permission. | ||

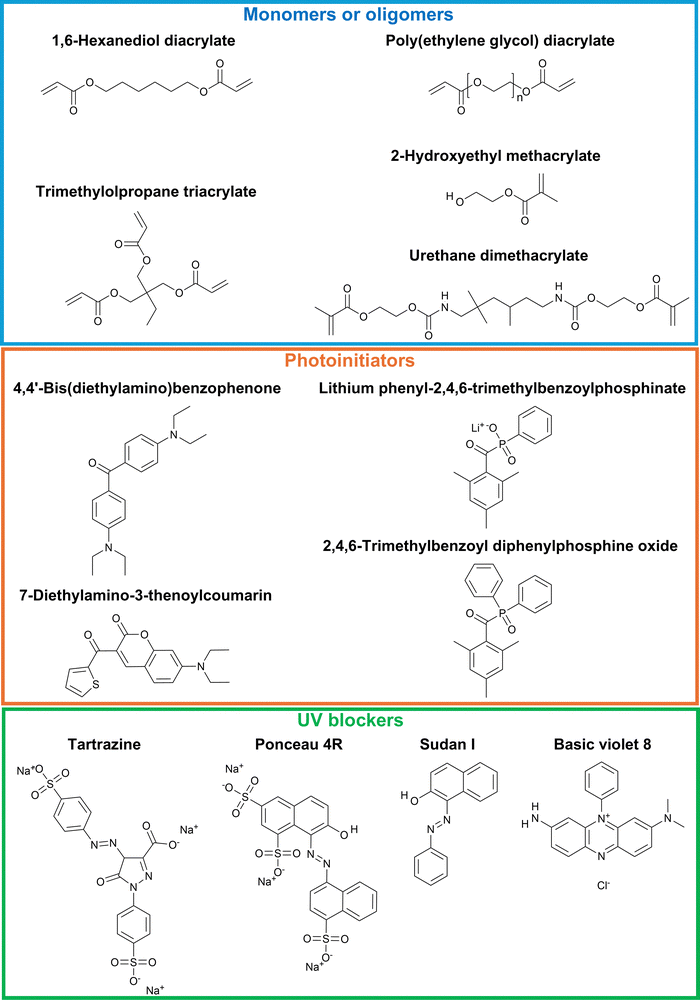

Understanding the polymerization chemistries involved in VP printing enables modifications to printing parameters such as UV wavelength, exposure time, and printing speed to optimize the final product. In typical free-radical VP systems, photoresins consist of monomers/oligomers (30–99+ wt%), photoinitiators (less than 5 wt%), and UV blockers (less than 0.5 wt%), with representative molecules illustrated in Fig. 2. Monomers/oligomers generally contain one or more functional groups that can participate in the polymerization reaction, with (meth)acrylate-based and thiol–ene-based chemistries being the most commonly used.23 Monofunctional monomers often serve as reactive diluents to reduce resin viscosity, whereas multifunctional oligomers can lead to increased viscosity and crosslinking. Photoinitiators play an important role in the photopolymerization reaction, as they undergo a series of complex physical or chemical changes during the initiation process.23 In free-radical photopolymerizations, photoinitiators that undergo homolytic bond cleavage to generate free radicals are known as Norrish type I initiators, such as benzil ketals and acyl phosphine oxides.24 Photoinitiators that undergo photoexcitation and then abstract hydrogen or electrons from co-initiator species (e.g., tertiary amines) to produce radicals are classified as Norrish type II initiators, with benzophenones and thioxanthones being common examples.25 UV blockers, such as tartrazine, are incorporated to regulate light penetration depth by attenuating incident radiation and quenching propagating radicals.26 This enables precise control over curing depth and prevents premature gelation of resins. Beyond free-radical systems, cationic polymerization is an alternative polymerization method that is widely used and well-studied in VP processes. It typically involves cations generated from the decomposition of onium or diazonium salts, which react with monomers via ring-opening reactions, leading to chain-growth through ion pair propagation.27
To mitigate the challenges related to increased viscosity, and particle agglomeration and setting, dispersants or surfactants are commonly used to minimize particle interactions and improve suspension stability. In general, ceramic particles typically possess a high density of surface hydroxyl groups, rendering them hydrophilic and prone to agglomeration due to the strong interparticle interactions.32 In contrast, most UV-curable resins used in VP are non-aqueous and hydrophobic. By adding dispersants with hydrophobic anchoring head groups and hydrophilic end chains, the surfaces of ceramic particles can be converted from hydrophilic to hydrophobic.33 For metal particles, the surfaces are usually covered by thin oxide layers, which exhibit a lower hydroxyl group density and stronger van der Waals attractions compared to ceramic particles. Consequently, stabilization of metal particles in VP resins relies on dispersants that exhibit strong affinity toward oxide-covered metallic surfaces while maintaining compatibility with the photopolymer matrix. Such surface modification results in the formation of a core–shell structure that provides steric hindrance and/or enhanced electrostatic repulsion, thereby ensuring homogeneous dispersion of particles within the suspension. Commonly used dispersants for metal/ceramic particles include stearic acid (SA),29,34 oleic acid (OA),29,35 Disperbyk (BYK),36,37 and silane coupling agent KH560.34 An optimal dispersant concentration can substantially enhance the rheological properties of slurries, resulting in lower viscosity, reduced sedimentation rates, and improved dispersion stability.38 In addition to mitigating interparticle interactions, dispersants also influence the photopolymerization behavior of the slurry. Studies have shown that as the absorption coefficient of dispersants increases, the light transmittance of the slurry decreases significantly.39 Fig. 3 shows a typical VP-based heterogeneous resin method with ceramic particles coated with dispersant molecules. Its SEM results show that the fabricated Al2O3 ceramic structures with controllable micro-sized features could be printed by using different dispersants.
![]() | ||

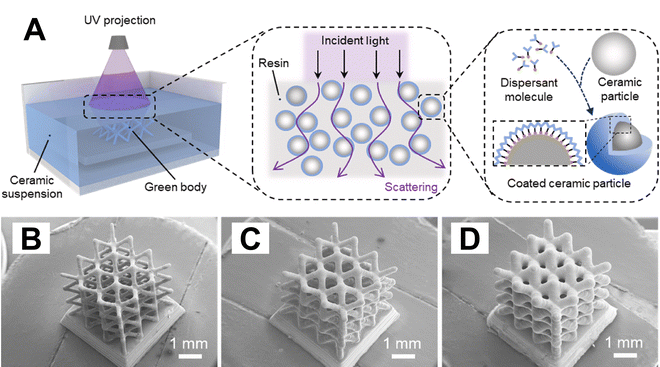

| Fig. 3 (A) Schematic illustrations of a VP-based heterogeneous resin method, showing the propagation of incident light within the suspension and ceramic particles coated with dispersant molecules. (B)–(D) SEM images of Al2O3 ceramic green bodies 3D printed with different dispersants. (B) Containing KOS110. (C) Containing BYK111. (D) Containing BYK180. Adapted from ref. 39 with permission. | ||
Table 1 compares the target material, VP technique, resin composition including photoinitiators (PIs) and metal precursors (MPs), resin viscosity at different shear rate (SR), relative density, mechanical properties, and feature dimensions of the final printed objects of recently reported heterogeneous resin methods employing various dispersants. Here, the relative density is defined as the ratio of the measured bulk density to the theoretical density of corresponding material, in which bulk density is typically determined using the Archimedes method. As summarized in Table 1, VP-based heterogeneous resin methods can achieve near-full densification in ceramic systems, but this generally requires high solid loadings accompanied by high resin viscosities, typically greater than the low-viscosity range of 0.1–1 Pa s and up to approximately 35 Pa s.40 When high densification is achieved, the resulting mechanical properties approach bulk values.41,42 Such highly loaded systems exhibit large and anisotropic linear shrinkage, commonly around 19–26% in X–Y plane and about 21–28% along the Z direction, with extreme cases reported in copper-based systems showing Z-direction shrinkage of up to 63%.
| Target material | VP technique | Resin composition | Resin viscosity and shear rate (SR) | Relative density | Mechanical properties | Feature dimensions | Ref. |
|---|---|---|---|---|---|---|---|
| Alumina | DLP | Monomers/oligomers: 1,6-hexanediol diacrylate, ethoxylated pentaerythritol tetraacrylate, di-functional aliphatic polyurethane acrylate | 1.97 Pa s | 97.53% | Flexural strength: 455.37 ± 32.17 MPa | Not reported | 35 |
| MPs: yttria-coated alumina (79 wt%) | SR: 13 s−1 | Weibull modulus: 16.88 | |||||
| Dispersants: oleic acid (1.0 wt%), BYK9077 | |||||||
| Alumina | DLP | Monomers/oligomers: 1,6-hexanediol diacrylate, trimethylolpropane triacrylate | 71 mPa s | Not reported | Not reported | Beam diameter: 115 µm | 39 |
| PIs: 2,4,6-trimethylbenzoyldiphenyl phosphine | SR: 80 s−1 | ||||||
| MPs: alumina (40 vol%) | |||||||
| Dispersants: BYK-180 (5 wt%) | |||||||
| Alumina | DLP | Monomers/oligomers: 1,6-hexanediol diacrylate, trimethylolpropane triacrylate | 1.09 Pa s | Not reported | Not reported | Shrinkage: X–Y = 19.8%, Z = 20.9% | 43 |
| PIs: phenylbis(2,4,6-trimethylbenzoyl)phosphine oxide | SR: 25 s−1 | ||||||
| MPs: alumina (50 vol%) | |||||||
| Dispersants: BYK111 (3 wt%) | |||||||
| Aluminum alloy | DLP | Monomers/oligomers: 1,6 hexanediol diacrylate, trimethylolpropane triacrylate, | 34.7 Pa s | 91.23% | Elastic modulus: 63.886 GPa, | Feature resolution: 0.9 mm | 44 |
| PIs: 2,4,6-trimethylbenzoyl diphenylphosphine oxide | SR: 10 s−1 | Vickers hardness: 1.82 GPa | |||||
| Inhibitors: tert-butylhydroquinone | |||||||
| MPs: AA5052 aluminum alloy powder (55 vol%) | |||||||
| Dispersants: SP-710 (5 wt%) | |||||||
| Zirconia | DLP | Monomers/oligomers: urethane dimethacrylate, hydroxyethyl methacrylate, acryloyl morpholine | 3.8 Pa s | 98.3% | Flexural strength: 708 MPa | Shrinkage: X–Y = 21.6%, Z = 27.8% | 45 |
| MPs: yttria-stabilized zirconia (40 vol%) | SR: 30 s−1 | Vickers hardness: 14.7 GPa | |||||
| PIs: CPI01 | Fracture toughness: 5.49 MPa m1/2 | ||||||
| Dispersants: CPD01 and CPD09 (3 wt%) | |||||||
| Zirconia | SLA | Monomers/oligomers: 1,6-hexanediol diacrylate, trimethylolpropane triacrylate | 1.03 Pa s | 99% | Vickers hardness: 14 GPa | Not reported | 46 |
| PIs: diphenyl(2,4,6- trimethylbenzoyl)phosphine oxide | SR: 65 s−1 | ||||||
| MPs: zirconia (40 vol%) | |||||||
| Dispersants: BYK-103 (5 wt%) | |||||||
| Zirconia | DLP | Monomers/oligomers: acrylate-based resin AnyCubic | 0.93 Pa s | 98.2 ± 0.3% | Vickers hardness: 12.89 GPa | Shrinkage: X–Y = 25.7%, Z = 27.1% | 37 |
| MPs: yttria-stabilized zirconia (30 vol%) | SR: 10 s−1 | ||||||
| Dispersants: BYK-103 (10 wt%) | |||||||
| Copper | CLIP | Monomers/oligomers: 1,6-hexanediol diacrylate, trimethylolpropane ethoxylate triacrylate | 0.16 Pa s | Not reported | Not reported | Feature resolution: 50–100 µm | 36 |
| PIs: Omnirad 819 | SR: 80 s−1 | Shrinkage: X–Y = 58%, Z = 63% | |||||
| MPs: copper sulfate (50 wt%) | |||||||
| Dispersants: BYK-2013 (7 wt%) | |||||||
| Copper | CLIP | Monomers/oligomers: 1,6-hexanediol diacrylate, trimethylolpropane ethoxylate triacrylate | 0.41 Pa s | Not reported | Not reported | Shrinkage: 59% | 47 |
| PIs: Omnirad 819 | SR: 25 s−1 | ||||||
| MPs: copper sulfate (62 wt%) | |||||||
| Dispersants: Triton X-100 | |||||||
| WC–Co hardmetals | SLA | Monomers/oligomers: trimethylolpropane triacrylate, hexamethylene diacrylate | 1.58 Pa s | 99.5% | Rockwell hardness: 86.9 HRA | Not reported | 48 |
| PIs: diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide | SR: 100 s−1 | Surface roughness: 2.26 µm | |||||
| MPs: WC and Co (40 vol%) | |||||||
| Dispersants: TEGO DISPERS 655 (2 wt%) |
Various metal precursors can be incorporated into homogeneous resins either as inorganic salts (e.g., nitrates, chlorides, acetates) or as organometallic compounds (e.g., acetylacetonates, alkoxides, amino complexes). Metal salts are an inexpensive precursor that can achieve high metal content and favorable rheological properties when dissolved in aqueous solution. However, they are generally difficult to dissolve in organic polymers, and typically require a hydrophilic polymer scaffold. The development of metal-ion-rich, water-based binder matrices, such as acrylate-based hydrogels is well-established. In this system, metal ions are effectively entrapped and homogeneously distributed within the polymeric network. For example, Luitz et al. demonstrated the preparation of a platinum-containing organic–inorganic photoresin by dissolving K2PtCl4 in polyethylene glycol diacrylate and the water-soluble monomer Genomer 7311.51 By replacing the metal precursor with Na6(H2W12O40), they also fabricated tungsten ion photoresin for the tungsten and tungsten carbide manufacturing.52 Similarly, Cai et al. formulated a water-based photoresin containing (NH4)6[H2W12O40]·xH2O as the tungsten source, Ni(NO3)2·6H2O as a sintering aid, acrylic acid-2-hydroxyethyl as an active diluent, polyethylene glycol diacrylate as a cross-linker.53 Yee et al. reported a method involving the dissolution of zinc nitrate hexahydrate in water, followed by mixing with polyethylene glycol diacrylate and a two-photon initiator, 7-diethylamino-3-thenoylcourmarin, to produce a homogeneous zinc-ion photoresin for two-photon lithography.49 Beyond this work, Yee et al. further developed a DLP printing route using lithium and cobalt nitrate containing hydrogels to fabricate lithium cobalt oxide architectures, one of the most widely used cathode materials for lithium-ion batteries, shown in Fig. 4A.54 In general, these studies demonstrate that water-based, metal-ion-containing hydrogel systems provide a versatile platform for achieving homogeneous precursor distribution.
![]() | ||

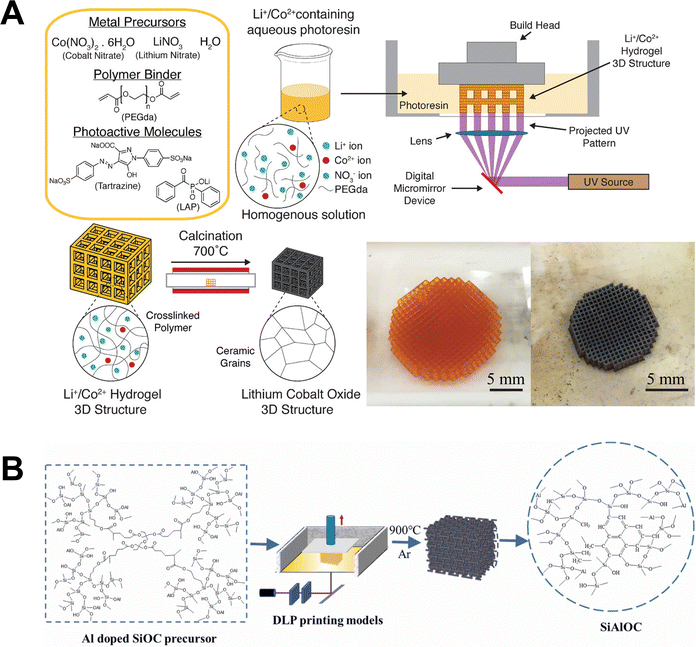

| Fig. 4 Schematic illustrations of VP-based homogeneous resin methods for metal AM. (A) Resin formulation and schematic of DLP printing of a Li+/Co2+ hydrogel 3D structure. The printed Li+/Co2+ hydrogel (left optical image) is then calcined to form a self-similar LCO structure (right optical image). (B) SiAlOC precursor solution molecular structure and schematic of DLP printing of SiAlOC. Adapted from ref. 54 and 58 with permission. | ||
Another approach to fabricate homogeneous photoresins for metal AM involves the use of organic metal precursors. These precursors may directly react with the polymer, often leading to cross-linking, or be incorporated via complexation to ensure bonding of the metal to the polymer backbone. For instance, Vyatskikh et al. reported a ligand exchange reaction between nickel alkoxide and acrylic acid to synthesize nickel acrylate, which was subsequently combined with pentaerythritol triacrylate and a photoinitiator (7-diethylamino-3-thenoylcoumarin) to form a nickel-ion-containing homogeneous photoresin.55 The resulting metal-containing polymer structures were then pyrolyzed to remove the organic components and convert the polymer into metallic nickel. Using complexing agents to incorporate metals into polysiloxane matrices for the fabrication of metal doped, polymer-derived ceramic is another key application of this approach, as illustrated in Fig. 4B. Fu et al. demonstrated the fabrication of multiple metal doped polymer-derived SiOC ceramics by using methacrylic acid to incorporate Zr and Ti into methyl-silsesquioxane photoresin through a complexation reaction.56 Similarly, Essmeister et al. reported the development of polymer-derived Ni/SiOC materials with catalytic activity in CO2 methanation, using methacrylic acid to incorporate Ni into methyl-silsesquioxane photoresin.57 Hu et al. formulated an Al-doped SiOC photoresin by combining methyl-silsesquioxane resin with aluminum acetylacetonate as the raw material.58 Overall, these approaches demonstrate that molecular-level incorporation of metal species into polymer backbones offers enhanced control over composition.
Table 2 compares the target material, VP technique, resin composition, product composition, chemical and mechanical properties, and feature dimensions of recently reported VP-based homogeneous resin methods. As summarized in Table 2, homogeneous resin methods enable molecular-scale metal ion distribution and can achieve excellent printing resolution (250–400 nm), particularly when hydrophilic, metal ion-rich polymer matrices are combined with TPL technique. However, these advantages are often accompanied with extreme linear shrinkage (40–80%) and limited bulk densification. Approaches based on organic metal precursor can partially mitigate shrinkage (35–41%) but typically operate at low metal contents (below 5 wt%) and yield only modest mechanical strength. Notably, VP-based homogeneous resin methods target highly diverse end applications-including micro-mechanical metamaterials, electronics, and catalysis, leading to substantial variation in product compositions, architectures, and testing protocols. Consequently, reported chemical and mechanical properties span a wide range, which makes direct cross-comparison between studies inherently difficult.
| Target material | VP technique | Resin composition | Product composition | Chemical/mechanical properties | Feature dimensions | Ref. |
|---|---|---|---|---|---|---|
| Zinc oxide | TPL | Monomers/oligomers: poly(ethylene glycol) diacrylate | Zn: 45.0 at% | Loading stiffness: 2.37 ± 0.15 kN m−1 | Feature resolution: 250 nm | 49 |
| PIs: 7-diethylamino-3-thenoylcoumarin | O: 48.9 at% | Unloading stiffness: 2.52 ± 0.13 kN m−1 | Shrinkage: 87 ± 2% | |||
| MPs: zinc nitrate hexahydrate (∼51 wt%) | Failure compressive strain: 3.5% | |||||
| Platinum | TPL | Monomers/oligomers: polyethylene glycol diacrylate, Genomer 7311 | Pt: 96.8 wt% | Conductivity: 6.32 × 106 S m−1 | Feature resolution: 330 nm | 51 |
| PIs: 4,4′-bis(diethylamino)-benzophenone | Surface roughness: 0.3 nm | Shrinkage: 80.8% | ||||
| MPs: potassium tetrachloroplatinate (25 wt%) | ||||||
| Tungsten, tungsten carbide | TPL | Monomers/oligomers: polyethylene glycol diacrylate, Genomer 7311 | W: 93 at% | WC indentation hardness: 64.9 ± 11.1 MPa | Beam diameter: W: 8.9 ± 0.1 µm, WC: 6.9 ± 0.2 µm | 52 |
| PIs: 4,4′-bis(diethylamino)-benzophenone | WC: 45 at% tungsten | WC modulus: 1.314 ± 0.295 GPa. | Shrinkage: W: 53.4%, WC: 52.7% | |||
| MPs: sodium metatungstate (33 wt% for tungsten and 47 wt% for tungsten carbide) | Surface roughness: W: 214 nm, WC = 162 nm | |||||
| Compressive strength (strut breaking): W: 0.9 MPa, WC: 5.1 MPa | ||||||
| Tungsten | DLP | Monomers/oligomers: polyethylene glycol diacrylate | W: 95.31 wt% | Micropillar compressive strength: 1552 MPa | Feature resolution: 35 µm | 53 |
| PIs: PEG-BAPO | Nanoindentation hardness: 7.5 GPa | Shrinkage: ∼40% | ||||
| UV blocker: tartrazine | Overall compressive strength: 13 MPa | |||||
| MPs: ammonium metatungstate (47.8 wt%) | Surface roughness: 2.86 µm | |||||
| Nickel | TPL | Monomers/oligomers: acrylic acid, pentaerythritol triacrylate | Ni: 91.8 wt% | Specific strength: 2.1–7.2 MPa g−1 cm3 | Beam diameter: 300–400 nm | 55 |
| PIs: 7-diethylamino-3-thenoylcoumarin | Structural stiffness: ∼47–174 MPa | Shrinkage: ∼80% | ||||
| MPs: nickel 2-methoxyethoxide | Compressive strength (at first buckling): 6.9–18.2 MPa | |||||
| Zr/Ti/SiOC | DLP | Monomers/oligomers: methyl-silsesquioxane, 3-(trimethoxysilyl)-propyl methacrylate | Zr: 1.84 wt% | Compression strength: 0.124 MPa | Shrinkage: 35.4% | 56 |
| PIs: phenylbis(2,4,6-trimethylbenzoyl)phosphine oxide | Ti: 0.33 wt% | Hardness: 7.61 GPa | ||||
| MPs: zirconium n-propoxide, titanium isopropoxide | ||||||
| Complexing agents: methacrylic acid | ||||||
| Ni/SiOC | Masked-SLA | Monomers/oligomers: methyl-silsesquioxane, 3-(trimethoxysilyl)-propyl methacrylate, tri (propyleneglycol)-methyl ether | Ni: 5 wt% | CO2 methanation: 25.6% CO2 conversion and 53.4% CH4 selectivity at 400 °C | Feature resolution: 400 µm | 57 |
| PIs: phenylbis(2,4,6-trimethylbenzoyl)phosphine oxide | ||||||
| MPs: nickel(II) nitrate hexahydrate | ||||||
| Complexing agents: methacrylic acid | ||||||
| Al/SiOC | DLP | Monomers/oligomers: methyl-silsesquioxane, 3-methacryloxypropyltrimethoxy, trimethylolpropane triacrylate | Al: 0.51 wt%. | Compression strength: 12.76 MPa | Shrinkage: 41% | 58 |
| PIs: phenylbis(2,4,6-trimethylbenzoyl)phosphine oxide | Champion piezoresistivity: 75.44% | |||||
| MPs: aluminum acetylacetonate | Gauge factor: −647.49 |
The use of homogeneous resins effectively addresses the viscosity challenges caused by high particle loadings and reduces light scattering compared to heterogeneous resins. However, a major drawback of this approach is that these photoresins are often not commercially available, due to the diverse chemical properties of metal ions and the need for a complex multi-step synthesis. Developing resins with both high metal content and appropriate optical properties remains a significant challenge, as the maximum loading of metal precursors is constrained by a combination of precursor solubility, molecular compatibility, viscosity, and photopolymerization kinetics. Moreover, the specific requirements of the polymerization process narrow the range of compatible polymeric materials, as certain metal precursors (e.g., Cu2+) can inhibit polymerization, making compositional tuning more challenging due to their interactions with the curing chemistry.59 In particular, transition metal ions could introduce additional light absorption through ligand-to-metal charge transfer, reducing light penetration depth, while also acting as radical scavengers that increase the critical exposure dose.60 These effects are generally less pronounced than those introduced by dedicated UV blockers (e.g., tartrazine), but still require quantitative evaluation and re-optimization of printing parameters, such as exposure dose and layer thickness to ensure reliable printing performance.
![]() | ||

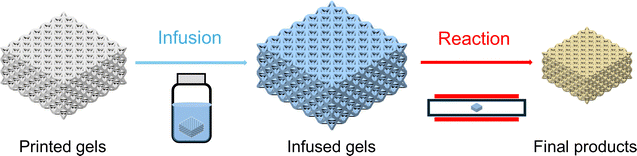

| Fig. 5 Schematic of infusion-reaction methods. Precursors are introduced into a printed scaffold (gel) during an infusion step after printing, then undergo a reaction to form final products. | ||
![]() | ||

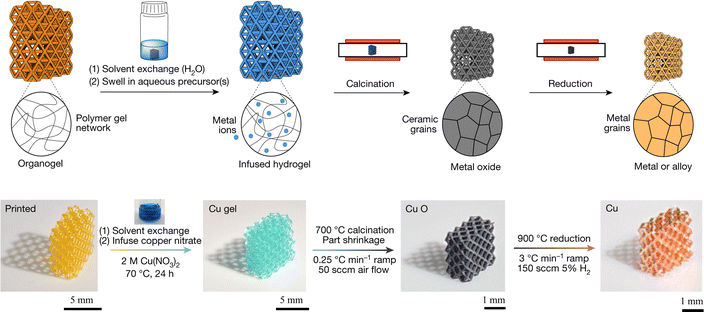

| Fig. 6 Schematic of HIAM process and optical images of the HIAM process for Cu metal. Adapted from ref. 61 with permission. | ||
Nanoindentation experiments performed on HIAM-derived Cu and Cu55Ni45 revealed hardness values of 1.81 ± 0.37 GPa and 2.15 ± 0.22 GPa, respectively.61 To investigate the mechanisms underlying this enhanced hardness in HIAM-derived alloys, Tran et al. recently conducted a systematic study on the reduction processes and microstructural evolution of the HIAM-derived CuxNi1−x alloy system.63 Their findings indicated substantial growth of metallic nuclei into microscale grains during reduction, which facilitated the formation of low energy interfaces and numerous annealing twins. These microstructural features entrapped unreduced oxide grains, resulting in hierarchical nanocomposite structures that contributed to hardness values up to four times greater than those of bulk annealed CuxNi1−x. Uniaxial compression experiments on both Cu-rich and near-equiatomic micropillars further revealed composition-dependent nanomechanical behaviors. The primary sources of defects were likely to be internal pores formed by H2O generation during reduction and dispersed unreduced oxides resulting from incomplete reduction. The extent and distribution of these defects varied with alloy composition, influencing the density of inclusions and voids in the final material. These microstructural heterogeneities likely played a significant role in the elevated nanoindentation hardness observed in HIAM-derived alloys.
Within the HIAM processes, the solvent-exchange step is essential to remove residual organic solvent in the structure, which can lead to formation of porosity upon calcination and reduction. The presence of organic solvent can also cause precipitation of the metal salt during the swelling process, leading to an inhomogeneous distribution of the metal precursors. An investigation of the impact of both inorganic and organic precursors on the final printed structures was conducted by Yaw et al.64 The study demonstrates that the concentration of hydrogel formulations and the choice of inorganic salts with different decomposition events can significantly influence the resulting morphology and porosity of the printed structures.
However, the exact mechanisms of metal ion diffusion within hydrogels remain unclear due to the highly disordered nature of polymer chains, the high concentration of metal ions in solution, and the large excess of water molecules.64 From a thermodynamic perspective, diffusion in hydrogels is generally entropy-driven and governed by gradients in Gibbs free energy or chemical potential, which dictate the direction of mass transport.65 Ion diffusion mechanisms can be classified into three main types: physical adsorption, chemical adsorption, and ion exchange.66 The dominant metal ion adsorption mechanism varies significantly depending on the type of metal ion, the ionic composition of the solution, and the surface properties of the hydrogel. In the HIAM process, physical adsorption plays a role, in which metal ions are loosely bound to the hydrogel via weak forces such as electrostatic attractions. Electrostatic attractions occur between oppositely charged metal ions and functionalized hydrogels. Functional groups such as carboxyl, hydroxyl, amide, and amine play a crucial role in inducing surface charge and mediating ion adsorption.66 The strength of electrostatic interactions depends heavily on the surface charge density of the hydrogel, which is governed by the ionization of these groups, a pH-dependent process. Electrostatic interactions also influence the solubility of solutes within the hydrogel.65 For instance, hydrophilic solutes with polar groups can form hydrogen bonds with the matrix, increasing retention and reducing diffusion rates.
Table 3 compares the target material, VP technique, resin composition, product composition, mechanical properties, and feature dimensions of recently reported VP-based HIAM and HIAM-variant methods. As summarized in Table 3, HIAM and its variants combine infusion-reaction strategies to achieve high metal content (around 85–95 wt%), while maintaining mechanically robust micro-architectures. Compared with other VP-based metal AM approaches, HIAM and HIAM-variant methods exhibit moderate shrinkage (20–70%), and nano-to-microscale feature resolution. It provides a unique balance among compositional flexibility, mechanical integrity, and scalability, making it particularly attractive for the fabrication of multifunctional metal micro-structures.
| Target material | VP technique | Resin composition | Product composition | Mechanical properties | Feature dimensions | Ref. |
|---|---|---|---|---|---|---|
| Copper etc. | DLP | Monomers/oligomers: poly(ethylene glycol) diacrylate | Cu: 93 wt% | Hardness: Cu = 1.81 ± 0.37 GPa | Beam diameter: ∼40 µm; | 61 |
| PIs: 2-dimethylamino-2-(4-methyl-benzyl)-1-(4-morpholin-4-ylphenyl)-butan-1-one, bis[4-(dimethylamino)phenyl]methanone | CuNi: 86wt% | CuNi = 2.15 ± 0.22 GPa | Shrinkage: ∼60–70% | |||
| UV blocker: 1-(phenyldiazenyl)naphthalen-2-ol | ||||||
| MPs: copper nitrate, nickel nitrate etc. | ||||||
| Solvents: N,N-dimethylformamide | ||||||
| Copper | DLP | Monomers/oligomers: poly(ethylene glycol) diacrylate | Not reported | Compressive strength: 19.39 MPa | Shrinkage: X–Y = 65% | 67 |
| PIs: diphenyl(2,4,6-trimethyl benzoyl)phosphine oxide | Hardness: 0.272 ± 0.039 GPa | Z = 41% | ||||
| MPs: copper II nitrate hemipentahydrate | ||||||
| Solvents: water | ||||||
| Iron, copper etc. | DLP | Monomers/oligomers: poly(ethylene glycol) diacrylate | Not reported | Compressive strength: Fe2O3 = 2 MPa | Shrinkage: Fe2O3 = 20% | 68 |
| PIs: lithium phenyl-2,4,6-trimethylbenzoylphosphinate | Fe = ∼5 MPa | Fe = 38% | ||||
| UV blockers: tartrazine | Hardness: Fe = 1.75 ± 0.19 GPa | Cu = 46% | ||||
| MPs: iron(III) chloride hexahydrate, iron(II) chloride tetrahydrate, copper(II) nitrate trihydrate etc. | Cu = 1.25 ± 0.16 GPa | |||||
| Solvents: water | Ag = 1.21 ± 0.02 GPa | |||||
| Elastic modulus: Fe = 81 ± 6 GPa | ||||||
| Cu = 53 ± 3 GPa | ||||||
| Ag = 34 ± 1 GPa | ||||||
| Iron oxide | VAM | Monomers/oligomers: poly(ethylene glycol) diacrylate | Not reported | Compressive strength: 3.87 ± 0.39 MPa | Not reported | 69 |
| PIs: DCPI 3001 | Failure structural strain: 0.16 ± 0.01 | |||||
| Radical scavengers: 2,2,6,6-tetramethylpiperidin-1-yl)oxyl | ||||||
| MPs: iron(III) chloride hexahydrate, iron(II) chloride tetrahydrate | ||||||
| Solvents: dimethyl sulfoxide | ||||||
| Nickel, nickel oxide | TPL | Monomers/oligomers: poly(ethylene glycol) diacrylate | Not reported | Yield strength: ∼1–3 GPa at nanopillars diameter ≲ 300 nm | Feature resolution: 100 nm | 70 |
| PIs: 7-diethylamino-3-thenolcoumarin | ||||||
| MPs: nickel nitrate hexahydrate | ||||||
| Solvents: dimethyl sulfoxide, water | ||||||
| Copper | DLP | Monomers/oligomers: poly(ethylene glycol) diacrylate, sodium acrylate | Cu: 96.2 wt% | Compressive strength: 10.3 MPa | Feature resolution: ∼40 µm | 71 |
| PIs: PEG-BAPO | Hardness: 1.72 ± 0.22 GPa | Shrinkage: 60% | ||||
| UV blockers: tartrazine | Resistivity: 4.91 µΩ cm | |||||
| Toughening agent: cellulose nanocrystals | ||||||
| MPs: copper sulfate | ||||||
| Solvents: water | ||||||
| Nickel cobalt alloy etc. | TPL | Monomers/oligomers: acrylic acid, pentaerythritol tetraacrylate | NiCo: 95 wt% | Compressive strength: ∼30 MPa | Beam diameter: 220 nm | 72 |
| PIs: 4,4-bis(diethylamino)benzophenone | Surface roughness: 18.9 nm | Shrinkage: 30–50% | ||||
| MPs: nickel nitrate hexahydrate, cobalt nitrate hexahydrate etc. | ||||||
| Solvents: polyvinyl pyrrolidone | ||||||
| Iron | DLP | Monomers/oligomers: acrylic acid, N-isopropylacrylamide, N,N′-methylenebisacrylamide | Not reported | Elastic modulus: 45.83 ± 1.29 GPa | Shrinkage: ∼55% | 73 |
| PIs: lithium phenyl-2,4,6-trimethylbenzoylphosphinate | Hardness: 1.01 ± 0.15 GPa | |||||
| UV blockers: basic violet 8 | ||||||
| MPs: ferric chloride | ||||||
| Solvents: water | ||||||
| Gold, iron oxide etc. | TPL | Monomers/oligomers: IPS photoresist | Not reported | Surface roughness: 46.6 ± 3.9 nm | Feature resolution: ∼100 nm | 74 |
| MPs: gold nanoparticles, iron oxide etc. | ||||||
| Solvents: water, polyvinyl pyrrolidone | ||||||
| γ-Alumina | DLP | Monomers/oligomers: acrylic acid | Not reported | Not reported | Feature resolution: 6 ± 1 µm | 75 |
| PIs: diphenyl(2,4,6-trimethyl benzoyl)phosphine oxide | Shrinkage: 62% | |||||
| UV blockers: sulforhodamine B | ||||||
| Proton scavengers: propylene oxide | ||||||
| MPs: aluminum chloride hexahydrate | ||||||
| Solvents: water, ethanol |
Several strategies have been proposed to address the weak interactions between hydrogel scaffolds and metal ions in HIAM, which limit ion loading capacity and can lead to defects such as cracks in the sintered structures. These approaches include complexation scaffold additive manufacturing,72,73 ion-exchangeable hydrogel additive manufacturing,71 and capillary force additive manufacturing.74
Complexation scaffold additive manufacturing utilizes surface complexation, where coordination bonds are formed between metal ions and functional groups on the hydrogel. For example, printed hydrogels with abundant carboxyl groups can dissociate in aqueous metal salt solutions, forming negatively charged carboxylate ions that coordinate with metal ions through lone pair electrons on oxygen atoms. Two main types of surface complexation occur at the hydrogel-water interface: inner-sphere and outer-sphere complexation.77 Inner-sphere complexation refers to the direct bonding between the ligands and metal ions, while outer-sphere complexation involves a thin layer of water molecules between the metal ions and ligands. For many transition metals, inner-sphere complexation is less favorable entropically, and tends to occur at higher metal concentrations.66 Solution pH is another important parameter that affects not only metal speciation but also the surface charge of hydrogels and the coordination behavior of functional groups. For example, increasing the pH leads to deprotonating of carboxyl groups into carboxylate anions, expanding the hydrogel and creating more coordination sites.66 Therefore, identifying the optimal pH is crucial for maximizing metal adsorption capacity and enhancing structural integrity by promoting pore collapse, which helps preserve the morphology of the final metal/ceramic parts. Following sintering and reduction, metal-complexed scaffolds are converted into 3D metal or alloy nanoarchitectures. Using this approach, Han et al. demonstrated the fabrication of various metal-alloy nanoarchitectures, including metals (Ni, Fe, Co, Cr, Cu, Au, and Ag) and alloys (NiCo and NiCoCu) by incorporating metal ions into acrylic acid (AAc)-based polymer scaffolds, shown schematically in Fig. 7A.72 They further investigated the complexation efficiency of different resin systems and showed that the AAc-based scaffold exhibits significantly higher complexation efficiency, enabling the formation of metal/alloy nanoarchitectures with exceptional shape fidelity and structural integrity. FTIR spectra of the AAc-based polymer revealed the largest red shift in absorption peaks associated with oxygen-containing functional groups, while XPS O 1s spectra confirmed the formation of new metal–oxygen bonds after complexation. Similarly, Sun et al. developed a technique to fabricate iron structures with three-level hierarchical porosity.73 In this process, a poly(N-isopropylacrylamide-co-acrylic acid) hydrogel lattice is first printed and then lyophilized to form a 3D porous scaffold. Metal ions are then introduced into the scaffold to form Fe3+ coordination with carboxyl groups, followed by sintering and reduction.
![]() | ||

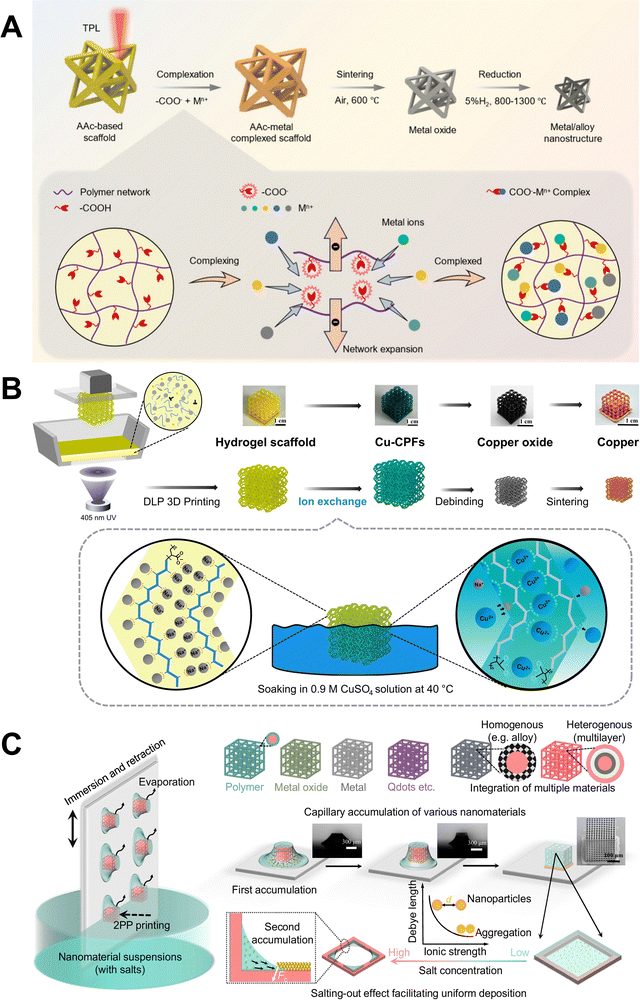

| Fig. 7 Schematic illustrations of HIAM variants. (A) Schematic illustration of the complexation scaffold additive manufacturing of 3D metal/alloy nanoarchitectures and the complexation principle between metal ions and carboxyl groups within the polymer network. (B) Schematic of the ion-exchangeable hydrogel additive manufacturing of micro-architected copper that Na+ ions in the hydrogel scaffolds are replaced by Cu2+ ions. (C) Schematic of the capillary force additive manufacturing of various nanomaterials, illustrating the key steps of capillary accumulation and deposition of nanomaterials. Adapted from ref. 71, 72 and 74 with permission. | ||
Printed hydrogel structures in ion-exchangeable hydrogel additive manufacturing are immersed in metal precursor solutions to facilitate metal ion exchange. This reversible chemical reaction occurs between free mobile ions in the hydrogel and metal ions of like charge presenting in the precursor solution. Ion-exchangeable hydrogels can absorb metal ions by replacing exchangeable protons released from oxygen-containing groups such as hydroxyl, carboxyl, sulfonate, and amino moieties. The efficiency and capacity of metal ion adsorption by ion exchange mainly depend on the ionic radius of the target ions and the number of available exchangeable sites, which are determined by the surface chemistry of the hydrogel.66 The ion-exchanged hydrogel is subsequently calcined and reduced to yield the desired metal structures. It is well recognized that the concentration of metal precursors, immersion temperature, and duration are crucial factors influencing the ion exchange process. Optimizing these conditions can accelerate ion exchange rates, enhance metal permeability, and ensure sufficient ion incorporation. Ma et al. reported the fabrication of ion-exchangeable hydrogels comprised of sodium acrylate as an ion-exchangeable monomer to produce complex and dense 3D micro-architected conductive copper structures (resistivity: 4.91 µΩ cm).71 In this process, Na+ ions in the hydrogel scaffolds are replaced by Cu2+ ions during soaking due to their strong coordination, shown schematically in Fig. 7B. Beyond metal AM, the ion-exchange approach is also widely used for removing pollutants such as heavy metal ions and organic dyes from water.78
Capillary force additive manufacturing utilizes non-specific physical interaction capillary force to adsorb metal nanoparticles onto 3D VP-printed polymer scaffolds, followed by sintering and reduction to produce 3D metallic architectures. These microscaffolds exhibit strong pinning capability at solid–liquid–gas three-phase interfaces, effectively trapping precursor solution within the scaffold and guiding the steady assembly of metal nanomaterials during evaporation, shown schematically in Fig. 7C. To ensure uniform and abundant nanomaterial deposition, the surface charge of metal nanoparticles is minimized via the salting out effect, reducing electrostatic repulsion. A representative example of this method is the work done by Lyu et al., who reported the formation of 3D micro-/nanostructures composed of metal (e.g., Au, Ag, Pt), and metal oxides (e.g., Fe3O4, BaTiO3) with high uniformity and nanoparticle mass loading on the microscaffold.74
Compared to heterogeneous and homogeneous resin approaches, the infusion-reaction approaches offer two key advantages. First, particle-free resins exhibit low viscosities and minimal light scattering, enabling high-resolution printing. Second, a wide range of commercially available metal salts can be used, allowing metal materials to be synthesized by simply dissolving metal salts or infusing metal nanoparticles in appropriate ratios after printing. While versatile and accessible, the utility of infusion-reaction approaches is limited by significant shrinkage during the polymer-to-metal/ceramic conversion process. This shrinkage often leads to low density, warping, cracking, and porosity in the final parts, negatively impacting their shape fidelity and structural integrity. Since shrinkage is inversely proportional to the amount of metal precursors in the organogel/hydrogel, recent research in this area has largely focused on the development of strategies that enhance precursor loading. Yee et al. used a repeated infusion-precipitation process where ammonia was used to chemically induce in situ formation of iron-oxide nanoparticles from infused precursors within a gel, followed by infusion of additional precursors to achieve high metal loadings, shown schematically in Fig. 8.68,69 This approach enabled the fabrication of dense architected iron oxide and iron structures with conversion linear shrinkages of approximately 20% and 38% respectively.
![]() | ||

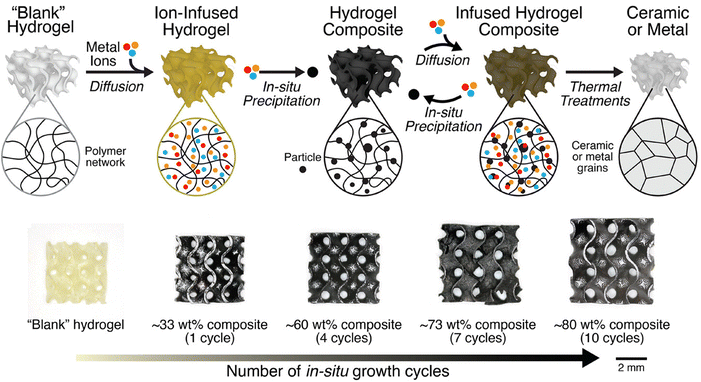

| Fig. 8 Schematic of the hydrogel infusion and precipitation process for the VP of ceramics and metals. Adapted from ref. 68 with permission. | ||
Alongside polymer degradation, a combination of polymer combustion and precursor decomposition, analogous to a solution combustion process, can occur in the condensed phase, gas phase, or mesophase.82 Volatile intermediates serve as fuel, accumulating and mixing with oxygen in the furnace atmosphere. Upon reaching a critical ignition temperature, combustion begins, producing flue gases such as CO2, H2O, and NO2. The heat generated from this exothermic combustion can lead to a self-propagating combustion reaction. Simultaneously, metal precursors embedded within the printed resin, for example in the form of crystallohydrates, undergo decomposition during heating. Common solutions used for solution combustion include metal nitrates (e.g., Cu(NO3)2, Ni(NO3)2, Al(NO3)3) as oxidizers and organic fuels (e.g., urea, citric acid, glycine).83 If metal nitrates are used as precursors, this leads to the stepwise formation of low-water crystallohydrates, oxynitrates, and finally metal oxides.84 Depending on the fuel-to-oxidizer ratio, solution combustion can proceed in three regimes: smoldering combustion synthesis, volume combustion synthesis, and self-propagating high-temperature synthesis.85 A complexation analysis by Khaliullin et al. demonstrated that metal ions can alter the strength of internal bonds in organic ligands by forming coordination complexes, and thus different fuel-to-oxidizer ratios can result in varying combustion temperatures.84 Notably, when the fuel-to-oxidizer ratio equals one, the mixture does not require atmospheric oxygen for complete oxidation.86 A representative reaction pathway for metal nitrates and glycine, as reported by Kumar et al., includes the decomposition of glycine to yield NH3, and of nitrates to form HNO3, and metal oxides. NH3 and HNO3 then react exothermically to sustain combustion, generating hydrogen that further reduces the metal oxides to metallic products.86
To the best of our knowledge, no studies have quantitatively reported the fuel-to-oxidizer ratio in polymer-derived metal/ceramic synthesis process. Although the chemistry of combustion involves complex chain reactions, the calculation can be reasonably simplified under fuel/oxygen-rich conditions. In such cases, self-propagating high-temperature synthesis becomes the dominant mechanism, in which reactions follow a wave-like propagation through the medium.85 It primarily includes four reactions: (1) complete oxidation of carbon to carbon dioxide, (2) complete oxidation of hydrogen to water, (3) complete oxidation of nitrogen to nitrogen oxides, and (4) complete formation of metal oxides.
The type of metal or ceramic precursors embedded within polymer scaffolds can significantly influence the thermal profile and final material quality.88 For instance, nitrate salt-infused hydrogels show a sharp mass loss and a large exothermic event and at low temperatures (below 150 °C), generating large amounts of gas. The nitrated-derived gases are highly reactive and can further oxidize at elevated temperatures, promoting additional energetic reactions with the metal species.89 These reactions can lead to the formation of open foamlike ceramic structures that are often crumbly and mechanically unstable. In contrast, Yaw et al. found that chloride salt-infused PEGda-based hydrogel systems with later decomposition events exhibit a smaller mass loss and a more moderate exothermic response, resulting in ceramic products of consistently higher quality.64
Due to the layer-by-layer fabrication process inherent to most AM methods and the nonuniform heat transfer between layers during photopolymerization, VP-based metal AM can develop uneven residual stress distributions within the fabricated parts, which leads to porosity manifested as voids, cracks, or inclusions, thereby reducing its mechanical properties, as shown in Fig. 9.64,90 Annealing at high temperature helps mitigate these issues by relieving residual stresses and healing microstructural defects. When combined with high pressure, the process can force trapped gases out of the material, thereby eliminating porosity and leading to a denser and more uniform microstructure with improved fatigue and creep resistances.92 Additionally, annealing promotes recrystallization, refining the grain structure and improving toughness and structural integrity of the printed parts. However, overheating or excessive exposure time to high temperatures can cause material microstructural coarsening or even melting, negatively impacting properties such as tensile strength.93
![]() | ||

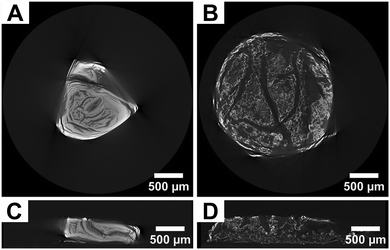

| Fig. 9 X-ray computed tomography reconstruction slices of ceramics derived from gels infused with (A) Cu(NO3)2 and (B) CuCl2, along with their corresponding vertical cross-sections (C) and (D), highlighting regions with large cracks and voids. Adapted from ref. 64 with permission. | ||
The atmosphere used during annealing is a crucial factor that influences the quality and performance of the final parts in VP-based metal AM. In addition to air, various process gases are commonly employed in heat treatment furnaces, including oxygen, hydrogen, nitrogen, helium, argon, carbon monoxide, carbon dioxide, ammonia, propane, methane, and butane. Among these, air and oxygen are the most reactive and are widely used in the fabrication of metal oxides. In contrast, inert or protective atmospheres such as those composed of nitrogen, helium, or argon are used to minimize undesired chemical reactions by providing a highly controlled environment. It has been reported that fewer cracks form in fabricated ceramics when the binder burnout is carried out in an inert atmosphere rather than in air, regardless of the heating rate.94 This improvement is attributed to the reduction of internal gas pressure and the elimination of exothermic heat generated during binder oxidation.95
Table 4 compares the target material, VP technique, and heating process and conditions of recently reported VP-based metal AM methods. As summarized in Table 4, the specific thermal processing approaches used vary based on resin type and target material. Ceramic systems generally require a two-step debinding and sintering process, while metal fabrication often involves a three-step debinding, sintering, and reduction sequence. From these studies, several practical design rules for achieving robust metallic structures can be identified. First, slow heating rates, typically less than 1 °C min−1 during debinding, are critical for minimizing internal gas evolution and crack formation. Second, the incorporation of intermediate isothermal holds, guided by TG data, particularly at temperatures corresponding to high mass loss rates, is essential for gradual polymer decomposition. Third, high sintering temperatures, typically 900–1600 °C, should be selected based on intrinsic material properties, including melting point, diffusion kinetics, and phase stability. Fourth, extended dwelling times, typically longer than 3 h, are important for achieving sufficient densification and maintaining structural integrity. Fifth, the processing atmosphere should be tailored to the desired product: oxidizing environments (e.g., air) for oxide formation, and reducing atmospheres (e.g., 5% H2) for the production of pure metals or alloys, as discussed previously.
| Method | Target material | VP technique | Heating process and conditions | Ref. |
|---|---|---|---|---|
| a Heating profile involves stepwise heating with several intermediate isothermal hold, which are not individually specified in the table. | ||||
| Heterogeneous resin methods | Alumina | DLP | Debinding: ∼0.9 °C min−1 to 600 °C for ∼200 min under vacuum, then reheated at ∼4 °C min−1 to 1000 °C for ∼60 min under aira | 35 |
| Sintering: 5 °C min−1 to 1650 °C for 2 h under aira | ||||
| Alumina | DLP | Debinding: 0.2 °C min−1 to 600 °C under N2 | 39 | |
| Sintering: 1600 °C for 2 h | ||||
| Alumina | DLP | Debinding: 1 °C min−1 to 600 °C for 2 h under N2a | 43 | |
| Sintering: Not reported | ||||
| Aluminum alloy | DLP | Debinding: 1 °C min−1 to 450 °C for 2 h under Ar | 44 | |
| Sintering: 10 °C min−1 to 600 °C for 2 h under Ar | ||||
| Zirconia | DLP | Debinding: 0.2 °C min−1 to 500 °C for 30 min under vacuuma | 45 | |
| Sintering: ∼5 °C min−1 to 1600 °C for 2 h under vacuum | ||||
| Zirconia | SLA | Debinding: 0.1 °C min−1 to 530 °C under air | 46 | |
| Sintering: 2 °C min−1 to 1200 °C for 30 min under air | ||||
| Zirconia | DLP | Debinding: 0.5 °C min−1 to 450 °C for 1 ha | 37 | |
| Sintering: 3 °C min−1 to 1500 °C for 2 ha | ||||
| Copper | CLIP | Debinding: 1 °C min−1 to 600 °C for ∼2 h under N2a | 36 | |
| Sintering: 3 °C min−1 to 1000 °C for ∼3 h under aira | ||||
| Reduction: 3 °C min−1 to 800 °C for 10 h under 5% H2/Ar | ||||
| Copper | CLIP | Debinding: 1 °C min−1 to 600 °C for 2 h under N2a | 47 | |
| Sintering: 1 °C min−1 to 1000 °C for 5 h under aira | ||||
| Reduction: 3 °C min−1 to 800 °C for 10 h under 5% H2/Ar | ||||
| WC–Co hardmetals | SLA | Debinding: 5 °C min−1 to 850 °C for 40 min under H2 or N2a | 48 | |
| Sintering: 2.5 °C min−1 to 1440 °C for 2 h under vacuuma | ||||
| Homogeneous resin methods | Zinc oxide | TPL | Sintering: 0.5 °C min−1 to 500 °C under air | 49 |
| Platinum | TPL | Sintering: 1 °C min−1 to 600 °C for 1 h | 51 | |
| Tungsten, tungsten carbide | TPL | Sintering: 1 °C min−1 to 600 °C for 2 ha | 52 | |
| Reduction: 3 °C min−1 to 900 °C for 3 h under 5% H2/Ara | ||||
| Carbothermal reduction: 3 °C min−1 to 1000 °C for 3 h under 5% H2/Ar | ||||
| Tungsten | DLP | Debinding: 1 °C min−1 to 600 °C for ∼200 min under Ar, then reheated at 0.5 °C min−1 to 600 °C for ∼120 min under aira | 53 | |
| Sintering: ∼2 °C min−1 to 1200 °C for 5 h under 10% H2/Ara | ||||
| Nickel | TPL | Debinding: 2 °C min−1 to 1000 °C for 1 h under Ar | 55 | |
| Sintering: 2 °C min−1 to 600 °C for 1 h under 5% H2/Ar | ||||
| Zr/Ti/SiOC | DLP | Sintering: 2 °C min−1 to 1200 °C for 1 h under N2 | 56 | |
| Ni/SiOC | Masked-SLA | Sintering: 1 °C min−1 to 600 °C for 2 h under Ara | 57 | |
| Al/SiOC | DLP | Debinding: 1 °C min−1 to 900 °C for 2 h under Ar | 58 | |
| Sintering: 5 °C min−1 to 1100 °C for 2 h under air | ||||
| Copper etc. | DLP | Sintering: 0.25 °C min−1 to 700 °C for 3 h under air | 61 | |
| Reduction: 3 °C min−1 to 900 °C for 6 h under 5% H2/Ar | ||||
| HIAM and HIAM variants | Copper | DLP | Debinding: 0.2 °C min−1 to 450 °C for 2 h under aira | 67 |
| Sintering: 2 °C min−1 to 750 °C for 6 h under air | ||||
| Reduction: 4 °C min−1 to 900 °C for 5 h under 5% H2/Ar | ||||
| Iron, copper etc. | DLP | Debinding: 2 °C min−1 to 1000 °C for 30 min under N2a | 68 | |
| Sintering: 2 °C min−1 to 1000 °C for 30 min under aira | ||||
| Reduction: under 5% H2/N2 | ||||
| Nickel, nickel oxide | TPL | Sintering: 1 °C min−1 to 500 °C under air | 70 | |
| Reduction: 3 °C min−1 to 590 °C for 3 min under 5% H2/N2 | ||||
| Copper | DLP | Sintering: 0.5 °C min−1 to 420 °C for 200 min under aira | 71 | |
| Reduction: 3 °C min−1 to 900 °C for 1000 min under 10% H2/Ara | ||||
| Nickel cobalt alloy etc. | TPL | Sintering: 1 °C min−1 to 600 °C for 2 h under aira | 72 | |
| Reduction: 2 °C min−1 to 800 °C under 5% H2/N2 | ||||
| Iron | DLP | Sintering: 5 °C min−1 to 1500 °C for 1 h under aira | 73 | |
| Reduction: 5 °C min−1 to 900 °C for 3 h under 10% H2/Ar | ||||
| Gold, iron oxide etc. | TPL | Sintering: 2 °C min−1 to 600 °C for 2 h under air | 74 | |
| γ-Alumina | DLP | Sintering: 1 °C min−1 to 850 °C for 2 h under aira | 75 | |
The pyrolysis behavior of polymeric materials during conversion to disordered carbon materials has been extensively investigated, and while the target material is different, insights from these systems are relevant to polymer-derived inorganic materials, since in some cases, disordered carbon exists as an intermediate. Specifically, the thermal decomposition pathways and residual carbon structure established during pyrolysis govern the chemical environment and microstructural template for subsequent annealing, where metal salts or oxides are reduced and crystallized into metallic architectures. A systematic investigation into the structural evolution of 3D-printed nanoarchitectures during isothermal pyrolysis in vacuum and inert atmosphere was conducted by Sun et al.91 Analysis of pyrolysis-induced size reduction revealed that shrinkage occurred more rapidly with increasing temperatures (450, 500, and 550 °C), decreasing partial pressures (from 3 to ∼10−5 mbar), and higher surface-to-volume ratios. The results indicate that the effective activation energy for pyrolysis-induced morphological shrinkage is approximately four times higher under vacuum conditions than under a nitrogen atmosphere. Cross-sectional microstructural analysis further revealed oxygen accumulation at the edges of samples pyrolyzed under low vacuum, supporting the hypothesis that second-order reactions govern the desorption of volatile gases, primarily CO and CO2, thereby lowering the effective activation energy during low-vacuum heating.
A related class of materials that is of interest for VP-based processes is high-entropy alloys (HEAs), defined as alloys composed of four or more elements, typically in equimolar or nearly equimolar compositions that are stabilized by configurational mixing entropy.102,103 HEAs have demonstrated superior mechanical and physical properties compared to traditional alloys, including outstanding specific strength, excellent high-temperature mechanical performance, exceptional ductility and fracture toughness at cryogenic temperatures, as well as superparamagnetism and superconductivity.104 Recent innovations in HEAs have focused on developing novel alloy compositions or processing methods to tailor the microstructure and mechanical properties of bulk or monolithic components. However, only a small fraction of alloys in the vast number of possible HEAs compositions are likely to be practically useful. Identifying optimal compositions through conventional trial-and-error approach is resource-intensive, underscoring the need for high-throughput screening methods. VP-based metal AM methods, particularly those such as HIAM which rely on an infusion-reaction approach, present an attractive technique for fabricating HEAs because they require design and optimization of only a single photoresin composition, and enable facile compositional tuning during the infusion step. However, several fundamental challenges persist, such as limited understanding of mechanisms governing phase formation and phase stability in HEAs. Additionally, understanding the effects of interstitial elements, such as carbon, nitrogen, phosphorus, and oxygen on phase composition, microstructure, and mechanical properties of HEAs is essential for the successful implementation of VP-based AM of HEAs.
In addition to advances in chemistry, the development and implementation of new processing strategies are essential to expand the capabilities of VP-based metal AM. A holistic understanding of mass transport and chemical transformation processes, supported by real-time characterization of conversion processes, will be important for understanding exactly what happens inside the “black box” of the furnace. As VP-based metal and ceramic AM transitions toward commercial-scale production, it must contend with the high throughput of conventional manufacturing methods such as injection molding. Many applications, such as architected energy materials, demand centimeter-scale devices with microscale feature resolution, a combination that remains challenging for VP due to the intrinsic trade-off between print resolution and build size. A high-throughput TPL approach recently reported by Gu et al. offers a promising pathway to overcome this limitation.108 In this method, a metalens array produces more than 120
000 cooperative focal spots from a single incident beam, enabling simultaneous voxel writing while preserving the nanoscale resolution characteristic of TPL. Besides, a spatially adaptive illumination strategy compensates for optical nonuniformities to ensure consistent polymerization across the printing field. This approach enables parallel printing of replicated microstructures (more than 50 million microparticles per day) and centimeter-scale 3D architectures with feature sizes down to 113 nm.
| This journal is © The Royal Society of Chemistry 2026 |
