Unveiling photocatalytic functionalities of (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ nanoparticles: an experimental–DFT approach

Abstract

Efficient photocatalysts capable of toxic dye degradation using perennial solar radiation have tremendous potential in environmental remediation. Herein, a surfactant-free hydrothermal process was used to synthesize undoped bismuth vanadate BiVO₄ and (Gd³⁺, Mo⁶⁺) co-doped Bi_1−xGd_xV_1−yMo_yO₄ (x = 0.02, 0.04, 0.06, 0.08, 0.10; y = 0.02) nanoparticles. The presence of mixed monoclinic scheelite (ms) and tetragonal zircon (tz) phases in the as-synthesized nanoparticles due to co-doping was quantified from Rietveld refined X-ray diffraction, Raman, and Fourier transform infrared spectroscopy. Field emission scanning electron microscopy images revealed buck-horn and rod-shaped nanoparticles with an average size of 80–130 nm for undoped and co-doped samples, respectively. The good crystallinity of the (Gd³⁺, Mo⁶⁺) co-doped samples was corroborated by high-resolution transmission electron microscopy. The desired chemical oxidation states of all constituent elements of the co-doped samples were confirmed from X-ray photoelectron spectroscopy. The suitable valence band edge position for driving photocatalytic reactions was observed from ultraviolet photoelectron spectroscopy. The diffuse reflectance measurements implied an increase in the electronic band gap due to co-doping. Hubbard U corrected density functional theory (DFT+U) indicates a shallow trap center in the co-doped samples in favor of reduced electron–hole recombination, which was also supported by photoluminescence intensity reduction. The Bi_0.94Gd_0.06V_0.98Mo_0.02O₄ photocatalyst degraded 96% of the highly concentrated 50 ppm methylene blue dye over 180 min under simulated sunlight with a reaction rate of 0.01524 min⁻¹. This impressive photocatalytic efficiency can be ascribed to the synergistic effect of the mixed ms–tz phase, small nanoparticle size, good crystallinity, reduced carrier recombination, and proper band edge alignment of the Bi_0.94Gd_0.06V_0.98Mo_0.02O₄ photocatalyst.

---

1. Introduction

Photocatalytic degradation is perhaps the most effective, affordable, and eco-friendly way of eliminating colored organic dyes from waste for environmental cleanup.^1–4 To this end, the n-type semiconductor photocatalyst BiVO₄, with three distinctive monoclinic scheelite (ms), tetragonal scheelite (ts), and tetragonal zircon (tz) crystalline phases, has attracted considerable research interest owing to its capabilities of producing highly reactive radicals by harnessing solar energy, essential for eliminating toxic dyes.^5–9 Its promise stems from advantageous characteristics like benignity, stability, low-cost, appropriate band locations, narrow band gap (∼2.4 eV in ms phase), and pronounced optical absorption.^10,11 Nevertheless, slow separation and a rapid recombination rate of photogenerated electron–hole pairs (EHPs) put severe constraints on the photocatalytic activity of BiVO₄.^12–14 Several strategies have been explored, based on experimental and first principles density functional theory (DFT), to mitigate the shortcomings of BiVO₄, such as metal doping, facet control, heterojunction formation, semiconductor recombination, and incorporation of functional materials.^15–26 Of these approaches, chemical doping with metal ions has been demonstrated as an effective technique for modifying the crystalline phase along with distortion in the [VO₄]⁻ and [BiO₈]⁻ units, morphology, and electronic structure for enhancing the photocatalytic performance of BiVO₄.^27,28

There are several reports on attempts to mitigate photo-generated carrier recombination in BiVO₄ by mono-doping rare-earth (RE) lanthanides (e.g., Ce, Eu, Gd) and transition metals (TMs) (e.g., Fe, Co, Ni) into the Bi-sites, leveraging their f and d orbitals. On the contrary, few reports on co-doping of the Bi-sites with RE elements exist. Noor et al. demonstrated photocatalytic dye degradation performance enhancement by Gd³⁺ and Y³⁺ co-dpoing into the Bi-site.²⁹ Obregón et al. reported superior photocatalytic degradation for Er³⁺ and Y³⁺ co-doping of the Bi-site of BiVO₄.³⁰ Jia et al. observed higher photocatalytic degradation for La³⁺ and Gd³⁺ co-doped BiVO₄.³¹ Regmi et al. co-doped the Bi-site with an RE trio (Yb³⁺, Er³⁺, Tm³⁺) to achieve notable photocatalytic degradation.¹² There are reports on (Fe³⁺, Cu²⁺), (Cu²⁺, Zn²⁺), and (Mn²⁺, Zn²⁺) co-doping into the Bi-site that enhanced the photocatalytic activity.^32–34

In recent times, the use of two distinct elements selectively substituted for Bi³⁺ and V⁵⁺ ions in BiVO₄ has drawn considerable research interest, as it substantially affects the material's structural and phase properties. For instance, Ce³⁺/Mo⁶⁺ co-doping created a mixed ms–tz phase, while Fe³⁺/W⁶⁺ co-doping caused a transition to an orthorhombic structure.^35,36 In contrast, Zr⁴⁺/W⁶⁺ co-doping maintained the desired ms phase of BiVO₄.³⁷ Now, Gd³⁺ (93.8 pm) can act as an isovalent dopant for Bi³⁺ (103 pm), and can reduce the hole effective mass, and enhance the carrier separation and photocatalytic performance.^38,39 The comparable ionic radii of Mo⁶⁺ (59 pm) and V⁵⁺ (54 pm) enable molybdenum to function as an n-type dopant on vanadium sites in BiVO₄, producing shallow impurity states that facilitate the separation of photo-induced electrons and holes, thereby improving the photocatalytic efficiency.^40–45 Can we leverage these favorable attributes of Gd³⁺/Mo⁶⁺ dopants synergistically? To the best of our knowledge, the effect of Gd³⁺/Mo⁶⁺ co-doping of Bi³⁺/V⁵⁺ on the structural, morphological, electronic structure, and photocatalytic performance of BiVO₄ has rarely been reported.

Here, we synthesized undoped and (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ nanoparticles with Bi_1−xGd_xV_1−yMo_yO₄ (x = 0.02, 0.04, 0.06, 0.08, 0.10; y = 0.02) stoichiometry via a surfactant-free hydrothermal process. Detailed structural and ms–tz phase explorations of all as-synthesized nanoparticles are presented using X-ray diffraction, Raman, and Fourier transform infrared spectroscopy. The surface morphology variation, crystallinity, and elemental identification of the nanoparticles were probed using scanning and transmission electron microscopy and energy dispersive X-ray spectroscopy, respectively. The desired chemical oxidation states and valence band structure were analyzed using X-ray and ultraviolet photoelectron spectroscopy. The effects of co-doping on the electronic structure of BVO were quantified from combined diffuse reflectance measurements and DFT simulations. The photogenerated carrier recombination of the nanoparticles was captured from photoluminescence measurements. The superior methylene blue (50 ppm) dye degradation capabilities of co-doped BiVO₄ were corroborated from UV-vis absorption measurements and band edge alignment analysis. Overall, this work may have presented detailed information in favor of the superior photocatalytic performance of (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ nanoparticles.

2. Methodology

2.1. Computational details

The Vienna Ab Initio Simulation Package VASP 6.3.1 code was used to model the core-valence interaction with the projector-augmented wave (PAW) method.^46–48 The PAW considered 15 electrons of Bi-5d¹⁰6s²6p³, 11 electrons of V-3p⁶3d⁴4s¹, 6 electrons of O-2s²2p⁴, 18 electrons of Gd-5s²5p⁶4f⁷5d¹6s², and 12 electrons of Mo-4p⁶4d⁵5s¹ in valence configurations, and treated the remaining ones as the core. For the undoped BiVO₄, a total of 198 atoms in a 2 × 2 × 2 supercell having 32 Bi atoms, 32 V atoms, and 128 O atoms, were considered (see Fig. S1). To incorporate varying degrees of Gd concentration in the simulation, four different supercells with 1, 2, 3, and 4 Bi atoms replaced by Gd atoms were considered, to obtain 3.125, 6.25, 9.375, and 12.5% Gd concentration levels, respectively. To emulate 2% Mo doping in all co-doped structures, one V atom was replaced by a Mo atom in the supercell to achieve 3.125% Mo doping level. The structural relaxations were performed with self-consistent electronic and Hellmann–Feynman ionic convergences of 10⁻⁵ eV per atom and 10⁻² eV Å⁻¹, respectively. The plane-wave energy cut-off was set to 500 eV. The 2 × 2 × 2 Monkhorst–Pack (MP) k-mesh was used to perform Brillouin zone (BZ) integrations. A logical choice for the exchange correlation functional (XCF) based on a balance between computational complexities and precision is crucial in DFT simulations.^49,50 We made use of Hubbard interaction U corrected DFT+U to boost dilute Coulomb interaction of the localized V-3d and applied U = 4.8, 3.1, 2, and 2.3 eV in Bi-6p, V-3d, O-2p, and Mo-4d, respectively.^18,51–56 For the localized Gd-4f orbitals, U = 6 eV was used based on the findings of ref. 57 and 58.

2.2. Sample preparation

7.72 mmol (3.746 g) Bi(NO₃)₃.5H₂O (99.99%, Sigma) and 7.72 mmol (0.906 g) NH₄VO₃ (99%, Sigma) were dissolved in 15 ml of 2 M HNO₃ (as a transparent clear solution) and 70 mL of deionized (DI) water (∼18 MΩ) heated to 65 °C (as a transparent yellow solution), respectively, under vigorous magnetic stirring (650 rpm) for 2 h. The NH₄VO₃ solution was added dropwise from a burette into Bi(NO₃)₃·5H₂O subjected to constant magnetic stirring. The solution turned into an opaque, yellow-colored, dense suspension as 25 wt% NH₄OH was added to fix the pH = 9, and loaded into a 100 mL Teflon-lined autoclave for hydrothermal reaction at 180 °C for 48 h inside an oven. The sample was naturally cooled to room temperature, centrifuged (10 000 rpm), washed (6 consecutive cycles in DI water and ethanol alternately), and dried at 120 °C for 48 h. The dried powder was sintered at 400 °C for 2 h and subsequently ground in a mortar pestle for 1 h. The final bright yellow product is termed as u-BVO hereafter. In the case of the (Gd³⁺, Mo⁶⁺) co-doped samples Bi_1−xGd_xV_1−yMo_yO₄, the same hydrothermal technique was implemented where Gd(NO₃)₃·6H₂O (99+ %, Sigma) and (NH₄)₂MoO₄ (99+ %, Sigma) were dissolved into 15 mL of 2 M HNO₃ and 20 mL of DI water in stoichiometric proportions, respectively. The co-doped Bi_1−xGd_xV_1−yMo_yO₄ samples, where x is varied as 0.02, 0.04, 0.06, 0.08, and 0.10 while keeping the y fixed at 0.02, were subsequently termed as Gx%My%-BVO. The sintered co-doped samples appeared yellowish-white and turned to light yellow after grinding for 1 h.

2.2.1. Photocatalytic sample preparation. The methylene blue (MB) dye solutions were prepared at two different concentrations of 50 and 100 ppm in 100 mL of DI water. Both the undoped and co-doped photocatalyst concentrations were set to 1 g L⁻¹. The pH of the dye-catalyst mixture was set to 10 by adding the required amount of NH₄OH solution. The desired adsorption–desorption equilibrium in the mixture was established by 30 min of magnetic stirring in the dark state. The synthetic solar irradiation was provided from a 100 W Hg–Xe lamp with a fused silica exposure window. During the photocatalytic exposure, constant magnetic stirring prevented unwanted dye concentration gradients from occurring in the solution, thereby eliminating spurious degradation effects. Photocatalytic measurements were performed at an ambient temperature of ∼300 K. The photocatalyst removal was done with high-speed centrifugation and the UV-vis absorption of the dye solution was recorded at 30 min intervals over a 180 min measurement time.

2.3. Characterization techniques

The powdered X-ray diffraction (XRD) data of all as-synthesized samples were obtained within the 10° to 80° angular range (0.02° step, scan speed 2° min⁻¹) from a Rigaku SmartLab SE multipurpose XRD system operating at a tube voltage and current of 40 kV and 40 mA, respectively. The Raman modes (calibrated with a Si 520.7 cm⁻¹ photon peak) were obtained in a Horiba Scientific LabRAM HR evolution confocal Raman microscope operating with a 532 nm green laser. The infrared absorption bands were captured by using a PerkinElmer spectrum Fourier transform infrared (FTIR) spectrometer. For surface morphology, elemental purity and spatial distribution analysis, a field emission scanning electron microscope (FESEM, JEOL 7610F) coupled with an energy dispersive X-ray (EDX) detector (Model: JED 2300) and a scanning electron microscope (SEM, AVO 18) with EDX (Model: EDAX Team) were used. The high resolution transmission electron microscope (HRTEM) and selected area electron diffraction (SAED) images were recorded with a Talos F200X TEM operating at 200 kV. The elemental binding energy measurements were performed by an X-ray photoelectron spectrometer (XPS) operating with a monochromatic Al Kα source (1486.69 eV, 15 keV, 10 mA, 225 W). The binding energy of extraneous C-1s (284.8 eV) was used for XPS peak position calibration. The deep UV from a HeI (21.2 eV) source was used to record the valence band structure with an ultraviolet photoelectron spectrometer (UPS). The UV-vis diffuse reflectance spectroscopy (DRS) was facilitated by using a Shimadzu UV-2600i UV–vis–NIR spectrometer. The steady-state photoluminescence (PL) emissions were recorded in an F-7000 fluorescence spectrophotometer operating with a 150 W Xe lamp and photomultiplier tube voltage of 700 V. The UV-Vis absorption spectra of the dye degradation measurement were obtained with a Shimadzu UV-1900i spectrometer.

3. Results and discussion

3.1. Structural analysis

The XRD data of the undoped u-BVO and co-doped Gx%My%-BVO (x% = 2, 4, 6, 8 and 10; y% = 2) powder are shown in Fig. 1. A quantitative structural refinement of all samples was done based on the Rietveld method, see Fig. S2. Detailed crystallographic parameters from the Rietveld refinements are presented in Table S1. The pure ms phase (point group C⁶_2h, space group C2/c (15), JCPDS# 014-0688/ICSD#100602) is present in undoped u-BVO.⁵⁹ The (Gd³⁺, Mo⁶⁺) co-doping induced the coexistence of tz phase (point group C_4h,¹⁹ space group I41/amd (141), and JCPDS# 14-0133/ICSD#100733) with ms.^28,60–62 This incomplete ms to tz phase transition due to Gd and Mo mono-doping is well-known in the existing literature.^41,43,58,63

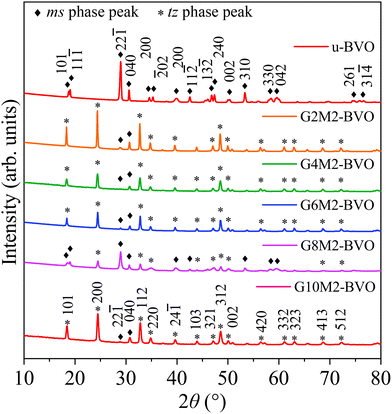

Fig. 1 Powdered XRD data of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO. The ms and tz phases are marked with ♦ and *, respectively.

Now by comparing the normalized intensities I^(221̄)_ms and I⁽²⁰⁰⁾_tz of the most dominant diffraction peaks corresponding to the ms (221̄) and tz (200) planes as

the ms−tz phase mixing is quantified in Table S2.⁶³ The tz phase turned out to be the dominant one in all co-doped samples (ζ_ms < ζ_tz) except for the G8M2-BVO sample where the ζ_ms (64.21%) exceeds the ζ_tz (35.79%). The refinement correlation parameters R_p (5.89–12.1), R_wp (5.13–10.3), and R_exp (3.74–6.64) of all co-doped samples are in the satisfactory range, resulting in a goodness of fit parameter χ² in the high confidence range of 1.67–2.55.

The quantities like crystallite size D of the samples are derived from the full-width-half-maxima (fwhm) of the different XRD peaks (101), (221̄), and (200) using Debye–Scherrer's formula, along with other derivatives like defect density and strain as displayed in Table S3. It is evident that the dopants inhibit crystal growth, effectively reducing the crystallite size of the co-doped samples. Incorporating (Gd³⁺, Mo⁶⁺) dopants into the BiVO₄ lattice increases the defect density and strain as expected. The strain due to the dopant incorporation results in XRD peak shifts as shown in Fig. 2a–d. The slight discrepancies in ionic radii of the Gd³⁺ (105 pm) and Mo⁶⁺ (59 pm) dopants with their corresponding hosts Bi³⁺ (103 pm) and V⁵⁺ (54 pm) originate from strain in the BiVO₄ lattice. The small shift of the (101), (200), (112) and (312) peaks to higher angles indicates the presence of mild compressive strain due to the replacement of smaller host Bi³⁺ with the larger Gd³⁺ dopant incorporation.³⁹ Moreover, the intensity of the ms and tz phase-specific peaks varies following their relative percentages in the mixed phase. For example, the (221̄) peak of the ms dominates in u-BVO and G8M2-BVO, whereas the (200) dominates in other co-doped samples with tz as the dominant phase. The absence of the tetragonal scheelite phase can be substantiated by the higher pH (9) and hydrothermal reaction temperature (180 °C).^63–66 As the hydrothermal reaction progresses, the initial tz undergoes a gradual phase transition to ms for pH ≥ 7.^65,66 The presence of dopants inhibits the complete ms to tz transformation, and the mixed ms–tz phase prevailed in the co-doped sample.

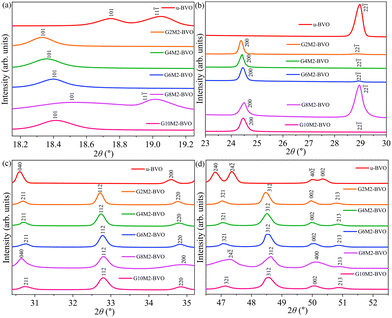

Fig. 2 XRD peak shifts in the 2θ range of (a) 18.2–19.2°, (b) 23–30°, (c) 30–35° and (d) 46–53° of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO.

3.2. Raman analysis

The irreducible representations of the Γ^ms_Raman (C2/c) = 8A_g+ 10B_g and Γ^tz_Raman (I41/amd) = 2A_1g + 4B_1g + B_2g + 5E_g define the Raman active modes of the ms and tz phases, respectively.^18,67,68 The room temperature Raman spectra of all samples are presented in Fig. 3 and the corresponding mode assignment is displayed in Table S4. The phase-independent external lattice modes (translation or rotation) of [VO₄]³⁻ appeared near 115(2) (B_g), 190(2) (A_g) and 208(2) (A_g) cm⁻¹.^30,59 In all co-doped samples, symmetric stretching (A_g) of the tz phase produced the Raman band at 247(2) cm⁻¹. The bands near 341(2) (B_g) and 366(2) (A_g) cm⁻¹ can be ascribed to asymmetric and symmetric deformation of the [VO₄]³⁻ tetrahedron of the ms phase.⁶⁹ The Raman band of the ms phase around 731(2) cm⁻¹ is observed due to symmetric stretching of the V–O bond. The bands near 759(2) and 854(2) cm⁻¹ represent asymmetric (B_g) stretching and symmetric (A_g) bending vibration of the V–O bond in the tz phase. The Raman band near 810(2) cm⁻¹ is observed owing to the characteristic symmetric stretching of the V–O bond in the ms phase.⁷⁰ The ms phase purity of the undoped u-BVO was corroborated from the Raman bands near 325(2), 367(2), 731(2), and 811(2) cm⁻¹. The coexistence of these ms bands along with tz bands near 247(2), 759(2), and 854(2) cm⁻¹ confirmed the mixed ms–tz phase in all (Gd³⁺, Mo⁶⁺) co-doped samples.

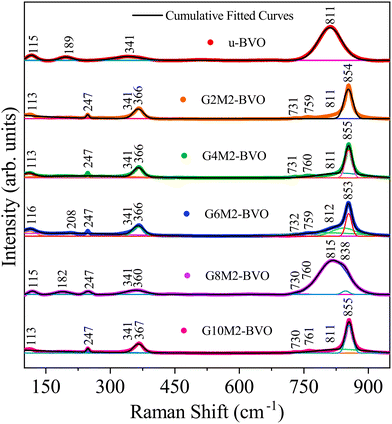

Fig. 3 Raman spectra of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO measured at room temperature.

3.3. Fourier transform infrared spectroscopy

The FTIR spectra (Fig. 4) of all as-synthesized nanoparticles are assigned to relevant atomic bond vibrations (Table S5). The symmetric stretching vibration of Bi–O stems from the IR bands near 360(4) and 404(4) cm⁻¹.⁷¹ The absorptions near 476(4) and 600(4) cm⁻¹ for u-BVO and G8M2-BVO are owing to [VO₄]³⁻ tetrahedral symmetric bending and asymmetric stretching vibration of the V–O bond, respectively.⁷² The asymmetrical stretching of the [VO₄]³⁻ unit appeared near 720(4) cm⁻¹ in all samples.^73–76 The IR band near 823(4) cm⁻¹ can be assigned to the stretching vibration of V–O. The (Gd³⁺, Mo⁶⁺) co-doping slightly shifts this 823(4) cm⁻¹ mode to a lower wavenumber due to a change in V–O bond length induced by dopants.³⁹ A weak IR absorption is detected near 888(4) cm⁻¹ in the u-BVO, corresponding to symmetric stretching of the V–O. The extraneous CO₂ adsorbed in the samples during material processing stemmed from the minor IR absorption of the C=O bond near 1320(4)–1450(4) cm⁻¹.³⁵ The bending vibration of the O–H in the H₂O molecule appeared at 1620(4) cm⁻¹.^43,77,78 This tendency of water adsorption at the surface can be favorable to the photocatalytic activity.⁷⁹

Fig. 4 FTIR absorptions of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO.

3.4. Surface morphology and elemental analysis

The u-BVO morphology in Fig. 5(a) displayed connected buckhorn-shaped nanorods with an average diameter of 650 nm.^22,45,80 The (Gd³⁺, Mo⁶⁺) co-doping transformed the surface morphology to an irregular agglomeration of randomly shaped nanorods (Fig. 5b–e, f) with an average size lying in the range of 80–130 nm. The high pH = 9 during synthesis randomizes nanoparticle shapes across all co-doped samples.^28,41,62,81 The nanoparticle agglomeration can be ascribed to sizable surface energies in the hydrothermal process.⁸² For the G8M2-BVO sample with a dominant ms phase among the ms–tz mixture, the uniform compact agglomeration may have hindered the intra-agglomerate pore formation.⁸³ The desired elemental identifications of all the samples were confirmed by the EDX spectra (Fig. S3 and Table S6). The EDX spatial scans of u-BVO and co-doped G6M2-BVO, G8M2-BVO, and G10M2-BVO (Fig. S4–S7) corroborate the desired homogeneity of the host (Bi, V, and O) and dopants (Gd, Mo) across the samples.^84,85 This excludes the possibility of spurious effects due to dopant agglomeration in the as-synthesized samples.^43,86–92

Fig. 5 FESEM micrographs of (a) u-BVO, (b) G2M2-BVO, (c) G4M2-BVO, (d) G6M2-BVO, (e) G8M2-BVO, and (f) G10M2-BVO with particle size histograms superimposed.

Fig. 6a–c presents the HRTEM, and SAED measurements of the (Gd, Mo) co-doped G6M2-BVO, G8M2-BVO, and G10M2-BVO samples, respectively. The textured morphology of the polycrystalline sample formed concentric circles with non-uniform intensities in the SAED patterns. The lattice fringes of the ms and tz phase are marked with rectangular yellow boxes R1 and R2 on HRTEM, and a magnified view is presented in the insets. The lattice fringes with a d-spacing of 0.363 nm and 0.480 nm in Fig. 6a can be ascribed to the (200) and (101) planes of the tz and ms phases, respectively. The d-spacing of 0.17 nm in the R1 region as displayed in Fig. 6b inset corresponds to the (200)/(112) crystallographic planes of the ms/tz phases. The ms (111) (R1) and tz (113) (R2) planes are detected in G6M2-BVO (Fig. 6c) with d-spacings of 0.463 and 0.351 nm, respectively. Overall, the TEM analysis confirmed the presence of mixed ms/tz phases along with the desired crystallographic planes in the co-doped samples.

Fig. 6 HRTEM micrographs and SEAD images (inset) of (a) G6M2-BVO, (b) G8M2-BVO, and (c) G10M2-BVO.

3.5. Chemical state analysis

The XPS survey spectra in Fig. 7(a) corroborated the Bi, V, O, Gd, and Mo as the desired constituent elements in the respective samples. The adventitious C-1s peak at a binding energy of 248.8 eV is present in all samples. The high-resolution core level Bi-4f spectra of u-BVO in Fig. 7(b) revealed Bi-4f_7/2 and Bi-4f_5/2 XPS lines at 158.9 and 164.3 eV, which are consistent with the Bi³⁺ oxidation state.^93–95 The blue shift of the binding energies of these two peaks increases with the Gd concentration, but their splitting due to spin–orbit coupling (SOC) remains ∼5.4 eV. The V-2p core spectra of u-BVO in Fig. 7(c) display ∼7.4 eV SOC driven splitting of the V-2p_3/2 and V-2p_1/2 lines at 516.5 and 523.9 eV, respectively, corroborating the V⁵⁺ oxidation state.⁹⁶ The (Gd, Mo) co-doping introduced asymmetry and blue-shift in the V-2p_3/2 peak. The distinct symmetrical peak of u-BVO at 529.7 eV in Fig. 7(d) corresponds to the O-1s XPS peak originating from the lattice O of the BVO crystal.⁹⁷ The weak XPS line at 530.9 eV is ascribed to extraneous OH formed on the surface of the sample.⁸¹ The (Gd³⁺, Mo⁶⁺) dopants blue shift the O-1s signal, enhance the XPS signal of the extraneous OH, and make it most prominent for the G6M2-BVO sample. The Gd-4d core level in the G6M2-BVO sample in Fig. 7(e) exhibits Gd-4d_5/2 and Gd-4d_3/2 XPS lines occurring at binding energies of 142.5 and 147.7 eV, subjected to 5.2 eV splitting due to SOC.⁵⁸ This matches the Gd³⁺ oxidation state in Gd₂O₃, implicating successful Gd dopant incorporation as it binds with O atoms.⁹⁸ The Gd-4d core levels are red-shifted with increasing Gd concentrations. The XPS core level of Mo-3d in the G6M2-BVO sample in Fig. 7(f) have undergone 3 eV SOC splitting of the Mo-3d_5/2 and Mo-3d_3/2 XPS lines located at 232.1 and 235.1 eV, respectively, conforming with the Mo⁶⁺ oxidation state.^89,99,100 The Mo-3d XPS lines get blue-shifted as more Gd is incorporated into the lattice. In general, these XPS binding energy shifts can be ascribed to different electronegativities of the hosts (Bi³⁺, V⁵⁺) and dopants (Gd³⁺, Mo⁶⁺) as well as dopant-induced changes in the local coordination environments of the host atoms.^89,101,102

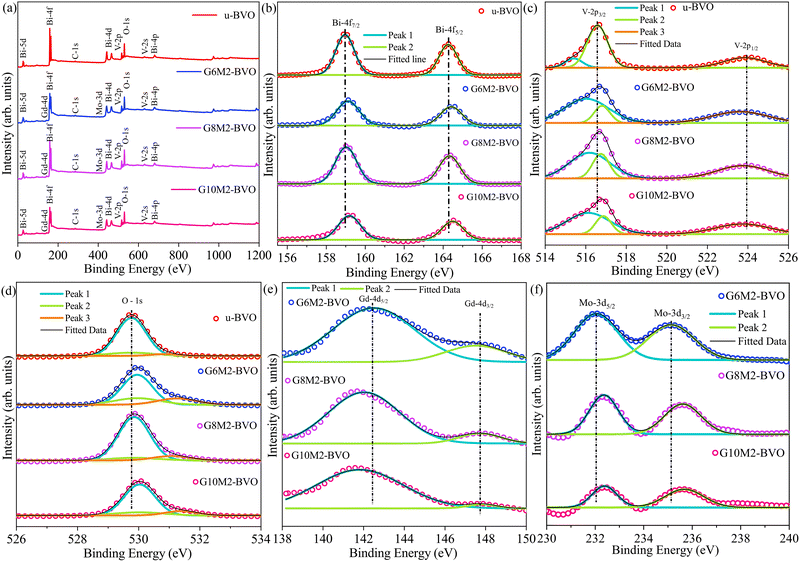

Fig. 7 (a) XPS full survey spectra and core level spectra of (b) Bi-4f, (c) V-2p, (d) O-1s, (e) Gd-4d, and (f) Mo-3d of u-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO.

3.6. UV-vis spectroscopy

The UV-vis absorbances (Fig. 8) were derived from measured diffuse reflectance using the Kubelka–Munk function F(R_∞). The undoped u-BVO possesses a single-slope edge, whereas the co-doped samples display edges with two different slopes. The steeper edge of the G2M2-BVO co-doped sample was blue-shifted by 60 nm from that of u-BVO. With increasing Gd concentrations of 4 and 6%, the steeper edges of the co-doped G4M2-BVO and G6M2-BVO samples were blue-shifted by ∼10 nm with each increment. No palpable shift in the absorption edge was observed between G10M2-BVO and G6M2-BVO. The exception occurred in G8M2-BVO, where the steep absorption edge stayed close to that of u-BVO, and an absorption tail appeared in the longer wavelength region. This represents Urbach tails resembling the sub-band gap optical absorption, originating from defect states introduced by the (Gd³⁺, Mo⁶⁺) dopants in the band gap of BiVO₄.^103,104 The Tauc procedure was employed to evaluate the E_g, which is related to photon energy hν by the F(R_∞) as:

[F(R_∞)hν]^1/γ = A(hν − E_g), (2)

where A is a constant and γ defines the nature of the electronic transition (indirect: γ = 2 and direct: γ = 1/2). The direct Tauc plots of all samples in Fig. 9(a) revealed an E_g of 2.53 eV for the u-BVO. The introduction of (Gd = 2%, Mo = 2%) dopants in G2M2-BVO increased the direct E_g to 2.99 eV. The further increments in Gd dopant concentration in G4M2-BVO (3.01 eV), G6M2-BVO (3.05 eV), G8M2-BVO (2.88 eV), and G10M2-BVO (3.05 eV) seem to have minor effects on direct E_g. For G8M2-BVO, an additional E_g with a lower energy of 2.60 eV is observed. Next, the indirect Tauc plots are displayed in Fig. 9(b). The u-BVO possessed an indirect E_g of 2.41 eV. For all co-doped samples, a pair of E_g is observed, one of which lies close to that of u-BVO, and the other is located higher in energy (except for G8M2-BVO, where the E_g = 1.76 eV) range is 2.84–2.93 eV. The estimated direct and indirect E_g of all samples, along with their corresponding electronic transitions, were displayed in Table S7. The E_g = 1.76 eV can be ascribed to the electronic transition from the Mo-4d to O-2p states. The E_g lying in the 2.41–2.59 eV range corresponds to electronic transitions from the V-3d states of the conduction band (CB) to the O-2p states of the valence band (VB). The electronic transitions between impurity states like Mo-4d near CB and Gd-4f in VB stemmed from E_g in the range of 2.84–3.05 eV.

Fig. 8 The UV-vis absorbance of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO derived from DRS.

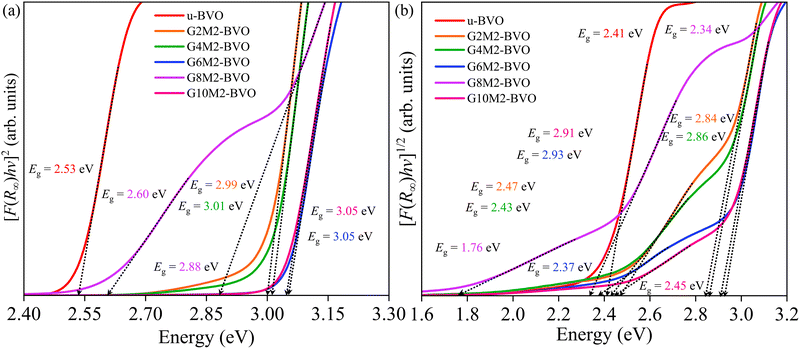

Fig. 9 (a) Direct and (b) indirect band gap in the Tauc plot of u-BVO, G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO, derived from DRS.

3.7. Electronic structure analysis

The total density of states (TDOS) and its orbital projections of the u-doped and (Gd, Mo) co-doped BVO supercell were simulated using optimum DFT+U XCF. The u-BVO supercell yields an E_g of 2.42 eV (Fig. 10a). The states near the valence band maxima (VBM) originate from O-2p and Bi-6s hybridization. The presence of Bi-5d states near the VBM and conduction band minima (CBM) is insignificant. The states near the CBM stemmed from hybridization of V-3d, Bi-6p, and O-2p orbitals. The V-3d has undergone tetrahedral crystal-field induced splitting. In the case of (Gd³⁺, Mo⁶⁺) co-doping, in addition, two distinct features became evident: (i) Gd-4f spin down states appeared near the CBM and take part in hybridization with Bi-6p, V-3d, and O-2p; (ii) shallow up-spin impurity states (closer to CBM) stemmed from the hybridization of Mo-4d, O-2p and V-3d orbitals. These trap states can capture photogenerated electrons, retarding their recombination with holes, effectively prolonging their lifetime, and thereby improving the photocatalytic performance.^{40,102,105,106} For the co-doped supercells, where the Gd dopant concentration varies as 3.125, 6.25, and 9.375% while keeping the Mo concentration fixed at 3.125% (Fig. 10b–d), the VB and CB edge positions remain essentially the same and the E_g remains fixed at ∼2.45 eV. The Gd-4f orbital contribution near the CBM gradually increases with the Gd dopant concentration.

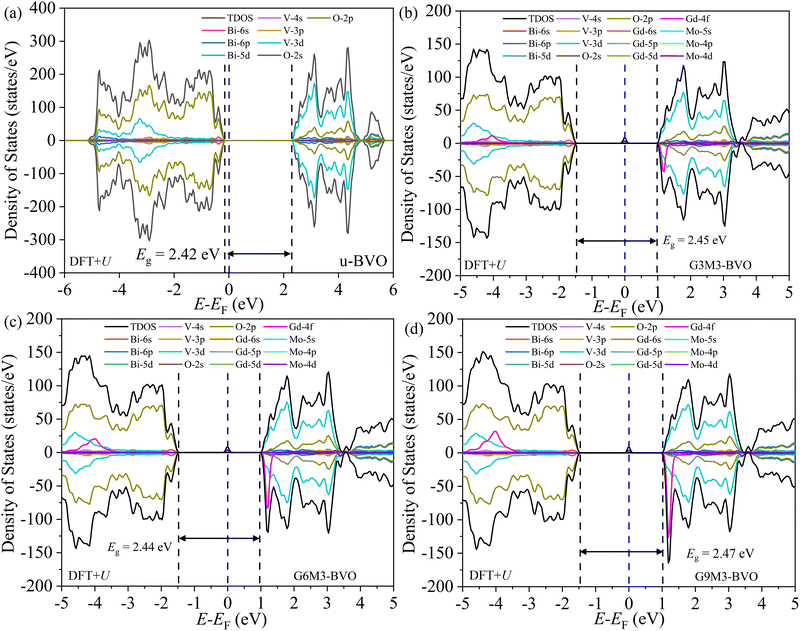

Fig. 10 Total density of states (TDOS) and its projections on different atomic orbitals of (a) u-BVO, (b) 3.125% Gd and 3.125% Mo co-doped G3M3-BVO, (c) 6.25% Gd and 3.125% Mo co-doped G6M3-BVO, and (d) 9.375% Gd and 3.125% Mo co-doped G9M3-BVO using DFT+U XCF. The Fermi level E_F is set as the zero of energy.

Now we probe the valence band structure of u-BVO and (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ nanoparticles by targeting the valence electrons with a HeI source in UPS measurements. The photoelectron intensity is plotted against the binding energy (Fig. 11) near the Fermi level (E_F). The dotted circle encloses very similar rising edges from E_F for undoped and co-doped samples. The linear extrapolations of these rising edges on the binding energy axis yield a similar VB edge energy of ∼0.12 eV. This corroborates the fact that the VBM energy remains fixed as we introduce (Gd³⁺, Mo⁶⁺) dopants, consistent with our DFT simulation.

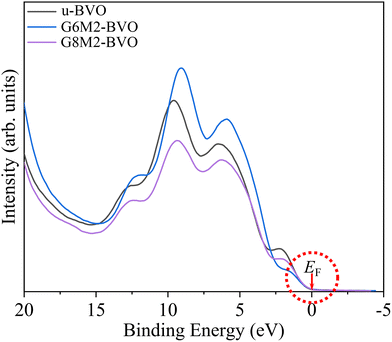

Fig. 11 Ultraviolet photoelectron spectra of the valence band of u-BVO, G6M2-BVO, and G8M2-BVO near the Fermi energy E_F.

3.8. Steady state photoluminescence

The photo-excited EHP recombination generates PL emission, and hence its intensity is correlated with the photocatalytic performance of the material.^107,108 Generally, higher PL intensity indicates higher EHP recombination, leading to photocatalytic performance deterioration.^109–113 The room temperature steady-state PL emissions of all samples are presented in Fig. 12 with an excitation wavelength λ_ex at 270 nm. The electrons from the CB (V-3d states) make a downward radiative transition to holes in the VB (Bi-5d and O-2p hybridized states) of undoped u-BVO, generating the PL emission at ∼582 nm with a fwhm of ∼75 nm.^{35,80,114,115} The PL emission peaks are blue-shifted to 469–508 nm for the (Gd³⁺, Mo⁶⁺) co-doped samples. This blue-shift is consistent with the band gap increment due to co-doping in the BiVO₄ crystal as presented in Section 3.6. The PL intensity gradually decreases with increasing Gd content from 2 to 8%, inferring a reduction of radiative EHP recombination. The observed red shift in PL emission for G8M2-BVO (∼508 nm with a fwhm of ∼96 nm) compared to other co-doped samples can be ascribed to extrinsic radiative recombination from Urbach tail states at longer wavelengths. The PL intensity peak reaches a maximum for G10M2-BVO at ∼464 nm with a fwhm of 97 nm among all co-doped samples. This enhancement in PL emission can be attributed to the higher EHP recombination via the defect states.

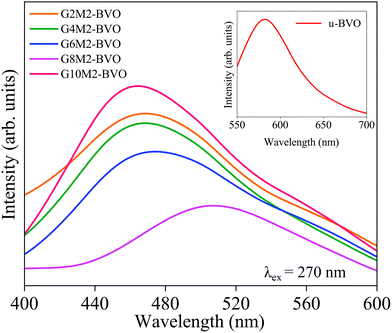

Fig. 12 Steady-state room temperature photoluminescence of u-BVO (inset), G2M2-BVO, G4M2-BVO, G6M2-BVO, G8M2-BVO, and G10M2-BVO.

3.9. Photocatalytic performance analysis

The photocatalyst induces decolorization of toxic dyes by annihilating their chromophoric structure under optical illumination. Fig. 13(a) displays the UV-vis absorption measurements, characterizing the MB dye degradation by u-BVO. The degradation in dark conditions due to surface adsorption is nominal. As the photocatalyst degrades the MB dye, the intensity of its characteristic 665 nm peak gradually diminishes over irradiation time.^116–119 By plotting the ratio of C to C₀, where C₀ and C stand for initial and time-specific dye concentrations, the photocatalytic efficiency was evaluated to be 81% (inset). In addition, a pseudo-first-order ln(C₀/C) = kt model was used to capture the reaction kinetics, and the estimated reaction rate constant k turned out to be 0.00776 min⁻¹. The pure ms phase of u-BVO with a direct band gap of 2.53 eV can be attributed to this visible photocatalytic activity.¹²⁰ Moreover, the buck-horn type morphology of the u-BVO may have enhanced electron–hole separation, desired in the efficient photocatalytic mechanism.^80,121 For the sake of brevity, the detailed photocatalytic degradation measurements of the co-doped sample are presented in Fig. S8 and S9 and the results are summarized in Table S8. The (Gd³⁺, Mo⁶⁺) co-doping of BiVO₄ improved the photocatalytic efficiencies. The best-performing co-doped G6M2-BVO (Fig. 13b) obtained 96% efficiency over 180 min of optical exposure with a reaction rate as high as 0.01524. Several factors can be ascribed to this photocatalytic performance enhancement due to co-doping. The 2% Mo⁶⁺ donor dopant present in V⁵⁺ acts as a shallow donor and enhances stability, electron conductivity, diffusion length, mobility, and EHP separation efficiency.²⁸ The isovalent Gd³⁺ dopant in Bi³⁺ can provide the desired distortion in the monoclinic structure, effectively reducing the hole's effective mass to enhance its mobility.^38,122 Moreover, the Gd³⁺ at the surface of BVO can act as a charge trapping center to facilitate the charge transfer in photocatalytic reactions.¹²⁰ Notably, the Gd³⁺ dopant inflates carrier mobility and lifetime in BVO, effective in preventing unwanted EHP recombinations. This conjecture is supported by the reduced PL emission of the G6M2-BVO, presented in Section 3.8.

Fig. 13 The photocatalytic degradation measurements from UV-Vis absorption spectra of (a) u-BVO and (b) G6M2-BVO photocatalysts (1 g L⁻¹) with 50 ppm MB dye.

3.10. Photocatalytic mechanism

During the photocatalytic reaction, optical energy hν excites electrons from the VB to CB of the photocatalyst, creating holes in the VB. These EHPs can produce reactive oxygen species, facilitating the redox reactions to degrade the MB dye. The photogenerated e⁻ in CB may successively reduce dissolved O₂ to H₂O₂ and hydroxyl (˙OH) radicals. The photogenerated h⁺ react with adsorbed H₂O on the surface of the photocatalyst to supply ˙OH radicals. A tentative reaction pathway for MB dye degradation with these EHP-generated ˙OH is as follows:

Table S9 summarizes the relevant chemical reactions and their corresponding redox potentials at different pH levels. To probe the reaction potential, the Mulliken electronegativity χ of BiVO₄ was estimated to be 6.04 eV, as the geometric mean of the absolute electronegativities of Bi (4.25 eV), V (3.60 eV), and O (7.54 eV). Assuming free electron energy of E_e = 4.44 eV in the normal hydrogen electrode (NHE) scale, VBM and CBM edge energies can be estimated as

E_CBM = E_VBM − E_g (5)

By using the experimental and DFT+U derived E_g, the VBM and CBM edge energies E_VBM and E_CBM were obtained. Fig. 14 presents the E_VBM and E_CBM band-edge locations of undoped and (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ along with the redox potentials of O₂/H₂O₂ and H₂O/˙OH at pH = 10. The E_VBM and E_CBM straddled these photocatalytic redox potentials, corroborating the proposed photocatalytic MB dye degradation by the (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ photocatalyst.

Fig. 14 Experimental (Exp.) and DFT+U derived conduction E_CBM and valence E_VBM band-edge positions of undoped and (Gd, Mo) co-doped BiVO₄ with respect to relevant photocatalytic redox reaction potentials at pH = 10.

4. Conclusion

We report a surfactant-free hydrothermal synthesis of (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ nanoparticles. The incorporation of Gd and Mo dopants gradually changes the ms–tz phase mixing proportions of the Bi_1−xGd_xV_1−yMo_yO₄ samples. The Raman peaks further corroborated the co-existence of mixed ms–tz phase in the co-doped BiVO₄. Co-doping induced a morphological evolution in BiVO₄, transforming it from buckhorn-shaped nanorods to rectangular nanorods and finally to irregular nanoparticles. High resolution transmission electron microscopy revealed the desired crystallinity of the co-doped nanoparticles. The desired Bi³⁺, V⁵⁺, O²⁻, Gd³⁺, and Mo⁶⁺ oxidation states in the as-synthesized undoped and co-doped samples were confirmed from X-ray photoelectron spectroscopy. The (Gd³⁺, Mo⁶⁺) co-doping essentially left the valence band edge energy unchanged, as revealed from ultraviolet photoelectron spectroscopy and DFT+U simulations. The co-doping induced multiple band gaps lying in the range of 2.41–3.05 eV as per the DRS due to multiple electronic transitions among different states, supported by DFT+U derived density of states simulations. The suppression of radiative recombination of photogenerated carriers was evident due to (Gd³⁺, Mo⁶⁺) co-doping in steady-state photoluminescence. The best-performing Bi_0.94Gd_0.06V_0.98Mo_0.02O₄ photocatalyst nanoparticles degraded 50 ppm methylene blue dye in 180 min with 0.01524 min⁻¹ reaction rate. The band edges straddled the desired photocatalytic redox potentials for driving the relevant reactions. This superior photocatalytic performance of (Gd³⁺, Mo⁶⁺) co-doped BiVO₄ may have originated synergistically from mixed ms–tz phase distortion, higher optical absorption, high surface-to-volume ratio of the nanoparticles, favorable band edge alignment, and reduced radiative recombinations.

Author contributions

I. A. planned and supervised the entire project, acquired the research funding, and wrote the original article. N. E. and M. R. H. contributed equally. N. E. and M. R. H. prepared all samples and performed the photocatalytic measurements. M. N. I. K. and H. N. helped with XRD, FTIR, and TEM measurements. M. S. B., D. I., and S. J. facilitated the SEM, FESEM, EDX, and Raman measurements. S. A. J. and U. S. A. performed the XPS measurements and analysis. N. E., M. R. H., and M. Z. H. performed the PL measurements. K. S. H. provided DRS measurements support. S. S. N., Q. S. H., and I. A. performed the DFT simulations. N. E., M. R. H., and I. A. performed the data curation.

Conflicts of interest

The authors declare no competing interests.

Data availability

The data that support the findings of this study are available from the corresponding author upon reasonable request.

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: a 2 × 2 × 2 supercell structure, detailed experimental XRD peak analysis with Rietveld refinement, Raman analysis, FTIR peak assignments, elemental and spatial EDX analysis, photocatalytic dye degradation measurements, and reaction potentials of undoped and (Gd³⁺, Mo⁶⁺) co-doped BiVO₄. See DOI: https://doi.org/10.1039/d5ma01129a.

Acknowledgements

I. A. gratefully acknowledges support from the University Grants Commission of Bangladesh Research Fund 2025–2026 for conducting this project. I. A. thankfully extends his courtesy to the Bangladesh Research and Education Network (BdREN) for providing excellent, high-performance computational resources. I. A. also acknowledges resource-sharing support from Md. Shafiul Alam, University of Dhaka. K. S. H. acknowledges the support from the International Science Program (ISP), Uppsala University, Sweden.
