Constructing an efficient NiCu single-atom alloy towards acetylene semi-hydrogenation

Abstract

Acetylene semi-hydrogenation is a critical industrial process for purifying raw steam used in polyethylene production. Nickel-based particles have emerged as promising non-noble catalysts for this application. Designing a catalyst with high activity and ethylene selectivity has long been a goal in this field. Single-atom alloys (SAAs) with integrated functions are potential candidates for achieving the two goals simultaneously. Here, we reported a new strategy to construct efficient NiCu SAAs, uncovering two factors for the density of catalytic Ni sites, the alloying degree and exposure degree of Ni. Increasing the reduction temperature could enhance the alloying degree of Ni atoms, and it could also enlarge the particle size of the NiCu SAAs and result in decreased exposure of Ni atoms. The two opposing factors simultaneously led to a volcano-shaped dependence of reaction activity on the reduction temperature. The optimal NiCu single-atom alloys, balancing both key factors, demonstrated notable specific activity and selectivity (29 582 mL_C2H2 min⁻¹ g_Ni⁻¹ and 92.7% ethylene selectivity under 100% acetylene conversion). This research introduced a new strategy for synthesizing efficient SAAs for selective hydrogenation through a straightforward approach.

---

1. Introduction

Acetylene semi-hydrogenation plays a critical role in the chemical industry by purifying raw steam for polyethylene production, as even trace amounts of acetylene can poison polymerization catalysts.^1–3 In this process, it is essential to hydrogenate acetylene to ethylene, while preventing over-hydrogenation to ethane or polymerization to oligomerization.^4–7 While Pd-based catalysts are commonly used in industry for acetylene semi-hydrogenation, Ni-based catalysts are proposed to replace them due to their lower costs.^8,9 The primary objective of Ni-based catalysts in acetylene semi-hydrogenation is to improve the activity and enhance ethylene selectivity.^10–12

Bimetallic catalysts are currently widely used catalysts for the semi-hydrogenation of acetylene. The introduction of a second metal not only modulates the coordination environment of the active metal, but also disperses the active metal sites, thereby suppressing over-hydrogenation.¹³ Bimetallic catalysts can exist in many structural motifs, such as alloys, dual-atom sites, single-atom-decorated clusters and so on.^14–16 These catalysts each have their own unique advantages. Based on previous research, isolated metal active sites have been proven to enhance ethylene selectivity.^11,17,18 Single-atom alloys (SAAs), where the active doped atoms are isolated within an inactive host metal, offer a promising approach for catalyzing acetylene semi-hydrogenation with high ethylene selectivity.^19–21 When SAAs were employed as hydrogenation catalysts, the group VIII transition metal atoms served as catalytic hydrogenation sites, and the coinage metal host acted as platforms to facilitate hydrogen spillover.^21,22 Additionally, owing to the free-atom-like d-states of guest metal atoms and their unique atomic arrangement,^23–25 SAAs are potential candidates for catalyzing acetylene semi-hydrogenation with high intrinsic activity, thereby breaking the Brønsted–Evans–Polanyi (BEP) scaling relationship.^26,27 However, Ni-based SAAs, which have potential to replace Pd-based catalysts, have not been reported for acetylene semi-hydrogenation.

To bridge the gap between SAA model systems and practical applications, various synthetic approaches have been developed for preparing SAA powder catalysts, including galvanic replacement, sequential reduction and/or incipient wetness co-impregnation.²⁵ However, most synthetic methods require multiple steps, which hinders their widespread application for synthesizing SAAs. Instead, incipient wetness co-impregnation, as a simple one-pot synthetic approach, is a promising candidate for the scalable synthesis of single-atom alloys.

In this study, we synthesized a series of carbon supported NiCu alloys via incipient wetness co-impregnation and subjected them to reduction at various temperatures (denoted as NiCu_x/C-T, where x and T refer to the atomic ratio of Cu/Ni and reduction temperature). Structural analysis indicated that NiCu₅₀₀/C-300 was the NiCu cluster, and all other samples were identified as NiCu SAAs. Subsequently, a volcano-shaped trend in activity against the reaction temperature was observed, with the peak located at a moderate reduction temperature of 500 °C. To optimize the synthetic method for SAAs via incipient wetness co-impregnation, we also investigated the evolution of catalytic site density behind the volcano-shaped trend. Further process studies uncovered that the alloying degree of Ni increased along with the elevated reduction temperature, leading to enhanced apparent catalytic activity. However, the size of alloy particles also increased with increasing reduction temperature, resulting in the embedding of Ni and decrease in apparent catalytic activity. These two temperature-dependent factors, alloying degree and particle size, collectively contributed to the observed volcano trend, where the optimal NiCu₅₀₀/C-T could balance the conflicting factors. In this work, NiCu₅₀₀/C-500 could demonstrate significant specific activity (29 582 mL_C2H2 min⁻¹ g_Ni⁻¹), high ethylene selectivity (92.7%), and stability (89 hours), outperforming previously reported Ni-based catalysts.

2. Experimental

2.1. Materials and chemicals

BP2000 was manufactured by the American company Cabot Corporation. SiO₂ was purchased from Sigma-Aldrich. Nickel(II) chloride hexahydrate (NiCl₂·6H₂O) and copper(II) chloride dihydrate (CuCl₂·2H₂O) were purchased from Sinopharm Chemical Reagent as commercial sources. Deionized water (18.2 MΩ cm⁻¹) utilized in all experiments was prepared by passing it through an ultra-pure purification system.

2.2. Synthesis of materials

NiCu₅₀₀/C-300 was prepared using a conventional wet-impregnation method followed by H₂-reduction at 300 °C. Solid-state NiCl₂·6H₂O and CuCl₂·2H₂O were dissolved in DI water at specific concentrations. In brief, 0.053 mg NiCl₂ and 27.44 mg CuCl₂ were initially mixed with 200 mg BP2000 in a 250 mL round-bottom flask containing 100 mL DI water. After ultrasonic treatment for 1.5 h, the mixture was stirred for at least 8 h before being dried using a rotary evaporator. The resulting dark powder was heated in a tube furnace at 300 °C under flowing 5% H₂/Ar for 1 h to obtain NiCu₅₀₀/C-300. To obtain NiCu₅₀₀/C-T (T = 400 °C, 500 °C, and 600 °C), 30 mg NiCu₅₀₀/C-300 was introduced into a fixed-bed flow reactor and heated in 5% H₂/Ar for 2 h, with the temperature ranging from 400 °C to 600 °C. For NiCu₅₀₀/C-800, 30 mg NiCu₅₀₀/C-300 was placed in a tube furnace and heated at 800 °C under flowing 5% H₂/Ar for 2 h. NiCu₁₀/SiO₂ was prepared by a similar method.

NiCu SAA/C-T (T = 300 °C, 400 °C, and 500 °C) was prepared through sequential impregnation and reduction. In a nutshell, 27.44 mg CuCl₂ was initially mixed with 200 mg BP2000 in a 250 mL round-bottom flask containing 100 mL DI water. After ultrasonic treatment for 1.5 h, the mixture was stirred for at least 8 h before being dried using a rotary evaporator. The resulting powder was then heated in a tube furnace at 800 °C under flowing 5% H₂/Ar for 2 h to obtain Cu/C-800. All the Cu/C was combined with 0.053 mg of NiCl₂ in a 250 mL round-bottom flask containing 100 mL DI water. After ultrasonic treatment for 30 min, the mixture was stirred for at least 8 h before being dried using a rotary evaporator, resulting in Cu/C-800 + Ni. Subsequently, 30 mg Cu/C-800 + Ni was introduced into a fixed-bed flow reactor and heated in 5% H₂/Ar for 50 min, with the temperature ranging from 300 °C to 500 °C, yielding NiCu SAA/C-T (T = 300 °C, 400 °C, and 500 °C).

Ni/C was prepared using a conventional wet-impregnation method followed by H₂-reduction at 500 °C. Solid-state NiCl₂·6H₂O was dissolved in DI water at specific concentrations. In brief, 26.50 mg NiCl₂ was initially mixed with 200 mg BP2000 in a 250 mL round-bottom flask containing 100 mL DI water. After ultrasonic treatment for 1.5 h, the mixture was stirred for at least 8 h before being dried using a rotary evaporator. The resulting dark powder was heated in a tube furnace at 500 °C under flowing 5% H₂/Ar for 2 h to obtain Ni/C.

2.3. Characterization of the materials

The XRD patterns were acquired using a Japan Rigaku DMax-γA rotation anode X-ray diffractometer. The wavelength employed in XRD was 1.54178 Å, utilizing graphite monochromatized Cu-K radiation. The TEM image was captured on an H-7650 with an accelerating voltage of 100 kV. The HAADF-STEM images were captured on an FEI Talos F200X with an accelerating voltage of 200 kV. The EDS mapping images were obtained using the Super X-EDS system of the FEI Talos F200X. The DRIFTS experiments were carried out on a Nicolet iS10 spectrometer equipped with a mercury–cadmium–telluride detector and high-temperature in situ heating chamber. After loading the NiCu₁₀/SiO₂ sample into the cell, it was reduced under 5% H₂ (Ar balance) at 200 °C for 30 min. After cooling the sample to room temperature in Ar, we collected a background spectrum. Subsequently, the sample was exposed to 10% CO in Ar (15 ml min⁻¹) until saturation. Next, the sample was purged with Ar (15 ml min⁻¹) for 10 min to remove the gas-phase CO, after which the DRIFT spectrum was collected. The TPR tests of all catalysts were performed using a Huasi DAS-7000 high-performance dynamic adsorption analyzer equipped with a TCD to measure the consumption of hydrogen. The temperature was set at a ramp rate of 10 °C min⁻¹, and the reducing gas of 5 vol% H₂ balanced N₂ was set at a flow rate of 50 mL min⁻¹.

2.4. Acetylene hydrogenation testing

Acetylene hydrogenation testing in excess ethylene was conducted in a fixed-bed flow reactor. Before the hydrogenation testing, 30 mg NiCu₅₀₀/C-300, NiCu₅₀₀/C-800 and Ni/C were reduced at 300 °C under flowing 5% H₂/Ar for 30 min. Other catalysts were produced in the fixed-bed flow reactor under flowing 5% H₂/Ar and were not exposed to air. After cooling to room temperature, a reactant gas mixture (0.5 vol% C₂H₂, 5 vol% H₂, 20 vol% C₂H₄, and balance N₂) at a flow rate of 20 mL min⁻¹ was fed into the reactor. The composition of the reactants and products was analyzed online using a GC9790Plus gas chromatograph equipped with an FID. The acetylene conversion rate, ethylene selectivity, selectivity towards other products, and specific activity were calculated using the following equations:

3. Results and discussion

3.1. Structure characterization of catalysts

NiCu₅₀₀/C-T was prepared through incipient wetness co-impregnation and thermal reduction. The weight loadings of Ni and Cu in NiCu₅₀₀/C-T were 0.013 and 5.5 wt%, respectively, with an atomic ratio of ∼0.002 (Table S1), determined by inductively coupled plasma atomic emission spectrometry (ICP-AES). To identify the phase of NiCu₅₀₀/C-T, we resorted to X-ray diffraction (XRD), as shown in Fig. 1(a–e). In the XRD pattern of NiCu₅₀₀/C-300, no visible plane diffraction peaks assigned to facets of metal or metallic nanoparticles were observed. Combining this with the high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image of NiCu₅₀₀/C-300 shown in Fig. 1(f), we could infer that the main state of NiCu in NiCu₅₀₀/C-300 was in an uncrystallized cluster. Other XRD patterns of NiCu₅₀₀/C-T aligned with that of Cu, suggesting that the structures of particles in NiCu₅₀₀/C-T (T = 400 °C, 500 °C, 600 °C, and 800 °C) were identical to the pure Cu. To investigate the morphology of NiCu₅₀₀/C-T, we resorted to HAADF-STEM, as shown in Fig. 1(f–j) and S1 in the SI. Apart from NiCu₅₀₀/C-300, other HAADF-STEM images illustrated that the particle size of NiCu₅₀₀/C-T increased with the elevated reduction temperature. As shown in Fig. 1(k), elemental mapping with energy-dispersive X-ray spectroscopy (EDS) indicated that Ni was uniformly distributed in a randomly chosen particle in NiCu₅₀₀/C-500, with Cu being its main component. The calculation was based on the K_a of Ni and Cu, and the atomic ratio was 0.0022 calculated with the peak area ratio (peak area of Ni: 1.04, k-factor was 4.18; peak area of Cu: 583.35, k-factor was 5.15). Considering the disproportionate atomic ratio of NiCu (Fig. 1(k)), the NiCu SAA was potentially formed in NiCu₅₀₀/C-500. The SAA structures of other NiCu₅₀₀/C-T samples (T = 400 °C, 600 °C, and 800 °C) were also demonstrated by the EDS elemental mapping shown in Fig. S2 in the SI. To determine whether Ni ensembles exist, we performed the CO-DRIFTS of NiCu₁₀/SiO₂ (CO-DRIFTS characterization was not conducted on the carbon-supported NiCu due to the strong infrared absorption of the carbon support, which would severely interfere with the signal) as shown in Fig. S3 in the SI. The linear CO absorption band on Ni ensembles was at 2055 cm⁻¹,²⁸ which was absent, indicating that the presence of Ni ensembles could be excluded. We could infer that there were no Ni ensembles in the NiCu₅₀₀/C-T (T = 400 °C, 600 °C, and 800 °C) based the CO-DRIFTS of NiCu₁₀/SiO₂.

Fig. 1 Structural characterization of NiCu₅₀₀/C-T. (a–e) XRD patterns of NiCu₅₀₀/C-T (T = 300 °C, 400 °C, 500 °C, 600 °C, and 800 °C). (f–j) HAADF-STEM images of NiCu₅₀₀/C-T (T = 300 °C, 400 °C, 500 °C, 600 °C, and 800 °C). The inserts are the corresponding statistics of particle diameter distribution. (k) The EDS elemental mapping of NiCu₅₀₀/C-500 and the corresponding elemental ratio of Ni and Cu elements.

3.2. Catalytic tests of acetylene semi-hydrogenation

Acetylene semi-hydrogenation performance over NiCu₅₀₀/C-T was tested in a fixed-bed reactor with C₂H₄ : H₂ : C₂H₂ = 40 : 10 : 1. Fig. 2(a) illustrates the C₂H₂ conversion and C₂H₄ selectivity with respect to the reaction temperature with all NiCu₅₀₀/C-T samples, where a clear trend of catalytic semi-hydrogenation was observed. Among them, NiCu₅₀₀/C-500 offered the highest C₂H₂ conversion rate at 91.7% at 240 °C, while NiCu₅₀₀/C-300 and NiCu₅₀₀/C-800 showed zero conversion rates across the entire temperature range. NiCu₅₀₀/C-400 and NiCu₅₀₀/C-600 provided a moderate activity, achieving 46.9% and 48.2% conversion rates at 240 °C, respectively. Due to the identical Ni loading and catalyst mass among the NiCu₅₀₀/C-T series, the trend observed in the C₂H₂ conversion rate reveals the intrinsic activity (Ni specific activity). In Fig. 2(b), Ni specific activity (240 °C) was plotted against the reduction temperature of NiCu₅₀₀/C-T, revealing a volcano trend with a peak at a moderate reduction temperature of 500 °C (NiCu₅₀₀/C-T). Regarding C₂H₄ selectivity, NiCu₅₀₀/C-400, NiCu₅₀₀/C-500, and NiCu₅₀₀/C-600 all exhibited selectivity higher than 90%. As the C₂H₂ conversion rate was zero, C₂H₄ selectivity for NiCu₅₀₀/C-300 and NiCu₅₀₀/C-800 was not discussed. The lowest selectivity value was observed for NiCu₅₀₀/C-500 at 240 °C, still achieving 91.9% with a C₂H₂ conversion of 91.7%.

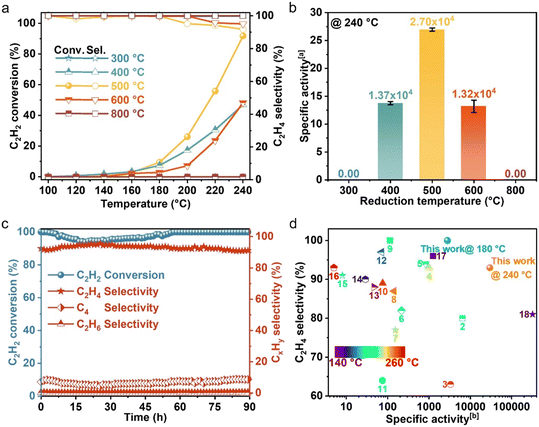

Fig. 2 Catalytic performances for acetylene hydrogenation. (a) Acetylene conversion rate and ethylene selectivity as functions of temperature over NiCu₅₀₀/C-T (T = 300 °C, 400 °C, 500 °C, 600 °C, and 800 °C). (b) Specific activity of NiCu₅₀₀/C-T (T = 300 °C, 400 °C, 500 °C, 600 °C, and 800 °C) (@ 240 °C). (c) Acetylene conversion rate, ethylene selectivity, and selectivity towards other products with the time on stream over NiCu₅₀₀/C-500. (d) Specific activity and ethylene selectivity for NiCu₅₀₀/C-500 and in the literature (shown in Table S2). ^aUnit: 10³ mL_C2H2 min⁻¹ g_Ni⁻¹. ^bUnit: mL_C2H2 min⁻¹ g_Ni⁻¹.

Considering the outstanding selectivity and activity among NiCu₅₀₀/C-T, we assessed the stability of NiCu₅₀₀/C-500 and examined the selectivity to primary by-products, C₂H₆ and C₄ (Fig. 2(c)). The catalyst deactivation in the semi-hydrogenation of C₂H₂ was ascribed to the formation of green oil, a polymer of C4.^6,29,30 Despite a low C4 selectivity (7.8%), NiCu₅₀₀/C-500 maintained stability for 89 hours, with a C₂H₂ conversion exceeding 94% and consistent C₂H₄ selectivity. After the stability test, the morphology of the catalyst remained basically unchanged, and the Ni was kept isolated according to the EDS mapping (Fig. S4 in the SI). Notably, C₂H₄ selectivity remained above 91% even when the C₂H₂ conversion reached 100%. In an atmosphere with excess C₂H₄ and H₂ (the excess H₂ is added to achieve high C₂H₂ conversion), it's challenging for the catalysts to avoid catalyzing C₂H₄ to C₂H₆.^31–33 However, when the C₂H₂ conversion reached 100%, the C₂H₆ selectivity over NiCu₅₀₀/C-500 remained below 1%, confirming the high capability of NiCu₅₀₀/C-500 in suppressing over-hydrogenation to C₂H₆. As a comparison, pure Ni particles supported by carbon (denoted as Ni/C) were synthesized (Fig. S5 in the SI) and tested (Fig. S6 in the SI). Compared with the pure Ni nanoparticles, at the 100% C₂H₂ conversion, NiCu₅₀₀/C-500 demonstrated higher C₂H₄ selectivity, suppressing the over hydrogenation.

Despite a low Ni loading of 0.013 wt%, NiCu₅₀₀/C-500 exhibited a significant C₂H₂ conversion, demonstrating the superior specific activity of NiCu₅₀₀/C-500 at high C₂H₄ selectivity (Fig. 2(d)). Comparing the catalytic performance of NiCu₅₀₀/C-500 with other reported Ni-based catalysts in terms of specific activity and ethylene selectivity, NiCu₅₀₀/C-500 could offer a high specific activity (29 582 mL_C2H2 min⁻¹ g_Ni⁻¹) with high C₂H₄ selectivity. Considering the temperature effect on activity, we also presented a low-temperature specific activity (180 °C) of NiCu₅₀₀/C-500, which still provided superior specific activity and ethylene selectivity. Consequently, the catalyst design based on NiCu SAAs achieved remarkably high catalytic activity and selectivity.

3.3. Investigation on the evolution of catalytic site density

To elucidate the individual roles of the dopant and host metals in NiCu single-atom alloys (SAAs), we prepared two reference catalysts: carbon-supported Ni single atoms and Cu particles. The metal loadings (0.013 wt% Ni and 5.7 wt% Cu) were designed to match those in the NiCu₅₀₀/C-T SAA. We then compared their catalytic performance with NiCu₅₀₀/C-500. Compared with NiCu₅₀₀/C-500 (Fig. 3(a)), Ni single atoms and/or Cu particles exhibited extremely low activity for the C₂H₂ semi-hydrogenation. This observation underscored the indispensable roles of Ni single atoms and Cu particles in acetylene semi-hydrogenation within NiCu SAAs. In the NiCu SAA, Ni atoms possibly functioned as sites of hydrogen dissociation, with Cu facets facilitating hydrogen atom migration and C₂H₂ hydrogenation, as illustrated in Fig. 3(b). To validate this function, we conducted temperature programmed reduction (TPR) experiments on the fresh sample, as shown in Fig. 3(c). H₂-TPR indicates that the monometallic Ni (Ni/C) could be reduced at around 410 °C. The H₂-TPR profile for the monometallic Cu (Cu/C) contains two reduction peaks at 424 °C and 655 °C, which were attributed to the reduction of Cu(II) species to Cu(I) and then to Cu(0), respectively.³⁴ Notably, the addition of a small amount of Ni (atomic ratio of Ni : Cu = 1 : 50, denoted as NiCu₅₀) resulted in a lower temperature peak compared to Cu/C. The significant shift of the H₂-TPR peak of Cu reduction to a lower temperature in NiCu₅₀/C can be attributed to the hydrogen spillover in the NiCu SAA.³⁴ Combining the TPR results and previous research,^19,35 within NiCu SAAs, Ni single atoms served as sites of hydrogen dissociation, and Cu facets facilitated hydrogen spillover and C₂H₂ hydrogenation.

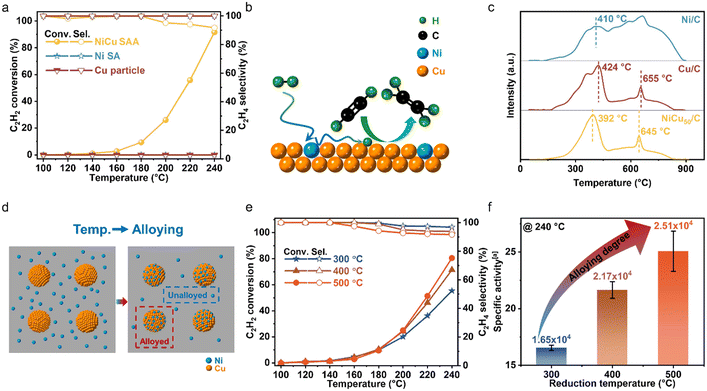

Fig. 3 Investigating the active sites and influence of temperature on the alloying degree of Ni atoms. (a) Comparison of catalytic activity between the NiCu single-atom alloy, Ni single atom, and Cu particles. (b) The illustration of the role of doped Ni atoms and the Cu substrate. (c) TPR profiles of Ni/C, Cu/C and NiCu₅₀/C. (d) The illustration of investigating experimental design. (e) Acetylene conversion and ethylene selectivity as functions of temperature over NiCu SAA/C-T (T = 300 °C, 400 °C, and 500 °C). (f) Specific activity of NiCu SAA/C-T (T = 300 °C, 400 °C, and 500 °C) (@ 240 °C). ^aUnit: 10³ mL_C2H2 min⁻¹ g_Ni⁻¹.

After confirming the roles of Cu–Ni in the NiCu SAA, we further study the two opposing factors, the alloying degree and exposure degree of Ni atoms, to identify the formation process of the optimized catalysts. When there is a higher alloying degree with lower Ni atom encapsulation, a greater density of catalytic sites is achieved due to the change of the local coordination environment during the alloying process.^13,36

To examine how the alloying degree evolved with reduction temperature and exclude the effect of Ni atom encapsulation, we synthesized a series of NiCu₅₀₀/C catalysts via incipient wetness sequential impregnation, using Cu/C that had been pre-reduced at 800 °C for 2 hours as the ‘pre-support’, as illustrated in Fig. 3(d). To minimize changes in the Cu particle structure, the sequentially impregnated NiCu₅₀₀/C samples were reduced for only 50 minutes at 300, 400, and 500 °C, and were denoted as NiCu SAA/C-T, where T indicated the reduction temperature. XRD analysis of NiCu SAA/C-T (T = 300, 400, and 500 °C) confirmed that no significant sintering had occurred compared to Cu/C reduced at 800 °C, as shown in Fig. S7 in the SI. As shown in Fig. 3(e), the C₂H₂ conversion rate increased with reduction temperature. Moreover, the C₂H₄ selectivity remained comparable to that of NiCu₅₀₀/C-500, suggesting that alloyed Ni atoms retained their good dispersion in the NiCu SAA nanoparticles. We plotted the specific activity of Ni atoms at 240 °C as a function of reduction temperature, which showed a positive correlation, as shown in Fig. 3(f). This trend indicated that higher reduction temperatures promoted the migration of Ni atoms from the support to Cu particles, facilitating the formation of active catalytic sites with higher alloying degree. Then, we studied the second factor for Ni catalytic sites in the NiCu SAA, the exposure degree of Ni atoms. As illustrated in Fig. 4(a), the particle size of the alloy increased with the increasing reduction temperature. This increase in particle size was possibly accompanied by a decrease in Ni exposure, as depicted in Fig. 4(b). To validate this speculation, we prepared NiCu₅₀₀/C using two methods, incipient wetness co-impregnation and incipient wetness sequential impregnation (denoted as NiCu₅₀₀/C-800 and Cu/C-800 + Ni, respectively), and evaluated their catalytic performance. As shown in Fig. 4(c), the Cu/C-800 + Ni catalyst exhibited higher activity than NiCu₅₀₀/C-800. With similar particle sizes for both catalysts (Fig. S7 and S8 in the SI), the low hydrogenation activity of NiCu₅₀₀/C-800 was attributed to the limited exposure degree of Ni after high-temperature (800 °C) reduction. What's more, the exposure degree of Ni could also be determined by CO-DRIFTS (Fig. S3 in the SI). As the reduction temperature increased, the intensity of the peak of adsorbed CO on Ni gradually decreased, indicating a reduction in the surface Ni content. Consequently, the exposure degree of Ni atoms was inversely proportional to the reduction temperature, thereby negatively affecting catalytic activity. As shown in Fig. 4d, two key factors significantly affected the activity of NiCu SAAs, the alloying degree and exposure degree of Ni atoms. The combined influence of these two factors ultimately resulted in the volcano-shaped trend of the reaction activity against reduction temperature.

Fig. 4 Investigating the influence of temperature on the particle size. (a) Particle diameter distribution of NiCu₅₀₀/C-T (T = 400 °C, 500 °C, 600 °C, and 800 °C). (b) Proposed particle evolution diagram in NiCu₅₀₀/C-T. (c) Confirmation of the decreased exposure degree of Ni atoms in NiCu₅₀₀/C-800. (d) The illustration of the morphological changes of NiCu₅₀₀/C-T.

4. Conclusions

In summary, we have elucidated the process of NiCu single-atom alloy site evolution and optimized NiCu SAAs for acetylene semi-hydrogenation via a straightforward approach. With elevated reduction temperature, the alloying degree of Ni increased, and the size of alloy particles also increased along with a decrease in the exposure degree of Ni. Both factors jointly contributed to the observed volcano trend. NiCu₅₀₀/C-500 exhibited an optimal alloying degree and exposure degree of Ni atoms, resulting in superior specific activity and selectivity in acetylene semi-hydrogenation. This strategy of catalyst design offers inspiration for developing efficient SAAs through a straightforward approach.

Author contributions

X. Z., P. Y., and H. Y. conceived the idea. X. Z. and P. Y. jointly prepared the catalysts and tested the catalytic performance. X. Z. conducted the structural characterization of the catalyst. X. Z., P. Y., K.-Z. X, T.-W. S. and H. W. L. jointly conducted the data analysis and literature research. X. Z., P. Y., and H. Y. wrote and revised the paper. All the authors have approved the final manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this study are available in the paper and the supplementary information (SI). All other relevant source data are available from the corresponding authors upon reasonable request.

Supplementary information: the SI includes the structural characterization not shown in the main article and performance comparison. See DOI: https://doi.org/10.1039/d5lf00381d.
