Non-thermal plasma catalysis for conversion of CO₂ and CH₄ to oxygenates: a mini review

Abstract

Non-thermal plasma (NTP) is an emerging technology for the conversion of CO₂ and CH₄ under mild conditions. This mini review systematically summarizes recent advances in NTP catalysis for the direct conversion of CO₂ and CH₄ into value-added oxygenates, with a focus on two key aspects: catalyst design and reactor optimization. The metal active sites (e.g., Cu, Ni, Co) and their properties (valence state, dispersion) are critical in directing reaction pathways towards specific oxygenates like alcohols or acids, while the support material modulates performance by influencing the local electric field and stabilizing intermediates. Dielectric barrier discharge (DBD) reactors are predominant, and innovations in reactor structure, electrode design (e.g., water electrodes, surface microdischarge), and configuration (e.g., plasma bubble reactors) are crucial for enhancing efficiency and selectivity, even enabling long-chain hydrocarbon formation. Despite progress, challenges in selectivity and energy efficiency remain. Future efforts should focus on rational catalyst design and advanced reactor integration to advance the industrial application of NTP for greenhouse gas valorization.

Keywords: Non-thermal plasma; Plasma catalysis; CO₂ and CH₄ conversion; Oxygenates.

---

Liangpang Xu

Dr. Liangpang Xu received his Ph.D. in 2022 from The Chinese University of Hong Kong (CUHK) under the supervision of Prof. Jimmy C. Yu. He is currently a research assistant in the Department of Chemistry at CUHK. His research focuses on photocatalysis for artificial photosynthesis and environmental remediation, as well as plasma technology for the conversion of greenhouse gases into high-value chemicals.

Yi Xie

Yi Xie received her Ph.D. in Chemistry from The Chinese University of Hong Kong (CUHK) in 2023, earning the Young Scholars Thesis Award. She is currently conducting postdoctoral research in the Department of Chemistry at CUHK. Her research focuses on electrocatalysis and CH4/CO2 conversion, with a dedication to translating fundamental research into scalable, practical systems.

Ying Wang

Ying Wang received her Ph.D. in Electrochemistry from the University of Oxford under the supervision of Prof. Richard G. Compton. Before joining The Chinese University of Hong Kong (CUHK), she worked as a postdoctoral research fellow in electrocatalysis in the United States and Canada. She is currently an Associate Professor in the Department of Chemistry at CUHK. Her research group focuses on carbon conversion through electrocatalysis and plasma catalysis, aiming to develop sustainable pathways for carbon utilization and energy transformation.

---

1 Introduction

Mitigating climate change relies on technologies that can reduce greenhouse gas emissions and convert them into valuable products.^1,2 Among the greenhouse gases, methane (CH₄) and carbon dioxide (CO₂) are particularly consequential: CH₄ has a high global warming potential over a short time period,³ while CO₂ is the dominant long-lived forcing agent in the atmosphere.⁴ Simultaneously converting these two abundant yet thermodynamically stable gases into value-added oxygenates such as alcohols and acids is a compelling pathway to close the carbon loop while creating economic value.^5,6

Traditional thermal catalysis is typically indirect and relies on a two-step sequence: (1) dry reforming of methane (DRM) at high temperatures (>700 °C) to generate syngas (CO and H₂),^7,8 and (2) high-pressure conversion of syngas to fuels and chemicals.⁹ Despite technological maturity, this route is energy intensive, depends on fossil heat and H₂, and causes significant CO₂ emissions. Biological approaches rely on the precise action of enzymes, but suffer from low volumetric productivity, large land footprint, and high water and nutrient consumption.¹⁰ Recently, chemical methods powered by renewable energy have attracted increasing attention for carbon-neutral conversion. Photo- and electro-catalytic approaches have been widely reported for CH₄ oxidation or CO₂ reduction to various oxygenates.^11,12 Despite their potential, the conversion efficiency is still highly restrained due to the fundamental challenges in breaking strong C–H bonds in CH₄ and activating linear CO₂ molecules.^11,13,14

Non-thermal plasma (NTP) has emerged as a promising approach for direct co-conversion of CO₂ and CH₄ into oxygenates under mild conditions.^15–19 The highly energetic electrons (typically at 1–10 eV) can simultaneously activate CO₂ and CH₄via excitation, ionization, and dissociation at near-ambient gas temperatures.²⁰ The resulting intermediates such as radicals and ions then freely recombine to form various products including oxygenates. Although NTP shows considerable promise, significant challenges remain for efficient conversion of CO₂ and CH₄ into oxygenates. Uncontrolled recombination of reactive species restricts overall oxygenate selectivity (typically <15%) and impedes the targeted formation of specific products.^21,22 In addition, energy efficiency is low because a substantial portion of input energy is consumed in generating high-energy electrons and sustaining background plasma processes rather than being effectively utilized for reactant activation. Integrating catalysts with NTP offers a viable strategy to address these issues by lowering apparent activation barriers, tuning surface energetics, and directing reaction pathways toward desired products.^23,24 Reactor design further plays a critical role in affecting discharge characteristics and reaction mechanisms.²⁵ Considerable efforts have been devoted to rational catalyst and reactor engineering to advance CO₂/CH₄ co-conversion.^25,26 A comprehensive review of these developments is therefore essential to consolidate current achievements, identify remaining gaps, and guide future research toward industrial implementation.

While previous reviews have extensively covered the fundamentals and broad applications of plasma catalysis,^27–29 a dedicated analysis targeting the direct and selective one-step synthesis of liquid oxygenates from CO₂ and CH₄ – encompassing integrated advances in catalyst design, reactor engineering, and interface mechanisms – remains insufficiently addressed. Here, we provide a systematic review of NTP technology for the conversion of CO₂ and CH₄ into oxygenates, focusing on both catalyst design and reactor optimization. The mechanisms of NTP-catalyzed reactions are first elucidated. We further analyze the two key components of catalysts – metal active sites and the support environment, to highlight the structure–activity relationships under plasma conditions to outline fundamental principles for catalyst design. In addition, a detailed analysis of reactor design is presented, covering structural configuration, electrode material selection, and reactor setup. Finally, we outline future perspectives for the co-conversion of CO₂ and CH₄ into oxygenates via NTP technology, addressing key challenges in selectivity and energy efficiency, with the goal of advancing the application of NTP in greenhouse gas conversion in the future.

2 Fundamentals of plasma catalytic CO₂/CH₄ conversion

2.1 Plasma and its characteristics

Plasma, often described as the fourth state of matter, is a partially or fully ionized gas consisting of electrons, ions, radicals, and excited molecules.³⁰ It exhibits collective electromagnetic behaviour and is commonly categorized as either thermal plasma or NTP, depending on the relationship between the electron temperature (T_e) and the heavy-particle temperature (T_h). In thermal plasmas, T_e is similar to T_h and the system approaches thermodynamic equilibrium, typically reaching several thousand kelvins. In contrast, NTP operates far from equilibrium, with T_e (1–10 eV, 10⁴–10⁵ K) far exceeding T_h (near room temperature).³¹ These energetic electrons can efficiently break strong covalent bonds without significantly heating the bulk gas. This unique nature enables chemical transformations under mild macroscopic conditions while maintaining highly energetic micro-environments.³² It makes NTP particularly effective for the low-temperature activation of thermodynamically stable molecules of CO₂ and CH₄ with the large bond energy of C=O (E_diss = 5.5 eV) and C–H (E_diss = 4.5 eV). Besides, electron density (N_e) and T_e are essential for describing NTP activation. Specifically, under representative atmospheric-pressure dielectric barrier discharge (DBD) operating conditions, the electron density typically ranges from 10¹⁸–10²¹ m⁻³.³³

2.2 Reaction mechanism for NTP-driven CO₂/CH₄ conversion

NTP, especially atmospheric-pressure DBD, is the most widely used configuration for the conversion of CO₂ and CH₄ into oxygenates. The plasma environment introduces a complex network of electron-induced and radical-mediated reactions that fundamentally differ from those in thermal catalysis. In the discharge zone, energetic electrons accelerated under oscillating electric fields collide with neutral gas molecules, transferring energy through inelastic collisions. These collisions induce excitation, ionization, dissociation, and vibrational activation, thereby producing a complex mixture of transient species.³⁴ The distinct activation efficiencies of CO₂ and CH₄ in plasma environments arise from differences in both molecular structure and excitation pathways.²⁰

As shown in Fig. 1a, CO₂ dissociation can proceed via direct electronic excitation at high electron energies (>7 eV) or stepwise vibrational excitation.²⁴ In the latter route, CO₂ climbs the “vibrational ladder” through successive low-energy excitations, eventually reaching the dissociation limit at an overall activation energy of approximately 5.5 eV. Because the input energy closely matches the C=O bond energy and is channeled into vibrational modes rather than electronic excitation, this pathway can be highly energy-efficient and is considered a key channel in warm and certain non-thermal discharges. The practical significance of vibrational excitation depends on plasma parameters. The vibrational excitation pathway is especially efficient in plasmas like gliding arc, microwave, and certain radio-frequency discharges, where energy can be selectively channeled into vibrational modes.²⁴ In DBD, both direct electronic excitation and vibrational mechanisms can contribute, with their relative importance influenced by specific operating conditions (e.g., specific energy input, gas composition).²⁴ CO₂ fragmentation predominantly produces ·CO and ·O radicals or vibrationally excited CO₂ molecules. These reactive species trigger a cascade of radical chain reactions and secondary recombination step.

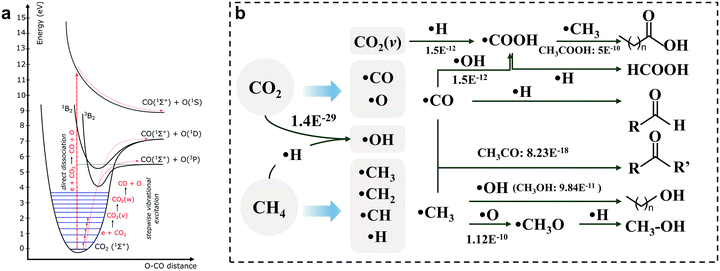

Fig. 1 (a) Energy-level diagram for CO₂ electronic and vibrational modes.²⁴ Copyright 2017, Royal Society of Chemistry; (b) overview diagram illustrating the potential reaction routes for the formation of oxygenate products in CH₄ and CO₂ plasma. The numbers in (b) represent the reported rate coefficient, m³ per molecule per s.¹⁵

By contrast, under typical atmospheric-pressure DBD plasma for CH₄ and CO₂ conversion, the vibrational activation of CH₄ is inefficient due to its complex vibrational spectrum and unfavourable energy coupling with the electron energy distribution.³⁵ The stretching and bending modes of the C–H bonds do not couple effectively with typical plasma electron energies, and CH₄ vibrationally excited states exhibit very short lifetimes, undergoing rapid vibrational-to-translational relaxation.³⁶ As a consequence, vibrational energy is quickly converted into heat rather than being accumulated stepwise, and CH₄ cannot effectively undergo ladder-climbing dissociation. Electron-impact dissociation of CH₄ therefore proceeds mainly via direct electronic excitation, yielding abundant ·CH₃ radicals together with smaller amounts of ·CH₂ and ·CH species. These reactive species trigger a cascade of radical chain reactions and secondary recombination steps, underpinning the complex chemistry of NTP-driven CO₂/CH₄ conversion. It should be noted, however, that CH₄ can also undergo substantial vibrational excitation in appropriately designed plasma environments, particularly under low-pressure or microwave discharge conditions – where pronounced vibrational nonequilibrium behavior has been experimentally observed.³⁵ Furthermore, vibrationally excited species such as CO₂(V), as well as plasma-activated catalyst surfaces, can transfer energy to CH₄ through Eley–Rideal interactions or enhanced vibrational–vibrational coupling, thereby opening alternative activation pathways in plasma-catalytic systems.³⁷

Various oxygenated products can be produced in NTP-driven CO₂/CH₄ systems, including methanol (CH₃OH), formic acid (HCOOH), ethanol (CH₃CH₂OH), acetic acid (CH₃COOH), etc. (Fig. 1b, Table 1).^23,24 Methanol is the dominant C₁ oxygenate in most plasma-catalytic systems, formed through reactions between ·CH₃ radicals and O-containing intermediates (e.g. ·O, ·OH species). Alternatively, methanol may arise via a CO₂ reduction pathway involving successive hydrogenation of CO₂ through formate-type intermediates (CO₂ + ·H → HCOO· → CH₃O· → CH₃OH). Ethanol formation requires C–C coupling between C₁ fragments, typically through reactions between ·CH₃ and ·CH₂OH species. Acetic acid is generally produced via the coupling of ·CH₃ with ·COOH or bicarbonate (HCO₃⁻) intermediates.

Table 1 Non-thermal plasma catalytic performance of representative catalysts for the direct conversion of CH₄ and CO₂ to oxygenates

Catalyst	Experimental conditions				Conversion (%)		Energy efficiency	Main liquid products and selectivity (%)	Liquid selectivity (%)	Ref.
	CO2/CH4	Plasma	Reactor	Power (W)	CO2	CH4
Cu/γ-Al2O3	1	DBD	3 mm gap, 45 mm length	10	15.4	18.3	—	CH3COOH (40.2), CH3OH, C2H5OH, C3H6O	59.1	15
Fe–SiO2	2 : 1	DBD	3 mm gap, 45 mm length	∼10	∼34.5	∼45.5	∼20.5 (SIE)	CH3OH (31), CH3COOH (12.4), C2H5OH	∼40.0	16
Co–SiO2					∼33.5	∼47.5	∼21 (SIE)	CH3OH (20.5), CH3COOH (17.9), C2H5OH
—	1 : 1	DBD	Temperature-controlled water electrode	15	29.0	∼32.0	0.83 mol kWh^−1 (CH3OH)	CH3OH (43)	60.0	40
Cu/Al(OH)3	1 : 1	DBD	3 mm gap, 45 mm length	5	∼17	∼7	—	CH3OH (22), C2H5OH (14), C3H8O	∼44%	41
K-Fe/C-SiO2	1 : 1	DBD	3.5 mm gap, 150 mm length	2.37	5.17	15.34	0.58 mmol kJ^−1	CH3COOH (12.97), C3+ acid (7.35), CH3OH, C2H5OH	21.76	42
NiGa/NF	1 : 1	DBD	2.25 mm gap, 50 mm length	25	8.5	16.0	0.168 mmol kJ^−1	CH3COOH (17.8), CH3OH (∼6.2), C2H5COOH	∼34	43
Ni/HZSM-5	1 : 1	DBD	3 mm gap, 45 mm length, water electrode	18	∼2.3	∼4	—	Alcohols (C1–C4), CH3COOH, C3H6O, aldehyde	45	44
Ni–Fe/Al2O3	—	DBD	2 mm gap	23	19.7	34.8	—	CH3COOH (23.9), CH3OH (19.1), CH3CH2OH (14.5), C3H8O (15.7), C2H5COOH (16.3), HCHO (10.5) (in liquid)	38.6	45
CuSA-CN	1 : 1	DBD	—	10	7.31	11.58	0.28 mmol kJ^−1	CH3COOH (11.85), CH3OH (5.08), C2H5OH, C3H7OH, C2H5COOH	—	46
Cu/5A	1 : 1 (with trace water)	DBD	2 mm gap, 60 mm length	36	∼23	∼40	73.6 kJ L^−1	CH3OH (∼18%), C2H5OH (5.08), CH3COOH, C3H8O	26	47
Cu/UiO-66-NH2	1 : 1	DBD	—	20	21.6	23.5	—	CH3OH (20.9), C2H5OH (18.4) C3H6O(8.6), CH3COOH (3.3), CH3CHO (2.3)	53.4	48
Fe2O3/g-C3N4	1 : 1	DBD	3 mm gap, 50 mm length	20	18	22	0.35 mmol kJ^−1	CH3OH (24.4%), C2H5OH (5.08)	40.1	49
Au-HZSM-5	1 : 1	DBD	3 mm gap, 40 mm length	12	∼12	∼20	—	R-COOH, R-OH, R-CO-R, R-CHO	∼32	50
P-CoMgAl/NF	1 : 1	DBD	50 mm length	—	∼10.5	∼16	0.16 mmol kJ^−1	C2H5OH, CH3OH, C3H6O2, C2H5OH	40	31

---

In plasma-only systems, the short lifetimes of radicals (micro- to milliseconds) and the absence of defined surface sites lead to largely random gas-phase interactions, multiple parallel pathways and extensive oxidation or cracking.²⁴ As a result, plasma alone usually yields broad product distributions and modest energy efficiency. Coupling NTP with heterogeneous catalysis (plasma catalysis) can effectively overcome these limitations. In such hybrid systems, the plasma rapidly activates CO₂ and CH₄, whereas the catalyst offers active sites that stabilize key intermediates and steer the reaction toward desired products. On the catalyst surface, plasma-generated radicals, ions and excited species predominantly react via Eley–Rideal (E–R) and Langmuir–Hinshelwood (L–H) mechanisms.^38,39 In the E–R mechanism, a gas-phase radical directly collides with and reacts with an adsorbed species, forming products through a low-barrier pathway. In the L–H mechanism, two adsorbed intermediates diffuse on the surface and react with each other. The interplay between these plasma-driven gas-phase reactions and surface catalytic steps is crucial for achieving selective and energy-efficient CO₂/CH₄ conversion to oxygenates.

2.3 Synergy between plasma and catalysts

The combination of NTP with heterogeneous catalysis effectively overcomes key limitations of plasma-only systems, notably poor selectivity and energy efficiency. In these hybrid systems, catalysts are positioned within or directly adjacent to the plasma discharge. The plasma rapidly activates stable CO₂ and CH₄, generating a continuous flux of reactive radicals (e.g., ·CH₃, ·OH), excited molecules, and ions. These short-lived species are efficiently delivered to the catalyst surface via electric-field-driven transport and enhanced mixing. The catalyst then provides active sites to capture and stabilize these intermediates (e.g., ·CH_3ads and ·COOH_ads), thereby guiding surface reactions toward the desired oxygenated products.

2.3.1 Surface processes for guiding and stabilizing reactive species. Plasma generates abundant short-lived radicals (e.g., ·CH₃, ·OH, ·COOH), excited molecules, ions, and vibrationally activated species whose gas-phase lifetimes typically fall within microseconds to milliseconds. These species undergo rapid collisions that often lead to non-selective recombination and energy loss. Catalysts provide structured surfaces capable of intercepting and stabilizing these transient intermediates through chemisorption, electrostatic interactions, and defect trapping.⁵¹ Although short-lived, the plasma species are continuously produced and achieve efficient transport to the catalyst surface via electric-field-driven migration, microscale convection induced by ionic wind, and enhanced gas-phase mixing.^52,53 Metal sites such as Cu⁺ and Co⁰ can strongly bind ·CH₃, whereas oxygen vacancies or Lewis acid sites effectively anchor ·COOH or activated CO₂. Converting gas-phase radicals into adsorbed intermediates significantly extends their chemical lifetime and increases the probability of controlled bond-forming processes. Two key mechanisms enable catalyst surfaces to guide reactions selectively: the E–R mechanism and L–H mechanism, as abovementioned.

Beyond classical radical stabilization, plasma-catalytic systems benefit from additional electronically driven surface processes. Plasma emission or external illumination can generate localized electrons on semiconductor catalysts such as TiO₂ and ZnO, which then interact with plasma-generated radicals and lower activation barriers.^54,55 Functionalized nanocarbons (e.g., doped graphene, CNTs) can accumulate transient surface charge under plasma exposure, creating strong local electric fields that polarize adsorbates and modify reaction trajectories.⁵⁶ Additionally, plasmonic catalysts such as ordered Au or Ag nanoparticles on TiO₂ offer unique near-field enhancement, hot-electron injection, and photothermal activation pathways. Experiments in plasma-illuminated Au/TiO₂ systems demonstrate light-plasma synergy that enhances CH₄ activation and alters microdischarge behavior.⁵⁷ Meanwhile, plasmon-enabled resonance energy transfer mechanisms (e.g., PC-RET) provide a valid conceptual basis for coupling plasmonic fields with reactive plasma species.^58,59

2.3.2 Effects of the plasma on the catalyst. Plasma exerts multifaceted effects on catalysts, driving synergistic enhancements in catalytic performance.⁶⁰ It induces morphological changes, increasing catalyst dispersion and specific surface area by mitigating sintering via energetic particle bombardment. Chemically, plasma dynamically alters catalyst oxidation states and modifies electronic properties like work function. On the surface, it reduces coke formation and catalyst poisoning by facilitating the removal of blocking species.

For example, Guo et al. reported that exposure of manganese oxide catalysts to DBD plasma reduced granularity and increased dispersion, thereby enlarging the specific surface area and creating more active sites (e.g., vacancies, edges, and corner atoms), which enhances catalytic reactivity.⁶¹ Similarly, plasma can modify the oxidation state of catalysts. In plasma-assisted DRM, studies by Gallon et al.⁶² and Tu et al.⁶³ observed the reduction of NiO to metallic Ni under plasma treatment. The plasma-enabled formation of highly dispersed, ultrasmall Ni nanoparticles significantly improves catalytic activity at low temperatures, enhances CO₂ adsorption, mitigates coking through size effects, and ensures exceptional long-term stability.⁶⁴

In plasma-assisted co-conversion of CH₄ and CO₂, the highly reactive environment can significantly alter Ni- or Cu-based catalysts, inducing surface oxidation, reduction, sintering, or phase transformations. For instance, Ni⁰ can be partially oxidized to NiO, while Cu may cycle between Cu⁰ and Cu⁺/Cu²⁺ states. Such changes can either deactivate the catalyst by blocking active sites or, conversely, enhance activity by promoting redox dynamics and improving carbon resistance. The net effect on catalytic performance depends on plasma parameters, catalyst structure, and gas composition. Therefore, the dynamic structural evolution of metal nanoparticles in CO₂/CH₄ plasma catalysis is an important aspect worthy of deeper investigation.

2.3.3 Energy resonance and coupling with vibrationally excited states. Directly applying thermal catalyst design principles is constrained by the fundamental differences in activation mechanisms (energetic electrons/vibrationally excited species vs. thermal phonons). In recent years, while some studies utilize plasmonic responses for in situ monitoring of catalyst surface states during plasma processing,⁶⁵ the “non-thermal” synergistic mechanisms in plasma-catalyst systems have attracted significant attention, with vibrationally excited molecules (e.g., CO₂(V), N₂(V)) regarded as key mediators linking plasma physics and surface chemistry.⁶⁶ Low-temperature plasmas can selectively inject energy into molecular vibrational states, generating high-energy nonequilibrium species that markedly lower activation barriers for surface reactions (e.g., dissociation, hydrogenation), enabling efficient conversion near room temperature.^67,68

More intriguingly, when these vibrationally excited molecules interact with nanocatalysts exhibiting localized surface plasmon resonance (LSPR) (e.g., Au, Ag), additional synergy may arise: plasmon decay produces hot electrons or strong localized fields that promote adsorbate polarization and, via electron-vibration coupling, excite vibrational modes.⁶⁹ If gas-phase vibrational energy matches surface excited states, resonant energy transfer may occur, enhancing efficiency and selectivity.^70,71 Although this “vibration-plasmon” synergy remains entangled with thermal and radical effects, it represents a core non-thermal pathway, offering new strategies for designing low-energy plasma-assisted catalytic systems.

2.4 Energy efficiency

In plasma catalysis, energy efficiency (EE) is a key metric for evaluating the economic viability and feasibility of the process. It assesses how much of the input electrical energy is effectively utilized to generate the desired products. Because plasma involves multiple energy-consuming pathways such as gas ionization and excitation, its EE is typically far lower than that of conventional thermal catalysis, making accurate evaluation critically important.

There are several primary methods and related metrics used to assess energy efficiency:

The standard reaction enthalpy for pure CO₂ dissociation is 283 kJ mol⁻¹ (equivalent to 2.93 eV per molecule), whereas for the DRM reaction, it is 247 kJ mol⁻¹ (or 2.56 eV per molecule). The SEI and P are the specific energy input and plasma power (W), respectively.

Energy consumption (EC) refers to the amount of energy required to carry out the reaction and is typically expressed in terms of energy per mole or per molecule converted (in units of kJ mol⁻¹ or eV per molecule):

Note that the value of 24.5 L mol⁻¹ applies only to ideal gases at 298 K and 1 atm.

To convert energy consumption into eV, the following relationship is used:

Compared with conventional thermal catalysis, NTP-catalysis still faces key challenges, particularly limited energy efficiency and product selectivity (Table S1), and thus is not a direct replacement but rather a complementary technology suited for specific scenarios. Its unique niche stems from the ability to activate inert molecules (such as CO₂, N₂, and CH₄) under mild, near-ambient conditions, enabling reaction pathways inaccessible to thermal approaches. This advantage positions NTP for promising applications, including coupling with intermittent renewable energy sources to enhance economic viability, enabling modular and distributed small-scale chemical production (e.g., gas upgrading), and potentially revolutionizing the synthesis of high-value chemicals where process flexibility and tunability outweigh raw conversion efficiency. Realizing this potential requires focused efforts to deepen understanding of plasma–catalyst interactions, selectively channel energy into desired reaction channels, and overcome scale-up barriers such as discharge uniformity and thermal management through advanced diagnostics and modelling. Bridging these gaps is essential to transition NTP-catalysis from laboratory research toward industrial implementation.

3 Catalyst design for oxygenate synthesis

In conventional thermal catalysis, oxygenate synthesis proceeds via surface-adsorbed intermediates governed by thermodynamic equilibrium and L–H mechanisms, relying on a uniform catalytic surface to activate stable reactants. In stark contrast, NTP generates a rich cocktail of reactive species including vibrationally excited molecules (e.g., CO₂(V)), radicals, ions, and metastables at near-ambient temperatures. Consequently, the primary function of a plasma-catalyst shifts from “activating stable reactants” to “selectively capturing, stabilizing, and steering transient plasma-generated species toward desired products”. This paradigm demands a fundamental rethinking of traditional catalyst design: composition, oxidation state, defect structure, and support properties must now be optimized not only for surface chemistry but also for synergistic coupling with plasma physics. Critically, the plasma-generated localized electric fields fundamentally alter the adsorption and distribution of active species, contrasting sharply with the electrically uniform surfaces in thermal catalysis. Thus, effective plasma catalyst design must integrate surface science with plasma physics, emphasizing charge modulation, field-enhanced activation, and the stabilization of short-lived intermediates to achieve superior activity and selectivity under non-equilibrium conditions.

Within this plasma-specific framework, the structural design of catalysts becomes critical for enhancing the adsorption and reaction of plasma-derived active species involved in CH₄ and CO₂ activation-processes that ultimately govern oxygenate selectivity.⁷² Currently, catalysts employed in NTP technology are predominantly supported catalysts, which primarily consist of two key components: the metal active sites and the support (Table 1). The selection of metals (such as Cu, Ni, Co, Fe metals) primarily determines the reaction pathway, while their structural properties including valence state, particle size, and dispersion also significantly influence the reaction selectivity and activity. The support, beyond the basic role of metal loading, can also alter the plasma discharge characteristics, modulate the electronic structure of active species, and provide essential acid–base sites. This synergistic interaction between the metal active sites and support collectively creates the “active center” for oxygenate generation within the plasma environment. In this section, we systematically introduce widely studied metals for CO₂/CH₄ conversion, including Cu-, Ni-, and Co-based systems, as well as other representative metals. Furthermore, we discussed the influences of support in modulating the metal active sites and its impact on the plasma-catalytic performance.

3.1 Metal catalyst

The composition and electronic structure of the metal active sites are critical in determining reaction pathways. It is essential to avoid metal centers that exhibit excessively strong adsorption – leading to syngas formation and coke deposition, or excessively weak adsorption, which cannot effectively stabilize intermediates derived from CO₂ and CH₄ dissociation. In NTP catalysis, Cu-based, Ni-based, Co-based, and some other metal-based catalysts have been widely studied.

3.1.1 Cu-based catalysts. Cu-based catalysts play a pivotal role in tuning the product distribution during the plasma-catalytic conversion of CH₄ and CO₂ into value-added oxygenates such as alcohols and acetic acid. The Cu valence state (Cu²⁺vs. Cu⁺) is critical in directing the reaction pathway. Unlike thermal CO₂ hydrogenation to methanol, where Cu⁰ and Cu⁺ dominate, plasma-catalytic studies consistently identify Cu²⁺ as the most selective state for CH₃OH, while Cu⁺ promotes acetic acid formation (Fig. 2a and b).^73,74 This counterintuitive trend stems from the abundant ·CH₃ and ·OH radicals generated in NTP. Cu²⁺, with its strong Lewis acidity, readily adsorbs ·OH or reacts with plasma-generated H₂O to form surface OH groups. These sites then rapidly combine with gas-phase ·CH₃via an E–R mechanism to produce CH₃OH – a pathway kinetically inaccessible in thermal systems. In contrast, Cu⁺ stabilizes ·COOH intermediates, promoting C–C coupling toward ethanol or acetate. Thus, the optimal Cu oxidation state in plasma catalysis is determined not by CO₂ adsorption strength (as in thermal catalysis) but by radical affinity and E–R reactivity.

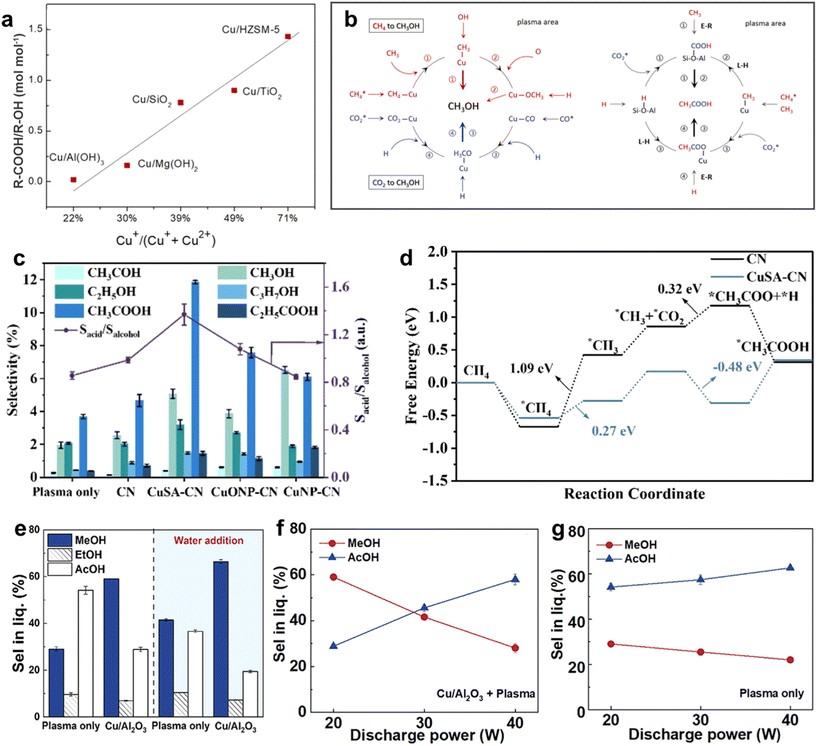

Fig. 2 (a) The mole ratio of R-COOH/R-OH (CH₃COOH/C₁–C₄OH) as a function of Cu⁺ percentage; (b) possible reaction pathways for plasma-catalytic conversion of CO₂ and CH₄ to CH₃OH and CH₃COOH.⁷³ Copyright 2022, Elsevier; (c) selectivity of oxygenates and relative selectivity of acid to alcohol for Cu-SA-CN; (d) calculated free-energy diagram for CH₄ and CO₂ to generate CH₃COOH on CN and Cu-SA.⁴⁶ Copyright 2024, Elsevier; (e) effect of water addition on the selectivity for methanol and acetic acid and effect of discharge power on the selectivity for methanol and acetic acid in the (f) Cu/Al₂O₃ + plasma case and (g) plasma-only case.⁷⁵ Copyright 2025, American Chemical Society.

For instance, in Cu/Al(OH)₃ catalysts calcined at 540 °C with 5 wt% Cu loading, the strong redox capacity and abundant Cu²⁺ species led to high alcohol selectivity of >38%.⁴¹ In contrast, Cu/HZSM-5 with a high proportion of Cu⁺ species significantly enhanced acetic acid selectivity, aided by the presence of Brønsted acid sites (BAS) in HZSM-5 supports which facilitate CO₂ protonation and C–C coupling.⁷³

The coordination structure of Cu active sites also influences catalytic performance. Single-atom Cu catalysts (CuSA) with a Cu–N₄ coordination structure anchored on carbon nitride (CuSA-CN) not only accelerate the activation of CH₄ and CO₂ but also lower the energy barriers for CH₄ dissociation and C–C coupling, thereby promoting acetic acid formation (Fig. 2c).⁴⁶ DFT calculations revealed that the energy barrier for the key step of *CH₃ and *CO₂ coupling to form *CH₃COO is significantly reduced on CuSA-CN compared to the bare support without Cu active sites (Fig. 2d), leading to a higher selectivity toward acetic acid.

Moreover, external conditions such as water addition and discharge power can further tailor the product distribution. The introduction of water vapor enhances methanol selectivity by participating in methanol formation and facilitating its desorption from the catalyst surface (Fig. 2e), while increasing the discharge power can shift the dominant product from methanol to acetic acid when using Cu/Al₂O₃, which is not significant for the plasma only system (Fig. 2f and g).⁷⁵ These findings underscore the versatility of Cu-based catalysts in plasma-catalytic systems and highlight the importance of catalyst design and reaction conditions in steering the conversion of CH₄ and CO₂ toward desired oxygenates.

3.1.2 Ni-based catalysts. Ni-based catalysts have also demonstrated remarkable effectiveness in CO₂/CH₄ conversion to oxygenates, with their performance being significantly influenced by the chemical state of Ni species, support properties, and reactor configuration. These catalysts offer considerable tunability in the distribution of oxygenated products, enabling the rational adjustment of selectivity toward alcohols or acids through modulation of the Ni oxidation state.

Li et al. designed a series of structured Ni-foam (NF) supported catalysts to elucidate the role of Ni active sites.⁴³ As shown in Fig. 3a–c, the Ni⁰ in Ni/NF and NiGa/NF catalysts showed high total liquid selectivity (>30%) with CH₃COOH as the dominant product (>15% selectivity). In contrast, the Ni²⁺ in NiO/NF yielded comparable selectivity for CH₃OH (8.9%) and CH₃COOH (9.6%). Surprisingly, NiAl-layered double hydroxide (LDH)/NF, rich in surface –OH groups, exhibited the highest CH₃OH selectivity (12.3%) and negligible carbon deposition. An “–OH reservoir” mechanism was proposed (Fig. 3d), where the abundant –OH groups on ultrathin LDH nanosheets readily react with radicals to form methanol, while the inferior electron affinity of the –OH rich surface for carbon atoms endows the catalyst with high coke resistance.

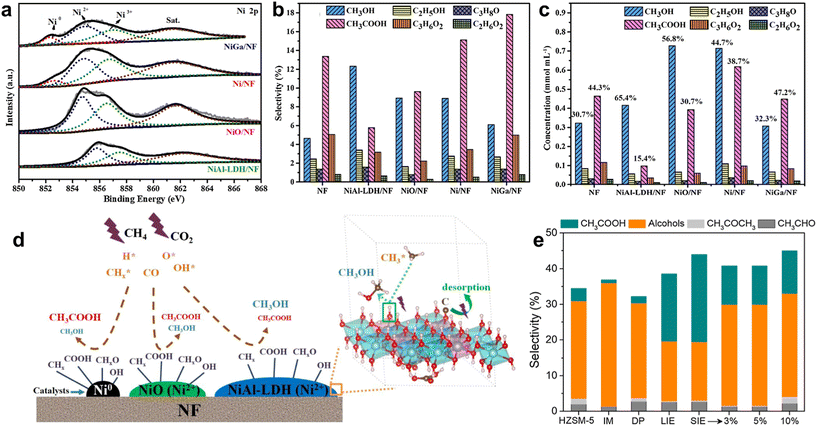

Fig. 3 (a) Ni 2p XPS spectra of NiAl-LDH/NF, NiO/NF, Ni/NF and NiGa/NF; (b) the selectivity of liquid products; (c) absolute concentration of the oxygenates; (d) the possible reaction pathways for the formation of liquid products on different catalysts via the plasma-catalytic approach.⁴³ Copyright 2023, Elsevier; (e) oxygenate generation from CH₄/CO₂ over Ni/HZSM-5 catalysts packed in the DBD reactor with Al foil as the ground electrode.⁴⁴ Copyright 2023, Springer Nature.

Catalyst preparation, loading amount, and reactor design strongly influence the performance of Ni catalysts. Fan et al. used the solid ion exchange method (SIE) to prepare Ni/HZSM-5 and achieved ∼45% oxygenate selectivity (Fig. 3e).⁴⁴ High Ni loading promotes alcohol formation via stronger Lewis acid sites but suppresses acetic acid. In contrast, low Ni loading (1 wt%) with the liquid ion-exchange method (LIE) or SIE favors acetic acid due to abundant Brønsted acid sites and framework Ni²⁺. Using an Al foil electrode instead of water cooling significantly enhances alcohol selectivity, likely due to differences in CO electronic states affecting alcohol vs. acetic acid formation.

3.1.3 Co-based catalysts. In plasma-catalytic conversion of CH₄ and CO₂, Co-based catalysts exhibit distinct catalytic properties, particularly in promoting the formation of liquid oxygenates and long-chain hydrocarbons. Unlike Cu and Ni catalysts, which primarily produce C₁–C₂ products, Co-based catalysts actively facilitate C–C coupling, leading to the formation of various long-chain carbon products such as C₅–C₈ oxygenates.

A key feature of Co catalysts is the complementary role played by metallic Co sites and oxygen vacancies (O_v) on the support. O_v in reducible oxides (e.g., CeO₂, TiO₂) are well-known for activating CO₂ in thermal catalysis via electron donation. Under plasma, however, their role expands: O_v act as electron traps that stabilize anionic plasma intermediates such as CO₂⁻ or ·CO₂⁻, which are otherwise short-lived in the gas phase. This stabilization enables subsequent hydrogenation or coupling reactions that bypass high-barrier thermal pathways. For example, Li et al. demonstrated that using Co/SiO₂ aerogel catalysts under ambient plasma conditions increased total liquid product selectivity to about 40%, with methanol and acetic acid as major products.¹⁶ Traces of long-chain compounds such as C₆–C₇ hydrocarbons and esters were also detected, suggesting the intrinsic chain-growing ability on Co active sites. In subsequent work, Li et al. combined Co/SiO₂ with HZSM-5 zeolite in a composite bed, which further enhanced the formation of C₅–C₈ products including heptane, pentanol, and C₆ esters, highlighting the synergy between Co-mediated C–C coupling and zeolite-assisted oligomerization.⁷⁶

Further insight into the Co–support interaction was provided by Dou et al., who designed a Co–MgAlO–O_v structured catalyst.³¹ The catalyst delivers a total oxygenate selectivity of 40%, attributed to the synergistic effect between O_v in MgAlO supports and the small size of Co nanoparticles (Fig. 4a). Moreover, distinct distributions of liquid products are observed across different Co-based catalysts (Fig. 4b). Through combined experimental and computational studies, they identified metallic Co as the main site for acetic acid formation, where it strongly adsorbs CH₃ and COOH radicals, enabling coupling via a low-barrier E–R mechanism (Fig. 4c). In contrast, O_v on the MgAlO support preferentially captured CO₂ and oxygenated radicals (e.g., O and OH), shifting the product towards methanol with a selectivity of ∼9% (Fig. 4d). This bifunctional mechanism allows product distribution to be tuned by tailoring the catalyst's surface composition.

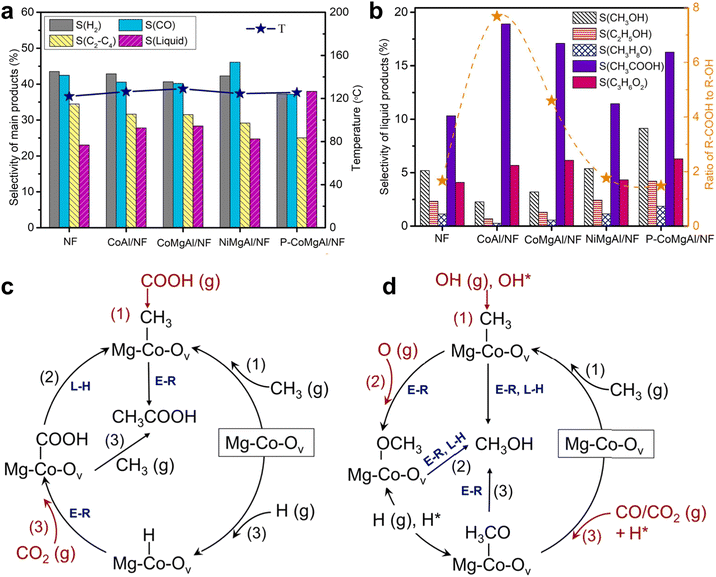

Fig. 4 (a) Overall selectivity for major products and (b) selectivity toward liquid oxygenates over different Co-based catalysts; the O_v-assisted reaction pathways (red arrows) for the formation of (c) CH₃COOH and (d) CH₃OH on Co-based catalysts.³¹ Copyright 2022, Elsevier.

3.1.4 Other metal-based catalysts. Besides the Cu-, Ni-, and Co-based catalysts, other transition metal and noble metal-based catalysts are also investigated in plasma-catalytic CO₂/CH₄ conversion, such as Fe, Au, Ag, and Pt.^42,49,50,77 Fe-based catalysts, such as Fe–SiO₂ or carbon-embedded Fe/C-SiO₂, can promote the formation of valuable liquid oxygenates (such as acetic acid and longer-chain acids and alcohols) and control the composition of gaseous products.^42,47,76 Wang et al. reported that iron carbide phases (e.g., ε-Fe_2.2C) facilitate CO₂ activation through surface defects, which weaken C–O bonds and enhance CO₂ conversion (Fig. 5a).⁴² Additionally, Fe sites promote the adsorption and activation of CH₄ and plasma-generated radicals, leading to higher selectivity toward C₂₊ hydrocarbons and oxygenates (Fig. 5a and b). Introduction of K further enhances the performance by moderating H₂ adsorption, increasing the unsaturated/saturated hydrocarbon ratio to ∼1 and promoting long-chain oxygenate production (Fig. 5c). The K-Fe/C-SiO₂ catalyst maintains excellent stability over 9 hours, highlighting superior coke resistance for promoted catalysts. In another work, Fe/SiO₂ aerogels achieve ∼40% total liquid selectivity, where the mesoporous SiO₂ support stabilizes CH_xO intermediates against CO decomposition.¹⁶ Composite beds with HZSM-5 enable product tuning: CH₄-rich conditions favor acetic acid (∼26%), while CO₂-rich conditions favour methanol (∼24%), demonstrating the synergistic effect of Fe active sites and acid sites on HZSM-5 supports.⁷⁶

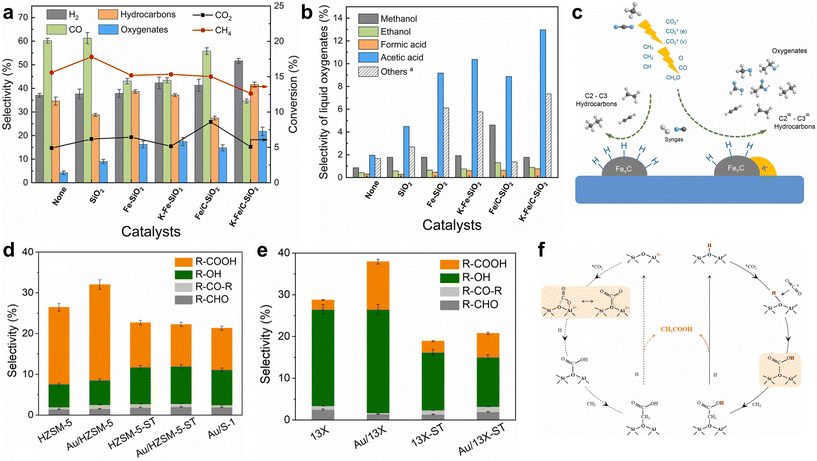

Fig. 5 (a) Selectivity to gaseous hydrocarbons and (b) selectivity to liquid oxygenates over different Fe-based catalysts; (c) reaction mechanisms proposed for plasma-catalytic conversion of CO₂ and CH₄.⁴² Copyright 2023, Elsevier; selectivity to liquid oxygenates for (d) Au/HZSM-5, HZSM-5-ST, Au/HZSM-5-ST and Au/S-1 catalysts, and (e) 13X, Au/13X, 13X-ST and Au/13X-ST in plasma-catalytic CH₄/CO₂ conversion; (f) reaction pathways for acetic acid formation over BAS in plasma-catalytic CH₄/CO₂ conversion on HZSM-5 zeolite.⁵⁰ Copyright 2024, Elsevier.

Au-based catalysts present unique catalytic effects towards higher selectivity for acetic acid. Wang et al. designed a series of Au-zeolite catalysts to elucidate the role of Au species and acid sites.⁵⁰ The Au/HZSM-5 catalyst, containing both Au³⁺ and BAS, exhibited the highest selectivity toward CH₃COOH (Fig. 5d). In contrast, Au/HZSM-5-ST, which lost both BAS and Au³⁺ after steam treatment, showed a dramatic decrease in acetic acid selectivity and a shift toward alcohols. Similarly, Au/13X, with only Lewis acid sites (LAS) and a small amount of Au³⁺, still favors R-OH production, though the presence of Au³⁺ slightly enhanced acetic acid formation (Fig. 5e). A “Au³⁺-BAS synergy” mechanism was proposed, where Au³⁺ species located in the H⁺ sites of HZSM-5 enhance CO₂ activation and facilitate the bicarbonate pathway toward acetic acid, while the poor dispersion and low loading of Au limit its overall catalytic activity in the plasma environment (Fig. 5f).

3.2 Support

In plasma-catalytic CO₂/CH₄ conversion, the support plays a far more active role than merely serving as a high-surface-area scaffold for metal dispersion. It critically modulates the local electric field, influences discharge characteristics (e.g., microdischarge density and electron energy distribution), and directly participates in surface reactions through its chemical functionality. This role fundamentally distinguishes it from supports in conventional thermal catalysis. Unlike thermal catalyst supports, which are primarily designed for thermodynamic stability and active site dispersion, supports for plasma catalysis must also actively manipulate the non-equilibrium plasma environment (e.g., by modulating local electric fields and mediating surface charge interactions) and demonstrate stability against plasma-specific challenges such as physical etching and charge accumulation, rather than solely against thermal sintering or chemical poisoning. An ideal support must therefore combine a high specific surface area, appropriate acid–base properties, robust thermal and plasma stability, and strong metal–support interactions to maximize the synergy between plasma physics and catalytic chemistry.

This synergy is exemplified by BAS in zeolitic supports such as HZSM-5, whose function diverges markedly between thermal and plasma environments. In conventional thermal catalysis, BAS protonates olefins to form carbenium-like intermediates that drive C–C coupling. Under NTP conditions, however, olefins are scarce; instead, BAS act as proton donors to plasma-generated anionic species such as CO₂⁻ or ·CO₂⁻, yielding bicarbonate-like surface intermediates.⁵⁰ These species readily undergo radical-surface reactions with gas-phase ·CH₃ to form oxygenates like acetic acid or ethanol. Consequently, the “acidity” that matters in plasma catalysis is not oriented toward carbocation stabilization, but rather toward facilitating proton transfer to and stabilization of charged plasma-generated intermediates. This paradigm shift underscores that support design in plasma catalysis must be guided by plasma-specific reaction mechanisms, not thermal analogues.

The physical properties of the support significantly affect the plasma environment. The dielectric constant (ε_r) primarily determines the discharge behavior. Materials such as BaTiO₃ with a high ε_r act as macroscopic dipoles, which enhances the local field and the formation of intense micro-discharges. Mei et al. found that BaTiO₃ beads could double the average electric field and mean electron energy of the CO₂ discharge (Fig. 6a and b), thus boosting CO₂-to-CO conversion (Fig. 6c).⁷⁸ Conversely, the support (e.g., SiO₂, Al₂O₃) with low-ε_r induces a weaker polarization effect, leading to a more diffuse and uniform discharge (e.g., glow-like), which can be beneficial for uniform surface reactions. Furthermore, porous supports such as zeolites and MOFs exhibit nano-confinement effects.⁷⁹ By extending the residence time of active species within pores, secondary reactions can be promoted. For example, ZSM-5 zeolite can enhance the selectivity of CH₄ conversion to C₂ hydrocarbons via CH_x intermediate coupling.⁸⁰

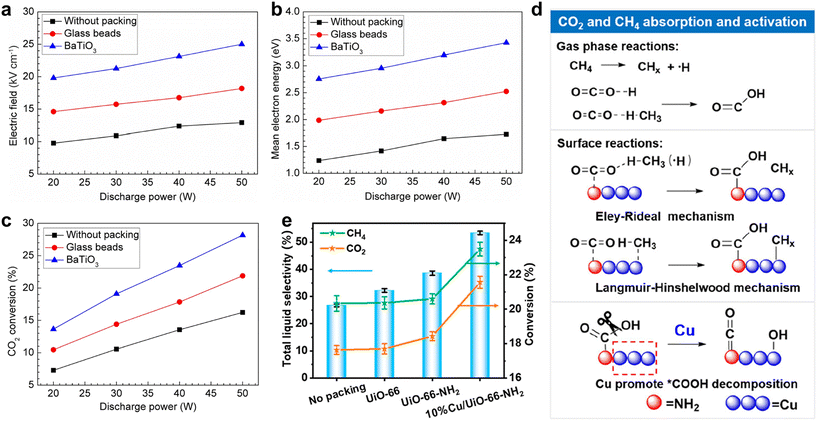

Fig. 6 Effect of packing materials (i.e. glass beads and BaTiO₃) on (a) average electric field strength, (b) mean electron energy, and (c) CO₂ conversion in the CO₂ DBD at different discharge powers.⁷⁸ Copyright 2014, IOP Publishing; (d) gas conversion and total liquid selectivity for different catalysts in CO₂/CH₄ conversion; (e) proposed mechanism for absorption and activation of CO₂ and CH₄, and the role of Cu in enhancing *COOH conversion.⁴⁸ Copyright 2024, American Chemical Society.

Tailoring the electronic structure of metals is a primary function of supports, which directly governs reaction pathways and product selectivity. This is well-illustrated by Cu-based catalysts in the plasma-driven conversion of CO₂/CH₄. Basic supports like Al(OH)₃ and Mg(OH)₂ enhance the formation of Cu²⁺ species, directing the reaction toward production of methanol and other alcohols (Fig. 2a).⁷³ In contrast, the HZSM-5 zeolite support can stabilize Cu⁺ species and provides Brønsted acid sites, thus facilitating CO₂ protonation and C–C coupling. This synergistic effect contributes to higher selectivity toward C₂ oxygenates, such as acetic acid. Meanwhile, a balanced Cu²⁺/Cu⁺ ratio was observed when dispersed on neutral supports such as SiO₂ and TiO₂, contributing to both alcohol and acid formation with moderate selectivity.

Furthermore, the surface acidity or basicity of the support critically influences the CO₂/CH₄ adsorption and activation. Qi et al. used UiO-66-NH₂ as a support for Cu in plasma-catalytic CO₂/CH₄ conversion. Th synergistic effect of Cu and UiO-66-NH₂ realizes an overall liquid product selectivity of 53.4%, with 60.8% C₂₊ oxygenates in the liquid products (Fig. 6d). The UiO-66-NH₂ support with a high surface area and porosity offers abundant adsorption sites, while its –NH₂ groups serve as Lewis basic sites that enhance CO₂ chemisorption and promote *COOH intermediate formation (Fig. 6e). The organic framework can also facilitate CH₄ activation to obtain stable *CH₃ and *CH₂ species. Strong electronic interaction with Cu further promotes C–H and C=O bond cleavage, accelerating the conversion of *COOH into *CO and other intermediates.

4 Reactor optimization

DBD,⁸¹ microwave discharge,⁸² gliding arc discharge,⁸³ and corona discharge⁸⁴ reactors are common types of plasma reactors. Among these, the DBD reactor is widely applied in plasma catalytic conversion due to its simple structure and flexible operating conditions.^15,75,85 However, traditional DBD reactors suffer from inherent limitations, such as unfavorable reaction conditions for multiple components, uneven discharge distribution, and unavoidable decomposition of products within the plasma discharge zone.^15,86,87 Consequently, a series of improvement strategies have been proposed, focusing on reactor structure design, electrode structure design, and reactor configurations to promote the CH₄ and CO₂ conversion.

4.1 Reactor structure design

A primary challenge in conventional DBD systems lies in their basic flow and reaction zone design. Conventional DBD reactors typically employ a simple parallel or coaxial structure, characterized by a basic zoned layout with a single inlet and outlet, which is not conducive to multi-component reactions. Uytdenhouwen et al.⁸⁷ developed a novel multi-inlet/outlet parallel-plate DBD reactor to optimize DRM by strategically altering gas flow and mixing patterns (Fig. 7a). Their key innovation lies in moving beyond the conventional “one inlet-one outlet” design to spatially and temporally control reactant introduction. This configuration prevents the kinetic imbalance often seen in conventional reactors, where one reactant (e.g., CH₄) is over-converted while the other (e.g., CO₂) remains under-converted, thereby maintaining locally favourable CO₂/CH₄ ratios along the reaction path. As a result, they achieved significant enhancement in total conversion up to 19.2%, compared to 13.7% in the benchmark configuration. With the same total specific energy input (SEI), due to the improved gas conversion, the overall energy cost was effectively reduced, obtaining a benchmark value of 1.63 kWh mol⁻¹. Additionally, they demonstrated that altering the gas flow direction to reduce velocity, while keeping residence time constant, further improved performance, highlighting the critical role of reactor geometry and flow dynamics in plasma-assisted chemical conversion.

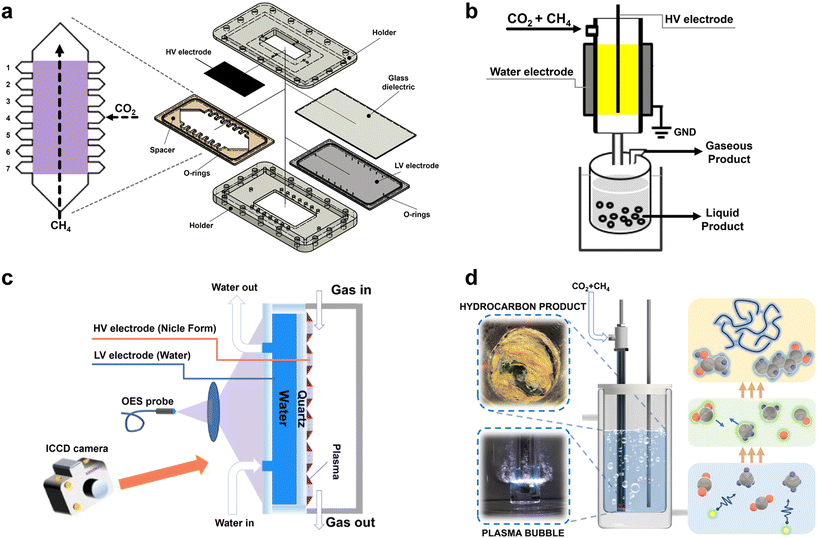

Fig. 7 (a) Expanded view of a parallel plate DBD reactor.⁸⁷ Copyright 2021, Elsevier; (b) design of a water electrode as the ground electrode in the DBD reactor.¹⁵ Copyright 2017, Wiley-VCH; (c) water-electrode surface microdischarge (SMD) reactor using nickel foam as the high-voltage electrode.⁸⁸ Copyright 2025, Elsevier; (d) plasma bubble reactor configuration.¹⁹ Copyright 2024, American Chemical Society.

4.2 Electrode structure design

The operation of the DBD reactor is characterized by the breakdown of the gas gap, leading to the formation of numerous filamentary micro-discharges. These transient current channels are distributed randomly and exhibit significant spatial non-uniformity, a behavior attributed to the intrinsic stochasticity of the discharge initiation process. To enhance discharge uniformity a water electrode is employed as the ground electrode in the DBD reactor.^81,89 Water conductivity is a critical parameter in water-electrode plasma systems, directly governing electric field distribution, plasma ignition, energy coupling efficiency, and discharge stability.^90,91 Operationally, low-conductivity deionized water enables clean discharges but requires higher ignition voltages; medium-conductivity water (e.g., tap water) offers easier ignition with potential impurity issues, while high-conductivity solutions improve impedance matching and species yield at the risk of side reactions and corrosion. Thus, water selection involves balancing generation efficiency, stability, and application goals.

Wang et al. designed an innovative electrode structure as shown in Fig. 7b.¹⁵ They realized the one-step reforming of CO₂ and CH₄ into liquid fuels and chemicals, such as acetic acid, methanol, and ethanol, at room temperature and atmospheric pressure, achieving a total oxygenate selectivity of 50–60%, with acetic acid selectivity reaching 40%. Notably, the synthesis of acetic acid from CO₂ and CH₄ proceeded with 100% atom economy, a reaction considered thermodynamically unfavorable and nearly unattainable via conventional thermal catalysis. The water electrode enhances energy efficiency through a dual functionality: it promotes uniform plasma discharge via superior charge dissipation and electric field redistribution, and effectively removes joule heat to maintain near-ambient reaction temperatures. This combination not only suppresses energy-wasting parasitic reactions (e.g., total oxidation or cracking) but also stabilizes key reactive intermediates (such as ·CH₃ and ·COOH), thereby steering electron-driven chemistry toward selective oxygenate formation. By simultaneously optimizing plasma homogeneity and thermal management, the water electrode outperforms conventional solid metal electrodes as a strategic enabler of energy-efficient CO₂/CH₄ valorization.

In conventional DBD reactors, the plasma region typically spans the entire discharge gap, which tends to cause re-decomposition of generated products, resulting in low conversion efficiency. To address this, Feng et al.⁸⁸ developed a novel surface microdischarge (SMD) reactor utilizing metal-loaded nickel foam (NF) as the high-voltage electrode (Fig. 7c). By spatially confining the plasma to the dielectric surface, this design enables synthesized NH₃ to rapidly diffuse through the porous NF electrode into a plasma-free “product-safe zone”, effectively suppressing energy-wasting reverse reactions. This strategic separation of reaction and product zones directly translates into superior energy efficiency: under identical conditions (SEI = 10 kJ L⁻¹), the SMD system with Ni–Co/NF achieved an NH₃ energy yield of 0.79 g kWh⁻¹, a 38.6% improvement over the plasma-only baseline (0.57 g kWh⁻¹). Thus, the SMD electrode architecture not only preserves products but also significantly enhances the fraction of electrical energy channeled into useful chemical output.

4.3 Reactor configuration

Although structural optimization of DBD reactors can enhance reaction performance, DBD reactors are typically limited to synthesizing simple small-molecule products, such as methanol, formic acid, ethanol, and acetic acid. The high-energy environment of the plasma zone often favors the formation of these simpler compounds over more complex hydrocarbons. To overcome the limitation in producing long-chain hydrocarbons, Knezevic et al.¹⁹ employed a plasma bubble reactor that directly initiates discharge at the interface of CO₂/CH₄ gas bubbles and water at atmospheric pressure and room temperature (Fig. 7d). This configuration successfully produced solid long-chain hydrocarbons (up to C₄₀) when the CO₂ content in the feed gas was below 40%, alongside the co-production of syngas and liquid-phase oxygenates such as alcohols and acids. This work breaks the previous constraint of the DBD reactor predominantly yielding short-chain products and, for the first time, demonstrates the feasibility of synthesizing long-chain hydrocarbons under mild conditions. Nevertheless, challenges remain for this plasma bubble reactor, particularly in effectively coupling plasma-generated products with catalysts to further control product selectivity.

4.4 Thin-film electrodes

In addition to packing particulate catalysts inside plasma reactors, depositing catalysts directly as thin films on electrode surfaces represents another effective strategy. The reduced thickness shortens the transport distance for short-lived plasma species, thereby improving their utilization at the catalyst surface. Porous thin-film structures also provide a large plasma-exposed surface area, enhancing active-site accessibility and promoting surface-dominated reaction pathways. When combined with helical electrodes, thin-film configurations can generate surface-confined plasmas directly on and within the catalyst layer, strengthening plasma-catalyst synergy and minimizing the energy losses typical of post-plasma catalytic systems.^33,92

Gregory and co-workers developed an Ir/TiO₂ thin-film electrode for plasma-assisted CO₂ hydrogenation to CH₄, demonstrating that the thin-film structure not only stabilized the plasma discharge but also promoted CO₂ activation and hydrogenation on Ir sites, achieving superior methane selectivity and energy efficiency compared with particulate catalysts.⁹³ Specifically, this configuration delivered a fuel production efficiency of 3.5%, a key metric of energy utilization, and exhibited a CH₄ formation rate two orders of magnitude higher per unit catalyst mass than conventional packed-bed systems. The enhancement stems from the intimate coupling between plasma and the catalyst: by confining the discharge directly over the ultrathin catalytic layer (<2 μm), reactive species (e.g., ·H) are generated in immediate proximity to active Ir sites, minimizing transport losses and avoiding energy-wasting gas-phase side reactions. Moreover, the separation of H₂ dissociation (driven by plasma) and CO₂ hydrogenation (catalyzed by Ir) reduces the overall energy demand, as the catalyst bypasses the need for plasma-mediated H₂ activation. Similarly, in CO₂–CH₄ co-conversion systems, thin-film electrodes based on Cu, Ni, or Co are expected to leverage intensified local electric fields and directed intermediate transport to enhance the formation of oxygenated products.^92,94 Thin-film electrodes are particularly compatible with microdischarge or surface-discharge reactors, which help suppress decomposition of gas products and provide model platforms for mechanistic studies of plasma-catalyst synergy.

5 Conclusions and outlook

NTP represents a promising and sustainable approach for catalytic conversion of CO₂/CH₄ into value-added oxygenates. This mini-review has summarized the recent advances in the plasma-catalytic conversion of CO₂ and CH₄ into value-added oxygenates from supported catalyst design and plasma reactor design. For supported catalysts, the metal active sites (e.g., Cu, Ni, Co, Fe, Au) and their properties, such as valence state, particle size, and dispersion, play a primary role in determining the reaction pathway, while the support further enhances product selectivity and activity through its interaction with both the metals and plasma. For plasma reactors, reactor structure, and electrode structure, reactor configuration fundamentally determines the efficiency and pathways of plasma reactions.

A central finding is that catalyst design for plasma environments must move beyond thermal catalysis paradigms. As discussed in sections 2 and 3, the optimal active sites (e.g., Cu²⁺ for alcohols, Cu⁺ for acids) and support functions (e.g., Brønsted acid sites for protonating plasma-generated anions) are defined by their ability to capture and steer transient plasma-generated species (radicals, ions, vibrationally excited molecules) rather than just activate stable reactants. Furthermore, energy efficiency remains a paramount challenge. As analyzed in section 4, while innovative reactor designs (e.g., water electrodes, surface microdischarges) can enhance efficiency by improving discharge uniformity and creating product-safe zones, the energy cost of breaking stable C–H and C=O bonds via electron impact is still high. Critically, overcoming the energy efficiency bottleneck requires reactor architectures that not only localize energy input to targeted molecular activation but also maximize plasma-catalyst synergy while minimizing all parasitic energy losses, including those from gas heating, non-productive electron scattering, and unintended side reactions.

Therefore, future research should pursue integrated strategies that co-optimize catalysts and reactors to address both selectivity and energy efficiency. Three grounded directions emerge from the present analysis:

(1) Rational catalyst design for enhancing conversion and selectivity. Future catalysts should be engineered to directly leverage the non-equilibrium energy carriers in plasma. This involves designing “vibrationally-coupled” catalysts (e.g., using oxides like ZrO₂ or CeO₂ with tailored phonon spectra) that can resonantly accept energy from plasma-generated vibrationally excited CO₂ (CO₂(V)), a key species discussed in section 2.3.3. This resonant energy transfer could promote surface reactions at lower overall energy input, moving beyond reliance on high-energy electron collisions alone. Furthermore, elevating the C₂₊ product selectivity is essential for synthesis of high-value chemicals. It's necessary to design catalysts with spatially organized bifunctional sites that can co-adsorb and orient key intermediates for selective C–C coupling. For instance, the catalyst surface with adjacent metallic sites (e.g., Co, Fe) and acidic sites (e.g., HZSM-5) is promising for synergistically adsorbing ·CH₃ radicals and activating CO₂ into ·COOH, facilitating acetic acid formation via a low-barrier E–R mechanism.

(2) Reactor optimization should prioritize energy localization, intensified mass transfer, and product preservation. Building on the design principles outlined in section 4, a promising path forward is the development of “zoned synergistic plasma reactors”. In this advanced configuration, CO₂ and CH₄ activation are decoupled and individually optimized in separate plasma zones (e.g., microwave for CO₂, DBD for CH₄), with the generated reactive intermediates then channeled into a common catalytic zone for selective conversion. This approach enhances energy efficiency by matching each molecule's activation profile to the most suitable plasma source, while also improving overall process control. Furthermore, reactor architecture must be closely integrated with catalyst design. Practical strategies include directly coating catalysts on electrodes (section 4.4), fabricating 3D-printed structured electrodes, and using ordered high-dielectric fillers (e.g., BaTiO₃ monoliths) to replace random particle packings.

(3) To elucidate the complex mechanisms in plasma catalysis, future research should integrate advanced in situ diagnostics (e.g., OES, LIF, DRIFTS) with isotopically labelled experiments and targeted probing. Coupling these experimental insights with multiscale theoretical simulations, from DFT to kinetic modelling, is essential. This synergistic approach will enable the unambiguous identification of transient species, disentangle reaction pathways, and distinguish chemical effects from physical transport, thereby advancing the fundamental understanding and rational design of plasma-catalytic processes.
