Dehydrogenation of ammonia borane employing an air-stable, phosphine-free molecular nickel pincer catalyst

Abstract

Herein, we report an air-stable, phosphine-free nickel catalyst supported by an NNN-based functionalized terpyridine ligand that enables the selective dehydrogenation of ammonia borane (AB). Operating under mild reaction conditions with low catalyst loading, achieves up to 2.58 equiv. of hydrogen evolution, while directing the reaction pathway toward borazine (BZ) formation.

---

1. Introduction

Developing safe, efficient, and high-capacity hydrogen storage materials remains a key challenge in the pursuit of clean energy technologies. Among the available candidates, ammonia borane (AB) is an attractive candidate owing to its high hydrogen content (19.6 wt%), air stability, low cost, and commercial availability, making it particularly promising for proton exchange membrane (PEM) fuel cells and hydrogen-powered transportation.^1,2 However, in the presence of the strong N–H⋯H–B dihydrogen bonding in AB, thermal decomposition occurs at around 90 °C, limiting its direct applicability.³ To overcome this limitation, extensive efforts have focused on homogeneous transition metal catalysts that enable AB dehydrogenation under mild reaction conditions, with improved hydrogen release efficiency and selective formation of oligomeric species such as borazine (BZ), alongside two equiv. of hydrogen evolution. It can further convert into polyborazine (PBZ, a B–N coupled adduct), accompanied by the release of H₂ (Scheme 1a).⁴ The released BZ serves as a versatile synthon for B–N-based oligomers and polymers with applications in ceramics, gas storage and separation, and supramolecular systems.⁵

Scheme 1 (a) Transition metal catalysed AB dehydrogenation pathway; (b) reported base metal complexes for AB dehydrogenation; and (c) this work.

In this regard, homogeneous transition metal complexes based on noble metals such as Ir, Ru, Pd, Rh, and Re have shown excellent performance, delivering high rates and selective formation of BZ or PBZ under optimised reaction conditions.^4,6–12 More recently, attention has shifted toward base-metal catalysts and organocatalysts^13,14 as cost-effective and sustainable alternatives. In line with this, iron-based complexes with diverse ligand architectures have been widely investigated, with a range of 1 to 2.5 equiv. of H₂ gas production, while cobalt-based catalysts have also demonstrated efficient AB dehydrogenation, producing 1 to 2 equiv. of H₂ gas alongside boron-containing oligomeric products such as B-(cyclodiborazanyl)-amine borane (BCDB)/B-(cyclotriborazanyl)amine-borane (BCTB), cyclotriborazine (CTB), BZ, and PBZ.^15–23 Notably, among the nickel-based systems, Baker and coworkers introduced the only report of the combination of Ni(cod)₂ precursors with an NHC carbene ligand, which achieved more than 2.5 equiv. of H₂ release with BZ and PBZ as end products from AB dehydrogenation (Scheme 1b).²⁴

Despite the effectiveness of base-metal catalysts, their use is limited by BN polymer formation, unquantified BZ formation, the need for external base-additives, and instability from nanoparticle formation. To overcome these challenges, robust NNN ligands might offer a more sustainable alternative by replacing air- and moisture-sensitive ligands. In this work, we report an air-stable, homogeneous, designed molecular Ni-based complex supported by a functionalized terpyridine NNN ligand, which efficiently catalyses AB dehydrogenation. The catalytic protocol delivers up to 2.58 equiv. of H₂ and selectivity toward BZ, while maintaining durability up to eight catalytic cycles with a high catalytic TON (Scheme 1c).

2. Results and discussion

Building on our previous work, Ni complexes 1, the chloro analogue, and 2, the bromo analogue, both featuring a piperidine-functionalized terpyridine ligand (L1),²⁵ were synthesised and fully characterised.²⁶ In a similar way, a pyrrolidine functionalized terpyridine ligand L2 was synthesised, and the corresponding Ni complex 3 was prepared using NiCl₂(PPh₃)₂ in THF, and spectroscopically characterised (Scheme 2a). Both complexes 2 and 3 displayed a distorted square pyramidal geometry around the Ni centre with the rigid binding of the functionalized NNN ligand backbone, observed from single crystal X-ray analysis (Scheme 2b, see SI, sections 9.1 and 9.2).

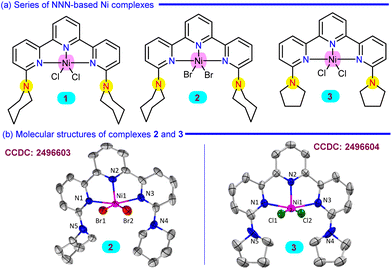

Scheme 2 (a) Series of NNN-based Ni complexes and (b) molecular structures of complexes 2 and 3.

Inspired by the excellent catalytic reactivity of Ni complexes 1 and 2 in the transfer hydrogenation of azoarenes using AB in ethanol as the hydrogenating source,²⁶ we intended to study the dehydrogenation of AB as a hydrogen-rich substrate directly to monitor the hydrogen evolution using these designed Ni complexes (Table 1). Initially using AB (1 mmol) in the presence of complex 1 (1 mol%) at 60 °C for 12 h as optimal conditions resulted in 42 mL (1.86 equiv.) of H₂ gas with 29% of BZ formation, detected from the ¹¹B spectroscopy at 31.03 ppm (d) using NaBPh₄ (0.01 mmol) as an internal standard (entry 1). Along with the BZ, other oligomeric species such as BCTB, μ-amidodiborane (µ-ADB) and PBZ were also observed in the ¹¹B spectra (see SI, Fig. S24).¹⁶ The liberated H₂ gas was collected using an inverted water burette, and its purity was verified by gas chromatography and further confirmed through a chemical technique by performing Pd/C-catalyzed hydrogenation of styrene to ethylbenzene (see SI, section 7, Fig. S11).²⁷ However, instead of AB, utilising dimethyl ammonia borane (NMe₂H·BH₃), only 6 mL of H₂ or trimethyl ammonia borane (NMe₃·BH₃), no H₂ gas was generated under the mentioned reaction conditions (see SI, Fig. S42 and S43). Similarly, under the same conditions, complex 2 showed similar catalytic H₂ yield, whereas complex 3 exhibited lower catalytic activity, producing 36 mL of H₂ (1.6 equiv.) with 20% yield of BZ (entries 2 and 3). The significance of the molecular Ni complex was underscored by the low H₂ evolution and poor BZ selectivity obtained without a catalyst or with Ni precursors (NiCl₂(PPh₃)₂ and NiCl₂), leading us to pursue further study with complex 1 (entries 4–6). Notably, decreasing the loading of complex 1 to 0.5 mol% delivered 40 mL H₂ with only 20% BZ yield under the optimised conditions, indicating that although lower catalyst loading sustains gas evolution, it compromises with product selectivity (entry 7). Furthermore, decreasing the reaction temperature to 25 °C or shortening the reaction time to 6 h resulted in considerably lower H₂ production and poor BZ yield (entries 8 and 9). To further confirm the homogeneity of complex 1, a mercury drop test was carried out under the standard conditions, resulting in no loss of catalytic activity (40 mL of H₂, 26% yield of BZ) (entry 10). However, when PPh₃ was introduced as an additive, the catalytic activity dropped sharply, comparable to that of the blank reaction in entry 4, Table 1 (see SI, Fig. S39). Screening various solvents, such as dioxane, DME, diethyl ether, or toluene, shows lower catalytic activity compared to THF under the optimised reaction conditions (entries 11 and 12, see SI, Table S1). When the reaction time was extended to 48 h, 48 mL of H₂ evolution was recorded along with 58% BZ yield (entry 13). To improve further selectivity, when performing the reaction at a higher temperature, 80 °C, 54 mL of H₂ (2.4 equiv.) with the highest yield of BZ (61%), along with PBZ formation, was achieved, as confirmed by ¹¹B NMR (27 ppm) and IR spectroscopy (see SI, section 5.5).¹² To witness the maximum H₂ evolution, under the Ni-based catalytic system, increasing both the reaction temperature and time to 80 °C and 48 h, respectively, leads to generating 58 mL of H₂ (2.58 equiv.), although lowering the BZ yield to 52% (entry 15). Importantly, to demonstrate the practical applicability, the catalyst loading of 1 was reduced to 0.005 mol%, under which 10 mmol of AB underwent efficient dehydrogenation to produce 458 mL of H₂ with a 51% yield of BZ, achieving the highest TON of 40 738 (entry 16, see SI, section 5.6).

Table 1 Optimization of the catalytic dehydrogenation of AB using Ni complexes^a

Entry	Ni catalyst	Solvent	Temp. (°C)	Time (h)	H2 volume in mL (equiv.)	BZ (%)
a Reaction conditions: AB (1 mmol), Ni complex (1 mol%), and solvent (1 mL); the yield of borazine was determined by ^11B NMR with NaBPh4 (0.01 mmol) as an internal standard.b 1 (0.5 mol%).c Hg (100 equiv. w.r.t 1).d AB (10 mmol) and 1 (0.005 mol%).
1	1	THF	60	12	42 (1.86)	29
2	2	THF	60	12	42 (1.86)	28
3	3	THF	60	12	36 (1.60)	20
4	—	THF	60	12	28 (1.24)	10
5	NiCl2(PPh3)2	THF	60	12	22 (0.98)	6
6	NiCl2	THF	60	12	33 (1.46)	20
7^b	1	THF	60	12	40 (1.78)	20
8	1	THF	25	12	4 (0.18)	nd
9	1	THF	60	6	26 (1.16)	13
10^c	1	THF	60	12	40 (1.78)	26
11	1	Dioxane	60	12	41 (1.83)	23
12	1	DME	60	12	22 (0.98)	10
13	1	THF	60	48	48 (2.14)	58
14	1	THF	80	12	54 (2.40)	61
15	1	THF	80	48	58 (2.58)	52
16^d	1	THF	80	72	458 (2.04)	51

---

Encouraged by the promising catalytic activity of complex 1, we next evaluated its durability for H₂ production under the optimised conditions. Utilising only 1 mol% of complex 1 loading, the catalytic activity of producing H₂ remained active over eight consecutive cycles, generating a total of 414 mL H₂ with an overall TON of 1843 (Scheme 3a, see SI, section 5.1). Further monitoring the reaction progress through H₂ gas evolution revealed a fast initial rate, corresponding to an initial TOF of 298 h⁻¹, highlighting the high catalytic efficiency during the initial period of dehydrogenation (see SI, section 5.2). To understand the role of catalysts and aminoborane, a cyclohexene trapping experiment was carried out. During the catalytic dehydrogenation of AB to BZ, cyclohexene was employed as a trapping agent, and after chemical entrapment, it afforded H₂NB(C₆H₁₁)₂, confirmed by a ¹¹B NMR peak at 47.8 ppm. This observation demonstrates that aminoborane (NH₂BH₂) is released as a reactive intermediate, which undergoes entrapment in solution rather than coordinating to the metal centre, thereby supporting an off-metal dehydrogenation pathway (Scheme 3b, see SI, section 5.3). In a metal-centred (on-metal) pathway, the aminoborane intermediate is expected to remain coordinated to the metal or proceed through subsequent metal-mediated transformation. As a result, its availability to react with an external alkene would be significantly reduced.¹⁶

Scheme 3 (a) Catalyst 1 durability test; (b) chemical entrapment technique during dehydrogenation of AB; and (c) detection of the resulting boron intermediates in BZ formation. * Unidentified species.

Furthermore, the progress of the dehydrogenation reaction was monitored by ¹¹B NMR analysis by treating complex 1 (0.01 mmol) with AB (0.1 mmol) in THF/C₆D₆ (1 : 1). At room temperature, a transient intermediate NH₃BH₂Cl was initially detected at δ = −8.60 ppm, along with the unreacted AB.²⁸ However, upon heating to 80 °C for 15 min to 4 h, the signal for NH₃BH₂Cl disappeared, and new signals emerged at δ = 0.16 ppm (quartet) and δ = −11.33 ppm (triplet), attributable to BCTB.²⁹ Simultaneously, a signal at δ = −26.2 ppm appeared, assigned to μ-ADB, along with a peak at δ = 31.03 ppm corresponding to the formation of BZ. Prolonging the reaction time up to 8 h at 80 °C resulted in the predominant formation of BZ with the consumption of AB, μ-ADB and BCTB (Scheme 3c, see SI, section 5.4).

To further examine the influence of the coordinated Lewis basic piperidine unit in the ligand framework of complex 1, a piperidine-free terpyridine–Ni(II) dichloro analogue, complex 4, was synthesised and confirmed by ESI-HRMS and single-crystal X-ray analyses. Upon utilizing complex 4 for the dehydrogenation of AB, 44 mL of H₂ (1.95 equiv.) and 44% yield of BZ were obtained at 80 °C over 12 h which indicates a significantly lower performance than that of complex 1 (Table 1, entry 14), indicating the pivotal role of the piperidine moiety in enhancing catalytic efficiency (Scheme 4a). Based on experimental observations and previous precedent literature, a mechanistic pathway has been proposed (Scheme 4b).^30–34 The reactivity of deuterated AB isotopologues (ND₃BH₃ and NH₃BD₃) was examined, which revealed a significantly slower formation of the corresponding deuterated BZ derivatives in comparison with AB (see SI, section 5.4). This highlights an efficient dehydrogenation of AB, which may occur through the outer-sphere cooperative activation of AB with the Ni centre and the piperidine N atom, as shown in a,^20,33,34 followed by a rapid hydride/proton recombination to liberate one equiv. of hydrogen gas with aminoborane. The transient aminoborane formed in this process is unstable and further undergoes self-condensation and isomerisation through intermediates such as BCTB and µ-ADB, ultimately affording BZ and PBZ as the thermodynamic end products with liberation of H₂ in the presence of an active catalyst.

Scheme 4 (a) Catalytic reactivity of complex 4 and (b) proposed reaction mechanism.

3. Conclusions

In conclusion, this study demonstrates a Ni–NNN catalytic system 1 incorporating a piperidine-functionalized terpyridine backbone, which shows high efficiency for AB dehydrogenation, delivering up to 2.58 equiv. of H₂ with selectivity toward BZ. The catalysts operate under mild conditions with minimal catalyst loading and exhibit excellent reusability over eight consecutive cycles, maintaining their catalytic activity. Notably, a remarkable TON of 40 738 was achieved, representing the highest reported value among base-metal catalysts for this transformation. Further studies are in progress to obtain definitive experimental evidence supporting the cooperative role of the piperidine arm in complex 1 during the AB dehydrogenation process.

Conflicts of interest

There are no conflicts to declare.

Data availability

Supplementary information (SI): detailed experimental techniques and spectral and crystallographic information of complexes 2, 3, and 4. See DOI: https://doi.org/10.1039/d5dt02924d.

CCDC 2496603–2496605 contain the supplementary crystallographic data of complexes 2, 3 and 4 respectively, for this paper.^35a–c

Acknowledgements

P. D. thanks IISER Berhampur, Central Advanced Instrument Facility (CAIF) and Anusandhan National Research Foundation (ANRF), SERB, DST, India, for the financial support (CRG/2023/001880). B. M. thanks the University Grants Commission (UGC), India for the fellowship. A. M. thanks IISER Berhampur for the fellowship.
