Combining coordination and chelation moieties to engineer a new linker for lanthanide coordination chemistry

Abstract

Organic linkers play a crucial role in constructing lanthanide (Ln) coordination polymers (CPs), influencing structural topologies and physicochemical properties. Herein, we introduce 6-oxo-1,6-dihydro-2,5-pyridinedicarboxylic acid (2,5-H₃PODC) as a new ligand for constructing lanthanide coordination polymers that integrates the structural features of terephthalic acid with the chelation capabilities of pyridinone-based functional groups. Six lanthanide-based coordination polymers were synthesized with 2,5-H₃PODC, forming two types of CPs – type 1: [Ln(HPODC)(Ox)_0.5(H₂O)₂] (where (Ox) = oxalic acid and Ln = Pr³⁺ (1), Nd³⁺ (2)) and type 2: [Ln(H₂PODC)(HPODC)(H₂O)] (Ln = Eu³⁺ (3), Gd³⁺ (4), Dy³⁺ (5), Er³⁺ (6)). All compounds were structurally characterized by single-crystal and powder X-ray diffraction, and both compound types are 2D ladder-like networks with cem topologies where the trivalent metal centers are bridged via HPODC²⁻ and Ox²⁻ ligands in type 1 structures and H₂PODC⁻ and HPODC²⁻ linkers in type 2 structures. Thermogravimetric analysis (TGA) demonstrated that the metal–organic networks of type 1 and type 2 compounds exhibit distinct decomposition patterns, and the photoluminescent properties of 3 were also examined, revealing efficient ligand based sensitization and characteristic emission bands for Eu(III).

---

Introduction

The synthesis and characterization of lanthanide (Ln) based coordination polymers is an area of sustained research interest owing to their diverse structural configurations and promising applicability as functional materials in sensors,^1–6 gas capture and separations,^7–10 and catalysis.^11–15 Coordination polymers (CPs) are a well-known class of organic–inorganic hybrid materials built from metal cations or clusters connected by polytopic organic linkers. Generally, the coordination environment provided by the donor atoms in the functional groups of the organic linker needs to match the geometric preferences of the metal cation to facilitate the construction of one, two-, or three-dimensional CPs. This is a distinct challenge and opportunity when lanthanides are included in hybrid materials as the larger coordination spheres and flexible coordination geometries of Ln(III) cations facilitate access to unique structural topologies;^16,17 however, ligands often need to be tailored for metal-ion binding that also allows for the realization of the distinctive electronic, magnetic, and optical characteristics of the 4f elements.^18–22 Lanthanide cations are known for their oxophilicity, and multitopic carboxylic acid ligands have been the most common linker choice for the synthesis of Ln³⁺ CPs.^23–31 Early studies predominantly featured benzene-based polycarboxylic ligands, such as terephthalic acid, which are synthetically accessible and commercially available.^32–37 More recently, heteroaromatic carboxylic ligands featuring pyridine, furan, and thiophene moieties have also proven to be useful for constructing lanthanide CPs with a range of notable structures, topologies, assembly mechanisms, and properties such as enhanced photophysical characteristics.^23,38–48

Within the field of hybrid materials, there has been recent interest in developing new routes for incorporating different moieties into ligand structures via the process of linker engineering, which involves tailoring ligand structures to facilitate synthesis of coordination polymers (CPs) and metal–organic frameworks with desired properties.^49–52 Linker engineering can be achieved via multiple pathways, and one effective approach is to introduce specific moieties ahead of CP or MOF synthesis, wherein the desired functional groups are incorporated into the organic linker structure prior to metal complexation.^49,50 Carboxylate linkers offer nearly limitless functionalization potential as illustrated by tailored examples bearing pyridyl,^5,53,54 amine,^55,56 amide,⁵⁷ azide,⁵⁸ hydroxyl,^59,60 alkyl,⁶¹ or halogen⁶² moieties, all of which have been used in the construction of novel f-block CPs. Engineering of linkers beyond carboxylate based systems are considerably less common, and in particular, pyridinone-functionalized linkers are notably absent from the transition metal and lanthanide hybrid material literature. This research gap, coupled with our interest in the coordinative abilities of siderophore molecules in nature that contain catechol, hydroxamate, and other similar functional groups, prompted us to investigate the influence of pyridinone-based ligands on lanthanide coordination chemistry.^63,64

To allow for a more direct comparison with established results in the literature, we synthesized a ligand, 6-oxo-1,6-dihydro-2,5-pyridinedicarboxylic acid (2,5-H₃PODC), featuring a pyridinone moiety added to the well-known terephthalic acid scaffold. While the ligand has been previously described,⁶⁵ it has not been used in any inorganic coordination compounds and there was a need to update the ligand synthesis process to enable broader use. Linkers of this type can be partially or fully deprotonated to generate H₂PODC⁻, HPODC²⁻, and PODC3⁻ ligands, depending on the pH of the medium employed, and the resulting structures and topologies can be engineered via judicious control of reaction pH values. Moreover, the introduction of N–H and carbonyl functionalities in 2,5-H₃PODC provide additional routes for non-covalent assembly through well-known motifs such as hydrogen bonding, and 2,5-H₃PODC possesses hydrogen bond donor and acceptor sites within the same linker, thereby increasing the pathways for accessing hybrid materials with novel structures and topologies.

Herein we describe the modified synthesis of 2,5-H₃PODC and the first successful incorporation of a PODC ligand in an inorganic coordination compound. Six coordination polymers containing a range of Ln³⁺ metal ions (Pr³⁺, Nd³⁺, Eu³⁺, Gd³⁺, Dy³⁺, Er³⁺) were obtained from solvothermal reactions, and the resulting structures adopt one of two main structure types: type 1 [Ln(HPODC)(Ox)_0.5(H₂O)₂]_n (where (Ox) = oxalic acid and Ln = Pr³⁺ (1), Nd³⁺ (2)) and type 2 [Ln(H₂PODC)(HPODC)(H₂O)]_n (Ln = Eu³⁺ (3), Gd³⁺ (4), Dy³⁺ (5), Er³⁺ (6)). All compounds were structurally characterized via single-crystal X-ray diffraction (SCXRD) and powder X-ray diffraction (PXRD), and crystallographic data revealed that 1–6 crystallized in the P1̄ space group and formed 2D layered structures with cem topologies. The thermal properties of 1–6 were investigated, revealing two distinct decomposition patterns for type 1 and type 2 compounds. Additionally, photoluminescence properties for compound 3 were investigated, and characteristic emission bands for Eu(III) were observed upon 2,5-H₃PODC sensitization. Overall, our findings demonstrate that 2,5-H₃PODC is an effective ligand for the fabrication of Ln CPs, integrating the coordination features of carboxylic acid-based ligands with the chelation ability of pyridinone functional groups, and this study highlights the potential of linker engineering in the design of functional Ln CPs.

Experimental

Materials and methods

All chemicals were commercially available and were used as received. Chemicals used in the 2,5-H₃PODC ligand synthesis process include 2-chloro-6-methyl nicotinic acid (Ambeed Inc., 99.9%), potassium hydroxide (Sigma Aldrich, ≥85%), potassium permanganate (Sigma Aldrich, ≥99%), and hydrochloric acid 37% (w/w) (Sigma Aldrich). Ligand complexation with lanthanide cations involved either Ln(III) nitrate (Ln = Pr³⁺, Nd³⁺, Eu³⁺) or chloride (Gd³⁺, Dy³⁺, Er³⁺) salts, which were purchased from either Strem Chemicals Inc. or Beantown Chemical and were at least 99.9% pure. Oxalic acid (H₂Ox) was laboratory grade and purchased from Ward's Science, while ethanol (EtOH) (Decon Labs Inc., 100%) was used without distillation, and water was obtained from a Milli-Q IQ 7000 purification system.

¹H and ¹³C NMR spectra were recorded on a Bruker Avance NEO 400 spectrometer operating at 400 MHz using deuterated solvents. The data for ¹H NMR spectra are presented as follows: chemical shift (δ ppm) relative to a Me₄Si standard, multiplicity denoted by abbreviations such as br (broad), s (singlet), d (doublet), or t (triplet), coupling constant (Hz), and integration. High resolution mass spectra (HRMS) were recorded using a Thermo Q-Exactive mass spectrometer with an electrospray ionization source (ESI) operating in negative ionization mode using Optima (Fisher Chemical) grade solvents.

Powder X-ray diffraction samples were collected on a Bruker D8 Advanced diffractometer with samples loaded on KS Analytics zero background holders. The instrument is equipped with Göbel Mirrors and the data were collected using a monochromatic Cu K_α X-ray source, λ = 1.5406 Å. Data collections were performed over the range 5°–60° two-theta at a scanning speed of 0.5 seconds per step. Data were baseline corrected using the PreDICT software⁶⁶ package and diffractograms were prepared in Origin 2024.⁶⁷

After confirming the bulk purity of the materials, infrared spectra for 1–6 were collected in both the mid-IR (MIR) (4000–500 cm⁻¹) and far-IR (FIR) (400–100 cm⁻¹) spectral regions on a Bruker VERTEX 70 V spectrometer equipped with a platinum attenuated total reflectance microscope objective and the OPUS 8.5 software package. The resolution for MIR and FIR measurements were 0.4 cm⁻¹ and 1 cm⁻¹, respectively, and spectra were prepared for publication using Origin 2024.

The elemental composition of compounds 1–6 were further analyzed via energy dispersive spectroscopy (EDS) with a JEOL JSM-1T700HR field emission scanning electron microscope (FE-SEM). Samples from bulk powders of 1–6 were placed on aluminum stubs with double-sided carbon tape and were not coated prior to the analysis. The operating voltage was 15 kV and a backscattered electron detector (BED-C) in low-vacuum (40 Pa) mode was used for data collection at a constant working distance of 10 mm.

Thermogravimetric analysis of compounds 1–6 was performed on a differential thermogravimetric analyzer (SDT) Q600 instrument in an air atmosphere with a flow rate of 50 mL min⁻¹ and a heating rate of 10 °C min⁻¹. Prior to analysis, powdered samples of compounds 1–6 were purified with 2 mL of Milli-Q water (repeated five times) to remove minor organic and inorganic impurities. The TGA spectra were processed and prepared for publication using Origin 2024.

Elemental analysis (C, H, and N) measurements for purified compounds 1–6 were performed on an Exeter Analytical CE440 CHN analyzer. Crystalline powders of all compounds (2–3 mg) were weighed into tin sample holders and sealed securely with a capsule press. The samples were then transferred into the instrument and combusted in an oxygen-rich atmosphere.

Photoluminescence data for compound 3 was collected at room temperature on an Edinburgh Instruments FLS1000 spectrometer using the Fluoracle software package. Emission spectra were collected using a 279 nm excitation wavelength for the luminescence standard, Na₃Eu(dipic)₃ (dipic = dipicolinate), and a 368 nm excitation wavelength for 3. Solid-state measurements were conducted on crystalline material from the bulk product of 3 using a microscope attachment with 20× magnification and a dichroic mirror over the 400–800 nm spectral window using a 0.1 nm step size. Solution state data were collected to determine the relative quantum yield for 3 and this data collection was performed using a 1 cm quartz cuvette and 75 µM solution concentrations, and data were collected over a spectral window of 250–700 nm. Solid state luminescence data were collected with excitation and emission bandwidths of 2 nm, while solution state data were obtained using excitation and emission slit widths of 1 nm. The quantum yield for complex 3 was measured using the conventional optical method, where the quantum yield is determined relative to a fluorescent standard, Na₃Eu(dipic)₃, with a known quantum yield. A detailed procedure for this process is provided in the SI.

Synthesis of 6-oxo-1,6-dihydro-2,5-pyridinedicarboxylic acid (2,5-H₃PODC)

2,5-H₃PODC synthesis was achieved via a two-step procedure (Scheme 1). We adapted a literature procedure to obtain 1a in the first step,⁶⁸ and pure 1a (1.509 g, 7.48 mmol) was then suspended in 10 mL of water with stirring and 11 mL of 37% HCl was added dropwise. Subsequently, the reaction mixture was stirred for twelve hours at 110 °C and a white precipitate was observed. The precipitate was recovered by gravity filtration, washed with cold water, and air dried for one day to obtain a solid white product. Overall Yield: 79%. ¹H-NMR (400 MHz, DMSO-d₆); δ = 14.00 (br, s, 2H), 8.45(d, J = 7.6 Hz, 1H), 7.23 (d, J = 7.2 Hz, 1H). ¹³C-NMR (400 MHz, D₂O–NaOH); δ = 177.6, 174.3, 167.8, 152.0, 137.3, 126.1, 109.4. HRMS-ESI (m/z, [M − H]⁻) calculated for C₇H₅NO₅: 182.0095, found: 182.0095 (Fig. S1–S3, SI). Additional characterization of 2,5-H₃PODC, including PXRD and FIR/MIR spectra, is provided in the SI (Fig. S4–S6, SI).

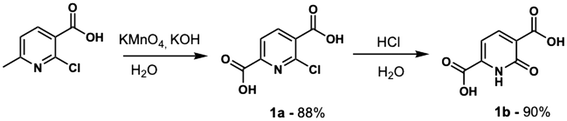

Scheme 1 Two step synthetic process used herein to prepare 2,5-H₃PODC.

Synthesis of compounds 1–6

[Pr(HPODC)(Ox)_0.5(H₂O)₂]_n (1). A mixture of Pr(NO₃)₃·6H₂O (0.0200 g, 0.046 mmol), 2,5-H₃PODC (0.0208 g, 0.114 mmol), H₂O (5 mL), and EtOH (1 mL) were placed in a 23 mL Teflon lined Parr autoclave, and the reaction vessel was heated at 120 °C for three days under autogenous pressure. After slow cooling overnight, the autoclave was opened and a pale green solution with a pale yellow precipitate was observed. The reaction solution was then transferred into a 20 mL glass scintillation vial and allowed to slowly evaporate for fifteen days, which yielded pale green block shaped single crystals of 1 suitable for single crystal X-ray diffraction (SCXRD) analysis. Yield: 9.50 mg, 52% based on Pr. Anal. calcd (%) for C₈H₇NO₉Pr: C, 23.9; H, 1.76; N, 3.48. Found (%): C, 23.59; H, 1.65; N, 3.35.

[Nd(HPODC)(Ox)_0.5(H₂O)₂]_n (2). Compound 2 was synthesized following the procedure described for 1 except Nd(NO₃)₃·6H₂O (0.0201 g, 0.046 mmol) was used instead of Pr(NO₃)₃·6H₂O and the amount of 2,5-H₃PODC (0.0201 g, 0.109 mmol) was slightly adjusted. Colorless block shaped crystals of 2 suitable for SCXRD analysis were obtained after slow evaporation of the solvothermal reaction solution for twelve days. Yield: 9.48 mg, 51% based on Nd. Anal. calcd (%) for C₈H₇NO₉Nd: C, 23.7; H, 1.74; N, 3.46. Found (%): C, 23.75; H, 1.64; N, 3.43.

[Eu(H₂PODC)(HPODC)(H₂O)]_n (3). Compound 3 was synthesized following the procedure described for 1 except Eu(NO₃)₃·6H₂O (0.0200 g, 0.045 mmol) was used instead of Pr(NO₃)₃·6H₂O and the amount of 2,5-H₃PODC (0.0198 g, 0.108 mmol) was decreased. Colorless block shaped crystals of 3 suitable for SCXRD analysis were obtained after slow evaporation of the solvothermal reaction solution for twelve days. Yield: 13.20 mg, 55% based on Eu. Anal. calcd (%) for C₁₄H₉EuN₂O₁₁: C, 31.54; H, 1.70; N, 5.25. Found (%): C, 31.16; H, 1.68; N, 5.1.

[Gd(H₂PODC)(HPODC)(H₂O)]_n (4). Compound 4 was synthesized following the procedure described for 1 except GdCl₃·6H₂O (0.0252 g, 0.067 mmol) was used instead of Pr(NO₃)₃·6H₂O and the amount of 2,5-H₃PODC (0.0251 g, 0.137 mmol) was increased. Colorless block shaped crystals of 4 suitable for SCXRD analysis were obtained after slow evaporation of the solvothermal reaction solution for eight days. Yield: 29.93 mg, 83% based on Gd. Anal. calcd (%) for C₁₄H₉GdN₂O₁₁: C, 31.23; H, 1.68; N, 5.2. Found (%): C, 30.93; H, 1.66; N, 5.0.

[Dy(H₂PODC)(HPODC)(H₂O)]_n (5). A mixture of DyCl₃·6H₂O (0.0253 g, 0.067 mmol), 2,5-H₃PODC (0.0285 g, 0.155 mmol), H₂O (5 mL), and EtOH (1 mL) were placed in a 23 mL Teflon lined Parr autoclave, and the reaction vessel was heated at 120 °C for three days under autogenous pressure. After slow cooling overnight, the autoclave was opened and yellow block shaped crystals of 5 were observed that were suitable for SCXRD analysis. Yield: 22.90 mg, 63% based on Dy. Anal. calcd (%) for C₁₄H₉DyN₂O₁₁: C, 30.93; H, 1.67; N, 5.15. Found (%): C, 30.53; H, 1.66; N, 4.97.

[Er(H₂PODC)(HPODC)(H₂O)]_n (6). Compound 6 was synthesized following the procedure described for 5 with a mixture of ErCl₃·6H₂O (0.0258 g, 0.067 mmol), 2,5-H₃PODC (0.0271 g, 0.148 mmol), H₂O (5 mL), and EtOH (1 mL) added into a 23 mL Teflon lined Parr autoclave. The reaction was heated at 120 °C for three days under autogenous pressure, and after slow cooling overnight, the autoclave was opened and pink block shaped crystals of 6 were observed that were suitable for SCXRD analysis. Yield: 20.55 mg, 56% based on Er. Anal. calcd (%) for C₁₄H₉ErN₂O₁₁: C, 30.66; H, 1.65; N, 5.11. Found (%): C, 30.27; H, 1.65; N, 4.92.

Bulk purification of compounds 1–6

After isolation, the crystalline solids were washed with deionized water (2 mL × 5) to remove water soluble impurities. SEM-EDS analysis of bulk samples indicated trace amounts of inorganic impurities (Fig. S21, SI); therefore, all compounds were purified through repeated water washes until the impurities were removed and no longer detected in SEM-EDS analysis (Fig. S22–S27, SI). The resulting purified solids were used for TGA and elemental analysis data collection.

Single crystal X-ray diffraction studies

X-ray diffraction data collection for compounds 1–6 were obtained on a Bruker D8 Venture Duo diffractometer equipped with a IµS 3.0 microfocus source operated at 75 W (50 kV, 1.5 mA) to generate Mo Kα radiation (λ = 0.71073 Å) and a PHOTON III detector. Crystals suitable for SCXRD were selected for each compound using a Zeiss Stemi 305 microscope and transferred from sample vials to glass slides in NVH immersion oil. For 1–6, single crystals and a small amount of oil were collected on MiTeGen 100-micron MicroLoops and transferred to the instrument where they were placed under a cold nitrogen stream (Oxford 800 series) maintained at 100(2) K throughout the duration of the experiments. Optimal alignment of crystals for each compound was achieved with the assistance of a video camera to ensure no translations occurred while crystals were rotated through all positions. Absorption corrections were applied to data collected for 1–6 using the SADABS multi-scan method within APEX 5.⁶⁹ SHELXT⁷⁰ was used for the initial structure solution by direct methods and SHELXL⁷¹ was used for refinement of structures contained within the Olex2 1.3 software suite.⁷² Anisotropic thermal parameters were assigned to all lanthanide, carbon, oxygen, and nitrogen atoms. Hydrogen atoms bound to carbon and nitrogen atoms were located in difference Fourier maps and were geometrically constrained using the appropriate AFIX commands. In the structure of compound 4, based on the C14–O10 bond distance and overall charge balance of the structure, H9 was located initially via difference Fourier map and refined using DFIX and DANG restraints. Similar procedures were followed for all type 2 compounds to locate hydrogen atoms on the carboxylic groups. Crystallographic information and selected bond distances and angles for compounds 1–6 can be found in Tables S1–S3 (SI). CIF files for 1–6 have been deposited at the Cambridge Crystallographic Database Center (CCDC) and may be obtained from https://www.ccdc.cam.ac.uk by citing reference numbers 2428551–2428556. CrystalMaker⁷³ was used to generate all figures for compounds 1–6, while Mercury⁷⁴ was used specifically for the asymmetric unit representations. Topological analysis of compounds 1 and 4 was performed using the topology identification software, ToposPro 5.5.2.2.⁷⁵ The standard simplification method was applied wherein structural groups were reduced to their respective centers of mass. In both compounds, metal atoms were designated as the central nodes, maintaining their original positions, while organic ligands and coordinated water molecules were simplified by representing them at their respective centers of mass.

Results and discussion

Structural descriptions

[Ln(HPODC)(Ox)_0.5(H₂O)₂]_n where Ln = Pr³⁺, Nd³⁺ – compound type 1. Solvothermal reactions of Pr³⁺ and Nd³⁺ with 2,5-H₃PODC followed by slow evaporation of reaction solutions yielded compounds 1 and 2, which are isomorphous and crystallize in the P1̄ space group. To highlight the key features of type 1 structures, we will use compound 1 as a representative example and describe the specifics of this structure in detail. The asymmetric unit of compound 1 contains one Pr³⁺ ion, one HPODC²⁻ unit with fully deprotonated carboxylate groups, one half of an oxalate ligand, and two coordinated water molecules (Fig. 1a). The Pr³⁺ center is crystallographically unique and has a coordination number of nine, and the molecular geometry of the metal center can best be described as capped square antiprismatic (Fig. 1b).

Fig. 1 (a) Ellipsoid representation of the asymmetric unit of compound 1 shown at 50% probability level and (b) polyhedral representation of coordination geometry around the Pr³⁺ center.

Four oxygen atoms from carboxylate moieties of PODC ligands [O1, O8, O8 (−x, 1 − y, 2 − z), O9], one oxygen atom from a carbonyl group (O7) of a PODC ligand, two oxygen atoms from one oxalate group (O4, O5), and two oxygen atoms from coordinated water molecules (O2, O3) comprise the Pr³⁺ first coordination sphere. The Pr–O (COO–), Pr–O (carbonyl), and Pr–O (H₂O) bond lengths are in the range 2.357(2) Å–2.702(2) Å, and the bond lengths in 1 are comparable to those in Pr³⁺-2,5-pyridinedicarboxylate compounds described in the literature.⁷⁶ The two adjacent Pr³⁺ metal centers in 1 are bridged in a syn–syn fashion via carboxylate O atoms (O8) from two adjacent HPODC²⁻ units at a distance of 4.215 Å (Fig. 2). This results in the formation of dinuclear secondary building units (SBUs) in 1, and the structure of 1 also features a bound oxalate ligand, which plays a crucial role in the construction of the two-dimensional sheets that ultimately form. Oxalate ligands were generated in situ, indicating the partial decomposition of 2,5-H₃PODC under experimental solvothermal conditions, and a proposed ring-opening/hydrolysis-oxidation mechanism for the in situ generation of oxalate is described in the SI (Scheme S1).⁷⁷

Fig. 2 Ball and stick representation of 1 highlighting the bridging carboxylate oxygen atoms connecting Pr³⁺ metal centers to form a dinuclear secondary building unit.

Within compound 1, the PODC ligand was found in only one protonation state, HPODC²⁻, and it adopts only one coordination mode, μ₃-η¹:η²:η², wherein it acts as a μ₃-bridge that connects three Pr³⁺ centers (Fig. S9, SI). Here, both carboxylic groups are deprotonated, with the carboxylate group at the 2-position binding in a monodentate fashion to one Pr³⁺ center, while the second carboxylate group adopts a chelating–bridging coordination motif to link another Pr³⁺ metal center. The third Ln³⁺ center is bound in a bidentate fashion to two adjacent O donor atoms from carboxylic acid and carbonyl groups, adopting a salicylate chelation mode. The second linker in type 1 structures, Ox²⁻ units, bind to Pr³⁺ centers in a bidentate bridging fashion via a μ₂-η²:η² coordination mode (Fig. S9, SI). The 2D network in 1 is built from bridged Pr³⁺ metal centers that are connected through oxalate ligands to form 1D layers that propagate along the c direction (Fig. 3a). The 1D layers in 1 are further linked diagonally by HPDOC²⁻ ligands, extending along the a direction to yield a 2D sheet structure (Fig. 3b). Topologically, each Pr³⁺ center serves as a five-connected node, whereas the HPODC²⁻ and Ox²⁻ ligands act as two-connected nodes, and the coordinated water molecules function as one-connected nodes (see Fig. S11, SI). Based on this simplification, the overall structure can be described as a five-connected uninodal network with a cem topology. According to data from the CCDC and TopoCryst databases,^78,79 this topology is unusual for lanthanide-based CPs with only one example previously described.⁸⁰

Fig. 3 (a) Polyhedral representation of 1 illustrating the connectivity of Pr³⁺ centers in the ac plane and (b) ab plane. Green polyhedra represent Pr³⁺, whereas red and blue spheres represent oxygen and nitrogen atoms, respectively. H atoms have been omitted for clarity.

The 2D network in 1 is further reinforced by hydrogen bonding interactions between PODC ligand functional groups and coordinated water molecules. Three hydrogen bonding interactions were observed in compound 1, and non-covalent interaction details for this structure type are compiled and tabulated in Table S4 (SI). The two strongest H-bonding interactions, based on crystallographic metrics, in type 1 structures are intermolecular O–H⋯O interactions that involve protons from coordinated water molecules, O3–H3A and O2–H2A, serving as hydrogen bond donors, while O6 from a PODC carboxylate group acts as a hydrogen bond acceptor for both interactions (Fig. S13a, SI). Collectively, these two hydrogen bonding interactions enhance the connectivity of type 1 structures within the layers in the ac-plane. An additional O–H⋯O interaction occurs between O3–H3B and a bound water molecule (O3) on the neighboring Pr³⁺ SBU that further reinforces network assembly along the a-axis (Fig. S13b, SI).

[Ln(H₂PODC)(HPODC)(H₂O)]_n where Ln = Eu³⁺, Gd³⁺, Dy³⁺, Er³⁺ – compound type 2. Single crystal X-ray crystallographic data revealed that compounds 3–6 are isomorphous and crystallize in the P1̄ space group. To highlight the key features of type 2 structures, we will use compound 4 as a representative example and describe the specifics of this structure in detail. The asymmetric unit of compound 4 consists of one Gd³⁺ cation, two PODC ligand units that differ in their extent of protonation, and a bound water molecule. More specifically, we observe one doubly protonated H₂PODC⁻ moiety as well as a singly protonated HPODC²⁻ ligand that are both bound to the Gd³⁺ metal center (Fig. 4a). The first coordination sphere, shown in Fig. 4b, for Gd³⁺ reveals that the metal-ion has a coordination number of eight and adopts distorted square antiprismatic molecular geometry, wherein five oxygen atoms from PODC carboxylate groups of five ligand units (O1, O2, O4, O8, O11), two oxygen atoms from carbonyl groups (O6, O9) of different neighboring PODC ligands, and one oxygen atom from a coordinated water molecule (O3) all bind to the metal center. The reduction in the coordination number of the metal center from nine to eight in type 2 structures is a result of the well-known lanthanide contraction, and the Gd–O (COO–), Gd–O (carbonyl), Gd–O (H₂O) bond lengths in 4 range from 2.296(2) Å–2.382(2) Å, with the longest bond lengths observed for Gd–carbonyl group coordination. The lengthening of the Gd–carbonyl (Gd–O6, 2.380(2) Å and Gd–O9 2.382(2) Å) bonds in 4 may be due to carbonyl oxygen atom participation in hydrogen bonding interactions with the protonated pyridine groups on neighboring PODC ligands since H-bonding interactions can affect the electron density distribution across the PODC ring, leading to slight geometric changes that also ultimately impact Gd–O (carbonyl) bond lengths.

Fig. 4 (a) Ellipsoid representation of the asymmetric unit for compound 4 shown at 50% probability level and (b) polyhedral representation of coordination geometry around the Gd³⁺ center.

Compounds that adopt type 2 structures feature PODC ligands in two protonation states, H₂PODC⁻ and HPODC²⁻, with differences manifesting in distinct metal-ion coordination modes. The HPODC²⁻ moiety adopts a different binding configuration compared to what was observed in type 1 structures, wherein three Ln³⁺ metal centers are connected in a μ₃-η²:η¹:η¹ fashion and both oxygen atoms in the carboxylate group at the 5-position participate in bridging bidentate coordination to two Gd³⁺ metal centers. In contrast, the H₂PODC⁻ unit features a protonated carboxylate group at the 5-position and coordinates to two Gd³⁺ metal cations in a μ₂-η²:η¹ fashion (Fig. S10, SI). This moiety exhibits the same salicylate coordination mode and monodentate coordination by the 2-position carboxylate group that was observed in the HPODC²⁻ moiety in type 1 structures, and the combination of PODC coordination modes provide extensive opportunities for mononuclear Gd³⁺ metal centers to assemble, thereby laying the foundation for the formation of a 2D extended network.

Analysis of the extended structure of 4 reveals that monomeric Gd³⁺ centers are linked by two H₂PODC⁻ units to produce a 1D layer that extends along the c-axis (Fig. 5a). These 1D chains are further connected along the a-axis by Gd–O bonds from the carboxylate group of HPODC²⁻ units to create a 2D sheet (Fig. 5b). Each of the 2D sheets that extend along the c-direction are further linked through hydrogen bonds that involve the proton (H9) in the carboxylic acid group of the H₂PODC⁻ unit and the oxygen (O7) in the neighboring HPODC²⁻ unit to form a 3D supramolecular network (Fig. 5c). Topological analysis revealed that compound 4 features a five-connected uninodal net with a cem topology, similar to compound 1. In this structure, Gd³⁺ centers act as five-connected nodes, while H₂PODC⁻ ligands function as two-connected nodes, HPODC²⁻ linkers function as three-connected nodes, and bound H₂O molecules act as one-connected nodes (see Fig. S12, SI). Despite the differences between type 1 and 2 structures, the metal centers in 1 and 4 are 5-connected nodes with a similar number of three-, four-, and five membered faces surrounding each metal center (point symbol – 3³·4⁴·5³), which is why type 1 and 2 structures feature the same overall topology.

Fig. 5 (a) Polyhedral representation of 4 showing 1D chains that are linked along the c-axis and (b) 2D coordination network of 4 in the ac plane. (c) Polyhedral representation of 4 showing hydrogen bonding interactions that further link the 2D sheets of 4 in the bc plane (atoms involved in O10–H9⋯O7 hydrogen bonding interactions are labelled in only one layer for clarity) to form a hydrogen bonding 3D framework. Purple polyhedra represent Gd³⁺, whereas red, blue, and pink spheres represent oxygen, nitrogen, and hydrogen atoms, respectively. H atoms outside of H9 have been omitted for clarity in parts b and c of the figure.

The assembly of compound 4 is further supplemented by three additional hydrogen bonding interactions. The first one is an intramolecular hydrogen bonding interaction where the hydrogen atoms on bound water molecules (O3) act as hydrogen bond donors and neighboring O5 atom of a PODC carboxylate group acts as a H-bond acceptor (O3–H3⋯O5–2.657(4) Å). In addition, two N–H⋯O hydrogen bonds were observed, and these involve donor protons H1 (from the N1 site of HPODC²⁻) and H2 (from the N2 site of H₂PODC²⁻), interacting with acceptor oxygen atoms O9 and O6 from adjacent carbonyl groups (N2–H2⋯O9–2.855(4) Å, N1–H1⋯O6–2.891(4) Å). From a structural perspective, the N–H⋯O interactions enhance the connectivity between the ligand units within the same layer along the b-axis (Fig. S14, SI), and all the hydrogen bonding interactions observed collectively enhance the connectivity of the 3D supramolecular networks in type 2 structures.

Structural discussion

The extended networks in both type 1 and type 2 structures can best be described as two-dimensional sheets with ladder-like networks, having pore sizes of 5.822 Å × 6.917 Å (type 1, compound 2) and 6.177 Å × 9.053 Å (type 2, compound 4), respectively (Fig. 6). These structures feature non-catenated interlayer spaces, making them particularly promising for applications such as gas sorption, sensing, and water purification when constructed with suitable metals. Several key features could contribute to their performance in these areas including large voids that are accessible to guest or substrate molecules and N–H groups and carboxylate oxygen atoms of 2,5-H₃PODC that remain uncoordinated to metal centers and oriented toward the voids, which could serve as Lewis basic centers for recognizing Lewis acidic molecules that are relevant in environmental remediation and catalysis.

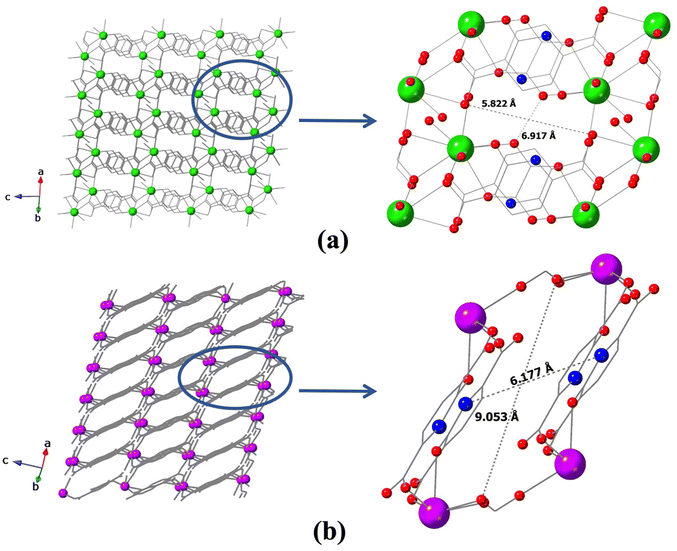

Fig. 6 2D ladder-like network and the structure of the voids in (a) type 1 and (b) type 2 structures.

Analysis of type 1 and type 2 structures shows that 2,5-H₃PODC ligands impact the primary coordination sphere and the secondary hydrogen bonding network within 1–6, directing assembly toward distinct topologies compared to well-documented lanthanide CPs constructed using 2,5-pyridinedicarboxylic acid (2,5-PDC). With 2,5-PDC linkers, lanthanide coordination occurs primarily through the carboxylate oxygens and the nitrogen atom on the heterocycle.^81–85 For 2,5-H₃PODC, we note binding via carboxylic acid oxygen atoms as well as additional coordination via the carbonyl oxygen atom from the pyridinone moiety that facilitates salicylate-like binding in both its protonation states, H₂PODC⁻ and HPODC²⁻. Notably, despite the precedent for nitrogen coordination in 2,5-PDC systems, no such coordination was observed in 1–6.

Beyond definitive differences in ligand coordination modes, 2,5-H₃PODC also expands the supramolecular landscape compared to 2,5-PDC in lanthanide hybrid materials. Supramolecular networks, particularly hydrogen-bonded organic frameworks (HOFs), have been gaining significant attention in the field of functional materials. HOFs are porous structures assembled through directional intra- and intermolecular hydrogen bonding interactions that are typically driven by organic ligand moieties. These networks are distinguished by their weak and reversible bonding, which imparts unique properties such as flexibility, easy regeneration, and solution processability. Consequently, HOFs have demonstrated promise in various applications, including gas separation, molecular storage, catalysis, and drug delivery.^86,87 The primary strategy for synthesizing HOFs involves the incorporation of functional groups that can act as hydrogen bond donors and acceptors. In this context, 2,5-H₃PODC can be presented as a new scaffold for synthesizing HOFs, as it inherently features multiple hydrogen-bonding motifs. This capability is clearly demonstrated in compounds 1–6, and, more specifically, 3–6 meet the criteria for description as hydrogen-bonded frameworks. While hydrogen bonding in 2,5-PDC coordination polymers primarily relies on carboxylate groups interacting with coordinated or lattice water molecules,^84,85 2,5-H₃PODC ligands in 1–6 feature H-bonding interactions involving all of the major functional groups: carboxylate, carbonyl, N–H groups, and coordinated water molecules. As both the hydrogen bond donors and acceptors are incorporated within a single ligand molecule, rather than distributed across multiple co-ligands or solvent molecules, 2,5-H₃PODC offers a valuable platform to promote structure-directing hydrogen bonding interactions without adding complexity to the reaction mixture. These ligand-centered hydrogen bonding interactions are more structurally integral than those involving solvent molecules, which are often lost during the activation of the networks, giving 2,5-H₃PODC a clear advantage as a structure-directing scaffold. Furthermore, the use of the 2,5-H₃PODC ligand has resulted in topologies that are rarely reported in the lanthanide materials literature,^79,88 highlighting another key advantage beyond its distinct coordination behavior and ligand-centered hydrogen bonding capabilities.

Thermogravimetric analysis (TGA)

The thermal stability of all compounds (1–6) was investigated using thermogravimetric analysis. Approximately 4–8 mg of each compound was placed in an alumina pan and heated from room temperature to 1000 °C at a rate of 10 °C min⁻¹ in an air atmosphere (flow rate, 50 mL min⁻¹), with a second alumina pan used as the reference material. Thermal properties were consistent for each structure type so the TGA profiles of [Pr(HPODC)(Ox)_0.5(H₂O)₂] (1) and [Gd(H₂PODC)(HPODC)(H₂O)] (4) were used as representative examples and are described in detail. TGA curves for compounds 1–6 are shown in Fig. S28–S34 (SI). For compound 1, the first weight loss of 9.02 wt% occurs from 110 °C to 275 °C (calcd 8.9%) is attributed to the loss of two coordinated water molecules. Subsequently, with increasing temperature, a more substantial weight loss of 49.33% occurs from 275 °C to 590 °C, which is a result of thermal decomposition of the organic ligand components of the coordination polymer network (calcd 50.02%). The thermal decomposition pattern of compound 4 differs with coordinated water loss not appearing as a distinct step and decomposition occurring progressively over a broad temperature interval from 134 °C to 738 °C, with a total weight loss of 65.29% (calcd 66.33%). After total weight losses of 58.35% for compound 1 and 65.29% for compound 4, stoichiometric amounts of Pr₂O₃ and Gd₂O₃ are formed as the final residues, which were identified via powder X-ray diffraction.

Photoluminescence spectroscopy

Among the lanthanides, Eu(III) compounds are well known for their strong and characteristic luminescence, emitting red light in the 575–725 nm range.⁸⁹ Therefore, the solid-state luminescence properties of compound 3 were investigated at room temperature to ascertain whether 2,5-H₃PODC could act as an efficient antenna chromophore. Upon excitation at 368 nm (Fig. S41, SI), the emission spectrum of 3 displays several characteristic narrow emission bands in the 575–725 nm range, corresponding to the metal-centered 4f–4f transitions from the ⁵D₀ excited state of Eu(III) to the ⁷F_J (J = 0–4) ground states, as shown in Fig. 7. More specifically, the five main spectral bands were observed at 579 nm, 588 nm, 619 nm, 650 nm, and 698 nm, which can be assigned to the ⁵D₀ → ⁷F_J (J = 0, 1, 2, 3, and 4) transitions of Eu(III), respectively. All the f–f transitions in the spectrum are formally Laporte forbidden induced electric dipole transitions, except for the ⁵D₀ → ⁷F₁ transition, which is allowed by the magnetic dipole mechanism. Compound 3 exhibits intense red emission consistent with the high intensity sharp narrow band associated with the ⁵D₀ → ⁷F₂ transition. This spectral feature is especially sensitive to the local environment around the Eu(III) ion and the surrounding ligand field, and the high intensity of this peak for 3 indicates that the Eu(III) ions in this compound are in highly polarizable chemical environments lacking inversion symmetry.⁸⁹ Moreover, the emission intensity of the ⁵D₀ → ⁷F₂ transition is approximately about 4.5 times that of the ⁵D₀ → ⁷F₁ transition, which further indicates there is limited symmetry in the ligand field around the Eu(III) ion. Worthy of additional comment, the occurrence of intense, narrow, sharp spectral bands corresponding to the ⁵D₀ → ⁷F₄ transition here is notable as it is typically seen as a low-intensity band in the photoluminescence spectra of the majority of the Eu-based coordination polymers reported in the literature.^90–96 According to several theoretical and experimental studies, this behavior is due to the highly polarizable local chemical environment and the slightly distorted D_4d geometry of the Eu(III) metal centers in 3.^97–99 We also noted splitting of peaks corresponding to multiple f–f transitions, wherein two peaks were observed for the ⁵D₀ → ⁷F₁, ⁵D₀ → ⁷F₂, and ⁵D₀ → ⁷F₃ bands, while the peak corresponding to the ⁵D₀ → ⁷F₄ transition was split into three components. These peak splitting features are referred to as Stark components, which occur due to ligand field effects. When an Eu³⁺ ion is introduced into a chemical or ligand field environment, the degenerate J energy levels, originally 2J + 1, undergo splitting into distinct Stark sub-levels due to the influence of the surrounding ligand and crystal fields. Therefore, the observed pattern confirms that the Eu(III) center in compound 3 is located in a non-spherically symmetric coordination environment, and strong binding interactions occur between the PODC ligands and the Eu(III) ions in 3.

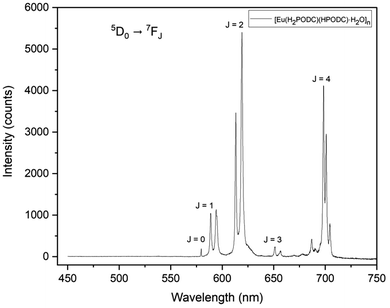

Fig. 7 Room temperature solid-state emission spectrum of compound 3 upon excitation at 368 nm.

To better understand the photoluminescence properties of 3, the relative fluorescence quantum yield (Φ) was calculated using Na₃Eu(dipic)₃ as a standard reference sample,^100–102 and details on the process for preparing the standard sample are included in the SI. The relative quantum yield for 3 was calculated by using eqn (S1) (SI) and the overall Φ value of 2.45% for 3 was significantly lower than the quantum yield of the Na₃Eu(dipic)₃ standard. The loss in emission efficiency for 3 is a likely result of the multiple –OH and –NH oscillators that are in close proximity to the Eu³⁺ metal center in 3 that allow for vibronic relaxation through –OH and –NH stretching modes.¹⁰³ Nevertheless, as a luminescent antenna, 2,5-H₃PODC shows promise as a chromophore with a relatively low energy excitation wavelength, comparable to those of the 2,5-PDC ligand-based lanthanide compounds, which is advantageous for many practical applications.^104–106

Conclusions

This study presents the first successful incorporation of 2,5-H₃PODC as an organic linker in metal-containing coordination polymers. The synthetic pathway presented here offers a straightforward two-step route to obtain the ligand with high purity and a 79% overall yield. Six novel lanthanide coordination polymers were synthesized under solvothermal conditions, forming two distinct structure types, and both exhibited 2D network architectures with rectangular-shaped voids and dimensions of approximately 6 × 7 Å (type 1) and 6 × 9 Å (type 2). In type 1 compounds, metal centers are bridged by oxalate ions in addition to PODC ligand moieties, and oxalic acid is generated in situ via a ring-opening/hydrolysis-oxidation mechanism. The structural divergence among type 1 and 2 compounds arises from the lanthanide contraction, variations in ligand protonation states, and the in situ formation of oxalic acid. 2,5-H₃PODC ligands were found to exist in two different protonation states in type 2 compounds, each exhibiting distinct coordination modes, and compared to conventional pyridine dicarboxylate ligands, 2,5-H₃PODC offers enhanced coordination, engaging in metal-binding not only through the carboxylate groups but also via pyridinone moieties. In the second coordination sphere, hydrogen bonding interactions involving carboxylate and pyridinone functional groups and coordinated water molecules further contribute to the structural stability of the synthesized compounds, and the dual functionality of 2,5-H₃PODC in metal coordination and hydrogen bonding underscores its ability to facilitate multiple routes for assembly of metal-ion SBUs including the formation of H-bonding frameworks in 3–6. Thermogravimetric analysis (TGA) revealed that the compounds 1 and 4 exhibit structure-specific thermal behavior, reflecting distinct decomposition pathways that are unique to each structure type. Luminescence studies on compound 3 confirmed the ability of 2,5-H₃PODC to act as a luminescent antenna, thereby enabling observation of the characteristic f–f transitions of Eu(III) in the visible region. Overall, this work highlights the potential of pyridinone-based linkers for the further development of rare earth and f-element CPs and HOFs, and follow up studies with other PODC derivatives are underway.

Conflicts of interest

The authors declare no competing interests.

Data availability

All data for the article are included in the manuscript and supplementary information (SI). Supplementary information: detailed characterization of 2,5-H₃PODC: ¹H NMR, ¹³C NMR, HRMS-ESI, PXRD, and infrared (MIR and FIR) spectra. For compounds 1–6, crystallographic data, topological analysis details, PXRD patterns, FE-SEM/EDS data, TGA results, and MIR/FIR analyses are provided, and for 3, the photoluminescence excitation spectrum and details related to quantum yield experiments are included. Insights into in situ oxalate formation including a proposed mechanism and HRMS-ESI analysis of solution mixtures, and synthesis procedures for pure-phase versions of compounds 1 and 2, including corresponding PXRD results, are provided as well. See DOI: https://doi.org/10.1039/d5dt02620b.

CCDC 2428551–2428556 (1–6) contain the supplementary crystallographic data for this paper.^107a–f

Acknowledgements

This work was primarily supported by the University of Iowa, Office of the Provost, High Impact Hiring Initiative. AKKA, BL, and KPC also acknowledge support from start-up funds from the College of Liberal Arts and Sciences and the Department of Chemistry at the University of Iowa. AKKA would also like to thank University of Iowa Graduate College for a 2023 Summer Research Fellowship. BL acknowledges funding for this work provided by the U.S. Department of Energy, Office of Science, Office of Workforce Development for Teachers and Scientists, Office of Science Graduate Student Research (SCGSR) program. The SCGSR program is administered by the Oak Ridge Institute of Science and Education (ORISE). ORISE is managed by ORAU under contract number DE-SC0014664. Los Alamos National Laboratory is operated by Triad National Security, LLC, for the National Nuclear Security Administration of the U.S. Department of Energy (contract no. 89233218CNA000001). We also acknowledge the University of Iowa Materials, Analysis, Testing, and Fabrication (MATFab) Facility for use of the single crystal X-ray diffractometer, powder X-ray diffractometer, thermogravimetric analyzer, elemental analyzer, and scanning electron microscope used in this study. We would specifically like to thank MATFab staff member Dr. Michael Sinnwell for support associated with TGA, EA, and FE-SEM/EDS measurements. Single crystal XRD data were collected on an instrument funded by NSF Award CHE-1828117. Field emission SEM/EDS data were collected on an instrument funded by NSF Award EAR-2215495. The NMR instrument used in this research was supported by funding from the University of Iowa, while the mass spectrometry instrument was supported by funding from the NSF (CHE-1919422). Mid- and far-IR spectra were collected on an instrument funded by a Nuclear Regulatory Commission Faculty Development Grant (NRC 31310018M0042).
