Combustion synthesis of (U,Pu)O₂ solid solution: from parametric study to sintered pellet

Abstract

This study presents the synthesis of actinide mixed oxides by solution combustion synthesis (SCS) using citric acid as fuel. The approach was chosen because of the promising results on surrogates and both uranium and plutonium pure oxides. The amount of fuel for SCS and the effect of the Pu/(U + Pu) composition were studied to optimize the characteristics of the powders. A solid solution (U,Pu)O_2+x was obtained for all conditions, and the resulting oxides exhibit a homogeneous cationic distribution of uranium and plutonium and nanometric features. A U_0.90Pu_0.10O_2+x powder was selected for pressing tests and sintering due to its industrial interest for the production of MOX fuel for PWR reactors. It was possible to obtain a pellet with a density of 88%TD, characterized by a low-temperature sintering due to the nanometric size of the powder. Despite presenting large macropores, due to the presence of residual carbon in the powder before sintering, the sintered pellet presents the expected round-shaped pores and a very homogeneous plutonium distribution.

---

Introduction

Nuclear power is an important source of low-carbon energy, providing approximately 10% of the world's electricity. In nuclear reactors, uranium fission leads to the formation of fission products and transuranic compounds formed by neutron capture and β-decay.¹ For PWR reactors with UO₂ fuel enriched to 3.5% ²³⁵U, irradiated for 3 years at 33 GW day per t, the spent fuel contains approximately 95.5 mass% of uranium, 3.5 mass% fission products, 0.9 mass% plutonium, and approximately 0.1 mass% minor actinides (Np, Am, Cm, etc.).² Plutonium and minor actinides are the main contributors to the long-term radiotoxicity of spent nuclear fuel.³ Managing these transuranic elements poses significant challenges concerning the long-term environmental impact, societal issues associated with nuclear waste storage, and storage conditions, as the radioactivity of these elements affects the thermal properties of storage. Spent fuel recycling is a tool to manage nuclear waste by reducing by a factor of 5 the volume of the waste generated by the fuel and by a factor of 10 its activity.⁴ In addition, plutonium has fissile isotopes ²³⁹Pu and ²⁴¹Pu, which represent an energy potential. One promising solution to these problems is recycling the valuable elements in the spent fuel through the production of Mixed OXide (MOX) fuel, which is composed of (U,Pu)O₂ oxide. The use of MOX fuel can significantly reduce the amount of long-lived nuclear waste generated, as well as decrease the demand for uranium resources,⁵ as a closed cycle of MOx production decreases by 25% the need for uranium.⁴

Despite the potential benefits of MOX fuel, its fabrication is a complex and challenging process. In particular, the production of homogeneous MOX fuel has proven to be difficult due to the different physical and chemical properties of the two powders.^6,7 Indeed, the preparation of MOX fuel is generally achieved by a multi-step process, including mixing and grinding of plutonium and uranium dioxide powders before shaping and sintering to obtain pellets.^8–10 Additionally, the production of plutonium dioxide through oxalic precipitation and calcination may result in residual carbon contamination of the powder, which can lead to challenges in the sintering process.¹¹

In recent years, significant progress has been made in the development of MOX fuel fabrication techniques, including the development of new powder metallurgy techniques, the use of advanced ceramic materials, and new sintering processes.^12,13

In addition to the advances in homogeneous MOX fuel fabrication using powder metallurgy, there is also interest in developing a liquid-based synthesis method for MOX fuel.^12,14–23 This approach involves dissolving plutonium and uranium in a suitable solvent, followed by precipitation and sintering to produce the final fuel. The liquid-based synthesis methods offer greater homogeneity of the nuclear fuel without requiring a grinding step, limiting the dispersion of fine particles. This could enable the production of MOX fuels with optimized isotopic compositions, leading to improved fuel burnup and reduced waste generation.

Among the liquid routes, another promising approach to the fabrication of MOX fuel is through the combustion of actinide oxides in solution.^24–26 Compared to sol-gel or precipitation synthesis methods, these synthesis methods offer the advantage of being very simple to implement, greatly minimizing effluent production and potential actinide leaks, and relying on a very fast reaction, making them highly capacitive. Solution combustion synthesis (SCS) was discovered in the 1970s.²⁴ It is a self-propagating, exothermic process used to prepare materials, including oxide powders, for various applications such as energy fuels, catalysts, and electrodes.^27,28 The SCS involves a redox reaction between a metal nitrate (oxidant) and an organic compound (reducing agent) dissolved in aqueous solution. The first step in SCS is the dehydration of the solution to form a dried solid gel containing the reactants. Further thermal treatment results in ignition within the mixture, which is characterized by its rapidity and strong exothermicity. It allows high temperatures (500 °C–1500 °C)^27,29 to be reached in a short time range with low energy input, as the ignition temperature is typically low (200 °C–250 °C).^30–32 The size of the resulting mixed oxide particles is determined by the ignition process.^27,33

The SCS method can lead to the formation of mixed oxides with homogeneous cation distribution, and the resulting powder characteristics are strongly correlated to the flame temperature reached during combustion.^29,34,35 The selection of the fuel for the combustion is critical, and the stoichiometric amount of fuel required for the reaction can be determined based on the reactants and the fuel-over-metal molar ratio (Fuel/Metal).³⁶ According to the theory developed by Jain et al., it is possible to calculate the stoichiometric conditions of the reaction by considering the reducing and oxidizing valences of the species (V_Fuel and V_Metal).³⁶ Under equilibrium, the reaction is stoichiometric when the richness parameter ϕ defined by Jain is equal to one, according to:

where n_Fuel and n_Metal are the stoichiometric coefficients of the SCS reaction (see the SI).

The synthesis of actinide oxide (UO₂ and PuO₂) by SCS, with citric acid (CA) as fuel for the combustion, has been reported.^30,32,37 Studies have shown that it is possible to reduce U(+VI) into U(+IV) to obtain UO_2+x with the SCS method without further reducing treatment. The oxides obtained by this method exhibit small crystallite sizes. The optimal fuel/metal ratio was experimentally determined for the plutonium/citric acid and uranium/citric acid systems^37,38 to be 0.6 and 1.1, respectively, considering the characterizations of the powders after the combustion.

The SCS method also proved to be of interest for mixed oxides. Indeed, several studies reported the synthesis of (U,Ce)O₂ oxides with the SCS method using citric acid and glycine,^{32,33,39–41} but only a few studies have examined the effect of the fuel/(U + Ce) ratio on the powders. Maji et al.³³ and Monnier³² reported the synthesis of U_0.5Ce_0.5O₂ using citric acid and glycine, with the fuel/metal ratio varying.

The aim of this work is to present the results of the first synthesis of (U,Pu)O₂ oxides by SCS with citric acid. The effect of the fuel/metal ratio was studied on U_0.5Pu_0.5O₂ synthesis in order to determine the optimal conditions for the combustion. Furthermore, using these results, the MOX synthesis was tested for different Pu contents to assess the efficiency of the synthesis method in order to produce fuels with different levels of Pu doping.

Experimental

Chemicals

Caution: ²³⁸Pu, ²³⁹Pu, ²⁴⁰Pu and ²⁴²Pu are α-emitters, and ²⁴¹Pu is a β⁻-emitter, which are considered as health risks. Experiments involving actinides require appropriate facilities for handling radioactive materials. Experiments were conducted at the ATALANTE facility (Marcoule Center, France) in a glovebox under air or nitrogen (pellet fabrication and characterization) atmosphere. The criticality risk associated with the use of plutonium was controlled in our case by the mass of plutonium considered. In the case of scaling up, the subcritical geometry of industrial equipment should be considered.

The plutonium solution (isotopic composition of ²³⁸Pu (0.1%), ²³⁹Pu (84.9%), ²⁴⁰Pu (14.3%), ²⁴¹Pu (0.3%) and ²⁴²Pu (0.4%)) was purified via a standard anion–exchange method in order to remove ²⁴¹Am, which is produced by the β decay of ²⁴¹Pu. Plutonium was stabilized in the +IV oxidation state in 1.9 mol L⁻¹ HNO₃ solution in order to avoid hydrolysis. Plutonium stock solution was titrated using a UV-visible spectrophotometric method, on a Varian Cary 6000i device using diluted mother solution in 1.0 mol L⁻¹ HNO₃ media. The signal was deconvoluted from certified Pu(+III), Pu(+IV) and Pu(+VI) reference samples, in 1.0 mol L⁻¹ HNO₃ media, to obtain a value of C_Pu = 0.22 ± 0.02 mol L⁻¹.

Uranyl nitrate was obtained by dissolution of U₃O₈ powder in nitric acid. The solution was then dehydrated at 180 °C in order to obtain a yellow powder, which was ground in an agate mortar and characterized.

Citric acid C₆H₈O₇ (Sigma Aldrich ACS reagent grade, purity ≥99.5%) was used as fuel for the SCS reaction.

Synthesis

200 mg of actinides were used for each combustion with several compositions (i.e. Pu/(U + Pu) ratio). Solutions for combustion synthesis were prepared by dissolving the appropriate amount of citric acid and uranyl nitrate in plutonium nitric solution. The solution was diluted with 1 mol L⁻¹ HNO₃ in order to keep C_NO3⁻ = 1.9 mol L⁻¹, as in previous work.³⁷

First, the effect of the amount of citric acid (CA/(U + Pu) ratio) was studied in the range 0.6 to 1.2 to determine the optimal ratio with a set composition containing 50 mol% uranium and 50 mol% plutonium. Once the optimal ratio was determined, the effect of the composition was studied by producing samples from 11 mol% Pu to 50 mol% Pu.

After dissolution of the fuel in the actinide nitric solution, the solutions were dehydrated in an alumina crucible on a hot plate at 120 °C for one hour to obtain a dried gel containing the reactants. The resulting gel was then heated in a Lenton tubular furnace, under a 10 NL h⁻¹ air flow, from 120 °C to 300 °C at 10 °C min⁻¹ heating rate, to ensure gel dehydration, with a final 10 min step at 300 °C, allowing the sample to reach this setpoint temperature. After cooling to room temperature, the obtained powder was ground in an agate mortar. The powders were characterized as-prepared before a further thermal treatment under reducing atmosphere (Ar-96%/H₂-4%) for 1 h at 1100 °C.

Characterization

X-ray diffraction characterization of the powders was performed with a Bruker D8 diffractometer equipped with a Lynxeye detector and using Cu Kα radiation (λ = 1.54184 Å) and Bragg-Brentano geometry. The powders were prepared in adapted sample holders in order to avoid any potential radioactive contamination. XRD patterns were recorded at room temperature in the 10° ≤ 2θ ≤ 100° range with a step size of 0.02° and a counting time of 2 s per step. Metallic gold (99.96%, Alpha Aesar) was used as an internal standard in order to calibrate the angular positions of the observed XRD, in accordance with PDF 00-004-0784.⁴² The addition of this internal standard is necessary due to the method of preparing radioactive samples for XRD analysis, which can have a significant impact on specimen height. Metallic gold was chosen as a standard because of its chemical stability, which avoids lattice parameter variation, and because the peaks of the fluorite phase of gold do not overlap with those of (U,Pu)O_2±x. FullProf software was used for XRD data treatment.⁴³ The refinements were carried out by approximating the peaks obtained on the experimental XRD-patterns with the modified Thomson Cox-Hastings pseudo-Voigt profile function (TCH-Z). Lattice parameters were calculated using the Rietveld method. The crystallite sizes were determined by refining the parameters of the Lorentzian component after subtracting the experimental contribution of the diffractometer to the peak broadening. For this, a reference sample of LaB₆ was measured and its Gaussian contributions were retained for subtraction.

Thermogravimetric analysis (TG) of the resulting powders was carried out in flowing air up to 1100 °C at a heating rate of 5 °C min⁻¹ using a STA449 Netzsch device coupled with micro-gas chromatography modules (µGC). The residual carbon content of the powders was calculated by integrating the signal of CO and CO₂ peaks obtained in µGC, using two Agilent 3000 modules (non-polar gas module with a molecular sieve as the stationary phase and polar gas module with grafted silica as the stationary phase) with a micro thermal conductivity detector (TCD) and He used as vector gas. µGC calibration was achieved by using gas bottles containing calibrated CO and CO₂ concentrations ranging from 500 to 10 000 ppm (Air Liquide).

Scanning Electron Microscopy (SEM) observations were conducted using powder samples deposited on carbon adhesive sticks and metallized with gold, using a Tescan Mira3 electronic microscope equipped with a secondary electron detector (SE) under high-vacuum conditions with an accelerating voltage of 5 kV.

The HERFD-XANES experiments were performed at beamline BM20 of the European Synchrotron Radiation Facility (ESRF) in Grenoble (France).⁴⁴ The incident energy was selected using the [111] reflection from a double-crystal Si monochromator. Two mirrors, placed before and after the monochromator, were used to collimate the beam and suppress higher harmonics. The beam size was estimated to be ∼50 μm (vertically) by ∼2 mm (horizontally). HERFD-XANES spectra at the M₄ edge (3728.0 eV for U and 3970.0 eV for Pu) were recorded with an X-ray emission spectrometer,⁴⁵ by measuring the intensity of the U M_β (3339.8 eV) or Pu M_β (3534.0 eV) emission line as a function of the incident energy near the corresponding M₄ edge. The spectrometer was aligned separately for each actinide using oxides UO₂ or PuO₂. The alignment was performed in the non-resonant emission mode (i.e. with incident energy above the X-ray absorption edge) by selecting the maximum of the corresponding emission line. The emission energy was selected using the [220] reflection of five spherically bent Si crystal analyzers (1 m bending radius) aligned at specific Bragg angles: 75.2° for U and 66.0° for Pu. The optical paths of the emitted X-rays were optimized using a helium-gas-filled bag to minimize intensity losses due to air absorption. The calibration of the incident energy was performed by assigning the maximum of the HERFD-XANES spectrum of UO₂ to 3725 eV, and that of PuO₂ to 3971 eV. The measurements were conducted at 25 °C. 1 mg of powder was diluted with 200 mg of boron nitride and pressed into a pellet. The pellet was sealed in a specific sample holder consisting of two nested screwed envelopes and a Kapton window (5 µm). This multi-confinement method was chosen in order to allow the manipulation of the radioactive sample under safe conditions, with non-contamination controls performed on both sample envelopes. The measured HERFD-XANES spectra were deconvoluted with a reference dataset using the Microsoft Excel solver. A linear combination of references was used to generate a model. Each reference corresponds to a specific oxidation state of actinide (see the SI for descriptions of the references).

The particle size distribution of the powder was measured using a Malvern Spraytec device. A fraction of the powder was diluted in 100 mL of water with a drop of dispersant (Dolapix CE 64). The solution was maintained under constant stirring to avoid particle precipitation and to ensure circulation of the solution in the measurement cell. The curves resulting from the merging of three data sets were recorded.

Pellet shaping and sintering

700 mg of the U_0.90Pu_0.10O_2+x powder was used for pellet shaping using an Osterwalder automatic hydraulic floating press at 450 MPa in a 6.08 mm die. The densification behavior of the pellet was studied using a DIL402 E/7 Netzsch horizontal dilatometer. The furnace was composed of a graphite heating resistor protected by an alumina tube. The temperature heat treatment was composed of three phases: a heat ramp to 1700 °C at 2 °C min⁻¹, an isothermal heating at 1700 °C for 4 hours, and a temperature decrease to room temperature at 6 °C min⁻¹. The treatment atmosphere was set to Ar 95.7%/H₂ 4.3% with 1200 vpm of H₂O (corresponding to pO₂ = 4.3 × 10⁻²⁶ atm at 650 °C) using a Setnag GenAir zirconia-based oxygen pump gauge.

The sample density was determined by hydrostatic measurement based on the weight of the dry sample, immersed in bromobenzene, and finally impregnated with bromobenzene at a controlled temperature. These measurements were replicated three times, enabling the determination of the sample's hydrostatic density compared to the theoretical density of the oxide (%TD), as well as the open and closed porosity of the pellet.

The U_0.90Pu_0.10O_2+x pellet was mounted in a polyester resin and submitted to a longitudinal cut and a mirror polish. Optical imaging was performed with an optical microscope installed by Optic Peter and equipped with objectives and a camera (Olympus). The porosity size analysis (which also provides an estimation of the total porosity) was performed by means of the FIJI software.⁴⁶

The uranium-plutonium spatial distribution in the polished pellet was characterized using a CAMECA SX100 electron probe microanalyzer, in which the electron source is made of a tungsten wire. Before analysis, the sample was coated with a few tens of micrometers of carbon. Measurements were performed at 20 kV, with a probe current of 50 nA. The data were collected at the O K_α (524.9 eV), U Mα (3170.8 eV) and Pu M_β (3534 eV) fluorescence lines. The Pu M_β line was used instead of PuM_α (3345 eV) in order to avoid interference with the U M_β line (3336.7 eV). Under these conditions, the probed volume for the actinides M lines in (U,Pu)O₂ is about 0.8 µm in diameter and 0.5 µm in depth (as calculated with the CASINO V3.3 Monte Carlo software⁴⁷). 2D maps were collected by stage mapping, each for an area of 1024 × 1024 μm², with vertical and horizontal steps of 1 μm, a counting time of 20 ms per step on the peak, without background subtraction. For a better description of the plutonium distribution homogeneity, an additional mapping was recorded at 200 nA with a counting time of 100 ms per step, over a 512 × 512 µm² area. Quantitative measurements were performed along several 800 µm long lines with a 1 µm step and counting times of 15 s on the peak and 2 × 5 s on the background. Mass fractions were obtained using the X-PHI method⁴⁰ integrated in the CAMECA Peak Sight V6.5 software, using a UO₂ pellet for O and U calibrations and a PuO₂ pellet for Pu. The interference of the U M_γ (3521.0 eV) signal on the Pu M_β was corrected, using the same UO₂ pellet. The Pu maps were then pseudo-quantified using a linear relation between the count number and the Pu content.² The parameters were determined by comparing the count number in the Pu maps distribution to that of the Pu mass fraction measured along the lines.

The oxygen stoichiometry (O/M ratio with M = U + Pu) in the polished pellet was evaluated using Raman spectroscopy. Data were acquired using a Horiba Jobin-Yvon iHR320 Raman spectrometer coupled via optical fibers to a confocal optical microscope. The measurements were performed with a ×100 objective lens and a green laser (λ = 532 nm), along a 1200 groove per mm grating. This configuration enables a resolution of ±1 cm⁻¹.⁴⁸ The incident power was limited to 1.0 mW in order to preserve the integrity of the surface. The reproducibility of the spectra was verified by repeated acquisitions on the same areas, which revealed no modification of the Raman signal. To ensure frequency accuracy, a silicon standard with a Raman line frequency of 520.5 cm⁻¹ was used to calibrate the spectrometer. Subsequently, light from a neon lamp was introduced into the path of the scattered light to ensure a permanent frequency calibration of the spectrometer. The resulting instrumental uncertainty on the position of the Raman lines was estimated at ±0.5 cm⁻¹. The spectra were collected between 90 and 1960 cm⁻¹. To assess its homogeneity, spectra were collected along a 3 mm line (whole diameter of the pellet) with a 2 µm step. In total, 1851 spectra were acquired with an acquisition time of 60 s per point, and two successive acquisitions to improve the signal-to-noise ratio. The data acquisition and treatment were performed using the LabSpec v6.7.1.10 software (Horiba). The background was modelled using a linear function. Thereafter, each Raman band was fitted with a combination of mixed functions (Gaussian + Lorentzian) of the same frequencies and widths, enabling the determination of the position, width, and intensity of each band.

Results and discussion

Effect of fuel/metal ratio on U_0.5Pu_0.5O_2±x oxides synthesis

The influence of the CA/(U + Pu) ratio on the reduction of uranium(+VI) to uranium(+IV) has been previously demonstrated in the literature. In these studies, a secondary U₃O₈ phase can be observed in some cases, depending on the ratio considered, indicating the presence of residual uranium(VI) that was not reduced during combustion.^32,38,41,49 However, the reducing conditions can be reached under a specific CA/(U + Pu) ratio, as previously reported in the literature.^30,32,41 Such a situation can also be observed in the synthesis of mixed uranium and cerium oxides, where the (U,Ce)O₂ fluorite phase can be observed along with a secondary uranium-rich U₃O₈ phase.^32,33,37,41

In the present case, diffraction patterns of the powders containing 50 mol% uranium and 50 mol% plutonium show the formation of a single-phase compound, with no evidence of a secondary phase (Fig. 1). The obtained oxides all crystallized in a fluorite-type structure, U_0.5Pu_0.5O_2±x.

Fig. 1 X-ray patterns of U_0.5Pu_0.5O_2±x powders obtained by citric acid assisted SCS in an air atmosphere.

However, the lattice parameter of the U_0.5Pu_0.5O_2±x oxides is significantly lower than the theoretical lattice parameter according to Vegard's law between the pure UO₂ and PuO₂ endmembers (a = 5.4335 Å)^50–52 (Table 1), which could indicate an over-stoichiometry of the oxides. This difference seems to be particularly sensitive in the case of the oxide obtained with a low CA/(U + Pu) mole ratio, which may indicate an insufficient amount of citric acid for the reduction of uranium, or that the SCS reaction does not lead to complete uranium reduction under these combustion conditions.

Table 1 Crystallographic data and residual carbon content of U_0.5Pu_0.5O_2±x powders obtained by citric acid assisted SCS (theoretical value of lattice parameter for U_0.5Pu_0.5O_2±x: a = 5.4335 Å)

CA/(U + Pu) ratio	Lattice parameter, a (Å)	Crystallites size (nm)	Residual carbon content (%mass.)
1.21	5.408(2)	8 ± 1	2.4 ± 0.2
1.05	5.4094(1)	15 ± 1	1.5 ± 0.1
0.89	5.4073(1)	27 ± 1	0.3 ± 0.1
0.73	5.4061(1)	30 ± 1	0.8 ± 0.1
0.58	5.3921(1)	16 ± 1	1.2 ± 0.1

---

The effect of the fuel/metal ratio on the crystallinity of oxides obtained by SCS has been demonstrated for plutonium oxides,^37,38 or cerium oxides.³⁴ In the literature, the increase in the size of cerium oxide CeO₂ crystallites has been attributed to an increase in flame temperature.³⁴ Optimal ratios for the combustion of plutonium nitrate and uranyl nitrate into PuO₂ and UO₂ with citric acid have been determined to be 1.1³⁷ and 0.6,³⁸ respectively.

The crystallite sizes calculated from the X-ray patterns range between 9 (±1) and 30 (±1) nm and reach a maximum value for the CA/(U + Pu) ratio between 0.73 and 0.89 (Table 1). These results are consistent with the crystallite size previously determined for pure PuO₂ and UO₂ samples obtained by SCS reaction with the optimal ratio (26 ± 1 nm and 51 ± 1 nm, respectively).^37,38 The crystallite sizes are small due to the almost instantaneous ignition and rapid dissipation of heat during the SCS reaction.

Therefore, based on the PXRD results, the optimal CA/(U + Pu) molar ratio to trigger the SCS reaction seems to be between 0.73 and 0.89. This reaction led to oxide phases with a characteristic fluorite structure that exhibit lattice parameters significantly lower than the values expected for U_0.5Pu_0.5O₂, which could be correlated to an over-stoichiometry of the oxides (Table 1).

The hypothesis of an over-stoichiometry of the oxides has been studied with the aid of HERFD-XANES measurements performed at the uranium and plutonium M₄ edges on the powder with an initial ratio CA/(U + Pu)/An = 0.89. The spectra obtained clearly indicate the presence of a very large amount of uranium(+V) and (+VI) in the sample (Table 2), corresponding to approximately 44% and 55% of the uranium content, respectively. This very high level of overoxidation, which exceeds that generally accepted for actinide oxides with a cubic structure, can be explained both by the stabilization of the cubic phase by the presence of the plutonium, and by the kinetics of the SCS reaction (very rapid temperature rise during combustion followed by thermal quenching), which do not favor the exsolution of uranium oxide. The HERFD-XANES measurement performed at the plutonium M₄ edge evidence that plutonium is mainly in the +IV oxidation state in the oxide (contribution around 85%), but that there is also a significant contribution of plutonium in the +V oxidation state (contribution around 13%), which is rarely encountered in the oxides,⁵³ as will be discussed further in the article. These results lead to an estimate of the empirical formula of the over-stoichiometric oxide as being U_0.5Pu_0.5O_2.4.

Table 2 HERFD-XANES spectra recorded at the uranium (left) and plutonium (right) M₄ edges for the powders U_0.5Pu_0.5O_2+x powder, synthesized with CA/(U + Pu) = 0.89, and deconvolution results

Oxidation state	Contribution in U0.50Pu0.50O2+x powder^a
a For the quantification of the different oxidation states, the error is estimated as 5%.
Uranium(+IV)	1%
Uranium(+V)	44%
Uranium(+VI)	55%
Plutonium(+III)	2%
Plutonium(+IV)	85%
Plutonium(+V)	13%
Plutonium(+VI)	0%

---

The SCS method, which involves the use of organic molecules, can result in residual carbon contamination in the obtained powders. A high CA/(U + Pu) ratio can lead to a significant amount of residual organic content (Table 1) while a low CA/An ratio leads to a lack of organic reactant and therefore an incomplete combustion.^28,54 Thus, the smallest carbon contamination should be obtained for the stoichiometric reaction. Optimal ratios for the combustion of plutonium nitrate and uranyl nitrate into PuO₂ and UO₂ with citric acid have been determined as 1.1³⁷ and 0.6,³⁸ respectively, considering a maximum crystallite size and a minimum carbon content. In this study, the smallest carbon contents were found for samples with a CA/(U + Pu) ratio between 0.73 and 0.89, in line with the value previously determined from crystallite size determination.

Since the optimal CA/(U + Pu) ratio also seems to be located in the range between 0.73 and 0.89 for a 50/50 mixture, based on both the crystallite size and the carbon contamination of the oxide formed, it appears to be coherent with a linear or pseudo-linear relationship between the uranium and plutonium pure poles (experimentally determined to be 1.1 and 0.6, respectively,^37,38 leading to a pondered value of 0.8 for a 50/50 mixture).

This ratio is also in line with the value that can be calculated according to the richness hypothesis proposed by Jain et al.³⁶ Indeed, the optimal ratios for the pure poles have been calculated to be CA/U = 10/18^32,38 and CA/Pu = 20/18,³⁷ and, considering a 50/50 mixture, the expected optimal ratio would be:

Therefore, the experimentally determined optimal CA/(U + Pu) ratios correspond to the expected values derived from the linear relationships determined for pure poles, as well as the theoretical values issued from Jain’s theory.

In order to ensure the complete reduction of uranium during the combustion without an additional thermal treatment, a synthesis of U_0.5Pu_0.5O_2±x was performed under a reducing atmosphere (ArH₂, 4%) instead of air. A CA/(U + Pu) ratio of 0.89 was chosen to optimize the combustion, according to the first part of this work. Under these conditions, the combustion does not require an external source of O₂ as an oxidant.³⁶ The diffraction pattern of the powder after the synthesis under a reducing atmosphere shows a solid solution as obtained in air (Fig. 2) with no evidence of a secondary uranium-rich phase. The formation of a solid solution indicates that the ignition and combustion occurred during the experiment, even in the absence of oxygen, which confirms the stoichiometric conditions.³⁶ The lattice parameter (a = 5.4157 ± 0.0001 Å) is closer to the theoretical one for U_0.5Pu_0.5O₂ (a = 5.4335 Å) than the powder synthesized under an air atmosphere (Table 1). This result highlights a better reduction of uranium(+VI) than when the syntheses were performed in air. However, this reduction is still incomplete, as the lattice parameters remain far from the reference value, and O/M = 2.00 was not reached. Therefore, it appears that the direct use of SCS under a reducing atmosphere does not allow a perfectly stoichiometric (U,Pu)O₂ oxide to be produced. Depending on the intended use of the powder, a further reducing treatment may be necessary to improve the characteristics of the oxides.

Fig. 2 X-ray diffraction patterns of the powder obtained under air and under a reducing atmosphere (ArH₂-4%) Pu/(U + Pu) = 50%.

Effect of Pu/(U + Pu) composition

Mixed oxide syntheses were carried out with a variable Pu/(U + Pu) ratio ranging from 10 to 50 mol% in order to characterize the homogeneity of the powder obtained under optimal mixing conditions of citric acid and actinides. The obtained oxides all crystallized in a solid solution U_1−yPu_yO_2±x structure, as shown in the X-ray diffraction patterns presented in Fig. 3. The diffraction patterns do not exhibit any extra peaks that could indicate phase separation due to over-oxidation. In the case of the uranium oxide (100% uranium sample), the Bragg peaks corresponding to the (111) and (200) reflections are asymmetrical and present a shoulder respectively at 32.5° and 47°, which indicate a tetragonal distortion of the cubic lattice due to over-stoichiometry.^55,56 This deformation led to the tetragonal structure of U₃O_7−x, which was indeed identified for the uranium sample.⁵⁶

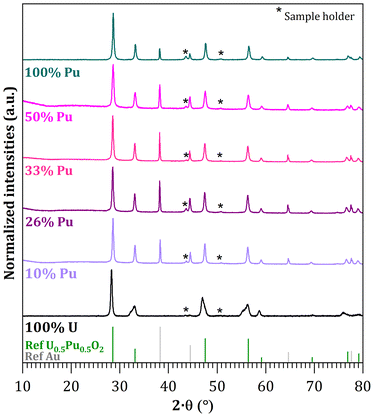

Fig. 3 X-ray diffraction patterns of U_1−yPu_yO_2±x powders obtained by citric acid assisted SCS.

However, the lattice parameters of the as-prepared mixed oxides are lower than those predicted, indicating an over-stoichiometric oxygen content (Fig. 4). This appears to affect the uranium cations as the deviation from the value expected for the stoichiometric oxide increased with the uranium content.

Fig. 4 Retger's law plot with lattice volume of the U_1−yPu_yO_2±x powders obtained by citric acid assisted SCS. *The unit cell volume of uranium oxide obtained by SCS is taken from a previous study,³⁸ and the values are presented in volume units to account for the over-oxidation of uranium oxide, which has resulted in a tetragonal distortion of the fluorite unit cell.^38,55

The over-oxidation is evidenced by the HERFD-XANES spectra at the uranium M₄ edge for the 26 mol% Pu and 50 mol% Pu powders, which show contributions from uranium(+VI) and (+V) (Tables 2 and 3). The coexistence of uranium(+V) and uranium(+VI) is consistent with an oxygen excess in the structure, leading to a hyperstoichiometric oxide (O/M > 2), as expected from the PXRD results. Although the Pu M₄ edge spectra show the characteristic shape of plutonium(+IV), they also reveal the presence of a fraction of Pu(+V) in the U_0.74Pu_0.26O_2+x and U_0.50Pu_0.50O_2+x. This contrasts with typical results reported for cubic (U,Pu)O_2±x oxides synthesized by conventional methods, where plutonium is predominantly tetravalent,⁵⁷ or reduced into Pu(+III) after sintering.⁵⁸

Table 3 HERFD-XANES spectra recorded at uranium and plutonium M₄ edges for the U_0.74Pu_0.26O_2+x powder, and deconvolution results

Oxidation state	Contribution in U0.74Pu0.26O2+x powder^a
a For the quantification of the different oxidation states, the error is estimated as 5%.
Uranium(IV)	1%
Uranium(V)	31%
Uranium(VI)	68%
Plutonium(III)	3%
Plutonium(IV)	79%
Plutonium(V)	18%
Plutonium(VI)	0%

---

Moreover, the spectrum of the PuO₂ powder, also obtained by SCS with an optimal CA/Pu ratio (details of the synthesis are reported in previous work³⁷), shows no evidence of plutonium(+V) in the PuO₂ end member. The presence of plutonium(+V) in the (U,Pu)O_2+x mixed oxides does not appear to be correlated with the nanometric nature of the powders, since PuO₂ powder, which presents a close crystallite size, does not exhibit this oxidation state of Pu.

Therefore, overoxidation of plutonium is related to the overoxidation of uranium and the very specific conditions encountered in the SCS reaction. Indeed, this method is characterized by a near-instantaneous reaction under an air atmosphere,^30,54 which may limit the complete reduction of uranium cations initially present as U(+VI) in the uranyl nitrate precursor,³⁰ thus affecting the plutonium oxidation state. The SCS method, due to its exothermic and rapid character, may trap these intermediate oxidation states within the fluorite lattice, especially given the very small crystallite size (10–30 nm), limiting oxygen diffusion and cation rearrangement.

The carbon residual content of the oxides was determined using micro-gas chromatography analysis, and all were below 0.5% mass, which is consistent with oxides of actinides obtained by the SCS process without further thermal treatment^33,37 (Fig. 5).

Fig. 5 Residual carbon content of the U_1−yPu_yO_2±x powders obtained by citric acid assisted SCS (determination by µ-GC).

SEM images do not appear to show significant differences in structure with changes in the plutonium content (Fig. 6). The powders form aggregates with a diameter of several hundred micrometers. A cross-sectional view of the material reveals a porous, foam-like structure (Fig. 6), similar to the sample containing 100 mol% Pu presented in a previous work.³⁷ However, the latter exhibited surface macroporosity in,³⁷ a phenomenon that is only observed in the sample with the highest plutonium content in this work (Fig. 6D).

Fig. 6 SEM micrographs of (U,Pu)O_2±x powders with Pu/(U + Pu) = (A) 10%, (B) 26%, (C) 33%, and (D) 50%.

The powders were calcined at 1100 °C under a reducing atmosphere (Ar-96%/H₂-4%) in order to verify the Pu/(U + Pu) content. The diffraction patterns indicate a recrystallization of the products (Fig. 7), which remain a solid phase solution. The lattice parameters after calcination evolve linearly between the two theoretical pure end members, UO₂ and PuO₂.^50–52 The additional calcination step under ArH₂ allows the uranium to be reduced, as indicated by the lattice parameter of the oxides after the thermal treatment (Fig. 7).

Fig. 7 X-ray diffraction patterns and lattice parameters of powders after calcination.

Pellet shaping and sintering of U_0.90Pu_0.10O_2+x

The U_0.90Pu_0.10O_2+x powder was chosen because it is representative of the MOX used in PWR Generation III reactors. The fuel/metal ratio was selected to optimize the powder's characteristics toward pellet shaping and sintering. Analysis of the powder by laser granulometry before pelletizing shows a broad volume distribution of particle sizes (Fig. 8). The average volume particle size is 77 µm, which is consistent with the observations made by SEM (Fig. 6). The broad distribution of particle sizes is consistent with the manufacturing method. This can be explained by the absence of mechanical treatment of the powder (grinding), with the powder being de-agglomerated by hand in a mortar. The granulometric distribution allows for the identification of particles with a very high granulometry, corresponding to agglomerates.

Fig. 8 Particle size distribution of the powder used for pellet fabrication.

The dilatometric curve of the pellet sintering indicates a low-temperature sintering (with a maximum shrinkage temperature at 800 °C). Most of the shrinkage thus occurs before 1000 °C, which is extremely low compared to the sintering behavior of powders prepared using powder metallurgy,⁵⁹ even when sintered in very oxidative atmospheres.⁶⁰ This can be correlated with the nanometer-scale dimensions of the powders prepared by the SCS process as well as with their high specific surface area, which is higher than the powders of enriched uranium oxide used for the fabrication of UO₂ fuel (6.6 m² g⁻¹, compared to typically 2–3 m² g⁻¹ for powder metallurgy⁶¹). A second shrinkage step can be observed starting around 1250 °C, which corresponds to the sintering temperature generally observed for MOX fuel.¹⁰Fig. 9 indicates an overall shrinkage of 19.1%, which is consistent with the geometrical measurement performed on the pellet with a 18.1% variation in height and 18.3% variation in diameter.

Fig. 9 Dilatometric analysis of the U_0.90Pu_0.10O_2+x pellet in Ar 95.7%/H₂ 4.3%.

The density of the pellet was determined by the geometric method (86.7%TD) and the hydrostatic method (91.7%TD). Based on hydrostatic measurements, the open porosity was determined to be 3.3%, and the closed porosity was 5.0%, meaning a total porosity of 8.3%.

The optical micrographs of the longitudinal cut of the pellet show significant open and closed porosity. Imaging analysis reveals a total porosity of 15%, corresponding to a density of 85%. Two modes appear in the distribution: a first one centered on a few micrometers, which corresponds to the expected round-shaped microporosity observed in Fig. 10B, and a second one corresponding to macropores with an ECD larger than 100 µm (Fig. 11). Considering the large size of the macropores, the open porosity might, however, be underestimated by the hydrostatic method, and the actual density might be closer to that measured by the geometric method.

Fig. 10 Optical view of the polished cross-section of the U_0.90Pu_0.10O_2+x pellet after sintering (longitudinal cut), (A) whole cross section showing the macropores, (B) detail showing the microstructure obtained between the macropores (the diagonal grey line is a scratch resulting from the sample preparation).

Fig. 11 Distribution of pore sizes in the U_0.90Pu_0.10O_2+x pellet after sintering, determined using ImageJ software.

The important and large porosity could be explained by the evacuation of organic residues from the powder (measured at 3000 ppm for the initial powder). Moreover, the oxidation state of uranium in the initial powder can influence the behavior during sintering and so the porosity, as the initial powder contains an important fraction of uranium(+VI). The residual organic content and the presence of uranium(+VI) induced a 5% weight-loss during sintering. Besides, the broad distribution size of the particles can lead to difficulties during pellet pressing. An additional grinding step or sieving could improve the pellet shaping and the behavior during sintering to reach higher pellet densities.

Element mapping analysis indicates a very homogeneous cationic distribution (Fig. 12) in perfect agreement with the analyses carried out on the precursor powder, which reveal a solid solution (U,Pu)O_2+x in X-ray diffraction (Fig. 3). Fig. 13A presents the plutonium distribution extracted from the three 1 mm² maps (dots), compared to what would be obtained for a perfectly homogeneous sample (line). Almost no differences are observed between the sample and the theoretical homogeneous reference. Even when the counting rate is significantly increased (by increasing the probe current and counting time; red curves in Fig. 13A), the only observable deviation from the perfect homogeneity is a small shoulder in the lower plutonium contents. Fig. 13B compares the inverse cumulative area fraction as a function of the plutonium contents for the three 1 mm² maps to that obtained in (U_0.90Pu_0.10)O₂ pellets fabricated from powders prepared from UO₂ and PuO₂ (respectively through co-grinding and freeze granulation routes). This comparison highlights the absence of Pu-rich spots in the pellet obtained from the SCS method. Less than 0.01% of the mappings have Pu/(U + Pu) ratios greater than 20 wt%, whereas it is more than 1% for the sample obtained by co-grinding.

Fig. 12 SE (secondary electron), oxygen, uranium and plutonium mappings obtained by EPMA on the 512 × 512 µm² area polished cross-section of the sintered U_0.90Pu_0.10O_2+x pellet.

Fig. 13 (A) Pu content distribution extracted from the EPMA mappings compared to the expected distribution for a perfect homogeneity (broadening of the peak due to the measurement conditions). (B) inverse cumulated area fraction as a function of the Pu content extracted from the same three maps and compared to that obtained on two pellets fabricated from conventional UO₂ and PuO₂ powders.⁵⁹

The average signal of 1851 Raman spectra is shown in Fig. 14 (left). This spectrum is typical of a fluorite-type structure, as observed in UO₂, PuO₂ and (U,Pu)O₂.^48,62–66 No other band corresponding to a hypothetical secondary phase can be seen. The main bands observed correspond to the T_2g mode at 449.6 ± 0.5 cm⁻¹, the T_1u (LO) at 575.8 ± 0.5 cm⁻¹ and 2LO at 1152.1 ± 0.5 cm⁻¹. The presence of the T_1u (LO) band, which is not activated for a perfect fluorine structure, is attributed to a slight local distortion due to the difference in ionic radii between uranium(+IV) and plutonium(+IV).⁴⁸ As shown by Medyk et al.,⁶⁷ the position of the T_2g line in a (U,Pu)O_2−x structure is directly linked to the plutonium content and the O/M ratio. Using the Medyk et al.⁶⁷ relation for a stoichiometric compound (O/M = 2.00), a 449.6 ± 0.5 cm⁻¹ position corresponds to 9.4% ± 0.3% Pu/(U + Pu). This is the same value determined by EPMA, as shown in Fig. 13. The dispersion of the T_2g band position over the 1851 spectrum collected is plotted in Fig. 14 (right). This curve corresponds almost perfectly to a Gaussian distribution as shown by the fit (Fig. 14, right), with a maximum at 449.3 cm⁻¹ and a full width at half maximum of 0.7 cm⁻¹. The slight difference between the average spectrum and distribution is within the uncertainty. Nevertheless, considering the 9.4% plutonium content measured by EPMA, a T_2g band at 449.3 cm⁻¹ corresponds to an O/M ratio of 1.9985. The O/M ratio of the sample can be considered equal to 2.00, given the experimental uncertainty of the Raman analysis, and this oxygen stoichiometry is homogeneous over the whole pellet.

Fig. 14 Left: Average Raman spectra collected on the U_0.90Pu_0.10O₂ pellet. Right: Position dispersion of the T_2g band in the 1851 Raman spectra.

Conclusion

The synthesis of mixed oxides (U,Pu)O_2+x by the SCS method using citric acid as a fuel was carried out. This choice was based on the promising results obtained on UO₂ ^32,38 and PuO₂.³⁷ A parametric study on the amount of fuel was conducted to determine the optimal CA/An ratio required to trigger the ignition. The characterization of the powders produced by SCS under optimal conditions showed the formation of a homogeneous solid solution for all tested plutonium concentrations (Pu/(U + Pu) = 10, 26, 33 and 50 mol%). The obtained oxides presented a high over-stoichiometry due to the over-oxidation of uranium, which was characterized by PXRD and confirmed by HERFD-XANES. The presence of plutonium(+V) revealed by HERFD-XANES results is interesting because it had not been observed in PuO₂ that was also synthesized by SCS and had similar characteristics, such as crystallite size. This could be attributed to the specific conditions encountered during the SCS reaction and the presence of highly oxidized uranium in the lattice, which could stabilize Pu(+V). To better understand this phenomenon and precisely characterize the local structure around Pu and U atoms, several complementary approaches can be used. Especially, EXAFS spectroscopy, which is sensitive to distortions induced by Pu(+V) and U(+VI), could help to accurately determine interatomic distances and local coordination.

A sintering test of a U_0.90Pu_0.10O₂ pellet was carried out under conditions representative of the MOX of PWR reactors of Generation III. A density of 88%TD (geometric measurement) with homogeneous cationic distribution was achieved. Although the (U,Pu)O_2+x powder prepared by the SCS method exhibits high over-stoichiometry, the final O/M ratio obtained in the sintered pellet is 2.00. This result demonstrates the feasibility of manufacturing stoichiometric pellets from powder obtained by the SCS method under conditions similar to those currently used in MOX manufacture. The very low sintering temperature is indicative of the nanocrystalline nature of the powders, a characteristic of the SCS. These results constitute a solid basis for optimizing the synthesis of mixed oxide powders of actinides and the subsequent step of pellet fabrication to obtain (U,Pu)O₂ pellets with more than 95%TD.

This work demonstrates the feasibility of the synthesis of actinide mixed oxides by the SCS method using citric acid as fuel. However, adjustments are necessary to control the stoichiometry of the as-prepared oxides produced, for example, by controlling the synthesis atmosphere or considering subsequent thermal treatment. In addition, a better understanding of the combustion phenomenon could allow the optimization of the amount of fuel in the mixture and thus minimize the amount of organic residues in the final powders. Although the feasibility of sintering has been demonstrated on a single example, future work is needed to optimize fuel fabrication to produce dense pellets of MOX fuel.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information is available.^68–70 See DOI: https://doi.org/10.1039/d5dt02138c.
