Flux crystal growth of potassium lanthanide double vanadates with lanthanide-dependent coordination number variance

Abstract

A series of potassium rare earth double vanadates is presented. Single crystals of double vanadates with stoichiometry K₃Ln(VO₄)₂ (Ln = La, Pr, Nd, and Sm) and crystallizing in the glaserite structure type were synthesized via a molten alkali chloride/fluoride flux reaction. Different structures were observed depending on the constituent rare earth: K₃La(VO₄)₂ crystallizes in an as-of-yet unreported modification of the typical glaserite structure in the space group P2₁/c, likely due to its larger ionic size that results in an increase in the lanthanide coordination number (seven to eight). The Pr, Nd, and Sm compositions are isostructural with their phosphate analogues and crystallize in the space group P2₁/m. A discussion of the synthetic details, structure determination, structure descriptions, and coordination number variance is presented.

---

Introduction

Alkali rare earth double phosphates with stoichiometry A₃Ln(PO₄)₂ (A = Na, K, Rb, Cs) have demonstrated wide ranging properties and structural diversity that have made them attractive targets for ongoing research.^1–16 For example, both doped (dopants include Pr³⁺, Gd³⁺, Eu³⁺, and Tb³⁺) and undoped compositions have been synthesized and evaluated as potential photoluminescent materials.^2,4,17,18 Also, it has been shown that by varying the size of the constituent alkali and lanthanide elements, different structures may be obtained that vary in lanthanide content, coordination numbers, and symmetries.^5,10,16,18 Recently, the lanthanide double phosphates containing K⁺ or Rb⁺ have shown promise as potential nuclear waste forms for the sequestration of transuranic elements, such as americium,^10,19 as have other lanthanide phosphates, such as monazites.²⁰ Lanthanide phosphates, in general, (not just the double phosphates) have been of interest for their radiation tolerance, which make them ideal for nuclear waste forms requiring persistent materials.¹⁰

One of the most common structure types that the double phosphates crystallize in is the glaserite, K₃Na(SO₄)₂, structure.¹² The full lanthanide(III) series (excluding Pm) of K₃Ln(PO₄)₂ has been synthesized and published by Farmer et al.,¹⁶ and we recently continued this work by synthesizing and publishing the full lanthanide(III) series (excluding Ce and Pm) of Rb₃Ln(PO₄)₂.¹⁰ The majority of these phases crystallize in the monoclinic glaserite structure, however, for the smaller (heavier) lanthanides, a reduction in coordination number (seven to six coordination) for the constituent lanthanide with a change from to monoclinic to trigonal symmetry is observed. For the potassium analogues, this drop in coordination number occurs between Yb and Lu, while for the rubidium analogues, this change occurs between Tb and Dy. In addition, some double phosphates in the glaserite structure can by thermally induced to transition into this lower coordination number structure.^10,15 While this helps elucidate the influence of varying the alkali and lanthanide elements on the formation of specific structure types, significantly less work has been performed on varying the phosphate unit.

A structural unit with very similar chemistry to the phosphate, PO₄³⁻, unit is the VO₄³⁻, or vanadate, unit. Both the phosphorus and vanadium exist in their +5 oxidation state, have noble gas electron configurations, and form tetrahedral XO₄ units with 4 equal X–O bonds of order 1.25. This makes the vanadate unit an excellent candidate for substituting the phosphate unit in known compositions.^9,11,21–23 For example, the Kolis group has previously reported a series of potassium lanthanide double vanadates with the glaserite structure and stoichiometry K₃Ln(VO₄)₂.²² They successfully synthesized the Sc, Y, and Dy–Lu analogues via both a supercritical hydrothermal and molten flux routes. However, the La–Tb analogues have yet to be reported in the literature. In this paper, we report the synthesis of the La, Pr, Nd, and Sm analogues of K₃Ln(VO₄)₂ via a molten flux route. The synthetic details, determination of their structures via single crystal X-ray diffraction, and structural details will be discussed.

Experimental

Reagents

La₂O₃ (Alfa Aesar, 99.9%), Nd₂O₃ (Acros Organics, 99.9%), Sm₂O₃ (Alfa Aesar, 99.99%), V₂O₅ (Alfa Aesar, 99.6%), KCl (Sigma Aldritch, 99.98%), and KF (Alfa Aesar, 99%) were used as received. Pr₆O₁₁ (Alfa Aesar, 99.9%) was heated at 1000 °C for 12 h in an alumina crucible under H₂/N₂ gas flow to reduce it to the sesquioxide. The produced Pr₂O₃ was then used as is.

Synthesis

Single crystals of K₃Ln(VO₄)₂ were synthesized via a molten flux method. First, 1 mmol of Ln₂O₃, 2 mmol of V₂O₅, 11 mmol of KCl, and 9 mmol of KF were mixed thoroughly and added to a bowl-shaped platinum crucible. The crucible was then covered with a platinum lid and loaded into a programmable furnace. The furnace was then programmed to heat to 875 °C, dwell at 875 °C for 12 h, cool to 500 °C at 10 °C h⁻¹ and finally shut off. The crucible was then allowed to cool to room temperature before removing it from the furnace. The crystals were extracted from the flux by sonicating the crucible in deionized water for 1 h and finally removing the dissolved flux via suction filtration.

Powder X-ray diffraction (PXRD)

A Bruker D2 Phaser equipped with a LYNXEYE XE-T silicon strip detector and a sealed-tube Cu K_α anode was used to collect PXRD data over a 2θ range of 5° to 65° on all products to determine phase identities and purities. The high energy resolution of the LYNXEYE XE-T detector allowed for energy cut-off of the K_β X-rays.

Single crystal X-ray diffraction (SXRD)

Single crystal X-ray diffraction data were collected on all K₃Ln(VO₄)₂ products at ambient temperature using a Bruker D8 QUEST diffractometer equipped with a microfocus IµS 3.0 sealed-tube X-ray source (Mo K_α1, λ = 0.71073 Å) and a PHOTON II CPAD detector. Collected frames were integrated using SAINT+ and were corrected for absorption effects using SADABS in the Bruker APEX 3 software suite.²⁴ Initial structure models were obtained with SHELXT using intrinsic phasing²⁵ and refined with SHELXL using least-squares full-matrix methods²⁶ in OLEX2. Space groups were determined using a combination of XPREP systematic absences analysis²⁴ and ADDSYM (PLATON software suite) analysis.²⁷ Crystallographic information can be found in Table 1.

Table 1 Crystallographic data for K₃Ln(VO₄)₂ (Ln = La, Pr, Nd, Sm)

Formula	K3La(VO4)2	K3Pr(VO4)2	K3Nd(VO4)2	K3Sm(VO4)2
System	Monoclinic	Monoclinic	Monoclinic	Monoclinic
Space group	P21/c	P21/m	P21/m	P21/m
a (Å)	7.6047(1)	7.5663(1)	7.5519(2)	7.5342(2)
b (Å)	5.9188(1)	5.9128(1)	5.9169(1)	5.9090(2)
c (Å)	20.0090(4)	9.9436(2)	9.9126(2)	9.8642(2)
β (°)	90.914(1)	90.895(1)	90.872(1)	90.809(1)
V (Å^3)	900.50(3)	444.80(1)	442.88(2)	439.11(2)
Z	4	2	2	2
Crystal size (mm^3)	0.1 × 0.1 × 0.05	0.08 × 0.08 × 0.04	0.38 × 0.35 × 0.15	0.1 × 0.1 × 0.1
Temperature (K)	297	299	301	299
Dx (g cm^−3)	3.585	3.644	3.685	3.763
θ range (°)	2.9–36.3	2.7–36.3	2.7–36.3	3.4–36.3
Abs. coef. (mm^−1)	8.09	8.86	9.26	10.12
Reflections collected	101 214	54 234	60 332	59 529
Independent reflections	4320	2316	2303	2260
Rint	0.026	0.035	0.043	0.028
h	−12 ≤ h ≤ 12	−12 ≤ h ≤ 12	−12 ≤ h ≤ 12	−11 ≤ h ≤ 12
k	−9 ≤ k ≤ 9	−9 ≤ k ≤ 9	−9 ≤ k ≤ 9	−9 ≤ k ≤ 9
l	−33 ≤ l ≤ 33	−16 ≤ l ≤ 16	−16 ≤ l ≤ 16	−16 ≤ l ≤ 16
Δρmax (e^− Å^−3)	0.94	0.83	1.67	1.05
Δρmin (e^− Å^−3)	−0.55	−0.66	−3.09	−1.13
Goodness-of-fit on F^2	1.31	1.16	1.42	1.41
R1(F) for Fo^2 > 2σ(Fo^2)	0.013	0.011	0.022	0.013
wR2(Fo^2)	0.034	0.029	0.058	0.035
R1(all)	0.014	0.012	0.022	0.013
wR2(all)	0.035	0.029	0.058	0.035
F(000)	896	452	454	458
Extinction coefficient	0.00819(18)	0.0112(5)	0.300(6)	0.229(3)
Restraints/parameters	0/128	0/80	0/80	0/80

---

Results and discussion

Synthesis

A eutectic mixture of KCl and KF was utilized as a flux for the crystallization of K₃Ln(VO₄)₂. A ratio of 11 : 9 of KCl : KF corresponds to the approximate ratio at which their eutectic is at its minimum melting temperature: about 600 °C. By taking advantage of this lower melting point, the range of temperatures during which crystallization may occur is extended. Also, the use of an alkali halide flux provides both a source of K⁺ for incorporation into products and a source of halides that may facilitate the solvation of the starting reagents. The Ln₂O₃ and V₂O₅ are unlikely to dissolve without the presence of such halides due to their high stabilities. Many fluxes, such as hydroxide salts, are prone to oxidizing constituents of the melt that have stable, lower oxidation states. In contrast, the alkali halide fluxes tend to be redox neutral which is necessary to maintain the correct oxidation states of the Ln(III) and V(V). As a result, high-quality, large, prismatic crystals were formed.²⁸

Kolis et al. have previously reported difficulties in synthesizing the La through Tb analogues of K₃Ln(VO₄)₂ via molten flux and supercritical hydrothermal techniques.²² However, they have reported using 1000 °C as their dwelling temperature for their flux reactions, while we have utilized a temperature of 875 °C to successfully synthesize the La through Sm analogues. Thus, there is likely a strong dependence of double vanadate crystallization on reaction temperature with a preference of lower temperatures for the lighter lanthanides. However, the Ce, Eu, Gd, and Tb analogues have not yet been successfully synthesized. For Ce, the reason is likely due to the instability of Ce³⁺ in open air at high temperatures. For Eu, Gd, and Tb, on the other hand, the reason for failure is less clear.

Unfortunately, all but the La reaction yielded impurities despite attempts at adjusting reaction parameters to select for K₃Ln(VO₄)₂ (Fig. 1 and 2). The amount of impurity formed increases across the series, suggesting that the smaller ionic size for later lanthanide ions leads to a mix of products. The impurity has been identified as a potassium lanthanide vanadate fluoride which will be discussed in a future publication.

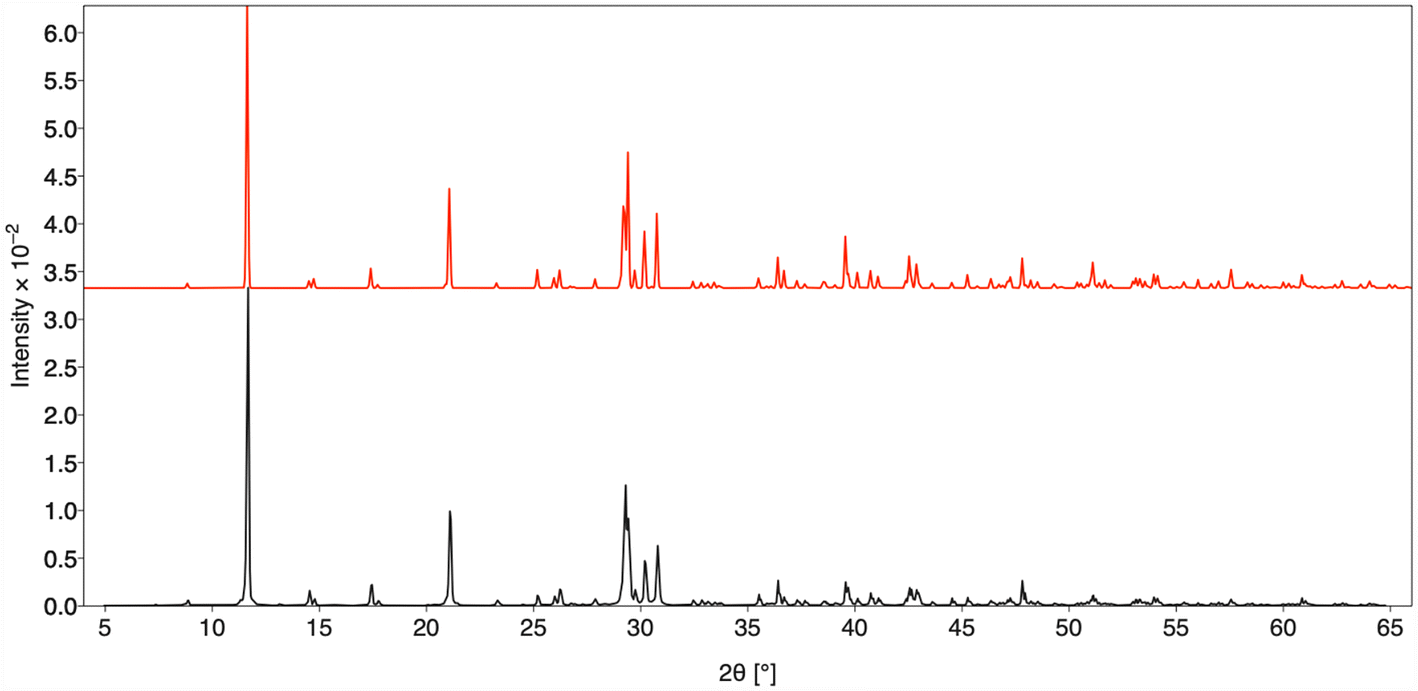

Fig. 1 PXRD of K₃La(VO₄)₂ (black) with simulated PXRD pattern calculated from SXRD model of K₃La(VO₄)₂ (red).

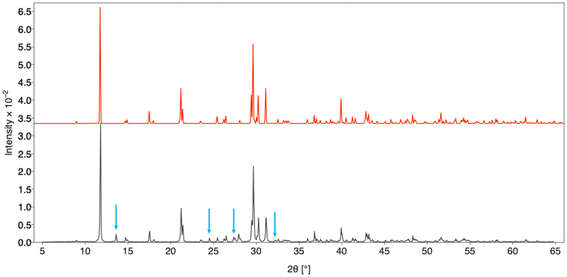

Fig. 2 PXRD of K₃Sm(VO₄)₂ (black) with simulated PXRD pattern calculated from SXRD model of K₃Sm(VO₄)₂ (red). Peak corresponding to impurities are indicated with blue arrows.

Structure description

For Ln = Pr, Nd, and Sm, K₃Ln(VO₄)₂ crystallizes in the space group P2₁/m and is isostructural with its phosphate analogues.⁹ This structure is analogous to the glaserite structure and consists of Ln(VO₄)₂ 2D layers separated by K₃ layers in an ABAB… repeating sequence (Fig. 3). The Ln(VO₄)₂ layers consist of LnO₇ trigonal antiprisms and VO₄ tetrahedra. Each Ln(III) cation is bound to six VO₄ tetrahedra: five via corner sharing (monodentate) and one via edge sharing (bidentate). The Ln polyhedra do not share any anions with each other and the VO₄ tetrahedra do not interconnect. All O atoms are part of a VO₄ tetrahedron (Fig. 4). The K⁺ layer, on the other hand, consists of three sublayers of K⁺ atoms in a ccp arrangement. For Ln = La, however, K₃Ln(VO₄)₂ crystallizes in the space group P2₁/c and is a modification of the typical glaserite structure (Fig. 3).

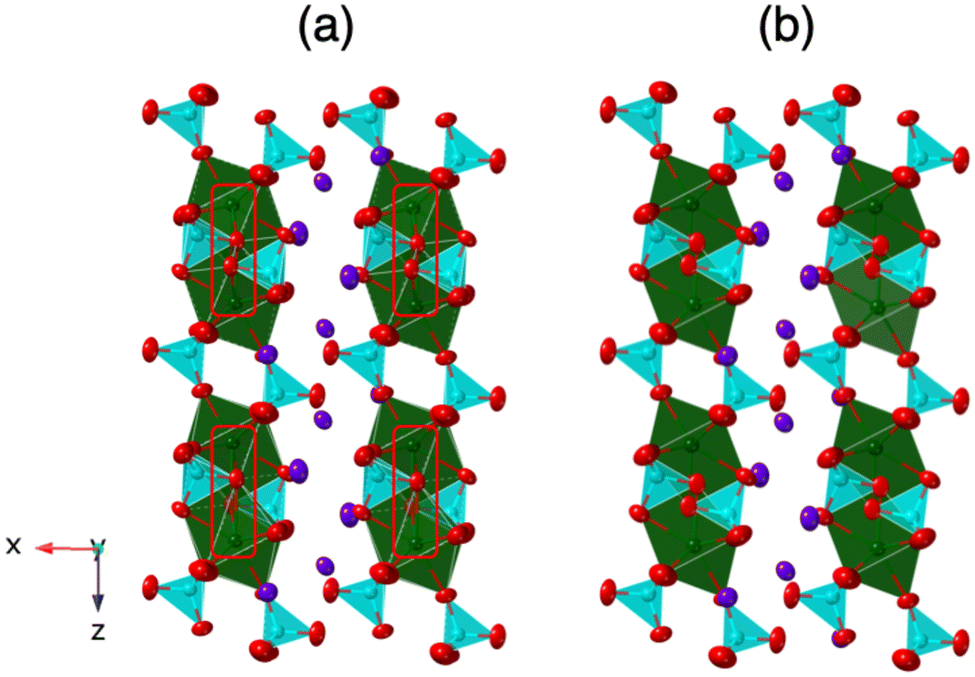

Fig. 3 View down the b-axis of K₃Ln(VO₄)₂ for (a) Ln = La and (b) Ln = Pr, Nd, and Sm. Ellipsoids are shown at 99% probabilities. The additional Ln–O bonds, relative to the 7-coordinate glaserite structure, are outlined in red.

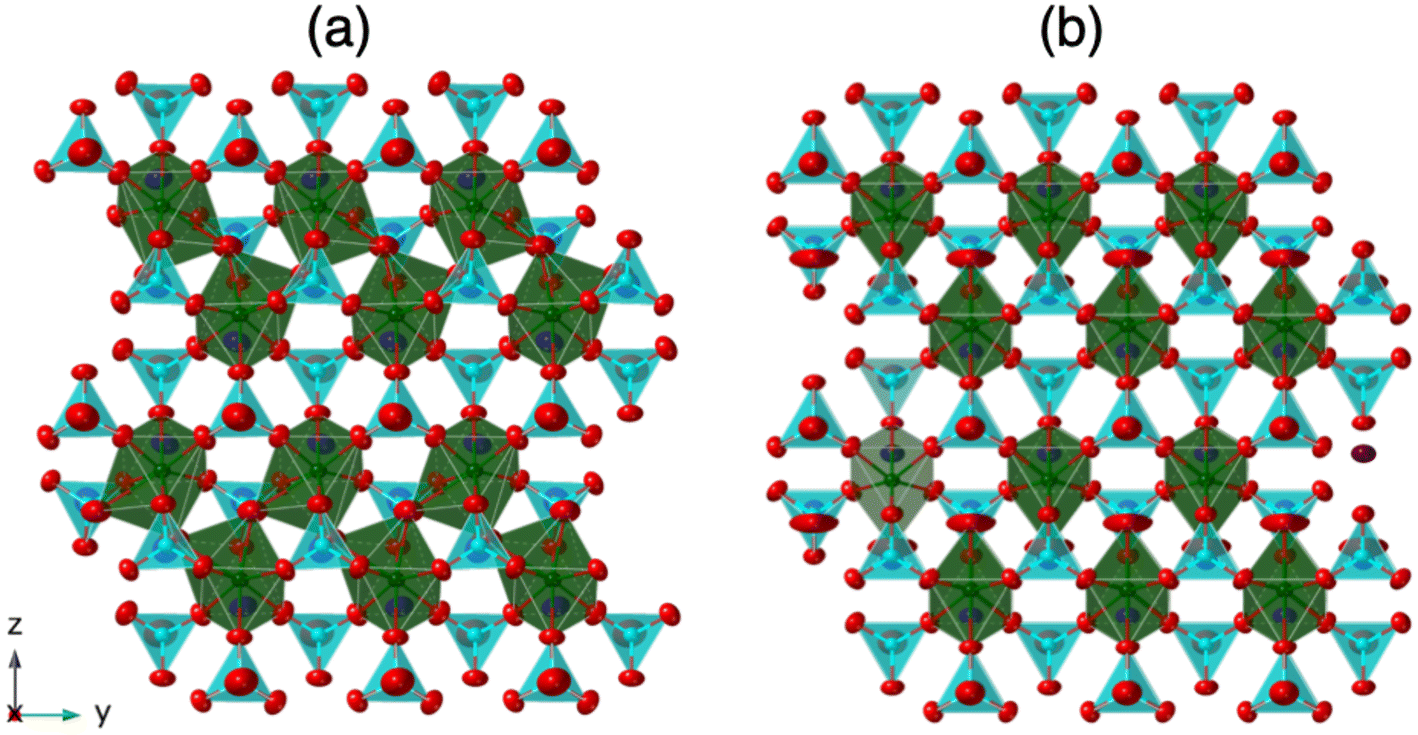

Fig. 4 View down the a-axis of K₃Ln(VO₄)₂ for (a) Ln = La and (b) Ln = Pr, Nd, and Sm. Ellipsoids are shown at 99% probabilities.

In the K₃Ln(VO₄)₂ models for Ln = Pr, Nd, and Sm, the thermal ellipsoid for O6 is elongated perpendicularly to the bond it creates with the Ln and extends towards two adjacent Ln atoms (Fig. 4 and 5). This phenomenon has been observed previously in the glaserite-type K⁺ and Rb⁺ alkali phosphates.^10,16

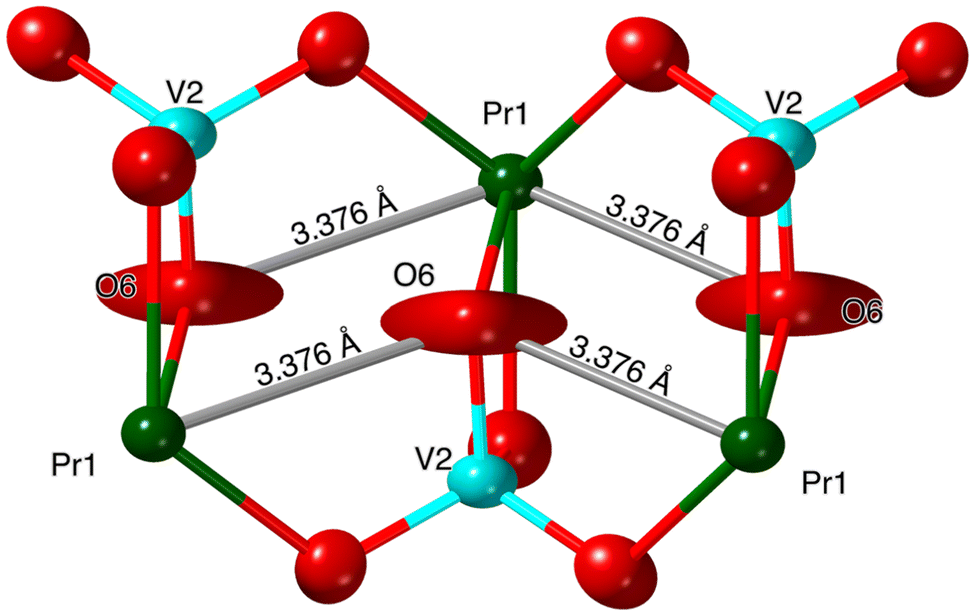

Fig. 5 Structure of typical monoclinic glaserite Ln–O6 chains showcasing the elongated O6 thermal ellipsoids and their distances to neighboring Ln atoms (K₃Pr(VO₄)₂ structure model shown).

In the K₃La(VO₄)₂ structure, this O atom (O8 in the La structure) no longer has an elongated ellipsoid but instead coordinates fully to one of the adjacent Ln atoms (Fig. 4). This changes the O atom from being bound to one V atom and one Ln atom to being bound to one V atom and two Ln atoms (Fig. 6 and 7). Consequently, the coordination number of La is eight instead of the typical seven in the glaserite structure. The elongated O ellipsoid in the K₃Ln(VO₄)₂ models for Ln = Pr, Nd, and Sm implies the possible presence of an attractive force between the adjacent Ln atoms and the elongated O that only becomes strong enough to lock into one position upon the incorporation of La. Due to the lanthanide contraction, shielding of 4f-electrons, and equivalent Ln charges (+3), this is likely to be a consequence of the larger size of La compared to Pr, Nd, and Sm. What is especially striking, however, is that O8 is shifted in a symmetrical fashion throughout the structure (Fig. 7). Looking down the b direction, the direction of the O8 shift from its standard glaserite position is constant for a single line of O8 atoms extending down the b direction. However, looking down the c direction, the O8 atoms alternate between shifting in the positive and negative b directions (Fig. 3). This symmetry doubles the unit cell size relative to the glaserite unit cell. Despite this doubling, no superstructure peaks at low 2θ are visible on the observed PXRD patterns.

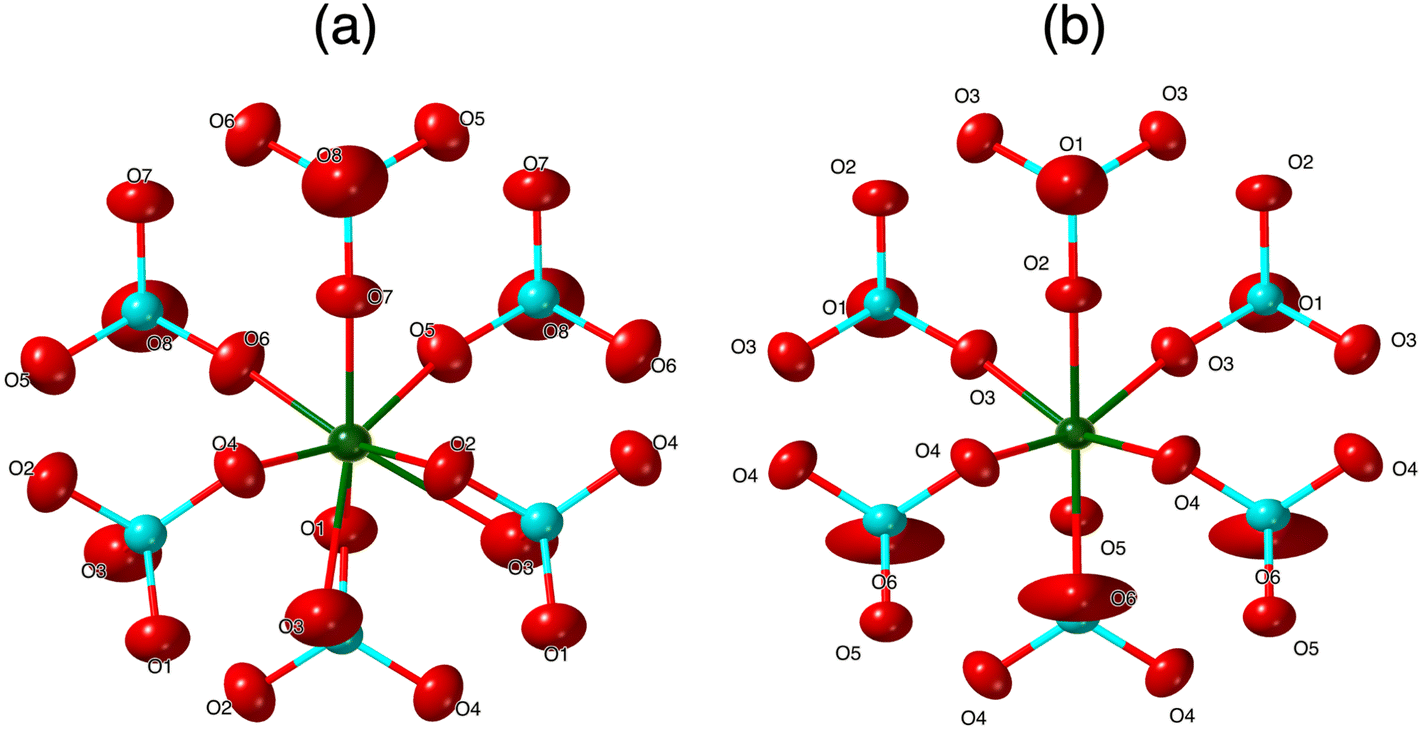

Fig. 6 Coordination environment of Ln in K₃Ln(VO₄)₂ looking down the b-axis for (a) Ln = La and (b) Ln = Pr, Nd, and Sm. Ellipsoids are shown at 99% probabilities.

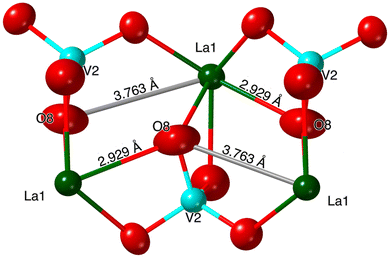

Fig. 7 Structure of K₃La(VO₄)₂ La–O8 chains showcasing the La–O8 distances.

Summary

Single crystals of K₃Ln(VO₄)₂ (Ln = La, Pr, Nd, and Sm) were synthesized via a molten KCl/KF eutectic flux. Challenges still exist in the synthesis of the full lanthanide(III) series with no successful attempts made at synthesizing high-quality single crystals of the Ce, Eu, Gd, and Tb analogues. The La analogue crystallizes in a novel modification of the glaserite structure with an increase in coordination number of the lanthanide from seven to eight. The Pr, Nd, and Sm products are all isostructural with their phosphate analogues. This change in coordination number is likely due to the significant difference in sizes of the lanthanides with La being the largest. Future work will focus on identifying new synthetic methods for targeting the Ce, Eu, Gd, and Tb analogues.

Conflicts of interest

There are no conflicts to declare.

Data availability

Raw data for other measurements are available upon request.

Supplementary information (SI) is available. See DOI: https://doi.org/10.1039/d5dt02027a.

CCDC 2480797–2480800 contain the supplementary crystallographic data for this paper.^29a–d
