Electron–electrophile coupled dinitrogen reduction in a cerium–meta-tetraphenolate system: a computational study

Shahbaz Ahmada, Polly L. Arnold*b and Nikolas Kaltsoyannis*a
aDepartment of Chemistry, University of Manchester, Oxford Road, Manchester M13 9PL, UK. E-mail: nikolas.kaltsoyannis@manchester.ac.uk
bUniversity of California, Berkeley and Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA. E-mail: pla@berkeley.edu

Received 30th January 2026 , Accepted 2nd March 2026

First published on 3rd March 2026


Abstract

The use of lanthanide complexes for catalytic dinitrogen reduction is a new development in homogeneous catalysis. Density functional theory calculations on our recently reported cerium phenolate catalyst [K2Ce2(sol)4(mTP)2] (mTP = {(OC6H2-2-tBu-4-Me)2CH}2-1,3-C6H4; sol = OMe2 here; THF in the experiment) have been undertaken to elucidate the reduction, activation and silylation steps at the bound dinitrogen molecule, in the presence of the reductant, potassium metal (K0) and the electrophile Me3SiCl (TMSCl). Out of the total of six electron reductions required to cleave the N2, the first two-electron reduction step was found to be highly disfavoured unless potassium cations (K+) are included, upon which the step is rendered strongly exergonic; N–Si bond formation at the two-electron stage is predicted to be unfavourable. The three-electron-reduced N2-adduct is found to be at the reductive activation limit in the absence of added electrophiles, which can form N-element bonds and lower the overall charge. Added electron density beyond three-electron reduction no longer localises on N2, preventing formal N24− formation. A pathway in which both K0 and Me3SiCl work in concert was modelled, and six sequential reduction–silylation steps were calculated, showing how the N–N bond is cleaved after the third reduction, eventually releasing two equivalents of N(SiMe3)3, and regenerating the starting complex with the highest barrier of any step being 22 kcal mol−1. We establish alkali metal coordination and coupled electron–electrophile transfer as key factors in the design of rare-earth-mediated dinitrogen functionalisation.


Introduction

The catalytic conversion and fixation of atmospheric dinitrogen (N2) into value-added organonitrogen compounds (the nitrogen reduction reaction, N2RR; i.e., the net reduction of N2 to ammonia and/or organonitrogen products) remain among the foremost challenges in contemporary chemistry,1 primarily due to the exceptional thermodynamic stability and kinetic inertness of the N[triple bond, length as m-dash]N triple bond (bond dissociation energy ≈ 226 kcal mol−1).2–4 Although the industrial Haber–Bosch process continues to dominate large-scale ammonia synthesis, there are opportunities for small-scale, low-energy N2RR processes to provide energy justice to remote communities.1,5–7 Consequently, the development of alternative strategies for N2 activation and functionalisation under milder, more sustainable conditions is being pursued with growing intensity.8–17 Molecular systems capable of mediating the reductive functionalisation of N2 through multi-electron, multi-proton transformations have attracted considerable attention.18–23 A key approach is ligand design that stabilises reduced metal centres while promoting N2 binding, activation, and subsequent functionalisation.23–25 Lanthanides are difficult to reduce; accordingly, f-block systems typically deliver electrons from an external reductant to bound N2, often with alkali-metal assistance and concurrent electrophile capture, and have only recently emerged as promising candidates for N2RR.8,9,15,26

Among f-block elements, Sm(II) binding of N2 has long been known,27 and both Sm and Ce have now also been reported to catalyse N2 functionalisation.9,28 In the d block, Mo, Ti, and Fe systems are well developed for end-on/side-on N2 binding and stepwise proton-coupled electron transfer.9,12,29–31 We showed that strongly electron-donating tetraphenolate scaffolds stabilise dinuclear f-element N2 adducts and promote multi-electron delivery; related multinucleating phenolates also support early d-metal N2RR, including Ti systems selective for secondary silylamines and the first Zr catalysts.9 We also showed that the mTP ligand's benzylic CH group can be deprotonated by the bound, reduced N2, enabling the first catalysts for selective conversion of N2 to secondary silylamines.8

Ce-based homogeneous N2RR remains rare and mechanistically underexplored.32 Ce is the most abundant rare earth element, and is exceedingly difficult to reduce, so to achieve N2 reduction, CeIII complexes require a co-reductant.9,28,33,34 Cerium's ability to stabilise high coordination numbers and to adopt variable geometries renders it an attractive candidate for the design of complexes capable of facilitating multi-electron, multi-proton N2 activation.35–38

Here we describe a comprehensive computational study of the mechanism of N2RR catalysed by the bimetallic Ce(III) complex 1, [K2Ce2(Me2O)2(mTP)2] (mTP = meta-tetraphenolate), designed to elucidate the capabilities and limitations of multi-electron transfer processes within this f-block framework. The overall experimental N2-to-N(SiMe3)3 stoichiometry with K/TMSCl, together with the computed Ce–mTP electron–electrophile-coupled mechanism, is summarised in Scheme 1. Particular attention has been given to the structural, thermodynamic, and electronic features relevant to N2 binding, reduction, and subsequent functionalisation. The influence of alkali metal cations on the energetics of N2 activation has been considered in detail due to the known role of different electropositive countercations in stabilising reduced N2 intermediates in a variety of d-block systems, as well as in the mTP complexes.39–42 More broadly, alkali-metal cations (especially K+) are increasingly recognised as active promoters in molecular N2 chemistry, where they can tune reduction potentials and stabilise highly reduced N2-derived ligands, and in some cases influence whether N–N bond scission is accessible. These effects have been demonstrated across diverse platforms, including iron systems (alkali-metal-dependent N–N cleavage outcomes),43,44 cobalt–dinitrogen complexes (substantially weakened N–N bonds in the presence of alkali countercations),44 and actinide chemistry where second-sphere alkali binding can modulate N2 binding and cleavage thermochemistry.45


image file: d6cp00343e-s1.tif
Scheme 1 Overall N2-to-N(SiMe3)3 conversion with K/TMSCl: experimental stoichiometry9 and computed Ce–mTP electron–electrophile-coupled mechanism.

Results and discussion

All calculations have been performed using density functional theory (DFT), with full methodological details provided in the Computational Methodology section. The reduction reactions were considered both in the absence and presence of potassium metal, the former representing an electrochemical reaction and the latter the experimentally observed potassium-metal reduction reaction. This generates K+ countercations which can remain inner- or outer- sphere, often providing stabilisation to intermediates. For clarity, complexes considered without explicit K+ countercations are denoted A2−, [A–N2]4−, [A–N2]6− (with A2− = [Ce2(mTP)2]2−), while those with explicit K+ are denoted 1, [1–N2]2−, [1–N2]4− (with 1 = [K2Ce2(OMe2)4(mTP)2]).

Evaluation of electrochemical reduction feasibility

The feasibility of accessing reduced N2 adducts was investigated, aiming to determine the extent of electron uptake achievable prior to any functionalisation events. In the experiment, a THF solution of the precatalyst 1 was always treated with an excess of K metal to initiate the N2 reduction reaction by forming a reduced N2-containing adduct that was not structurally characterized. Computationally, in the absence of alkali metal cations, two-electron reduction of the bridging N2 ligand was computed to have a Gibbs energy change (ΔG1) of −50.4 kcal mol−1, corresponding to a reduction potential of −2.89 V versus the standard hydrogen electrode (−3.1 V vs. Fc/Fc+, assuming the value in THF is the same as in MeCN). Despite the process being exergonic, this potential is inaccessible using standard reductants, rendering the process electrochemically infeasible. Subsequent two-electron reduction was even more unfavourable, requiring an energy input of +26.3 kcal mol−1G2), thus rendering the formation of an N24− species implausible (Scheme 2).
image file: d6cp00343e-s2.tif
Scheme 2 Gibbs energies (kcal mol−1) for sequential addition of between 1 and 6 electrons to A2− with the bridging N2 ligand in the absence of alkali metal cations, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. “sol” denotes solvent molecule and is used in subsequent schemes.

Given the established stabilising role of alkali metal cations in promoting multi-electron reductions of small molecules,39,40 two potassium cations (K+) were introduced into the model. This modification significantly stabilised the reduced species, lowering ΔG3 for the two-electron reduction to −125.7 kcal mol−1. Further two-electron reduction was computed to be exergonic (ΔG4 = −13.7 kcal mol−1); however, the associated potential of −4.48 V remains too negative for standard reductants (Scheme 3). Structural comparisons of the optimised geometries revealed notable changes in cerium–nitrogen and nitrogen–nitrogen distances upon K+ incorporation, suggesting cation-induced stabilisation (see Sections S1–S3 (Fig. S1.1 and S2.1–S2.3) for details of this, and other aspects of this paragraph). To evaluate the extent of reduction achievable at the N2 unit—i.e. N22−, N23−, or N24−—four-electron reductions were performed both with and without K+ cations. Gibbs energy calculations identified the quintet spin state of the four-electron-reduced complex as more stable than the triplet in both scenarios (see Section S3 of the SI). Detailed molecular orbital and spin density analyses unequivocally demonstrated that formation of a genuine N24− species was not attained in either case. In the absence of K+ cations, the additional electron density was primarily localised on the cerium centres and the ligand framework, with negligible delocalisation onto the N2 unit. Upon inclusion of two K+ cations, the extra electrons were distributed over the cerium centres and K+ cations, meaning that full reduction of the N2 moiety is not achieved. Complete reduction to N24− is therefore electronically inaccessible under these conditions. This is in agreement with experimental observations; only products of two electron-N2-reduction could be isolated and spectroscopically observed.


image file: d6cp00343e-s3.tif
Scheme 3 Gibbs energies (kcal mol−1) for sequential reductions of the bridging N2 ligand in the presence of two explicit K+ cations, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Weak interactions between K+ and nearby atoms are indicated by dotted lines.

Evaluation of K0 as a chemical reductant

Given the established use of elemental potassium in driving multi-electron reductions in f-block systems, its efficacy as a reductant was here investigated through stepwise electron transfer to the bimetallic [K2Ce2(OMe2)2(mTP)2] complex 1 following N2 uptake. Gibbs energy calculations demonstrated that the first two-electron additions were strongly exergonic (ΔG1–2 = −94.6 kcal mol−1), and a third remained favourable (ΔG2–3 = −20.7 kcal mol−1), indicating the thermodynamic feasibility of up to three-electron delivery using K0 (Scheme 4). These findings are in line with our experimental observations for lanthanide- and actinide-based N2RR catalysts; products of reduction were unstable in the absence of potassium cations.8,9
image file: d6cp00343e-s4.tif
Scheme 4 Gibbs energies (kcal mol−1) for stepwise electron transfer using K0, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory.

Following the two-electron reduction, Intermediate 2, [K2K′2(OMe2)4{Ce2(mTP)2(μ-η11-N2)}], was optimised in both triplet and quintet spin states, with the quintet state favoured by 9.1 kcal mol−1. This state has Ce–N distances of 2.38 Å and an elongated N–N bond length of 1.24 Å (Fig. 1), compared with that of 1.10 Å in free N2, and consistent with partial population of the N2 π* orbital and moderate activation of the N–N bond. Consistent with this assignment, the computed N–N stretching frequency for Intermediate 2 is 1651 cm−1, indicative of substantial weakening relative to free N2. To better understand the electronic distribution, CM5 charge and spin density analyses were conducted. CM5 (Charge Model 5) is a population analysis method derived from Hirshfeld partitioning and parametrised to reproduce condensed-phase dipoles and electrostatics46 more reliably than older schemes like Mulliken47 or Löwdin48 charges. In Intermediate 2, the two nitrogen atoms each carry CM5 charges of −0.60 e, yielding a total N2 charge of −1.20 e (Fig. 1a). This indicates partial reduction, i.e. an electronic state between N2 and N22−, in line with previous observations of partially reduced N2 species in f-block complexes.8,41 Spin-density analysis (Fig. 1b), however, yields an electronic description closer to integral than shown by the CM5 charges, with each nitrogen atom bearing approximately 0.89 unpaired electrons, and with spin populations of 1.10 e localised on each cerium centre. These values are consistent with 4f1 Ce(III) cerium centres, and the N2 unit is close to doubly reduced.


image file: d6cp00343e-f1.tif
Fig. 1 Geometry of Intermediate 2 in the quintet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), optimised at the PBE0-D3BJ/BS1 level, with (a) CM5 charges and (b) spin density distribution, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.0009, illustrating delocalised spin density across both Ce centres and the bridging N2 ligand, with blue representing excess α spin density and green representing excess β spin density. Numerical spin populations are listed for selected atoms, indicating partial reduction of the metal centres and activation of the N2 unit. Nα and Nβ denote the two nitrogen atoms coordinated to Ce1 and Ce2, respectively. Hydrogen atoms are omitted for clarity.

Upon incorporation of a third electron, Intermediate 3, [K2K′2(OMe2)4K″(OMe2){Ce2(mTP)2(μ-η11-N2)}], was calculated in both the doublet and quartet spin states, with the latter found to be more stable by 1.3 kcal mol−1. The optimised geometry exhibits Ce–N bond lengths of 2.26 and 2.28 Å and a notably elongated N–N bond of 1.31 Å (Fig. 2), consistent with increased occupation of the π* manifold and further activation of the N2 ligand. In line with the additional reduction, the N–N stretching frequency decreases to 1305 cm−1 in Intermediate 3. In the experimental system, a similarly reduced Ln2N2 adduct was measured in solution; the treatment of a THF solution of the Sm analogue of 1 with an excess of K metal under N2 afforded a solution containing the pentaanionic ligand complex [K8(THF)n{Sm2(mTP)2(μ-η11-N2)}] with a band in the Raman spectrum at 1337 cm−1 (mTP {(OC6H2-2-tBu-4-Me)2C}{(OC6H2-2-tBu-4-Me)2CH}-1,3-C6H4). CM5 charge analysis yields values of +1.21 e for both cerium centres and −0.87 e and −0.85 e for the two nitrogen atoms, resulting in a total N2 charge of approximately −1.72 e (Fig. 2a). Spin-density analysis (Fig. 2b) reveals 1.11–1.12 unpaired electrons on the Ce atoms and 0.32 and 0.35 on the N atoms. These charge and spin density findings indicate that the cerium centres retain their 4f1 configurations, with the N2 ligand being more reduced than in 2.


image file: d6cp00343e-f2.tif
Fig. 2 Geometry of Intermediate 3 in the quartet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), optimised at the PBE0-D3BJ/BS1 level, with (a) CM5 charges and (b) spin density distribution, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.0009, with blue representing excess α spin density and green representing excess β spin density. Spin populations are listed for selected atoms, consistent with partially reduced metal centres and a significantly activated, partially reduced N2 unit. Nα and Nβ denote the two nitrogen atoms coordinated to Ce1 and Ce2, respectively. Hydrogen atoms are omitted for clarity.

Intermediate 4, [K2K′4(OMe2)8{Ce2(mTP)2(μ-η11-N2)}], was optimised in multiple spin states after four-electron reduction, with the quintet configuration identified as the most stable (Fig. 3). The optimised geometry exhibits Ce–N bond lengths of 2.18 and 2.23 Å and an N–N bond length of 1.29 Å. Notably, the N–N stretching frequency increases to 1390 cm−1 in Intermediate 4, consistent with the absence of further N–N weakening relative to Intermediate 3 and supporting the conclusion that the additional reducing equivalent is not incorporated into the N2 π manifold. Two K+ cations are retained within the central cavity, while four additional K+ or neutral K atoms are positioned externally to simulate the full coordination environment. In this model, the externally located K+/K0 species are each coordinated by two explicit ether donors, whereas the two potassium cations residing within the mTP cavity are not further microsolvated because they are already stabilised by strong K–N2/K–O(mTP) contacts and η4 aryl interactions within a sterically saturated cavity; remaining bulk solvation is treated implicitly (SMD, THF). Spin-density analysis (Fig. 3b) reveals that only about three unpaired electrons are delocalised across the {Ce2(μ-η11-N2)} core, while the fourth remains localised on an outer K0 atom and is not incorporated into the framework. CM5 charge data corroborates this assignment, indicating that despite formal four-electron reduction, the electronic and structural features remain inconsistent with formation of a fully reduced N24− species. Notably, the spin density and charge of the N2 unit are very similar in Intermediates 3 and 4, consistent with the fourth electron residing on potassium rather than the core. As such, Intermediate 3 is proposed to represent the electronically and thermodynamically accessible limit of N2 activation within this Ce–mTP system, beyond which further reduction results in localisation of electron density on external potassium centres rather than enhanced population of the N2 π* manifold or additional N–N bond weakening.


image file: d6cp00343e-f3.tif
Fig. 3 Geometry of Intermediate 4 in the quintet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), optimised at the PBE0-D3BJ/BS1 level, (a) CM5 charges and (b) spin density distribution, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.0009, with blue representing excess α spin density and green representing excess β spin density. The spin density is delocalised over the {Ce2(μ-η11-N2)} core, while one unpaired electron remains localised on an outer K0. Nα and Nβ denote the two nitrogen atoms coordinated to Ce1 and Ce2, respectively. Hydrogen atoms are omitted for clarity.

Frontier molecular orbital occupations

To further probe the electronic structure of intermediates 2, 3, and 4 we turned to analysis of their frontier molecular orbitals. The two electrons added during reduction to form Intermediate 2 occupy the α-spin HOMO (535α) and HOMO−1 (534α), both of which exhibit significant N2 π* character (∼68% combined) with subsidiary Ce 5d/4f contributions (∼16% in the HOMO, ∼17% in the HOMO−1) (Fig. 4). In contrast, deeper orbitals such as HOMO−2 (533α) and HOMO−3 (532α) are >92% Ce-localised, confirming that the added electron density resides primarily on the N2 ligand. Thus, the overall electronic structure is best described as a mixed-valent species containing partially reduced N2 ligand.
image file: d6cp00343e-f4.tif
Fig. 4 Selected α-spin molecular orbitals of Intermediate 2 in the quintet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.03. Orbital phases are represented by red (positive) and green (negative) regions.

By contrast to the Ti9 and U8 frameworks, the Ce system shows cooperative, genuinely bridging, bimetallic end-on binding upon reduction. Here, “Ti” and “U” refer to the previously reported tetraphenolate-supported Ti9 and U8 platforms [Ti2(mTP)2] and [K2U2(THF)4(mTP)2]. We introduce them here as mechanistic comparisons to illustrate how metal–metal separation and alkali-cation assistance can control whether N2 binds in a bimetallic bridging mode or at a single metal centre. In complex 1, the Ce–Ce distance is 9.67 Å with two external solvent molecules and, after two-electron reduction, internal N2 binding contracts the Ce–Ce distance to 5.98 Å (Intermediate 2), enabling a symmetric μ-η11-N2 arrangement whose frontier MOs are N2 π*-dominated with appreciable Ce 5d/4f mixing. By contrast, the Ti system maintains a larger Ti–Ti distance (7.89 Å XRD; 7.81 Å DFT) and end-on N2-binding to a single Ti during catalysis (Ti–N ≈ 1.90 Å), while pulsed electron paramagnetic resonance (EPR) on 1TiN2 shows very small 15N hyperfine (∼0.2 MHz) consistent with minimal Ti–N covalency and long Ti–N (∼3–4 Å) in the isolated reduced adduct.9 Uranium sits between these extremes: 1U has a U–U distance of 6.57 Å, which contracts to 4.64 Å in the four-electron-reduced, U(μ-η22-N2H2)U-containing product, in which K+ cation inclusion was shown to be essential to stabilise charge and enable binding-mode changes during reduction.8 These comparisons support that two-metal engagement is structurally enabled and electronically consequential in both the Ce and U systems, whereas Ti relies more on group-1-assisted, single-metal end-on chemistry.9

Molecular orbital analysis of the three-electron-reduced Intermediate 3 further corroborates this assignment (Fig. 5). The α-spin HOMO (orbital 557α) is of N2 π* character (∼66% combined) with additional contributions from Ce1 (∼14%) and Ce2 (∼12%). Similarly, the HOMO−1 (orbital 556α) has strong N2 contributions (∼68% total) alongside Ce1 (∼10%) and Ce2 (∼9%). Thus, two electrons occupy α-spin N–N π* orbitals. Examination of the β MO manifold finds N2 π* orbital 554β, which is ∼32% Nα and ∼35% Nβ, and these three orbitals together account for the observed increase in N–N bond length, greater negative charge on N2, and reduced N2 spin density in Intermediate 3—all consistent with additional π* occupation in the β-spin channel. In contrast, the two Ce 4f-based MOs are HOMO−2 (555α), localised almost entirely on Ce2 (>96%), and HOMO−3 (554α), localised almost entirely on Ce1 (∼96%).


image file: d6cp00343e-f5.tif
Fig. 5 Selected α- and β-spin molecular orbitals of Intermediate 3 in the quartet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.03. Orbital phases are represented by red (positive) and green (negative) regions.

In intermediate 4, the α-spin HOMO (orbital 606α) is almost entirely localised on an external potassium atom (∼99%), consistent with the presence of a K0 species and in agreement with the spin density analysis that identified one unpaired electron residing outside the {Ce(μ-η11-N2)Ce} core (Fig. 6). HOMO−1 (orbital 605α) and HOMO−2 (orbital 603α) both retain significant N2 π* contributions (∼27–30% from each N atom), together with appreciable mixing from the Ce centres (∼13–15%). By contrast, HOMO–3 (603α) and HOMO–4 (602α) are overwhelmingly Ce-centred (>95% f-character across the two Ce atoms). The β manifold contains an orbital (602β) with N2 π* character (∼29–31% on N), consistent with occupation of a β π* orbital. Together, these results show that intermediate 4 retains three electrons delocalised over the Ce–N2 framework, as in intermediate 3, while the additional (fourth) electron is instead localised on K0 rather than filling the N2 π* orbital.


image file: d6cp00343e-f6.tif
Fig. 6 Selected α-spin and β-spin molecular orbitals of Intermediate 4 in the quintet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.03. Orbital phases are represented by red (positive) and green (negative) regions. The HOMO resides on K0, confirming the fourth electron is localised externally rather than on the N2 unit.

Dehydrometallation following three-electron reduction

A key feature of the mTP ligand is the benzylic H that is placed close to the Ln-bound reduced substrate, here N2. In the U2(mTP)2-catalysed N2RR reactions, it was hypothesised, and supported by DFT calculations, that the first N-element bond was formed by deprotonation of one benzylic H in each mTP ligand by the reduced N2, forming the pentaanionic ligand mentioned above mTP {(OC6H2-2-tBu-4-Me)2C}{(OC6H2-2-tBu-4-Me)2CH}-1,3-C6H4. This was useful as the first N-element bond is the most challenging, and the reaction also enabled the development of the first clean catalysed routes for conversion of N2 to secondary silylamines. However, we have not observed N–H bond formation in ongoing experimental studies of the reduction of 1. While this could be due to secondary reactions with the excess K metal present, the geometry of the Ln2(mTP)2 cavity (studied in THF solvent) directs four benzylic CH groups into the cavity, in contrast to that of the U2(mTP)2 cavity (studied in arene solvent) which directs only two benzylic CH groups into the cavity.

To assess whether proton abstraction from the coordinated mTP might facilitate N2 functionalisation in the present study, a dehydrometallation step was examined from Intermediate 3. A deprotonated species, Intermediate 5, [K2K′2(OMe2)4K″(OMe2){Ce2(NNH)(mTP)(mTP)}], in the quartet spin state, was generated by formal removal of a benzylic C–H proton. The associated Gibbs energy change was calculated as +5.1 kcal mol−1, indicating thermodynamic accessibility, albeit with limited favourability under standard conditions.

The resulting electronic structure, however, proved incompatible with Ce–C bond formation. Spin-density analysis (Fig. 7) reveals that unpaired electron density remains localised on the Ce centres (Ce1 = 1.09 e, Ce2 = 1.00 e) and the N2 ligand (Nα = Nβ = 0.50 e), while the deprotonated benzylic carbon (C26) carries only 0.02 e. CM5 charge analysis supports these findings, with the benzylic carbon bearing only a modest anionic character (−0.16 e). These results suggest that neither significant radical character nor appreciable negative charge has been transferred to the deprotonated carbon, both of which would be essential for stable Ce–C bond formation. Also, the calculated Ce–C26 distance of 2.70 Å in Intermediate 5, although shorter than the 3.43 Å observed in Intermediate 3, remains rather longer than reported Ce–C bond lengths of ∼2.44–2.58 Å,49,50 further supporting the conclusion that no significant bonding interaction is present between Ce and the deprotonated carbon centre. The composition of the HOMO (557α, Fig. 8) supports this conclusion, showing a ∼35% contribution at C26, predominantly of p character (∼89%), with small Ce participation (∼4.6%) and minor N contributions (∼6.7%), consistent with a ligand-centred, π-delocalised orbital rather than a Ce–C bond. Furthermore, the HOMO−1 (MO 556α) is dominated by N2-centred contributions (≈68%) and the HOMO−2 (MO 555α) has some Ce2 (≈38%) character but with negligible carbon content (Fig. 8). The lack of any frontier orbital with simultaneous and appreciable contributions from both Ce and C atoms, together with the spin density distribution, indicates a lack of significant Ce–C interaction. Possible K–C interactions were examined and none were identified; all K–C separations were too long to constitute a stabilising contact.


image file: d6cp00343e-f7.tif
Fig. 7 Spin density distribution of Intermediate 5 in the quartet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory (isovalue: 0.0009), with blue representing excess α spin density and green representing excess β spin density. Spin populations and CM5 charges are listed for selected atoms. Hydrogen atoms are omitted for clarity.

image file: d6cp00343e-f8.tif
Fig. 8 Selected α-spin molecular orbitals of Intermediate 5 in the quartet spin state (atom colour coding: Ce = yellow, K = purple, N = blue, O = red, C = grey), calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory. Isosurfaces are plotted at an isovalue of 0.03. Orbital phases are represented by blue (positive) and green (negative) regions.

Taken together, these data indicate that modestly endergonic dehydrometallation yields an electronically frustrated species in which the putative carbanion is neither spin- nor charge-stabilised by the metal centres. In the U2(mTP)2 system, a genuinely tetraanionic N24− fragment is sufficiently basic to deprotonate the benzylic mTP sites and form stabilising N–H bonds,8 but in the present Ce system the N2 fragment does not reach the tetraanionic state, so there is a much weaker driving force for benzylic deprotonation and N–H bond formation. Consistent with this, our calculations show no significant Ce–C bonding to the deprotonated carbon, and the resulting carbanion remains poorly stabilised. As such, this transformation does not constitute a viable route to N2 functionalisation within the Ce–mTP platform. Alternative pathways involving direct electron and proton transfer to the N2 ligand—such as the experimentally supported concerted K0/TMSCl silylation mechanism discussed below—are likely to offer more productive routes towards N–Si bond formation.

Silylation at the two-electron reduction stage

To evaluate whether functionalisation of N2 could be achieved at an earlier stage of reduction, an analysis was conducted on the two-electron reduced complex 2. A direct silylation step using trimethylsilyl chloride (TMSCl) was modelled from this intermediate to assess the viability of N–Si bond formation. However, the calculated Gibbs energy change for this transformation (to Intermediate 6, [KK′2(OMe2)4{Ce2(mTP)2(μ-η11-N(TMS)–N)}]) was found to be +16.4 kcal mol−1, indicating that the reaction is thermodynamically unfavourable (Scheme 5). This penalty is significantly higher than the Gibbs energy change associated with the dehydrometallation calculated above (following the three-electron reduction), which was only mildly endergonic. This lack of reactivity of the N22− agrees with our stoichiometric experimental reactions and the wide body of d-block N2RR literature that suggests that at least three-electron reduction is necessary to promote N-element bond formation with an electrophile.24,51–54 Notably, this result demonstrates that favourable ion-pairing/halide capture alone does not render N–Si bond formation thermodynamically accessible; instead, the intrinsic electronic state of the {Ce2(μ-η11-N2)} core is decisive.
image file: d6cp00343e-s5.tif
Scheme 5 Computed Gibbs energy change (in kcal mol−1) for direct silylation of the two-electron reduced complex 2 with TMSCl, calculated at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1 level of theory.

The limited reactivity at the two-electron reduction stage highlights the electronic constraints imposed by the {Ce2(μ-η11-N2)} architecture, which fails to sufficiently weaken the N–N bond or localise sufficient negative charge for nucleophilic attack. Taken together, these findings suggest that, following two-electron reduction, the functionalisation of N2 within Ce–mTP complexes is unlikely to proceed efficiently without additional electron transfer. Mechanistic alternatives that couple reduction with substrate delivery—such as the concerted K0/TMSCl pathway—are therefore now examined as more viable routes to N–Si bond formation.

Mechanistic insights into N2 activation and silylation

Building upon the mechanistic limitations identified at the two- and three-electron reduction levels, a full catalytic sequence was next explored, focusing on pathways that integrate electron transfer with electrophilic substrate activation. Although the catalytic sequence was initiated from Intermediate 2 rather than Intermediate 3, functionalisation does not occur directly from this two-electron-reduced state. Instead, it becomes viable only when the third electron is delivered in concert with TMSCl uptake, through a coupled reduction–silylation step. The key transformation involving the reaction of K0 and TMSCl with the Ce2(μ-η11-N2) framework was modelled as a concerted N–Si bond-forming event. Here, and throughout the mechanistic analysis, “K0” denotes a discrete neutral potassium atom used in the molecular DFT model (i.e. not an explicit band-structure treatment of bulk K metal).

Given the considerable computational demands associated with the size and complexity of the Ce–mTP system, the methodology was modified for this stage of the investigation. A mixed-basis set approach (BS1′) was employed, applying the small 3-21G(d) basis to peripheral substituents while retaining a higher-level 6-31G(d,p) basis for atoms around the Ce centres and the N2-binding site (see Computational methodology for full details). This adjustment significantly improved computational efficiency, enabling reliable optimisation of all relevant species within the catalytic cycle without compromising structural or energetic accuracy.

As discussed above, Intermediate 2 is a quintet species with an N–N bond length of 1.24 Å and with two K+ cations positioned within the central cavity engaged in electrostatic interactions with the N2 ligand. From this geometry, a concerted reduction–functionalisation step involving K0 and TMSCl was modelled, resulting in the formation of Intermediate 7, [K2K′2(OMe2)4{Ce2(mTP)2(μ-η11-N(TMS)–N)}] (Scheme 6). This transformation was computed to be highly exergonic (ΔG = −32.6 kcal mol−1), thus supporting the feasibility of this concerted process and establishing it as a viable mechanistic entry point for N–Si bond formation. The conversion of Intermediate 2 to the mono-silylated Intermediate 7,55 in the quartet spin state, was found to proceed via the highest-energy transition state computed (ΔG = 22.1 kcal mol−1), thereby identifying this step as turnover-limiting. In 7, N2 polarisation appears: Nβ becomes more negative (−0.70) while N(TMS) is less negative (−0.51); this accompanies N–N elongation to 1.35 Å, a longer Ce–N(TMS) (2.54 Å), and a shorter Ce–Nβ (2.26 Å). Although the charge distribution would favour functionalisation at Nβ, the steric hindrance in the cavity disfavours TMSCl approach to Nβ. Subsequent delivery of a second equivalent of K0 and TMSCl yielded the bis-silylated complex Intermediate 8, [K2K′2(OMe2)4{Ce2(mTP)21-N–N(TMS)2)}], now adopting a triplet ground state (ΔG = −9.6 kcal mol−1). Further chemical reduction and chloride displacement converts Intermediate 8 into the doublet-state Intermediate 9, [K2K′2(Me2O)4{Ce2(mTP)21-N)}] (ΔG = −113.4 kcal mol−1), completing the formation and release of the first equivalent of the N(SiMe3)3 product along with KCl. This transformation is highly exergonic, proceeding via cleavage of the N–N bond and elimination of one nitrogen atom as a neutral silylamine. The remaining nitrogen fragment is retained in an anionic state (CM5 charge ≈ −1.63) and remains coordinated to one of the cerium centres. Intermediate 9 thus marks the midpoint of the catalytic cycle and serves as the platform for coordination and activation of a second equivalent of N2 in the subsequent half-cycle.


image file: d6cp00343e-s6.tif

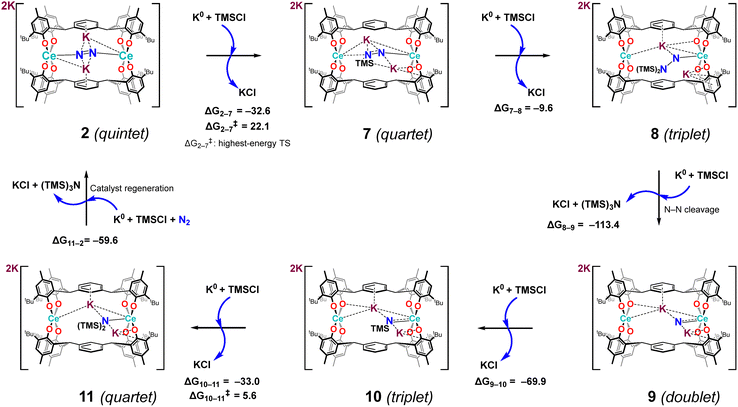

Scheme 6 Computed catalytic cycle for the reductive silylation of N2 mediated by the Ce–mTP system, showing key intermediates (2, 7–11) and associated Gibbs energy changes (kcal mol−1). Calculations were performed at the PBE0-D3BJ/BS2/SMD//PBE0-D3BJ/BS1′ level of theory. The mechanism features a turnover-limiting concerted reduction–silylation step (27), N–N bond cleavage during the formation of Intermediate 9, and regeneration of the active species (2) upon product release and N2 coordination. Ground-state spin multiplicities are indicated for each intermediate in the scheme.

Following further reduction and silylation of Intermediate 9, Intermediate 10, [K2K′2(OMe2)4{Ce2(mTP)21-NTMS)}], was generated upon addition of a fourth equivalent of K0 and TMSCl. This transformation was computed to be exergonic by −69.9 kcal mol−1. The resulting triplet-state species features a formally monoanionic nitrogen fragment bearing a TMS substituent and coordinated to a single cerium centre. The final stages of the catalytic cycle involve sequential conversion of Intermediate 10 to 11, [K2K′2(OMe2)4{Ce2(mTP)21-N(TMS)2)}], followed by regeneration of the initial species, Intermediate 2. The transformation from 10 to 11, corresponding to the final silylation step, is exergonic by −33.0 kcal mol−1 and proceeds with a low activation barrier of 5.6 kcal mol−1. In Intermediate 11, the nitrogen fragment is doubly silylated and coordinates asymmetrically to one of the cerium centres. Release of the second equivalent of the N(SiMe3)3 product occurs upon binding of the next equivalent of N2 (in the presence of K0 reductant), thereby regenerating Intermediate 2 with an associated Gibbs energy change of −59.6 kcal mol−1. These results demonstrate the thermodynamic feasibility of completing the full catalytic cycle under mild conditions.

Summary and conclusions

A detailed theoretical investigation has been conducted to elucidate the mechanisms and thermodynamic feasibility of N2 activation and functionalisation within a bimetallic Ce–mTP metallacyclic framework. DFT calculations, incorporating dispersion corrections and the SMD continuum solvation model, were applied to systematically evaluate multi-electron reduction steps, the influence of K+ cations, and the role of K0 as a chemical reductant. Potential reaction pathways for N–Si bond formation were also explored, including both direct and concerted silylation events. The results collectively establish the electronic limits of N2 activation and demonstrate that functionalisation is viable only when electron transfer and substrate delivery are tightly coupled within this f-block system.

Initial reduction studies indicated that, in the absence of K+, even a two-electron reduction of the bridging N2 ligand is electronically constrained and thermodynamically disfavoured. Upon incorporation of two K+ cations within the central cavity, the first two-electron reduction is rendered strongly exergonic (ΔG = −125.7 kcal mol−1), underscoring the stabilising influence of alkali metal coordination. A formal four-electron reduction was subsequently computed; however, the associated reduction potential of −4.48 V is prohibitively negative for application with conventional reductants.

We then turned to the evaluation of K0 as a chemical reductant. Detailed CM5 charge, spin density and molecular orbital composition analyses were undertaken to assess the localisation of the added electron density. These investigations revealed that full localisation of four electrons on the N2 moiety was not achieved. Rather, the third electron was found to be partially delocalised across the N2 π* orbitals and the cerium centres, while the fourth electron remained largely localised on an external potassium atom, with negligible participation in the metal–ligand bonding framework. The three-electron-reduced species (Intermediate 3) exhibits an N–N bond length of 1.31 Å and a total charge of approximately −1.7 e on the N2 fragment, consistent with partial reduction and activation of the N2 ligand. In contrast, the four-electron-reduced structure did not display further elongation of the N–N bond or increased π* occupation. Collectively, these findings establish Intermediate 3 as the electronic and thermodynamic upper limit of N2 activation achievable within the Ce–mTP framework. Beyond this point, further electron addition does not lead to formation of a genuine N24− species.

Alternative activation strategies were also explored. A dehydrometallation pathway, involving benzylic proton abstraction from the ligand framework, was calculated to be only mildly endergonic. However, the resulting intermediate does not exhibit meaningful Ce–C interaction or charge localisation at the deprotonated site, precluding stable bond formation. In parallel, attempts to directly silylate the reduced N2 unit at the two-electron stage were found to be thermodynamically inaccessible, with a significant Gibbs energy penalty. These results highlight that additional electron transfer is necessary to sufficiently activate the N2 moiety for functionalisation. Collectively, these findings underscore the requirement for concerted reductant and electrophile delivery—such as through K0/TMSCl pairs—to achieve N–Si bond formation within the Ce–mTP platform.

To this end, a complete catalytic cycle was then modelled, in which the concerted addition of K0 and TMSCl enabled successive silylation events on the partially reduced N2 ligand. The proposed mechanism proceeds through six well-defined intermediates (2, 7–11), encompassing the delivery of six electrons and six equivalents of TMSCl. Key steps include a turnover-limiting first silylation (ΔG = 22.1 kcal mol−1), formation of mono- and bis-silylated species, and cleavage of the N–N bond after the third electron transfer, releasing the first equivalent of N(SiMe3)3. The remaining nitrogen fragment, retained in a monoanionic state, is further reduced and silylated in the second half-cycle, culminating in regeneration of Intermediate 2 upon re-coordination of N2. The overall process is highly exergonic, and all computed barriers—including the final N–Si bond formation (ΔG = 5.6 kcal mol−1)—are consistent with feasibility under experimentally relevant conditions.

Collectively, these results provide a detailed mechanistic framework for understanding N2 activation and functionalisation in Ce–mTP complexes, highlighting the critical roles played by alkali metal coordination, stepwise electron delivery, and concerted reductant–electrophile addition in modulating N2 reactivity. This work therefore lays a robust theoretical foundation for the rational design of rare-earth-based catalysts capable of promoting multi-electron small-molecule activation and functionalisation under mild conditions.

Computational methodology

All calculations were performed using the Gaussian 16 software package.56 Geometry optimisations were carried out using the PBE057 hybrid functional with Grimme's D3 dispersion correction and Becke–Johnson damping (PBE0-D3BJ).58 Two basis set protocols were employed. For systems studied prior to the mechanistic investigation, optimisations were performed using the BS1 basis set, which comprised the Stuttgart RSC ECP59 and associated segmented valence basis set for cerium, and the 6-31G(d,p)60,61 basis set for all other atoms. To reduce computational cost while preserving key coordination features, dimethyl ether—chosen for its electronic resemblance to THF—was used as the explicit solvent in place of THF. Potassium species located outside the Ce2(mTP)2 cavity were modelled with two explicit ether donors per K to represent first-shell microsolvation, whereas potassium ions residing within the cavity were not solvated by explicit ether molecules because the cavity is sterically saturated and the K+ ions are already engaged in close contacts to N2/aryl/phenolate donors; longer-range solvation is captured by the implicit SMD(THF) treatment. In steps where potassium metal is invoked as the reductant (e.g. Scheme 4 and the catalytic cycle), each reducing equivalent is represented as a single neutral potassium atom (“K0”) within this molecular framework, i.e. not a periodic (band-structure) treatment of bulk potassium metal.

For all species relevant to the reaction mechanism, geometry optimisations were performed using a modified mixed-basis scheme, denoted BS1′. At this level, cerium, potassium and the non-metal atoms involved in the chemically active region (i.e. coordinating ligands and solvent molecules) were treated as previously, whereas peripheral atoms of bulky substituents were described using the more compact 3-21G(d) basis set. This mixed-basis approach offered significant computational efficiency without compromising accuracy. Its reliability was confirmed by benchmarking geometries and free energies against BS1-level calculations, which yielded excellent agreement (see Section S4 of the SI).

Vibrational frequency calculations were performed to characterise all stationary points. Minima were confirmed by the absence of imaginary frequencies, while transition states were identified by a single imaginary frequency corresponding to the expected reaction coordinate. These calculations also yielded zero-point vibrational energies and thermal corrections to furnish the Gibbs energy at 298.15 K and 1 atm, based on the ideal-gas, rigid-rotator, harmonic oscillator approximation. To avoid overestimation of entropy from low-frequency modes, all real frequencies below 100 cm−1 were replaced by 100 cm−1 following the Truhlar-type cut-off protocol.62,63

Single-point energies were computed at the PBE0-D3BJ57,58 level using the SMD implicit solvation model with THF as the solvent. These calculations employed the BS2 basis set, which included Stuttgart RSC ECP59 and associated segmented valence basis set for cerium, and the 6-311+G(d,p)64,65 basis set for potassium and all non-metal atoms. Solution-phase Gibbs energies were obtained by combining the solvent-phase electronic energies with gas-phase thermal corrections derived from BS1 or BS1′ frequency calculations.

Reduction potentials were calculated for the general redox process:

O(soln) + ne(g) → R(soln)
using the equation:
image file: d6cp00343e-t1.tif
where image file: d6cp00343e-t2.tif is the Gibbs energy change, n is the number of electrons transferred and F is the Faraday constant. The absolute potential of the ferrocene/ferrocenium couple, image file: d6cp00343e-t3.tif,66,67 was used to shift the vacuum-referenced potential to the Fc/Fc+ scale.

Author contributions

Conceptualization: SA, NK, PLA. Investigation: SA. Formal Analysis: SA, NK. Draft Writing: SA, NK. Funding acquisition: NK, PLA. Resources: NK. Supervision: NK, PLA. Reviewing and editing: all authors.
