A new cation- and vacancy-ordered brownmillerite in the Ba–In–Fe–O system revealing hidden order in its cubic counterpart

Abstract

The synthesis and characterization of a previously unreported B-cation ordered Ba₂InFeO₅ brownmillerite, obtained by an unconventional ultra-high-vacuum method, are reported alongside its cubic perovskite-type counterpart. Neutron diffraction and total scattering studies reveal for both phases ordered oxygen vacancies together with a layered FeO₄/InO₆ leitmotif, which gives rise to suppressed magnetic susceptibility and low-dimensional magnetic behavior. This work shows that ultra-high vacuum synthesis allows B-cation ordering to get stabilized forming new brownmillerite type oxides, establishing Ba₂InFeO₅ as a model system for studying isolated 1D-tetrahedral Fe³⁺ chains, magnetic frustration, and structure–magnetism relationships.

---

Brownmillerite oxides, with general formula A₂BB′O₅, form an important family of oxygen-deficient perovskites characterised by the ordered layering of BO₆ octahedra and BO₄ tetrahedra, a motif enabled by a flexible oxygen-vacancy lattice. The assignment of the space group often remains ambiguous due to subtle structural changes, making it difficult to differentiate between different types of tetrahedral chain ordering and their corresponding space group symmetries, such as Pnma, Imma, and I2mb.^1,2 Reorganization of the vacancy network under different thermodynamic conditions enables oxygen-deficient perovskites to access cubic or brownmillerite polymorphs depending on the synthesis route; however, the simultaneous occurrence of both polymorphs within a single material is uncommon.^3,4

Ba₂In₂O₅ is a well-known prototypical brownmillerite, characterized by long-range ordered oxygen vacancies and alternating layers of InO₆ octahedra and InO₄ tetrahedra.^5,6 It has been widely studied for its high oxide-ion and proton conductivity, making it a promising electrolyte for solid oxide fuel cells, oxygen-generation systems, and dense catalytic membranes.^6–11 Many elemental substitutions have been attempted in order to improve its conductivity. Ga substitution in Ba₂(In_1−xGa_x)₂O₅ modifies the structure from orthorhombic brownmillerite (x < 0.3) to cubic perovskite (0.3 < x < 0.5), while for x = 0.5, it adopts a cation-ordered brownmillerite structure with layered In octahedra and Ga tetrahedra.^12,13 Substitution of In³⁺ with transition-metal cations (MT) with multiple accessible oxidation states and coordination environments, strongly perturbs the vacancy and thus the physical properties.¹⁴ High levels of doping in Ba₂In_2−xM_xO₅ (with x > 0.2) and fluorine intercalation are known to stabilize a defect cubic perovskite structure.^14–17 An extensive study has investigated the corresponding Fe-doped analogous cubic oxygen deficient perovskite Ba₂In_2−xFe_xO₅.¹⁵ Despite this, the vacancy-ordered brownmillerite derivatives of these systems remain largely unexplored. Here, we report the synthesis and a comprehensive characterization of a new brownmillerite phase, Ba₂InFeO₅, obtained under ultra-high vacuum (UHV) and stabilized via Fe/In cation ordering. Thus, this work provides the first detailed insight into the structural ordering and magnetic behaviour of this previously unreported phase, highlighting the potential of cation ordering as a strategy for stabilizing novel oxide frameworks. Moreover, by probing both polymorphs, cubic and brownmillerite, via neutron pair distribution function analysis, we uncover key similarities in their local structures.

Brownmillerite Ba₂InFeO₅ (BFIO-BM in the following) was obtained by annealing the cubic perovskite precursor (BFIO-C in the following) at 1273 K under UHV conditions for several days. The BFIO-C precursor itself was prepared by high-temperature solid-state reaction of stoichiometric In₂O₃, Fe₂O₃ and BaCO₃ under flowing Ar. Full synthesis details are provided in the SI.

Laboratory powder X-ray diffraction (PXRD) patterns were collected using a Panalytical X’pert Pro diffractometer and neutron powder diffraction (NPD) data were measured with the HPRT powder diffractometer¹⁸ at SINQ spallation neutron source of the Paul Scherrer Institute (CH), while neutron total scattering data were collected on the disorder materials diffractometer D4c at the ILL (Grenoble).^19,20 Magnetization was measured using a SQUID magnetometer (further details for experimental methods are given in the SI).

Powder X-ray diffraction (PXRD) confirmed that the BFIO-C precursor adopts the expected cubic oxygen-deficient perovskite structure, in agreement with previous reports in the literature,¹⁵ well indexed in the Pm3̄m space group with a = 4.1562 (2) Å (Fig. S1a). After a 4-days annealing treatment at 1273 K in UHV, the material undergoes a complete transformation to the brownmillerite phase BFIO-BM. PXRD (Fig. S1b) confirms the phase purity of the annealed material, with no detectable impurity phases and lattice parameters a = 5.9410 (4) Å, b = 15.7331 (10) Å, and c = 6.1009 (4) Å. The average and local structure was studied in more detail by neutron diffraction. Assigning the correct space group in brownmillerite-type structures is challenging because ordered and disordered chain arrangements can produce nearly indistinguishable diffraction patterns. Here, PXRD and neutron powder diffraction (NPD) alone did not allow unambiguously to discriminate between the I2mb and Imma models, both of which give comparably good refinements (Fig. 1 and Fig. S2), while the Pnma was excluded as no I-centering–forbidden reflections were detected. However, pair distribution function (PDF) analysis of BFIO-BM reveals that both the average and local structures are well described by the I2mb symmetry (fitting residuals R_w = 15%, Fig. 2a and Table S3, SI), whereas the Imma model fails to provide an adequate fit to the PDF data (R_w = 43%, Fig. S3). Accordingly, neutron powder diffraction (NPD) Rietveld refinements were subsequently performed in the I2mb space group (Fig. 1a), and the refined atomic coordinates are summarized in Table 1. The refined site occupancies confirm that, within experimental uncertainty, the tetrahedral sites are exclusively occupied by Fe, while In occupies the octahedral sites, providing compelling evidence for long-range cation ordering in BFIO-BM. Bond distances (reported in Table S2) indicate that the InO₆ octahedron is slightly distorted due to the structural connectivity, with In–O bond lengths ranging from 2.13–2.30 Å, although the O–In–O bond angles remain close to 90° and 180°, in line with values reported for a related brownmillerite oxide.¹³ The FeO₄ tetrahedra are significantly distorted, exhibiting a widened O–Fe–O angle of up to 130°, while the remaining bond angles fall in the range 102–108°. The Fe–O bond lengths split into two distinct values (1.85 Å and 1.91 Å), indicating a quite pronounced deviation from ideal tetrahedral geometry. The calculated bond valence sums (BVS) for each ion (Table 1) are close to their expected formal valence states, supporting the assignment of Fe³⁺ and being consistent with oxygen stoichiometry. Overall, for BFIO-BM, the structures refined from PDF and NPD analyses are consistent within the experimental uncertainties. In addition, PDF results show no evidence of short-range disorder, with only minor variations in the In–O bond distances (Fig. 3). On the other hand, several oxygen-deficient perovskite polymorphs, both cubic and brownmillerite, have been shown to often preserve an ordered oxygen-vacancy configuration.^3,4,21–24 Consistent with this picture, some modulations in the diffuse background of the neutron powder diffraction pattern are observed for BFIO-C (Fig. 1a), which are absent in the X-ray diffraction data and are indicative of local structural correlations beyond the average crystallographic model. A possible origin of this behaviour can be found in the twin-domain complexity of perovskite-related oxides. Indeed, nanoscopic intergrowths comprising up to twelve distinct orthorhombic twin domains have previously been reported within structures that appear macroscopically cubic.²⁵ Thus, the superposition of multiple twin domains in cubic BFIO-C can account for the unusually large atomic displacement parameters refined for all atoms in the Rietveld analysis (Fig. S8 and Table S4).

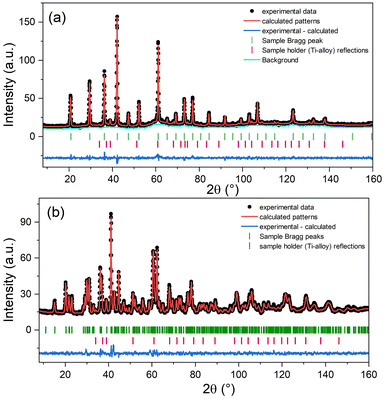

Fig. 1 Rietveld refinements of NPD data at RT of (a) the cubic Pm3̄m oxygen deficient perovskite BFIO-C and (b) of the orthorhombic I2mb brownmillerite BFIO-BM. The cyan line in (a) represents the background, in which modulations can be observed.

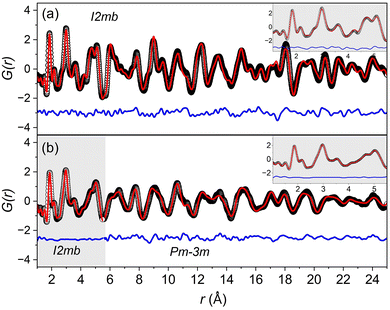

Fig. 2 (a) PDFgui refinement of orthorhombic BFIO-BM (I2mb) over r = 1–25 Å (R_w = 15%). (b) Short- and long-range G(r) of BFIO-C refined with I2mb for 1–5 Å and Pm3̄m for higher r; inset shows short-range region. Black open circles are the experimental data and the red line is the profile fitting, while the blue line is the difference.

Table 1 Crystal structure parameters of BFIO-BM obtained from Rietveld neutron data refinements against the I2mb space group. Lattice parameters: a = 5.9410 (4) Å, b = 15.7331 (10) Å, c = 6.1009 (4) Å (R_p = 2.74%; R_wp = 3.65%; R_Bragg = 2.16%, R_f = 1.8%, χ² = 1.84). Data obtained on HRPT at PSI (λ = 1.494 Å)

Atom	x	y	z	Uiso (Å^2)	Occ.	Site	BVS
Ba	0.5066 (25)	0.8824 (2)	0.0026 (5)	0.0058 (7)	1.0	8c	1.93 (3)
Fe	0.0108 (21)	0.25	0.0613 (4)	0.0072 (7)	0.98 (7)	4a	2.98 (6)
In	0.00	0.00	0.00	0.0124 (16)	1.02 (7)	4b	2.80 (4)
O1	0.2498 (3)	0.0117 (2)	0.2516 (2)	0.0100 (8)	1	8c	2.03 (3)
O2	0.0225 (16)	0.8563 (2)	0.0694 (5)	0.0122 (9)	1	8c	1.76 (7)
O3	0.7692 (22)	0.75	0.7316 (2)	0.0120 (16)	0.97 (5)	4b	2.07 (3)

---

Fig. 3 BFIO-BM brownmillerite structure with oxygen-vacancy layers forming alternating InO₆ (gray) and FeO₄ (blue) chains in I2mb symmetry (Ba omitted). Schematic of polyhedra and bond lengths obtained from PDF refinement. Structure drawn with VESTA.¹⁹

Fig. S4 presents the neutron PDF G(r) in the nearest-neighbour region (1 Å < r < 4.5 Å) for both BFIO-BM and the nominally cubic BFIO-C phases at room temperature. For reference, the interatomic distances, expected for an average cubic perovskite model (Pm3̄m, a = 4.1562 (2) Å), are indicated by dashed lines. For BFIO-C, the first two prominent peaks, corresponding to (Fe/In)–O and Ba–O nearest-neighbour distances, are clearly splited and closely resemble those observed for BFIO-BM. This demonstrates that, despite the apparent average cubic symmetry of BFIO-C, the local coordination environment is highly distorted and closely related to that of the brownmillerite phase. At shorter length scales (r ≲ 5 Å), the experimental G(r) is therefore better described by a brownmillerite-like local structure (inset Fig. 2b), reflecting locally ordered oxygen vacancies and alternating coordination geometries. PDF analysis assuming cationic disorder (i.e., sites occupied by 50% In and 50% Fe), however, fails to fit the experimental data (see Fig. S5), whereas a local Fe/In ordering can be nicely fitted in the low-r region, confirming for the first time a B-cation order despite the average cubic symmetry. Only at larger interatomic distances, the PDF gradually converge toward the average cubic description, indicating that long-range disorder averages out these local distortions (Fig. 2b). This crossover from local brownmillerite-like order to average cubic symmetry highlights the coexistence of short-range order with long-range disorder. Importantly, this local structural behaviour implies a layered sequence of alternating InO₆ octahedra and FeO₄ tetrahedra, characteristic of brownmillerite-type vacancy ordering. Previous X-ray PDF investigations of BaIn_0.5Fe_0.5O_2.5 have already revealed deviations from ideal cubic Pm3̄m symmetry at short range, pointing to local structural heterogeneity.¹⁵ They were, however, insufficient to determine Fe/In cation ordering. In the present work, neutron PDF analysis provides a clearer picture of local distortions. Although Fe and In have comparable scattering contrast in X-rays and neutrons (with reversed ratio), neutrons benefit from Q-independent scattering lengths, enabling reliable high-Q data and higher real-space resolution. As shown in Fig. S7, only neutron PDF data can clearly distinguish between ordered and disordered B-site cation arrangements. Thus, neutron PDF results provide compelling evidence for B-site cation ordering together with oxygen-vacancy ordering persisting over short length scales in both BFIO-BM and BFIO-C.

Fig. 4a displays the temperature dependence of the DC magnetic susceptibility of BFIO-BM, under field-cooled (FC) and zero-field-cooled (ZFC) conditions. Measurements were performed between 2 and 300 K in an applied field of 1000 Oe, with ZFC data extended up to 400 K. Neither FC nor ZFC data show signatures of long-range magnetic ordering down to 2 K. The BM phase shows overall lower susceptibility values compared to the cubic phase (Fig. S6), whose magnetic behaviour is consistent with previous reports.¹⁵ Field-dependent magnetization (Fig. 4b), measured at 300 and 15 K over ±50 kOe, reveals linear behaviour at 300 K, indicative of paramagnetism. At 15 K, the M(H) curve remains nearly linear across the full field range, with no hysteresis or saturation; only a slight low-field curvature is observed, possibly indicating the presence of magnetic correlations. The temperature-dependent magnetic susceptibility of Ba₂InFeO₅ exhibits a linear χ⁻¹ vs. T relationship above 290 K, indicative of paramagnetic behaviour, while deviations occur at lower temperatures. A Curie–Weiss analysis was therefore restricted to the high-temperature region (T ≥ 290 K), where the extracted effective magnetic moment (5.65 ± 0.7)μ_B is close to the spin-only value for Fe³⁺ (S = 5/2, μ_eff = 5.9µ_B), although the restricted temperature interval used for the fit inherently limits the precision. The deviation from Curie–Weiss behaviour at lower temperatures indicates the development of short-range magnetic interactions, which likely hinder long-range ordering and suggest low-dimensional magnetic behaviour. Such magnetic properties are consistent with previous reports on Sr₂ScFeO₅, the only brownmillerite phase so far reported in the literature where Fe³⁺ exclusively occupies tetrahedral sites.³ The absence of long-range magnetic order, despite local interactions, highlights the influence of the brownmillerite framework, where alternating FeO and InO₂ layers spatially isolate magnetic exchange pathways. These results emphasize how cation ordering and coordination geometry govern magnetic dimensionality, providing a platform for exploring low-dimensional magnetism in complex oxides. This magnetic behaviour can be understood in terms of the brownmillerite crystal structure, which consists of alternating magnetic FeO layers and non-magnetic InO₂ layers, with an average separation between adjacent FeO layers of about 8 Å. Moreover, Rietveld refinements reveal distorted FeO₄ tetrahedra, modifying Fe–O–Fe bond angles and thus super-exchange interactions. These features are expected to weaken interlayer coupling and promote reduced magnetic dimensionality. Although the presence of minor magnetic impurities cannot be completely ruled out, both PXRD (Fig. S1b) and M(H) measurements suggest that any secondary phases lie below the ∼1% detection limit, supporting an intrinsic origin for the observed magnetic behaviour.

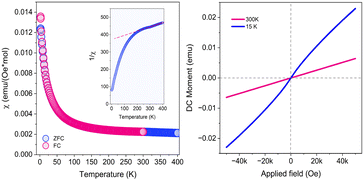

Fig. 4 (a) Temperature dependence of the field-cooled (red dots) and the zero-field-cooled (blue dots) molar magnetic susceptibility (χ) of BFIO-BM. The inverse susceptibility 1/χ, shown in the inset, is fitted with the Curie–Weiss law (red line) in the 290–300 K interval. (b) Magnetisation field loops at 15 K and 300 K.

In conclusion, this work reports the first synthesis and comprehensive characterization of the brownmillerite-type Ba₂InFeO₅. In contrast to previously studied Fe-doped Ba₂In₂O₅ systems,¹⁵ which adopt the defect-cubic form at high Fe content, Ba₂InFeO₅ represents a fully ordered Fe/In brownmillerite stabilised under ultra-high vacuum conditions. The exclusive occupation of Fe³⁺ in the tetrahedral sites leads to the formation of structurally isolated 1D-FeO₄ chains, in contrast to the mixed coordination environments typically observed in related systems.^26–30 This unique structural configuration gives rise to a strongly suppressed and low dimensional magnetic response. Detailed neutron diffraction and pair distribution function analyses provide compelling evidence for both long- and short-range ordering of oxygen vacancies together with B-site cations for both, the brownmillerite and, for the first time, in the perovskite-type polymorph. Together with neutron PDF analysis, these results show that targeted synthesis can stabilize unconventional cation orderings and extend brownmillerite-related structures beyond conventional limits.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: sample preparation, powder X-ray diffraction, powder neutron diffraction, structural model and magnetic measurement. Neutron total scattering data obtained on D4c at the ILL are available through https://doi.ill.fr/10.5291/ILL-DATA.6-06-532. See DOI: https://doi.org/10.1039/d6cc02773c.

Acknowledgements

This work is partly based on experiments performed at the Swiss spallation neutron source, PSI, Villigen (CH). Beam time allocation on D4c at the ILL (Grenoble) and HRPT at SINQ is gratefully acknowledged. The authors thank the “Plateforme d’Analyse et de Caractérisation” of the ICGM for support with XRD and magnetization measurements.
