Direct solvothermal crystallisation of the metastable cubic perovskite CsMnF₃ and its magnetism

Abstract

The solvothermal synthesis of polycrystalline cubic CsMnF₃ at 100 °C is reported, a phase previously prepared phase-pure only at 700 °C and 30 kbar. In situ powder X-ray diffraction, shows that cubic CsMnF₃ transforms irreversibly to the 6H polymorph at ∼500 °C. The magnetic properties of cubic CsMnF₃ are characterised by G-type antiferromagnetic ordering, as determined from powder neutron diffraction.

---

The solvothermal synthesis of a wide variety of oxide perovskites has been documented in the literature; this includes various ABO₃ compositions that would usually be expected to crystallise using the high temperatures associated with solid-state chemistry, such as ferroelectric titanates, and niobates, multiferroic chromites and ferrates, magnetoresistive manganites, and superconducting bismuthates.¹ The advantage of direct crystallisation from solution, often under hydrothermal conditions when water is used, is access to materials with small crystallite size (micron to nanometre dimensions) that may be annealed into fine-grained electroceramics, or used in sensing or heterogeneous catalysis because of their high surface areas.^2–4 The synthesis of oxides from solution can also allow access to unexpected polymorphs, either metastable crystal forms that subsequently collapse on further heating, such as the ilmenite structure of NaNbO₃,⁵ or structures usually only stable at higher temperatures, such as the cubic polymorph of BaTiO₃.⁶

Fluoride perovskites have been less studied than their oxide analogues, which may be due to the corrosive nature of many fluoride precursors (fluorine gas or HF, for example) that makes routine synthesis challenging.⁷ Solvothermal routes to metal fluorides offer an attractive way for their convenient preparation, with the use of closed reaction vessels and solution precursors that are easy to handle. Examples include Na₂FeF₄⁸ and NaMF₃ (M = Mn, Fe, Co, Ni),⁹ and oxyfluorides, not accessible by other routes, such as the M(OH)F diaspores.^10,11 Herein we study the solvothermal crystallisation of CsMnF₃ and reveal an example of a polymorph-selective synthesis, where a crystal form previously reported at high temperature and pressure¹² is formed directly under mild conditions.

An initial sample of CsMnF₃ synthesised by the solvothermal reaction between the binary fluorides CsF and MnF₂ in ethylene glycol at 160 °C was found to contain mostly the cubic polymorph of CsMnF₃ and some unreacted MnF₂, ∼20 wt% of the sample as determined by phase quantification from Rietveld fitting against laboratory XRD (Fig. S1a). Increasing the synthesis temperature to 180 °C increased the amount of MnF₂ remaining in the sample, whilst lowering the synthesis temperature revealed a near-linear relationship between temperature and MnF₂ content (Fig. S1b), with no significant effect on the crystallinity of the cubic CsMnF₃ phase. Rietveld analysis of the laboratory XRD from a sample prepared at 100 °C suggested that <2.5 wt% MnF₂ is present in this sample. This sample was used in further characterisation experiments (except neutron powder diffraction, see Experimental and below).

Synchrotron powder XRD was collected using beamline I11,¹³ (Diamond Light Source, UK) from the sample synthesised at 100 °C. Rietveld analysis of the diffraction data from the sample at room temperature suggested the sample contained 2.4(1) wt% MnF₂, and revealed an additional small (1.3(1) wt%) impurity of 6H-CsMnF₃ which was not detected by laboratory XRD. The remainder (96.3(1) wt%) was cubic CsMnF₃ and these three phases account for all observed diffraction peaks (Fig. 1a). Upon cooling to 100 K, the main phase remains cubic with a contraction of the lattice parameter a (Fig. 1c inset). A quartz capillary filled with a specimen from the same sample had slightly higher refined weight fractions of MnF₂ and 6H-CsMnF₃ at room temperature (6.63(7) wt% and 2.93(3) wt%, respectively). Upon heating, no significant changes are observed up to 300 °C.

Fig. 1 (a) Three-phase Rietveld fit to synchrotron XRD collected from a sample of cubic (3C) CsMnF₃ at 300 K (in borosilicate capillary). Tick marks for 6H-CsMnF₃ and MnF₂ impurities omitted for clarity. Inset shows weak peaks from impurity phases (with tick marks shown). (b) Synchrotron X-ray diffraction contour plot measured as a function of temperature, shown over phase transition temperature region. (c) Refined mass fractions of crystalline phases from sample (in quartz capillary) using synchrotron XRD upon heating. Inset shows refined lattice parameter, a, as a function of temperature measured using three diffraction experiments. For D1B, open and closed symbols were measured using a short (1.28 Å) and long (2.52 Å) neutron wavelengths, respectively.

Above 300 °C, a phase transition from cubic CsMnF₃ to 6H-CsMnF₃ occurs, which is complete by 500 °C (773 K, Fig. 1b and c). This shows that the cubic polymorph is metastable and it is unlikely that it can be synthesised by a conventional solid-state reaction at ambient pressure. Additionally, the amount of MnF₂ gradually decreases from ∼400 °C, with additional, unidentified peaks appearing from 450 °C, which is likely to be caused by reaction with air in the capillary or with the quartz capillary (Fig. S2).

The Goldschmidt tolerance factor, t, of CsMnF₃ is 1.06 is close to a cubic–hexagonal threshold, so it is not obvious from t alone which polymorph is likely to form. Previous high temperature syntheses of the hexagonal polymorph, and the phase transition observed here from cubic to 6H-CsMnF₃ upon heating, suggest that latter is the most thermodynamically stable polymorph. However, the isolation of the cubic polymorph from low temperature solution syntheses may suggest that the formation of face-sharing MnF₆ octahedral environments has a significantly higher activation energy, likely due to the shorter cation-cation distances and hence repulsion.¹⁴

The magnetic susceptibility of cubic CsMnF₃ shows variation as a function of temperature that is indicative of antiferromagnetic order, with a Néel temperature (T_N) of approximately 70 K (Fig. 2a). This is in contrast to 6H-CsMnF₃, which has a complex magnetic structure with antiferromagnetic and ferrimagnetic exchange pathways that has not been fully resolved.^15–17 A linear fit to the high temperature, paramagnetic region (350 K ≤ T ≤ 400 K) of the inverse molar susceptibility gives a good agreement and can be interpreted by the Curie–Weiss law (Fig. 2a). This gives a Curie–Weiss temperature, θ_CW, of −94.5(8) K, which indicates net antiferromagnetic interactions and an effective moment per Mn²⁺ ion, µ_eff, of 6.29(2)µ_B. High spin Mn²⁺ has no orbital angular momentum (L = 0) and its spin-only moment is 5.92µ_B. A 6.3 wt% MnF₂ impurity is sufficient to account for the discrepancy between µ_eff and the spin-only value, which is concordant with the mass fraction obtained by Rietveld refinement against powder synchrotron XRD from the sample in a quartz capillary (refined to 6.63(7) wt%). The literature shows that the µ_eff of octahedral high spin Mn²⁺ (and Fe³⁺, another ⁶S ion) has been reported to be between 6.1µ_B and 6.4µ_B in several other fluorides, oxides and phosphates.^15,18–26 This divergence has sometimes been attributed to short range correlation persisting above T_N, or slight deviation from an ideal octahedral environment. These effects are unlikely to be the cause of a larger-than-expected µ_eff in cubic CsMnF₃; it has a regular octahedral environment for Mn (on average) and the Curie–Weiss fit was carried out across a temperature range of 350 – 400 K, much greater than T_N (∼70 K).

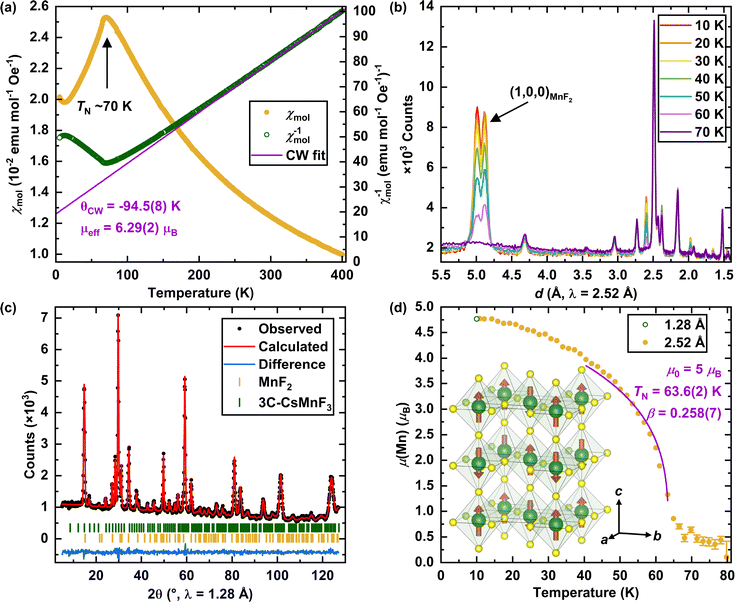

Fig. 2 (a) Molar magnetic susceptibility of cubic CsMnF₃ as a function of temperature in an applied field of 1000 Oe, with a Curie–Weiss (CW) fit to the inverse molar magnetic susceptibility. (b) Variable temperature neutron diffraction in 10 K increments, plotted in d-space. (c) Two-phase (cubic CsMnF₃ and MnF₂) magnetic Rietveld fit to neutron powder diffraction data at 10 K. Tick marks for both phases include magnetic superstructure peaks (d) Refined Mn²⁺ moment in cubic CsMnF₃ as a function of temperature with a fit using a critical power law (see text). Inset shows the G-type antiferromagnetic ordering in cubic CsMnF₃ structure, with Cs ions omitted for clarity. n.b. All neutron powder diffraction data presented in (b)–(d) were measured from a different sample containing ∼18 wt% MnF₂.

Variable temperature neutron powder diffraction data²⁷ were collected using the D1B²⁸ powder diffractometer (Institut Laue-Langevin, France). To prepare the large powder sample (∼5 g) for neutron diffraction, a synthesis scaled up by a factor of 10 was employed (see Experimental). This sample was found to contain an increased amount of MnF₂ (18.2 wt%, by Rietveld analysis of neutron powder diffraction) compared to the original sample. When cooled below T_N, CsMnF₃ remains apparently cubic, though several magnetic superstructure peaks develop in the neutron diffraction pattern at d = 4.98 Å, 2.06 Å, 1.98 Å and 1.67 Å, as well as the main antiferromagnetic superstructure²⁹ peak (100) from MnF₂ at d = 4.87 Å (partly overlapping with a cubic CsMnF₃ peak, Fig. 2b), which has a similar T_N. A fit to the neutron diffraction pattern at 10 K (Fig. 2c) shows cubic CsMnF₃ has G-type antiferromagnetic ordering at 10 K, with a moment of 4.77(2) µ_B (Fig. 2d, inset). The moment direction could not be uniquely determined from the powder data. This model was used to fit to the variable temperature data upon heating to 80 K, with lattice parameter a slightly increasing (Fig. 1c, inset) and the Mn magnetic moment, µ(Mn), undergoing an exponential decay (Fig. 2d). Close to the T_N (40 K < T < 65 K), µ(Mn) can be fitted using a critical power law, with the saturated moment, µ₀, fixed at the 2S value of 5µ_B. The fit yields a T_N of 63.6(2) K and a critical exponent, β, of 0.258(7), suggesting a significant deviation from a mean field system (β = 0.5) or simple 3D Heisenberg or Ising antiferromagnetic systems (β = 0.365 and 0.325, respectively).³⁰ A β close to 0.25 may suggest a tricritical point.³¹

Fig. 3 compares the crystal structures of the two polymorphs studied here, showing the different connectivity of the Mn-centred octahedra. The application of pressure to hexagonal perovskites has been found to destabilise the B cations in face-sharing octahedra due to B-B repulsion.^32,33 In particular, Kafalas and Longo¹² found the CsBF₃ (B = Mg, Mn–Ni, Zn) hexagonal perovskites convert to hexagonal polytypes with an increasing proportion of ccp layers with application of pressure, with a transition from the 6H to the cubic (“3C”) polymorph seen in CsMnF₃ and CsFeF₃ when quenched from 700 °C at 30 and 80 kbar, respectively, whose tolerance factors (1.06 and 1.07 respectively) are closest to the cubic–hexagonal threshold.

Fig. 3 (a) Cubic and (b) 6H-CsMnF₃ with purple Cs cations purple, green MnF₆ octahedra and yellow F anions. In (b), the packing of the CsF₃ layers are denoted either c or h to denote cubic or hexagonal close packing, respectively.

A synthesis of an impure sample cubic nanocrystalline CsMnF₃ was recently reported by Fellner and Lauria³⁴ from Mn(II) acetate and CsF (1 : 3 ratio, respectively) in a mixture of oleic acid and octadecene at 160 °C. This sample was contaminated with a significant amount of an acid fluoride phase Cs₂H₃F₅ (though the diffraction pattern of Cs₂H₃F₅ has been indexed to a face-centred cubic cell, its crystal structure has not previously been determined, making quantitative analysis impossible). The AC magnetic susceptibility as a function of temperature of the mixed CsMnF₃-Cs₂H₃F₅ sample suggested antiferromagnetic ordering occurred at a low temperature (<60 K, though this can be affected by the oscillating field frequency in AC susceptibility measurements³⁵). Scanning electron microscopy (SEM) from the sample prepared by our synthesis route shows crystallites with a predominant rod-like morphology (Fig. 4a) with dimensions of ∼0.1 µm × ∼0.4 µm, contrasting with the 5 nm crystallites observed in the sample reported by Fellner and Lauria.³⁴ When the sample was heated to 748 K (475 °C) under N₂ for 1 hr, 6H-CsMnF₃ is produced with crystallites that generally retain the rod-like morphology though an increase in crystallite size (Fig. 4b).

Fig. 4 SEM images of (a) as-made cubic CsMnF₃ and (b) 6H-CsMnF₃ made by heating of the cubic polymorph. Scale bar the same for both.

In summary, we have prepared high purity cubic CsMnF₃ by a solvothermal reaction in ethylene glycol that allows its phase transitions and magnetic behaviour to be studied in detail. We have shown that it converts to the thermodynamic 6H polymorph upon heating to ∼450 °C, demonstrating its metastability. Cubic CsMnF₃ is a G-type antiferromagnet with T_N ∼ 70 K. The preparative chemistry developed could be applicable to other transition-metal fluorides with the prospect of discovery of novel compositions and crystal structures.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Data availability

All data generated or analysed during this study are included in this article and the supplementary information (SI). Supplementary information is available. See DOI: https://doi.org/10.1039/d6cc02124g.

Data from ILL available at https://dx.doi.org/10.5291/ILL-DATA.5-24-770.

Acknowledgements

R. I. W. and M. S. S. acknowledge the Leverhulme Trust for a research project grant (Grant No. RPG-2022-22). M. S. S. acknowledges the Royal Society for a fellowship (UF160265 and URF\R\231012). Initial sample characterisation was performed via the Warwick X-ray and Microscopy Research Technology Platforms. We thank Professor Martin R. Lees for access to SQUID magnetometer. Synchrotron powder XRD was supported by the Diamond Light Source Oxford-Warwick BAG CY39378-4, and the Institut Laue-Langevin provided neutron diffraction under experiment 5-24-770 (DOI: https://doi.org/10.5291/ILL-DATA.5-24-770). We thank Putthachat Sinted for assistance with neutron diffraction measurement and Andrew Unsworth for electron microscopy support.
