Rhodium-catalysed β-selective 1,4-addition of arylboron compounds to glycals enabled by chiral diene ligands

Abstract

The rhodium-catalysed β-selective 1,4-addition of arylboron compounds to enones derived from glucal derivatives enabled by chiral diene ligands. The present catalytic system allows ligand-controlled anomeric selectivity, providing direct access to β-C-glycosyl arenes in good to high yields. The reaction exhibits broad substrate scope, proceeds efficiently on gram scale with low catalyst loading, and enables the synthesis of a 2-deoxy derivative of the SGLT2 inhibitor dapagliflozin.

---

C-Glycosyl arenes are sugar derivatives in which an aromatic ring is attached to the anomeric carbon (C1) through a stable carbon–carbon bond. These structural motifs have attracted considerable attention in organic synthesis, medicinal chemistry, and natural product synthesis.¹ Notably, several SGLT2 inhibitors incorporating C-glycosyl arene frameworks have recently been approved as therapeutic agents for the treatment of type 2 diabetes (Scheme 1).²

Scheme 1 Biologically active C-glycosyl arenes.

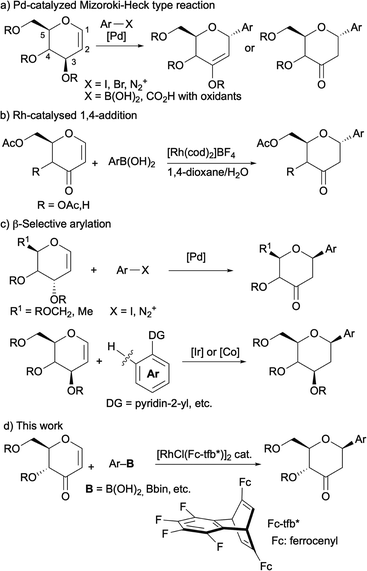

Glycals are sugar derivatives characterized by the presence of a carbon–carbon double bond between the C1 and C2 positions of the ring. Owing to this unsaturation at the anomeric position, glycals serve as versatile substrates for the introduction of carbon-based substituents at C1.³ The introduction of aryl groups via palladium-catalysed reactions of glycals has been studied extensively.^4–6 These transformations enable direct access to 2-deoxy-C-glycosyl arenes, which lack a hydroxyl group at the C2 position, and typically proceed with predominant formation of the α-C-glycosyl arene isomer, which arises from aryl addition to the less hindered face of the glycal framework, avoiding steric interactions with the C5–CH₂OR substituent (Scheme 2a).⁴ In addition, rhodium-catalysed 1,4-addition reaction of arylboronic acids to glycal derivatives have also been reported to proceed in an α-selective manner (Scheme 2b).⁷ In such reactions, the stereochemical outcome of the products is largely governed by the intrinsic structure and stereochemistry of the glycal substrates.

Scheme 2 Arylation reactions of glycals.

On the other hand, several examples of β-selective arylation reactions have also been reported (Scheme 2c).^8,10,11 Representative examples include the palladium-catalysed Mizoroki–Heck-type reactions reported by Kandasamy^4d and Collet,⁸ in which the stereochemical outcome is controlled by the substrate stereochemistry. In contrast, hydroarylation reactions via C–H functionalisation using iridium⁹ or cobalt¹⁰ catalysts have been shown to allow control over β-selectivity. Herein, we report the β-selective 1,4-addition reaction of arylboron compounds to enones derived from glucal derivatives using a rhodium catalyst bearing a chiral diene ligand (Scheme 2d). The direct synthesis of β-C-glycosyl arenes from glycal derivatives was successfully achieved through the use of chiral diene ligands with an appropriate absolute configuration.

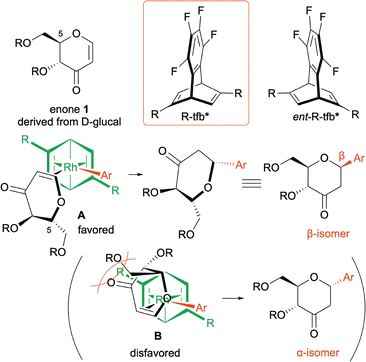

For our goal of achieving β-selective arylation of glycal derivatives 1 derived from D-glucal, we designed the Rh-catalysed 1,4-addition reaction using chiral diene ligands (Scheme 3). In the Rh-catalysed 1,4-addition reaction of arylboron compounds, an arylrhodium species coordinated with the chiral diene is a key intermediate for rationalising the stereochemical pathway.¹² The arylrhodium species A coordinated with chiral diene ligands based on a tetrafluorobenzobarrelene framework (R-tfb*)¹³ generates an effective C₂-symmetric environment, with the substituents positioned at the upper left and lower right quadrants. The olefinic double bond of 1 coordinates to the rhodium centre in a manner that avoids steric repulsion between the substituents on the diene ligand and the carbonyl moiety of the enone, as illustrated in species A. Consequently, aryl transfer is expected to occur preferentially from the β-face (the face syn to the C5–CH₂OR substituent).

Scheme 3 Proposed stereochemiocal pathway in the Rh-catalyzed 1,4-addition.

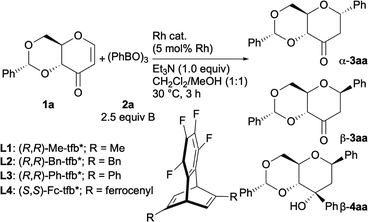

In an initial set of experiments, several types of ligands were evaluated for their reactivity in the rhodium-catalysed 1,4-addition to glucal 1a, in which the two hydroxy groups are protected as an acetal (Table 1). Treatment of 1a with triphenylboroxin (2a, 2.5 equiv of B) in the presence of an achiral catalyst, [Rh(OH)(cod)]₂ (5 mol% Rh; cod = 1,5-cyclooctadiene), and triethylamine (1.0 equiv.) in dichloromethane/methanol at 30 °C for 3 h selectively gave α-3aa in 90% yield (entry 1). The observed α-selectivity is consistent with the previous report.⁷ Under otherwise identical reaction conditions, [RhCl(cod)]₂ also acted as an effective catalyst (entry 2). Next, the reaction was examined using chiral diene ligands based on a tetrafluorobenzobarrelene (tfb*) framework that we previously developed.¹³ On this occasion, the absolute configuration of the ligand was selected to favour formation of the β isomer, taking the stereochemical reaction pathway into consideration.^12b However, contrary to our expectations, when the methyl-substituted ligand L1 ((R,R)-Me-tfb*) was employed, α-3aa was preferentially formed with only a minor amount of β-3aa (α : β = 98 : 2, entry 3). The catalyst [Rh(OH)(L2)]₂ bearing the benzyl-substituted (R,R)-Bn-tfb* ligand (L2) exhibited high reactivity, affording 3aa in 73% yield, yet still favored α-selectivity (entry 4). In contrast, β-selective addition was observed with (R,R)-Ph-tfb* (L3), giving 3aa in 12% yield along with the formation of 4aa in 27% yield, arising from extra 1,2-addition to the carbonyl group (entry 5). Complete β-selectivity was achieved using (S,S)-Fc-tfb* (L4), providing 3aa in 44% yield; however, the diarylation product 4aa was also formed in 45% yield (entry 6). Selective formation of 4aa was accomplished by employing a larger excess of 2a (5 equiv of B; entry 7). Notably, the use of (R,R)-Fc-tfb (ent-L4) exclusively gave α-3aa (entry 8), indicating that the stereochemical outcome of the β-selective reaction is governed by the absolute configuration of the chiral diene ligand.

Table 1 Screening of ligands^a

Entry	Rh cat.	3aa^b (%)	4aa^b (%)	α : β^b
a Reaction conditions: 1a (0.10 mmol), 2a (0.083 mmol), Rh cat. (0.0025 mmol, 5 mol% Rh), Et3N (0.10 mmol), CH2Cl2 (0.20 mL), MeOH (0.20 mL) at 30 °C for 3 h.b Determined by ^1H NMR.c Performed with 2a (0.167 mmol).d Isolated yield.
1	[Rh(OH)(cod)]2	88 (85)^d	0	α only
2	[RhCl(cod)]2	73	0	α only
3	[RhCl(L1)]2	24	0	92 : 8
4	[Rh(OH)(L2)]2	71	3	96 : 4
5	[Rh(OH)(L3)]2	12	27	8 : 92
6	[Rh(OH)(L4)]2	39 (37)^d	46	β only
7^c	[Rh(OH)(L4)]2	6	82 (85)^d	β only
8	[RhCl(ent-L4)]2	92	0	α only

---

In contrast to the formation of the diarylated product 4aa observed in the reaction of 1a, di-O-acetyl enone 1b was found to undergo selective 1,4-addition while suppressing extra 1,2-addition to the carbonyl group (Table 2).^14,15 Accordingly, reactions of 1b with 2a in the presence of the Rh/(S,S)-Fc-tfb* (L4) catalyst gave the desired product 3ba in high yields with excellent β-selectivity (entries 1 and 2). When phenylboronic acid (5a) was used instead of triphenylboroxin (2a), β-3ba was obtained in a similarly excellent yield (entry 3). A gram-scale reaction employing 1 mol% of the rhodium catalyst was also successfully carried out. Arylboronic acids bearing a variety of functional groups at the para (5b–5g), meta (5h–5j), and ortho (5k–5m) positions gave the corresponding products 3bb–3bm in good to high yields with β-selectivity (entries 4–15). The aryl moiety of the SGLT2 inhibitor dapagliflozin could also be introduced onto glucal 1b using the pinacol ester 5n, affording the desired product 3bn in 84% yield (entry 16).

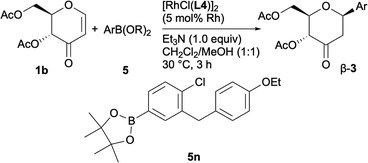

Table 2 Scope of arylboron compounds 5^a

Entry	ArB(OR)2	3^b (%)
a Reaction conditions: 1b (0.10 mmol), 2a (0.083 mmol) or 5 (0.25 mmol), [RhCl(L4)]2 (0.0025 mmol, 5 mol% Rh), Et3N (0.10 mmol), CH2Cl2 (0.20 mL), MeOH (0.20 mL) at 30 °C for 3 h.b Isolated yields.c [Rh(OH)(L4)]2 was used.d Determined by ^1H NMR.e Performed with 1b (1.0 g) and 5a (2.5 equiv B) in the presence of 1 mol% of the Rh catalyst.f Performed with 5 (0.50 mmol) and Et3N (0.20 mmol).
1^c	(C6H5BO)3 (2a)	92 (3ba)
2	(C6H5BO)3 (2a)	90^d (3ba)
3	C6H5B(OH)2 (5a)	92 (75)^e (3ba)
4	4-MeC6H4B(OH)2 (5b)	93 (3bb)
5	4-MeOC6H4B(OH)2 (5c)	78 (3bc)
6	4-FC6H4B(OH)2 (5d)	77 (3bd)
7	4-ClC6H4B(OH)2 (5e)	77 (3be)
8^f	4-BrC6H4B(OH)2 (5f)	97 (3bf)
9	4-CF3C6H4B(OH)2 (5g)	57 (3bg)
10	3-MeOC6H4B(OH)2 (5h)	89 (3bh)
11	3-ClC6H4B(OH)2 (5i)	73 (3bi)
12	3-BrC6H4B(OH)2 (5j)	76 (3bj)
13	2-MeOC6H4B(OH)2 (5k)	87 (3bk)
14	2-ClC6H4B(OH)2 (5l)	69 (3bl)
15	2-BrC6H4B(OH)2 (5m)	68 (3bm)
16^f	5n	84 (3bn)

---

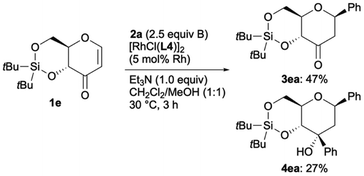

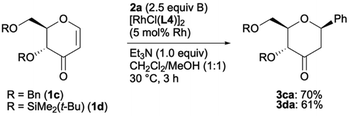

The present catalytic system can also be applied to the 1,4-addition of triphenylboroxin (2a) to several glycal derivatives 1. For example, O-benzyl- and O-tert-butyldimethylsilyl-substituted glycals 1c and 1d reacted with 2a to give the corresponding β-adducts 3ca and 3da, respectively, in good yields (eqn (1)). Similarly to glucal 1a bearing a cyclic acetal framework, 1e possessing a dioxasilacyclic moiety underwent 1,4-addition followed by an extra 1,2-addition to give 3ea and 4ea in 47% and 27% yields, respectively (eqn (2)). These three substrates exhibited excellent β-selectivity. Unfortunately, however, in the reaction of galactal-derived substrate 1f, α-selectivity was predominant even when ligand L4 was employed, presumably due to steric hindrance from the C4–OAc substituent, which disfavours aryl addition from the β-face (eqn (3)).

As shown in Scheme 4, solvolysis of β-3ba using potassium carbonate in methanol gave diol 6 in 71% yield. Methylation of β-3ba by MeMgBr gave (3S)-7 in 79% yield as well as 10% of (3R)-7'. The observed selectivity is similar to that observed in the arylation of β-3aa shown in Table 1. Treatment of β-3ba with sodium borohydride resulted in both deprotection of the acetyl groups and reduction of the carbonyl moiety, giving triol 8 in 82% yield; the observed selectivity is similar to that reported for the hydrogenation of ketones bearing a glycal framework.¹¹ The same transformation was successfully applied to β-3bn to give compound 9, a 2-deoxy derivative of SGLT2 inhibitor dapagliflozin,¹⁶ in 84% yield.

Scheme 4 Transformations of 3.

In summary, a rhodium-catalysed β-selective 1,4-addition of arylboron compounds to glycal derivatives has been developed using chiral diene ligands. While conventional arylation reactions of glycals typically afford α-C-glycosyl arenes under substrate control, the present catalytic system enables ligand-controlled inversion of anomeric selectivity. The use of an appropriately configured chiral diene ligand allows direct access to β-C-glycosyl arenes in good to high yields with excellent β-selectivity across a broad range of arylboron reagents and glucal substrates. The synthetic utility of this method was further demonstrated by gram-scale synthesis and the preparation of a 2-deoxy derivative of the SGLT2 inhibitor dapagliflozin.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: experimental procedures, and compound characterization data. See DOI: https://doi.org/10.1039/d6cc01768a.

CCDC 2527082 contains the supplementary crystallographic data for this paper.¹⁷

Acknowledgements

We thank Professor H. W. Lam (University of Nottingham) for kindly providing ligand L6 (See the SI). This work is supported by JSPS KAKENHI Grant Number JP24K08416.

References

1. For recent reviews, see: (a) É. Bokor, S. Kun, D. Goyard, M. Tóth, J.-P. Praly, S. Vidal and L. Somsák, Chem. Rev., 2017, 117, 1687; (b) Y. Yang and B. Yu, Chem. Rev., 2017, 117, 12281; (c) K. Kitamura, Y. Ando, T. Matsumoto and K. Suzuki, Chem. Rev., 2018, 118, 1495.
2. For selected examples, see: (a) W. Meng, et al., J. Med. Chem., 2008, 51, 1145; (b) M. Imamura, et al., Bioorg. Med. Chem., 2012, 20, 3263; (c) A. R. Aguillón, A. Mascarello, N. D. Segretti, H. F. Z. de Azevedo, C. R. W. Guimaraes, L. S. M. Miranda and R. O. M. A. de Souza, Org. Process Res. Dev., 2018, 22, 467.
3. (a) A. A. Ansari, R. Lahiri and Y. D. Vankar, ARKIVOC, 2013,(ii), 316; (b) K. Lalitha, K. Muthusamy, Y. S. Prasad, P. K. Vemula and S. Nagarajan, Carbohydr. Res., 2015, 402, 158; (c) M. B. Tatina, A. Hussain, A. K. Dhas and D. Mukherjee, RSC Adv., 2016, 6, 75960; (d) S. Miranda, A. M. Gómez and J. C. López, Eur. J. Org. Chem., 2018, 5355; (e) H. H. Kinfe, Org. Biomol. Chem., 2019, 17, 4153; (f) N. Hussain and A. Hussain, RSC Adv., 2021, 11, 34369; (g) Z. Guo, J. Bai, M. Liu, D. Xiong and X. Ye, Chin. J. Org. Chem., 2020, 40, 3094; (h) R. Das, M. Das, D. Mukherjee and T. Kundu, Synthesis, 2024, 1070.
4. For examples of Mizoroki-Heck type reactions, see: (a) S. Czernecki and F. Gruy, Tetrahedron Lett., 1981, 22, 437; (b) M. Lei, L. Gao and J.-S. Yang, Tetrahedron Lett., 2009, 50, 5135; (c) H. H. Li and X.-S. Ye, Org. Biomol. Chem., 2009, 7, 3855; (d) A. K. Singh, R. Venkatesh and J. Kandasamy, Synthesis, 2019, 4215 The oxidative reactions, see: ; (e) O. C. Xiong, L.-H. Zhang and X.-S. Ye, Org. Lett., 2009, 11, 1709; (f) S. Xiang, S. Cai, J. Zeng and X.-W. Liu, Org. Lett., 2011, 13, 4608; (g) S. Tang, Q. Zheng, D. C. Xiong, S. Jiang, Q. Li and X. S. Ye, Org. Lett., 2018, 20, 3079.
5. For an example of Fujiwara-Moritani reaction, see: S. Czernecki and V. Dechavanne, Can. J. Chem., 1983, 61, 533.
6. For examples of arylative substitution reactions, see: (a) J. Rammauth, O. Poulin, S. Rakhit and S. P. Maddaford, Org. Lett., 2001, 3, 2013; (b) D. P. Stenhuebel and J. J. Fleming, and J. Du Bois, Org. Lett., 2002, 4, 293; (c) Y. Bai, L. M. H. Kim, H. Liao and X.-W. Liu, J. Org. Chem., 2013, 78, 8821; (d) J. Ma, S. Xiang, H. Jiang and X.-W. Liu, Eur. J. Org. Chem., 2015, 949; (e) A. K. Kusunuru, S. K. Yousuf, M. Tatina and D. Mukherjee, Eur. J. Org. Chem., 2015, 459; (f) P. Rabet, S. Wagschal and S. Lemaire, Synlett, 2017, 2320; (g) A. K. Singh and J. Kandasamy, Org. Biomol. Chem., 2018, 16, 5107; (h) K. B. Pal, J. Lee, M. Das and X.-W. Liu, Org. Biomol. Chem., 2020, 18, 2242; (i) M. Lai, K. A. Othman, H. Yao, Q. Wang, Y. Feng, N. Huang, M. Liu and K. Zou, Org. Lett., 2020, 22, 1144.
7. J. Ramnauth, O. Poulin, S. S. Bratovanov, S. Rakhit and S. P. Maddaford, Org. Lett., 2001, 3, 2571.
8. T. Mabit, A. Siard, F. Legros, S. Guillarme, A. Martel, J. Lebreton, F. Carreaux, G. Dujardin and S. Collet, Chem. – Eur. J., 2018, 24, 14069.
9. (a) K. Sakamoto, M. Nagai, Y. Ebe, H. Yorimitsu and T. Nishimura, ACS Catal., 2019, 9, 1347; (b) W. Zhu, Q. Sun, H. Chang, H. X. Zhang, Q. Wang, G. Chen and G. He, Chin. J. Chem., 2022, 40, 571.
10. Q.-Q. Mu, A.-X. Guo, X. Cai, Y.-Y. Qin, X.-L. Liu, F.-Z. Ye, H.-J. Yang, X. Xiao and X.-W. Liu, Org. Lett., 2023, 25, 7040.
11. For examples of multi-step synthesis of β-C-glycosyl arenes from glycals, see: A. K. Singh, V. K. Kanaujiya, V. Tiwari, S. Sabiah and J. Kandasamy, Org. Lett., 2020, 22, 7650 . See also ref. 4b and 4g.
12. For a recent review, see: (a) Y. Huang and T. Hayashi, Chem. Rev., 2022, 122, 14346 For a representative example of chiral diene ligands in the Rh-catalysed 1,4-addition reactions, see; (b) Y. Otomaru, K. Okamoto, R. Shintani and T. Hayashi, J. Org. Chem., 2005, 70, 2503.
13. (a) M. Nagamoto and T. Nishimura, ACS Catal., 2017, 7, 833; (b) T. Nishimura, H. Kumamoto, M. Nagaosa and T. Hayashi, Chem. Commun., 2009, 5713; (c) T. Nishimura, A. Kasai, M. Nagaosa and T. Hayashi, Chem. Commun., 2011, 47, 10488; (d) T. Nishimura, Y. Takiguchi and T. Hayashi, J. Am. Chem. Soc., 2012, 134, 9086.
14. The suppression of 1,2-addition to the carbonyl group in the reaction of 1b is likely due to the greater conformational flexibility of the CH₂OAc and OAc substituents relative to the cyclic protecting group in 1a, which may impede the approach of the arylrhodium species to the carbonyl group.
15. See the Supporting Information for details of the ligand effects in the reaction of 1b.
16. (a) K. Vaňková, M. Rahm, J. Choutka, R. Pohl and K. Parkan, Chem. – Eur. J., 2021, 27, 10583; (b) A. K. Singh, R. Venkatesh, V. K. Kanaujiya, V. Tiwari and J. Kandasamy, Eur. J. Org. Chem., 2022, e202200023.
17. CCDC 2527082: Experimental Crystal Structure Determination, 2026 DOI:10.5517/ccdc.csd.cc2qtmsz.

---
