Overcoming rigidity: flexible aliphatic ligand backbones as a standard for the alkoxycarbonylation of alkenes

Abstract

In this study, we present a significant advancement in palladium catalysed alkoxycarbonylation of aliphatic olefins. A comparison of privileged bidentate phosphines with different ligand backbones was conducted. Therefore, it can be inferred that L3, with its propyl backbone, is capable of challenging the state-of-the-art systems (L1 and L2). This ligand is particularly well-suited for ester synthesis from simple alkenes with industrial relevance and challenging alkenes having internal or multiple double bonds. In comparison with the other tested ligands, L3 facilitates more efficient synthesis and scale-up.

---

In the domain of homogeneous catalysis, carbonylations catalysed by transition metals are recognised as pivotal reactions in contemporary academic research and industrial applications.^1–4 These reactions enable the transformation of substrates, including alcohols, aryl halides, and olefins, into various products such as acids, aldehydes, amines, and esters.^1,2,4,5 The importance of esters in daily life is underscored by their extensive utilisation in various applications, including solvents, fragrances, and insecticides. Furthermore, esters find application as monomers in polymer synthesis and as building blocks in chemical and pharmaceutical syntheses.^6–16 Given their importance, a broad range of ester synthesis methods have been developed in recent decades. Nonetheless, investigation in this domain had already commenced prior to the discovery of the Fischer esterification in 1895, in which carboxylic acids and alcohols were converted into esters.^12,17 Particularly, the alkoxycarbonylation of olefins garnered significant attention owing to its perfect atom economy as all substrates—alkene, carbon monoxide (CO), and alcohol—are exclusively converted to esters.^5,6,8,18,19 In this respect, the isomerising alkoxycarbonylation process is of significant industrial relevance, as it enables the selective synthesis of esters from feedstocks comprising both terminal and internal alkenes. Currently, alkoxycarbonylation is a pivotal industrial process in the production of methyl propanoate, a crucial precursor for the synthesis of methyl methacrylate (MMA), a highly relevant compound in industrial manufacturing. The Lucite Alpha I–III processes are particularly notable, operating at an annual scale of over 300 000 tons.^{13–15,20–25} The process involves the carbonylation of ethylene, facilitated by a bidentate phosphine ligand, followed by a condensation step with formaldehyde to yield the desired MMA.^{14–16,19–23}

Common alkoxycarbonylation reaction systems employ a phosphine-modified palladium complex, which is activated by an acidic co-catalyst. The modification of the structure of the ligands used, and thus the steric environment of the catalyst, serves as a potent tool for the modulation of the selectivity, activity, and stability of the entire catalytic system.^{13,18,23,26,27}

In the case of bidentate ligands, the variation of the electronic properties and the steric hindrance of the substituents on the phosphorous atoms will also influence the bite angle of the ligands. This phenomenon also directs the outcome of the reaction, as adjustments can be made to control whether branched or linear products are formed.^16,23,27,28

In addition to selectivity, the electronic properties of substituents can also significantly influence the energy barriers of transition states. As the bite angle (P-M-P) of bidentate phosphine ligands increases, there is a decrease in electron density at the metal center, which favors the nucleophilic attack of the alcohol. Nevertheless, this concurrently diminishes the chelating properties of the ligand. Consequently, it is imperative to select ligands with the optimal bite angle to capitalise on the augmented activity and the chelating properties (Fig. 1).^14,29

Fig. 1 General reaction scheme of the olefin methoxycarbonylation and a selection of current state-of-the-art ligands chosen for this study.

In recent decades, specifically 1,2-bis((di-tert-butyl-phosphino)methyl)-benzene (Lucite α ligand, L2) has been identified as an outstanding ligand for methoxycarbonylation of olefins. Inspired by this success, a series of derivatives characterised by modified electronic and steric properties of the phosphorus atoms were developed.^16,20,21 In this respect, we also introduced a variety of related ligands, including LIKATPhos (L1), where one tert-butyl group on each side of the Lucite α ligand is replaced with pyridyl units. A broad array of esters, encompassing saturated and unsaturated monocarboxylic acid esters, as well as dicarboxylic acid diesters, can be obtained through the application of ligands that possess integrated basic sites.^{3,11,14,26,30,31,32}

Most variations of the Lucite α ligand make use of a rigid ligand backbone, a configuration that is regarded as more advantageous in comparison to a flexible one.^27,29 In contrast, the utilisation of more flexible backbones that diverge from the well-known rigid arene core has been less extensively explored. To address this shortcoming, this study uses L3 to highlight the under-exploited potential of ligands with flexible backbones.

In order to compare the known ligands (L1–L5)^1,13,20,22 in the isomerising alkoxycarbonylation, the present studies commenced with 1-octene (1) as an industrially relevant model substrate. To utilise the full potential of L3, which was previously employed under relatively harsh reaction conditions (0.5 mol% Pd precursor, 40 bar CO, 120 °C, p-TSA as a co-catalyst, and a catalyst : ligand : acid ratio of 1 : 4 : 16), we aimed at enabling milder reaction conditions. To highlight differences in performance, the temperature, reaction time and Pd loading were drastically reduced compared to previous work on L3¹ (80 °C, 2 hours, and 0.04 mol% Pd precursor). Furthermore, CO pressure and the catalyst : ligand : acid ratio were also modified (30 bar CO and 1 : 4 : 10). The milder conditions facilitated the discernment of discrepancies in performance and the yield of the desired ester (2) (Table 1). Under these conditions, a series of ligands with xylene (L1, L2), aliphatic (L3, L4) and ferrocenyl backbones (L5) were tested for comparison (Table 1). Regardless of the diminished reaction time, a comparable octene consumption of greater than 99% is evident for L1–L3 and L5, attributable to isomerisation and subsequent methoxycarbonylation.

Table 1 Screening of different ligands for the alkoxycarbonylation of 1-octene under optimised conditions^a

Entry	Lig.	Conv.^c [%]	Σ Esters [%]	n/iso [%]	3^d [%]
a ^aConditions: 1 (20 mmol), Pd(acac)2 (0.008 mmol), ligand (0.032 mmol), PTSA·H2O (0.08 mmol), MeOH (20 mL), CO (30 bar), 80 °C, 2 h.b The ligand was synthesised via a different synthetic route (see the supplementary information (SI) for details).c Remaining C8 alkenes including 1-octene.d The conversion, the n/iso ratio and the amount of the remaining C8 alkenes were determined using mesitylene as the internal standard.
1	L1	>99	76	76/24	17
2	L2	99	10	94/06	81
3	L3^b	99	82	59/41	11
4	L4	9	—	—	1
5	L5	>99	60	60/40	34

---

However, significant differences are observed in the ester yield, the n/iso ratio, and the amount of the remaining C₈ alkenes. A direct comparison of L3 and L4 shows improved performance for the former ligand despite the same backbone. Under these conditions, L3 achieved an ester yield of >80% with a conversion of 99% despite the relatively short reaction time (Table 1, entry 3), with only a small portion of 11% C₈ compounds remaining. This showcases the superior activity of L3 due to the integrated base moieties enhancing the overall reaction efficiency of the system. The comparison of L1 and L5 with L3 reveals a significantly lower ester yield for L1 and L5 than for L3, albeit in all three cases the conversion is >99%. The utilisation of L2 results in a high conversion of 99%, yet only 10% of the ester is formed. The enhanced outcomes observed with L3 are presumably attributable to a combination of both the basic pyridine moieties and the more flexible aliphatic backbone.

To illustrate the versatility and improved reactivity of the catalyst system with L3, a range of different olefins were investigated, with a special emphasis on industrially relevant starting materials. These include alkenes with internal, terminal, cyclic and multiple double bonds. The scope of the study was divided into two sections. In Section A, industrially relevant substrates were subjected to optimised reaction conditions with a low palladium loading of 0.04 mol%. In Section B, less reactive substrates were converted using a slightly higher catalyst loading of 0.08 mol%.

As demonstrated in Section A of the scope, L3 consistently yields optimal outcomes with minimal catalyst loading, exhibiting a marked preference for the formation of the desired n-esters, including methyl hexanoate (2a, 63% n-ester, TON: 1500) and methyl pentanoate (2b, 62% n-ester, TON: 2440). Industrially relevant ethylene could be converted to methyl propionate (2c) with a turnover number of >100 000 and a particularly low catalyst loading of 9.5 ppm. Substrates that are more sterically demanding, such as diisobutene (1d), also resulted in a high yield of 2d (85%, TON: 2050; prev. lit. TON: 190¹). It was observed that cyclohexene (1f), which is typically characterised by a lower degree of reactivity in comparison with terminal olefins, could be successfully converted to its corresponding ester (2f), showing a remarkable yield of 90% (TON: 2250). Finally, neohexene (1e) could also be successfully transformed into the corresponding methyl ester (2e) in a yield of 65% (TON: 1625). In Section B, the catalyst loading was increased to facilitate the conversion of more challenging substrates to their corresponding esters. These include substrates with steric hindrance, functional groups and internal double bonds, as well as substrates with multiple double bonds.

Under these conditions, comparable results are obtained with the isomerising substrate 2-octene (1g) as with 1-octene, with nearly identical n/iso selectivities (n/iso selectivity of 54/46 compared to 57/43 in Table S4 of the SI; TON: 1150). The substrates styrene (1h) and MMA (1i), which are widely used in industry, were also included in this scope and could both be converted into their methyl esters in excellent yields (2h: 98%, TON: 1225; 2i: 94%, TON: 1163). Gratifyingly, cyclooctene 1j, which contains an internal double bond and is typically considered to be largely unreactive, provided 2j in an impressive yield of 92% (TON: 1150; prev. lit. TON: 196¹). The perfluorinated compound 1m underwent a transformation into the methyl ester (2m; TON: 1188) in a quantitative yield of 95%, and the challenging, sterically hindered substrate (1l) was isolated in an impressive yield of 91% (TON: 1140).

A notable challenge arises in the context of methoxycarbonylations conducted on substrates bearing multiple double bonds. In such cases, many competing side reactions (like polymerisation/telomerisation) can occur and the chemo- and regioselectivity control is particularly difficult. Nevertheless, for 1,3-diisopropenylbenzene (1k), we were able to isolate 93% of the desired double-carbonylated product without increasing the catalyst loading (2k; TON: 1163; prev. lit. TON: 198¹). Gratifyingly, in the case of the highly challenging substrate 1n, the corresponding triester (2n; TON: 875) was isolated in high yield (70%), mostly avoiding acid-catalysed aromatisation as a side reaction.

The use of diisobutene as a starting material is of significance in industrial applications. Here, the objective was to demonstrate that L3, with its propyl backbone and simpler synthesis, can compete with the widely recognised ligand L1. This substrate's distinctive characteristic is its composition, which consists of a mixture of isomers (Fig. 3). The mixture is predominantly terminal (80%, TMP1), and it also contains a certain amount of internal isomer (20%, TMP2). Fig. 4 compares L1 and L3 in the methoxycarbonylation of diisobutene (for diagrams showing all reaction components, see the SI, Fig. 2 and 3). In the case of L3, the formation of the corresponding ester proceeded slightly faster during the first 110 minutes compared to L1; from this point onwards, the ester production of L1 increased compared to L3. The ether byproduct is observed only in traces in both cases; peak values can be observed for L1 between 70 and 160 minutes (3%) and for L3 between 60 and 120 minutes (2%).

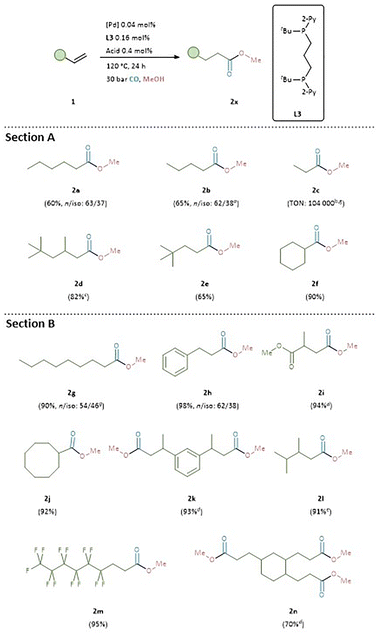

Fig. 2 Palladium-catalysed alkoxycarbonylation of olefins: substrate scope. Conditions A: 1 (20 mmol), Pd(acac)₂ (0.04 mol%), L3 (0.16 mol%), PTSA·H₂O (0.4 mol%), MeOH (20 mL), CO (30 bar), 120 °C, 24 h, isolated yields, n/iso selectivity determined by GC analysis, ^a60 mmol, ^b682 mmol, 0.00096/0.0138/0.069 mol% [Pd]/L3/H⁺, ^c80 mmol. Conditions B: 1 (20 mmol), Pd(acac)₂ (0.08 mol%), L3 (0.32 mol%), PTSA·H₂O (0.8 mol%), MeOH (20 mL), CO (30 bar), 120 °C, 24 h, isolated yields, n/iso selectivity determined by GC analysis, ^d40 mmol, ^e80 °C, ^f0.8/3.2/8.0 mol% [Pd]/L3/H⁺, ^gyield determined by GC analysis by adding the internal standard mesitylene.

Fig. 3 Palladium-catalysed methoxycarbonylation of diisobutene with L1 and L3. Reaction conditions: diisobutene (80 mmol), Pd(acac)₂ (9.75 mg, 0.04 mol%), L (0.16 mol%), PTSA·H₂O (0.4 mol%), MeOH (80 mL), CO (30 bar), 120 °C, 24 h.

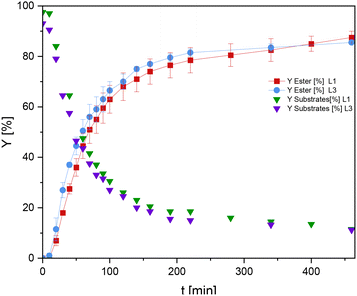

Fig. 4 Comparison of palladium-catalysed methoxycarbonylation of diisobutene with L1 and L3.

A comparative analysis reveals that both ligands demonstrate comparable performance within a similar range. It has been demonstrated that both processes result in the conversion of TMP2 to TMP1 with high efficiency, leading to the quantitative production of the desired ester. The outcomes of the reactions after 24 hours appear almost identical. In the case of L1, the yield of the corresponding ester is >98%, whereas the yield with L3 is 96% after 24 hours. This finding supports the hypothesis that L1 and L3 may engage in analogous activities during the synthesis of the desired product over extended periods. However, L3 exhibited slightly superior isomerisation catalytic properties. Therefore, L3 can compete with established ligands such as L1 and can achieve similarly good results with a simpler ligand synthesis. To demonstrate the industrial relevance, scalability and efficiency of L3, MMA was selected as the substrate for scale-up experiments (Fig. 5). To achieve this, the reaction was scaled up from 40 to 200 mmol and the Pd loading was reduced from 0.08 to 0.008 mol%. At a [Pd]/L3/H⁺ ratio of 1 : 4 : 10 under mild reaction conditions, methyl 2-methylsuccinate was formed in quantitative yield.

Fig. 5 Palladium-catalysed methoxycarbonylation of MMA with L3. Reaction conditions: MMA (200 mmol), Pd(acac)₂ (4.87 mg), L3 (23.96 mmol), PTSA·H₂O (30.44 mmol), MeOH (200 mL), CO (30 bar), 80 °C, 22.5 h.

We have demonstrated that the previously described ligand L3,¹ despite its simplified synthesis compared to the more rigid L1, represents a highly robust and industrially relevant ligand for the methoxycarbonylation of alkenes. Our results challenge the conventional “rigidity dogma” in carbonylation catalysis; we show that the inherent flexibility of the L3 scaffold does not compromise selectivity but instead facilitates rapid initiation and high catalytic productivity. Notably, L3 achieves a six-fold increase in turnover numbers compared to previous benchmarks, maintaining exceptional activity at very low catalyst loadings. The kinetic profiles reveal that L3 exhibits a significantly shorter induction period than L1, reaching near-quantitative yields with an initial rate increase of roughly 20%. This combination of high atom economy, enhanced TON, and synthetic accessibility positions L3 not merely as a practical alternative, but as a new performance standard for isomerising alkoxycarbonylation. We anticipate that these findings will shift the focus toward optimising conformational flexibility in the design of next generation ligands for large-scale sustainable catalysis.

H. F. performed the optimisation of the reaction conditions as well as the reaction scope experiments. The isolation of the products of the reaction scope was carried out by H. F. with the help of R. J. and J. T. H. F. and R. J. synthesised the ligands. J. M. supported H. F. in the synthesis optimisation of L3. J. M. and H. F. carried out the experiments for the kinetic investigation. R. J., R. F., and M. B. conceptualised the work. The manuscript was written through contributions from H. F., J. M., J. T., R. J., R. F. and M. B. All authors have approved the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: synthesis and characterisation details of compounds and NMR spectra. See DOI: https://doi.org/10.1039/d6cc01659f.

Acknowledgements

This work was supported by Evonik Oxeno GmbH as well as the COBRA Project (03XP0609 A-C), which is funded by the German Federal Ministry (BMBF). We also thank the analytical team of LIKAT for their kind support.
