Plasmonic nanopore to monitor in-pore chemistry

Abstract

Reliable control of solid-state nanopore gating remains challenging. Voltage-controlled metal phosphate reactions enable reversible pore blocking via cyclic precipitation and dissolution driven by cation transport. Negative bias blocks ion flow, while polarity reversal restores conductance, forming a nanofluidic diode. Here we show how plasmonic nanopores allow in-pore SERS measurements, directly confirming the localized chemistry and enabling high-resolution monitoring of nanoscale processes.

---

Over the past two decades, solid-state nanopore technology has been the focus of extensive research, particularly aimed at creating artificial systems that mimic biological nanopores, i.e. transmembrane proteins capable of regulating the passage of individual molecules and ions.^1–4 While the primary effort has traditionally centered on sequencing applications,^5–9 the scope of interest in nanopore systems has now expanded considerably. Among various research directions, the use of solid-state nanopores for constructing nanofluidic circuits, such as ionic transistors and diodes, has recently attracted significant attention.^2,10–12 To develop a nanofluidic ionic system that mimics the behavior of a diode, precise control over the nanopore's geometry and surface charges is essential.^13,14 In this context, a novel strategy for fabricating solid-state nanopores exhibiting diode-like properties, characterized by exceptionally high ion current rectification (ICR), has been recently demonstrated by Tsutsui et al.¹⁵ This method relies on the so-called “in-pore chemistry,” where two solutions interact at the interface between the cis and trans reservoirs of the nanopore chamber, an interface effectively defining the nanopore volume itself. In particular, this can be possible by using a thin Si₃N₄ membrane including a nanopore connecting two distinct ionic reactant solutions for precise confinement of the ion electromigration. These ions are capable of inducing electrically tunable metal phosphate precipitation/dissolution in the pore. This can be applied to the preparation of advanced nanofluidic devices including diodes and memristors representing a significant plus with respect to the conventional nano-scale systems.^16–18 A similar method has been more recently reported by Siwy et al., where the cycling precipitation and dissolution inside the nanopore are used to investigate ionic memory effects.¹⁹ To improve our understanding on the reported “in-pore chemistry”,¹⁵ here we investigated the chemical reaction inside the nanopore using optical spectroscopy. Considering that the reaction takes place in a very small volume (with a nanopore's diameter of 200 nm and thickness of 50 nm, the volume is of the order of 10⁻³ fL), the chemical reaction can be monitored only using a highly localized label free spectroscopy. In particular, Surface Enhanced Raman Spectroscopy (SERS) represents a valuable technique where the electromagnetic field can be squeezed in the nanopore volume thanks to a proper design of a plasmonic nanopore.^4,20 Therefore, in this work we replaced the Si₃N₄ nanopore previously used^15,21 with a plasmonic nanopore designed as a thin gold layer on a Si₃N₄ membrane where the nanopore is surrounded by a bulls-eye grating with a period matching the excitation of the surface plasmon polaritons at the laser wavelength used for the excitation. As extensively proved in literature,^20,22–28 this structure enables a strong near-field enhancement inside the nanopore, therefore facilitating measurements of the vibrational spectra during the precipitation/dissolution reactions. The bulls-eye integrated plasmonic nanopores were fabricated by means of focused ion beam (FIB) milling in a 50 nm thick Si₃N₄ membrane supported on a Si wafer (See SI for details). An initial pore's diameter of about 200 nm was prepared.¹⁵ The sample was then modified with an additional thin bilayer of Ti/Au (5/25 nm) and a successive FIB sculpturing was used to prepare a bull-eye grating with a grating period matching the surface plasmon polariton wavelength (λ_SPP) for an incident light at 532 nm (see SI for details on the electromagnetic field confinement produced by this structure).^29,30 Fig. 1 shows an illustration of the process and reports SEM images of the fabricated sample.

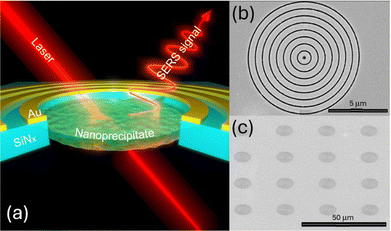

Fig. 1 Concept and fabrication. (a) Schematic illustration of the precipitation/dissolution at the nanopore aperture that can be monitores with SERS; (b) top view of a single plasmonic nanopore with a bulls-eye grating around it; (c) tilted view of an array of bulls-eye/nanopores.

As a first step we characterize the electrical properties of the nanopore to verify if our design comprising the Ti/Au layers results in the desired diode-like response. Here the metallic layers can, in principle, act as a floating electrode under the external applied field.³¹ Therefore, we first measured the current from the nanopore applying a transmembrane voltage (V_b) with a scan rate (r_scan) of 60 mV s⁻¹ in phosphate-buffered saline containing 1.37 M NaCl at pH 7.4 (hereafter, NaCl solution refers to the PBS unless otherwise denoted). In all our experiments we observed a perfect ohmic behavior with a conductance of 0.5 µS (Fig. 2a), consistent with Maxwell–Hall's model (see SI for details) for d_pore of about 200 nm and solution resistivity (ρ_NaCl) of 0.08 Ωm. The same set of measurements have been performed replacing PBS respectively with CaCl₂ and MnCl₂ (concentration 2 mol L⁻¹) on both sides of the microfluidic chamber. These two solutions demonstrated to be very effective in the nanoprecipitation process that will be discussed later. As can be seen from Fig. 2a, also in these cases, symmetric configurations on the cis and trans sides produce linear ohmic I–V response, as also demonstrated in a recent publication by Tsutsui et al.³² The nanopore's conductances were, 0.33 µS and 0.15 µS, respectively for CaCl₂ and MnCl₂. A completely different response is expected when switching from a symmetric to asymmetric configurations of cis and trans sides of the chamber. In particular, using PBS at the trans side and filling the cis compartment with CaCl₂ or MnCl₂ salts (same concentrations used before) resulted in significant asymmetry in the I_ion–V_b characteristics. CaCl₂ and MnCl₂ exhibited strong suppression of the ionic current at V_b < 0. In the case of CaCl₂, the rectification ratio ICR = |I_max/I_min| reached over 20 000 (Fig. 2b), where I_max and I_min are I_ion at V_b = 0.6 V and −0.6 V, respectively. On the contrary, in the case of MnCl₂, the ICR reached a value up to 10⁵ for a scan rate of 200 mV s⁻¹ considering in this second case I_max and I_min as I_ion at V_b = 1 V and −1 V, respectively (see Fig. S1). We note that, in both the cases, relatively small V_b values reach very high ICR values, and consequently, with higher V_b values, the saturation of the current range that can be measured in the nanopore reader was reached (max measurable I = 200 nA). These ICR values are more than an order of magnitude higher than the state-of-the-art systems based on nanofluidic diodes.^33–35 The rectification behavior depends on the voltage scan speed (SI – Fig. S1 and S2). For CaCl₂, the maximum rectification is observed at a scan rate of 240 mV s⁻¹, where the ionic current at negative V_b values remains very low and stable, indicating an almost complete suppression of the translocation of high-concentration cations and anions under negative bias. For both CaCl₂ and MnCl₂, increasing the scan rate markedly diminishes the diode-like response, resulting in lower ICR values (see Fig. S2). Nevertheless, the diode-like behavior can always be recovered by decreasing the scan rate, as shown in Fig. S1. This ionic rectification cannot be justified considering concentration polarization or ion selectivity or electroosmotic flow.^15,32,34,35

Fig. 2 (a) The ion transport properties under no salt difference (NaCl(blue), MnCl₂(red), and CaCl₂ (black)). The salinity was also the same at cis and trans(1.37 M for NaCl and 2 M for the other salts). (b) ICR values obtained for CaCl₂ system at different scan rates.

On the contrary, the diode-like behaviour of the nanopore system is due to the formation of a solid precipitate via V_b-derived reactions that occluded the space for the electromigration of ions through the pores. Hence, we are observing (a scan rate dependent) precipitation reactions between divalent cations with the phosphoric acid in the electrolyte buffer to form metal phosphates. This can be understood considering the components in our chamber. The main ionic components of PBS in water are: Na⁺, Cl⁻, HPO₄²⁻ and H₂PO₄⁻ (the phosphate buffer pair). A divalent chloride compound in aqueous solution dissolves as: XCl₂ (s) → X²⁺ (aq) + 2Cl⁻ (aq), where X represents here Ca and Mn. Calcium and Manganese ions (X²⁺) are known to react with phosphate ions to form insoluble phosphate salts, with a pH dependent reaction:

3X²⁺ + 2PO₄³⁻ → X₃(PO₄)₂ (1)

In PBS, most phosphate is present as HPO₄²⁻ or H₂PO₄⁻, but under physiological pH, there is still sufficient PO₄³⁻ to trigger partial precipitation of salts phosphate (especially hydroxyapatite or amorphous X–P compounds). Therefore, the following reaction most likely happens at the interface between cis and trans sides:

3XCl₂ +2Na₃PO₄ →X₃(PO₄)₂ +6NaCl (2)

This reaction is strongly pH dependent.¹⁵ For this reason the experiments reported here used PBS at physiological pH.

Hence, the electrical response observed in our nanopores is ascribed to a solid-phase precipitate that clogs the aperture of the pore where the two solutions are mixed. The possibility to drive this reaction by external electrical potential is fundamental to provide the diode-like response and the significant ICR values reported. Fig. 3 reports the characterizations performed on the CaCl₂ system using the electron microscopy combined with energy dispersion spectroscopy (EDS).

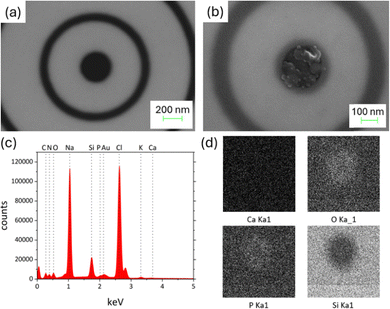

Fig. 3 SEM and EDS of the changes within the nanopore. (a) SEM micrograph of the bare plasmonic pore; (b) CaCl₂ precipitate inside the pore; (c) EDS spectrum; (d) EDS maps related to Ca, O, P and Si (additional data in the SI).

The morphological and compositional characterizations of the nanopore were done at the two stages corresponding to I_max and I_min, i.e. when the external potential was V_b = 0.6 V and −0.6 V, respectively. Fig. 3a and b clearly illustrate what happens inside the nanopore using the plasmonic configuration studied here. Additional tests using bare Si₃N₄ nanopores (reported in SI – note #2), confirmed the precipitation and dissolution reactions. To note, these micrographs can be obtained stopping the reaction at the specific V_b and resulted to be reproducible after multiple cycles. EDS maps revealed the presence of oxygen and phosphor inside the nanopore's cavity, as expected, even if the sensitivity of the technique is probably not enough to obtain convincing results.

We then performed optical spectroscopic analyses by means of Raman spectroscopy. The goal was to obtain the spectrum from the nanopore's cavity in order to monitor the localized chemical reaction. Before to do it, the Raman spectra of the individual compounds were collected preparing them as dry droplet, in the case of PBS (i.e. we let the PBS droplet to dry on a solid-state substrate), and as dry powders, in the cases of CaCl₂ and MnCl₂. Fig. 4a reports the obtained vibration signatures where it is possible to observe how for PBS three peaks dominates, corresponding to 877 cm⁻¹, 979 cm⁻¹ and 1077 cm⁻¹, respectively. They are associated with the phosphate (PO₄³⁻) buffer system, specifically the vibrations of the hydrogen phosphate (HPO₄²⁻) and dihydrogen phosphate (H₂PO₄⁻) ions.³⁶ In the cases of CaCl₂ and MnCl₂, on the contrary, only a main peak at around 1600 cm⁻¹ appeared. This can be associated with the H–O–H bending vibration of the water of crystallization.³⁷ In the nanopore system we are not dealing with salts powders, but we are interested to monitor the precipitation and dissolution processes driven by the external applied electrical potential. Therefore we also collected the Raman signatures of the precipitated salts as reported in eqn (1). To do that, we mixed the compounds using the same concentrations and pH conditions used in the nanopore experiments and, after letting them dry, we collected the spectra. In both the cases (Ca₃(PO₄)₂ and Mn₃(PO₄)₂), we can observe the presence of a main peak at around 960 cm⁻¹, clearly corresponding to the vibration of the phosphate group.^38,39 A minor broad peak at around 1600 cm⁻¹ can be also detected, as expected, to be associated with the H–O–H bending.^37,40 Having a clear view on the vibrational signatures of the chemicals involved in our reactions, it is possible to proceed with the Raman experiments on the nanopore systems. Considering that this reactions have been firstly demonstrated in a Si₃N₄ pore, we performed the precipitation/dissolution processes focusing the laser over the nanopore directly prepared in a bare Si₃N₄ (the fabrication included both single nanopore and an array of nanopores in order to increase the reaction volume (see SI)). Cycling them applying external electrical potential as discussed above and in ref. 15 we can obtain the precipitation and dissolution processes. Considering the required integration time for the Raman acquisitions (tens of seconds), it was not possible to detect the dynamics of the precipitation reaction. On the contrary, stopping the reaction at V_b = 0.6 V and −0.6 V, we know that the nanopore(s) will be completely open and completely clogged, respectively (as illustrated in SI – Fig. S3). Important to note, the Raman measurements were done using a transparent microfluidic chip compatible with the simultaneous electrical and optical measurements, as demonstrated in ref. 20. This enables the monitoring of the reaction inside the nanopore. In order to avoid the background signal from the PBS solution in the trans volume, we excited the pore from the cis side where only the chloride salts are present. Testing both a single nanopore and an array of 16 pores it was not possible to detect convincing spectra to be ascribed to the precipitated salts. This is because the volume of detection is spatially limited by the nanopore's diameter. While with the dry precipitates we can collect the signals from large area and large volume samples, here it has not been possible to obtain enough photons from the fL volume of the excited materials. This is the main motivation for the choice of the plasmonic nanopore. In fact, replicating the experiment replacing the bare Si₃N₄ pore with the single plasmonic nanopore (illustrated in Fig. 1b) it was easily possible to collect the SERS signatures from the individual nanopore in the two main configurations (open and clogged) using CaCl₂. As can be seen in Fig. 4c, there are clear differences in the Raman spectra associated with open and close pore. In particular, switching from the open to the close configuration, the peak at around 970 cm⁻¹ appears, confirming the formation of the phosphate precipitate. While the other spectral regions are not changed, we also observed and increased intensity for the peak at around 1600 cm⁻¹, associated with the H–O–H bending. Performing the same experiment by using MnCl₂, it resulted to be more challenging to collect the signatures from a single plasmonic nanopore. Therefore, in order to increase the detection volume, we increased the laser spot size and we explored a configuration comprising 16 nanopores in array (Fig. 1c). In this case, it has been again possible to clearly detect the peak associated to the phosphate salts precipitation, presents only in the spectrum related to the clogged pore, while it always disappeared switching to the open pore configuration.

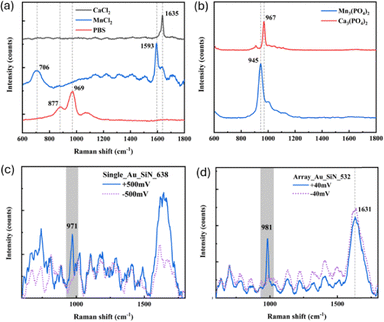

Fig. 4 (a) Raman spectra of powdered samples (PBS(red), MnCl₂(blue), and CaCl₂(black)). (b) Raman spectra of the precipitate (Ca₃(PO₄)₂ (red), Mn₃(PO₄)₂ (blue)). (c) Raman spectra of nanopore opening/closing in a Ca-based system (closed (blue), open (purple)). (d) Raman spectra of nanopore opening/closing in a Mn-based system (closed (blue), open (purple)).

In conclusion, this study demonstrates the advantages of a plasmonic nanopore platform for probing chemical processes at the nanoscale. By confining intense electromagnetic fields within an attoliter-scale pore, the system enables high spatiotemporal resolution for tracking localized reactions via ionic current measurements. Simultaneously, surface-enhanced Raman spectroscopy (SERS) generated at the plasmonic hotspot provides molecular vibrational information, yielding chemical fingerprints of reactants and products. The combination of label-free electrical and optical readouts allows real-time, in situ monitoring of dynamic nanoscale processes that are difficult to access using conventional techniques.
