Chromium-catalyzed reductive alkylation of N-heteroarenes using alkyl formates as transfer hydroalkylation reagents

Abstract

Alkyl formates are employed as transfer hydroalkylation reagents in the reductive alkylation of N-heteroarenes to saturated azacycles. This is achieved using a well-defined chromium catalyst and LiI as a promoter via the cleavage of the C−O σ-bond of the formate, generating a hydride nucleophile and an alkyl electrophile. The reaction produces volatile CO₂ as the only byproduct, making the method atom-efficient and environmentally friendly.

---

The direct hydroalkylation reaction has found widespread applications in organic synthesis as it offers both reduction (hydro) and functionalization (alkylation) of unsaturated bonds such as alkenes or imines in an atom-economical manner.¹ In general, the reaction proceeds via a radical (1 electron mechanism) or non-radical (2 electron mechanism) pathway in the catalytic process.² Of these, the two-electron mechanism involving metal hydride as the active species represents the most efficient synthetic approach.

Owing to the ready accessibility of hydrocarbon substrates, this reaction has attracted significant attention. However, as this strategy requires the activation of inherently strong C–H alkyl bonds, its substrate scope is limited (e.g. acidic hydrogen-containing substrates).³ As an alternative, transfer hydroalkylation has been well-studied^4,5 by Oshima (Rh-catalyzed hydroallylation),^4a Tang (Lewis acid-promoted hydroalkylation of imines with Hantzsch esters),^4b Akiyama (photocatalyzed hydroalkylation of activated alkenes with benzothiazole),^4c Li (Ru or Pd-catalyzed alkylation of imines with hydrazones),^4d Shibasaki (Cu-catalyzed hydroalkylation of aldimine using cyanocarboxylic acids),^4e and Cantat (Ru-catalyzed reductive N-alkylation of imines with alkyl formate).^4f However, most of these studies are limited to simple alkenes, alkynes, and imines as the unsaturated coupling partners. The use of alkyl formates as transfer hydroalkylating reagents with multiple unsaturated bond-containing substrates remains in its infancy, largely due to the issue of controlling their reactivity and selectivity (Scheme 1).

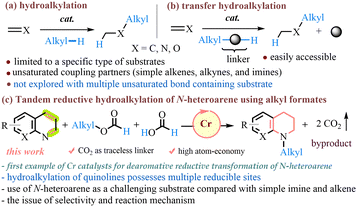

Scheme 1 Hydroalkylation and transfer hydroalkylation of unsaturated bonds.

The reductive alkylation of N-heteroarenes offers an effective route to structurally diverse saturated N-heterocycles, which are valuable scaffolds in the design of pharmaceuticals, bioactive molecules, agrochemicals, functional materials, ligands, sensors, pigments, and dyes.⁶ However, achieving direct and selective functionalization of N-heteroarenes remains challenging due to their high thermodynamic stability, their kinetic inertness, and the tendency of the heteroatom's lone pair to deactivate metal catalysts.⁷ Only a few strategies are available to realize the synthesis under metal catalysis.⁸ Furthermore, N-heteroarenes are challenging substrates compared with simple imines and alkenes in terms of selectivity and mechanism. Herein, we report a reductive hydroalkylation cascade of pyridine-fused N-heteroarenes that possess multiple reducible sites (e.g. imine and alkene units) by utilizing a well-defined (N–N–N)Cr(III) pincer complex as a catalyst⁹ and alkyl formates as transfer hydroalkylating reagents. The use of chromium salts has emerged as an alternative to precious metal catalysts because of their low cost, acceptably low toxicity, and abundance in nature.¹⁰ Nevertheless, this is the first example of Cr catalysts for dearomative reductive transformations of pyridine, quinoline, and other N-heteroarenes.

Our investigation commenced with the reaction of quinoline (1a, 1 equiv.), benzyl formate (2a, 1 equiv.), and formic acid (3, 2 equiv.) in the presence of the (N–N–N)Cr(III) complex Cr-1⁹ (7 mol%) in THF at 120 °C (Table 1, S3 and S4). After 18 h, no desired product 4a was obtained under the reaction conditions. Gratifyingly, in the presence of LiI (30 mol%), N-benzyl tetrahydroquinoline 4a was obtained in 47% yield (entry 1). With a further increase of the LiI loading to 50 mol%, we were pleased to observe an 83% yield (entry 2). Alternative metal halides (e.g. potassium and zinc) showed negligible reactivity (entries 3 and 4). Combining NaI with a Lewis acidic metal successfully facilitated the reaction, underscoring the crucial role of both the iodide and Lewis acid (entries 5 and 6). The yield of 4a was decreased by reducing the catalyst loading to 3 mol% (entry 7) or by using the simple chromium salt instead of N-ligated Cr complex Cr-1 (7 mol%) (entry 8). The yield of 4a was also decreased by reducing the reaction temperature (entry 9) or by shortening the reaction time (entry 10). Screening other solvents revealed that highly polar solvents such as DMF and DMSO resulted in significantly reduced yields (entry 11). In the absence of formic acid 3, product 4a was obtained in only 17% yield, suggesting the importance of 3 in the reaction (entry 12).¹¹

Table 1 Optimization studies^ab

Entry	Deviation from the conditions above	Yield of 4a (%)
a Reaction conditions: 1a (0.5 mmol), 2a (0.5 mmol), formic acid 3 (1 mmol), Cr-1 (7 mol%), LiI (0.25 mmol), stirred in THF (1.5 mL) at 120 °C for 18 h in a sealed tube. b Isolated yield. c Along with byproduct, N-formyl THQ, was isolated in 12% yield.
1	With 30 mol% LiI	47%
2	None	83% (15%, 1a)
3	KI, ZnI2, Bu4NI instead of LiI	0%, 0%, 0%
4	LiCl, LiClO4 instead of LiI	0%
5	NaI (0.5 equiv.)	31%
6	LiClO4 (0.2 equiv.) + NaI (0.5 equiv.)	46%
7	With 3 mol% of Cr-1	31%
8	With CrCl3·3THF, CrCl2 instead of Cr-1	62%,^c 15%
9	At 100 °C instead of 120 °C	23%
10	For 8 h	41%
11	DMF, DMSO, CH3CN, toluene	23%, 56%, 0%, 0%
12	Without formic acid 3	17% (72%, 1a)

---

With the optimized reaction conditions in hand, we probed the scope of various functionalized quinolines 1a–1aw using formate 2a as the standard alkylating agent (Table 2). The substrates having both electron-donating and electron-withdrawing groups at different positions in the aryl moiety were efficiently reacted to obtain the desired products 4a–4w in 27–85% yields. Notably, the retention of reducible functional groups (6-Cl, 6-Br, 6-OCOPh, 5-NO₂, 5-C≡CPh, 7-Cl, 7-Br, 7-NO₂, 7-OBn, and –CO₂Me) in the final products highlighted the excellent chemoselectivity of the present reductive protocol. The structures of the compounds 4l and 4w were unambiguously confirmed by single-crystal X-ray diffraction analyses (SC-XRD). Slightly higher yields were realized for electron-withdrawing groups. Free hydroxyl functionalities afforded desired N-alkylated products 4l and 4r, demonstrating the effectiveness of the base-free reaction conditions. The reactions with pyrene-tethered quinoline proceeded smoothly to provide the product 4v in 71% yield. Next, benzyl formates 2a–2j, with electron-poor and electron-rich groups, were subjected to the reaction conditions with 1a and gave N-benzyl THQs 4ab–4aj in 65–85% yield. The formates containing nitro (2g), nitrile (2h), and sulfonyl (2j) functionalities provided the products 4ag–4aj efficiently. The methodology was successfully utilized to synthesize a lipoprotein receptor 4aj. The biosourced furfuryl formate 2k, thiophen-2-ylmethyl formate 2l, polyaromatic containing formates 2m–2n and 1,4-phenylenebis(methylene) diformate 2o were also smoothly transformed (4am–4ao), underscoring the broad applicability of this approach to diverse heterocyclic structures.

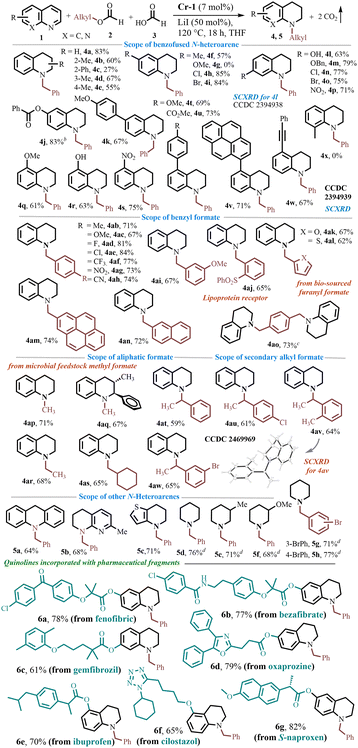

Table 2 Substrate scope^ab

a Reaction conditions: 1a (0.5 mmol), 2a (0.5 mmol), formic acid 3 (1 mmol), Cr-1 (7 mol%), LiI (0.25 mmol), stirred in THF (1.5 mL) at 120 °C for 18 h in a sealed tube, isolated yield. b With 0.5 mmol LiI. c With 0.25 mmol formate. d With 1 mmol LiI.

---

The use of methyl formate 2p as a microbial feedstock can also lead to the biologically relevant N-methyl tetrahydroquinoline derivatives 4ap and 4aq. It is worth mentioning that compound 4aq was observed exclusively in the trans-diastereomer under the reaction conditions. In the case of secondary benzylic formates 2s–2v, although the cleavage of the C–O bond is more difficult than that of the primary benzylic formate, desired alkylated products 4at-4aw were obtained in moderate to good yields. Additionally, the structure of 4av was confirmed by SC-XRD. Interestingly, other related pyridine-fused N-heterocycles 1y–1ad were successfully converted into the targeted N-alkylated compounds 5a–5d under the optimized conditions. Unfortunately, isoquinoline, pyrimidine and indole were incompatible with this process. In general, pyridines are more challenging to reductively alkylate due to their high energy barrier to dearomatization, lower reactivity and strong tendency to coordinate with the active site. The current method was extended to a pyridine-based substrate, affording 5d–5h in good yields.

Considering that the functionalization of N-benzyl THQs into biomedical molecules could result in renewed physicochemical properties and improve the metabolic stability,⁶ we conducted late-stage transformation of several quinolines decorated with pharmaceutical fragments under standard conditions. The functionalized quinolines (1ae–1ak from fenofibric, bezafibrate, gemfibrozil, oxaprozin, ibuprofen, and naproxen) underwent smooth reductive dearomatization and N-alkylation cascade, affording the desired products 6a–6g in good yields. These findings highlight the wide functional group tolerance and the promising potential of the current chemistry in further drug development.

Next, the method was used to the concise synthesis of cilostazol, a marketed pain-relief drug 7via late-stage α-methylene C–H oxidation of 6f,¹² further demonstrating the practical utility of this protocol (Scheme S23). Furthermore, the practicality of the reaction was extended to C-functionalized THQ derivative 9 in one pot by using para-quinone methide 8 as an alkylating precursor (Scheme S24). Then, following this developed protocol, natural alkaloid cuspareine 10 was directly synthesized from styryl quinoline 1al and microbial feedstock 2p (Scheme S25). Moreover, the reaction was viable even with consecutive double bond bearing quinoline 1am, yielding the product 11 in 72% yield (Scheme S26). Notably, compounds 5d, 5g and 5h were found as the key intermediates for the synthesis of paroxetine 12, HDAC inhibitor 13 and histamine H3 receptor 14, respectively (see SI, Scheme S22).¹³ To showcase the practical applicability of this protocol, a gram-scale synthesis of 4a was successfully conducted (Scheme S29). Then, the methodology's sustainability was evaluated using green chemistry metrics,¹⁴ yielding an atom economy of 62.6%, an atom mass efficiency of 50%, a carbon efficiency of 76.2%, and a reaction mass efficiency of 49.7%, demonstrating environmental advantages (see SI, Section 9). There were no by-products; only volatile CO₂ was formed, which can be separated easily. Furthermore, the evolved CO₂ was trapped efficiently as a bench-stable amine carbamate ammonium salt 15 (Scheme S28), and this can be utilized as a reagent and catalyst for different organic transformations.

To obtain insight into the reaction pathway, a series of control experiments was performed (see SI, Section 5). First, to determine the possible intermediate in the reaction, the reaction was examined with quinolinium salt I1 and N-benzyl-1,2-dihydroquinoline I2 independently, in the presence of 2a and 3 under standard conditions (Schemes S4 and S5). The desired product 4a was obtained in quantitative yields, suggesting that the reaction likely proceeded through quinolinium salt I1, and the 1,2-dihydroquinoline I2 intermediate. Conversely, the yield of 4a with THQ I3 is quite low (34%), and therefore, I3 may not be an intermediate in the catalytic cycle (Scheme S6). When formate 2a was reacted with 1 equivalent of LiI under the reaction conditions, benzyl iodide was obtained in 71% yield, showing that LiI promotes the cleavage of the C–O σ-bond to form the iodinated electrophile and lithium formate (Scheme S7). The presence of 12-crown-4 led to a decrease in the yield of 4a (21%) and using NaI (instead of LiI) provided the product 4a in 31% yield, indicating that the lithium ion played an important role in the given transformation (Schemes S8 and S9). Furthermore, control experiments using LiOCHO instead of LiI provided no desired product 4a, pointing to the crucial role of iodide in the reaction. To validate the homogeneous catalytic system for the alkylation reaction, the mercury drop test was conducted, showing no inhibition of the reaction or reduction of the product yield (Scheme S3). To probe the mechanism of the reaction, the regio-specificity of hydrogen transfer with the deuterated benzyl formate (2a-D) and deuterated formic acid-d₂ (DCO₂D) was investigated for 1a (Scheme 2). The use of 2a-D resulted in the formation of 4a-d₁ with 92% deuterium incorporation at the C4-position. This suggests that formate hydrogen is successfully transferred to the N-heteroarene. A second experiment with deuterated formic acid-d₂ led to the formation of 4a-d₄ with deuterium incorporated into the C2-and C3-positions. Deuterium-labeling experiments with 1a-d (>88% D) indicate no H/D scrambling product at the C4-position, suggesting that an intramolecular 1,3-H shift might not occur under the current reaction conditions (Scheme S16). In summary, the deuterium-labeling experiment suggests that the reaction pathway involves a stepwise 1,4-addition, followed by a 2,3-addition. Furthermore, in the presence of D₂O, 70% deuterium incorporation at the C3-position was observed. In addition, deuterium incorporation was detected at the C6- and C8-positions, which is likely the result of hydrogen isotope exchange (HIE) processes facilitated by the HCO₂D present in the reaction mixture.¹⁵ We also synthesized the deuterated lipoprotein receptor 4aj-d₃ with adequate deuterium incorporation at the C3-position, highlighting the practical utility of the given method.¹⁶ In the presence of radical scavengers such as 1,1-diphenylethene (DPE), butylated hydroxytoluene (BHT), and 9,10-dihydroanthracene (DHA), the reaction is not affected, suggesting that the radical-based MHAT pathway¹⁷ is not likely to be involved in the given transformation (Scheme S17). To investigate the rate-determining step of the reaction in detail, a series of kinetic experiments was conducted. The results suggested first-order rate dependence on quinoline 1a and the catalyst, and zero-order dependence on formate 2a and LiI (Fig. S3–S6, SI). These data suggested that substrate 1a and the catalyst are kinetically relevant; formate 2a and LiI might not be involved in the rate-determining step. Furthermore, the electronic effect of the quinoline substrate on the rate of the reaction was examined (Schemes S18–S21). A competitive reaction suggested that an electron-withdrawing group (–Cl) on the quinoline enhanced the rate of the reaction with respect to an electron-donating group (–Me). In contrast, there is little electronic effect of the formate. Based on the electronic effect and order dependence, one can postulate that the addition of metal hydride to the activated quinolinium salt is likely to be the rate-determining step.¹⁸ On the basis of previous reports^4f,19 and the present experimental findings, a plausible catalytic cycle has been proposed as shown in Scheme 3. First, formate 2a is activated by the LiI to generate a reactive electrophile alkyl iodide (PhCH₂I) and a formate salt [Li][HCO₂]. The Lewis acidity of lithium(I) may help to cleave the C–O bond in the formate. The intermediate [Li][HCO₂] can react with Cr-1 to form formate species A. The resulting chromium formate A undergoes decarboxylation under the reaction conditions to provide chromium hydride species B and releases CO₂. The presence of CO₂ was confirmed by the GC analysis of the gas phase. Meanwhile, in situ generated alkyl iodide can react with 1a to produce quinolinium salt I1. The resulting metal hydride B is a potent reductant, able to reduce the activated quinolinium salt I1 by forming the N-alkyl-1,4-dihydroquinoline I4 intermediate. The resulting enamine I4 isomerizes to an iminium species I5 and is then reduced via a 1,2-hydride addition, affording the product 4a.

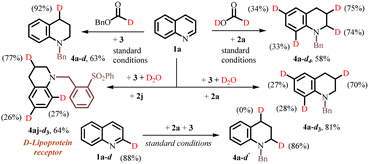

Scheme 2 Reaction pathway and deuteration of N-heteroarenes.

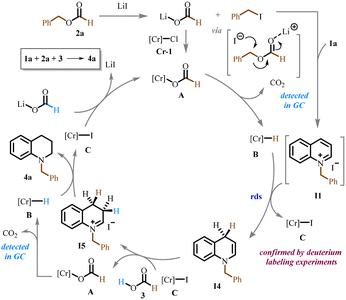

Scheme 3 Proposed pathway for the formation of the N-alkylated product.

In summary, the reductive alkylation of N-heteroarenes to saturated azacycles using alkyl formates as bifunctional reagents has been accomplished using a chromium catalyst. Its versatility enables late-stage diversification of complex structures and deuteration of quinolines. Notably, this environmentally benign strategy offers several advantages, including high conversion efficiency and atom economy in the synthesis of valuable N-heterocyclic products, while utilizing readily available starting materials, such as N-heteroarenes and alkyl formates, without requiring flammable hydrogen gas.⁸

A. D. gratefully acknowledges the ANRF, DST (CRG/2022/01606) for financial support. DST-FIST(SR/FST/CS-II/2017/23c), the CIF, IITG and NECBH (BT/CoE/34/SP28408/2018 and BT/NER/143/SP44675/2023) are acknowledged for NMR and X-ray facilities. A. P. would like to thank MoE for his PMR Fellowship. A. B. thanks the IITG for his research fellowship. We are grateful to the reviewers for their critical inputs to improve the manuscript.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: experimental details, crystallographic data, compound data for characterization, and NMR spectra of new compounds. See DOI: https://doi.org/10.1039/d5cc06076a.

CCDC 2394938 (4l), 2394939 (4w) and 2469969 (4av) contain the supplementary crystallographic data for this paper.^20a–c
