Open Access Article
Paige A.
Barta
a,
Leopold
Garnar-Wortzel
a,
Timothy R.
Bishop
a,
Rachel E.
Hayward
a,
Lauren M.
Hargis
a,
James B.
Shaum
a,
Hui Si
Kwok
b,
Brian B.
Liau
b,
Benjamin F.
Cravatt
a and
Michael A.
Erb
*a
aDepartment of Chemistry, The Scripps Research Institute, La Jolla, CA, USA. E-mail: michaelerb@scripps.edu
bDepartment of Chemistry and Chemical Biology, Harvard University, Cambridge, MA 02138, USA
First published on 24th October 2025
Transcriptional regulatory proteins are frequent drivers of oncogenesis and common targets for drug discovery. The transcriptional co-activator, ENL, which is localized to chromatin through its acetyllysine-binding YEATS domain, is preferentially required for the survival and pathogenesis of acute leukemia. Small molecules that inhibit the ENL/AF9 YEATS domain show anti-leukemia effects in preclinical models, which is thought to be caused by the downregulation of pro-leukemic ENL target genes. However, the transcriptional effects of ENL/AF9 YEATS domain inhibitors have not been studied in models of intrinsic or acquired resistance and, therefore, the connection between proximal transcriptional effects and downstream anti-proliferative response is poorly understood. To address this, we identified models of intrinsic and acquired resistance and used them to study the effects of ENL/AF9 YEATS domain inhibitors. We first discovered that ENL/AF9 YEATS domain inhibition produces similar transcriptional responses in naive models of sensitive and resistant leukemia. We then performed a CRISPR/Cas9-based genetic modifier screen and identified in-frame deletions of the essential transcriptional regulator, PAF1, that confer resistance to ENL/AF9 YEATS domain inhibitors. Using these drug-resistance alleles of PAF1 to construct isogenic models, we again found that the downregulation of ENL target genes is shared in both sensitive and resistant leukemia. Altogether, these data support the conclusion that the suppression of ENL target genes is not sufficient to explain the anti-leukemia effects of ENL/AF9 antagonists.
The selective suppression of leukemia proto-oncogenes following ENL/AF9 YEATS domain inhibition is also observed following ENL degradation and ENL knockout, pointing toward a coherent set of on-target transcriptional effects related to ENL loss-of-function in leukemia.1,2,17,18 Likewise, the anti-proliferative effects are on-target for at least one ENL/AF9 YEATS domain inhibitor, TDI-11055, as validated by the discovery of mutant ENL alleles that confer resistance to its inhibition of leukemia growth.10 This genetic evidence demonstrates that ENL, rather than AF9, is the critical target underlying the anti-leukemia activity of ENL/AF9 YEATS domain inhibitors, which is consistent with prior studies showing that AF9 is dispensable for the survival of ENL-dependent leukemias.1,2 However, no prior studies have directly tested whether the transcriptional suppression of ENL target genes is necessary and sufficient for the growth effects of ENL/AF9 antagonists. In studying small molecules that inhibit transcriptional regulatory proteins, we and others have, in many instances, failed to distinguish sensitive and insensitive cells by their transcriptional responses.19–21 For example, BET bromodomain inhibition causes identical primary transcriptional effects in models of leukemia that are sensitive and insensitive to the downstream anti-proliferative effects of these agents.22 We recently observed the same phenomenon for CBP/p300 acetyltransferase inhibitors, suggesting that the primary transcriptional effects of these compounds are not sufficient to explain their anti-proliferative effects.21 Here, we use models of naive and acquired resistance to study the relationship between the transcriptional effects of ENL/AF9 YEATS domain inhibitors and their downstream effects on leukemia growth and survival.
Using the PRISM and DepMap datasets, we selected P31/Fujioka and U937 cells to study the transcriptional effects of ENL/AF9 antagonism in sensitive and resistant leukemia models, respectively. Although both cell lines are driven by CALM-AF10 fusions, they exhibit differential sensitivity to ENL knockout, providing lineage- and oncogene-matched models of sensitive and resistant acute leukemia (Fig. 1D). Of all cell lines in the DepMap dataset, P31/Fujioka cells are among the most sensitive to ENL knockout (Fig. 1D). In contrast, U937 are less sensitive to ENL knockout, and a previous study has demonstrated that they are insensitive to the ENL/AF9 YEATS domain inhibitor, TDI-11055.10 We confirmed these findings, showing that P31/Fujioka cells, but not U937 cells, are sensitive to SR-0813 (Fig. 1E).
To compare the underlying transcriptional effects of ENL/AF9 YEATS domain inhibition in these sensitive and resistant cell line models, we performed 3′-end mRNA-seq following 4 hours of SR-0813 treatment. In both models, SR-0813 significantly decreased the transcription of asymmetric ENL target genes, which are high-confidence ENL target genes marked by a disproportionate amount of ENL binding within the promoter region of a target gene (Fig. 1F, G and Tables S3, S4, SI).1 Notably, the proto-oncogenes MYC, MYB, and HOXA9 were downregulated in U937, despite this cell line being insensitive to the anti-proliferative effects of SR-0813 (Fig. 1F and G). These data suggest that the preferential downregulation of ENL target genes may be insufficient to predict downstream growth responses.
To evaluate this possibility in isogenic models of sensitive and resistant leukemia, we sought to identify mechanisms of acquired resistance to SR-0813 using a genome-scale CRISPR/Cas9 screen in MOLM-13 cells. A gene-level analysis by MAGeCK (Model-based Analysis of Genome-wide CRISPR/Cas9 Knockout)28 revealed that sgRNAs targeting common essential genes (as defined by DepMap) were preferentially depleted in both the vehicle-treated (DMSO) and SR-0813-treated arms of the screen, confirming that the experiment performed as expected (Fig. 2A, Fig. S1B and Table S5, SI). In querying for genes that were selectively enriched in the cells treated with SR-0813, we noted that the common essential gene PAF1 (RNA polymerase associated factor 1) was one of the strongest hits (Fig. 2A).
Of the four PAF1-targeting sgRNAs included in the pooled CRISPR screen, two were enriched by SR-0813 treatment, which we termed sgPAF1-1 and sgPAF1-4 (Fig. 2B). We validated the effects of both sgRNAs in an arrayed format using competitive growth experiments. Here, MOLM-13 cells stably expressing Cas9 were transduced with a bicistronic vector encoding an sgRNA and GFP, such that the percentage of sgRNA-positive cells can be tracked over time by measuring the percentage of GFP-positive cells.29 MOLM-13 cells transduced with sgRNAs targeting PAF1 were enriched in response to SR-0813 treatment but not by the DMSO control, validating the pooled screening results (Fig. 2C). We repeated this experiment with TDI-11055 and obtained similar results (Fig. S1C), indicating that PAF1-mediated resistance is a shared feature of ENL/AF9 YEATS domain inhibitors rather than a scaffold-specific effect of SR-0813.
PAF1 is a core component of the multiprotein PAF complex (PAFc), an evolutionarily conserved regulator of transcription by RNA Polymerase II (Pol II) with genetic and physical links to ENL/AF9 function.30–37 PAF1 has been shown to be required for leukemogenic transformation by MLL-fusion oncogenes and to interact directly with both MLL and ENL.11,16,38–41 Germline variants of CTR9, which encodes a subunit of PAFc, predispose to myeloid malignancies by losing the ability to antagonize the ENL/AF9-containing SEC in hematopoietic progenitors.42 Furthermore, both ENL and CTR9 are recurrently mutated in Wilms tumors.43–45
Since PAF1 is a common essential gene, we speculated that resistance to SR-0813 might be mediated by in-frame insertions or deletions that could preserve its role in cell survival.27,46 Previous studies have described in-frame indels resulting from genome-scale CRISPR screens, supporting this possibility.47 To identify the PAF1 alleles that confer resistance to ENL/AF9 YEATS domain inhibition, we repeated the competitive growth experiment using a synthetically simplified analog of SR-0813, TM7,17 and collected the initial and final cell populations for nanopore-based sequencing of PAF1. We found that both sgRNAs created in-frame deletions of PAF1 that were enriched in the population by TM7 treatment, leading to a concurrent loss of the wild-type PAF1 allele (Fig. 2D). For sgPAF1-1, several partially overlapping deletions spanning amino acids 90–96 were enriched by TM7 treatment, with the strongest effect being observed for Δ90–94 (Fig. 2D). For sgPAF1-4, we observed a notable enrichment of a Δ199–201 allele.
To test whether these in-frame deletions are sufficient to confer resistance to ENL/AF9 YEATS domain inhibition, we introduced the Δ90–94 and Δ199–201 alleles into the endogenous PAF1 locus in MOLM-13 cells using CRISPR/Cas9-based gene editing and homology-directed repair. Nanopore-based DNA sequencing of the edited populations over time showed that cells harboring these deletions were enriched by drug treatment while the wild-type sequence was depleted, indicating that these deletions confer resistance to ENL/AF9 YEATS domain inhibition (Fig. 2E and F). Notably, the PAF1 deletion affecting amino acid residues 199–201 exceeded an allele frequency of ∼80%, likely indicating that some percentage of cells survived in the absence of a wild-type allele.
PAF1 functions as a member of the PAF complex, which consists of 5 additional proteins: CTR9, LEO1, CDC73, WDR61 and RTF1. Using a previously reported cryo-electron microscopy (cryo-EM) structure (PDB 6TED), we found that the Δ90–94 and Δ199–201 deletions occur at sites of intracomplex protein–protein interactions, with Δ90–94 mapping to a site of contacts with CTR9 and Δ199–201 mapping to its interface with LEO1 (Fig. 3A, B and Fig. S2A, B).48CTR9 variants that predispose to myeloid malignancies were previously shown to cause partial loss of function by impairing PAF complex assembly.42 Interestingly, the amino acid mutations identified in these CTR9 variants occur along the interface of CTR9 and PAF1, with one of the identified mutations (N157S) in close proximity to PAF1 residues 90–94 (Fig. S2B, C).42 Therefore, we speculated that in-frame PAF1 deletions might similarly impair the integrity of the PAFc and produce a state of hyperactive SEC activity that can compensate for the effects of ENL/AF9 YEATS domain inhibition.
![]() | ||

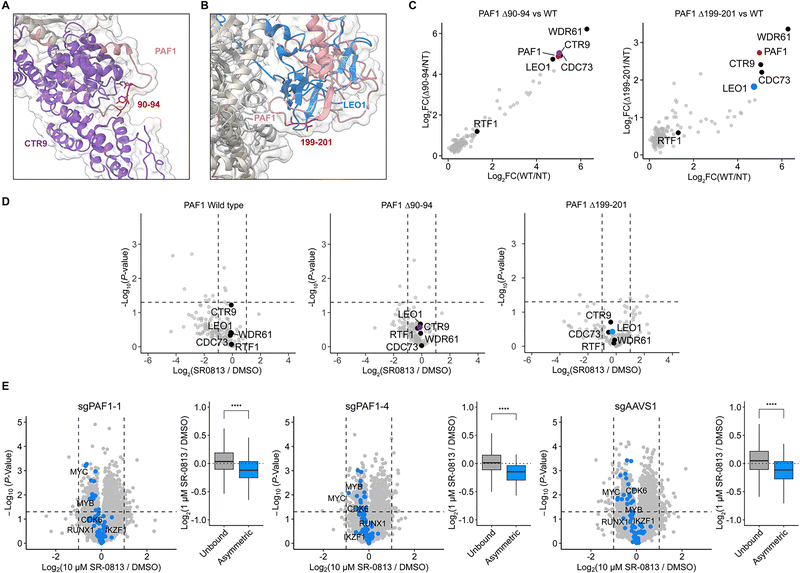

| Fig. 3 (A) and (B) Visualization of in-frame deletion sites within the PAF complex, as previously determined by cryo-EM (PDB 6TED). (C) Analysis of PAF1 IP-MS comparing wild-type (WT) and in-frame deletion alleles to the non-transduced (NT) control. (D) IP-MS comparing SR-0813 treatment with DMSO (normalized to PAF1 enrichment). (E) Volcano plots depicting gene expression changes in sgPAF1-1, sgPAF1-4, and sgAAVS1 cell lines upon treatment with SR-0813 (10 μM, 4 h) and boxplots comparing genes not bound by ENL (unbound, n = 12702) and asymmetric ENL target genes (n = 69). Labeled genes are those found across all three datasets. P-Values are calculated with a Welch's two sample t-test. (P-values: *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001). | ||
To address this, we performed co-immunoprecipitations followed by mass spectrometry (IP-MS) on MOLM-13 cells exogenously expressing epitope-tagged alleles of wild-type or mutant PAF1. This experiment showed clear enrichment of PAFc proteins but did not indicate that there was a significant loss of PAF1 interactions with corresponding complex members due to either deletion (Fig. 3C, Fig. S2C and Table S6, SI). We also performed the co-IP experiments in the presence of SR-0813 but failed to observe any difference in the enrichment of PAF1c subunits in the presence of drug in wild-type or mutant cells (Fig. 3D). Although ENL/AF9 YEATS domains are known to interact with PAF1, we did not detect ENL or AF9 in our pulldown.
These data argue against our hypothesis that the Δ90–94 and Δ199–201 deletions in PAF1 affect PAFc interactions or stability. Nevertheless, we considered that they could still impact transcriptional responses to ENL YEATS domain inhibitors through an alternative mechanism. To assess this, we performed 3′-end mRNA sequencing on MOLM-13-Cas9 cells that were transduced with sgPAF1-1 or sgPAF1-4 and selected with SR-0813 over several weeks. Despite being resistant to the anti-proliferative effects of SR-0813, ENL target genes were similarly downregulated in cells expressing sgPAF1-1 and sgPAF1-4, compared to a control sgRNA targeting the AAVS1 safe harbor locus (Fig. 3E and Table S7, SI). We performed gene set enrichment analysis (GSEA), which further confirmed that ENL target genes are among the most substantially downregulated gene sets in both each dataset (Fig. S3A). The basal expression of ENL target genes prior to drug treatment was similar in each cell line, demonstrating that the downregulation of ENL targets is not compensated for by an overall increase in expression (Fig. S3B and C). Altogether, these data suggest that the direct downregulation of ENL target genes is likely insufficient to predict growth responses to ENL/AF9 YEATS domain inhibitors, consistent with our observations in U937 and P31/Fujioka cells.
Alternatively, it is possible that cellular adaptations, occurring secondary to an initial transcriptional effect, could control response and resistance to these compounds. For example, BET bromodomain inhibitors elicit similar primary transcriptional responses in sensitive and resistant cell lines, but the secondary adaptation to these changes have been shown to control response and resistance.19,20,22 We have observed parallels to this with CBP/p300 bromodomain inhibitors, where sensitive and resistant cell lines show similar primary transcriptional responses but starkly different transcriptional effects at later time points.21 Recently, global inhibitors of transcription, such as triptolide and α-amanitin, were revealed to induce a form of programmed cell death, termed Pol II degradation-dependent apoptotic response (PDAR).55 In this context, cells rapidly activate apoptotic signaling in response to the loss of hypophosphorylated RNA Pol II, not as a result of changes in gene expression. Whether this mechanism could be involved in the response to ENL antagonists that suppress transcription in a gene-specific manner is unclear.
While the precise mechanism by which PAF1 alterations confer resistance to YEATS domain inhibitors remains unresolved, our study provides strong support for the conclusion that the anti-proliferative effects of SR-0813 are on target. Notably, we found that PAF1 deletion alleles confer cross-resistance to TDI-11055, which has previously been shown to act through an on-target mechanism of action by the discovery of drug-resistant ENL mutations.10 This is further supported by the known genetic and physical interactions between the PAF complex and the super elongation complex.11,16,38–42 Altogether, our findings emphasize the on-target nature of the cellular effects elicited by SR-0813, further validating it as a useful chemical probe to study ENL biology in acute leukemia.
Searched and averaged replicates of proteomics data can be found in supplementary information (SI): Table S6. See DOI: https://doi.org/10.1039/d5cb00233h.
