First-principles understanding of hole mobility and intrinsic transport mechanisms in Sn(II) oxides

Abstract

Transparent conducting oxides (TCOs) have attracted considerable attention due to their applications in electronic devices, ranging from solar cells to flat panel displays and touch screens. While n-type TCOs, such as indium tin oxide (ITO) and tin dioxide (SnO₂), have been extensively studied and widely adopted, the development of p-type TCOs remains an important challenge due to several factors, including their low carrier mobilities which arise from the flat valence bands of metal oxides. In this work, we employ first-principles calculations to investigate the transport properties of the binary Sn(II) oxide SnO and four promising ternary Sn(II) oxides: TiSnO₃, K₂Sn₂O₃ (in both cubic and rhombohedral phases), and Rb₂Sn₂O₃. Our results show that the studied ternary Sn(II) oxides exhibit carrier mobilities comparable to state-of-the-art n-type TCOs, with band gaps ranging between 2 and 3 eV. The computational methodology, which provides an exact treatment of the Boltzmann transport equation, yields excellent agreement with experimental mobility values for SnO, suggesting that experimental measurements for the ternary compounds may also follow closely our predictions. In addition, we highlight the importance of effective masses for carrier lifetimes and the number of scattering channels involved, using a new decoupling approach for the scattering rates. Finally, we reveal that in SnO, high-frequency phonon modes involving oxygen motion dominate electron–phonon interactions, while in ternary compounds, vibrational modes involving the third atomic species are also of crucial importance. These findings could offer new perspectives on mitigating these specific vibrations to reduce electron–phonon scattering and enhance transport properties in oxide semiconductors.

---

1 Introduction

Transparent conductive oxides (TCOs) have garnered significant attention due to their vast potential for application in various electronic devices, including solar cells, flat panel displays, and touch screens.^1–3 They have also been proposed for use in complementary metal–oxide–semiconductors (CMOS) or field-effect transistors (FETs).^4–6 While n-type TCOs such as indium tin oxide (ITO), gallium oxide (Ga₂O₃) or tin dioxide (SnO₂) have been extensively investigated and widely adopted,^1,7–11 developing p-type TCOs has proven to be a challenging task.^12,13 This is primarily due to their low carrier mobilities, which are one order of magnitude lower than those of their n-type counterparts. The underlying reason lies in the typically flat valence bands of metal oxides, which are dominated by localised p-orbitals of oxygen atoms. One way to mitigate this is by strong hybridisation of the O 2p orbital with, for instance, the Cu 3d¹⁰ orbital, as observed in Cu₂O.^12–15 This led to the “chemical modulation of the valence band” approach which saw a range of delafossite oxides studied. These materials were p-type in nature, however, they all displayed deep defect levels and ultimately poor conductivity.^16–21 Sn(II) oxides also exhibit a departure from typical oxides in that the top of the valence bands also possesses a metallic character owing to the presence of lone pairs on tin atoms.²² However, it has been also demonstrated by Ha et al.²³ that the presence of Sn(II) alone does not guarantee a low effective mass; the crystalline structure also plays an important role. Indeed, the angle formed by the Sn–O–Sn bonds within the crystal structure has a strong influence on the effective mass of these oxides: when this angle approaches 180°, it promotes orbital overlap, leading to lower effective masses.

In this work, we use first-principles calculations to investigate the transport properties of the prototypical binary tin oxide SnO as well as four identified promising ternary compounds: TiSnO₃, K₂Sn₂O₃ (in the cubic (c) and rhombohedral (r) phases) and r-Rb₂Sn₂O₃. These ternary tin oxides have already been identified as potential TCO candidates based on effective mass calculations^23,24 or, more recently, through the use of phenomenological mobility models^25–27 but without using a fully first-principles approach such as in the present study. Our computations, which rely on the iterative solution of the Boltzmann transport equation, allow us to delve deeper into the understanding of the differences between these materials, thereby assessing their significant potential. The relative importance of the electron–phonon (e–ph) coupling is also assessed using a new decomposition method of the scattering rates and a detailed analysis of the phonon modes involved.

2 Computational methodology

2.1 Computational details

The band structures shown in this work were computed using VASP^28,29 at the PBE0 level³⁰ allowing a better evaluation of the band gap than with semi-local exchange–correlation (XC) functionals. In contrast, the transport calculations presented in this study were performed using Abinit^31,32 at the generalised-gradient approximation (GGA) level, employing the PBE (for SnO) or PBEsol functional (for the ternary tin oxides).^30,33 This difference in terms of XC functional is justified by the absence of band gap in SnO with PBEsol, making the mobility calculation less accurate. The complexity and cost of the density functional perturbation theory (DFPT) methodology employed in this work prevent the use of higher-level XC functionals, such as hybrid functionals. We do not expect significant discrepancies, as the effective masses computed with GGA remains in the range of those obtained with higher level of theory for the Sn(II) oxides studied here, as shown in Table 2.

Abinit employs a fully first-principles approach to compute phonon-limited mobilities by iteratively solving the Boltzmann transport equation (IBTE).^34–37 The methodology employed in Abinit, which is comprehensively outlined in ref. 34 and 35, allows us to achieve performance levels comparable to Wannier-based packages, eliminating the necessity of using Wannier functions altogether. In this work, convergence is assumed to be reached when the mobilities of three consecutive grids differ by no more than 5%. The converged IBTE mobilities were obtained with k-meshes (for the electronic part) of 128 × 128 × 96 for SnO, 130 × 130 × 130 for c-K₂Sn₂O₃, 156 × 156 × 156 for r-K₂Sn₂O₃, 144 × 144 × 144 for Rb₂Sn₂O₃ and 110 × 110 × 110 for TiSnO₃. On the other hand, DFPT scattering potentials and interatomic force constants also needed for the computation of the mobility were obtained by interpolation starting from a coarse q-mesh of 8 × 8 × 6 for SnO, 6 × 6 × 6 for c-K₂Sn₂O₃, r-K₂Sn₂O₃, and Rb₂Sn₂O₃ and 5 × 5 × 5 for TiSnO₃. The latter originate from the phonon database of Petretto et al.³⁸ All the mobility and scattering potential calculations were performed with the inclusion of dynamical quadrupoles (Q*). It has been shown that the integration of Q*, the next order of correction to dynamical dipoles, in the computation of the mobility is essential to obtain accurate results.^34,36 As the computation of Q* is still limited to norm-conserving pseudopotentials without non-linear core corrections (NLCC), a slight deviation in mobility can be expected but it is several orders of magnitude smaller compared to performing calculations without Q*.

2.2 Decomposition of the scattering rates

One of the aims of this work is to gain a better understanding of the importance of e–ph coupling and the influence of the effective mass on the lifetime. To this end, an analysis of the scattering rates was carried out. While, the IBTE method provides an exact solution of the BTE and is used to determine the phonon-limited hole mobility in our systems, it does not directly give access to these scattering rates. Therefore, we had to take a step back in terms of accuracy and analyse the scattering rates obtained from the self-energy relaxation time approximation (SERTA). In the Boltzmann transport formalism under the SERTA, the hole mobility is given byand the hole lifetime τ⁰_nk can be expressed as the inverse of the scattering rate of a hole passing from a band n and a wave vector k to a final state mk + q as given bywith n⁰_qν the Bose–Einstein distribution for the phonon of wave vector q, mode index ν and frequency ω_qν, and g_mnν(k,q) the e–ph coupling matrix elements defined as g_mnν(k,q) = 〈ψ_mk+q|Δ_qνV^KS|ψ_nk〉, where ψ_nk and ψ_mk+q are the Kohn–Sham (KS) Bloch states and Δ_qνV^KS is the phonon-induced variation of the self-consistent KS potential.^34,36,39 Being neither more nor less than a Fermi golden rule, it is conceivable to decompose this equation into two parts: one taking into account the number of available states and the conservation of energy, that we will refer to as the J parameter:and one directly related to the e–ph coupling, the G² parameter, so that

To enable this factorisation to be carried out computationally, it is only necessary to perform a conventional calculation of the scattering rates under the SERTA and another where all the matrix elements are set to 1. The latter gives us a direct access to the J parameter whereas the G² parameter is obtained by dividing the scattering rates calculated conventionally by J_nk.

3 Results

3.1 Crystal and electronic structures

Among the various Sn(II) oxides, the conventional SnO has been extensively studied both theoretically and experimentally. It possesses a tetragonal crystalline structure with a distinguishing layered arrangement as shown in Fig. 1(a). The presence of a lone pair on the tin atom results in different stacking patterns compared to SnO₂. In the case of SnO, the Sn–O–Sn layers are stacked along the c-axis, exhibiting relatively weak van der Waals (vdW) interactions.⁴⁰ The structural properties of SnO obtained with GGA PBE and PBE0 are in good agreement with the experimental results,^40–43 as shown in Table 1 but also with the numerous computational data obtained with various techniques.^25,44–49 The use of vdW corrections has been shown to significantly improve structural agreement with experimental data in the case of SnO^44,49 (and more generally in layered materials). However, in the case of SnO, these corrections tend to underestimate the band gap with PBE, resulting in a semi-metallic behaviour. The lack of a band gap is detrimental to the study of the transport properties of SnO and therefore PBE with vdW cannot be used. Our PBE values for the effective masses – one of the key parameters in carrier transport calculations – lie between the values obtained using PBE0 (with and without vdW corrections), see Table 2. We expect our transport results to be relatively unaffected by the choice of the XC functional in SnO. Nevertheless, the use of a hybrid functional remains needed to obtain accurate band gaps. In the case of SnO, a direct band gap of 3.29 eV is obtained with PBE0 without vdW corrections, in agreement with other experimental studies ranging from 2.5 to 3.3 eV,^5,50–53 as shown in Fig. 2.

Fig. 1 Crystal structures of (a) SnO, (b) c-K₂Sn₂O₃, (c) Rb₂Sn₂O₃ and (d) TiSnO₃. r-K₂Sn₂O₃ has the same rhombohedral structure as Rb₂Sn₂O₃ and is therefore not shown here. Sn atoms are in dark green, O atoms in red, K atoms in blue, Rb atoms in light green and Ti atoms in orange. The different crystal structures are plotted using VESTA.⁵⁴

Table 1 Structural properties of the different Sn(II) compounds studied in this work

Materials	Space group	Sn–O–Sn (°)	a (Å)			c (Å)
			PBE(sol)	PBE0	Exp.	PBE(sol)	PBE0	Exp.
a In the case of SnO, PBE was used instead of PBEsol.b PBE0 with vdW correction.
SnO	P4/nmm	117.8	3.88^a	3.80	3.80^42,43	5.06^a	4.98	4.84^43
				3.79^b			4.82^b
c-K2Sn2O3	I213̄	167.6	8.32	8.41	8.41^57	8.32	8.41	8.41^57
r-K2Sn2O3	R3̄m	180	6.04	6.03	6.00^57	14.07	14.34	14.34^57
r-Rb2Sn2O3	R3̄m	180	6.13	6.13	6.09^57	14.86	15.22	15.10^57
TiSnO3	R3̄	—	5.08	5.07	5.07^56	20.83	22.04	20.69^56
				5.06^b			20.23^b

---

Table 2 Conductivity hole effective masses and IBTE mobilities (eigenvalues) of the different Sn(II) computed with GGA PBE (SnO) and GGA PBEsol (all the other Sn(II)). The convergence studies can be found in the ESI

Materials					μh (cm^2 V^−1 s^−1)
	Intralayer		Interlayer		Intralayer	Interlayer
	PBEsol	PBE0	PBEsol	PBE0
a In the case of SnO, PBE was used instead of PBEsol.b PBE0 with vdW correction.
SnO	2.32^a	2.19	0.58^a	0.47	11.0	40.8
		2.09^b		0.66^b
c-K2Sn2O3	0.23	0.23	—	—	346.8	—
r-K2Sn2O3	0.19	0.21	0.43	0.29	316.5	181.7
r-Rb2Sn2O3	0.20	0.24	0.32	0.28	281.4	182.6
TiSnO3	0.41	0.44	0.66	0.46	171.7	98.6
		0.34^b		0.55^b

---

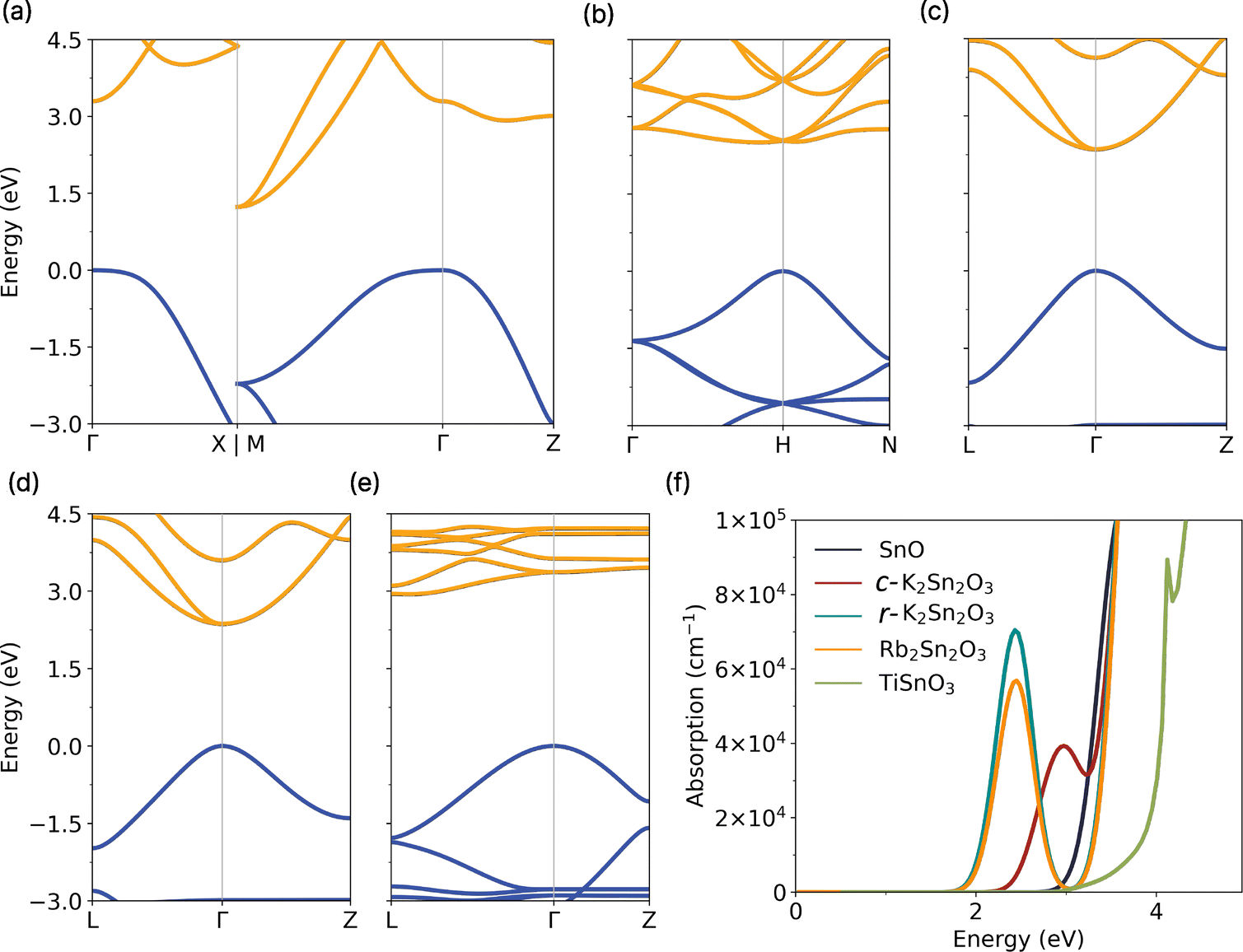

Fig. 2 Band structures of (a) SnO, (b) c-K₂Sn₂O₃, (c) r-K₂Sn₂O₃, (d) Rb₂Sn₂O₃ and (e) TiSnO₃ computed using hybrid DFT (PBE0). (f) Band–band optical absorption for the different Sn(II) oxides.

The other ternary tin oxides investigated in this study share a similar layered structure to SnO, except for c-K₂Sn₂O₃, as seen in Fig. 1. Notably, K₂Sn₂O₃ is slightly more stable in its cubic phase rather than the rhombohedral phase which is described experimentally as the high-temperature phase.⁵⁵ Besides, the phonon dispersion curve of r-K₂Sn₂O₃ presents imaginary frequencies, a sign of dynamical instability (see ESI†). On the other hand, Rb₂Sn₂O₃ favours the rhombohedral configuration. Nevertheless, even in the cubic phase, the lone pairs of tin atoms tend to avoid each other within a three-dimensional Sn–O–Sn network. Finally, the rhombohedral structure of TiSnO₃ is slightly different than those of r-K₂Sn₂O₃ and Rb₂Sn₂O₃ as edge-sharing TiO₆ octahedra are present instead of hexagonal planar geometry between K/Rb and O. The structural properties of the ternary tin oxides are summarised in Table 1, where good agreement is also found with experimental literature^55–59 and other theoretical works.^23,27,60 For K₂Sn₂O₃ and Rb₂Sn₂O₃, the PBE0 functional shows very close agreement with experimental results. However, this is less true for TiSnO₃, where PBE0 significantly overestimates the c-axis, resulting in a larger interlayer spacing. Applying vdW corrections, as was done for SnO, brings the results closer to experimental values, though some discrepancies remain. Our PBEsol results fall between the two PBE0 calculations, with and without vdW corrections and are closer to the experimental measurements. As in the case of SnO, we have chosen not to use vdW corrections for the transport calculations, as they do not lead to significant changes in the conductivity effective masses, as seen in Table 2.

The band structures and optical properties of the different ternary oxides computed with PBE0 are shown in Fig. 2. The band gaps of r-K₂Sn₂O₃ and Rb₂Sn₂O₃ are relatively small with values close to 2 eV (2.355 and 2.365 eV, respectively). For c-K₂Sn₂O₃, an indirect band gap of 2.504 eV is found whereas TiSnO₃ presents the highest band gap of the ternary oxides with an indirect band gap of 2.433 computed with PBE0 and vdW corrections (3.369 eV without), slightly higher than experimental results of 1.90 eV.⁶¹ For the sake of completeness, the band gaps have also been calculated using the HSE06 XC functional. They are provided in the ESI.†

3.2 Transport

3.2.1 SnO. Interestingly, the layered structure of SnO promotes interlayer transport (in the c-axis) over intralayer transport (in the a- and b-axes). This particularity of SnO is directly noticeable in its effective mass, as shown in Table 2 and Fig. 2. The computed interlayer conductivity hole effective mass of 0.58 computed with PBE falls within the range of theoretical values reported in the literature (0.50–0.64m₀) whereas the intralayer conductivity hole effective mass of 2.32 seems to be a little underestimated compared to other works (2.8–3.2m₀).^23,26,46,48 The disparity in these values can be attributed to the differences in the methodologies employed to calculate the effective mass across the various studies (i.e. parabolic fitting, or more accurate approaches such as the conductivity effective mass). The PBE effective masses also fall between the values obtained using PBE0 and PBE0+vdW corrections, mirroring the trends observed in the interlayer spacing with the different XC functional. This large difference between intralayer and interlayer transport in SnO is also very marked in the hole mobility. Using IBTE, we find a converged hole mobility of 11 cm² V⁻¹ s⁻¹ in the a- and b-axis (intralayer transport) and of 41 cm² V⁻¹ s⁻¹ for the c-axis (interlayer transport). The comparison of theoretical phonon-limited mobility results with experimental measurements must be done with caution, as our calculations do not include impurities, defects, or grain boundary scattering, all of which are inherent to experimental samples. We note that our drift mobility results are in good agreement with the field-effect drift measurement of Kim et al.⁶² of 25 cm² V⁻¹ s⁻¹ obtained on thin films. Due to the lack of drift mobility reports, we will now compare these results with Hall mobility measurements. Fig. 3 shows our drift mobility and estimated Hall mobility results with temperature. The latter are calculated using a constant Hall factor (r_H) of 1.77 as found in ref. 25. However, this remains an important approximation as the Hall factor can exhibit a complex temperature trend.⁶³ Our temperature-dependent results are in agreement with those reported by Miller et al.⁶⁴ for undoped polycrystalline SnO as shown in Fig. 3. In their work, they achieved a record experimental Hall mobility of 30 cm² V⁻¹ s⁻¹ for a low carrier concentration (around 1 × 10¹⁶ cm⁻³) at room temperature.

Fig. 3 IBTE hole drift mobility of SnO against temperature. Using a constant Hall factor of 1.77²⁵ for the range of temperature, the approximate Hall mobility is also shown and compared with experimental results from ref. 64.

On the other hand, thin films results range from 1 to 21 cm² V⁻¹ s⁻¹ using different deposition methods.^5,52,65–70 The high volatility of Sn during the growth of thin films leads to the formation of Sn vacancies, resulting in an increased carrier concentration and unintentional doping of the SnO thin films.⁶⁶ This can explain the slightly lower experimental results observed for thin films compared to bulk samples. However, through precise modulation of the kinetic and thermodynamic conditions during the film growth process, it becomes possible to effectively minimise ionised-impurity and grain boundary scattering. This optimisation strategy contributes to the achievement of the highest thin film mobility value reported of 21 cm² V⁻¹ s⁻¹ obtained by Minohara et al.⁶⁶ with a low carrier concentration of 7 × 10¹⁶ cm⁻³. Our mobility results are also in agreement with a previous computational work performed by Hu et al.²⁵ where a mobility of 7.4 and 60.0 cm² V⁻¹ s⁻¹ is found using two empirical models for polar optical and acoustic deformation scattering.

Fig. 4 demonstrates that the linewidths of SnO, and therefore the scattering rates (as linewidth is proportional to 1/τ), closely follow the behaviour of the G² parameter (see eqn (4)), which is directly linked to the strength of the e–ph coupling. Specifically, we observe a first plateau in the scattering times up to 50 meV, followed by a substantial increase and a second plateau. Given the lack of any significant changes in the electronic structure at these energies, the sudden rise in scattering times can be attributed to the activation of new important phonon-mediated scattering channels with energies around 50 meV. The function (reported in grey in Fig. 4), which gives access to the hole mobility once integrated, shows the energy states participating in the hole transport and their relative importance. Even if the peak of this curve (at 34 meV) is reached before the sudden increase, the tail largely encompasses it, demonstrating the importance of these high-frequency modes for the hole mobility in SnO. Another way to show the importance of high-frequency phonons is to look at the temperature dependence of the mobility. As shown in Fig. S2 (ESI†), an important temperature-dependence change is observed around 100 K when higher energy vibrational modes are thermally activated.

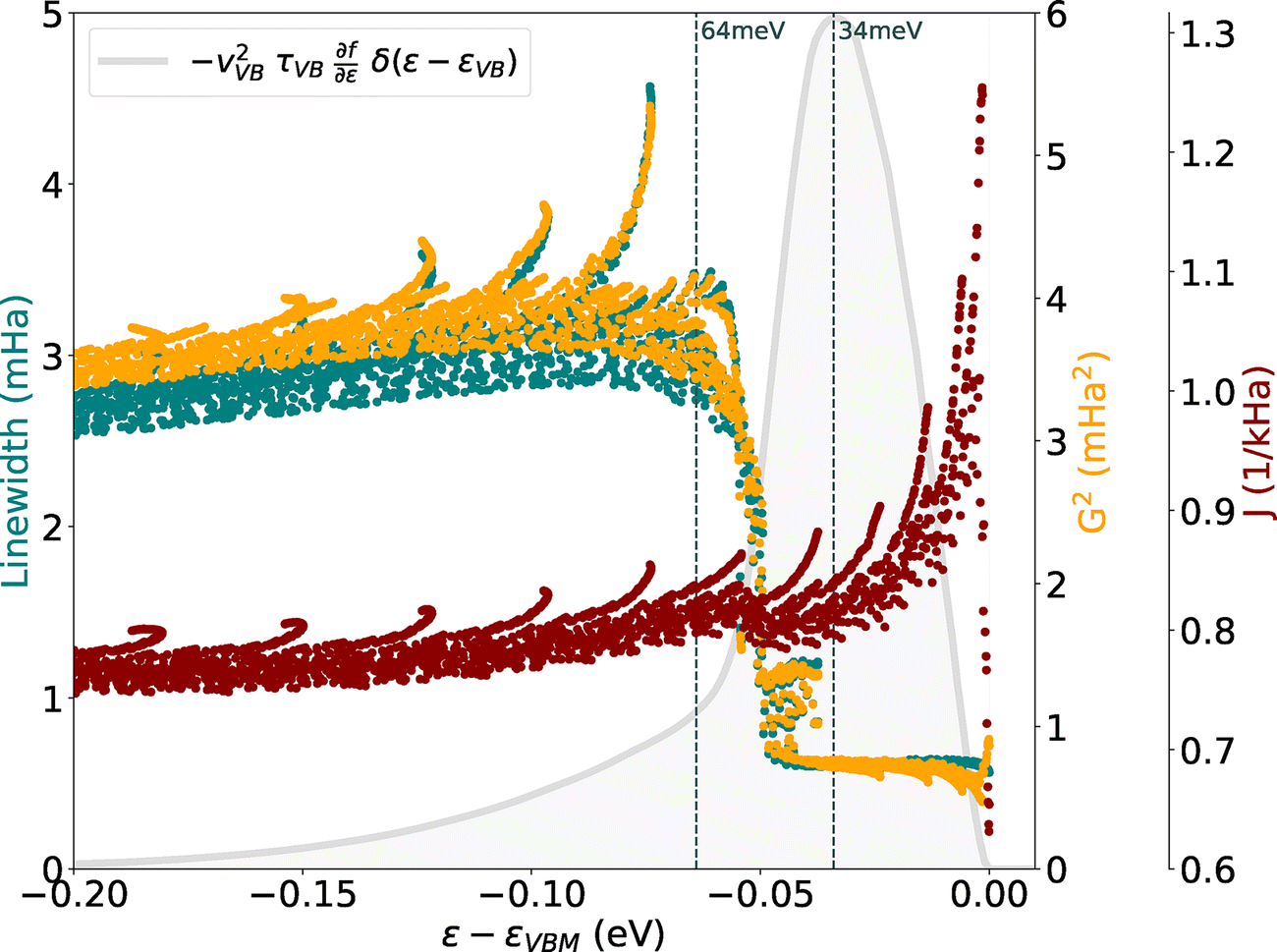

Fig. 4 Hole linewidths (in teal) near the VBM of SnO. The two parameters, G² and J, resulting from the decoupling of the scattering rates are also shown in orange and red, respectively . The grey area represents the function where v_VB and τ_VB stand for the carrier velocity and lifetime in the VB, is the derivative of the Fermi–Dirac distribution function with respect to the energy and δ the Dirac delta function. By integrating this function, the relaxation time approximation (RTA) hole mobility is obtained. In other words, only the electronic states present under this curve participate in the hole transport of SnO.

A comprehensive view of the phonon properties of SnO is shown in Fig. 5: panel (a) displays the phonon band structure, while panel (b) shows the projected density of states (PDOS) for this structure. Finally, panel (c) presents the spectral decomposition of the scattering rates at two distinct energies (34 and 64 meV) corresponding to the first and second plateau of Fig. 4. Notably, this decomposition highlights and confirms the crucial role played by high-energy phonon modes in the scattering rate of SnO. However, these modes, mainly associated with oxygen motion (as indicated in the PDOS), can only participate to the transport when the transition f_nk to f_mk+q requires a high-frequency phonon ω_qν of ∼50 meV as schematised in Fig. S3(a) (ESI†). Within the first plateau (around 34 meV for instance), the only scattering processes involving these states and these high-frequency phonons can only be out-of-state transitions by phonon emission or in-state transitions by phonon absorption. Other types of transitions are not possible as the state f_mk+q does not exist (i.e., the electronic state would be in the band gap). In the case of SnO, the out-of-state emissions are favoured as the states that can perform this type of transition are closer to the top of the valence band. This is also induced by the decreasing shape of the curve of the J parameter shown in Fig. 4. This can be demonstrated by using a simple model based on a single parabolic band and a phonon following the Einstein model as seen in Fig. S3(b) (ESI†). We observe a decreasing behaviour of J with energy in the case of a transition due to the emission of a phonon and an increasing behaviour when an absorption take place.On the other hand, an initial state close in energy to the second plateau (at 64 meV for example) allows all the different transitions with these phonons. This is also expressed by the much larger area under the curve in Fig. 5(c) for the latter. With this first-principles study, we reaffirm the significance of these high-frequency phonon modes, complementing previous findings based on phenomenological models²⁵ with a more in-depth analysis.

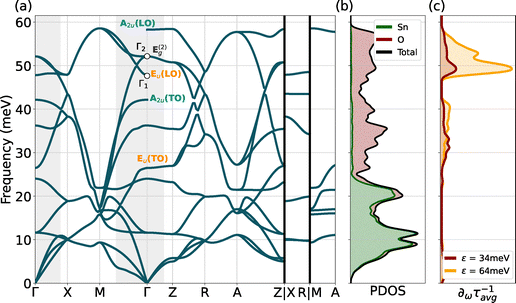

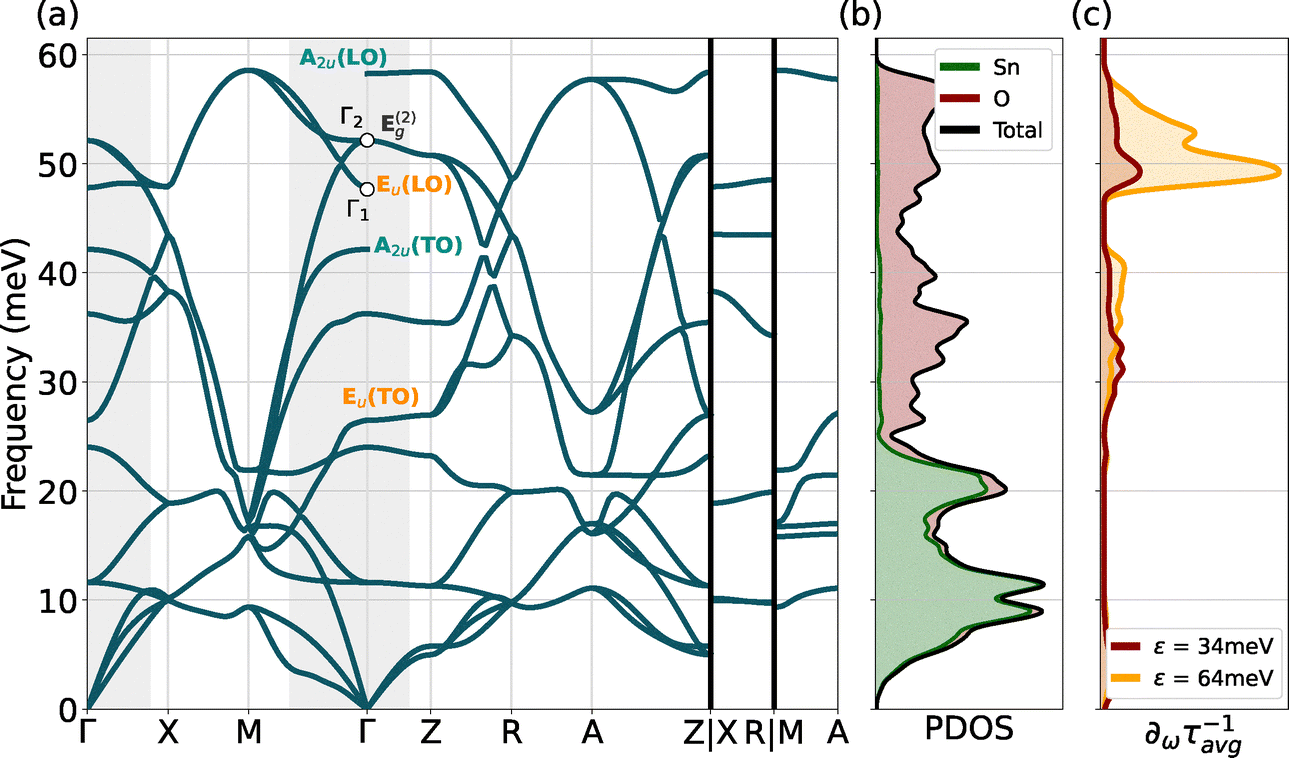

Fig. 5 (a) SnO phonon dispersion computed using the PBEsol functional. The E_u (TO and LO) and A_2u (TO and LO) are highlighted in orange and teal, respectively. The grey areas around Γ show the regions relevant (due to energy conservation) for the scattering, as expressed in eqn (2). (b) Phonon projected density of state (PDOS) with the contribution of Sn and O in green and red, respectively. (c) Spectral decomposition of the hole scattering rates at two different band energy level corresponding to the two plateaus of Fig. 4 (34 meV in red and 64 meV in orange).

The other important parameter to look at during a transition between two states is the conservation of momentum. The light grey regions in the dispersion curve (Fig. 5(a)) correspond to the areas where intravalley scattering is relevant. This means that the only q vectors available for a transition that respect the conservation of the momentum are in the light grey area. For instance, this implies that acoustic modes with a large e–ph coupling at q = M as identified by Chen et al.⁷¹ do not participate in the hole transport. Indeed, due to a rather curvy band at the Γ-point of SnO, a transition involving a momentum transfer of q = M is forbidden. In short, the phonon modes that scatter the hole the most in SnO are high-frequency modes with small q (i.e., close to Γ) that predominantly involve intralayer vibrations of oxygen. Fig. 6(a) and (d) illustrate these modes at two different locations at Γ, corresponding respectively to an optical longitudinal (LO) E_u mode (Γ₁ in Fig. 5), where the oxygen atoms move in phase, and an optical degenerate E_g mode (Γ₂ in Fig. 5), with oxygen atoms moving out-of-phase (the two degenerate E_g modes have the same atomic displacements pattern but in the two different intralayer directions).

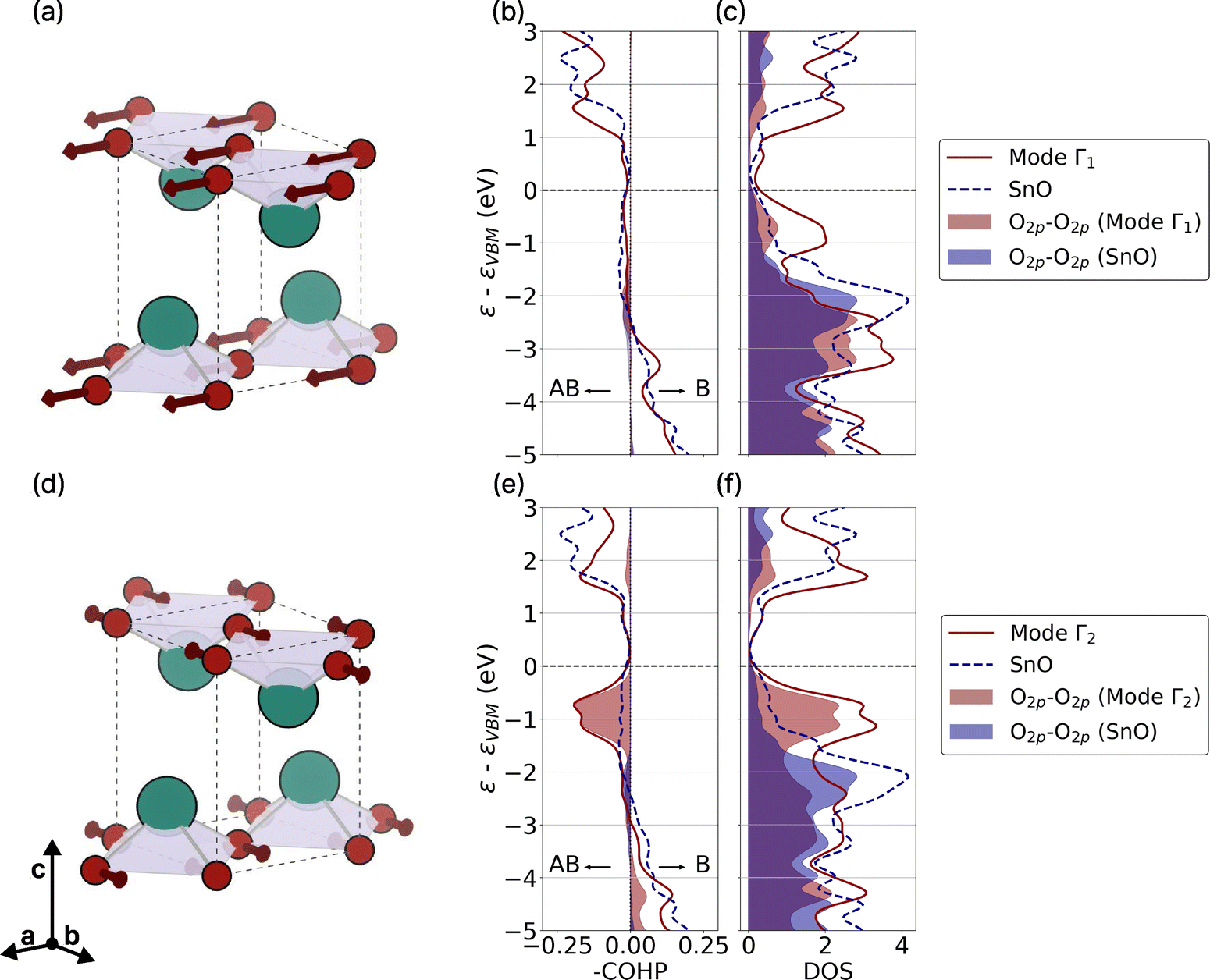

Fig. 6 (a) and (d) Atomic displacements corresponding to the LO E_u mode (Γ₁ in Fig. 5) and the degenerate E_g modes (Γ₂ in Fig. 5), respectively. The two degenerate E_g modes showing the same atomic displacements but in the two different intralayer directions. (b) and (e) Present the projected Crystal Orbital Hamiltonian Populations (COHP) for the two corresponding vibrational modes (in red) as well as the pristine SnO (in blue). The interaction between O_2p and O_2p is highlighted. Here, the –COHP is plotted in order to have the bonding levels to go to the right and the anti-bonding levels to the left. (c) and (f) Show the DOS corresponding to the two modes and pristine SnO with a focus on the O_2p contribution.

A crystal orbital Hamilton population (COHP) analysis (Fig. 6(b) and (c)) with distorted structures due to these two phonons is carried out using an amplitude of 0.5 Å for the largest atomic displacement. The Γ₁ mode does not seem to affect the electronic structure considerably, whereas the Γ₂ mode tends to strongly destabilise the VBM. While increased mixing between the Sn_5s–O_2p and Sn_5p orbitals could have increased the s-character of the VBM and caused destabilisation, in this case, the destabilisation mostly results from the interaction between the O_2p orbitals of two neighboring oxygen atoms. The two states being similar in energy, this hybridisation is favoured. However, this interaction is only possible when the oxygen atoms move out-of-phase, bringing them closer together and enabling this important hybridisation.

3.2.2 Other Sn(II) compounds. The incorporation of a third element into the binary SnO system has demonstrated notable advantages in terms of band gap enhancement and phase stability²⁶ but it also provides substantial improvements in the hole effective mass of the material.²³ The latter can mainly be attributed to the more favourable Sn–O–Sn configuration, which promotes better overlap between tin and oxygen atoms. This is confirmed by the computed crystal orbital bond index (COBI),⁷² which allows for the quantification of the covalency of bonding in solid-state materials. While the COBI of the Sn–O bond in SnO has a relatively low value of 0.43 (indicative of weak covalency), the ternary oxides show significantly higher values: around 0.67 for c-K₂Sn₂O₃, and 0.68 for both r-K₂Sn₂O₃ and Rb₂Sn₂O₃. In TiSnO₃, the COBI of the Sn–O bond is 0.55, whereas the Ti–O bond also plays a role and shows a relatively high covalency with a COBI value of 0.69. Table 2 confirms that the ternary oxides exhibit notably superior hole effective masses compared to SnO, particularly in the intralayer directions (for layered compounds) where the effective masses decrease by an order of magnitude. In fact, looking at the effective masses in the interlayer direction, only a slight decrease is observed for r-K₂Sn₂O₃ and Rb₂Sn₂O₃ compared to SnO whereas TiSnO₃ possesses a rather similar hole band mass, albeit slightly higher. This similarity arises from their comparable crystal structures, where tin atoms in both materials are directly positioned facing each other.

The hole mobilities results for the ternary oxides are summarised in Table 2. The mobility obtained are much higher than those obtained for SnO, with c-K₂Sn₂O₃ presenting the higher value with 347 cm² V⁻¹ s⁻¹. We note that the results for r-K₂Sn₂O₃ should be considered with caution due to the presence of imaginary phonon frequencies. Overall, the hole mobilities obtained using the IBTE methodology mainly follows the trend of the effective masses except for TiSnO₃. Indeed, with a larger effective mass than SnO in the interlayer direction, one might expect a lower mobility in this direction compared with the value obtained for SnO. In fact, this is what is obtained using simple phenomenological models.^26,27 These simple approaches, however, based on the Fröhlich⁷³ or Vogl models⁷⁴ do not fully take into account the anisotropy and particularly in this case the effective masses in the other directions. In the Boltzmann transport formalism and the relaxation-time approximation (RTA), the curvature of the bands plays a crucial role not only in determining velocities in eqn (1) but also indirectly influences the number of states participating to transport. A higher effective mass corresponds to a flatter band structure, which in turn provides a larger number of available states and scattering channels for the carriers. This can be seen as the parameter J, obtained from eqn (2) and shown in Fig. 7(c). The importance of this J parameter is largely underestimated in the models. Consequently, materials exhibiting an excellent effective mass in one direction but poor effective masses in the other two directions, such as SnO, might exhibit lower mobility in that favourable direction compared to materials, such as TiSnO₃ with a higher effective mass in the same direction but excellent low effective masses in the other two directions.

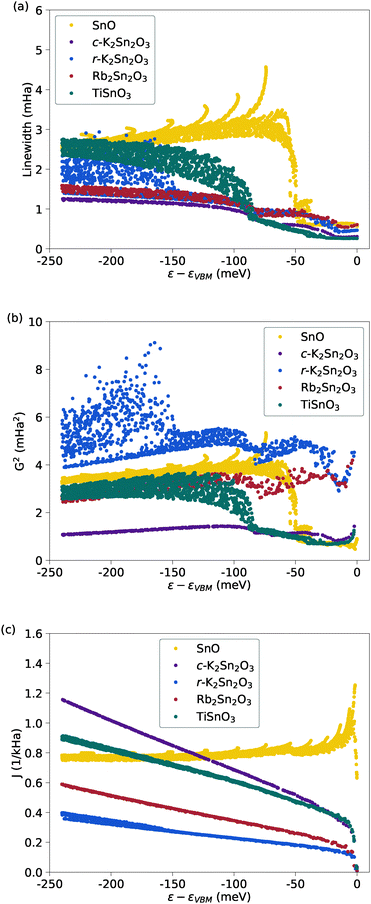

Fig. 7 (a) Hole linewidths, (b) G² parameters and (c) J parameters with SnO in yellow, c-K₂Sn₂O₃ in purple, r-K₂Sn₂O₃ in blue, Rb₂Sn₂O₃ in red and TiSnO₃ in green.

Generally speaking, the parameter J is directly related to the DOS (or Seebeck) effective mass which takes into account both the effective mass and the valley degeneracy.⁷⁵ In fact, J is very low for r-K₂Sn₂O₃ and Rb₂Sn₂O₃ due to their low effective mass, whereas it is slightly higher for TiSnO₃ for the same reason. Among the ternary oxides, c-K₂Sn₂O₃ exhibits the highest value for J, primarily due to the presence of multiple pockets resulting from its VBM at the high symmetry point H, as shown in Fig. S4 (ESI†). This larger number of valleys, in contrast to the classic single valley at Γ observed in the other studied materials, leads to an increased number of available states facilitating new intervalley transitions. Finally, the shape of the curves of the various ternary oxides is also very different from SnO. This is probably linked to the larger number of transitions made by absorption of a phonon and not emission as shown in Fig. S3(b) (ESI†), which is the opposite of what happens in SnO.

However, this high number of possible transitions in c-K₂Sn₂O₃ is counterbalanced by the low strength of e–ph coupling (G²) leading to very low scattering rates close to the VBM, as shown in Fig. 7(a) and (b). In comparison with SnO, the ternary oxides do not present such an abrupt increase of this G² parameter close to the VBM. An important rise is observed for TiSnO₃, similarly to SnO, but it only occurs after 90 meV where the electronic states do no longer participate greatly to transport. By analysing the linewidths, it can be seen that the lowest values are observed for TiSnO₃ and c-K₂Sn₂O₃, while the highest values are found for r-K₂Sn₂O₃ and Rb₂Sn₂O₃ within the energy range relevant for transport. This pattern aligns with the trend observed in the G² parameter related to the e–ph coupling. However, it is noteworthy that these linewidths remain considerably lower than those exhibited by SnO after the important increase. This implies that in SnO the high scattering rates are due to both an important e–ph coupling and an important number of states allowing the different transitions to happen. In other words, the tendency for a large J parameter to be linked to a small G² parameter as observed in the different ternary oxides, does not apply in the case of SnO.

To analyse the phonon modes that exhibit the strongest coupling with electrons and compare them with SnO, we performed a spectral decomposition of the scattering rates for the four ternary oxides at 300 K. The analysis is performed at an energy value specifically chosen to correspond to the energy for which the maximum number of states participate in transport, as shown in Fig. S5 (ESI†). The results are shown in the ESI† (Fig. S6, S7, S8, and S9 for c-K₂Sn₂O₃, r-K₂Sn₂O₃, Rb₂Sn₂O₃ and TiSnO₃, respectively). The most noticeable observation is that the modes with the strongest hole coupling are consistently associated with a significant displacement of the third atom, namely Rb, K, or Ti, in addition to oxygen, as depicted in panel (b) of these figures. Another interesting finding is that the tin displacement in these modes is small, which is also in line with the results observed in SnO. In the rhombohedral materials, the large displacement of the third atom can be either in the direction perpendicular to the layers or in the layers and exhibits a similar pattern across all three compounds. These vibrational modes exhibit an LO–TO splitting and belong to either E_u or A_2u symmetry. However, TiSnO₃ also possesses rather important high-frequency phonon modes, in contrast with r-K₂Sn₂O₃ and Rb₂Sn₂O₃ but in a similar way to SnO. Being very high in frequency, they do not allow a large number of transitions, which limits their impact at room temperature. Nevertheless, we can expect them to play a crucial role as the temperature rise. Finally, in the case of c-K₂Sn₂O₃, the T (LO) mode just below 18 meV, associated with perpendicular displacement of the two distinct K atoms, is responsible for just under half of the scattering of the holes. In comparison to SnO, the high-frequency modes associated with oxygen motions do not play the main role in the ternary oxides at room temperature. This can be attributed to their too high frequencies, which are already barely accessible in SnO at 300 K, leading to a restricted number of electronic transitions.

For the moment, these ternary tin oxides remain challenging to synthesise, with only a few studies reporting successful samples. Theoretically, their stability regions have been shown to be very narrow, primarily due to the lower stability of Sn(II) compared to Sn⁴⁺. Nevertheless, TiSnO₃ has been successfully synthesised recently,⁵⁶ and K₂Sn₂O₃ has also been reported to be synthesised via the in situ reduction of K₂Sn₃O₇.⁷⁶ These recent advancements could open new avenues for the synthesis of tin(II) oxides, allowing experimental confirmation of our theoretical insights.

4 Conclusion

In this work, we present the computationally predicted hole mobility of SnO as well as that of different ternary Sn(II) oxides, assessing their potential as promising new candidates in the TCO field, with mobilities comparable to state-of-the-art n-type materials and band gap between 2 and 3 eV. The computational methodology employed in this study for the transport properties, which is based on an exact treatment of the BTE, has demonstrated excellent agreement with experimental results for SnO. We are therefore confident that experimental measurements on the ternary oxides could also align closely with our predicted mobility values.

Our theoretical work also demonstrates the use of a new decoupling methodology of the scattering rates that provides significant insights into the e–ph scattering behaviour in these oxides. We highlighted the important role of effective mass on the lifetime of the studied compounds, something that is not always taken into account in simple models. One such example is SnO, which exhibits two very poor transport directions primarily attributed to a high effective mass in these directions. Consequently, the direction in which SnO demonstrates a more favourable effective mass is directly impacted, influenced by the large number of scattering channels provided by a flat band.

We also show that in SnO, e–ph scattering is predominantly dominated by high-frequency modes involving oxygen motion, which are also associated with significant destabilisation of the VBM. In the ternary compounds, it appears that the third atom plays a direct role in carrier scattering, with a limited number of phonon modes participating. These new insights into the scattering behaviour of these oxides could help to mitigate e–ph scattering, potentially enhancing the transport properties of this class of materials.
