Synthesis and electron-transporting properties of phenazine bisimides

Abstract

The dual incorporation of imide substituents and imine-type nitrogen atoms into π-systems represents an emerging guideline for the design of robust and high-performance n-type semiconductors. Herein, we have adapted this strategy to a simple molecular motif: anthracene, and thus synthesized phenazine bisimides (PzBIs). PzBIs exhibit superior electron affinity compared to anthracene bisimide and phenazine due to the presence of two types of functional electron-withdrawing units. The existence of imine-type nitrogen atoms in PzBI leads to the formation of two-dimensionally extended brickwork arrangements while anthracene bisimide forms one-dimensionally slipped-stacked arrays. Consequently, the electron mobility of the vacuum-deposited film of N,N′-dicyclohexyl PzBI is ten times higher than that of the corresponding anthracene bisimide. Furthermore, the OFET device of N,N′-bisheptafluorobutyl PzBI exhibits good air persistency, and its intrinsic electron mobility has been estimated to be approximately 0.7 cm² V⁻¹ s⁻¹ by the time-resolved microwave conductivity measurement. The current study demonstrates that the dual incorporation strategy endows even a simple and small π-system with good performance as an n-type semiconductor.

---

Introduction

Organic semiconductors have been actively explored for the development of advanced electronic materials due to their mechanical flexibility, lightweight, and high designability. Recent advances in the design of p-type organic semiconductors have furnished various promising molecules for practical applications.^1–8 On the other hand, the development of efficient n-type organic semiconductors has still lagged. Considering the dual use of both p-type and n-type semiconductors is necessary for several advanced applications such as logic gate transistors and photovoltaics, the establishment of a general and reliable guideline for the molecular design of high-performance n-type semiconductors is desirable.^9–13

One traditional strategy for the design of n-type organic semiconductors is the introduction of electron-withdrawing imide substituents on the periphery of aromatic molecules, as seen in naphthalene diimide (NDI) and perylene bisimide (PBI).^14–18 The advantage of this approach is the high tunability of the solubility and solid-state arrangement by the substituents on the nitrogen atoms. Another strategy is the incorporation of electronegative imine-type nitrogen atoms, which significantly deepens the lowest unoccupied molecular orbital (LUMO) level of the parent π-systems.^19–21 Furthermore, the hydrogen-bond-accepting ability of the incorporated imine-type nitrogen atoms allows the control of the intermolecular arrangement.

The dual incorporation of imide substituents and imine-type nitrogen atoms represents an emerging strategy for the design of robust and high-performance n-type semiconductors.^22–33 The representative molecules based on this strategy are listed in Fig. 1. Jenekhe and co-workers have synthesized heterocyclic diimides 1, which exhibits a maximum carrier mobility of 0.12 cm² V⁻¹ s⁻¹ under vacuum conditions.²² Okamoto and co-workers have reported that benzo[de]isoquinolino[1,8-gh]quinolinetetracarboxylic diimide (BQQDI) 2 shows high electron mobility of 3.0 cm² V⁻¹ s⁻¹ and excellent air-durability.^23,24 We have also contributed to this research field with acridino[2,1,9,8-klmna]acridine bisimide (AABI) 3, whose single-crystal organic field-effect transistor (OFET) device achieved an electron mobility of 0.90 cm² V⁻¹ s⁻¹.²⁵

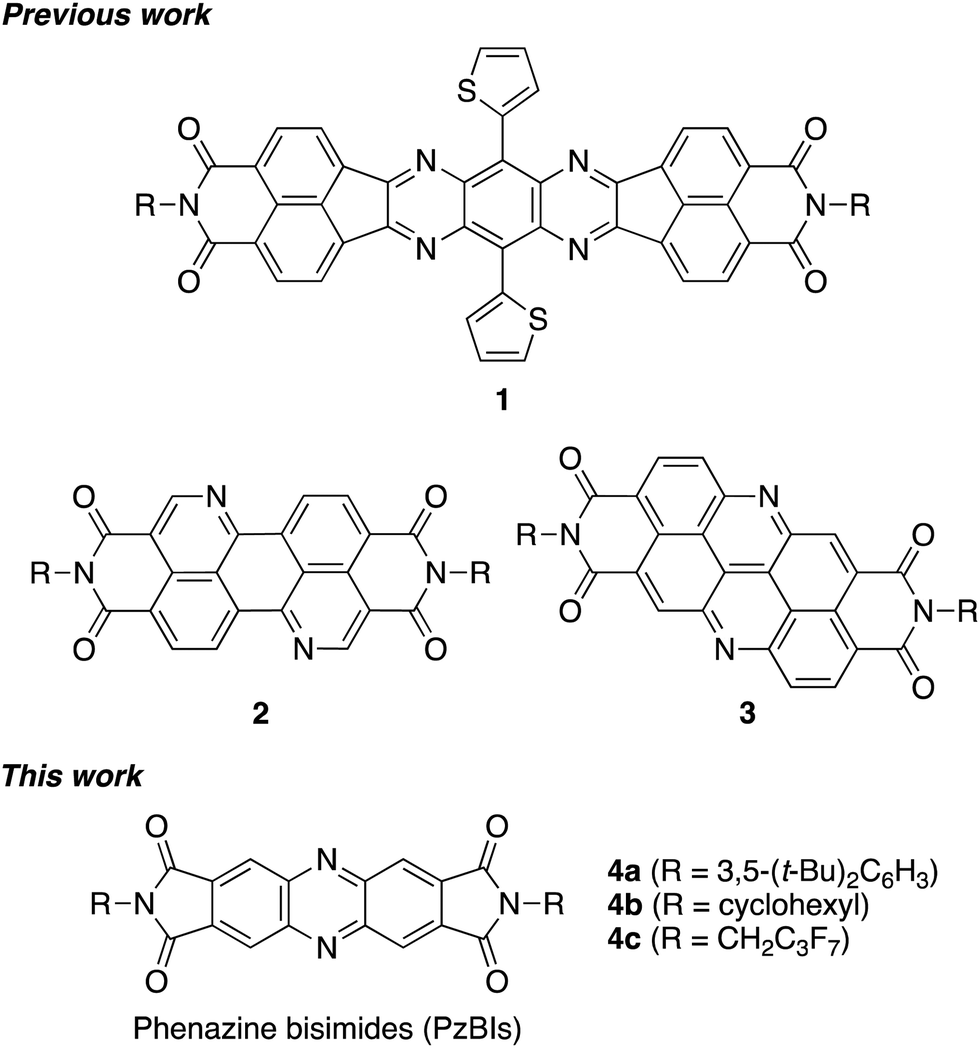

Fig. 1 Imide-functionalized electron-accepting π-systems that contain imine-type nitrogen atoms.

Herein, we have applied the dual incorporation strategy to anthracene, and thus designed phenazine bisimide (PzBI). The structure of PzBI is simpler than those of previously reported nitrogen-incorporated imide-functionalized molecules including 1–3.^22–33 The structural simplicity should be advantageous for deeply understanding the structure–property relationship of this molecular design. To date, two imide-functionalized anthracene derivatives 5 and 6 have been reported (Fig. 2). Compound 5 contains imide groups at the zigzag edges of the anthracene core,^34,35 while 6 has imide-substituents at the short sides of the molecule.^36,37 The reduction potentials of 5 and 6 are −1.02 V and −1.69 V (vs. Fc/Fc⁺), respectively, and thus higher than that of anthracene (−2.91 V). Compound 6 functions as an organic n-type semiconductor with a maximum electron mobility (μ) of 1.0 × 10⁻² cm² V⁻¹ s⁻¹. However, anthracene derivatives that contain both nitrogen atoms and imide substituents have not yet been reported.

Fig. 2 Anthracene diimides 5 and 6.

Results and discussion

Synthesis

The synthetic procedure for PzBIs 4a–4c is shown in Scheme 1. The reduction of diethyl 4-nitrophthalate 7 with SnCl₂ and HCl aq. afforded diethyl 4-aminophthalate 8 in 90% yield. The iodination of 8 with N-iodosuccinimide (NIS) proceeded at the 5-position to provide 9 in 57% yield. The dimerization of 9via a palladium-catalyzed Buchwald–Hartwig amination^38,39 and spontaneous dehydrogenation furnished the ester-functionalized phenazine derivative 10 in 63% yield. The hydrolysis of 10 generated tetracarboxylic acid 11 in 87% yield. The subsequent dehydration⁴⁰ of 11 with trifluoroacetic anhydride afforded acid anhydride 12 in 80% yield, which was treated with three different amines to afford the corresponding PzBIs 4a (R = 3,5-di-tert-butylphenyl), 4b (R = cyclohexyl), and 4c (R = 2,2,3,3,4,4,4-heptafluorobutyl) in 22%–63% yields. The smaller isolated yield of 4c (22%) compared to 4a (63%) and 4b (61%) is due to the loss by the recrystallization.

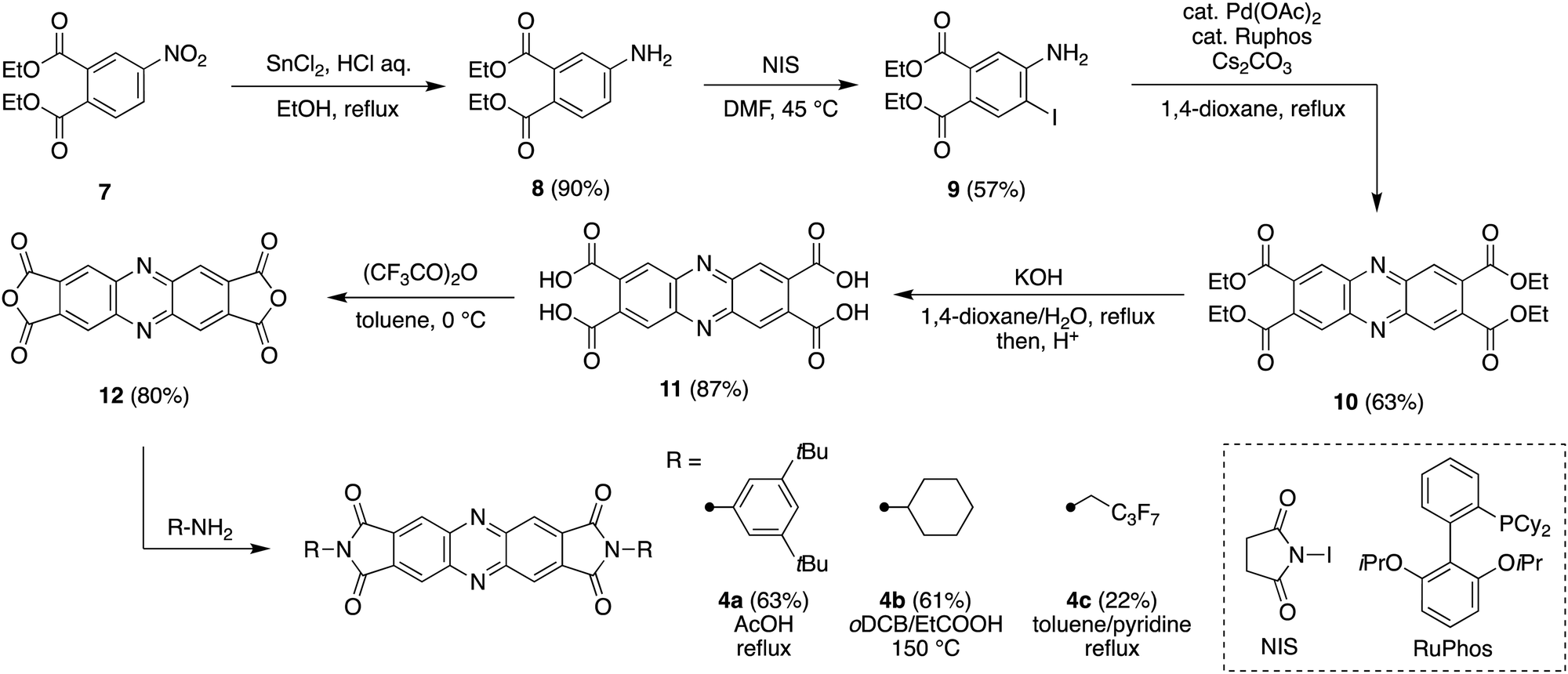

Scheme 1 Synthesis of the PzBIs 4a–4c.

Optical properties

The UV/vis absorption and emission spectra of PzBI 4a are shown in Fig. 3. In CH₂Cl₂ at room temperature, PzBI 4a exhibits weak and ill-resolved absorption bands around 350–450 nm. PzBI 4a emits orange fluorescence with a small quantum yield (Φ = 0.02) and a lifetime of 0.5 ns. These parameters afford a radiative decay rate constant (k_r) of 4.6 × 10⁷ s⁻¹ and a non-radiative decay constant (k_nr) of 2.0 × 10⁹ s⁻¹. A frozen (77 K) 2-methyltetrahydrofuran solution of 4a showed red phosphorescence in 600–750 nm with a lifetime of 43 ms. The generation of a photoexcited triplet species was further corroborated by the transient absorption spectra (Fig. S43, ESI†). Density functional theory (DFT) calculations at the CAM-B3LYP/6–31+G(d,p) level demonstrated that the lowest-energy absorption of PzBI is mainly attributable to the n–π* transition involving the lone pair of the doped imine-type nitrogen. The n–π* nature of the S₀–S₁ transition in PzBI accelerates ISC. Indeed, N-cyclohexyl PzBI 4b is non-emissive, while cyclohexyl-substituted anthracene bisimide 6 shows an intense emission (Φ = 0.54) with a lifetime of 8.6 ns (Fig. S44, ESI†).³⁷ These results indicate that the effective ISC of 4a originates from the doped imine-type nitrogen atoms.

Fig. 3 (a) UV/vis absorption spectra of 4 in CH₂Cl₂. (b) Emission spectra of 4a under different measurement conditions.

Electrochemical properties

Cyclic voltammetry and differential pulse voltammetry were conducted on PzBI 4b and anthracene bisimide 6 in CH₂Cl₂ using 0.1 M Bu₄NPF₆ as the supporting electrolyte and Ag/AgNO₃ as the reference electrode (Fig. 4). All potentials are given relative to the Fc/Fc⁺ couple as an external standard. PzBI 4b exhibits two reversible reduction waves at −1.07 V and −1.63 V. The first reduction potential of 4b is shifted to significantly higher voltages relative to those of anthracene bisimide 6 (−1.74 V)^36,37 and phenazine (−1.83 V).⁴¹ The first reduction potential of 4b (−3.8 eV vs. vacuum) is close to the criterion for air-stable electron-transporting materials (<−4.0 eV vs. vacuum).^13,42 These results indicate that the incorporation of both sp²-hybridized nitrogen atoms and imide substituents effectively enhances the electron-accepting character of anthracene. This dual stabilization of the LUMO level has also been confirmed by the density functional theory (DFT) calculations (Fig. S42, ESI†). Other derivatives 4a and 4c also exhibited two reduction waves (4a: −0.99 and −1.60 V; 4c: −0.88 and −1.52 V), which are comparable to those of 4b (Fig. S45 and S46, ESI†).

Fig. 4 Cyclic and differential pulse voltammograms of (a) 4b and (b) 6 in CH₂Cl₂.

X-ray diffraction analyses

The solid-state structures of 4b and 4c were unambiguously determined via single-crystal X-ray diffraction analysis (Fig. 5a and Fig. S28, ESI†). High-quality crystals of 4c were prepared using the naphthalene flux method.^43–45 In the single crystal, N,N′-dicyclohexyl PzBI 4b adopts a planar structure with a small mean-plane deviation (MPD), defined by 24 atoms in the π-core, of 0.09 Å. The C–N bond lengths at the central pyrazine unit (1.346(2) and 1.339(2) Å) are typical for pyridinic sp²-hybridized nitrogen atoms. The C–N–C bond angle (116.5(1)°) is narrower than that of an ideal hexagon (120°) due to the imine-type nitrogen atoms. The harmonic oscillator model of aromaticity (HOMA) value⁴⁶ for the central pyrazine subunit (0.79) suggests local aromatic character. The structural features of N,N′-bis(2,2,3,3,4,4,4-heptafluorobutyl) PzBI 4c are similar to those of 4b (Fig. S28, ESI†).

Fig. 5 (a) Crystal structure of 4b with thermal ellipsoids at 50% probability. Hydrogen atoms and substituents on imide groups are omitted for clarity. The value in parentheses shows the HOMA value. (b) Calculated ESP map of N,N′-dimethyl PzBI at the B3LYP/6-31G+(d,p) level.

The crystal packing of PzBIs 4b and 4c is characterized by a brickwork arrangement with interplanar distances of 3.15 Å and 3.05 Å, respectively (Fig. 6). These interplanar distances are remarkably shorter than the sum of the van der Waals radii of the carbon atoms (3.4 Å), which could be attributed to the decreased exchange repulsion in these electron-accepting π-systems. Anthracene bisimide 6 forms a different packing structure in which one-dimensionally slipped-stacked arrays align in alternating parallel and inverted arrangements (Fig. 6e). The combined results of the following analysis suggest that the preferential formation of the brickwork packing in PzBIs 4b and 4c originates from the cooperative effect of the imide substituents and imine-type nitrogen atoms. A Hirshfeld surface analysis⁴⁷ of PzBIs 4b and 4c indicates the presence of hydrogen bonding between the aromatic C–H protons and the carbonyl groups (Fig. 6b and d). While hydrogen bonding between other aromatic C–H protons and the imine-type nitrogen atoms is negligible, the C–H units are adjacent to the imine-type nitrogen atoms. The hypothetical replacement of these imine-type nitrogen atoms with C–H units can be expected to induce strong steric repulsion, which is likely the origin of the observed slipped-stacked arrangements for anthracene bisimide 6. Furthermore, the calculated electrostatic potential (ESP) map of N,N′-dimethyl PzBI demonstrates the alternate distribution of electropositive/electronegative sites along the longitudinal axis, which is perforable to minimize the misalignment along this axis (Fig. 5b and Fig. S40, ESI†).^23,24

Fig. 6 Crystal structures of 4b, 4c, and 6 with thermal ellipsoids at 50% probability. (a) Side view of the crystal packing of 4b. (b) Hirshfeld surface analysis of 4b. (c) Side view of the crystal packing of 4c. (d) Hirshfeld surface analysis of 4c. (e) Side view of the crystal packing of 6. In (a) and (c), the hydrogen atoms and substituents on the imide groups are omitted for clarity; arrows in (a), (c), and (e) indicate the direction of the transfer integrals.

Electron-transporting ability

We fabricated vacuum-deposited OFET devices based on 4b and 4c. For that purpose, an Al₂O₃/SiO₂ dielectric layer on a Si wafer was treated with a self-assembled monolayer of 12-cyclohexyldodecylphosphonic acid (CDPA),⁴⁸ before a thin layer of 4b or 4c was vacuum-deposited on the substrate (ca. 5 × 10⁻⁴ Pa; 0.03 nm s⁻¹). Then, gold electrodes were vacuum-deposited on the active layer as the source and drain electrodes (Fig. S29, ESI†). An atomic-force-microscopy (AFM) analysis showed that each substrate had a rough surface with tiny submicron grains (Fig. S30, ESI†). Out-of-plane X-ray diffraction analysis of a thin film made from 4b revealed a peak at 4.7°, corresponding to a distance of 18.6 Å, which is comparable to the c axis (18.5347(6) Å) of the unit cell (Fig. S31, ESI†). These results suggest that PzBI 4b adopts an edge-on arrangement on the substrate surface, which is preferable for effective carrier transport in OFET devices.⁴⁹ On the other hand, the vacuum-deposited film of 4c did not show any obvious peaks due to its lower crystallinity.

The properties of the OFET devices were measured at room temperature in vacuo (ca. 3 × 10⁻¹ Pa). The fabricated OFET devices exhibited typical n-type behavior (Fig. 7 and Fig. S33 and S34 and Tables S1–S3, ESI†) (Table 1). In the case of N,N′-dicyclohexyl PzBI 4b, the maximum and average electron mobilities are 9.9 × 10⁻² cm² V⁻¹ s⁻¹ and (4.6 ± 2.4) × 10⁻² cm² V⁻¹ s⁻¹, respectively. This maximum electron mobility of 4b is approximately ten times higher than that of anthracene bisimide 6 (1.0 × 10⁻² cm² V⁻¹ s⁻¹). The electron mobility of N,N′-bisheptafluorobutyl PzBI 4c is up to 8.2 × 10⁻³ cm² V⁻¹ s⁻¹, which is smaller than that of 4b due to the low crystallinity of the thin films of 4c (Fig. S31, ESI†). On the other hand, the film of 4c exhibits superior air durability compared to that of 4b, reflected in the small hysteresis in transfer characteristics and the relatively suppressed drop of electron mobility under air. The enhancement of air persistency by fluoroalkyl groups has been reported previously.^50,51

Fig. 7 Thin-film OFET properties of 4b and 4c under vacuum conditions; (a) transfer characteristics of 4b; (b) output characteristics of 4b; (c) transfer characteristics of 4c; (d) output characteristics of 4c.

Table 1 Vacuum-deposited OFET characteristics in the saturated regions of 4b and 4c

	μ max [cm^2 V^−1 s^−1]		μ average [cm^2 V^−1 s^−1]
	Vacuum	Air	Vacuum	Air
4b	9.9 × 10^−2	6.4 × 10^−3	(4.6 ± 2.4) × 10^−2	(2.2 ± 0.8) × 10^−3
4c	8.2 × 10^−3	3.5 × 10^−3	(5.7 ± 2.9) × 10^−3	(2.6 ± 1.7) × 10^−3

---

As heptafluorobutyl derivative 4c exhibited low electron mobility when incorporated in an OFET device, we estimated its intrinsic electron-transporting ability using time-resolved microwave conductivity (TRMC)⁵² measurements (Fig. S35–S37, ESI†). Electrodeless photocarrier injection was performed upon excitation at 355 nm, where the electronic transitions of the series of molecules tested are minimal, to ensure homogeneous photocarrier distribution in their crystalline states. The major charge-carrier species were determined to be electrons given that the transient conductivity decreased significantly upon exposure to SF₆ gas (Fig. S37, ESI†). To estimate the carrier mobility, the direct-current mode photocurrent was measured using a gold electrode on a glass substrate. For that purpose, 4c was cast onto gold electrodes with a 5 μm gap and excited at 355 nm with laser pulses of 4.1 × 10¹⁵ photons cm⁻². The photocurrent of 4c was proportional to the applied bias voltage (Fig. S36, ESI†) and the quantum yield of the carrier generation was estimated to be 2.3 × 10⁻⁴. Moreover, the photoconductivity (ΦΣμ) of 4c was determined to be 1.5 × 10⁻⁴ cm² V⁻¹ s⁻¹ based on the modulated excitation density at 355 nm of 3.6 × 10¹⁵ photons cm⁻². Finally, the minimum mobility in the crystalline forms was estimated to be μ = 0.7 cm² V⁻¹ s⁻¹, suggesting highly conductive pathways in crystalline domains.^52,53 We also conducted the TRMC measurements for 4b and 6, which indicates that nitrogen-doped species 4b exhibits one order of magnitude higher conductivity than 6 (Fig. S38, ESI†).

To explore why PzBI exhibits better electron-transporting properties than anthracene bisimide, we conducted DFT calculations to estimate the reorganization energies, λ, upon electron injection at the (U)B3LYP/6-31+G(d,p) level. The obtained λ value of N,N′-dimethyl PzBI (119 meV) is smaller than that of N,N′-dimethyl anthracene bisimide (268 meV). The small λ value of PzBI is advantageous for the efficient electron-transport according to the hopping model.⁵⁴ The electron injection causes the elongation of carbonyl C–O bonds and the shortening of the C–C bonds between the carbonyl groups and fused benzene units in both anthracene bisimide and PzBI. These displacements are more significant in anthracene bisimide rather than PzBI (C–O: 0.012 Å vs. 0.008 Å; C–C: 0.031 Å vs. 0.015 Å) (Fig. S41, ESI†). Furthermore, the bond displacements in the imide-substituted benzene rings are more significant in anthracene bisimide (up to 0.030 Å) rather than PzBI (up to 0.019 Å). These results suggest that the considerable reorganization energy of anthracene bisimide is caused by the predominant delocalization of the injected electron on the peripheral carbonyl groups, which associates with the deformation of local 6π-conjugation in the imide-substituted benzene rings. In contrast, the injected electron in PzBI can be stabilized by the two electronegative nitrogen atoms in the phenazine core, which suppresses the bond displacement upon electron injection.

We also calculated the transfer integrals, t, between the LUMOs of 4b, 4c, and 6 in their crystal-packing structures by the DFT method at the PBEPBE/6-31G(d) level (Fig. 5). Both 4b and 4c exhibit similar trends. The t value in the stacking direction is sufficiently high (4b: 69.3–19.4 meV; 4c: 105.6–20.5 meV) to facilitate the construction of two-dimensional conducting pathways. In contrast, while anthracene bisimide 6 exhibits a large transfer integral along the stacking direction (110.0 meV), the carrier transport along the perpendicular direction is disrupted by the parallel alignment of the slipped-stacked columns due to the significantly small transfer integrals (up to 5.3 meV). Consequently, 6 has only a one-dimensional conducting pathway, hampering effective carrier transport. These results highlight the effectiveness of the brickwork arrangements of PzBIs for the efficient electron transport.

Redox interconversion

The reduction of 4a was accomplished by treatment with 1,4-bis(trimethylsilyl)-1,4-dihydropyrazine and MeOH to afford the corresponding N,N′-dihydro derivative 13 in 89% yield (Scheme 2). The ¹H NMR spectrum of 13 shows a signal arising from the NH protons at 8.8 ppm, which disappeared upon adding D₂O. The oxidation of N,N′-dihydro PzBI 13 with p-chloranil reversely furnished PzBI 4a in 51% yield. The absorption of dihydro derivative 13 contains three bands: a sharp and intense peak at 313 nm, a broad band with moderate intensity at 350–450 nm, and a very weak forbidden absorption in the 450–650 nm region (Fig. 8). In addition, 13 is non-emissive. These spectral features are characteristic of an antiaromatic compound.^55,56 The local antiaromaticity of the dihydropyrazine subunit of 13 has been further supported by the DFT calculations: a positive nucleus-independent-chemical-shift (NICS)⁵⁷ value (+7.0 ppm) and a counterclockwise ring current in the anisotropy-of-the-induced-current-density (ACID)⁵⁸ simulation (Fig. 8, inset).

Scheme 2 Redox interconversion between PzBI 4a and its N,N′-dihydro derivative 13.

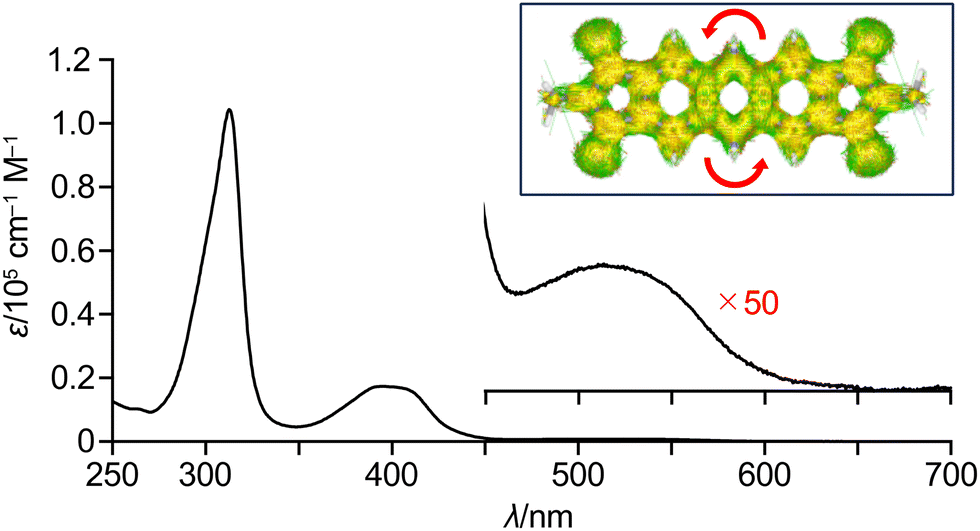

Fig. 8 UV/vis absorption spectra of 13 in CH₂Cl₂. Inset: ACID plot of 13.

Conclusions

We have reported the synthesis and properties of three PzBIs 4a–4c, which represent imide-functionalized anthracene derivatives containing imine-type nitrogen atoms. PzBIs 4 showed excellent electron affinity with a first reduction potential of −1.02 V (vs. Fc/Fc⁺). Vacuum-deposited OFET devices based on cyclohexyl derivative 4b exhibited n-type semiconducting behavior with an electron mobility of up to 9.9 × 10⁻² cm² V⁻¹ s⁻¹. Time-resolved microwave conductivity measurements revealed that the intrinsic electron mobility of heptafluorobutyl derivative 4c is approximately 0.7 cm² V⁻¹ s⁻¹. These values are higher than that of anthracene bisimide 6 (1.0 × 10⁻² cm² V⁻¹ s⁻¹). Considering that the OFET device of 4c exhibits high air persistency, our results conclude that 4c is a robust and efficient n-type organic semiconductor. We have rationalized that the superior electron-transporting ability of PzBIs 4b and 4c compared to 6 is due to their brickwork-type crystal-packing structures and high electron affinity. Both features originate from the cooperative function of imide-substituents and doped imine-type nitrogen atoms. These results underline the versatility of this molecular design for the development of practical n-type semiconductors.
